专业描述 工厂方法模式在父类中提供一个创建对象的方法, 允许子类决定实例化对象的类型。

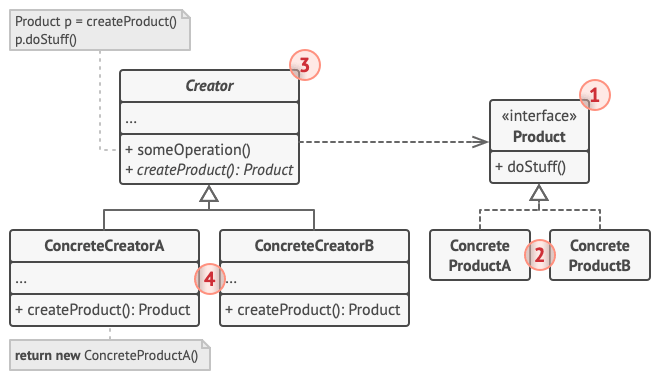

工厂方法模式结构
-
产品 (Product) 将会对接口进行声明。 对于所有由创建者及其子类构建的对象, 这些接口都是通用的。
-
具体产品 (Concrete Products) 是产品接口的不同实现。
-
创建者 (Creator) 类声明返回产品对象的工厂方法。 该方法的返回对象类型必须与产品接口相匹配。
- 你可以将工厂方法声明为抽象方法, 强制要求每个子类以不同方式实现该方法。 或者, 你也可以在基础工厂方法中返回默认产品类型。
- 注意, 尽管它的名字是创建者, 但他最主要的职责并不是创建产品。 一般来说, 创建者类包含一些与产品相关的核心业务逻辑。 工厂方法将这些逻辑处理从具体产品类中分离出来。 打个比方, 大型软件开发公司拥有程序员培训部门。 但是, 这些公司的主要工作还是编写代码, 而非生产程序员。
- 具体创建者 (Concrete Creators) 将会重写基础工厂方法, 使其返回不同类型的产品。
- 注意, 并不一定每次调用工厂方法都会创建新的实例。 工厂方法也可以返回缓存、 对象池或其他来源的已有对象。
实现方法:
- 让所有产品都遵循同一接口。 该接口必须声明对所有产品都有意义的方法。
- 在创建类中添加一个空的工厂方法。 该方法的返回类型必须遵循通用的产品接口。
- 在创建者代码中找到对于产品构造函数的所有引用。 将它们依次替换为对于工厂方法的调用, 同时将创建产品的代码移入工厂方法。 你可能需要在工厂方法中添加临时参数来控制返回的产品类型。
- 现在, 为工厂方法中的每种产品编写一个创建者子类, 然后在子类中重写工厂方法, 并将基本方法中的相关创建代码移动到工厂方法中。
- 如果应用中的产品类型太多, 那么为每个产品创建子类并无太大必要, 这时你也可以在子类中复用基类中的控制参数。
例如, 设想你有以下一些层次结构的类。 基类 邮件及其子类 航空邮件和 陆路邮件 ; 运输及其子类 飞机, 卡车和 火车 。 航空邮件仅使用 飞机对象, 而 陆路邮件则会同时使用 卡车和 火车对象。 你可以编写一个新的子类 (例如 火车邮件 ) 来处理这两种情况, 但是还有其他可选的方案。 客户端代码可以给 陆路邮件类传递一个参数, 用于控制其希望获得的产品。
- 如果代码经过上述移动后, 基础工厂方法中已经没有任何代码, 你可以将其转变为抽象类。 如果基础工厂方法中还有其他语句, 你可以将其设置为该方法的默认行为。
C++算法概念示例:
/**
* The Product interface declares the operations that all concrete products must
* implement.
*/
class Product {
public:
virtual ~Product() {}
virtual std::string Operation() const = 0;
};
/**
* Concrete Products provide various implementations of the Product interface.
*/
class ConcreteProduct1 : public Product {
public:
std::string Operation() const override {
return "{Result of the ConcreteProduct1}";
}
};
class ConcreteProduct2 : public Product {
public:
std::string Operation() const override {
return "{Result of the ConcreteProduct2}";
}
};
/**
* The Creator class declares the factory method that is supposed to return an
* object of a Product class. The Creator's subclasses usually provide the
* implementation of this method.
*/
class Creator {
/**
* Note that the Creator may also provide some default implementation of the
* factory method.
*/
public:
virtual ~Creator(){};
virtual Product* FactoryMethod() const = 0;
/**
* Also note that, despite its name, the Creator's primary responsibility is
* not creating products. Usually, it contains some core business logic that
* relies on Product objects, returned by the factory method. Subclasses can
* indirectly change that business logic by overriding the factory method and
* returning a different type of product from it.
*/
std::string SomeOperation() const {
// Call the factory method to create a Product object.
Product* product = this->FactoryMethod();
// Now, use the product.
std::string result = "Creator: The same creator's code has just worked with " + product->Operation();
delete product;
return result;
}
};
/**
* Concrete Creators override the factory method in order to change the
* resulting product's type.
*/
class ConcreteCreator1 : public Creator {
/**
* Note that the signature of the method still uses the abstract product type,
* even though the concrete product is actually returned from the method. This
* way the Creator can stay independent of concrete product classes.
*/
public:
Product* FactoryMethod() const override {
return new ConcreteProduct1();
}
};
class ConcreteCreator2 : public Creator {
public:
Product* FactoryMethod() const override {
return new ConcreteProduct2();
}
};
/**
* The client code works with an instance of a concrete creator, albeit through
* its base interface. As long as the client keeps working with the creator via
* the base interface, you can pass it any creator's subclass.
*/
void ClientCode(const Creator& creator) {
// ...
std::cout << "Client: I'm not aware of the creator's class, but it still works.\n"
<< creator.SomeOperation() << std::endl;
// ...
}
/**
* The Application picks a creator's type depending on the configuration or
* environment.
*/
int main() {
std::cout << "App: Launched with the ConcreteCreator1.\n";
Creator* creator = new ConcreteCreator1();
ClientCode(*creator);
std::cout << std::endl;
std::cout << "App: Launched with the ConcreteCreator2.\n";
Creator* creator2 = new ConcreteCreator2();
ClientCode(*creator2);
delete creator;
delete creator2;
return 0;
}
