Vivado【已解决】[Synth 8-462] no clock signal specified in event control

此博客为个人博客，不涉及商业用途，仅提供学习参考，内容均来自个人原创以及互联网转载和摘录。
此博客上带有原创标识的文章、图片、文件等，未经本人允许，不得用于商业用途以及传统媒体。
本文首发于CSDN，版权所有，禁止转载。
如需转载，请在评论区留言或私信申请，经同意后可转载，否则属于侵权行为。
————————————————

2021.3.31更新：
在xilinx的论坛上发布了问题，有好心人给出了答案，和之前推断的基本一致。链接。

引用其回答如下：

To run the synthesis, do not set testbench module as the top module since testbench module has no ports and initial blocks are non synthesizable.
Rearrange your logic in 2 modules, 1 with Testbench & other with synthesizable logics. For synthesis, set Synthesizable module as top module & run the synthesis.

如果嫌麻烦，可以直接把testbench从project里删去，也能直接出RTL电路。

————————————————

写了一个异步fifo的工程，在Vivado上利用testbench仿真通过以后，想要查看RTL电路，结果出现了以下错误：
[Synth 8-462] no clock signal specified in event control [“J:/Verilog_Develop/asyn_fifo/fifo_tb.v”:61]

fifo_tb.v的代码如下：

`timescale 1ns / 1ps

module fifo_tb();
    parameter DATASIZE = 8;

    reg  [DATASIZE-1:0] wdata;
    reg        w_req, wclk, wrst_n;
    reg        r_req, rclk, rrst_n;
    wire [DATASIZE-1:0] rdata;
    wire       wfull;
    wire       rempty;

    fifo fifo0 (
                   .rdata(rdata),
                   .wfull(wfull),
                   .rempty(rempty),
                   .wdata (wdata),
                   .w_req  (w_req),
                   .wclk  (wclk),
                   .wrst_n(wrst_n),
                   .r_req(r_req),
                   .rclk(rclk),
                   .rrst_n(rrst_n)
     );

    //时钟周期，单位为ns，可在此修改时钟周期。
    localparam CYCLE = 20;
    localparam CYCLE1 = 40;

    //生成本地时钟50M
    initial begin
        wclk = 0;
        forever begin
            #(CYCLE/2)
            wclk=~wclk;
        end
    end

    initial begin
        rclk = 0;
        forever begin
            #(CYCLE1/2)
            rclk=~rclk;
        end
    end

    //产生复位信号
    initial begin
        wrst_n = 1;
        #2 wrst_n = 0;
        #(CYCLE*3) wrst_n = 1;
        #1000 $stop;
    end

    initial begin
        rrst_n = 1;
        #2 rrst_n = 0;
        #(CYCLE*3) rrst_n = 1;
    end

    always  @(posedge wclk or negedge wrst_n)begin
        if(wrst_n==1'b0)begin
            w_req <= 0;
        end
        else begin
            w_req <= $random;
        end
    end

    always  @(posedge rclk or negedge rrst_n)begin
        if(rrst_n==1'b0)begin
            r_req <= 0;
        end
        else begin
            r_req <= $random;
        end
    end

    always@(*)begin
      if(w_req == 1)
        wdata = $random ;
      else
        wdata = 0;
    end

endmodule

61行：

always  @(posedge wclk or negedge wrst_n)begin

这里对wclk和wrst_n两个时钟进行了使用。Vivado不允许testbench里生成的时钟又在testbench中用来生成其他模块里需要使用的信号。因为这是不可综合的。

所以，这里将w_req、r_req和wdata的生成都放到了顶层模块中。但顶层模块必须是可综合的，不允许使用$random。所以，为了保证随机性，这里重新定义了w_req_val和r_req_val变量来传递信号给顶层模块。同时，在顶层模块中利用temp变量主动递增以产生wdata。

修改后的代码：
fifo_tb.v：

`timescale 1ns / 1ps

module fifo_tb();
    parameter DATASIZE = 8;

    reg  [DATASIZE-1:0] wdata_val = 0;
    reg        w_req_val, wclk, wrst_n;
    reg        r_req_val, rclk, rrst_n;
    wire [DATASIZE-1:0] rdata;
    wire       wfull;
    wire       rempty;

    fifo fifo0 (
                   .rdata(rdata),
                   .wfull(wfull),
                   .rempty(rempty),
                   .wdata_val (wdata_val),
                   .w_req_val  (w_req_val),
                   .wclk  (wclk),
                   .wrst_n(wrst_n),
                   .r_req_val(r_req_val),
                   .rclk(rclk),
                   .rrst_n(rrst_n)
     );

    //clock cycle
    localparam CYCLE = 20;
    localparam CYCLE1 = 40;

    //生成本地时钟50M
    initial begin
        wclk = 0;
        forever begin
            #(CYCLE/2) begin
                wclk=~wclk;
                w_req_val <= $random;
            end
        end
    end

    initial begin
        rclk = 0;
        forever begin
            #(CYCLE1/2) begin
                rclk=~rclk;
                r_req_val <= $random;
            end
        end
    end

    //产生复位信号
    initial begin
        wrst_n = 1;
        #2 wrst_n = 0;
        #(CYCLE*3) wrst_n = 1;
        #2000 $stop;
    end

    initial begin
        rrst_n = 1;
        #2 rrst_n = 0;
        #(CYCLE*3) rrst_n = 1;
    end



    always@(*)begin
        wdata_val = wdata_val + 1;;
    end

endmodule

fifo.v：

module fifo
#(
  parameter DATASIZE = 8,
  parameter ADDRSIZE = 4
 )
 (
     output [DATASIZE-1:0] rdata,
     output             wfull,
     output             rempty,
     input              w_req_val, wclk, wrst_n,
     input              r_req_val, rclk, rrst_n
 );

  wire   [ADDRSIZE-1:0] waddr, raddr;
  wire   [ADDRSIZE:0]   wptr, rptr, wq2_rptr, rq2_wptr;
  reg   w_req, r_req;
  reg  [DATASIZE-1:0] wdata;
  reg  [DATASIZE-1:0] temp = 0;
// synchronize the read pointer into the write-clock domain
  sync_r2w  sync_r2w0
  (
                    .wq2_rptr    (wq2_rptr),
                    .rptr        (rptr    ),
                    .wclk        (wclk    ),
                    .wrst_n      (wrst_n  )
 );

// synchronize the write pointer into the read-clock domain
  sync_w2r  sync_w2r0
  (
                   .rq2_wptr(rq2_wptr),
                   .wptr(wptr),
                   .rclk(rclk),
                   .rrst_n(rrst_n)
 );

//this is the FIFO memory buffer that is accessed by both the write and read clock domains.
//This buffer is most likely an instantiated, synchronous dual-port RAM.
//Other memory styles can be adapted to function as the FIFO buffer.
  fifomem
  #(DATASIZE, ADDRSIZE)
  fifomem0
  (
      .rdata(rdata),
      .wdata(wdata),
      .waddr(waddr),
      .raddr(raddr),
      .wclken(w_req),
      .wfull(wfull),
      .wclk(wclk)
  );

//this module is completely synchronous to the read-clock domain and contains the FIFO read pointer and empty-flag logic.
  rptr_empty
  #(ADDRSIZE)
  rptr_empty0
  (
      .rempty(rempty),
      .raddr(raddr),
      .rptr(rptr),
      .rq2_wptr(rq2_wptr),
      .r_req(r_req),
      .rclk(rclk),
      .rrst_n(rrst_n)
  );

//this module is completely synchronous to the write-clock domain and contains the FIFO write pointer and full-flag logic
  wptr_full
  #(ADDRSIZE)
  wptr_full0
  (
      .wfull(wfull),
      .waddr(waddr),
      .wptr(wptr),
      .wq2_rptr(wq2_rptr),
      .w_req(w_req),
      .wclk(wclk),
      .wrst_n(wrst_n)
  );

  always  @(posedge wclk or negedge wrst_n)begin
      if(wrst_n==1'b0)begin
          w_req <= 0;
      end
      else begin
          w_req <= w_req_val;
      end
  end

  always  @(posedge rclk or negedge rrst_n)begin
      if(rrst_n==1'b0)begin
          r_req <= 0;
      end
      else begin
          r_req <= r_req_val;
      end
  end

  always  @(*)begin
      if(w_req == 1)
          wdata = temp;
      else
          wdata = 0;
  end

  always  @(posedge w_req) begin
      temp = temp + 1;
  end
endmodule

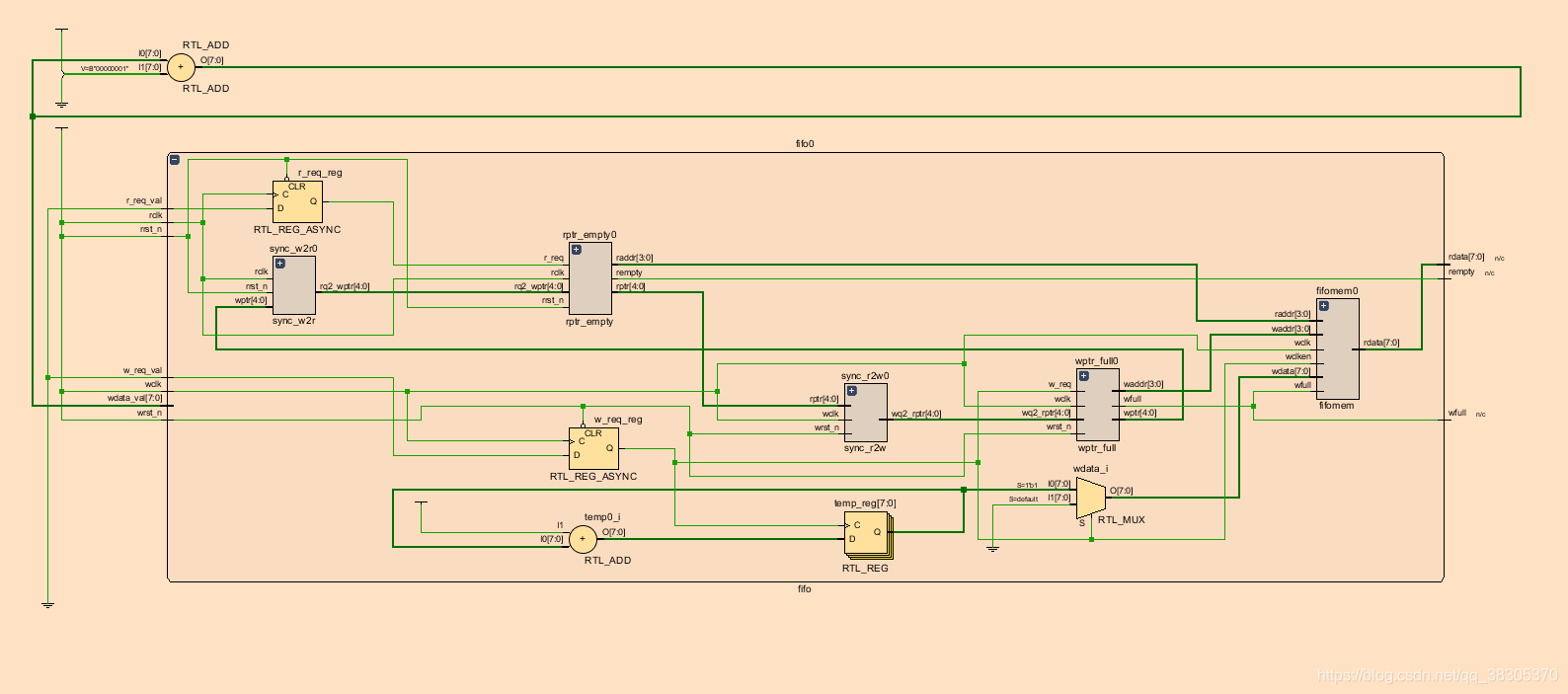

最后生成的RTL电路为：

————————————————
