使用Allegro PCB Designer (23.1) 进行元件快速放置（Quickplace）时，出现以下报错：

(SPMHDB-181): The current version of software is unable to open design bga636_1.
The design was last saved using version 16.5 and must be updated using DB Doctor. [help]
(SPMHDB-181): The current version of software is unable to open design fbga220-14x14.
The design was last saved using version 16.5 and must be updated using DB Doctor. [help]
(SPMHDB-181): The current version of software is unable to open design csp0608-80.
The design was last saved using version 16.5 and must be updated using DB Doctor. [help]
(SPMHDB-181): The current version of software is unable to open design tsop1-48.
The design was last saved using version 16.5 and must be updated using DB Doctor. [help]
(SPMHDB-181): The current version of software is unable to open design ap6xxx.
The design was last saved using version 16.5 and must be updated using DB Doctor. [help]
(SPMHDB-181): The current version of software is unable to open design aa07p032va1n.
The design was last saved using version 16.5 and must be updated using DB Doctor. [help]

原因是封装过旧，需要用DB Doctor更新，对于零星的文件可以通过手动更新，批量更新可以通过下面的方式：（批量调用DB Doctor）

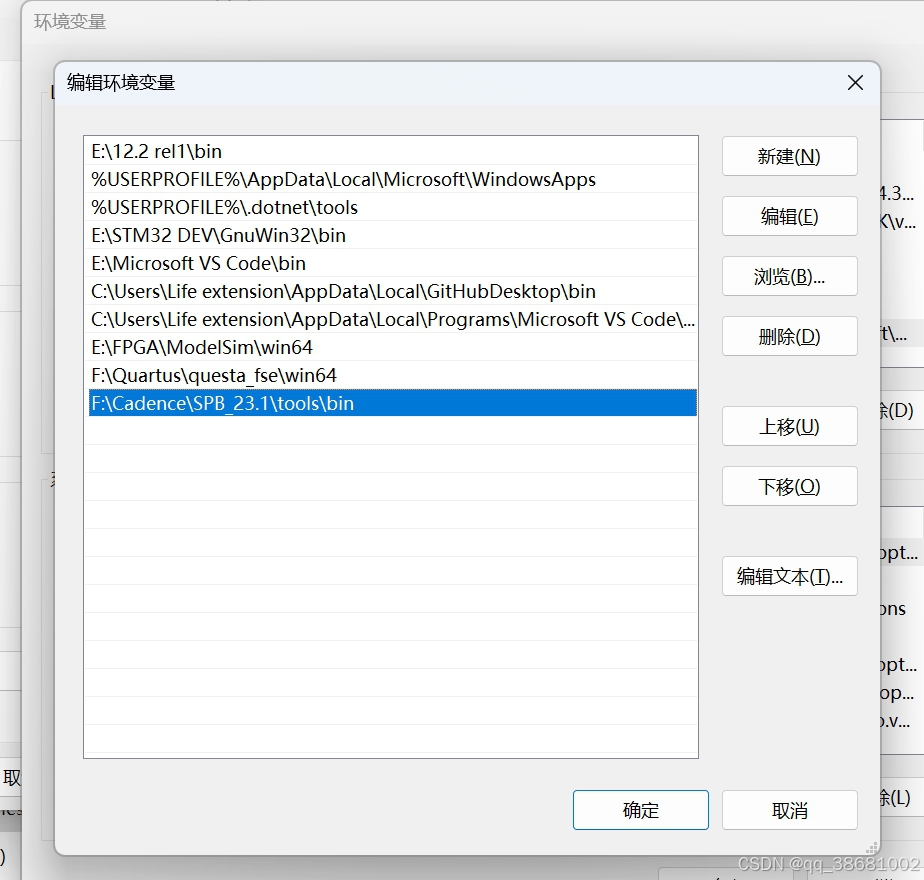

1、将DB Doctor所在的文件路径添加到环境变量中。（确保能够调用）

2、创建list.txt文本文档，复制以下内容，随后保存为.dat文件。

dir . /b >list.txt
for /F %%i in (list.txt) do DBDoctor %%i
del list.txt /s

注意：批处理仅针对当前目录，若要包含子目录，需将每一级目录放置dat文件运行批处理。

3、将dat文件复制到封装目录中，运行dat文件。

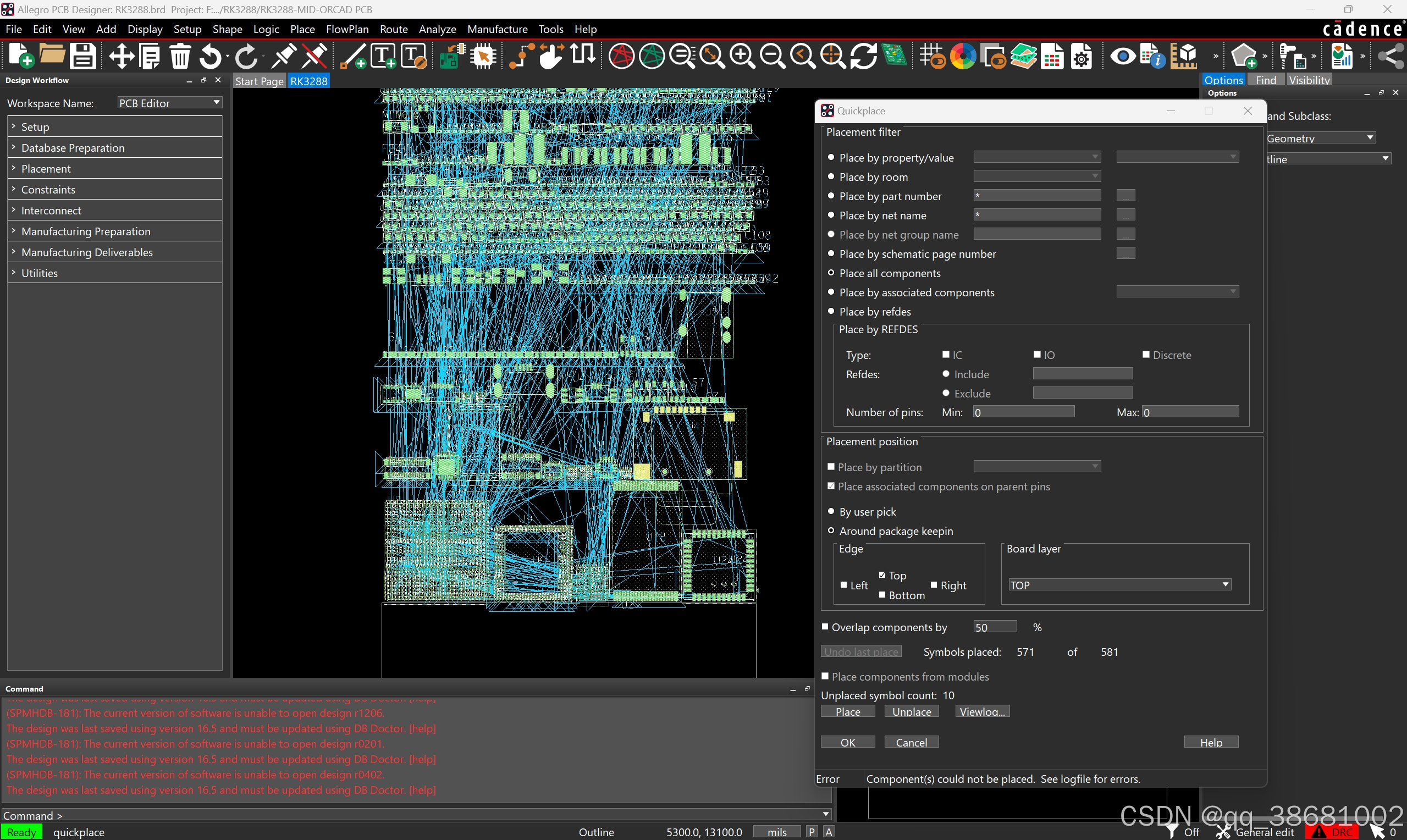

4、完成运行后重新进行元件快速放置（Quickplace），如下图所示，大功告成。
