图像处理大作业(用霍夫变换检测硬币及统计硬币个数,并设计GUI界面)

实现所给硬币图像中的硬币检测及计数

要求完成功能:自行查找、阅读有关的采用Hough变换来检测图像中圆的资料,设计实现所给图像中圆形的检测,要求检测出图像中硬币个数以及各个硬币的直径。

本题难度系数:★★★★

GUI界面设计参考:MATLAB学习笔记(十一)——MATLAB图形用户界面设计

https://www.cnblogs.com/BlueMountain-HaggenDazs/p/4307777.html

我采用了霍夫变换对所给图形进行了检测和统计个数:

原图如下:

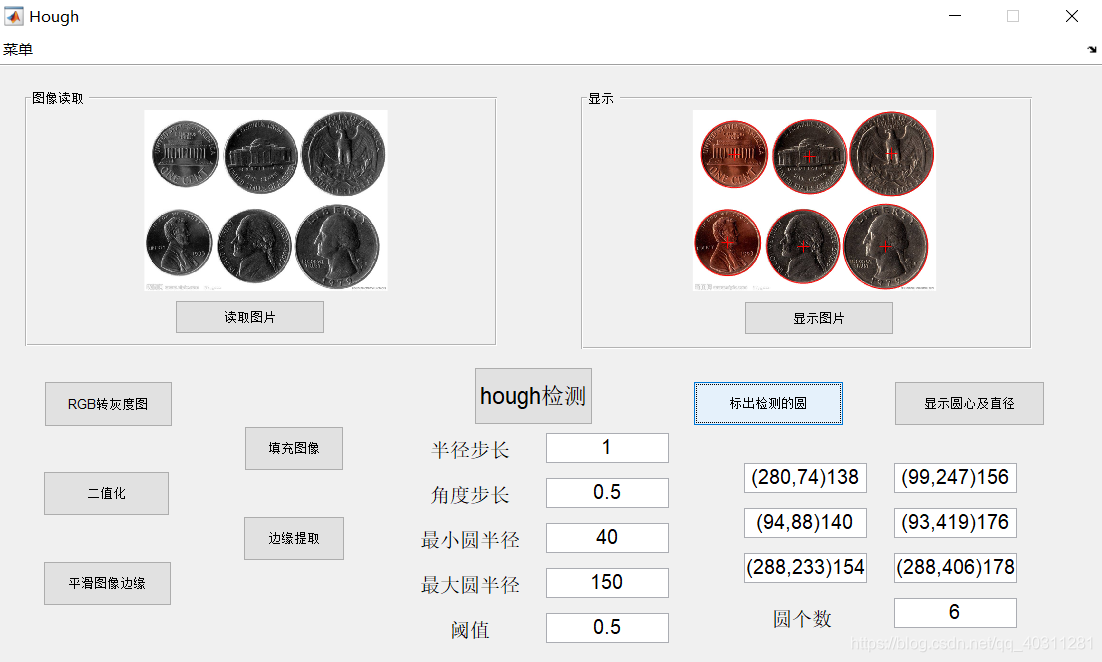

检测后的效果:

全部matlab代码如下:

Hough.m文件:

function varargout = Hough(varargin)
% HOUGH MATLAB code for Hough.fig
%      HOUGH, by itself, creates a new HOUGH or raises the existing
%      singleton*.
%
%      H = HOUGH returns the handle to a new HOUGH or the handle to
%      the existing singleton*.
%
%      HOUGH('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in HOUGH.M with the given input arguments.
%
%      HOUGH('Property','Value',...) creates a new HOUGH or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before Hough_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to Hough_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES
% Edit the above text to modify the response to help Hough
% Last Modified by GUIDE v2.5 10-Jan-2019 20:43:12
% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @Hough_OpeningFcn, ...
                   'gui_OutputFcn',  @Hough_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before Hough is made visible.
function Hough_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to Hough (see VARARGIN)

% Choose default command line output for Hough
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes Hough wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = Hough_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in pushbutton4.
function pushbutton4_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton4 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)


% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
%打开文件
global img
[filename, pathname]= ...
    uigetfile({'*.*';'*.bmp';'*.tif';'*.png';'*.jpg'},'select picture');
str= [pathname filename];
img= imread(str);
axes(handles.axes1);
imshow(img);

% --- Executes on button press in pushbutton2.
function pushbutton2_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
global img;
global Gray;
 img=imresize(img,0.5);
[m,n,l] = size(img);
if l == 3
    Gray = rgb2gray(img);    %如果为彩色图 则转化为灰度图
else
    Gray=img;
end
axes(handles.axes1);
imshow(Gray);

% --- Executes on button press in pushbutton3.
function pushbutton3_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton3 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)


% --- Executes on button press in pushbutton5.
function pushbutton5_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton5 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
global Gray;
global BW1;
BW1=im2bw(Gray,graythresh(Gray));   %转化为二值图像
axes(handles.axes2);
imshow(BW1)


% --- Executes on button press in pushbutton6.
function pushbutton6_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton6 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
global BW1;
BW1=imopen(BW1,strel('disk',3));  %转化为二值图像
axes(handles.axes2);
imshow(BW1)


% --- Executes on button press in pushbutton7.
function pushbutton7_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton7 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
global BW1;
BW1=imfill(~BW1,'holes');  %填充图像空洞
axes(handles.axes2);
imshow(BW1)


% --- Executes on button press in pushbutton8.
function pushbutton8_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton8 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
%sobel算子边缘检测
global BW1;
BW1 = edge(BW1,'sobel');
axes(handles.axes2);
imshow(BW1)


% --- Executes on button press in pushbutton9.
function pushbutton9_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton9 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
global BW1;
global para;
%hough检测
step_r = str2num(get(handles.edit1, 'String'));
step_angle = str2num(get(handles.edit2, 'String'));
minr =str2num(get(handles.edit3, 'String'));
maxr = str2num(get(handles.edit4, 'String'));
thresh = str2num(get(handles.edit5, 'String'));

[Hough_Space,Hough_Circle,para] = hough_circle(BW1,step_r,step_angle,minr,maxr,thresh);
axes(handles.axes2);
imshow(Hough_Circle);


% --- Executes on button press in pushbutton10.
function pushbutton10_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton10 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
global para;
global circleParaXYR;
circleParaXYR=para;
%通过位置求圆心和半径
[r,c]=size(circleParaXYR);
for i=1:r
    a='handles.edit';
    b=5+i;
    c=[a num2str(b)];
    d=[a num2str(5+r+1)];
  set(eval(c),'string',['(' num2str(floor(circleParaXYR(i,1))) ',' num2str(floor(circleParaXYR(i,2))) ')', num2str(2*floor(circleParaXYR(i,3)))]);
  set(eval(d),'string',num2str(r));
end


% --- Executes on button press in pushbutton11.
function pushbutton11_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton11 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
%标出圆
global img;
global circleParaXYR;
axes(handles.axes2);
imshow(img);
hold on;
 plot(circleParaXYR(:,2), circleParaXYR(:,1), 'r+');
 for k = 1 : size(circleParaXYR, 1)
  t=0:0.01*pi:2*pi;
  x=cos(t).*circleParaXYR(k,3)+circleParaXYR(k,2);y=sin(t).*circleParaXYR(k,3)+circleParaXYR(k,1);
  plot(x,y,'r-');
 end
