mmclassification 训练自己的数据集

1037号森林里一段干木头

已于 2024-04-25 19:50:31 修改

阅读量690

点赞数 5

分类专栏： mmlab 文章标签：人工智能计算机视觉深度学习 cnn 机器学习

于 2024-04-22 10:44:49 首次发布

本文链接：https://blog.csdn.net/qq_40622955/article/details/138060374

版权

mmlab 专栏收录该内容

2 篇文章 0 订阅

订阅专栏

文章目录

1 从源码安装

git clone https://github.com/open-mmlab/mmpretrain.git
cd mmpretrain
pip install -U openmim && mim install -e .

下面是我使用的版本

/media/xp/data/pydoc/mmlab/mmpretrain$ pip show mmcv mmpretrain mmengine
Name: mmcv
Version: 2.1.0
Summary: OpenMMLab Computer Vision Foundation
Home-page: https://github.com/open-mmlab/mmcv
Author: MMCV Contributors
Author-email: openmmlab@gmail.com
License: UNKNOWN
Location: /home/xp/anaconda3/envs/py3/lib/python3.8/site-packages
Requires: addict, mmengine, numpy, packaging, Pillow, pyyaml, yapf
Required-by:
---
Name: mmpretrain
Version: 1.2.0
Summary: OpenMMLab Model Pretraining Toolbox and Benchmark
Home-page: https://github.com/open-mmlab/mmpretrain
Author: MMPretrain Contributors
Author-email: openmmlab@gmail.com
License: Apache License 2.0
Location: /media/xp/data/pydoc/mmlab/mmpretrain
Editable project location: /media/xp/data/pydoc/mmlab/mmpretrain
Requires: einops, importlib-metadata, mat4py, matplotlib, modelindex, numpy, rich
Required-by:
---
Name: mmengine
Version: 0.10.3
Summary: Engine of OpenMMLab projects
Home-page: https://github.com/open-mmlab/mmengine
Author: MMEngine Authors
Author-email: openmmlab@gmail.com
License: UNKNOWN
Location: /home/xp/anaconda3/envs/py3/lib/python3.8/site-packages
Requires: addict, matplotlib, numpy, opencv-python, pyyaml, rich, termcolor, yapf
Required-by: mmcv

2 数据集准备

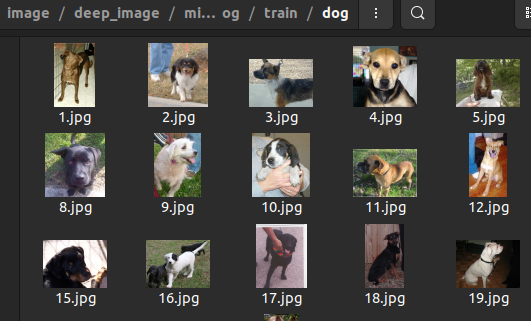

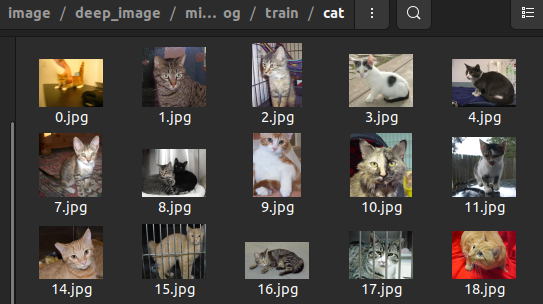

我以cat and dog分类数据集为例，我的训练集如下

/media/xp/data/image/deep_image/mini_cat_and_dog$ tree -L 2
.
├── train
│   ├── cat
│   └── dog
└── val
    ├── cat
    └── dog

在这里插入图片描述

注意：我训练的时候有些图好像是坏的，mmcv以opencv为后端来获取图片，这里最好先把坏图过滤掉，不然训练的时候会报cv imencode失败或者找不到图像。用下面的代码可以去除掉opencv打不开的图。

import cv2 as cv
import os

def find_all_image_files(root_dir):
    image_files = []
    for root, dirs, files in os.walk(root_dir):
        for file in files:
            if file.endswith('.jpg') or file.endswith('.png'):
                image_files.append(os.path.join(root, file))
    return image_files

def is_bad_image(image_file):
    try:
        img = cv.imread(image_file)
        if img is None:
            return True
        return False
    except:
        return True

def remove_bad_images(root_dir):
    image_files = find_all_image_files(root_dir)
    for image_file in image_files:
        if is_bad_image(image_file):
            os.remove(image_file)
            print(f"Removed bad image: {image_file}")

remove_bad_images("/media/xp/data/image/deep_image/mini_cat_and_dog")

3 config文件

mmlab系列的训练测试转化都是以config来配置的，三个基础块，一个是数据集，一个是模型，一个是runtime，有很多模型都是从_base_目录中继承这三个组件，然后修改其中的一些选项来训练不同的模型和数据集。
在训练的时候mm会保存一个训练的配置到work_dir目录下，后面也可以直接复制这个config去修改，把所有内容整合到一个config中，方便管理。如果你也喜欢这样的方式可以直接copy附录中的config修改去训练。
下面是我训练mobilenet v3时修改的config。

在config/mobilenet_v3 目录下添加一个文件my_mobilenetv3.py
configs/mobilenet_v3/my_mobilenetv3.py

_base_ = [
    # '../_base_/models/mobilenet_v3/mobilenet_v3_small_075_imagenet.py',
    '../_base_/datasets/my_custom.py',
    '../_base_/default_runtime.py',
]

# model settings

model = dict(
    type='ImageClassifier',
    backbone=dict(type='MobileNetV3', arch='small_075'),
    neck=dict(type='GlobalAveragePooling'),
    head=dict(
        type='StackedLinearClsHead',
        num_classes=2,
        in_channels=432,
        mid_channels=[1024],
        dropout_rate=0.2,
        act_cfg=dict(type='HSwish'),
        loss=dict(type='CrossEntropyLoss', loss_weight=1.0),
        init_cfg=dict(
            type='Normal', layer='Linear', mean=0., std=0.01, bias=0.),
        topk=(1, 1)))
# model = dict(backbone=dict(norm_cfg=dict(type='BN', eps=1e-5, momentum=0.1)))

my_image_size = 128
my_max_epochs = 300
my_batch_size = 128

train_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(
        type='RandomResizedCrop',
        scale=my_image_size,
        backend='pillow',
        interpolation='bicubic'),
    dict(type='RandomFlip', prob=0.5, direction='horizontal'),
    dict(
        type='AutoAugment',
        policies='imagenet',
        hparams=dict(pad_val=[round(x) for x in [128,128,128]])),
    dict(
        type='RandomErasing',
        erase_prob=0.2,
        mode='rand',
        min_area_ratio=0.02,
        max_area_ratio=1 / 3,
        fill_color=[128,128,128],
        fill_std=[50,50,50]),
    dict(type='PackInputs'),
]

test_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(
        type='ResizeEdge',
        scale=my_image_size,
        edge='short',
        backend='pillow',
        interpolation='bicubic'),
    dict(type='CenterCrop', crop_size=my_image_size),
    dict(type='PackInputs'),
]

train_dataloader = dict(dataset=dict(pipeline=train_pipeline))
val_dataloader = dict(dataset=dict(pipeline=test_pipeline))
test_dataloader = val_dataloader

# schedule settings
optim_wrapper = dict(
    optimizer=dict(
        type='RMSprop',
        lr=0.064,
        alpha=0.9,
        momentum=0.9,
        eps=0.0316,
        weight_decay=1e-5))

param_scheduler = dict(type='StepLR', by_epoch=True, step_size=2, gamma=0.973)

train_cfg = dict(by_epoch=True, max_epochs=600, val_interval=10)
val_cfg = dict()
test_cfg = dict()

# NOTE: `auto_scale_lr` is for automatically scaling LR
# based on the actual training batch size.
# base_batch_size = (8 GPUs) x (128 samples per GPU)
auto_scale_lr = dict(base_batch_size=my_batch_size)

在configs/base/datasets/下面创建 my_custom.py

# dataset settings
dataset_type = 'CustomDataset'
data_preprocessor = dict(
    num_classes=2,
    # RGB format normalization parameters
    mean=[128,128,128],
    std=[50,50,50],
    # convert image from BGR to RGB
    to_rgb=True,
)

train_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(type='ResizeEdge', scale=128, edge='short'),
    dict(type='CenterCrop', crop_size=128),
    dict(type='RandomFlip', prob=0.5, direction='horizontal'),
    dict(type='PackInputs'),
]

test_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(type='ResizeEdge', scale=128, edge='short'),
    dict(type='CenterCrop', crop_size=128),
    dict(type='PackInputs'),
]

train_dataloader = dict(
    batch_size=32,
    num_workers=1,
    dataset=dict(
        type=dataset_type,
        data_root='/media/xp/data/image/deep_image/mini_cat_and_dog',
        data_prefix='train',
        with_label=True,
        pipeline=train_pipeline),
    sampler=dict(type='DefaultSampler', shuffle=True),
)


val_dataloader = dict(
    batch_size=32,
    num_workers=1,
    dataset=dict(
        type=dataset_type,
        data_root='/media/xp/data/image/deep_image/mini_cat_and_dog',
        data_prefix='val',
        with_label=True,
        pipeline=test_pipeline),
    sampler=dict(type='DefaultSampler', shuffle=False),
)
val_evaluator = dict(type='Accuracy', topk=(1, 1))

# If you want standard test, please manually configure the test dataset
test_dataloader = val_dataloader
test_evaluator = val_evaluator

4 训练

$ python tools/train.py configs/mobilenet_v3/my_mobilenetv3.py

输出

04/22 10:08:18 - mmengine - INFO -
------------------------------------------------------------
System environment:
    sys.platform: linux
    Python: 3.11.5 (main, Sep 11 2023, 13:54:46) [GCC 11.2.0]
    CUDA available: True
    MUSA available: False
    numpy_random_seed: 769660308
    GPU 0: Quadro M6000 24GB
    CUDA_HOME: /usr/local/cuda-11.8
    NVCC: Cuda compilation tools, release 11.8, V11.8.89
    GCC: gcc (Ubuntu 11.4.0-1ubuntu1~22.04) 11.4.0
    PyTorch: 2.2.2+cu121
    PyTorch compiling details: PyTorch built with:
  - GCC 9.3
  - C++ Version: 201703
  - Intel(R) oneAPI Math Kernel Library Version 2023.1-Product Build 20230303 for Intel(R) 64 architecture applications
  - Intel(R) MKL-DNN v3.3.2 (Git Hash 2dc95a2ad0841e29db8b22fbccaf3e5da7992b01)
  - OpenMP 201511 (a.k.a. OpenMP 4.5)
  - LAPACK is enabled (usually provided by MKL)
  - NNPACK is enabled
  - CPU capability usage: AVX2
  - CUDA Runtime 12.1
  - NVCC architecture flags: -gencode;arch=compute_50,code=sm_50;-gencode;arch=compute_60,code=sm_60;-gencode;arch=compute_70,code=sm_70;-gencode;arch=compute_75,code=sm_75;-gencode;arch=compute_80,code=sm_80;-gencode;arch=compute_86,code=sm_86;-gencode;arch=compute_90,code=sm_90
  - CuDNN 8.9.2
  - Magma 2.6.1
  - Build settings: BLAS_INFO=mkl, BUILD_TYPE=Release, CUDA_VERSION=12.1, CUDNN_VERSION=8.9.2, CXX_COMPILER=/opt/rh/devtoolset-9/root/usr/bin/c++, CXX_FLAGS= -D_GLIBCXX_USE_CXX11_ABI=0 -fabi-version=11 -fvisibility-inlines-hidden -DUSE_PTHREADPOOL -DNDEBUG -DUSE_KINETO -DLIBKINETO_NOROCTRACER -DUSE_FBGEMM -DUSE_QNNPACK -DUSE_PYTORCH_QNNPACK -DUSE_XNNPACK -DSYMBOLICATE_MOBILE_DEBUG_HANDLE -O2 -fPIC -Wall -Wextra -Werror=return-type -Werror=non-virtual-dtor -Werror=bool-operation -Wnarrowing -Wno-missing-field-initializers -Wno-type-limits -Wno-array-bounds -Wno-unknown-pragmas -Wno-unused-parameter -Wno-unused-function -Wno-unused-result -Wno-strict-overflow -Wno-strict-aliasing -Wno-stringop-overflow -Wsuggest-override -Wno-psabi -Wno-error=pedantic -Wno-error=old-style-cast -Wno-missing-braces -fdiagnostics-color=always -faligned-new -Wno-unused-but-set-variable -Wno-maybe-uninitialized -fno-math-errno -fno-trapping-math -Werror=format -Wno-stringop-overflow, LAPACK_INFO=mkl, PERF_WITH_AVX=1, PERF_WITH_AVX2=1, PERF_WITH_AVX512=1, TORCH_VERSION=2.2.2, USE_CUDA=ON, USE_CUDNN=ON, USE_EXCEPTION_PTR=1, USE_GFLAGS=OFF, USE_GLOG=OFF, USE_MKL=ON, USE_MKLDNN=ON, USE_MPI=OFF, USE_NCCL=1, USE_NNPACK=ON, USE_OPENMP=ON, USE_ROCM=OFF, USE_ROCM_KERNEL_ASSERT=OFF,

    TorchVision: 0.17.2+cu121
    OpenCV: 4.9.0
    MMEngine: 0.10.4

Runtime environment:
    cudnn_benchmark: False
    mp_cfg: {'mp_start_method': 'fork', 'opencv_num_threads': 0}
    dist_cfg: {'backend': 'nccl'}
    seed: 1921958984
    deterministic: False
    Distributed launcher: none
    Distributed training: False
    GPU number: 1
--------------------------------------
04/22 10:09:08 - mmengine - WARNING - "FileClient" will be deprecated in future. Please use io functions in https://mmengine.readthedocs.io/en/latest/api/fileio.html#file-io
04/22 10:09:08 - mmengine - WARNING - "HardDiskBackend" is the alias of "LocalBackend" and the former will be deprecated in future.
04/22 10:09:08 - mmengine - INFO - Checkpoints will be saved to /media/xp/data/pydoc/mmlab/mmpretrain/work_dirs/my_mobilenetv3.
Corrupt JPEG data: 214 extraneous bytes before marker 0xd9
04/22 10:09:17 - mmengine - INFO - Exp name: my_mobilenetv3_20240422_100907
04/22 10:09:17 - mmengine - INFO - Epoch(train)   [1][98/98]  lr: 6.4000e-02  eta: 1:31:37  time: 0.0913  data_time: 0.0129  loss: 11.2596
04/22 10:09:17 - mmengine - INFO - Saving checkpoint at 1 epochs
Corrupt JPEG data: 214 extraneous bytes before marker 0xd9
04/22 10:09:26 - mmengine - INFO - Exp name: my_mobilenetv3_20240422_100907
04/22 10:09:26 - mmengine - INFO - Epoch(train)   [2][98/98]  lr: 6.4000e-02  eta: 1:30:36  time: 0.0905  data_time: 0.0129  loss: 0.7452
04/22 10:09:26 - mmengine - INFO - Saving checkpoint at 2 epochs
Corrupt JPEG data: 214 extraneous bytes before marker 0xd9
04/22 10:09:35 - mmengine - INFO - Exp name: my_mobilenetv3_20240422_100907
04/22 10:09:35 - mmengine - INFO - Epoch(train)   [3][98/98]  lr: 6.2272e-02  eta: 1:29:30  time: 0.0841  data_time: 0.0059  loss: 0.7198
04/22 10:09:35 - mmengine - INFO - Saving checkpoint at 3 epochs
Corrupt JPEG data: 214 extraneous bytes before marker 0xd9
04/22 10:09:44 - mmengine - INFO - Exp name: my_mobilenetv3_20240422_100907
04/22 10:09:44 - mmengine - INFO - Epoch(train)   [4][98/98]  lr: 6.2272e-02  eta: 1:29:02  time: 0.0856  data_time: 0.0047  loss: 0.6938
04/22 10:09:44 - mmengine - INFO - Saving checkpoint at 4 epochs
Corrupt JPEG data: 214 extraneous bytes before marker 0xd9
04/22 10:09:53 - mmengine - INFO - Exp name: my_mobilenetv3_20240422_100907
04/22 10:09:53 - mmengine - INFO - Epoch(train)   [5][98/98]  lr: 6.0591e-02  eta: 1:28:42  time: 0.0877  data_time: 0.0100  loss: 0.7128
04/22 10:09:53 - mmengine - INFO - Saving checkpoint at 5 epochs
Corrupt JPEG data: 214 extraneous bytes before marker 0xd9
04/22 10:10:02 - mmengine - INFO - Exp name: my_mobilenetv3_20240422_100907
04/22 10:10:02 - mmengine - INFO - Epoch(train)   [6][98/98]  lr: 6.0591e-02  eta: 1:28:32  time: 0.0857  data_time: 0.0069  loss: 0.7214
04/22 10:10:02 - mmengine - INFO - Saving checkpoint at 6 epochs
Corrupt JPEG data: 214 extraneous bytes before marker 0xd9
04/22 10:10:11 - mmengine - INFO - Exp name: my_mobilenetv3_20240422_100907
04/22 10:10:11 - mmengine - INFO - Epoch(train)   [7][98/98]  lr: 5.8955e-02  eta: 1:28:11  time: 0.0860  data_time: 0.0063  loss: 0.7113
04/22 10:10:11 - mmengine - INFO - Saving checkpoint at 7 epochs
Corrupt JPEG data: 214 extraneous bytes before marker 0xd9
04/22 10:10:20 - mmengine - INFO - Exp name: my_mobilenetv3_20240422_100907
04/22 10:10:20 - mmengine - INFO - Epoch(train)   [8][98/98]  lr: 5.8955e-02  eta: 1:28:05  time: 0.0881  data_time: 0.0083  loss: 0.6989
04/22 10:10:20 - mmengine - INFO - Saving checkpoint at 8 epochs
Corrupt JPEG data: 214 extraneous bytes before marker 0xd9
04/22 10:10:29 - mmengine - INFO - Exp name: my_mobilenetv3_20240422_100907
04/22 10:10:29 - mmengine - INFO - Epoch(train)   [9][98/98]  lr: 5.7363e-02  eta: 1:28:23  time: 0.0883  data_time: 0.0077  loss: 0.6874
04/22 10:10:29 - mmengine - INFO - Saving checkpoint at 9 epochs
Corrupt JPEG data: 214 extraneous bytes before marker 0xd9
04/22 10:10:39 - mmengine - INFO - Exp name: my_mobilenetv3_20240422_100907
04/22 10:10:39 - mmengine - INFO - Epoch(train)  [10][98/98]  lr: 5.7363e-02  eta: 1:28:28  time: 0.0894  data_time: 0.0068  loss: 0.7028
04/22 10:10:39 - mmengine - INFO - Saving checkpoint at 10 epochs
04/22 10:10:39 - mmengine - INFO - Epoch(val) [10][3/3]    accuracy/top1: 60.8696  data_time: 0.0411  time: 0.0650

微调模型

参考
在进行模型微调时，我们通常希望在主干网络（backbone）加载预训练模型，再用我们的数据集训练一个新的分类头（head）。

为了在主干网络加载预训练模型，我们需要修改主干网络的初始化设置，使用 Pretrained 类型的初始化函数。另外，在初始化设置中，我们使用 prefix=‘backbone’ 来告诉初始化函数需要加载的子模块的前缀，backbone即指加载模型中的主干网络。
按照新数据集的类别数目来修改分类头的配置。只需要修改分类头中的 num_classes 设置即可。

frozen_stages 参数设置可以冻结主干网络前面几层的参数，只训练后面层以及分类头的参数。

# >>>>>>>>>>>>>>> 在这里重载模型相关配置 >>>>>>>>>>>>>>>>>>>
model = dict(
    backbone=dict(
        frozen_stages=2,
        init_cfg=dict(
            type='Pretrained',
            checkpoint='https://download.openmmlab.com/mmclassification/v0/resnet/resnet50_8xb32_in1k_20210831-ea4938fc.pth',
            prefix='backbone',
        )),
    head=dict(num_classes=10),
)
# <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

下面这个是mobilenet-v3-small-0.75的model的完整配置

model = dict(
    backbone=dict(
        arch='small_075',
        type='MobileNetV3',
        ############################使用预训练模型
        frozen_stages=2,
        init_cfg=dict(
            type='Pretrained',
            checkpoint='model/mobilenet-v3-small-075_3rdparty_in1k_20221114-2011fa76.pth',
            prefix='backbone',
        )
        ############################
        ),
    head=dict(
        act_cfg=dict(type='HSwish'),
        dropout_rate=0.2,
        in_channels=432,
        init_cfg=dict(
            bias=0.0, layer='Linear', mean=0.0, std=0.01, type='Normal'),
        loss=dict(loss_weight=1.0, type='CrossEntropyLoss'),
        mid_channels=[
            1024,
        ],
        num_classes=len(my_class_names),
        topk=(
            1,
            1,
        ),
        type='StackedLinearClsHead'),
    neck=dict(type='GlobalAveragePooling'),
    type='ImageClassifier')

5 部分安装问题【更新】

python版本问题

在另外一台机器上训练的时候出现下面的错误

  File "/home/xp/anaconda3/envs/mmlab/lib/python3.12/site-packages/mmengine/utils/dl_utils/collect_env.py", line 54, in collect_env
    from distutils import errors
ModuleNotFoundError: No module named 'distutils'

这是因为在python 3.12中把distutils库删掉了，需要换python版本，换python3.11.5可用。
参考链接：https://stackoverflow.com/questions/69919970/no-module-named-distutils-but-distutils-installed
在conda中你没办法直接conda install python=3.11.5，因为尝试安装就会发现基本所有的库都会冲突，没法修改python的版本，但是换python版本意味着你需要重新安装pytorch，conda不能从其他的env中安装包，要么有时间的时候安装几个版本的pytorch，后面要用的时候用conda create --name new_name --clone old_name来克隆一个环境，要么就等着安装吧，conda和pip的源也可以换，但是几个G的东西还是要一会儿的。
另外torch2.2.2似乎在python3.8的环境下面不能使用GPU，同样安装的包在python3.11.x中torch.cuda.is_available()为True，在3.8.X中为False，原因未知。

附录

数据集准备
官方文档
训练完整config,可以直接修改了拿去训练用的，三个模块整合一起的。


my_train_batch_size = 64
my_val_batch_size = 16
my_image_size = 128
my_max_epochs = 300

my_checkpoints_interval = 10 # 10 epochs to save a checkpoint

my_train_dataset_root = '/media/xp/data/image/deep_image/mini_cat_and_dog'
my_train_data_prefix = 'train'
my_val_dataset_root = '/media/xp/data/image/deep_image/mini_cat_and_dog'
my_val_data_prefix = 'val'
my_test_dataset_root = '/media/xp/data/image/deep_image/mini_cat_and_dog'
my_test_data_prefix = 'test'

work_dir = './work_dirs/my_mobilenetv3'

my_class_names = ['cat', 'dog']


auto_scale_lr = dict(base_batch_size=128)
data_preprocessor = dict(
    mean=[
        128,
        128,
        128,
    ], num_classes=2, std=[
        50,
        50,
        50,
    ], to_rgb=True)
dataset_type = 'CustomDataset'



default_hooks = dict(
    checkpoint=dict(interval=my_checkpoints_interval, type='CheckpointHook'),
    logger=dict(interval=100, type='LoggerHook'),
    param_scheduler=dict(type='ParamSchedulerHook'),
    sampler_seed=dict(type='DistSamplerSeedHook'),
    timer=dict(type='IterTimerHook'),
    visualization=dict(enable=False, type='VisualizationHook'))
default_scope = 'mmpretrain'
env_cfg = dict(
    cudnn_benchmark=False,
    dist_cfg=dict(backend='nccl'),
    mp_cfg=dict(mp_start_method='fork', opencv_num_threads=0))
launcher = 'none'
load_from = None
log_level = 'INFO'
model = dict(
    backbone=dict(arch='small_075', type='MobileNetV3'),
    head=dict(
        act_cfg=dict(type='HSwish'),
        dropout_rate=0.2,
        in_channels=432,
        init_cfg=dict(
            bias=0.0, layer='Linear', mean=0.0, std=0.01, type='Normal'),
        loss=dict(loss_weight=1.0, type='CrossEntropyLoss'),
        mid_channels=[
            1024,
        ],
        num_classes=len(my_class_names),
        topk=(
            1,
            1,
        ),
        type='StackedLinearClsHead'),
    neck=dict(type='GlobalAveragePooling'),
    type='ImageClassifier')

optim_wrapper = dict(
    optimizer=dict(
        alpha=0.9,
        eps=0.0316,
        lr=0.064,
        momentum=0.9,
        type='RMSprop',
        weight_decay=1e-05))
param_scheduler = dict(by_epoch=True, gamma=0.973, step_size=2, type='StepLR')
randomness = dict(deterministic=False, seed=None)
resume = False
test_cfg = dict()
test_dataloader = dict(
    batch_size=my_val_batch_size,
    collate_fn=dict(type='default_collate'),
    dataset=dict(
        data_prefix='val',
        data_root=my_val_dataset_root,
        pipeline=[
            dict(type='LoadImageFromFile'),
            dict(
                backend='pillow',
                edge='short',
                interpolation='bicubic',
                scale=my_image_size,
                type='ResizeEdge'),
            dict(crop_size=my_image_size, type='CenterCrop'),
            dict(type='PackInputs'),
        ],
        type='CustomDataset',
        with_label=True),
    num_workers=1,
    persistent_workers=True,
    pin_memory=True,
    sampler=dict(shuffle=False, type='DefaultSampler'))
test_evaluator = dict(
    topk=(
        1,
        1,
    ), type='Accuracy')
test_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(
        backend='pillow',
        edge='short',
        interpolation='bicubic',
        scale=my_image_size,
        type='ResizeEdge'),
    dict(crop_size=my_image_size, type='CenterCrop'),
    dict(type='PackInputs'),
]
train_cfg = dict(by_epoch=True, max_epochs=my_max_epochs, val_interval=10)
train_dataloader = dict(
    batch_size=my_train_batch_size,
    collate_fn=dict(type='default_collate'),
    dataset=dict(
        data_prefix=my_train_data_prefix,
        data_root=my_train_dataset_root,
        pipeline=[
            dict(type='LoadImageFromFile'),
            dict(
                backend='pillow',
                interpolation='bicubic',
                scale=my_image_size,
                type='RandomResizedCrop'),
            dict(direction='horizontal', prob=0.5, type='RandomFlip'),
            dict(
                hparams=dict(pad_val=[
                    128,
                    128,
                    128,
                ]),
                policies='imagenet',
                type='AutoAugment'),
            dict(
                erase_prob=0.2,
                fill_color=[
                    128,
                    128,
                    128,
                ],
                fill_std=[
                    50,
                    50,
                    50,
                ],
                max_area_ratio=0.3333333333333333,
                min_area_ratio=0.02,
                mode='rand',
                type='RandomErasing'),
            dict(type='PackInputs'),
        ],
        type='CustomDataset',
        with_label=True),
    num_workers=1,
    persistent_workers=True,
    pin_memory=True,
    sampler=dict(shuffle=True, type='DefaultSampler'))
train_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(
        backend='pillow',
        interpolation='bicubic',
        scale=my_image_size,
        type='RandomResizedCrop'),
    dict(direction='horizontal', prob=0.5, type='RandomFlip'),
    dict(
        hparams=dict(pad_val=[
            128,
            128,
            128,
        ]),
        policies='imagenet',
        type='AutoAugment'),
    dict(
        erase_prob=0.2,
        fill_color=[
            128,
            128,
            128,
        ],
        fill_std=[
            50,
            50,
            50,
        ],
        max_area_ratio=0.3333333333333333,
        min_area_ratio=0.02,
        mode='rand',
        type='RandomErasing'),
    dict(type='PackInputs'),
]
val_cfg = dict()
val_dataloader = dict(
    batch_size=my_val_batch_size,
    collate_fn=dict(type='default_collate'),
    dataset=dict(
        data_prefix=my_val_data_prefix,
        data_root=my_val_dataset_root,
        pipeline=[
            dict(type='LoadImageFromFile'),
            dict(
                backend='pillow',
                edge='short',
                interpolation='bicubic',
                scale=my_image_size,
                type='ResizeEdge'),
            dict(crop_size=my_image_size, type='CenterCrop'),
            dict(type='PackInputs'),
        ],
        type='CustomDataset',
        with_label=True),
    num_workers=1,
    persistent_workers=True,
    pin_memory=True,
    sampler=dict(shuffle=False, type='DefaultSampler'))
val_evaluator = dict(
    topk=(
        1,
        1,
    ), type='Accuracy')
vis_backends = [
    dict(type='LocalVisBackend'),
]
visualizer = dict(
    type='UniversalVisualizer', vis_backends=[
        dict(type='LocalVisBackend'),
    ])

1037号森林里一段干木头

关注

5
点赞
踩
7

收藏

觉得还不错? 一键收藏
0
评论
mmclassification 训练自己的数据集

如果你也喜欢这样的方式可以直接copy附录中的config修改去训练。mmlab系列的训练测试转化都是以config来配置的，三个基础块，一个是数据集，一个是模型，一个是runtime，有很多模型都是从_base_目录中继承这三个组件，然后修改其中的一些选项来训练不同的模型和数据集。：我训练的时候有些图好像是坏的，mmcv以opencv为后端来获取图片，这里最好先把坏图过滤掉，不然训练的时候会报cv imencode失败或者找不到图像。下面是我训练mobilenet v3时修改的config。
复制链接

扫一扫
