Bellman_Ford边上权值为任意值的单源最短路径问题（+路径打印）边集合与邻接表两种实现

一、介绍：

https://en.wikipedia.org/wiki/Bellman%E2%80%93Ford_algorithm

二、维基上的伪代码：

 function BellmanFord(list vertices, list edges, vertex source)
   ::distance[],predecessor[]

   // This implementation takes in a graph, represented as
   // lists of vertices and edges, and fills two arrays
   // (distance and predecessor) about the shortest path
   // from the source to each vertex

   // Step 1: initialize graph
   for each vertex v in vertices:
       distance[v] := inf             // Initialize the distance to all vertices to infinity
       predecessor[v] := null         // And having a null predecessor

   distance[source] := 0              // The distance from the source to itself is, of course, zero

   // Step 2: relax edges repeatedly
   for i from 1 to size(vertices)-1: //just |V|-1 repetitions; i is never referenced
       for each edge (u, v) with weight w in edges:
           if distance[u] + w < distance[v]:
               distance[v] := distance[u] + w
               predecessor[v] := u

   // Step 3: check for negative-weight cycles
   for each edge (u, v) with weight w in edges:
       if distance[u] + w < distance[v]:
           error "Graph contains a negative-weight cycle"

   return distance[], predecessor[]

三、C++代码：

实现1:图用边集合存储 O(VE)

#include<iostream>
#include<vector>

#define INF 9999999
using namespace std;

class Graph
{
	class Edge
	{
	public:
		int src;
		int dest;
		double weight;
		Edge(int _src,int _dest,double _weight)
		{
			src = _src;
			dest = _dest;
			weight = _weight;
		}
	};
	vector<Edge> edges;
	int V;		//顶点数
	int E;		//边数
	void printSolution(vector<double> &dist,
					   vector<int>&parent, vector<double>&weights);
public:
	Graph(int _V)
	{
		V = _V;
		E = 0;
	}
	void BellmanFord(int src);
	void addEdge(int u,int v,double weight);
};

void Graph::addEdge(int u,int v,double weight)
{
	Edge newEdge(u,v,weight);
	edges.push_back(newEdge);
	E++;		//边数不定死了
}

void Graph::BellmanFord(int src)
{
	vector<double>dist(V,INF);
	vector<int>parents(V,src); 		//双亲数组
	vector<double>weights(V,INF);   //weight of u -> v

	dist[src] = 0;
	weights[src]=0;
	//松弛所有的边 |V|-1次，简单的(没有回路的)最短路
	//径(从src到其他点),最多只有 |V|-1条边可以松弛
	for(int i = 1; i < V; i++)
	{
		for(int j = 0; j < E; j++)
		{
			int u = edges[j].src;
			int v = edges[j].dest;
			double weight = edges[j].weight;
			if(dist[u] + weight < dist[v])
			{
				dist[v] = dist[u] + weight;
				parents[v] = u;
				weights[v] = weight; 		//weight of u -> v
			}
		}
	}
	//再检查一次，如果还能松弛，说明有负值循环
	for(int i = 0; i < E; i++)
	{
		int u = edges[i].src;
		int v = edges[i].dest;
		double weight = edges[i].weight;
		if(dist[u] + weight < dist[v])
		{
			cout<<"graph contains a negative-weight cycle"<<endl;
		}
	}
	printSolution(dist, parents,weights);
};

void Graph::printSolution(vector<double> &dist,
				   vector<int>&parent,vector<double>&weights)
{
	for(int i = 0; i < V; i++)
	{
		cout<<parent[i]<<" --> " <<i<<"\t weights :";
		(weights[i] == INF) ? cout<<"INF\t" : cout<<weights[i]<<"\t";
		cout<<"dist["<<i<<"]: ";
		(dist[i] == INF) ? cout<<"INF"<<endl  : cout<<dist[i]<<endl;
	}
}

int main()
{
/*	Graph g(5);
	g.addEdge(0, 1, -1);
	g.addEdge(0, 2, 4);
	g.addEdge(1, 2, 3);
	g.addEdge(1, 3, 2);
	g.addEdge(1, 4, 2);
	g.addEdge(3, 2, 5);
	g.addEdge(3, 1, 1);
	g.addEdge(4, 3, -3);
*/
	Graph g(6);
    g.addEdge(0, 1, 5);
    g.addEdge(0, 2, 3);
    g.addEdge(1, 3, 6);
    g.addEdge(1, 2, 2);
    g.addEdge(2, 4, 4);
    g.addEdge(2, 5, 2);
    g.addEdge(2, 3, 7);
    g.addEdge(3, 4, -1);
    g.addEdge(4, 5, -2);
	g.BellmanFord(1);
	return 0;
}

输出：

实现2：图用邻接表存储 O(V*V*E)(邻接矩阵O(V<sup>3</sup>))

#include<iostream>
#include<list>
#include<set>
#include<vector>

#define INF 9999999
using namespace std;

class Graph
{
	int V;		//顶点数
	list<pair<int,double> > *adj;
	void printSolution(vector<double> &dist,
					   vector<int>&parents, vector<double>&weights);
public:
	Graph(int _v)
	{
		V   = _v;
		adj = new list<pair<int,double> >[_v];
	}
	~Graph(){ delete [] adj;}
	void addEdge(int u,int v,int weight)
	{
		adj[u].push_back(make_pair(v,weight));
	}
	void BellmanFord(int src);
} ;

void Graph::printSolution(vector<double> &dist,
				   vector<int>&parents,vector<double>&weights)
{
	for(int i = 0; i < V; i++)
	{
		cout<<parents[i]<<" --> " <<i<<"\t weights :";
		(weights[i] == INF) ? cout<<"INF\t" : cout<<weights[i]<<"\t";
		cout<<"dist["<<i<<"]: ";
		(dist[i] == INF) ? cout<<"INF"<<endl  : cout<<dist[i]<<endl;
	}
}

void Graph::BellmanFord(int src)
{
	vector<double>dist(V, INF);
	vector<double>weights(V,INF);//weights[v]记录从src到v分支上某点到v的最小权值
	vector<int>parents(V,src);
	dist[src] = 0;
	weights[src] = 0;
	//步骤1:松弛所有的边 |V|-1次，简单的(没有回路的)最短路
	//径(从src到其他点),最多只有 |V|-1条边可以松弛
	for(int k = 1; k < V; k++)
	{
		for(int u = 0; u < V; u++)
		{
			list<pair<int,double> >::iterator it;
			for(it = adj[u].begin(); it != adj[u].end(); it++)
			{
				int v = it->first;
				double weight = it->second;
				if(dist[u]+weight < dist[v])
				{
					dist[v] = dist[u]+weight;
					parents[v] = u;
					weights[v] = weight;
				}
			}
		}
	}

	//步骤2：再检查一次，如果还能松弛，说明有负值循环
	for(int u = 0; u < V; u++)
	{
		list<pair<int,double> >::iterator it;
		for(it = adj[u].begin(); it != adj[u].end(); it++)
		{
			int v = it->first;
			double weight = it->second;
			if(dist[u]+weight < dist[v])
			{
				cout<<"the graph contains negative weight cycle";
				return ;
			}
		}
	}
	printSolution(dist, parents, weights);
}

int main()
{
/*	Graph g(5);
	g.addEdge(0, 1, -1);
	g.addEdge(0, 2, 4);
	g.addEdge(1, 2, 3);
	g.addEdge(1, 3, 2);
	g.addEdge(1, 4, 2);
	g.addEdge(3, 2, 5);
	g.addEdge(3, 1, 1);
	g.addEdge(4, 3, -3);
*/
	Graph g(6);
    g.addEdge(0, 1, 5);
    g.addEdge(0, 2, 3);
    g.addEdge(1, 3, 6);
    g.addEdge(1, 2, 2);
    g.addEdge(2, 4, 4);
    g.addEdge(2, 5, 2);
    g.addEdge(2, 3, 7);
    g.addEdge(3, 4, -1);
    g.addEdge(4, 5, -2);
	g.BellmanFord(1);
	return 0;
}

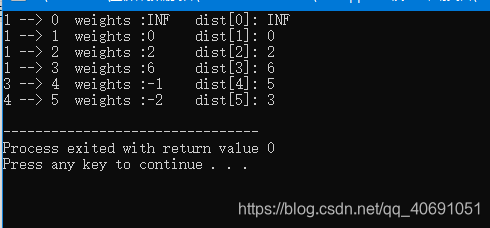

输出

---

---

---

---
