form NMS to Soft-NMS

NMS：原理

同一个目标会被多个建议框包围，这时需要非极大值抑制操作去除得分较低的候选框以减少重叠框。

1. 对2000×20维矩阵中每列按从大到小排序；
2. 从每列最大的得分建议框开始，分别与该列后面的得分建议框进行IoU计算，若IoU>阈值（0.3~0.5），则剔除得分较小的建议框，否则认为图像中存在多个同一类物体；
3. 从每列次大的得分建议框开始，重复步骤2；
4. 重复步骤3直到遍历完该列所有建议框；
5. 遍历完2000×20维矩阵所有列，即所有物体种类都做一遍非极大值抑制；

---

NMS：栗子

假设从小到大属于车辆的概率 分别为A、B、C、D、E、F。

1. 从最大概率矩形框F开始，分别判断A~E与F的重叠度IOU是否大于某个设定的阈值;
2. 假设B、D与F的重叠度超过阈值，那么就扔掉B、D；并标记第一个矩形框F，是我们保留下来的。
3. 从剩下的矩形框A、C、E中，选择概率最大的E，然后判断E与A、C的重叠度，重叠度大于一定的阈值，那么就扔掉；并标记E是我们保留下来的第二个矩形框。
4. 就这样一直重复，找到所有被保留下来的矩形框。

---

NMS：代码

https://github.com/rbgirshick/py-faster-rcnn/blob/master/lib/nms/py_cpu_nms.py

单个类别MNS：

# --------------------------------------------------------
# Fast R-CNN
# Copyright (c) 2015 Microsoft
# Licensed under The MIT License [see LICENSE for details]
# Written by Ross Girshick
# --------------------------------------------------------

import numpy as np

def py_cpu_nms(dets, thresh):
    """Pure Python NMS baseline."""
    #x1,y1,x2,y2,scores的赋值
    x1 = dets[:, 0]
    y1 = dets[:, 1]
    x2 = dets[:, 2]
    y2 = dets[:, 3]
    scores = dets[:, 4]

    #每个检测框的大小
    areas = (x2 - x1 + 1) * (y2 - y1 + 1)
    #置信度scores按照降序排列
    order = scores.argsort()[::-1]

    #保留最终结果框的集合
    keep = []
    while order.size > 0:

        #得分最大框的索引
        i = order[0]
        #保留该类剩余box中得分最高的一个
        keep.append(i)

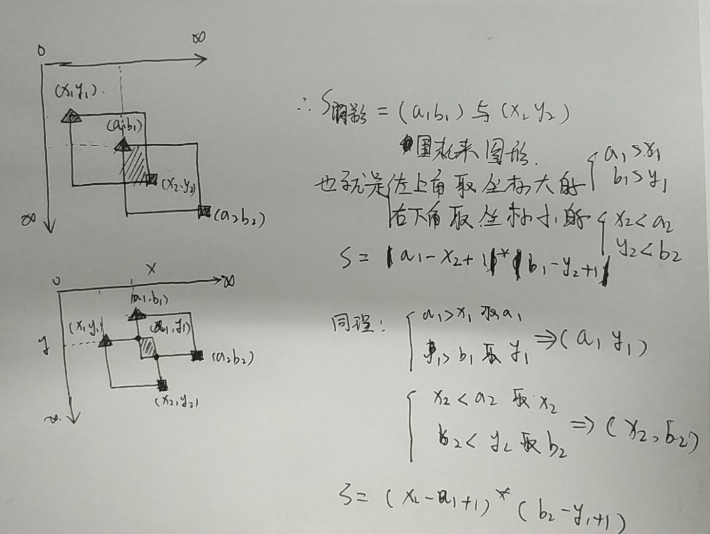

        #得到相交区域,左上（大）及右下（小）
        xx1 = np.maximum(x1[i], x1[order[1:]])
        yy1 = np.maximum(y1[i], y1[order[1:]])
        xx2 = np.minimum(x2[i], x2[order[1:]])
        yy2 = np.minimum(y2[i], y2[order[1:]])

        ##计算相交的面积,不重叠时面积为0
        w = np.maximum(0.0, xx2 - xx1 + 1)
        h = np.maximum(0.0, yy2 - yy1 + 1)
        inter = w * h

        #计算IoU,重叠面积 /（面积1+面积2-重叠面积）
        ovr = inter / (areas[i] + areas[order[1:]] - inter)

        #保留IoU小于阈值的box
        inds = np.where(ovr <= thresh)[0]
        #因为ovr数组的长度比order数组少一个,所以这里要将所有下标后移一位
        order = order[inds + 1]

    return keep
© 2019 GitHub, Inc.

---

Soft-NMS：背景

 传统的NMS是将检测框按得分排序，然后保留得分最高的框，同时删除与该框重叠面积大于阈值的其它框。

但是这种贪心式方法存在问题： 上图红色框和绿色框是当前的检测结果，二者的得分分别是0.95和0.80。如果按照传统的NMS进行处理，会保留红色框而删除绿色框，会导致只检测出一匹马，显然目标的recall就比较低了。

---

Soft-NMS：原理

论文链接：Soft-NMS -- Improving Object Detection With One Line of Code

github链接：https://github.com/ZhangCats/soft-nms/blob/master/lib/nms/cpu_nms.pyx

思想：稍低一点的分数来代替原有的分数，而不是直接置零。

由伪代码：对于B中的bi是先计算其和M(就是当前得分最大的框)的IOU，然后该IOU值作为函数f()的输入，最后和bi的得分si相乘作为最后该bi的得分。

如何确定函数f()？

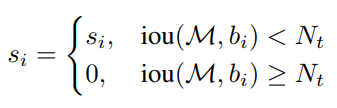

传统的NMS：

将IOU大于阈值的窗口的得分全部置为0

Soft改进：

线性加权，遵循iou越大，得分越低的原则

但是这个公式是不连续的，这样会导致box集合中的score出现断层

Soft再改进：

高斯加权，M为当前得分最高框，bi为待处理框，bi和M的IOU越大，bi的得分si就越低。

---

Soft-NMS：代码

def cpu_soft_nms(np.ndarray[float, ndim=2] boxes, float sigma=0.5, float Nt=0.3, float threshold=0.001, unsigned int method=0):
    cdef unsigned int N = boxes.shape[0]
    cdef float iw, ih, box_area
    cdef float ua
    cdef int pos = 0
    cdef float maxscore = 0
    cdef int maxpos = 0
    cdef float x1,x2,y1,y2,tx1,tx2,ty1,ty2,ts,area,weight,ov

    for i in range(N):
        maxscore = boxes[i, 4]
        maxpos = i

        tx1 = boxes[i,0]
        ty1 = boxes[i,1]
        tx2 = boxes[i,2]
        ty2 = boxes[i,3]
        ts = boxes[i,4]

        pos = i + 1
	# get max box 获得最大得分框
        while pos < N:
            if maxscore < boxes[pos, 4]:
                maxscore = boxes[pos, 4]
                maxpos = pos
            pos = pos + 1

	# add max box as a detection 添加Max Box作为检测
        boxes[i,0] = boxes[maxpos,0]
        boxes[i,1] = boxes[maxpos,1]
        boxes[i,2] = boxes[maxpos,2]
        boxes[i,3] = boxes[maxpos,3]
        boxes[i,4] = boxes[maxpos,4]

	# swap ith box with position of max box 将第i个框与最大框的位置互换
        boxes[maxpos,0] = tx1
        boxes[maxpos,1] = ty1
        boxes[maxpos,2] = tx2
        boxes[maxpos,3] = ty2
        boxes[maxpos,4] = ts

        tx1 = boxes[i,0]
        ty1 = boxes[i,1]
        tx2 = boxes[i,2]
        ty2 = boxes[i,3]
        ts = boxes[i,4]

        pos = i + 1
	# NMS iterations, note that N changes if detection boxes fall below threshold
    # NMS迭代，请注意，如果检测框低于阈值，n会发生变化
        while pos < N:
            x1 = boxes[pos, 0]
            y1 = boxes[pos, 1]
            x2 = boxes[pos, 2]
            y2 = boxes[pos, 3]
            s = boxes[pos, 4]

            area = (x2 - x1 + 1) * (y2 - y1 + 1)
            iw = (min(tx2, x2) - max(tx1, x1) + 1)
            if iw > 0:
                ih = (min(ty2, y2) - max(ty1, y1) + 1)
                if ih > 0:
                    ua = float((tx2 - tx1 + 1) * (ty2 - ty1 + 1) + area - iw * ih)
                    ov = iw * ih / ua #iou between max box and detection box

                    if method == 1: # linear
                        if ov > Nt:
                            weight = 1 - ov
                        else:
                            weight = 1
                    elif method == 2: # gaussian
                        weight = np.exp(-(ov * ov)/sigma)
                    else: # original NMS
                        if ov > Nt:
                            weight = 0
                        else:
                            weight = 1

                    boxes[pos, 4] = weight*boxes[pos, 4]

		    # if box score falls below threshold, discard the box by swapping with last box
            #如果方框得分低于阈值，则通过交换最后一个方框来丢弃方框。
		    # update N 更新N
                    if boxes[pos, 4] < threshold:
                        boxes[pos,0] = boxes[N-1, 0]
                        boxes[pos,1] = boxes[N-1, 1]
                        boxes[pos,2] = boxes[N-1, 2]
                        boxes[pos,3] = boxes[N-1, 3]
                        boxes[pos,4] = boxes[N-1, 4]
                        N = N - 1
                        pos = pos - 1

            pos = pos + 1

    keep = [i for i in range(N)]
    return keep


def cpu_nms(np.ndarray[np.float32_t, ndim=2] dets, np.float thresh):
    cdef np.ndarray[np.float32_t, ndim=1] x1 = dets[:, 0]
    cdef np.ndarray[np.float32_t, ndim=1] y1 = dets[:, 1]
    cdef np.ndarray[np.float32_t, ndim=1] x2 = dets[:, 2]
    cdef np.ndarray[np.float32_t, ndim=1] y2 = dets[:, 3]
    cdef np.ndarray[np.float32_t, ndim=1] scores = dets[:, 4]

    cdef np.ndarray[np.float32_t, ndim=1] areas = (x2 - x1 + 1) * (y2 - y1 + 1)
    cdef np.ndarray[np.int_t, ndim=1] order = scores.argsort()[::-1]

    cdef int ndets = dets.shape[0]
    cdef np.ndarray[np.int_t, ndim=1] suppressed = \
            np.zeros((ndets), dtype=np.int)

    # nominal indices
    cdef int _i, _j
    # sorted indices
    cdef int i, j
    # temp variables for box i's (the box currently under consideration)
    cdef np.float32_t ix1, iy1, ix2, iy2, iarea
    # variables for computing overlap with box j (lower scoring box)
    cdef np.float32_t xx1, yy1, xx2, yy2
    cdef np.float32_t w, h
    cdef np.float32_t inter, ovr

    keep = []
    for _i in range(ndets):
        i = order[_i]
        if suppressed[i] == 1:
            continue
        keep.append(i)
        ix1 = x1[i]
        iy1 = y1[i]
        ix2 = x2[i]
        iy2 = y2[i]
        iarea = areas[i]
        for _j in range(_i + 1, ndets):
            j = order[_j]
            if suppressed[j] == 1:
                continue
            xx1 = max(ix1, x1[j])
            yy1 = max(iy1, y1[j])
            xx2 = min(ix2, x2[j])
            yy2 = min(iy2, y2[j])
            w = max(0.0, xx2 - xx1 + 1)
            h = max(0.0, yy2 - yy1 + 1)
            inter = w * h
            ovr = inter / (iarea + areas[j] - inter)
            if ovr >= thresh:
                suppressed[j] = 1

    return keep
