数据可视化

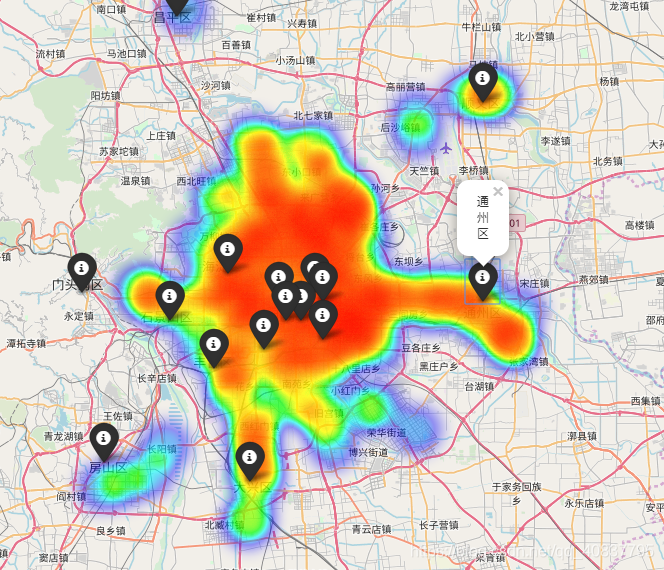

1 folium绘制热力图

import os
import folium
import webbrowser
import pandas as pd
from folium.plugins import HeatMap


data=pd.read_excel("lian.xlsx")                         #读取数据
data['heatmap']=1                                       #增加一列热度
data=(data[['lat','lng','heatmap']].values.tolist())    #抽取lat,lng(经纬度),heatmap
first_gps = data[0][:-1]  # 路线开始的经纬坐标
m = folium.Map(first_gps, zoom_start=12)                #定义开始的经纬点，地图大小12，  tiles='stamentoner'地图是灰色

area=[                                                  #定义要北京各区标记点的经纬度坐标
    [39.9,116.4,"北京市"],
    [39.9,116.38,"天安门"],
    [39.93,116.42,"东城区"],
    [39.92,116.37,"西城区"],
    [39.88,116.43,"崇文区"],
    [39.87,116.35,"宣武区"],
    [39.92,116.43,"朝阳区"],
    [39.85,116.28,"丰台区"],
    [39.9,116.22,"石景山区"],
    [39.95,116.3,"海淀区"],
    [39.93,116.1,"门头沟区"],
    [39.75,116.13,"房山区"],
    [39.92,116.65,"通州区"],
    [40.13,116.65,"顺义区"],
    [40.22,116.23,"昌平区"],
    [39.73,116.33,"大兴区"],
    [40.32,116.63,"怀柔区"],
    [40.13,117.12,"平谷区"],
    [40.37,116.83,"密云县"],
    [40.45,115.97,"延庆县"]
      ]

for area in area:
    folium.Marker(area[:-1], popup=str(area[-1]),icon=folium.Icon(color='black')).add_to(m)
                                                    # popup:是显示的文字，icon：是标记的颜色
HeatMap(data).add_to(m)                             #添加热力图
m.save(os.path.join('test003.html'))                #将结果以HTML形式保存到当前项目目录
webbrowser.open("test003.html")                     #打开该HTML

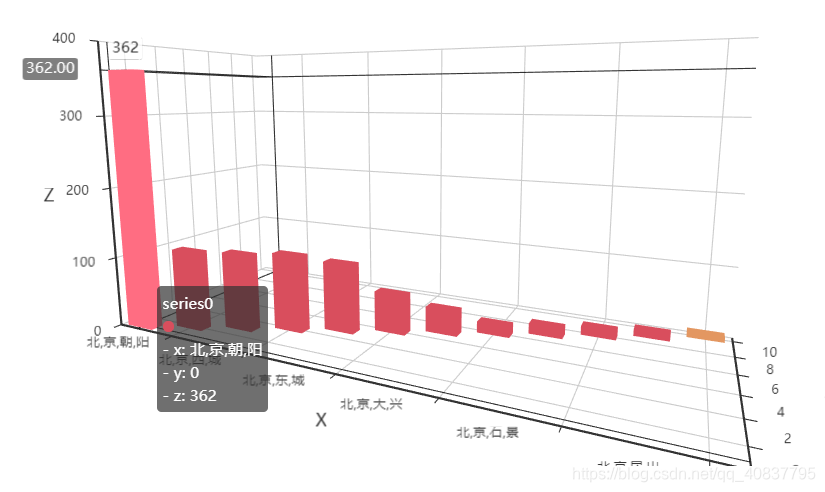

2 3D柱状图

from example.commons import Faker
from pyecharts import options as opts
from pyecharts.charts import Bar3D
import random,pandas as pd

def bar3d_base() -> Bar3D:
    data = pd.read_excel("lian.xlsx")
    a=((data['site'].str.split('')).str[1:5]).value_counts() # 对一列中相同数据进行统计，
    #(data['site'].str.split('')).str[1:5]这个是因为我的城市位置不规则，所以通过字符串分割的方式
    c = (Bar3D()
        .add(
            "",
            [[(aa), bb,  int(cc)] for aa, bb, cc in zip( a.index, range(len(a)), a.values)],
#定义 X ,Y ,Z注意Z一定要是int型
        )
        .set_global_opts(
            visualmap_opts=opts.VisualMapOpts(max_=10),
            title_opts=opts.TitleOpts(title="Bar3D-基本示例"),
        )
    )
    c.render()

bar3d_base()

推荐一个博客：
https://pyecharts.org/#/zh-cn/basic_charts?id=pie：饼图
