昇腾910B部署deepseek蒸馏版

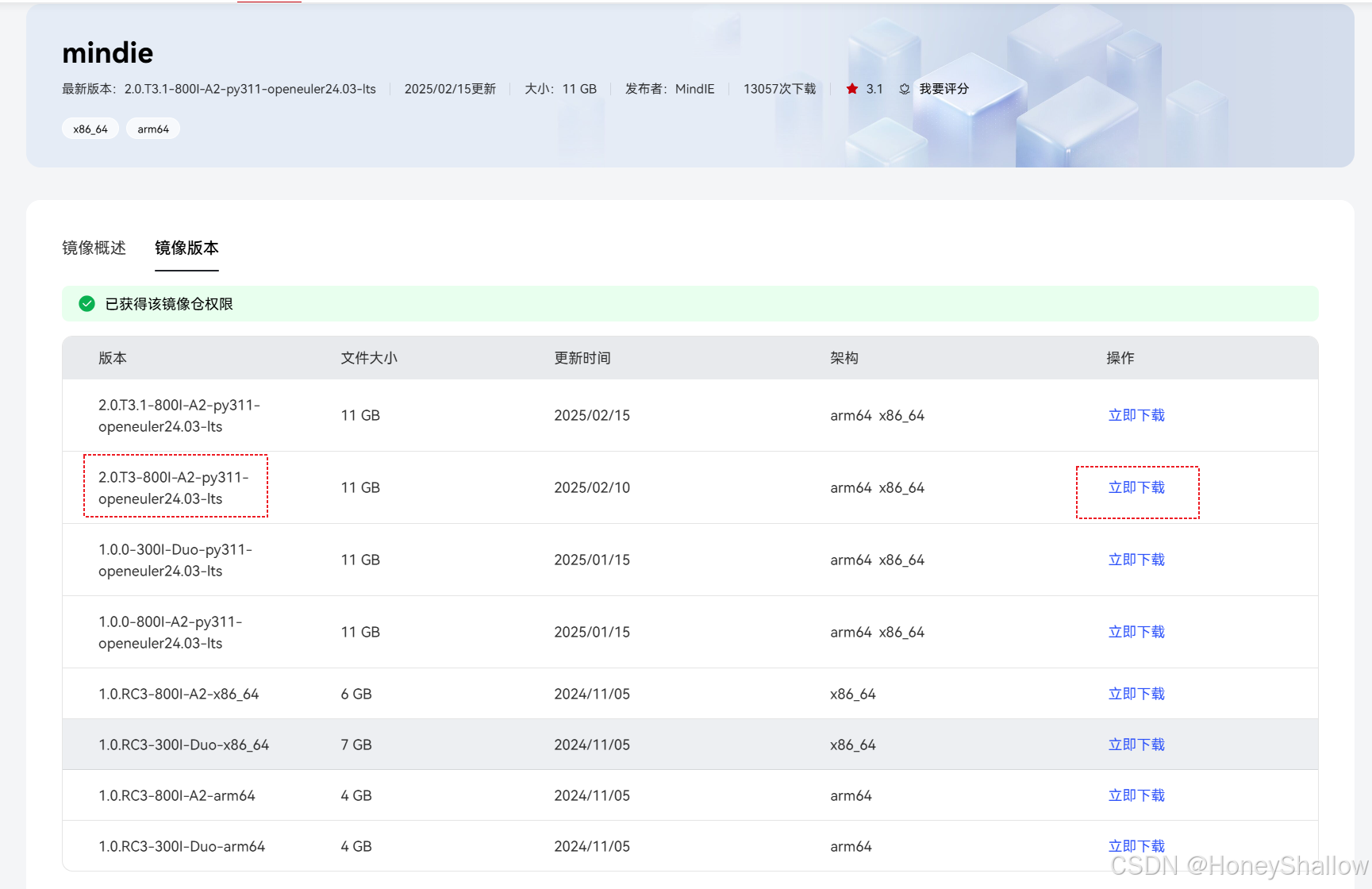

mindie镜像下载

登陆后申请权限去下载

https://www.hiascend.com/developer/ascendhub/detail/af85b724a7e5469ebd7ea13c3439d48f

启动mindie容器

docker run -itd -u root \
    --ipc=host \
    --network=host \
	--device=/dev/davinci0 \
	--device=/dev/davinci1 \
	--device=/dev/davinci2 \
	--device=/dev/davinci3 \
	--device=/dev/davinci4 \
	--device=/dev/davinci5 \
	--device=/dev/davinci6 \
	--device=/dev/davinci7 \
    --device=/dev/davinci_manager \
    --device=/dev/devmm_svm \
    --device=/dev/hisi_hdc \
    -v /var/log/npu/:/usr/slog \
    -v /usr/local/dcmi:/usr/local/dcmi \
    -v /usr/local/bin/npu-smi:/usr/local/bin/npu-smi \
	-v /usr/local/sbin/npu-smi:/usr/local/sbin/npu-smi \
    -v /usr/local/Ascend/driver:/usr/local/Ascend/driver \
    -v /usr/local/Ascend/firmware:/usr/local/Ascend/firmware \
	-v /usr/bin/hccn_tool:/usr/bin/hccn_tool \
	-v /data/DeepSeek-R1-Distill-Llama-70B:/models \ # 模型目录挂载
    --name Deepseek-R1-70B \
	--privileged=true \
    --entrypoint=/bin/bash swr.cn-south-1.myhuaweicloud.com/ascendhub/mindie:2.0.T3-800I-A2-py311-openeuler24.03-lts

在这里插入图片描述

启动服务化

进入容器
```
docker exec -it c3219fbca343 bash
```

切换到mindie-service配置路径

cd /usr/local/Ascend/mindie/latest/mindie-service

修改配置文件：vim conf/config.json

以下配置文件中用#注释的内容均可自定义

{
    "Version" : "1.0.0",
    "LogConfig" :
    {
        "logLevel" : "Info",
        "logFileSize" : 20,
        "logFileNum" : 20,
        "logPath" : "logs/mindie-server.log"
    },

    "ServerConfig" :
    {
        "ipAddress" : "10.0.0.10", # 允许外部访问，暴露本机ip
        "managementIpAddress" : "10.0.0.10",
        "port" : 1080, # 推理端口
        "managementPort" : 1081, # 管理端口
        "metricsPort" : 1082, # metrics指标断藕
        "allowAllZeroIpListening" : false,
        "maxLinkNum" : 1000,
        "httpsEnabled" : false, # 禁用https
        "fullTextEnabled" : false,
        "tlsCaPath" : "security/ca/",
        "tlsCaFile" : ["ca.pem"],
        "tlsCert" : "security/certs/server.pem",
        "tlsPk" : "security/keys/server.key.pem",
        "tlsPkPwd" : "security/pass/key_pwd.txt",
        "tlsCrlPath" : "security/certs/",
        "tlsCrlFiles" : ["server_crl.pem"],
        "managementTlsCaFile" : ["management_ca.pem"],
        "managementTlsCert" : "security/certs/management/server.pem",
        "managementTlsPk" : "security/keys/management/server.key.pem",
        "managementTlsPkPwd" : "security/pass/management/key_pwd.txt",
        "managementTlsCrlPath" : "security/management/certs/",
        "managementTlsCrlFiles" : ["server_crl.pem"],
        "kmcKsfMaster" : "tools/pmt/master/ksfa",
        "kmcKsfStandby" : "tools/pmt/standby/ksfb",
        "inferMode" : "standard",
        "interCommTLSEnabled" : true,
        "interCommPort" : 1121,
        "interCommTlsCaPath" : "security/grpc/ca/",
        "interCommTlsCaFiles" : ["ca.pem"],
        "interCommTlsCert" : "security/grpc/certs/server.pem",
        "interCommPk" : "security/grpc/keys/server.key.pem",
        "interCommPkPwd" : "security/grpc/pass/key_pwd.txt",
        "interCommTlsCrlPath" : "security/grpc/certs/",
        "interCommTlsCrlFiles" : ["server_crl.pem"],
        "openAiSupport" : "vllm"
    },

    "BackendConfig" : {
        "backendName" : "mindieservice_llm_engine",
        "modelInstanceNumber" : 1,
        "npuDeviceIds" : [[0,1,2,3]], # 指定使用哪些npu卡
        "tokenizerProcessNumber" : 8,
        "multiNodesInferEnabled" : false,
        "multiNodesInferPort" : 1120,
        "interNodeTLSEnabled" : true,
        "interNodeTlsCaPath" : "security/grpc/ca/",
        "interNodeTlsCaFiles" : ["ca.pem"],
        "interNodeTlsCert" : "security/grpc/certs/server.pem",
        "interNodeTlsPk" : "security/grpc/keys/server.key.pem",
        "interNodeTlsPkPwd" : "security/grpc/pass/mindie_server_key_pwd.txt",
        "interNodeTlsCrlPath" : "security/grpc/certs/",
        "interNodeTlsCrlFiles" : ["server_crl.pem"],
        "interNodeKmcKsfMaster" : "tools/pmt/master/ksfa",
        "interNodeKmcKsfStandby" : "tools/pmt/standby/ksfb",
        "ModelDeployConfig" :
        {
            "maxSeqLen" : 2560, # 输入输出总序列长度
            "maxInputTokenLen" : 2048, # 输入token数
            "truncation" : false,
            "ModelConfig" : [
                {
                    "modelInstanceType" : "Standard",
                    "modelName" : "DeepSeek-R1-Distill-Llama-70B", # 模型名
                    "modelWeightPath" : "/models", # 容器内模型的挂载路径
                    "worldSize" : 4, # 使用npu卡数
                    "cpuMemSize" : 5,
                    "npuMemSize" : -1,
                    "backendType" : "atb",
                    "trustRemoteCode" : false
                }
            ]
        },

        "ScheduleConfig" :
        {
            "templateType" : "Standard",
            "templateName" : "Standard_LLM",
            "cacheBlockSize" : 128,

            "maxPrefillBatchSize" : 50,
            "maxPrefillTokens" : 8192,
            "prefillTimeMsPerReq" : 150,
            "prefillPolicyType" : 0,

            "decodeTimeMsPerReq" : 50,
            "decodePolicyType" : 0,

            "maxBatchSize" : 200,
            "maxIterTimes" : 512,
            "maxPreemptCount" : 0,
            "supportSelectBatch" : false,
            "maxQueueDelayMicroseconds" : 5000
        }
    }
}

如果要使用服务化的在线指标监控，需要配置环境变量
```
export MIES_SERVICE_MONITOR_MODE=1
```

后台启动服务化

nohup  ./bin/mindieservice_daemon > 70B.log 2>&1 &
tail -f 70B.log出现success即成功

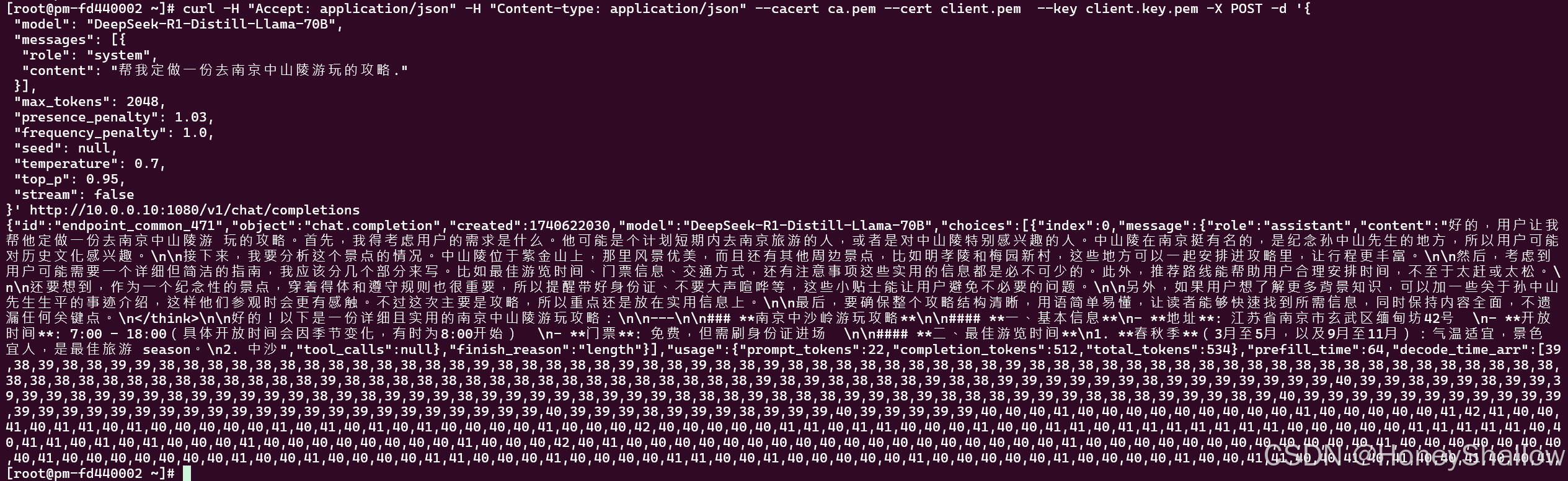

请求测试

curl -H "Accept: application/json" -H "Content-type: application/json" --cacert ca.pem --cert client.pem  --key client.key.pem -X POST -d '{
 "model": "DeepSeek-R1-Distill-Llama-70B",# 此处的模型名与配置文件中的模型名保持一致
 "messages": [{
  "role": "system",
  "content": "帮我定做一份去南京中山陵游玩的攻略."
 }],
 "max_tokens": 2048,
 "presence_penalty": 1.03,
 "frequency_penalty": 1.0,
 "seed": null,
 "temperature": 0.7,
 "top_p": 0.95,
 "stream": false
}' http://10.0.0.10:1080/v1/chat/completions
