PointPillar
PointPillars.py
有一篇关于voxelnet不错的文章VoxelNet.
有一篇关于PointPillar不错的文章Pillar
paper_read_PointPillar
无人驾驶汽车系统入门（二十八）——基于VoxelNet的激光雷达点云车辆检测及ROS实现

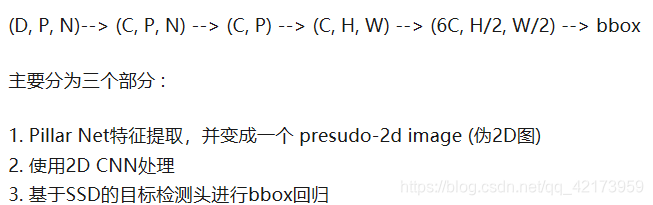

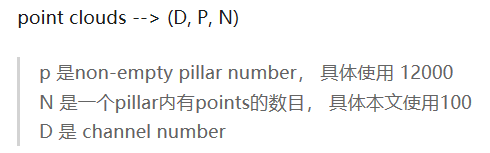

总而言之，voxelnet是通过VFE获得每个voxel的特征，然后采用3DCNN获得全局特征
pillar模型训练上，car单独训一个模型，ped和cyc单独训一个模型
图片来源：zhihu_pillar
图片来源：知乎

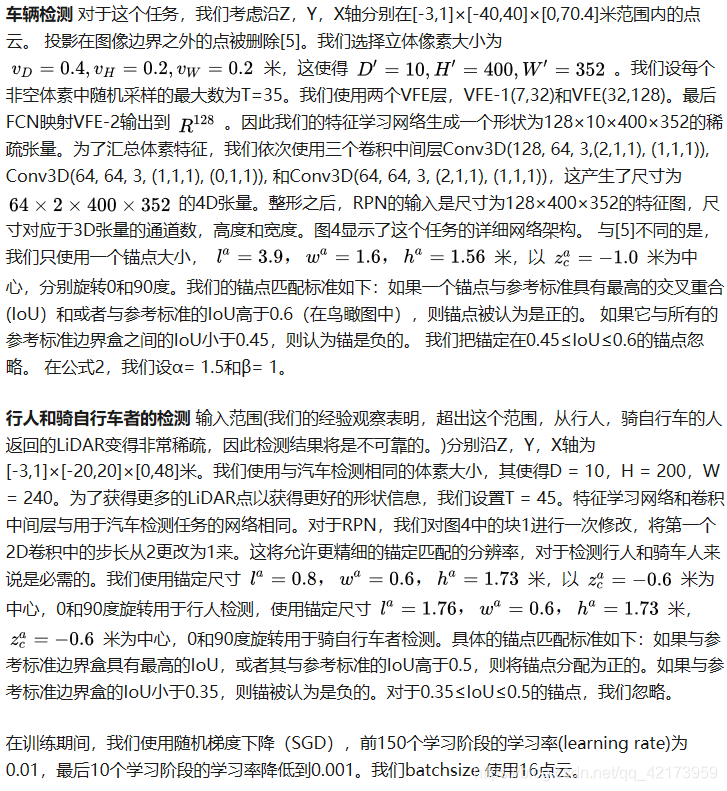

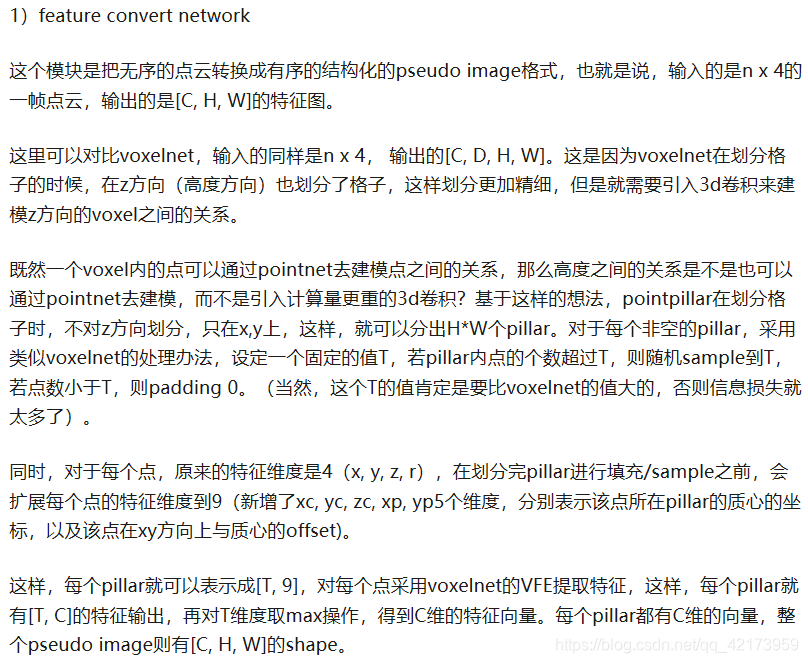

Voxel网络细节知乎_苹果的无人车激光雷达处理方案
"""
PointPillars fork from SECOND.
Code written by Alex Lang and Oscar Beijbom, 2018.
Licensed under MIT License [see LICENSE].
"""
import torch
from torch import nn
from torch.nn import functional as F
from second.pytorch.utils import get_paddings_indicator
from torchplus.nn import Empty
from torchplus.tools import change_default_args
class PFNLayer(nn.Module):
def __init__(self,
in_channels,
out_channels,
use_norm=True,
last_layer=False):
"""
Pillar Feature Net Layer.
The Pillar Feature Net could be composed of a series of these layers, but the PointPillars paper results only
used a single PFNLayer. This layer performs a similar role as second.pytorch.voxelnet.VFELayer.
:param in_channels: <int>. Number of input channels.
:param out_channels: <int>. Number of output channels.
:param use_norm: <bool>. Whether to include BatchNorm.
:param last_layer: <bool>. If last_layer, there is no concatenation of features.
"""
super().__init__()
self.name = 'PFNLayer'
self.last_vfe = last_layer
if not self.last_vfe:
out_channels = out_channels // 2
self.units = out_channels
"""
" / "就表示 浮点数除法，返回浮点结果;" // "表示整数除法。
在 Python 2.2 ：要引用： from __future__ import division
————————————————
版权声明：本文为CSDN博主「lw_waston」的原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接及本声明。
原文链接：https://blog.csdn.net/lw_waston/article/details/83150304
"""
if use_norm:
BatchNorm1d = change_default_args(eps=1e-3, momentum=0.01)(nn.BatchNorm1d)
Linear = change_default_args(bias=False)(nn.Linear)
else:
BatchNorm1d = Empty
Linear = change_default_args(bias=True)(nn.Linear)
self.linear = Linear(in_channels, self.units)
self.norm = BatchNorm1d(self.units)
def forward(self, inputs):
x = self.linear(inputs)
x = self.norm(x.permute(0, 2, 1).contiguous()).permute(0, 2, 1).contiguous()
x = F.relu(x)
x_max = torch.max(x, dim=1, keepdim=True)[0]
if self.last_vfe:
return x_max
else:
x_repeat = x_max.repeat(1, inputs.shape[1], 1)
x_concatenated = torch.cat([x, x_repeat], dim=2)
return x_concatenated
class PillarFeatureNet(nn.Module):
def __init__(self,
num_input_features=4,
use_norm=True,
num_filters=(64,),
with_distance=False,
voxel_size=(0.2, 0.2, 4),
pc_range=(0, -40, -3, 70.4, 40, 1)):
"""
Pillar Feature Net.
The network prepares the pillar features and performs forward pass through PFNLayers. This net performs a
similar role to SECOND's second.pytorch.voxelnet.VoxelFeatureExtractor.
:param num_input_features: <int>. Number of input features, either x, y, z or x, y, z, r.
:param use_norm: <bool>. Whether to include BatchNorm.
:param num_filters: (<int>: N). Number of features in each of the N PFNLayers.
:param with_distance: <bool>. Whether to include Euclidean distance to points.
:param voxel_size: (<float>: 3). Size of voxels, only utilize x and y size.
:param pc_range: (<float>: 6). Point cloud range, only utilize x and y min.
"""
super().__init__()
self.name = 'PillarFeatureNet'
assert len(num_filters) > 0
num_input_features += 5
if with_distance:
num_input_features += 1
self._with_distance = with_distance
# Create PillarFeatureNet layers
num_filters = [num_input_features] + list(num_filters)
pfn_layers = []
for i in range(len(num_filters) - 1):
in_filters = num_filters[i]
out_filters = num_filters[i + 1]
if i < len(num_filters) - 2:
last_layer = False
else:
last_layer = True
pfn_layers.append(PFNLayer(in_filters, out_filters, use_norm, last_layer=last_layer))
self.pfn_layers = nn.ModuleList(pfn_layers)
# Need pillar (voxel) size and x/y offset in order to calculate pillar offset
self.vx = voxel_size[0]
self.vy = voxel_size[1]
self.x_offset = self.vx / 2 + pc_range[0]
self.y_offset = self.vy / 2 + pc_range[1]
def forward(self, features, num_voxels, coors):
# Find distance of x, y, and z from cluster center
points_mean = features[:, :, :3].sum(dim=1, keepdim=True) / num_voxels.type_as(features).view(-1, 1, 1)
f_cluster = features[:, :, :3] - points_mean
# Find distance of x, y, and z from pillar center
f_center = torch.zeros_like(features[:, :, :2])
f_center[:, :, 0] = features[:, :, 0] - (coors[:, 3].float().unsqueeze(1) * self.vx + self.x_offset)
f_center[:, :, 1] = features[:, :, 1] - (coors[:, 2].float().unsqueeze(1) * self.vy + self.y_offset)
# Combine together feature decorations
features_ls = [features, f_cluster, f_center]
if self._with_distance:
points_dist = torch.norm(features[:, :, :3], 2, 2, keepdim=True)
features_ls.append(points_dist)
features = torch.cat(features_ls, dim=-1)
# The feature decorations were calculated without regard to whether pillar was empty. Need to ensure that
# empty pillars remain set to zeros.
voxel_count = features.shape[1]
mask = get_paddings_indicator(num_voxels, voxel_count, axis=0)
mask = torch.unsqueeze(mask, -1).type_as(features)
features *= mask
# Forward pass through PFNLayers
for pfn in self.pfn_layers:
features = pfn(features)
return features.squeeze()
class PointPillarsScatter(nn.Module):
def __init__(self,
output_shape,
num_input_features=64):
"""
Point Pillar's Scatter.
Converts learned features from dense tensor to sparse pseudo image. This replaces SECOND's
second.pytorch.voxelnet.SparseMiddleExtractor.
:param output_shape: ([int]: 4). Required output shape of features.
:param num_input_features: <int>. Number of input features.
"""
super().__init__()
self.name = 'PointPillarsScatter'
self.output_shape = output_shape
self.ny = output_shape[2]
self.nx = output_shape[3]
self.nchannels = num_input_features
def forward(self, voxel_features, coords, batch_size):
# batch_canvas will be the final output.
batch_canvas = []
for batch_itt in range(batch_size):
# Create the canvas for this sample
canvas = torch.zeros(self.nchannels, self.nx * self.ny, dtype=voxel_features.dtype,
device=voxel_features.device)
# Only include non-empty pillars
batch_mask = coords[:, 0] == batch_itt
this_coords = coords[batch_mask, :]
indices = this_coords[:, 2] * self.nx + this_coords[:, 3]
indices = indices.type(torch.long)
voxels = voxel_features[batch_mask, :]
voxels = voxels.t()
# Now scatter the blob back to the canvas.
canvas[:, indices] = voxels
# Append to a list for later stacking.
batch_canvas.append(canvas)
# Stack to 3-dim tensor (batch-size, nchannels, nrows*ncols)
batch_canvas = torch.stack(batch_canvas, 0)
# Undo the column stacking to final 4-dim tensor
batch_canvas = batch_canvas.view(batch_size, self.nchannels, self.ny, self.nx)
return batch_canvasPointPillar. Voxelnet.py

import time
from enum import Enum
from functools import reduce
import numpy as np
import sparseconvnet as scn
import torch
from torch import nn
from torch.nn import functional as F
import torchplus
from torchplus import metrics
from torchplus.nn import Empty, GroupNorm, Sequential
from torchplus.ops.array_ops import gather_nd, scatter_nd
from torchplus.tools import change_default_args
from second.pytorch.core import box_torch_ops
from second.pytorch.core.losses import (WeightedSigmoidClassificationLoss,
WeightedSmoothL1LocalizationLoss,
WeightedSoftmaxClassificationLoss)
from second.pytorch.models.pointpillars import PillarFeatureNet, PointPillarsScatter
from second.pytorch.utils import get_paddings_indicator
def _get_pos_neg_loss(cls_loss, labels):
# cls_loss: [N, num_anchors, num_class]
# labels: [N, num_anchors]
batch_size = cls_loss.shape[0]
if cls_loss.shape[-1] == 1 or len(cls_loss.shape) == 2:
cls_pos_loss = (labels > 0).type_as(cls_loss) * cls_loss.view(
batch_size, -1)
cls_neg_loss = (labels == 0).type_as(cls_loss) * cls_loss.view(
batch_size, -1)
cls_pos_loss = cls_pos_loss.sum() / batch_size
cls_neg_loss = cls_neg_loss.sum() / batch_size
else:
cls_pos_loss = cls_loss[..., 1:].sum() / batch_size
cls_neg_loss = cls_loss[..., 0].sum() / batch_size
return cls_pos_loss, cls_neg_loss
class VFELayer(nn.Module):
def __init__(self, in_channels, out_channels, use_norm=True, name='vfe'):
super(VFELayer, self).__init__()
self.name = name
self.units = int(out_channels / 2)
if use_norm:
BatchNorm1d = change_default_args(
eps=1e-3, momentum=0.01)(nn.BatchNorm1d)
Linear = change_default_args(bias=False)(nn.Linear)
else:
BatchNorm1d = Empty
Linear = change_default_args(bias=True)(nn.Linear)
self.linear = Linear(in_channels, self.units)
self.norm = BatchNorm1d(self.units)
def forward(self, inputs):
# [K, T, 7] tensordot [7, units] = [K, T, units]
voxel_count = inputs.shape[1]
x = self.linear(inputs)
x = self.norm(x.permute(0, 2, 1).contiguous()).permute(0, 2,
1).contiguous()
pointwise = F.relu(x)
# [K, T, units]
aggregated = torch.max(pointwise, dim=1, keepdim=True)[0]
# [K, 1, units]
repeated = aggregated.repeat(1, voxel_count, 1)
concatenated = torch.cat([pointwise, repeated], dim=2)
# [K, T, 2 * units]
return concatenated
class VoxelFeatureExtractor(nn.Module):
def __init__(self,
num_input_features=4,
use_norm=True,
num_filters=[32, 128],
with_distance=False,
name='VoxelFeatureExtractor'):
super(VoxelFeatureExtractor, self).__init__()
self.name = name
if use_norm:
BatchNorm1d = change_default_args(
eps=1e-3, momentum=0.01)(nn.BatchNorm1d)
Linear = change_default_args(bias=False)(nn.Linear)
else:
BatchNorm1d = Empty
Linear = change_default_args(bias=True)(nn.Linear)
assert len(num_filters) == 2
num_input_features += 3 # add mean features
if with_distance:
num_input_features += 1
self._with_distance = with_distance
self.vfe1 = VFELayer(num_input_features, num_filters[0], use_norm)
self.vfe2 = VFELayer(num_filters[0], num_filters[1], use_norm)
self.linear = Linear(num_filters[1], num_filters[1])
# var_torch_init(self.linear.weight)
# var_torch_init(self.linear.bias)
self.norm = BatchNorm1d(num_filters[1])
def forward(self, features, num_voxels, coors):
# features: [concated_num_points, num_voxel_size, 3(4)]
# num_voxels: [concated_num_points]
points_mean = features[:, :, :3].sum(
dim=1, keepdim=True) / num_voxels.type_as(features).view(-1, 1, 1)
features_relative = features[:, :, :3] - points_mean
if self._with_distance:
points_dist = torch.norm(features[:, :, :3], 2, 2, keepdim=True)
features = torch.cat(
[features, features_relative, points_dist], dim=-1)
else:
features = torch.cat([features, features_relative], dim=-1)
voxel_count = features.shape[1]
mask = get_paddings_indicator(num_voxels, voxel_count, axis=0)
mask = torch.unsqueeze(mask, -1).type_as(features)
# mask = features.max(dim=2, keepdim=True)[0] != 0
x = self.vfe1(features)
x *= mask
x = self.vfe2(x)
x *= mask
x = self.linear(x)
x = self.norm(x.permute(0, 2, 1).contiguous()).permute(0, 2,
1).contiguous()
x = F.relu(x)
x *= mask
# x: [concated_num_points, num_voxel_size, 128]
voxelwise = torch.max(x, dim=1)[0]
return voxelwise
class VoxelFeatureExtractorV2(nn.Module):
def __init__(self,
num_input_features=4,
use_norm=True,
num_filters=[32, 128],
with_distance=False,
name='VoxelFeatureExtractor'):
super(VoxelFeatureExtractorV2, self).__init__()
self.name = name
if use_norm:
BatchNorm1d = change_default_args(
eps=1e-3, momentum=0.01)(nn.BatchNorm1d)
Linear = change_default_args(bias=False)(nn.Linear)
else:
BatchNorm1d = Empty
Linear = change_default_args(bias=True)(nn.Linear)
assert len(num_filters) > 0
num_input_features += 3
if with_distance:
num_input_features += 1
self._with_distance = with_distance
num_filters = [num_input_features] + num_filters
filters_pairs = [[num_filters[i], num_filters[i + 1]]
for i in range(len(num_filters) - 1)]
self.vfe_layers = nn.ModuleList(
[VFELayer(i, o, use_norm) for i, o in filters_pairs])
self.linear = Linear(num_filters[-1], num_filters[-1])
# var_torch_init(self.linear.weight)
# var_torch_init(self.linear.bias)
self.norm = BatchNorm1d(num_filters[-1])
def forward(self, features, num_voxels, coors):
# features: [concated_num_points, num_voxel_size, 3(4)]
# num_voxels: [concated_num_points]
points_mean = features[:, :, :3].sum(
dim=1, keepdim=True) / num_voxels.type_as(features).view(-1, 1, 1)
features_relative = features[:, :, :3] - points_mean
if self._with_distance:
points_dist = torch.norm(features[:, :, :3], 2, 2, keepdim=True)
features = torch.cat(
[features, features_relative, points_dist], dim=-1)
else:
features = torch.cat([features, features_relative], dim=-1)
voxel_count = features.shape[1]
mask = get_paddings_indicator(num_voxels, voxel_count, axis=0)
mask = torch.unsqueeze(mask, -1).type_as(features)
for vfe in self.vfe_layers:
features = vfe(features)
features *= mask
features = self.linear(features)
features = self.norm(features.permute(0, 2, 1).contiguous()).permute(
0, 2, 1).contiguous()
features = F.relu(features)
features *= mask
# x: [concated_num_points, num_voxel_size, 128]
voxelwise = torch.max(features, dim=1)[0]
return voxelwise
class SparseMiddleExtractor(nn.Module):
def __init__(self,
output_shape,
use_norm=True,
num_input_features=128,
num_filters_down1=[64],
num_filters_down2=[64, 64],
name='SparseMiddleExtractor'):
super(SparseMiddleExtractor, self).__init__()
self.name = name
if use_norm:
BatchNorm1d = change_default_args(
eps=1e-3, momentum=0.01)(nn.BatchNorm1d)
Linear = change_default_args(bias=False)(nn.Linear)
else:
BatchNorm1d = Empty
Linear = change_default_args(bias=True)(nn.Linear)
sparse_shape = np.array(output_shape[1:4]) + [1, 0, 0]
# sparse_shape[0] = 11
print(sparse_shape)
self.scn_input = scn.InputLayer(3, sparse_shape.tolist())
self.voxel_output_shape = output_shape
middle_layers = []
num_filters = [num_input_features] + num_filters_down1
# num_filters = [64] + num_filters_down1
filters_pairs_d1 = [[num_filters[i], num_filters[i + 1]]
for i in range(len(num_filters) - 1)]
for i, o in filters_pairs_d1:
middle_layers.append(scn.SubmanifoldConvolution(3, i, o, 3, False))
middle_layers.append(scn.BatchNormReLU(o, eps=1e-3, momentum=0.99))
middle_layers.append(
scn.Convolution(
3,
num_filters[-1],
num_filters[-1], (3, 1, 1), (2, 1, 1),
bias=False))
middle_layers.append(
scn.BatchNormReLU(num_filters[-1], eps=1e-3, momentum=0.99))
# assert len(num_filters_down2) > 0
if len(num_filters_down1) == 0:
num_filters = [num_filters[-1]] + num_filters_down2
else:
num_filters = [num_filters_down1[-1]] + num_filters_down2
filters_pairs_d2 = [[num_filters[i], num_filters[i + 1]]
for i in range(len(num_filters) - 1)]
for i, o in filters_pairs_d2:
middle_layers.append(scn.SubmanifoldConvolution(3, i, o, 3, False))
middle_layers.append(scn.BatchNormReLU(o, eps=1e-3, momentum=0.99))
middle_layers.append(
scn.Convolution(
3,
num_filters[-1],
num_filters[-1], (3, 1, 1), (2, 1, 1),
bias=False))
middle_layers.append(
scn.BatchNormReLU(num_filters[-1], eps=1e-3, momentum=0.99))
middle_layers.append(scn.SparseToDense(3, num_filters[-1]))
self.middle_conv = Sequential(*middle_layers)
def forward(self, voxel_features, coors, batch_size):
# coors[:, 1] += 1
coors = coors.int()[:, [1, 2, 3, 0]]
ret = self.scn_input((coors.cpu(), voxel_features, batch_size))
ret = self.middle_conv(ret)
N, C, D, H, W = ret.shape
ret = ret.view(N, C * D, H, W)
return ret
class ZeroPad3d(nn.ConstantPad3d):
def __init__(self, padding):
super(ZeroPad3d, self).__init__(padding, 0)
class MiddleExtractor(nn.Module):
def __init__(self,
output_shape,
use_norm=True,
num_input_features=128,
num_filters_down1=[64],
num_filters_down2=[64, 64],
name='MiddleExtractor'):
super(MiddleExtractor, self).__init__()
self.name = name
if use_norm:
BatchNorm3d = change_default_args(
eps=1e-3, momentum=0.01)(nn.BatchNorm3d)
# BatchNorm3d = change_default_args(
# group=32, eps=1e-3, momentum=0.01)(GroupBatchNorm3d)
Conv3d = change_default_args(bias=False)(nn.Conv3d)
else:
BatchNorm3d = Empty
Conv3d = change_default_args(bias=True)(nn.Conv3d)
self.voxel_output_shape = output_shape
self.middle_conv = Sequential(
ZeroPad3d(1),
Conv3d(num_input_features, 64, 3, stride=(2, 1, 1)),
BatchNorm3d(64),
nn.ReLU(),
ZeroPad3d([1, 1, 1, 1, 0, 0]),
Conv3d(64, 64, 3, stride=1),
BatchNorm3d(64),
nn.ReLU(),
ZeroPad3d(1),
Conv3d(64, 64, 3, stride=(2, 1, 1)),
BatchNorm3d(64),
nn.ReLU(),
)
def forward(self, voxel_features, coors, batch_size):
output_shape = [batch_size] + self.voxel_output_shape[1:]
ret = scatter_nd(coors.long(), voxel_features, output_shape)
# print('scatter_nd fw:', time.time() - t)
ret = ret.permute(0, 4, 1, 2, 3)
ret = self.middle_conv(ret)
N, C, D, H, W = ret.shape
ret = ret.view(N, C * D, H, W)
return ret
#RPN忽略，我不需要
class LossNormType(Enum):
NormByNumPositives = "norm_by_num_positives"
NormByNumExamples = "norm_by_num_examples"
NormByNumPosNeg = "norm_by_num_pos_neg"
VoxelNet
voxelnet.group_pointcloud
class VFELayer(object):
def __init__(self, out_channels, name):
super(VFELayer, self).__init__()
self.units = int(out_channels / 2)
with tf.variable_scope(name, reuse=tf.AUTO_REUSE) as scope:
self.dense = tf.layers.Dense(
self.units, tf.nn.relu, name='dense', _reuse=tf.AUTO_REUSE, _scope=scope)
self.batch_norm = tf.layers.BatchNormalization(
name='batch_norm', fused=True, _reuse=tf.AUTO_REUSE, _scope=scope)
def apply(self, inputs, mask, training):
# [K, T, 7] tensordot [7, units] = [K, T, units]
pointwise = self.batch_norm.apply(self.dense.apply(inputs), training)
#n [K, 1, units]
aggregated = tf.reduce_max(pointwise, axis=1, keep_dims=True)
# [K, T, units]
repeated = tf.tile(aggregated, [1, cfg.VOXEL_POINT_COUNT, 1])
# [K, T, 2 * units]
concatenated = tf.concat([pointwise, repeated], axis=2)
mask = tf.tile(mask, [1, 1, 2 * self.units])
concatenated = tf.multiply(concatenated, tf.cast(mask, tf.float32))
return concatenated
class FeatureNet(object):
def __init__(self, training, batch_size, name=''):
super(FeatureNet, self).__init__()
self.training = training
# scalar
self.batch_size = batch_size
# [ΣK, 35/45, 7]
self.feature = tf.placeholder(
tf.float32, [None, cfg.VOXEL_POINT_COUNT, 7], name='feature')
# [ΣK]
self.number = tf.placeholder(tf.int64, [None], name='number')
# [ΣK, 4], each row stores (batch, d, h, w)
self.coordinate = tf.placeholder(
tf.int64, [None, 4], name='coordinate')
with tf.variable_scope(name, reuse=tf.AUTO_REUSE) as scope:
self.vfe1 = VFELayer(32, 'VFE-1')
self.vfe2 = VFELayer(128, 'VFE-2')
# boolean mask [K, T, 2 * units]
mask = tf.not_equal(tf.reduce_max(
self.feature, axis=2, keep_dims=True), 0)
x = self.vfe1.apply(self.feature, mask, self.training)
x = self.vfe2.apply(x, mask, self.training)
# [ΣK, 128]
voxelwise = tf.reduce_max(x, axis=1)
# car: [N * 10 * 400 * 352 * 128]
# pedestrian/cyclist: [N * 10 * 200 * 240 * 128]
self.outputs = tf.scatter_nd(
self.coordinate, voxelwise, [self.batch_size, 10, cfg.INPUT_HEIGHT, cfg.INPUT_WIDTH, 128])
