Modelica基础1——单摆例子

Modelica单摆例子

软件：MWORKS.Sysplorer 24教育版

---

目的：使用Modelica语言编写一个单杆带小球的物理模型，小球初始位置需要自己设置，然后考虑空气阻力，小球会逐渐到达最低点。

---

实验条件：仿真100s，求解器为dassl。

---

model Pendulum_test "带有空气摩擦的阻尼Pendulum钟摆案例"
  Real m = 1;  //小球质量 kg
  Real L = 5;  //杆长 m
  Real g = Modelica.Constants.g_n;  //重力加速度 m/s2
  Real F;  //杆中力 N
  Real vx(start = 0);  //水平速度 m/s
  Real vy(start = 0);  //垂直速度 m/s
  Real x(start = -5);  //水平位移 m
  Real y(start = 0);  //垂直位移 m
  Real v(start = 0);  //实际速度
  Real fx(start = 0);  //水平阻力
  Real fy(start = 0);  //垂直阻力
  parameter Real k = 0.1;  //阻力系数
  Real phi = Modelica.Constants.pi / 3;
  annotation(Diagram(coordinateSystem(extent = {{-200, -200}, {200, 200}},
    grid = {1, 1}), graphics = {Rectangle(origin = {0, 0},
      fillColor = {255, 255, 255},
      fillPattern = FillPattern.Backward,
      extent = {{-50, 20}, {50, -20}}),
    Ellipse(origin = {0, -120},
      fillColor = {255, 255, 255},
      fillPattern = FillPattern.Sphere,
      extent = {{-10, -10}, {10, 10}}),
    Line(origin = {0, 0},
      points = {{0, -20}, {0, -120}})}));
equation
  der(x) = vx;
  der(y) = vy;
  v = sqrt(vx ^ 2 + vy ^ 2);
  x ^ 2 + y ^ 2 = L ^ 2;
  fx = k * vx;
  fy = k * vy;
  m * der(vx) = -x * F / L + y * fx / L;
  m * der(vy) = -y * F / L + x * fy / L - m * g;
end Pendulum_test;

---

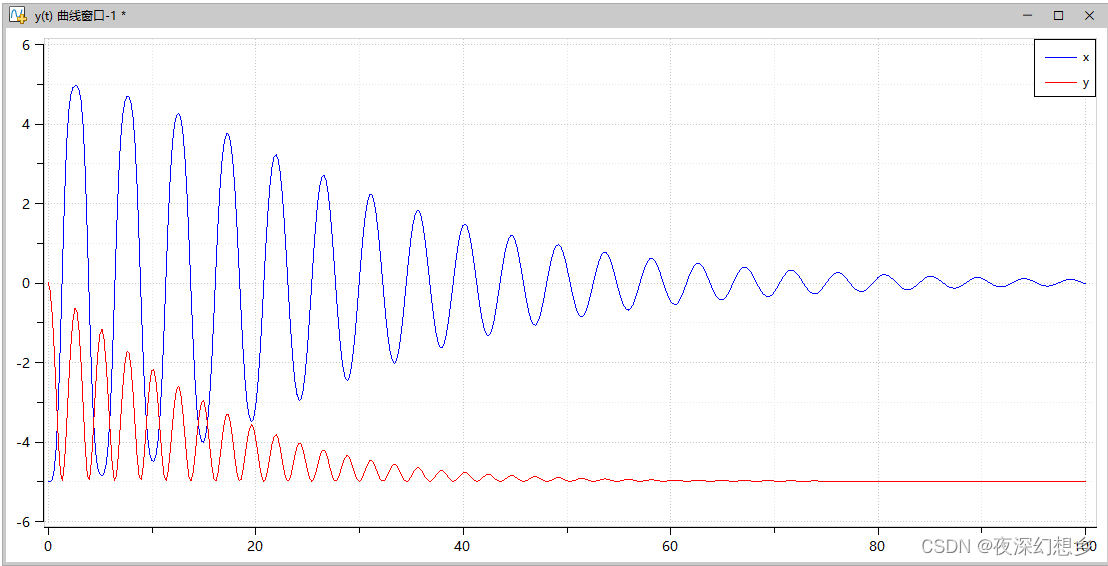

仿真结果：
