需要:
直接PDFLaTeX 编译vessel.tex
注意参考文献ref.bibl里面不能有重复
文章末尾定义参考文献的名称:
参考文献在文章中引用
\cite{zhao2020cross}
参考文献准备:

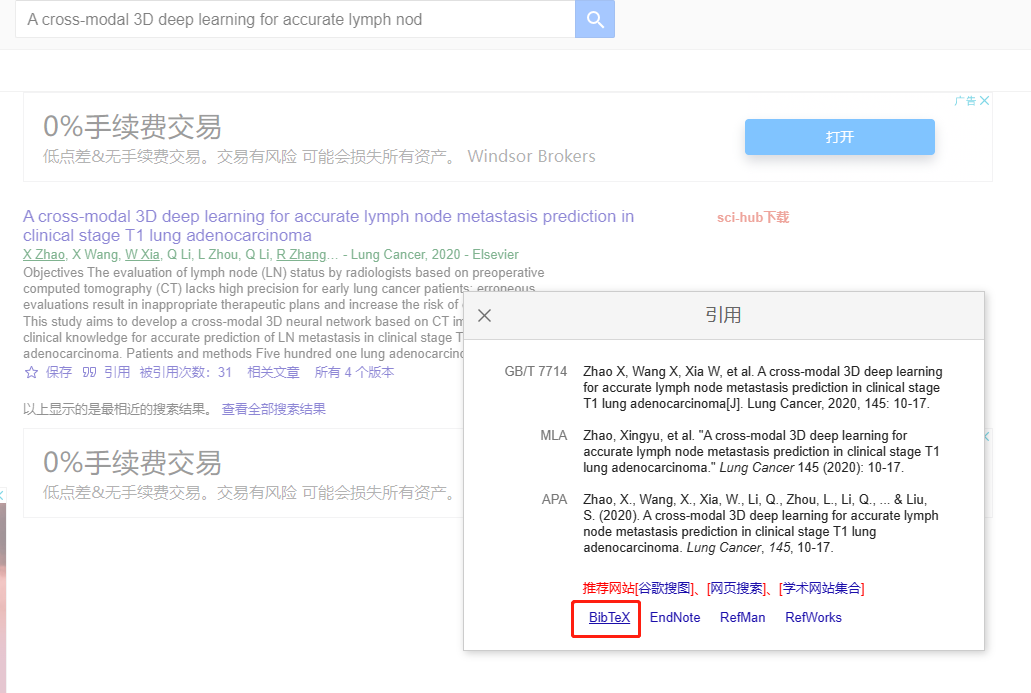

文献类学术搜索 (lsqwl.org)https://xs.lsqwl.org/index.html
@article{zhao2020cross,
title={A cross-modal 3D deep learning for accurate lymph node metastasis prediction in clinical stage T1 lung adenocarcinoma},
author={Zhao, Xingyu and Wang, Xiang and Xia, Wei and Li, Qiong and Zhou, Liu and Li, Qingchu and Zhang, Rui and Cai, Jiali and Jian, Junming and Fan, Li and others},
journal={Lung Cancer},
volume={145},
pages={10--17},
year={2020},
publisher={Elsevier}
}

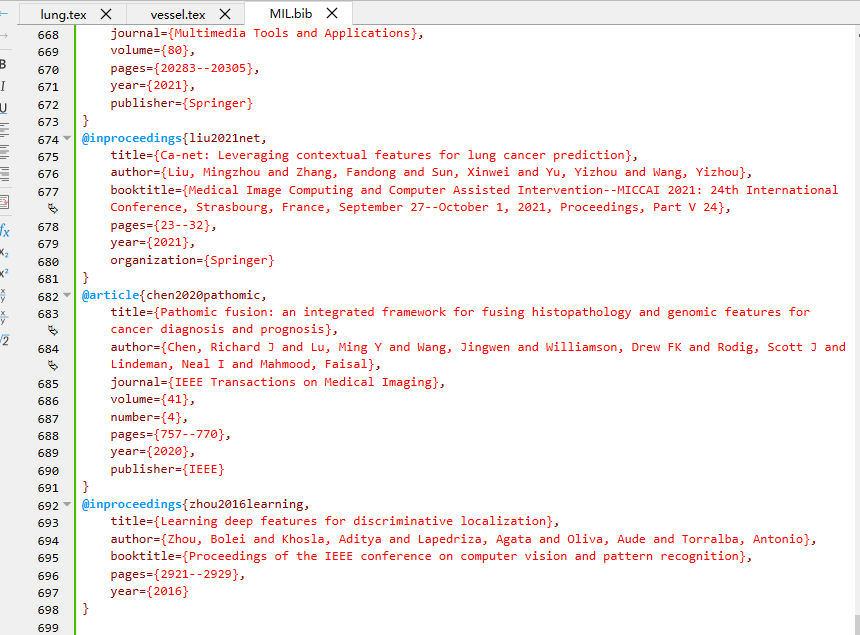

将每一个参考文献放入MIL.bib中
参考文献编译:
1、2、命令3、Bibtex 编译MIL.bib(需要lung.aux)
返回
1、2、命令3、PDFLaTeX 编译lung.tex

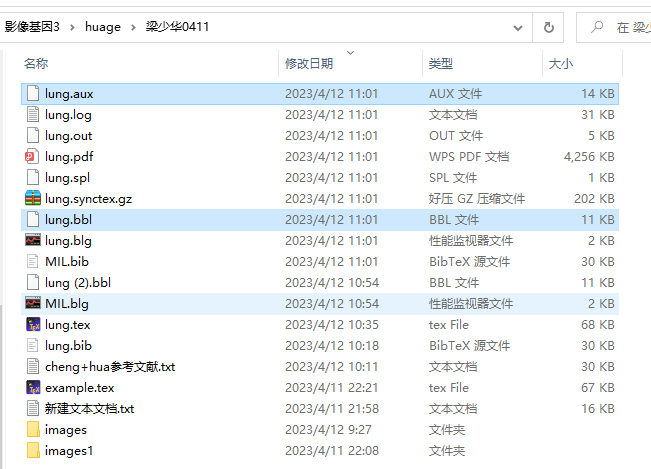

会生成aux和bbl
图像引用:注意格式
\begin{figure}[h]
\centering
\includegraphics[width=14cm,height=11.285cm]{images/2.png}
\caption{The schematic illustration of our proposed Adaptive Multi-Feature Cross-Attention Mechanism (AMCM). The model in this paper uses CT images, genetic data, and clinical data as inputs.}
\label{fig: 2}
\end{figure}

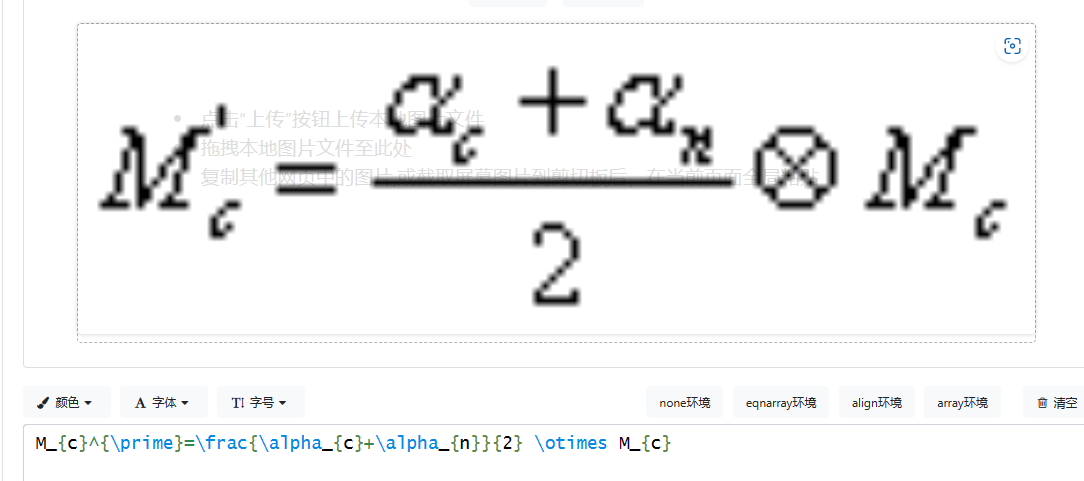

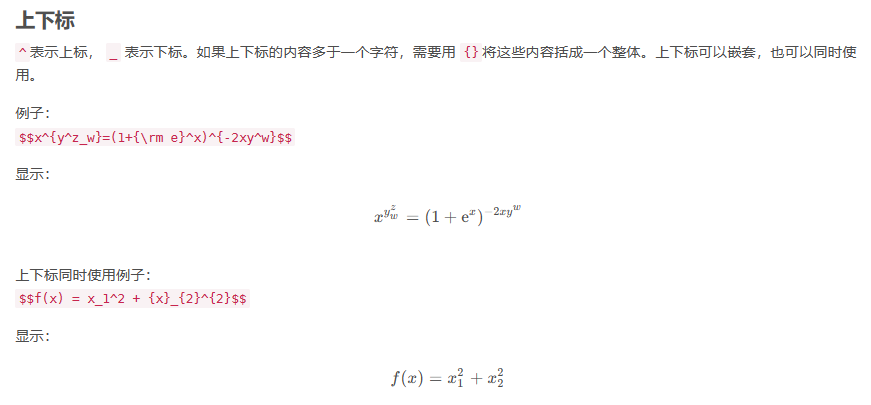

公式编辑:
\alpha_{c} = F_c^{enc}(M_c)

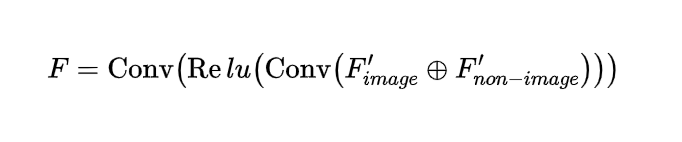

F=\operatorname{Conv}\left(\operatorname{Re} l u\left(\operatorname{Conv}\left(F_{i m a g e}^{\prime} \oplus F_{n o n-i m a g e}^{\prime}\right)\right)\right)
F = Conv(Relu(Conv(F_{image}^{\prime} \oplus F_{non-image}^{\prime})))
表格:
表格生成网址https://www.tablesgenerator.comhttps://www.tablesgenerator.com/
自动调整表格大小
\resizebox{\textwidth}{!}{
}
\begin{table}[]
\caption{Comparison of the classification performance of AMCM and the three models for different gene selection blocks.}\label{table-4} \centering
\resizebox{\textwidth}{!}{
\begin{tabular}{cccccc}
\hline
Model & Accuracy(\%) & Sensitivity(\%) & Specificity(\%) & F1-score(\%) & AUC(\%) \\ \hline
AMCM(Random) & 92.56$\pm$0.23 & 91.34$\pm$0.18 & 91.59$\pm$0.26 & 88.62$\pm$0.25 & 86.53$\pm$0.23 \\
AMCM (PCA) & 94.12$\pm$0.19 & 92.78$\pm$0.21 & 95.58$\pm$0.23 & 90.21$\pm$0.16 & 90.07$\pm$0.16 \\
AMCM (RF) & 94.28$\pm$0.15 & 93.15$\pm$0.16 & 96.56$\pm$0.22 & 91.27$\pm$0.32 & 94.04$\pm$0.26 \\
AMCM (Ours) & \textbf{96.88$\pm$0.18} & \textbf{95.58$\pm$0.21} & \textbf{98.73$\pm$0.12} & \textbf{92.42$\pm$0.19} & \textbf{97.12$\pm$0.12} \\ \hline
\end{tabular}}
\end{table}
