1.首先做代码->onnx的转换
这个各个框架都有现成的代码直接可以export,建议百度
以pytorch为例
torch.onnx.export(model, # 你训练的的模型
model/param, # 模型输入(或者是一个多输入的元组,如yolo的输入图片大小为[640,640])
"path/to/save", # 保存文件夹
export_params=True, # store the trained parameter weights inside the model file
do_constant_folding=True, # whether to execute constant folding for optimization
input_names = ['input'], # 模型输入名
output_names = ['output'], # 模型输出名
)
得到一个 xxx.onnx的输出,下面以 best.onnx为例。将best.onnx转换成 best-sim.onnx 。这步可以不做。
pip install onnxsim
python -m onnxsim best.onnx best-sim.onnx
2.onxx->ncnn
先给windows装上Cmake地址为:Download CMake,并配置环境变量
下载Visual Studio (必备) 地址为:免费下载 (microsoft.com)
下载完成后 勾选如上的选项等它下载完所有的依赖包。
下载protobuf 源码,地址为protobuf,解压到文件夹 protobuf_dir
下载ncnn源码,下载地址ncnn 解压到文件夹 ncnn_dir
在window开始页下打开 x64 Native Tools Command Prompt for VS (以下的所有操作均是在x64 Native Tools Command Prompt for VS的窗口下执行)
进入 protobuf_dir ( 也就是刚刚解压的protobuf文件夹的根目录)逐行执行下面代码:
cd protobuf_dir
mkdir build
cd build
cmake -G"NMake Makefiles" -DCMAKE_BUILD_TYPE=Release -DCMAKE_INSTALL_PREFIX=%cd%/install -Dprotobuf_BUILD_TESTS=OFF -Dprotobuf_MSVC_STATIC_RUNTIME=OFF ../cmake
nmake
nmake install

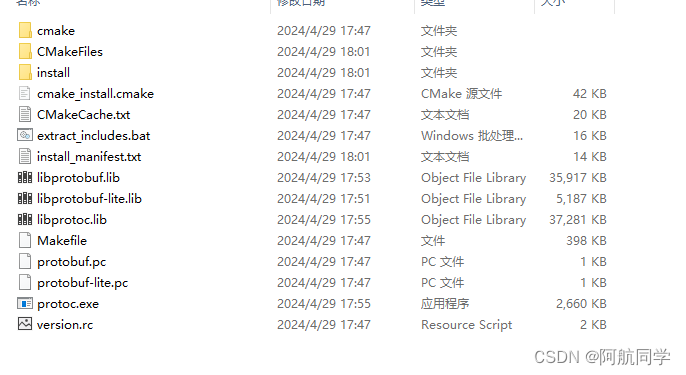

在buid下面会出现以下的文件,如果不对就重新生成。
中间可能会报错一个cmake的错误,是和cmake的版本有关系,,进入protobuf_dir->cmake->Cmakelists.txt 找到下面这行代码
cmake_minimum_required(VERSION 3.5)
version 为你的cmake版本就行
进入ncnn_dir,逐行执行下面代码 (其中 cmake -G中有三处protobuf_dir,注意修改为你自己的路径 ):
cd ncnn_dir
mkdir -p build
cd build
cmake -G"NMake Makefiles" -DCMAKE_BUILD_TYPE=Release -DCMAKE_INSTALL_PREFIX=%cd%/install -DProtobuf_INCLUDE_DIR=protobuf_dir/build/install/include -DProtobuf_LIBRARIES=protobuf_dir/build/install/lib/libprotobuf.lib -DProtobuf_PROTOC_EXECUTABLE=protobuf_dir/build/install/bin/protoc.exe -DNCNN_VULKAN=OFF ..
nmake
nmake install

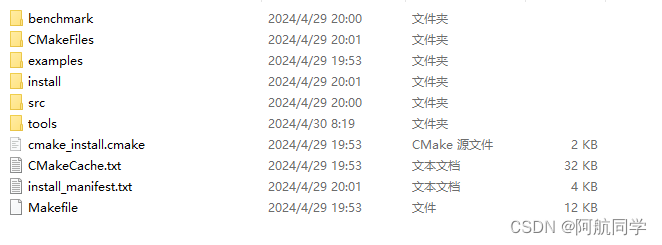

在buid下面会出现以下的文件:
然后转到build下的tools下:
cd tools/onnx
./onnx2ncnn best-sim.onnx best.param best.bin
cd ../
./ncnnoptimize best.param best.bin best-opt.param best-opt.bin 65536
会得到优化前后的两组:
然后在ncnn\examples下找到自己模型的c++ 代码或者在ncnn\python\examples下找到python代码的示例模仿着调用就行了,参考使用vs运行yolov8_onnx-CSDN博客
