Flink1.14 StreamApi常见的source和sink
flink支持向文件、socket、集合等中读写数据，同时Flink也内置许多connectors，例如Kafka、Hadoop、Redis等。
一、常见的source
source 是flink用来获取外部数据的算子，按照获取数据的方式，可以分为:
-
基于集合的 Source
-
基于 Socket 网络端口的 Source
-
基于文件的 Source
-
第三方 Connector Source
-
自定义 Source 五种
从并行度的角度，source 又可以分为非并行的 source 和并行的 source：
-
非并行 source:
并行度只能为 1，即只有一个运行时实例，在读取大量数据时效率比较低，通常是用来做一些实验或测试，例如 Socket Source; -
并行 Source:
并行度可以是 1到多个，在计算资源足够的前提下，并行度越大，效率越高。例如Kafka Source;
1.1 从集合得到数据流
package cn.yyds.source;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
public class _01_ElementsSource {
public static void main(String[] args) throws Exception {
Configuration conf = new Configuration();
conf.setInteger("rest.port", 8081);
StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(conf);
env.setParallelism(1); // 默认并行度
/**
* 从集合得到数据流
*/
DataStreamSource<Integer> fromElements = env.fromElements(1, 2, 3, 4, 5);
fromElements.map(d -> d * 10).print();
env.execute();
}
}
1.2 从 socket 端口获取数据得到数据流
package cn.yyds.source;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
public class _02_SocketSource {
public static void main(String[] args) throws Exception {
Configuration conf = new Configuration();
conf.setInteger("rest.port", 8081);
StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(conf);
env.setParallelism(1); // 默认并行度
/**
* 从 socket 端口获取数据得到数据流
* socketTextStream方法产生的source算子，是一个单并行度的source算子
*/
DataStreamSource<String> socketSource = env.socketTextStream("centos01", 9999);
socketSource.print();
env.execute();
}
}
1.3 从文件得到数据流
package cn.yyds.source;
import org.apache.flink.api.java.io.TextInputFormat;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.FileProcessingMode;
public class _03_TextFileSource {
public static void main(String[] args) throws Exception {
Configuration conf = new Configuration();
conf.setInteger("rest.port", 8081);
StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(conf);
env.setParallelism(1); // 默认并行度
/**
* 从文件得到数据流
*/
DataStreamSource<String> fileSource = env.readTextFile("files/data/wc.txt", "utf-8");
fileSource.map(String::toUpperCase)/*.print()*/;
// FileProcessingMode.PROCESS_ONCE 表示，对文件只读一次，计算一次，然后程序就退出
// FileProcessingMode.PROCESS_CONTINUOUSLY 表示，会监视着文件的变化，一旦发现文件有变化，则会再次对整个文件进行重新计算
DataStreamSource<String> fileSource2 = env.readFile(new TextInputFormat(null), "files/data/wc.txt", FileProcessingMode.PROCESS_CONTINUOUSLY, 1000);
fileSource2.map(String::toUpperCase).print();
env.execute();
}
}
1.4 从kafka中读取数据得到数据流(生产用)
在实际生产环境中，为了保证 flink 可以高效地读取数据源中的数据，通常是跟一些分布式消息中件结合使用，例如 Apache Kafka。Kafka 的特点是分布式、多副本、高可用、高吞吐、可以记录偏移量等。Flink 和 Kaka 整合可以高效的读取数据，并且可以保证 Exactly Once(精确一次性语义)。
<!--kafka扩展包-->
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-connector-kafka_${scala.binary.version}</artifactId>
<version>${flink.version}</version>
</dependency>
1.4.1 flink14之前老版本的api
/**
* 创建一个工具类
* 为了实现从kafka中读取数据，需要创建kafka的消费者的source源
*/
public class FlinkUtils {
//创建stream的执行环境，不能改变，因此设置为static final
public static final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
/**
*
* @param parameterTool 传入的参数工具类
* @param schema
* @param <T> 泛型
* @return
*/
public static <T> DataStream<T> createKafkaStream(ParameterTool parameterTool, Class< ? extends DeserializationSchema<T> > schema) throws Exception {
//从工具类中获取checkpoint的时间间隔，默认是30秒中
long interval = parameterTool.getLong("checkpoint.interval", 30000L);
env.enableCheckpointing(interval, CheckpointingMode.EXACTLY_ONCE);
//为了避免运算的数据在程序cancle等时候会把数据丢失，需要设置这个参数
env.getCheckpointConfig().enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
//获取topics
String[] strings = parameterTool.get("kafka.input.topics").split(",");
List<String> topics = Arrays.asList(strings);
Properties properties = parameterTool.getProperties();
FlinkKafkaConsumer<T> flinkKafkaConsumer = new FlinkKafkaConsumer<T>(
topics,
schema.newInstance(),
properties
);
//不把偏移量设置到特殊的topic中
flinkKafkaConsumer.setCommitOffsetsOnCheckpoints(false);
// 从kafka最新的位置进行消费
flinkKafkaConsumer.setStartFromLatest();
//fink整合kafka的消费者
DataStreamSource<T> dataStreamSource = env.addSource(flinkKafkaConsumer);
return dataStreamSource;
}
/**
* 需要重载一个创建kafka消费者的方法，因为这个方法中传入的KafkaDeserializationSchema<T> deserializer类型中
* 有一个 T deserialize(ConsumerRecord<byte[], byte[]> record)方法，能够拿到ConsumerRecord信息
* 从而可以拿到topic partition offset方法
*
* public FlinkKafkaConsumer(String topic, KafkaDeserializationSchema<T> deserializer, Properties props)
* T deserialize(ConsumerRecord<byte[], byte[]> record) throws Exception;
* @param parameterTool 配置参数的工具
* @param schema
* @param <T>
* @return
* @throws Exception
*/
public static <T> DataStream<T> createKafkaStreamWithId(ParameterTool parameterTool, Class< ? extends KafkaDeserializationSchema<T>> schema) throws Exception {
//设置checkpointing的时间间隔
long interval = parameterTool.getLong("checkpoint.interval", 30000L);
env.enableCheckpointing(interval,CheckpointingMode.EXACTLY_ONCE);
EmbeddedRocksDBStateBackend rocksDBStateBackend = new EmbeddedRocksDBStateBackend(true);
//rocksDBStateBackend.setDbStoragePath("");
env.setStateBackend(rocksDBStateBackend);
//设置报错checkpoint的数据到hdfs中
env.getCheckpointConfig().enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
//创建kafka的消费者
String[] split = parameterTool.get("kafka.input.topics").split(",");
List<String> topics = Arrays.asList(split);
Properties properties = parameterTool.getProperties();
FlinkKafkaConsumer<T> kafkaConsumer = new FlinkKafkaConsumer<>(
topics,
schema.newInstance(),
properties
);
//不把偏移量设置到特殊的topic中
kafkaConsumer.setCommitOffsetsOnCheckpoints(false);
DataStreamSource<T> dataStreamSource = env.addSource(kafkaConsumer);
return dataStreamSource;
}
}
1.4.2 flink14版本api
package cn.yyds.source;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.connector.kafka.source.KafkaSource;
import org.apache.flink.connector.kafka.source.enumerator.initializer.OffsetsInitializer;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.kafka.clients.consumer.OffsetResetStrategy;
public class _04_kafkaSourceSource {
public static void main(String[] args) throws Exception {
Configuration conf = new Configuration();
conf.setInteger("rest.port", 8081);
StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(conf);
env.setParallelism(1); // 默认并行度
/**
* 引入扩展包 ： flink-connector-kafka
* 从kafka中读取数据得到数据流
*/
KafkaSource<String> kafkaSource = KafkaSource.<String>builder()
// 设置订阅的目标主题
.setTopics("tp01")
// 设置消费者组id
.setGroupId("gp01")
// 设置kafka服务器地址
.setBootstrapServers("centos01:9092")
// 起始消费位移的指定：
// OffsetsInitializer.committedOffsets(OffsetResetStrategy.LATEST) 消费起始位移选择之前所提交的偏移量（如果没有，则重置为LATEST）
// OffsetsInitializer.earliest() 消费起始位移直接选择为 “最早”
// OffsetsInitializer.latest() 消费起始位移直接选择为 “最新”
// OffsetsInitializer.offsets(Map<TopicPartition,Long>) 消费起始位移选择为：方法所传入的每个分区和对应的起始偏移量
.setStartingOffsets(OffsetsInitializer.committedOffsets(OffsetResetStrategy.LATEST))
// 设置value数据的反序列化器
.setValueOnlyDeserializer(new SimpleStringSchema())
// 开启kafka底层消费者的自动位移提交机制
// 它会把最新的消费位移提交到kafka的consumer_offsets中
// 就算把自动位移提交机制开启，KafkaSource依然不依赖自动位移提交机制
// （宕机重启时，优先从flink自己的状态中去获取偏移量<更可靠>）
.setProperty("auto.offset.commit", "true")
// 把本source算子设置成 BOUNDED属性（有界流）
// 将来本source去读取数据的时候，读到指定的位置，就停止读取并退出
// 常用于补数或者重跑某一段历史数据
// .setBounded(OffsetsInitializer.committedOffsets())
// 把本source算子设置成 UNBOUNDED属性（无界流）
// 但是并不会一直读数据，而是达到指定位置就停止读取，但程序不退出
// 主要应用场景：需要从kafka中读取某一段固定长度的数据，然后拿着这段数据去跟另外一个真正的无界流联合处理
//.setUnbounded(OffsetsInitializer.latest())
.build();
// env.addSource(); // 接收的是 SourceFunction接口的 实现类
DataStreamSource<String> streamSource = env.fromSource(kafkaSource, WatermarkStrategy.noWatermarks(), "kfk-source");// 接收的是 Source 接口的实现类
streamSource.print();
env.execute();
}
}
新版本API中flink 会把kafka消费者的消费位移记录在算子状态中，这样就实现了消费位移状态的容错，从而可以支持端到端的exactly-once;
1.5 自定义Source
自定义 source
-
可以实现
SourceFunction或者RichsourceFunction，这两者都是非并行的 source 算子。 -
也可实现
ParallelSourceFunction或者RichParallelSourceFunction，这两者都是可并行的。
source 算子
-
带 Rich的，都拥有 open() ,close () ,getRuntimeContext() 方法；
-
带 Parallel的，都可多实例并行执行。
package cn.yyds.source;
import lombok.*;
import java.util.Map;
@NoArgsConstructor
@AllArgsConstructor
@Getter
@Setter
@ToString
public class EventLog{
private long guid;
private String sessionId;
private String eventId;
private long timeStamp;
private Map<String,String> eventInfo;
}
package cn.yyds.source;
import com.alibaba.fastjson.JSON;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
public class _05_SourceFunctionSource {
public static void main(String[] args) throws Exception {
Configuration conf = new Configuration();
conf.setInteger("rest.port", 8081);
StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(conf);
DataStreamSource<EventLog> dataStreamSource = env.addSource(new MySourceFunction());
dataStreamSource.map(JSON::toJSONString).print();
env.execute();
}
}
package cn.yyds.source;
import org.apache.commons.lang3.RandomStringUtils;
import org.apache.commons.lang3.RandomUtils;
import org.apache.flink.streaming.api.functions.source.SourceFunction;
import java.util.HashMap;
public class MySourceFunction implements SourceFunction<EventLog> {
volatile boolean flag = true;
@Override
public void run(SourceContext<EventLog> ctx) throws Exception {
EventLog eventLog = new EventLog();
String[] events = {"appLaunch","pageLoad","adShow","adClick","itemShare","itemCollect","putBack","wakeUp","appClose"};
HashMap<String, String> eventInfoMap = new HashMap<>();
while(flag){
eventLog.setGuid(RandomUtils.nextLong(1,1000));
eventLog.setSessionId(RandomStringUtils.randomAlphabetic(12).toUpperCase());
eventLog.setTimeStamp(System.currentTimeMillis());
eventLog.setEventId(events[RandomUtils.nextInt(0,events.length)]);
eventInfoMap.put(RandomStringUtils.randomAlphabetic(1),RandomStringUtils.randomAlphabetic(2));
eventLog.setEventInfo(eventInfoMap);
ctx.collect(eventLog);
eventInfoMap.clear();
Thread.sleep(RandomUtils.nextInt(200,1500));
}
}
@Override
public void cancel() {
flag = false;
}
}

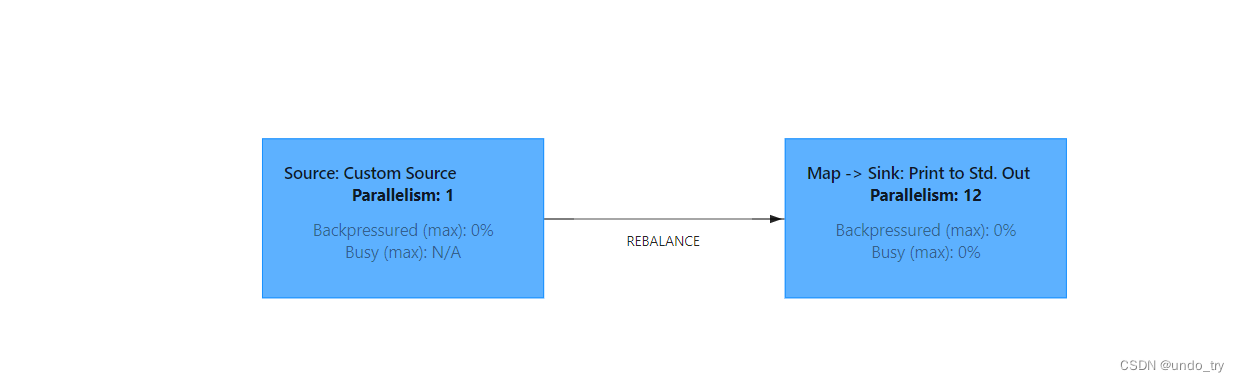

可以看到，source只有一个并行度
package cn.yyds.source;
import com.alibaba.fastjson.JSON;
import org.apache.commons.lang3.RandomStringUtils;
import org.apache.commons.lang3.RandomUtils;
import org.apache.flink.api.common.functions.RuntimeContext;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.RichParallelSourceFunction;
import java.util.HashMap;
public class _06_RichParallelSource {
public static void main(String[] args) throws Exception {
Configuration conf = new Configuration();
conf.setInteger("rest.port", 8081);
StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(conf);
DataStreamSource<EventLog> dataStreamSource = env.addSource(new MyRichParallelSourceFunction());
SingleOutputStreamOperator<String> resStream = dataStreamSource.map(JSON::toJSONString).disableChaining();
resStream.print();
env.execute();
}
}
class MyRichParallelSourceFunction extends RichParallelSourceFunction<EventLog> {
volatile boolean flag = true;
/**
* source组件初始化
* @param parameters
* @throws Exception
*/
@Override
public void open(Configuration parameters) throws Exception {
RuntimeContext runtimeContext = getRuntimeContext();
// 可以从运行时上下文中，取到本算子所属的 task 的task名
String taskName = runtimeContext.getTaskName();
// 可以从运行时上下文中，取到本算子所属的 subTask 的subTaskId
int indexOfThisSubtask = runtimeContext.getIndexOfThisSubtask();
}
/**
* source组件生成数据的过程（核心工作逻辑）
* @param ctx
* @throws Exception
*/
@Override
public void run(SourceContext<EventLog> ctx) throws Exception {
EventLog eventLog = new EventLog();
String[] events = {"appLaunch","pageLoad","adShow","adClick","itemShare","itemCollect","putBack","wakeUp","appClose"};
HashMap<String, String> eventInfoMap = new HashMap<>();
while(flag){
eventLog.setGuid(RandomUtils.nextLong(1,1000));
eventLog.setSessionId(RandomStringUtils.randomAlphabetic(12).toUpperCase());
eventLog.setTimeStamp(System.currentTimeMillis());
eventLog.setEventId(events[RandomUtils.nextInt(0,events.length)]);
eventInfoMap.put(RandomStringUtils.randomAlphabetic(1),RandomStringUtils.randomAlphabetic(2));
eventLog.setEventInfo(eventInfoMap);
ctx.collect(eventLog);
eventInfoMap.clear();
Thread.sleep(RandomUtils.nextInt(500,1500));
}
}
/**
* job取消调用的方法
*/
@Override
public void cancel() {
flag = false;
}
/**
* 组件关闭调用的方法
* @throws Exception
*/
@Override
public void close() throws Exception {
System.out.println("组件被关闭了.....");
}
}

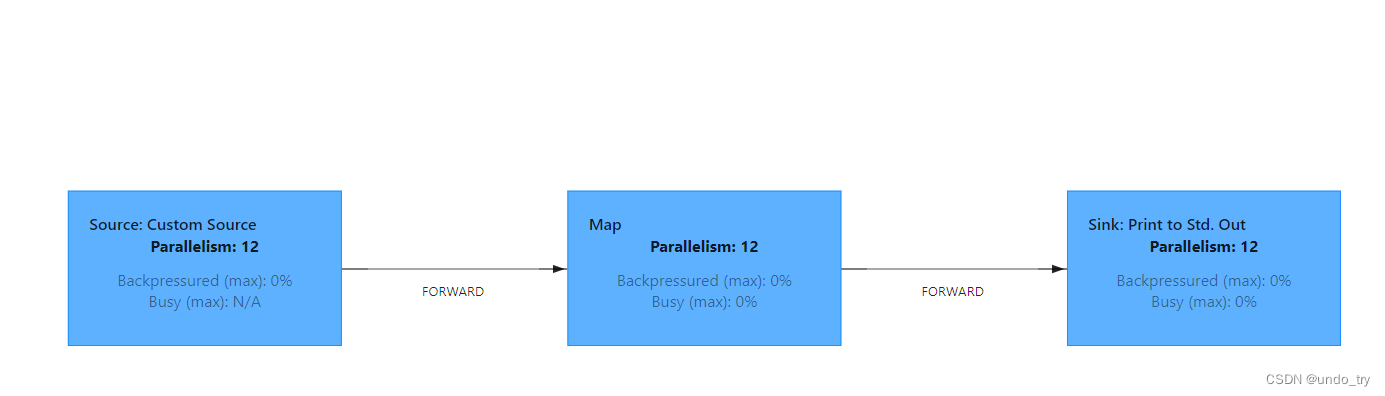

可以看到，source有12个并行度
二、常见的sink
sink 算子是将计算结果最终输出的算了不同的 sink 算子可以将数据输出到不同的目标，如写入到的文件、输出到指定的网络端口、消息中间件、外部的文件系统或者是打印到控制台。
2.1 输出到文件
2.1.1 writeAsText/writeAsCsv
package cn.yyds.sink;
import cn.yyds.source.EventLog;
import cn.yyds.source.MySourceFunction;
import org.apache.flink.core.fs.FileSystem;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
public class _01_FileSinkOperator {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.enableCheckpointing(2000, CheckpointingMode.EXACTLY_ONCE);
env.getCheckpointConfig().setCheckpointStorage("file:///d:/flink/ckpt");
env.setParallelism(2);
DataStreamSource<EventLog> streamSource = env.addSource(new MySourceFunction());
// 输出到文件
streamSource.map(bean -> Tuple5.of(bean.getEventId(), bean.getGuid(), bean.getEventInfo(), bean.getSessionId(), bean.getTimeStamp())).returns(new TypeHint<Tuple5<String, Long, Map<String, String>, String, Long>>() {
})
/*.writeAsCsv("d:/sink_test2", FileSystem.WriteMode.OVERWRITE)*/;
streamSource.writeAsText("d:/flink/sink_test", FileSystem.WriteMode.OVERWRITE);
env.execute();
}
}
2.1.2 StreamFileSink
StreamFileSink不但可以将数据写入到各种文件系统中,而且整合了 checkpoint 机制来保证 Exacly Once 语义还可以对文件进行分桶存储，还支持以列式存储的格式写入，功能更强大。
streamFileSink 中输出的文件，其生命周期会经历 3种状态:
- in-progress Files
- Pending Files
- Finished Files
<!-- 应用StreamFileSink功能所需要的依赖 -->
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-parquet_2.12</artifactId>
<version>${flink.version}</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-avro</artifactId>
<version>${flink.version}</version>
</dependency>
<dependency>
<groupId>org.apache.parquet</groupId>
<artifactId>parquet-avro</artifactId>
<version>1.11.1</version>
</dependency>
<dependency>
<groupId>org.apache.hadoop</groupId>
<artifactId>hadoop-client</artifactId>
<version>2.7.7</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-connector-files</artifactId>
<version>${flink.version}</version>
</dependency>
2.1.2.0 输出为行格式
package cn.yyds.sink;
import cn.yyds.source.EventLog;
import cn.yyds.source.MySourceFunction;
import com.alibaba.fastjson.JSON;
import org.apache.flink.api.common.serialization.SimpleStringEncoder;
import org.apache.flink.connector.file.sink.FileSink;
import org.apache.flink.core.fs.Path;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.sink.filesystem.OutputFileConfig;
import org.apache.flink.streaming.api.functions.sink.filesystem.bucketassigners.DateTimeBucketAssigner;
import org.apache.flink.streaming.api.functions.sink.filesystem.rollingpolicies.DefaultRollingPolicy;
public class _02_StreamSinkRow {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// 开启checkpoint
env.enableCheckpointing(5000, CheckpointingMode.EXACTLY_ONCE);
env.getCheckpointConfig().setCheckpointStorage("file:///d:/flink/ckpt");
// 构造好一个数据流
DataStreamSource<EventLog> streamSource = env.addSource(new MySourceFunction());
/**
* 应用 StreamFileSink 算子，来将数据输出到 文件系统
*
* 输出为 行格式
*/
// 构造一个FileSink对象
FileSink<String> rowSink = FileSink
.forRowFormat(new Path("d:/flink/filesink/"), new SimpleStringEncoder<String>("utf-8"))
// 文件的滚动策略 （间隔时长10s，或文件大小达到 5M，就进行文件切换
.withRollingPolicy(DefaultRollingPolicy.builder().withRolloverInterval(10000).withMaxPartSize(5 * 1024 * 1024).build())
// 分桶的策略（划分子文件夹的策略）
.withBucketAssigner(new DateTimeBucketAssigner<String>())
.withBucketCheckInterval(5)
// 输出文件的文件名相关配置
.withOutputFileConfig(OutputFileConfig.builder().withPartPrefix("yyds").withPartSuffix(".txt").build())
.build();
// 然后添加到流，进行输出
streamSource.map(JSON::toJSONString)
//.addSink() /* SinkFunction实现类对象,用addSink() 来添加*/
.sinkTo(rowSink); /*Sink 的实现类对象,用 sinkTo()来添加 */
env.execute();
}
}
2.1.2.1 利用schema构造一个parquetWriterFactory(输出为列格式parquet)
package cn.yyds.sink;
import org.apache.avro.Schema;
import cn.yyds.source.EventLog;
import cn.yyds.source.MySourceFunction;
import org.apache.avro.SchemaBuilder;
import org.apache.avro.generic.GenericData;
import org.apache.avro.generic.GenericRecord;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.connector.file.sink.FileSink;
import org.apache.flink.core.fs.Path;
import org.apache.flink.formats.avro.typeutils.GenericRecordAvroTypeInfo;
import org.apache.flink.formats.parquet.ParquetWriterFactory;
import org.apache.flink.formats.parquet.avro.ParquetAvroWriters;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.sink.filesystem.OutputFileConfig;
import org.apache.flink.streaming.api.functions.sink.filesystem.bucketassigners.DateTimeBucketAssigner;
import org.apache.flink.streaming.api.functions.sink.filesystem.rollingpolicies.OnCheckpointRollingPolicy;
public class _02_StreamSinkDemo1 {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// 开启checkpoint
env.enableCheckpointing(5000, CheckpointingMode.EXACTLY_ONCE);
env.getCheckpointConfig().setCheckpointStorage("file:///d:/flink/ckpt");
// 构造好一个数据流
DataStreamSource<EventLog> streamSource = env.addSource(new MySourceFunction());
/**
* 方式一：
* 核心逻辑：
* - 构造一个schema
* - 利用schema构造一个parquetWriterFactory
* - 利用parquetWriterFactory构造一个FileSink算子
* - 将原始数据转成GenericRecord流，输出到FileSink算子
*/
// 1. 先定义GenericRecord的数据模式
Schema schema = SchemaBuilder.builder()
.record("DataRecord")
.namespace("cn.yyds.sink.avro.schema")
.doc("用户行为事件数据模式")
.fields()
.requiredInt("gid")
.requiredLong("ts")
.requiredString("eventId")
.requiredString("sessionId")
.name("eventInfo")
.type()
.map()
.values()
.type("string")
.noDefault()
.endRecord();
// 2. 通过定义好的schema模式，来得到一个parquetWriter
ParquetWriterFactory<GenericRecord> writerFactory = ParquetAvroWriters.forGenericRecord(schema);
// 3. 利用生成好的parquetWriter，来构造一个 支持列式输出parquet文件的 sink算子
FileSink<GenericRecord> sink1 = FileSink.forBulkFormat(new Path("d:/flink/datasink/"), writerFactory)
.withBucketAssigner(new DateTimeBucketAssigner<GenericRecord>("yyyy-MM-dd--HH"))
.withRollingPolicy(OnCheckpointRollingPolicy.build())
.withOutputFileConfig(OutputFileConfig.builder().withPartPrefix("yyds").withPartSuffix(".parquet").build())
.build();
// 4. 将自定义javabean的流，转成 上述sink算子中parquetWriter所需要的 GenericRecord流
SingleOutputStreamOperator<GenericRecord> recordStream = streamSource
.map((MapFunction<EventLog, GenericRecord>) eventLog -> {
// 构造一个Record对象
GenericData.Record record = new GenericData.Record(schema);
// 将数据填入record
record.put("gid", (int) eventLog.getGuid());
record.put("eventId", eventLog.getEventId());
record.put("ts", eventLog.getTimeStamp());
record.put("sessionId", eventLog.getSessionId());
record.put("eventInfo", eventLog.getEventInfo());
return record;
}).returns(new GenericRecordAvroTypeInfo(schema)); // 由于avro的相关类、对象需要用avro的序列化器，所以需要显式指定AvroTypeInfo来提供AvroSerializer
// 5. 输出数据
recordStream.sinkTo(sink1);
env.execute();
}
}
2.1.2.2 利用avsc文本文件构造一个parquetWriterFactory(比较麻烦)(输出为列格式parquet)
package cn.yyds.sink;
import cn.yyds.source.EventLog;
import cn.yyds.source.MySourceFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.connector.file.sink.FileSink;
import org.apache.flink.core.fs.Path;
import org.apache.flink.formats.parquet.ParquetWriterFactory;
import org.apache.flink.formats.parquet.avro.ParquetAvroWriters;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.sink.filesystem.OutputFileConfig;
import org.apache.flink.streaming.api.functions.sink.filesystem.bucketassigners.DateTimeBucketAssigner;
import org.apache.flink.streaming.api.functions.sink.filesystem.rollingpolicies.OnCheckpointRollingPolicy;
import java.util.HashMap;
import java.util.Map;
import java.util.Set;
public class _02_StreamSinkDemo2 {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// 开启checkpoint
env.enableCheckpointing(5000, CheckpointingMode.EXACTLY_ONCE);
env.getCheckpointConfig().setCheckpointStorage("file:///d:/flink/ckpt");
// 构造好一个数据流
DataStreamSource<EventLog> streamSource = env.addSource(new MySourceFunction());
/**
* 方式二：
* 核心逻辑：
* - 编写一个avsc文本文件（json），来描述数据模式
* - 添加 maven代码生成器插件，来针对上述的avsc生成avro特定格式的JavaBean类
* - 利用代码生成器生成的 JavaBean，来构造一个 parquetWriterFactory
* - 利用parquetWriterFactory构造一个FileSink算子
* - 将原始数据流 转成 特定格式JavaBean流，输出到 FileSink算子
*/
// 1. 先定义avsc文件放在resources文件夹中，并用maven的插件，来编译一下，生成特定格式的JavaBean ： AvroEventLog
// 这种根据avsc生成的JavaBean类，自身就已经带有了Schema对象
// AvroEventLog avroEventLog = new AvroEventLog();
// Schema schema = avroEventLog.getSchema();
// 2. 通过自动生成 AvroEventLog类，来得到一个parquetWriter
ParquetWriterFactory<AvroEventLog> parquetWriterFactory = ParquetAvroWriters.forSpecificRecord(AvroEventLog.class);
// 3. 利用生成好的parquetWriter，来构造一个 支持列式输出parquet文件的 sink算子
FileSink<AvroEventLog> bulkSink = FileSink.forBulkFormat(new Path("d:/flink/datasink2/"), parquetWriterFactory)
.withBucketAssigner(new DateTimeBucketAssigner<AvroEventLog>("yyyy-MM-dd--HH"))
.withRollingPolicy(OnCheckpointRollingPolicy.build())
.withOutputFileConfig(OutputFileConfig.builder().withPartPrefix("yyds").withPartSuffix(".parquet").build())
.build();
// 4. 将自定义javabean的 EventLog 流，转成 上述sink算子中parquetWriter所需要的 AvroEventLog 流
SingleOutputStreamOperator<AvroEventLog> avroEventLogStream = streamSource.map(new MapFunction<EventLog, AvroEventLog>() {
@Override
public AvroEventLog map(EventLog eventLog) throws Exception {
HashMap<CharSequence, CharSequence> eventInfo1 = new HashMap<>();
// 进行hashmap<charsequenct,charsequence>类型的数据转移
Map<String, String> eventInfo2 = eventLog.getEventInfo();
Set<Map.Entry<String, String>> entries = eventInfo2.entrySet();
for (Map.Entry<String, String> entry : entries) {
eventInfo1.put(entry.getKey(), entry.getValue());
}
return new AvroEventLog(eventLog.getGuid(), eventLog.getSessionId(), eventLog.getEventId(), eventLog.getTimeStamp(), eventInfo1);
}
});
// 5. 输出数据
avroEventLogStream.sinkTo(bulkSink);
env.execute();
}
}
avsc文件如下
{"namespace": "cn.yyds.flink.avro.schema",
"type": "record",
"name": "AvroEventLog",
"fields": [
{"name": "guid", "type": "long"},
{"name": "sessionId", "type": "string"},
{"name": "eventId", "type": "string"},
{"name": "timeStamp", "type": "long"},
{"name": "eventInfo", "type": { "type":"map","values": "string"} }
]
}
2.1.2.3 利用自己的JavaBean类构造一个parquetWriterFactory(输出为列格式parquet)
package cn.yyds.sink;
import cn.yyds.source.EventLog;
import cn.yyds.source.MySourceFunction;
import org.apache.flink.connector.file.sink.FileSink;
import org.apache.flink.core.fs.Path;
import org.apache.flink.formats.parquet.ParquetWriterFactory;
import org.apache.flink.formats.parquet.avro.ParquetAvroWriters;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.sink.filesystem.OutputFileConfig;
import org.apache.flink.streaming.api.functions.sink.filesystem.bucketassigners.DateTimeBucketAssigner;
import org.apache.flink.streaming.api.functions.sink.filesystem.rollingpolicies.OnCheckpointRollingPolicy;
public class _02_StreamSinkDemo3 {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// 开启checkpoint
env.enableCheckpointing(5000, CheckpointingMode.EXACTLY_ONCE);
env.getCheckpointConfig().setCheckpointStorage("file:///d:/flink/ckpt");
// 构造好一个数据流
DataStreamSource<EventLog> streamSource = env.addSource(new MySourceFunction());
/**
* 方式三：
* 核心逻辑：
* - 利用自己的JavaBean类，来构造一个 parquetWriterFactory
* - 利用parquetWriterFactory构造一个FileSink算子
* - 将原始数据流，输出到 FileSink算子
*/
// 2. 通过自己的JavaBean类，来得到一个parquetWriter
ParquetWriterFactory<EventLog> parquetWriterFactory = ParquetAvroWriters.forReflectRecord(EventLog.class);
// 3. 利用生成好的parquetWriter，来构造一个 支持列式输出parquet文件的 sink算子
FileSink<EventLog> bulkSink = FileSink.forBulkFormat(new Path("d:/flink/datasink3/"), parquetWriterFactory)
.withBucketAssigner(new DateTimeBucketAssigner<EventLog>("yyyy-MM-dd--HH"))
.withRollingPolicy(OnCheckpointRollingPolicy.build())
.withOutputFileConfig(OutputFileConfig.builder().withPartPrefix("yyds").withPartSuffix(".parquet").build())
.build();
// 5. 输出数据
streamSource.sinkTo(bulkSink);
env.execute();
}
}
2.2 输出到kafka
2.2.1 老版本api(flink1.14 标记为过时)
package cn.yyds.sink;
import cn.yyds.source.EventLog;
import cn.yyds.source.MySourceFunction;
import com.alibaba.fastjson.JSON;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaProducer;
import org.apache.flink.streaming.connectors.kafka.KafkaSerializationSchema;
import org.apache.kafka.clients.producer.ProducerRecord;
import javax.annotation.Nullable;
import java.util.Properties;
public class _03_KafkaSinkOld {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// 开启checkpoint
env.enableCheckpointing(5000, CheckpointingMode.EXACTLY_ONCE);
env.getCheckpointConfig().setCheckpointStorage("file:///d:/flink/ckpt");
// 构造好一个数据流
DataStreamSource<EventLog> streamSource = env.addSource(new MySourceFunction());
SingleOutputStreamOperator<String> mapStream = streamSource.map(JSON::toJSONString);
// 写入kafka的topic
String topic = "test";
// 设置kafka的相关参数
Properties prop = new Properties();
prop.setProperty("bootstrap.servers","centos01:9092,centos02:9092,centos03:9092");
// 创建kafka生产者
FlinkKafkaProducer<String> kafkaProducer = new FlinkKafkaProducer<String>(
topic, // 指定topic
new KafkaSerializationSchema<String>() {
@Override
public ProducerRecord<byte[], byte[]> serialize(String element, @Nullable Long aLong) {
return new ProducerRecord<byte[], byte[]>(
topic,element.getBytes()
);
}
}, // 指定写入的kafka序列化schema
prop, // 指定kafka相关参数
FlinkKafkaProducer.Semantic.EXACTLY_ONCE // 指定精准一次性语义
);
// 添加KafkaSink
mapStream.addSink(kafkaProducer);
env.execute();
}
}
2.2.2 新版本api
package cn.yyds.sink;
import cn.yyds.source.EventLog;
import cn.yyds.source.MySourceFunction;
import com.alibaba.fastjson.JSON;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.connector.base.DeliveryGuarantee;
import org.apache.flink.connector.kafka.sink.KafkaRecordSerializationSchema;
import org.apache.flink.connector.kafka.sink.KafkaSink;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
public class _04_KafkaSinkNew {
public static void main(String[] args) throws Exception {
Configuration configuration = new Configuration();
configuration.setInteger("rest.port",8822);
StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(configuration);
// 开启checkpoint
env.enableCheckpointing(5000, CheckpointingMode.EXACTLY_ONCE);
env.getCheckpointConfig().setCheckpointStorage("file:///d:/flink/ckpt");
// 构造好一个数据流
DataStreamSource<EventLog> streamSource = env.addSource(new MySourceFunction());
// 把数据写入kafka
// 1. 构造一个kafka的sink算子
KafkaSink<String> kafkaSink = KafkaSink.<String>builder()
.setBootstrapServers("centos01:9092,centos02:9092,centos03:9092")
.setRecordSerializer(KafkaRecordSerializationSchema.<String>builder()
.setTopic("event-log")
.setValueSerializationSchema(new SimpleStringSchema())
.build()
)
.setDeliverGuarantee(DeliveryGuarantee.AT_LEAST_ONCE)
.setTransactionalIdPrefix("yyds-")
.build();
// 2. 把数据流输出到构造好的sink算子
streamSource
.map(JSON::toJSONString).disableChaining()
.sinkTo(kafkaSink);
env.execute();
}
}
KafkaSink 是能结合 Flink 的 Checkpoint 机制，来支持端到端精确一次语义的 。底层是利用了 kafka producer 的事务机制。
2.3 JdbcSink
2.3.1 不保证 EOS语义的方式
package cn.yyds.sink;
import cn.yyds.source.EventLog;
import cn.yyds.source.MySourceFunction;
import com.alibaba.fastjson.JSON;
import org.apache.flink.connector.jdbc.JdbcConnectionOptions;
import org.apache.flink.connector.jdbc.JdbcExecutionOptions;
import org.apache.flink.connector.jdbc.JdbcSink;
import org.apache.flink.connector.jdbc.JdbcStatementBuilder;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.sink.SinkFunction;
import java.sql.PreparedStatement;
import java.sql.SQLException;
public class _05_JdbcSinkOperatorNoEOS {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// 开启checkpoint
env.enableCheckpointing(5000, CheckpointingMode.EXACTLY_ONCE);
env.getCheckpointConfig().setCheckpointStorage("file:///d:/flink/ckpt");
// 构造好一个数据流
DataStreamSource<EventLog> streamSource = env.addSource(new MySourceFunction());
/**
* 一、 不保证 EOS语义的方式
*/
SinkFunction<EventLog> jdbcSink = JdbcSink.sink(
"insert into event_log values (?,?,?,?,?) on duplicate key update guid=?,sessionId=?,eventId=?,ts=?,eventInfo=? ",
new JdbcStatementBuilder<EventLog>() {
@Override
public void accept(PreparedStatement preparedStatement, EventLog eventLog) throws SQLException {
preparedStatement.setLong(1, eventLog.getGuid());
preparedStatement.setString(2, eventLog.getSessionId());
preparedStatement.setString(3, eventLog.getEventId());
preparedStatement.setLong(4, eventLog.getTimeStamp());
preparedStatement.setString(5, JSON.toJSONString(eventLog.getEventInfo()));
preparedStatement.setLong(6, eventLog.getGuid());
preparedStatement.setString(7, eventLog.getSessionId());
preparedStatement.setString(8, eventLog.getEventId());
preparedStatement.setLong(9, eventLog.getTimeStamp());
preparedStatement.setString(10, JSON.toJSONString(eventLog.getEventInfo()));
}
},
JdbcExecutionOptions.builder()
.withMaxRetries(3)
.withBatchSize(1)
.build(),
new JdbcConnectionOptions.JdbcConnectionOptionsBuilder()
.withUrl("jdbc:mysql://localhost:3306/test?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=UTF-8")
.withUsername("root")
.withPassword("root")
.build()
);
// 输出数据
streamSource.addSink(jdbcSink);
env.execute();
}
}
2.3.2 提供 EOS 语义保证的 sink
package cn.yyds.sink;
import cn.yyds.source.EventLog;
import cn.yyds.source.MySourceFunction;
import com.alibaba.fastjson.JSON;
import com.mysql.jdbc.jdbc2.optional.MysqlXADataSource;
import org.apache.flink.connector.jdbc.JdbcExactlyOnceOptions;
import org.apache.flink.connector.jdbc.JdbcExecutionOptions;
import org.apache.flink.connector.jdbc.JdbcSink;
import org.apache.flink.connector.jdbc.JdbcStatementBuilder;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.sink.SinkFunction;
import org.apache.flink.util.function.SerializableSupplier;
import javax.sql.XADataSource;
import java.sql.PreparedStatement;
import java.sql.SQLException;
public class _05_JdbcSinkOperatorEOS {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// 开启checkpoint
env.enableCheckpointing(5000, CheckpointingMode.EXACTLY_ONCE);
env.getCheckpointConfig().setCheckpointStorage("file:///d:/flink/ckpt");
// 构造好一个数据流
DataStreamSource<EventLog> streamSource = env.addSource(new MySourceFunction());
/**
* 二、可以提供 EOS 语义保证的 sink
*/
SinkFunction<EventLog> exactlyOnceSink = JdbcSink.exactlyOnceSink(
"insert into event_log values (?,?,?,?,?) on duplicate key update guid=?,sessionId=?,eventId=?,ts=?,eventInfo=? ",
new JdbcStatementBuilder<EventLog>() {
@Override
public void accept(PreparedStatement preparedStatement, EventLog eventLog) throws SQLException {
preparedStatement.setLong(1, eventLog.getGuid());
preparedStatement.setString(2, eventLog.getSessionId());
preparedStatement.setString(3, eventLog.getEventId());
preparedStatement.setLong(4, eventLog.getTimeStamp());
preparedStatement.setString(5, JSON.toJSONString(eventLog.getEventInfo()));
preparedStatement.setLong(6, eventLog.getGuid());
preparedStatement.setString(7, eventLog.getSessionId());
preparedStatement.setString(8, eventLog.getEventId());
preparedStatement.setLong(9, eventLog.getTimeStamp());
preparedStatement.setString(10, JSON.toJSONString(eventLog.getEventInfo()));
}
},
JdbcExecutionOptions.builder()
.withMaxRetries(3)
.withBatchSize(1)
.build(),
JdbcExactlyOnceOptions.builder()
// mysql不支持同一个连接上存在并行的多个事务，必须把该参数设置为true
.withTransactionPerConnection(true)
.build(),
new SerializableSupplier<XADataSource>() {
@Override
public XADataSource get() {
// XADataSource就是jdbc连接，不过它是支持分布式事务的连接
// 而且它的构造方法，不同的数据库构造方法不同
MysqlXADataSource xaDataSource = new MysqlXADataSource();
xaDataSource.setUrl("jdbc:mysql://localhost:3306/test?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=UTF-8");
xaDataSource.setUser("root");
xaDataSource.setPassword("root");
return xaDataSource;
}
}
);
// 输出数据
streamSource.addSink(exactlyOnceSink);
env.execute();
}
}
2.4 Redis Sink
<!-- redis sink的依赖 -->
<dependency>
<groupId>org.apache.bahir</groupId>
<artifactId>flink-connector-redis_${scala.binary.version}</artifactId>
<version>1.1-SNAPSHOT</version>
</dependency>
package cn.yyds.sink;
import cn.yyds.source.EventLog;
import cn.yyds.source.MySourceFunction;
import com.alibaba.fastjson.JSON;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.redis.RedisSink;
import org.apache.flink.streaming.connectors.redis.common.config.FlinkJedisPoolConfig;
import org.apache.flink.streaming.connectors.redis.common.mapper.RedisCommand;
import org.apache.flink.streaming.connectors.redis.common.mapper.RedisCommandDescription;
import org.apache.flink.streaming.connectors.redis.common.mapper.RedisMapper;
public class _06_RedisSink {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// 开启checkpoint
env.enableCheckpointing(5000, CheckpointingMode.EXACTLY_ONCE);
env.getCheckpointConfig().setCheckpointStorage("file:///d:/flink/ckpt");
// 构造好一个数据流
DataStreamSource<EventLog> streamSource = env.addSource(new MySourceFunction());
// eventLog数据插入redis
FlinkJedisPoolConfig config = new FlinkJedisPoolConfig.Builder().setHost("centos01").build();
RedisSink<EventLog> redisSink = new RedisSink<>(config, new StringInsertMapper());
streamSource.addSink(redisSink);
env.execute();
}
static class StringInsertMapper implements RedisMapper<EventLog> {
@Override
public RedisCommandDescription getCommandDescription() {
return new RedisCommandDescription(RedisCommand.SET);
}
/**
* 如果选择的是没有内部key的redis数据结构，则此方法返回的就是大 key
* 如果选择的是有内部key的redis数据结构（hset），则此方法返回的是hset内部的小key，二把上面Description中传入的值作为大key
* @param data
* @return
*/
@Override
public String getKeyFromData(EventLog data) {
return data.getGuid()+"-"+data.getSessionId()+"-"+data.getTimeStamp(); // 这里就是string数据的大key
}
@Override
public String getValueFromData(EventLog data) {
return JSON.toJSONString(data); // 这里就是string数据的value
}
}
}
3万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
