蛋白夹层存在时xy方向周期的模拟

这是一次pbc=xy时成功nvt平衡的例子，用两个蛋白和一个水层进行模拟。
做了两个相对原子质量为0.01（为了满足gromacs的仿真条件），电荷为0的原子组成的原子平板，为了满足pbc = xy的条件

用packmol搭建结构

gromacs自带的插入分子功能gmx insert-molecules能实现的用packmol都能实现。
two_level.inp

tolerance 1.0
filetype pdb
output two_level.pdb




structure chain_A.pdb
  number 1
  inside box 0. 0. 0. 60. 60. 60.
  constrain_rotation x 0. 20.
  constrain_rotation y 0. 20.
end structure



structure CentredWaterInSheets.pdb
  number 1
  inside box 0. 0. 60. 60. 60. 120.
end structure


structure chain_B.pdb
  number 1
  inside box 0. 0. 120. 60. 60. 180.
  constrain_rotation x 0. 20.
  constrain_rotation y 0. 20.
end structure

生成gro后更改盒子大小

gmx editconf -f two_level.pdb -o two_level.gro

然后在gro文件中的最后一行中修改盒子尺寸为

  6.00000   6.00000   18.00000

经过测试，更改每个蛋白盒子之间的距离不会造成系统的崩溃

搭建top

有关链的itp文件是用pdb2gmx功能做的，然后加入到top中，gro和top不匹配的问题通过更改最后的分子顺序解决。

#include "oplsaa.ff/forcefield.itp"
#include "metal.itp"
#include "mPlus.itp"
#include "mMinus.itp"
#include "two_test_Protein_chain_A.itp"
#include "two_test_Protein_chain_B.itp"

#include "oplsaa.ff/spc.itp"
#include "oplsaa.ff/ions.itp"

#ifdef POSRES_WATER
; Position restraint for each water oxygen
[ position_restraints ]
;  i funct       fcx        fcy        fcz
   1    1       1000       1000       1000
#endif



[ system ]
; Name
Water In Sheets and protein

[ molecules ]
; Compound       #mols

Protein_chain_A  1

MP               360
SOL         3947
NA               31
NA               76
CL               76
MM               360
Protein_chain_B  1

[ molecules ]的添加顺序一定要按照packmol中的顺序添加，否则不匹配。这个是经过离子平衡后的top
其中3个重要的itp如下：
metal.itp

[ atomtypes ]
; type    at#     mass            charge  ptype           sig             eps
MP        6       0.01         0.000   A       3.55000e-01     2.92880e-01
MM        6       0.01        -0.000   A       3.55000e-01     2.92880e-01

mPlus.itp

[ moleculetype ]
;Name      nrexcl
 MP        1

[ atoms ]
; id    at type     res nr  residu name at name  cg nr  charge   mass
1       MP          1       MP          MP       1

mMinus.itp

[ moleculetype ]
;Name      nrexcl
 MM         1

[ atoms ]
; id    at type     res nr  residu name at name  cg nr  charge   mass
1       MM          1       MM          MM       1

离子平衡

gmx grompp -f ions.mdp -c two_level.gro -p two_level.top -o two_level_ions.tpr
gmx genion -s two_level_ions.tpr -o two_level_ions_finish.gro -p two_level.top -pname NA -np 31

然后替换sol

制作索引

 gmx make_ndx -f two_level_em.gro -o two_level_em.ndx

能量最小化

gmx grompp -f em.mdp -c two_level_ions_finish.gro -p two_level.top -o two_level_em.tpr
gmx mdrun -v -deffnm two_level_em

em.mdp

; Run Control
integrator	= steep		; A steepest descent algorithm for energy minimization
emtol 		= 100		; Stop minimization when the maximum force < 100.0 kJ/mol/nm
emstep 		= 0.01		; [nm] initial step-size
nsteps 		= 50000		; Maximum number of (minimization) steps to perform

; Output Control
nstlog 		= 1		; # of steps that else between writing energies to the log file
nstenergy 	= 1		; # of steps that else between writing energies to energy file

; Neighbor searching and nonbonded interaction
cutoff-scheme	= verlet	; Cutoff-related parameters
nstlist		= 1		; Frequency to update the neighbor list and the long-range forces
ns_type		= grid		; Method to determine neighbor list (simple, grid)
pbc		= xyz		; Use periodic boundary conditions in all directions
rlist		= 1.2		; [nm] Cut-off for making neighbor list (short range forces)

; Electrostatics
coulombtype	= PME		; Treatment of long range electrostatic interactions
rcoulomb	= 1.2		; [nm] Short-range electrostatic cut-off

; Van der waals
vdwtype		= cutoff
rvdw		= 1.2		; [nm] Short-range Van der Waals cut-off

; Temperature and pressure coupling are off during EM
tcoupl          = no		; No temperature coupling
pcoupl          = no		; No pressure coupling (fixed box size)

; No velocities during EM
gen_vel          = no		; Do not generate velocities

; options for bonds
constraints      = none		; No contraints except those defined in the topology

nvt平衡

gmx grompp -f nvt.mdp -c two_level_em.gro -p two_level.top -o two_level_nvt.tpr
gmx mdrun -v -deffnm two_level_nvt

nvt.mdp

; Run Control
integrator	= md		; leap-frog integrator of Newton's equations of motion
tinit		= 0		; [ps] starting time for the run
dt		= 0.002		; 2 fs - [ps] time step for integration
nsteps		= 50000	; 0.1 ns

; Output Control
nstxout		= 1000		; save coordinates every 2 ps
nstenergy	= 500		; save energies every 1 ps
nstlog		= 50000		; update log file every 100 ps

; Bond parameters
continuation    = no		; apply constraints to the start configuration and reset shells
constraints     = h-bonds	; convert all bonds to constraints
constraint-algorithm = lincs	; holonomic constraints

; Neighbor searching and nonbonded interactions
cutoff-scheme	= verlet	; Cutoff-related parameters
nstlist		= 20		; Frequency to update the neighbor list and the long-range forces
ns_type		= grid		; Method to determine neighbor list (simple, grid)
pbc		= xy		; Use periodic boundary conditions in all directions
rlist		= 1.2		; [nm] Cut-off for making neighbor list (short range forces)
ewald-geometry  = 3dc
nwall           = 2
wall-atomtype   = MW MW
wall-type       = 12-6

; Electrostatics
coulombtype	= PME		; Treatment of long range electrostatic interactions
rcoulomb	= 1.2		; [nm] Short-range electrostatic cut-off

; Van der waals
vdwtype		= cutoff
rvdw		= 1.2		; [nm] Short-range Van der Waals cut-off

;                    Do I need pme-order and fourier spacing?

;pme_order	= 4		; cubic interpolation
;fourierspacing	= 0.16		; grid spacing for FFT

; Temperature coupling
tcoupl		= v-rescale	; Temperature coupling, modified Berendsen thermostat‬
tc_grps         = system	; Group to couple to separate temperature baths
tau_t           = 0.1		; [ps] Time constant for coupling
ref_t           = 300		; [K] Reference temperature for coupling

; Pressure coupling is off for NVT
Pcoupl          = No		; No pressure coupling (fixed box size)

; Generate velocities to start
gen_vel		= yes		; assign velocities from Maxwell distribution
gen_temp	= 300		; temperature for Maxwell distribution
gen_seed	= -1		; generate a random seed

; Freeze Sheets
freezegrps      = MP MM
freezedim       = Y Y Y Y Y Y

这个结构没有崩溃，然后计算相关介电常数

gmx dipoles -corr total -c two_level.xvg -f two_level_nvt.trr -s two_level_nvt.tpr
gmx dielectric -f two_level.xvg -eps0 7.87146 -ffn aexp -o two_level_freq.xvg -nsmooth 10
xmgrace two_level_freq.xvg

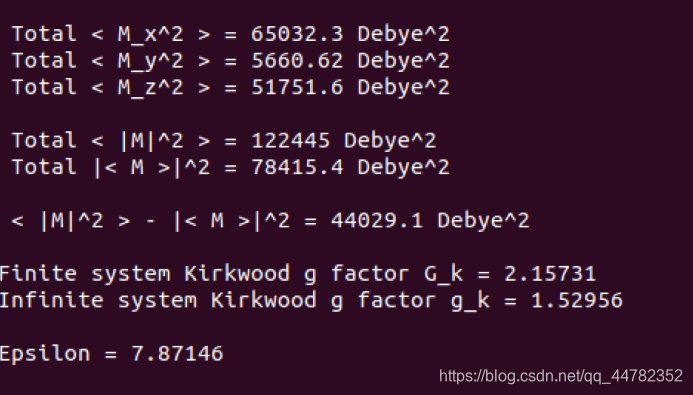

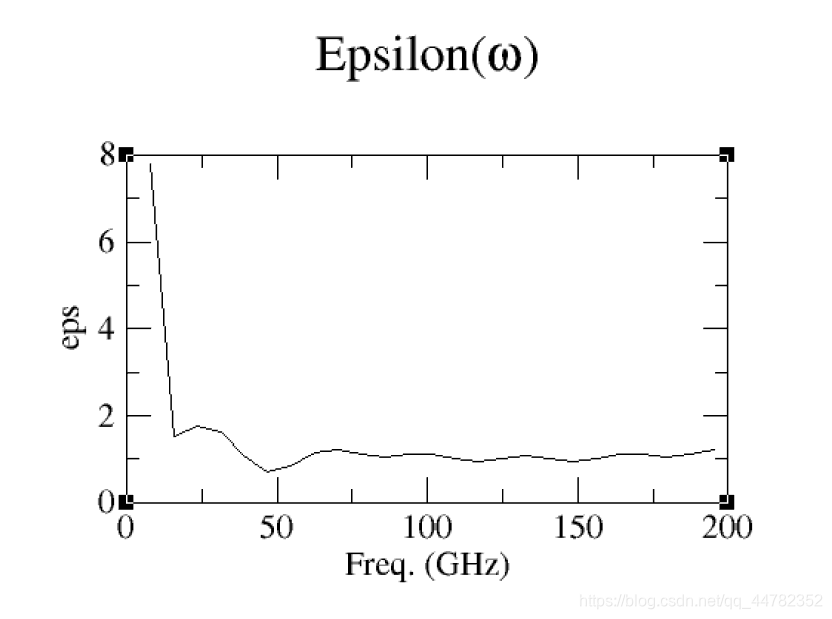

相关结果如下



水从边上漏出去吸到蛋白上了，但是整体的结构是呈现电中性的。
