[Qt] mvd使用的注意事项

在使用mvd时，我们可能会有这种需求，比如有一项的数据是文件类型，然后我们要弹出一个文件对话框，选择一个文件路径然后把文件路径展示出来。
我们可能写出如下代码

#include "MyStyledItemDeletegate.h"
#include <QRect>
#include <QStyleOptionButton>
#include <QEvent>
#include <QMouseEvent>
#include <QFileDialog>
#include <QDebug>

MyStyledItemDeletegate::MyStyledItemDeletegate(QObject *parent) : QStyledItemDelegate(parent)
{

}

void MyStyledItemDeletegate::paint(QPainter *painter, const QStyleOptionViewItem &option, const QModelIndex &index) const
{
    QStyledItemDelegate::paint(painter, option, index);
    if(index.column() == 2){
        QPushButton btn(QStringLiteral("选择路径"));
        //通过sizeHint获取btn的大小而不是显式指定按钮的大小，这样如果字符串修改了我们不需要手动该大小
        QRect btnRect = QRect(0, 0, btn.sizeHint().width(), btn.sizeHint().height());
        btnRect.moveCenter(option.rect.center());
        btnRect.moveRight(option.rect.right());
        QStyleOptionButton btnOpt;
        btnOpt.init(&btn);
        btnOpt.rect = btnRect;
        btnOpt.text = btn.text();
        btn.style()->drawControl(QStyle::CE_PushButton, &btnOpt, painter, &btn);
        QStyleOptionViewItem& mutableOption = const_cast<QStyleOptionViewItem&>(option);
        mutableOption.rect = QRect(option.rect.x(), option.rect.y(), option.rect.width() - btnRect.width(), option.rect.height());
    }
}

bool MyStyledItemDeletegate::editorEvent(QEvent *event, QAbstractItemModel *model, const QStyleOptionViewItem &option, const QModelIndex &index)
{
    if(index.column() == 2 && event->type() == QEvent::MouseButtonPress){
        QMouseEvent* mouseEvent = dynamic_cast<QMouseEvent*>(event);
        if(mouseEvent){
            QPushButton btn(QStringLiteral("选择路径"));
            QRect btnRect = QRect(0, 0, btn.sizeHint().width(), btn.sizeHint().height());
            btnRect.moveCenter(option.rect.center());
            btnRect.moveRight(option.rect.right());
            if(btnRect.contains(mouseEvent->pos())){
                QString filePath = QFileDialog::getOpenFileName(nullptr, QStringLiteral("选择一个文件"));
                if(!filePath.isEmpty()){
                    model->setData(index, filePath, Qt::DisplayRole);
                }
            }
        }
        return true;
    }
    return QStyledItemDelegate::editorEvent(event, model, option, index);
}

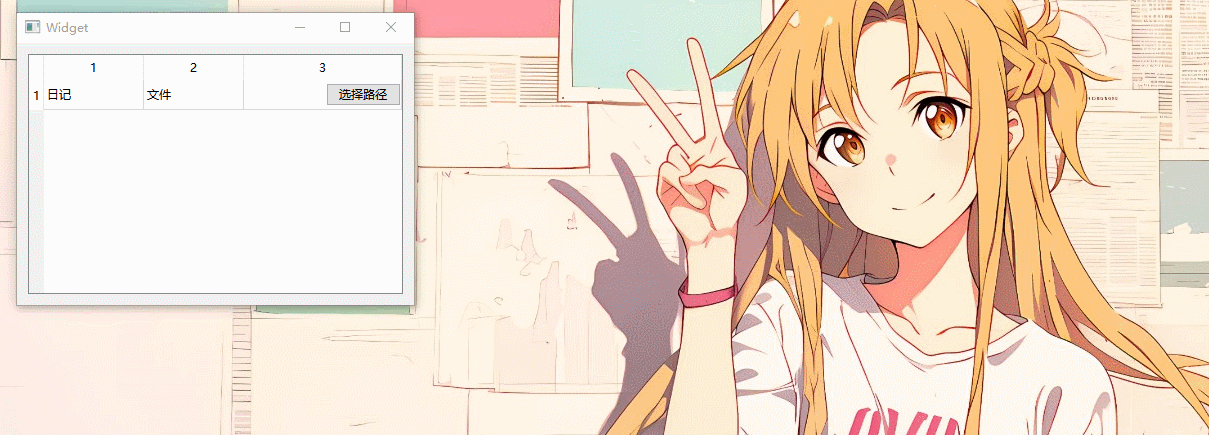

这样导致的问题是，当文字超长时，不能够很正确的显示省略号，修改后如下。

#include "MyStyledItemDeletegate.h"
#include <QRect>
#include <QStyleOptionButton>
#include <QEvent>
#include <QMouseEvent>
#include <QFileDialog>
#include <QDebug>

MyStyledItemDeletegate::MyStyledItemDeletegate(QObject *parent) : QStyledItemDelegate(parent)
{

}

void MyStyledItemDeletegate::paint(QPainter *painter, const QStyleOptionViewItem &option, const QModelIndex &index) const
{
    if(index.column() == 2){
        QPushButton btn(QStringLiteral("选择路径"));
        //通过sizeHint获取btn的大小而不是显式指定按钮的大小，这样如果字符串修改了我们不需要手动该大小
        QRect btnRect = QRect(0, 0, btn.sizeHint().width(), btn.sizeHint().height());
        btnRect.moveCenter(option.rect.center());
        btnRect.moveRight(option.rect.right());
        QStyleOptionButton btnOpt;
        btnOpt.init(&btn);
        btnOpt.rect = btnRect;
        btnOpt.text = btn.text();
        btn.style()->drawControl(QStyle::CE_PushButton, &btnOpt, painter, &btn);
        QStyleOptionViewItem& mutableOption = const_cast<QStyleOptionViewItem&>(option);
        mutableOption.rect = QRect(option.rect.x(), option.rect.y(), option.rect.width() - btnRect.width(), option.rect.height());
    }
    QStyledItemDelegate::paint(painter, option, index);
}

bool MyStyledItemDeletegate::editorEvent(QEvent *event, QAbstractItemModel *model, const QStyleOptionViewItem &option, const QModelIndex &index)
{
    if(index.column() == 2 && event->type() == QEvent::MouseButtonPress){
        QMouseEvent* mouseEvent = dynamic_cast<QMouseEvent*>(event);
        if(mouseEvent){
            QPushButton btn(QStringLiteral("选择路径"));
            QRect btnRect = QRect(0, 0, btn.sizeHint().width(), btn.sizeHint().height());
            btnRect.moveCenter(option.rect.center());
            btnRect.moveRight(option.rect.right());
            if(btnRect.contains(mouseEvent->pos())){
                QString filePath = QFileDialog::getOpenFileName(nullptr, QStringLiteral("选择一个文件"));
                if(!filePath.isEmpty()){
                    model->setData(index, filePath, Qt::DisplayRole);
                }
            }
        }
        return true;
    }
    return QStyledItemDelegate::editorEvent(event, model, option, index);
}

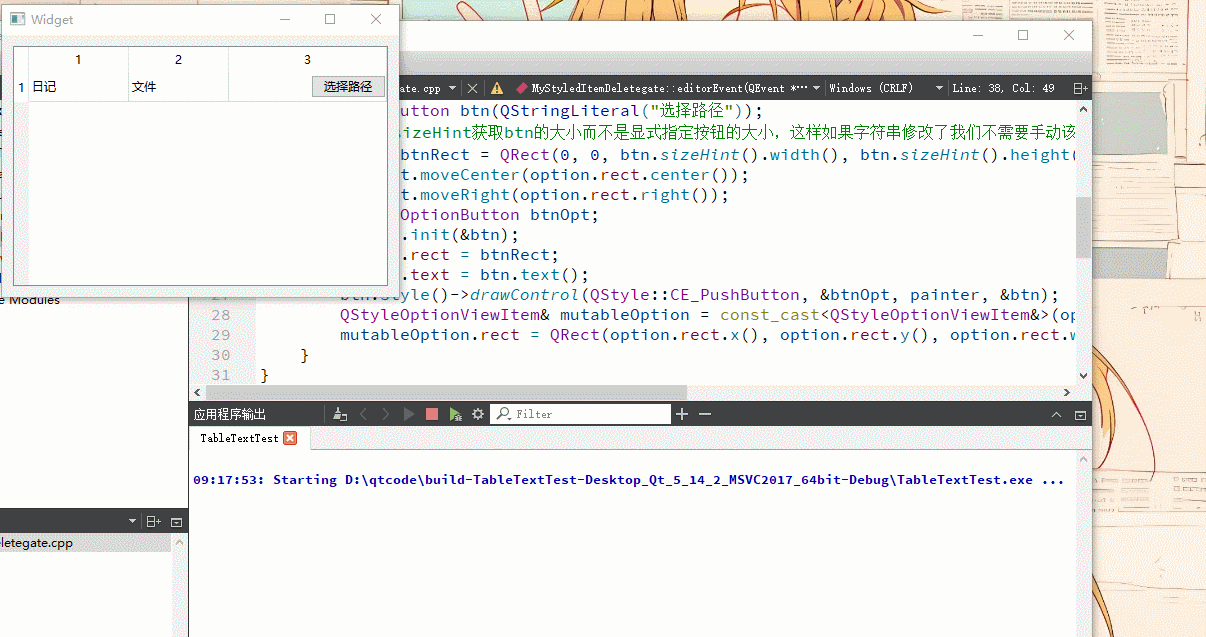

修正后效果如下

总结，一个好的软件总是慢慢打磨细节的
