前言
本文为了记录自己在实习的过程中，学习到的有关OCCT开源项目的搭建工作，旨在教会小白从0开始下载开源项目及环境搭配，以及如何添加自定义测试内容，最终结果展示如下：
1、项目所需工具下载
本项目共需要使用四个工具，分别是OCCT开源代码，QT环境，CMake构建工具，VS2019，版本也会介绍。我会把CMake、VS2019、第三方库放到Github链接里https://github.com/shadow0fiend/OCCT-Project，OCCT源码以及QT环境需要自己下载
其中下载链接如下：
OCCT（7.8或7.6或7.5皆可）：Download - Open CASCADE Technology
第三方库及VS2019：GitHub - shadow0fiend/OCCT-Project: 构建OCCT项目
QT工具（5.14.2）：Index of /archive/qt
CMake（3.29.3）：Download CMake
其中安装过程如下：

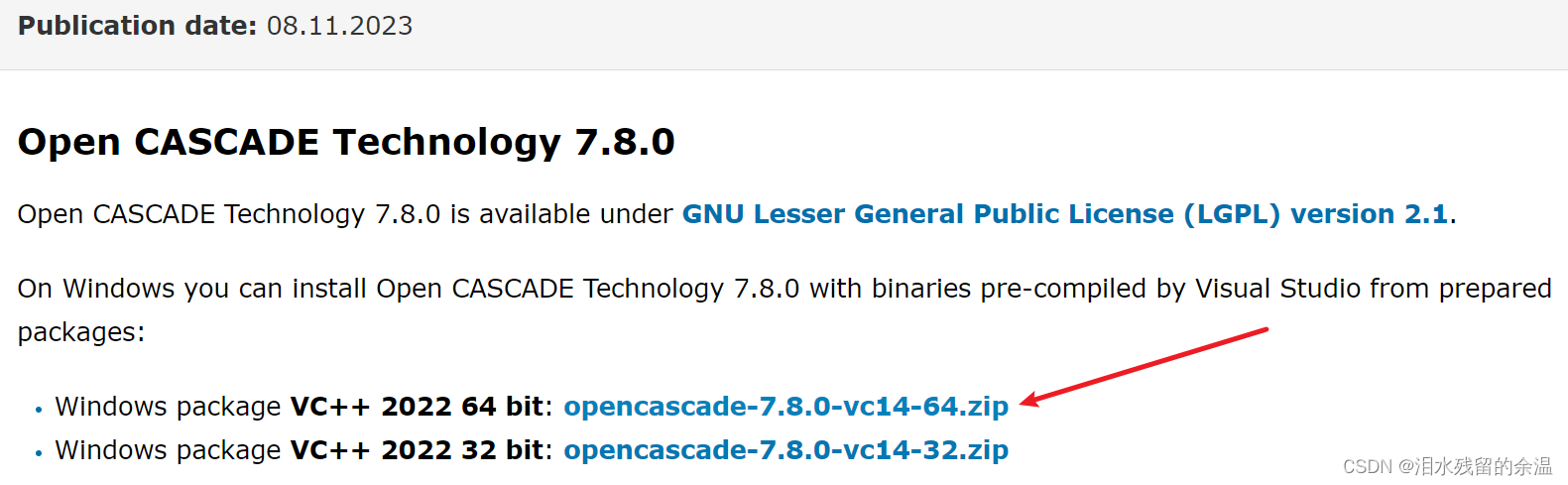

OCCT：下载64位的压缩包，解压到本地即可。
QT：对于新手，建议在勾选下载内容的时候全部选上（简单粗暴，不会缺少东西）
详情下载过程请参考链接：Qt5.14.2安装、配置及测试（Win10）-CSDN博客
CMake：无脑下一步即可
详情下载过程请参考链接：Windows下Cmake安装步骤详解（图文）_windows终端安装cmake-CSDN博客

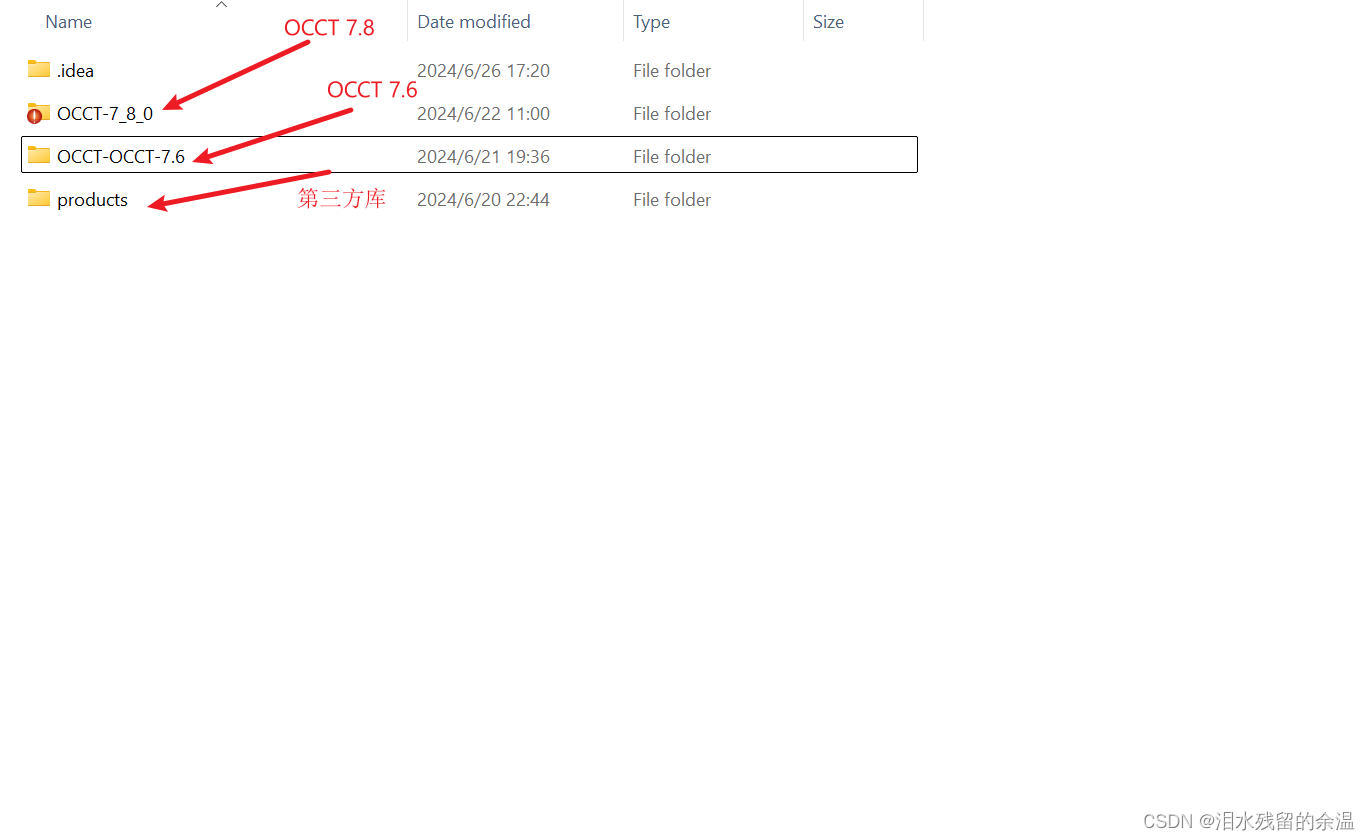

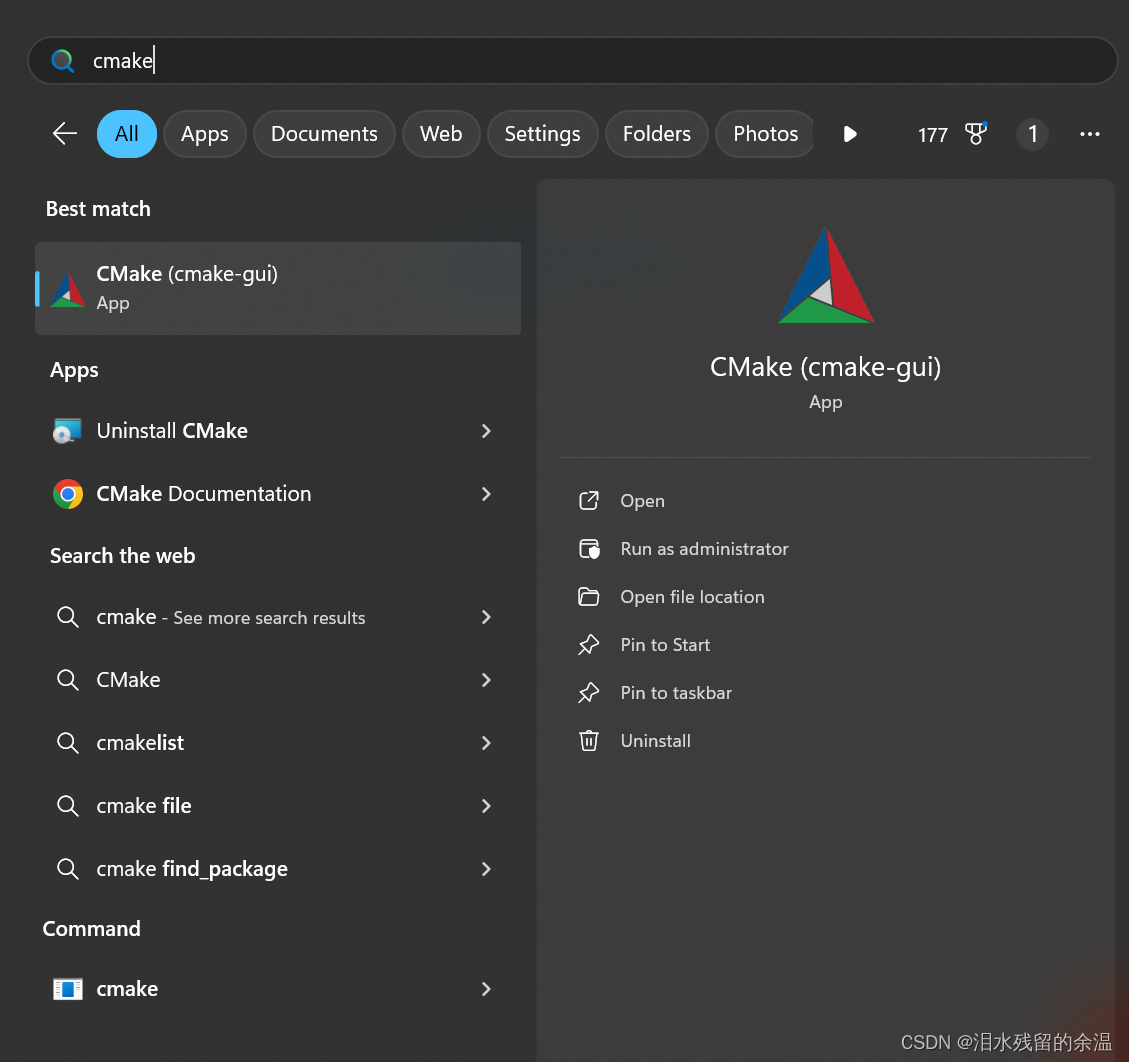

安装完以后，本地应该有以下几个内容，注意检查cmake-gui、OCCT源码、编译用的三方库（下图product）、QT环境、VS2019
2、使用CMake编译源码

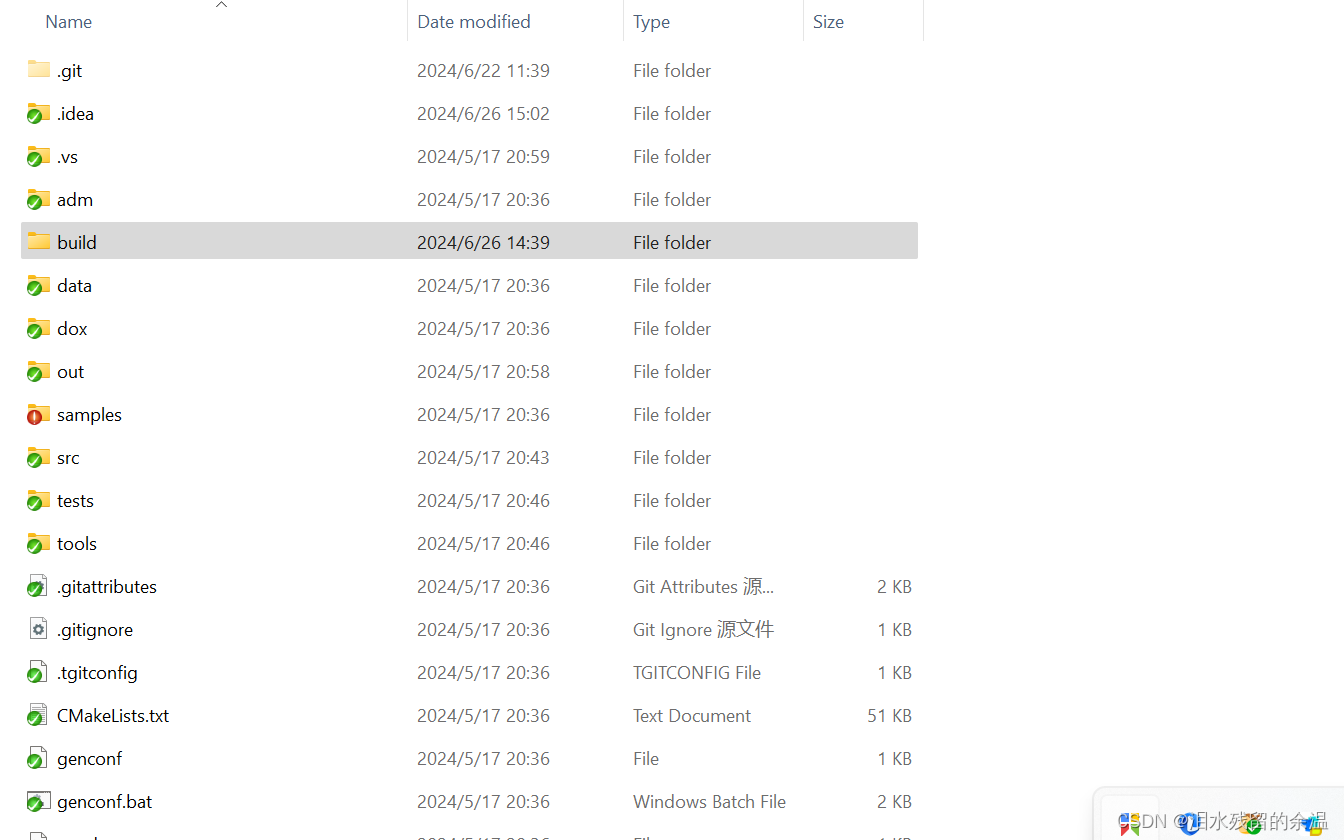

步骤1：在OCCT源码中建立一个build文件夹，用于存放编译后的文件

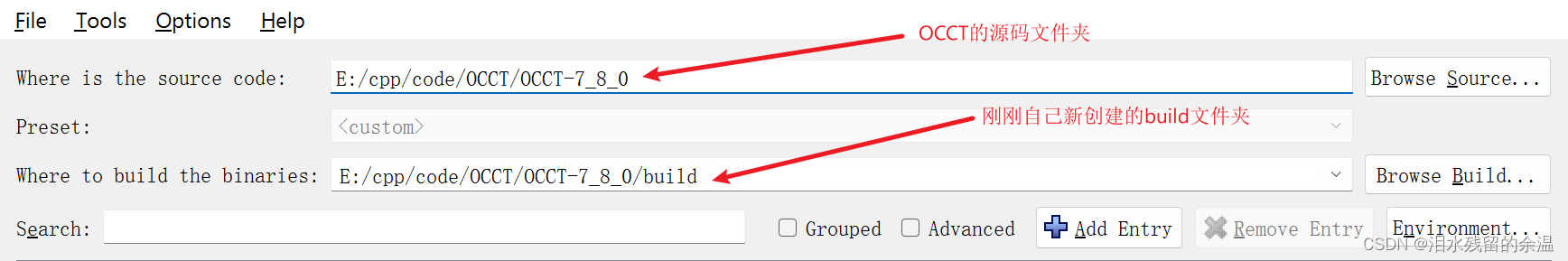

步骤2：打开CMake-gui，第一个位置填入OCCT源码文件夹的路径，第二个位置填入刚才创建好的build文件夹的路径

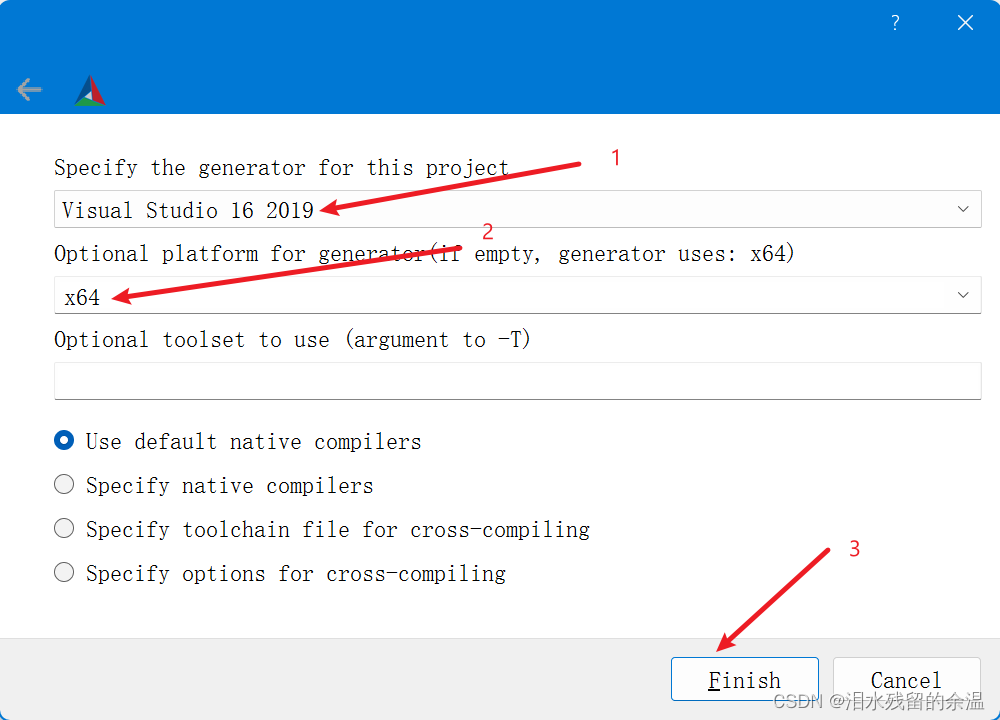

步骤3：点击configure，选择配置vs2019，x64，点击finish

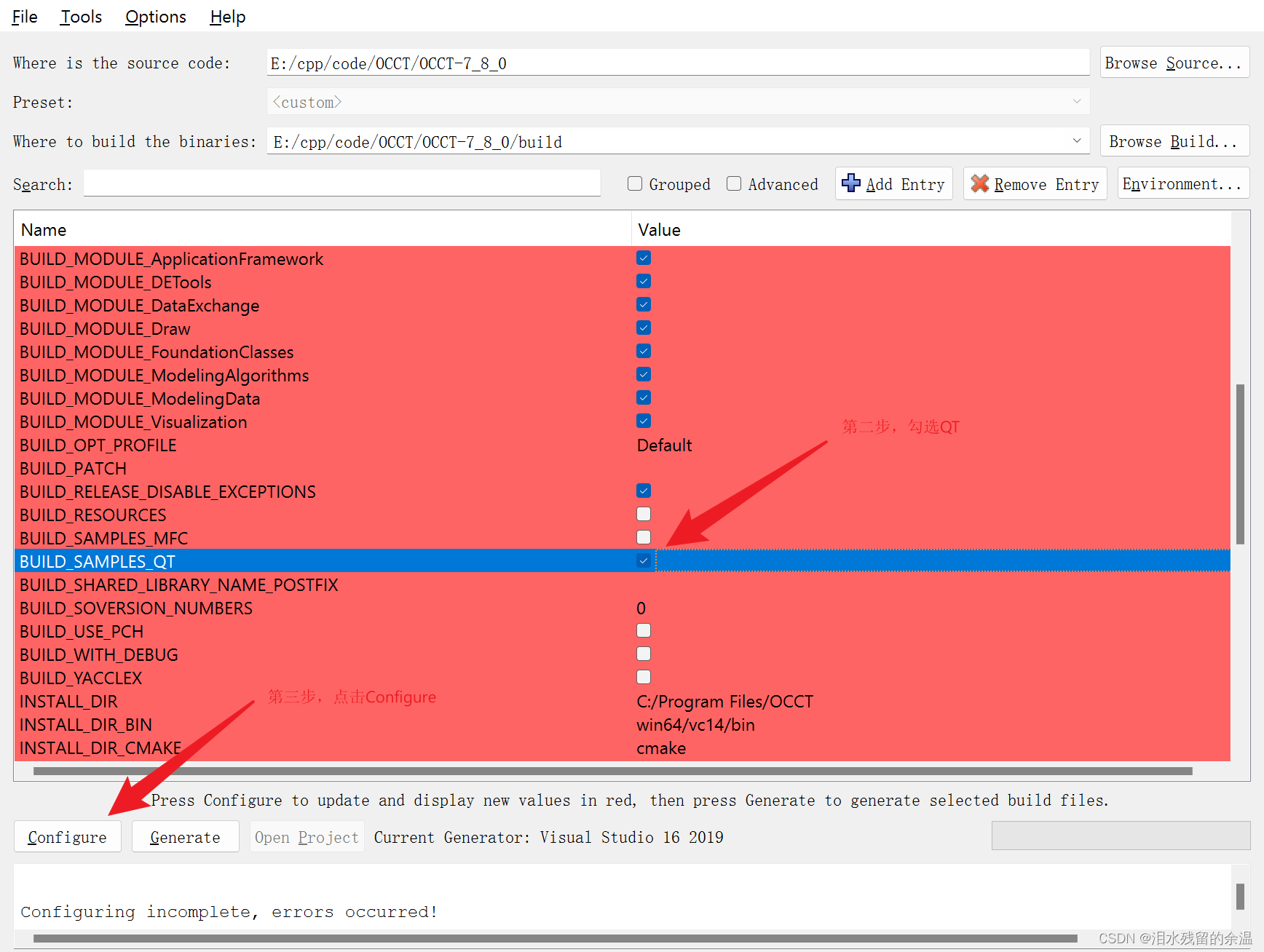

步骤4：

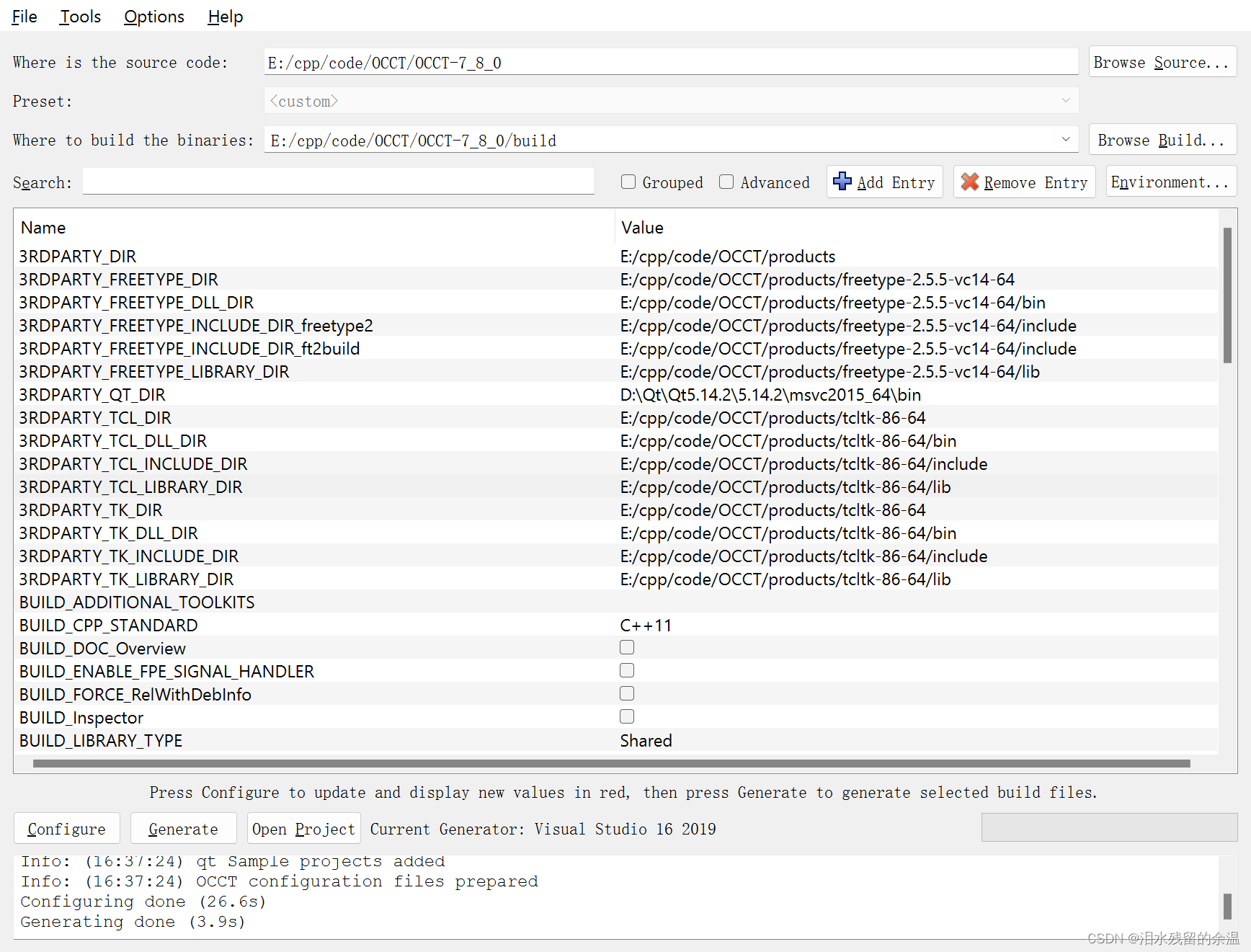

第一步，在3RDPARTY_DIR这一行，填入第三方库文件的路径，也就是product的路径。
第二步，然后勾选上BUILD_SAMPLES_QT这一行。
第三步点击config。
步骤5：

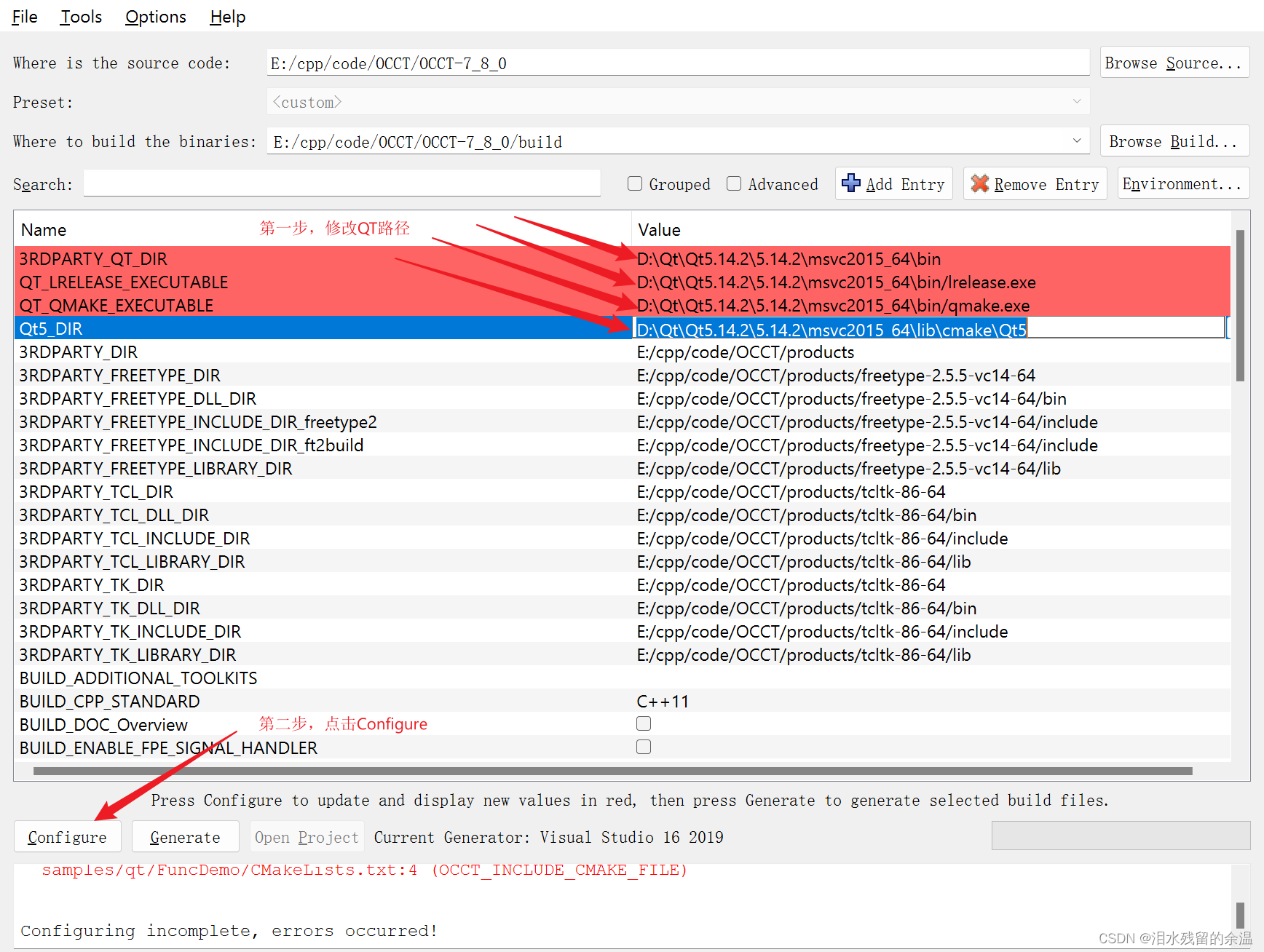

第一步，修改QT路径，这个Qt5.14.2是安装完QT以后的文件夹，自行在里面找对应的文件（如果没有找到，应该是QT安装下载的时候，有的选项没有勾上）
第二步，改完以后点击config，点击generate，点击open project

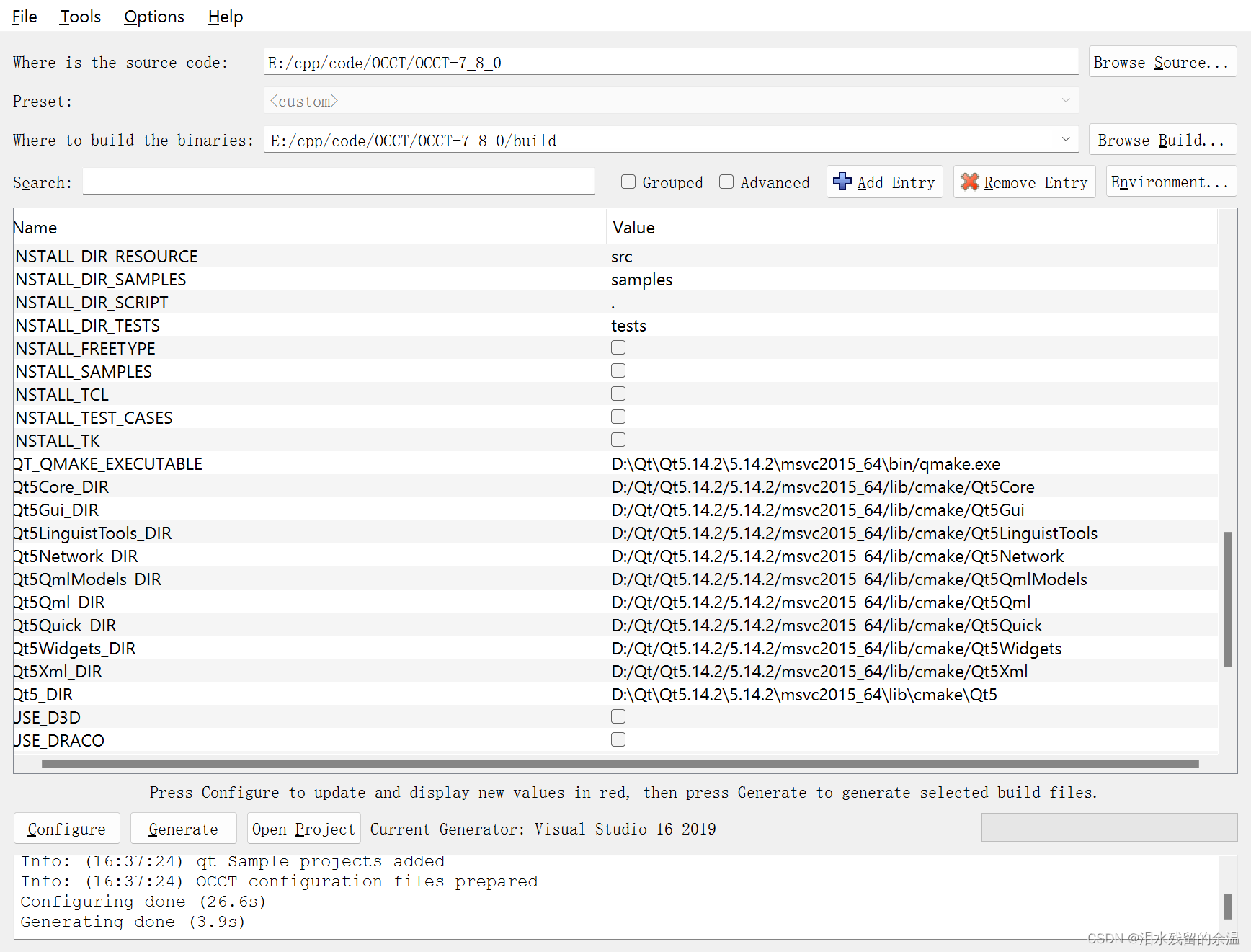

步骤7：cmake配置完毕，最终配置结果如下所示
3、配置项目运行环境

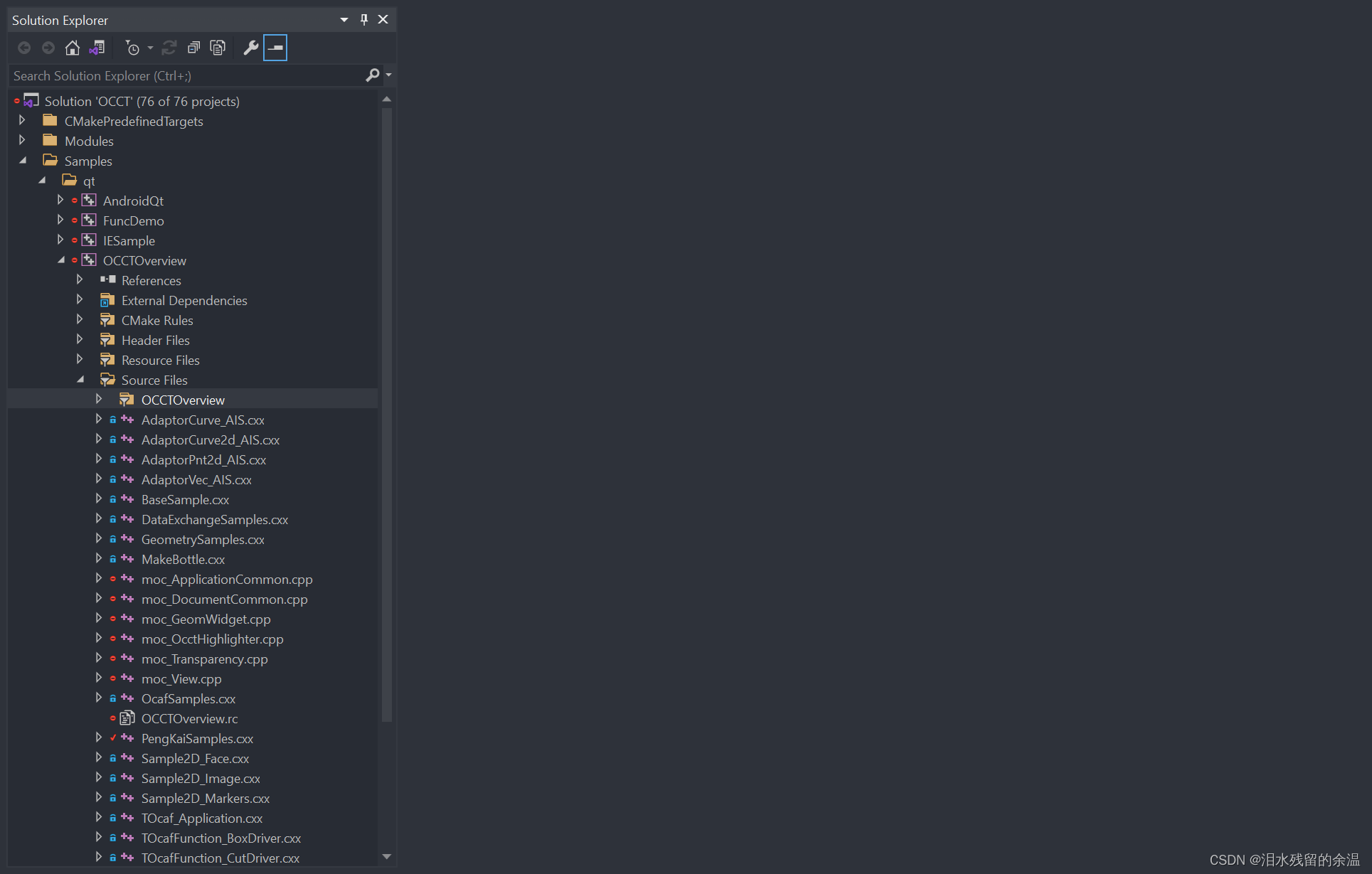

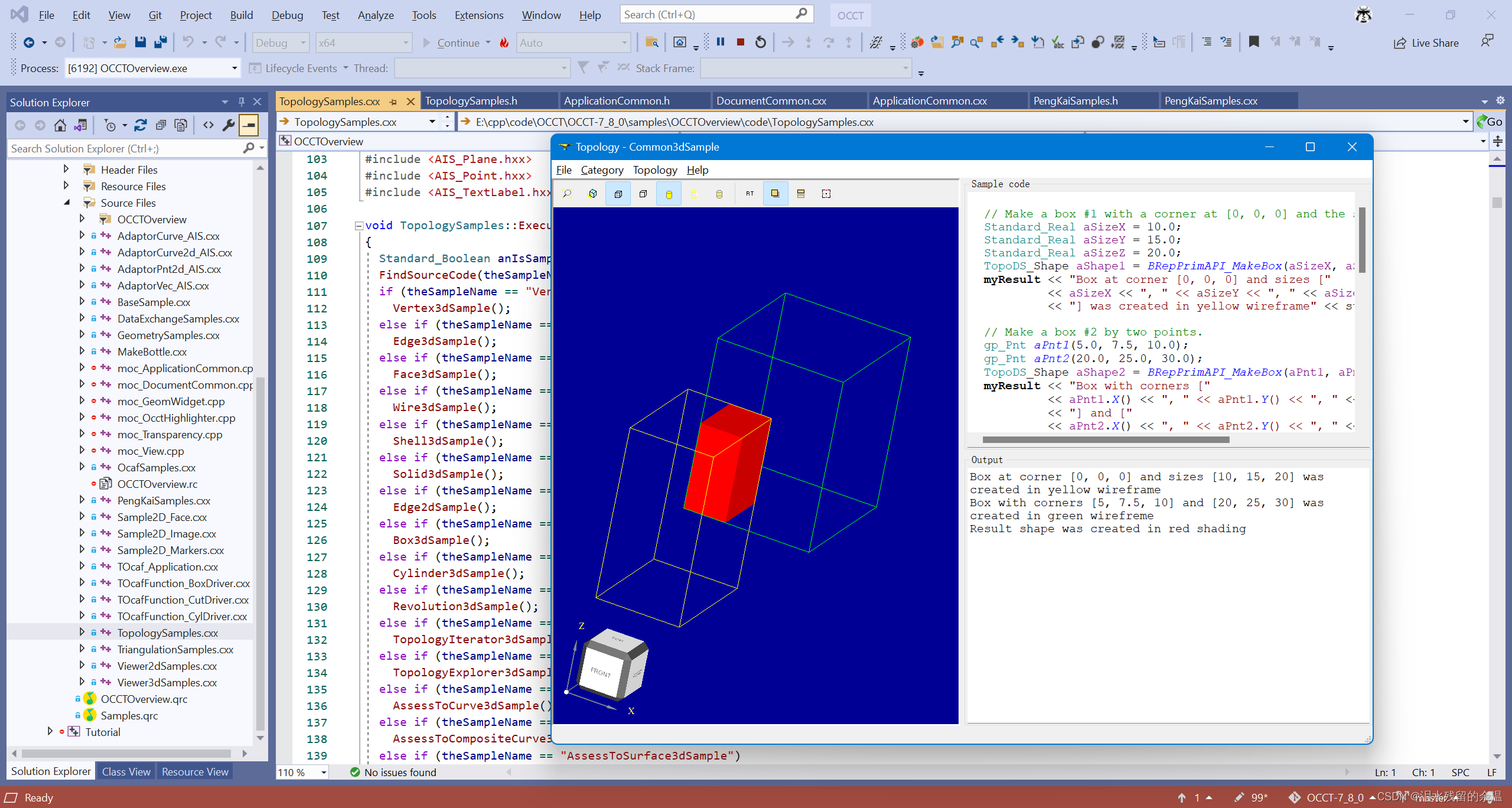

生成的项目如下所示（如果没有勾选QT，那么编译完成以后的项目是不包含Samples文件的，只有非常简陋的可视化界面）：
步骤1：鼠标右击OCCTOverview，设置OCCTOverview为启动项。
步骤2：鼠标右击OCCTOverview，依次找到属性、Debugging、environment，将以下内容粘贴进去，这是配置项目环境变量的。注意：需要将路径修改为自己电脑的路径。
配置解释：
CASROOT需要配置OCCT源码文件夹
CSF_OCCT都是OCCT源码文件夹里面的文件
最后一行是配置QT的bin，QT的platforms，第三方库文件freetype，freeimage
CASROOT=E:\cpp\code\OCCT\OCCT-7_8_0
CSF_FPE=0
CSF_OCCTResourcePath=E:\cpp\code\OCCT\OCCT-7_8_0/src
CSF_OCCTDataPath=E:\cpp\code\OCCT\OCCT-7_8_0/data
CSF_OCCTSamplesPath=E:\cpp\code\OCCT\OCCT-7_8_0/samples
CSF_OCCTTestsPath=E:\cpp\code\OCCT\OCCT-7_8_0/tests
CSF_OCCTDocPath=E:\cpp\code\OCCT\OCCT-7_8_0/doc
QT_DEBUG_PLUGINS=1
PATH=%PATH%;D:\Qt\Qt5.14.2\5.14.2\msvc2015_64\bin;D:\Qt\Qt5.14.2\5.14.2\msvc2015_64\plugins\platforms;E:\cpp\code\OCCT\products\freetype-2.5.5-vc14-64\bin;E:\cpp\code\OCCT\products\freeimage-3.17.0-vc14-64\bin;步骤3：复制 D:\Qt\Qt5.14.2\5.14.2\msvc2015_64\plugins 路径下的platforms文件，粘贴到 E:\cpp\code\OCCT\OCCT-7_8_0\build\win64\vc14\bind （生成的build文件里）路径下，如果要在release下运行，则将其粘贴到 E:\cpp\code\OCCT\OCCT-7_8_0\build\win64\vc14\bin路径下。

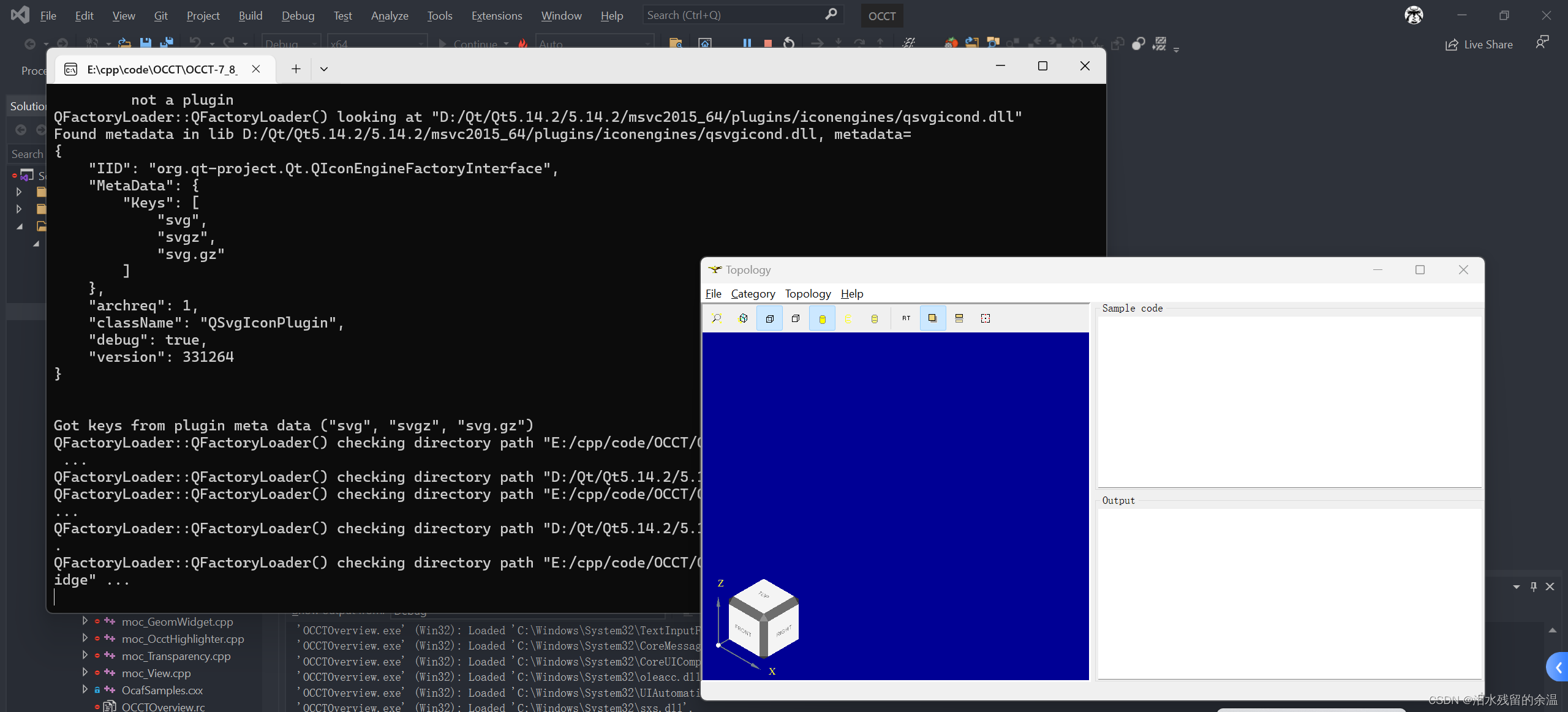

步骤4：编译运行即可完成。
4、如何自定义测试项目

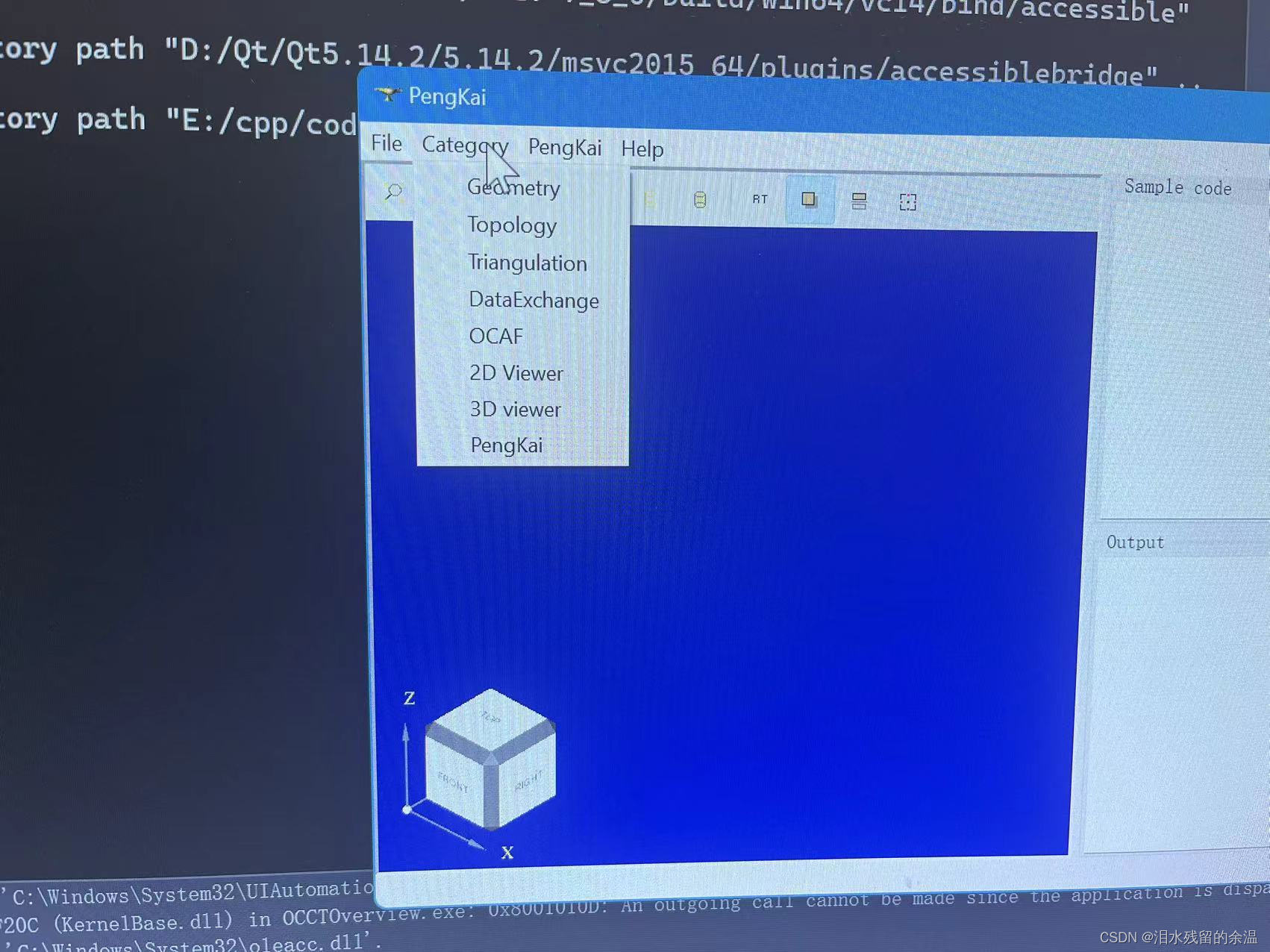

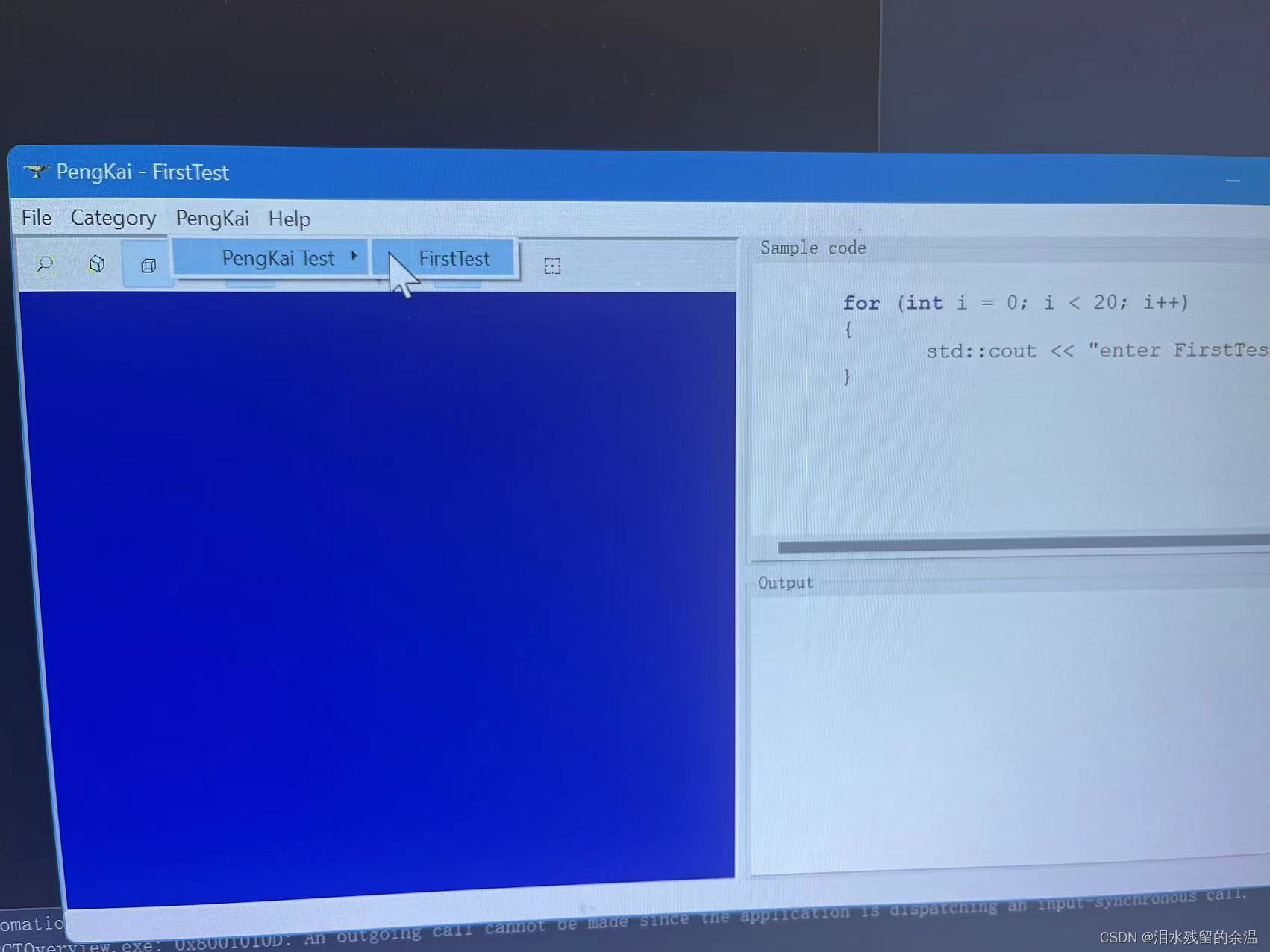

先看自己修改的结果，在QT窗口自己添加按钮，用于触发函数，然后再在被触发的函数里编写自己的测试代码，就可以完成自定义测试了。
具体来说，需要修改5个地方：

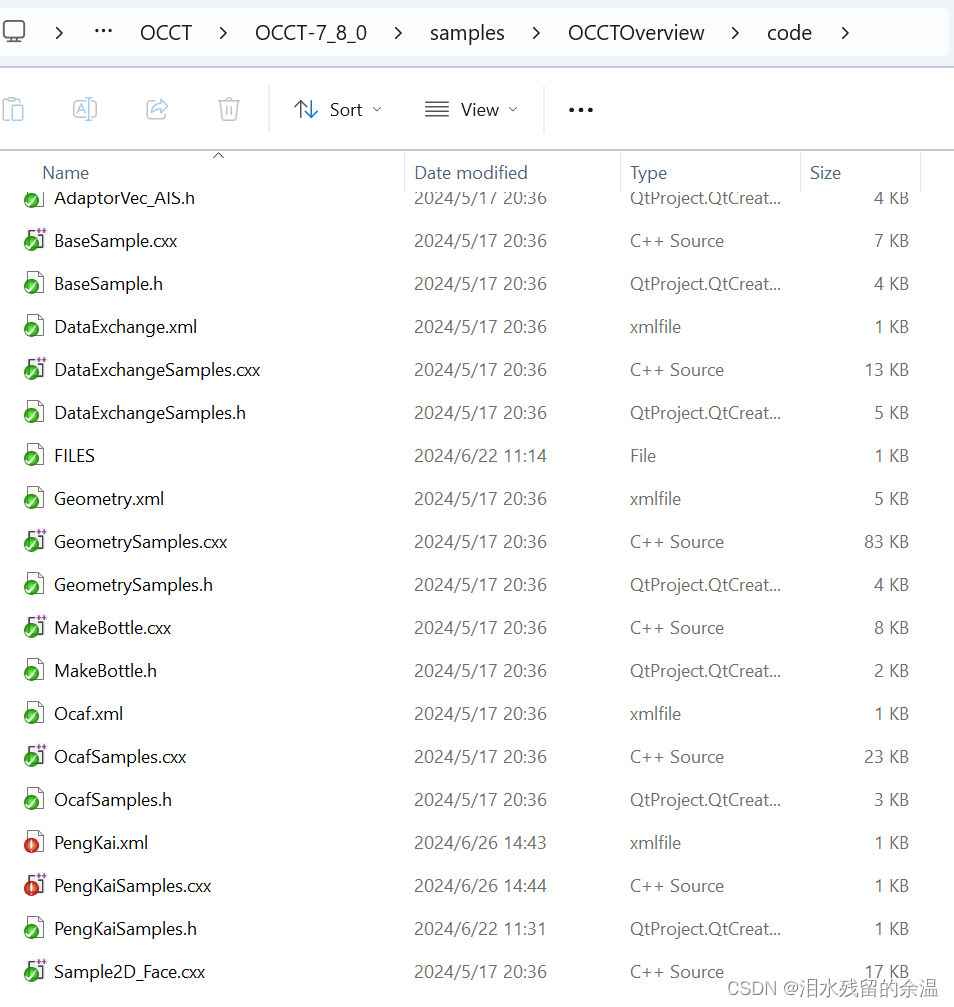

找到OCCT源码里的samples文件（注意，不是build里的samples），进去以后找到OCCTOverview，再找到Code文件夹。我的路径是：E:\cpp\code\OCCT\OCCT-7_8_0\samples\OCCTOverview\code

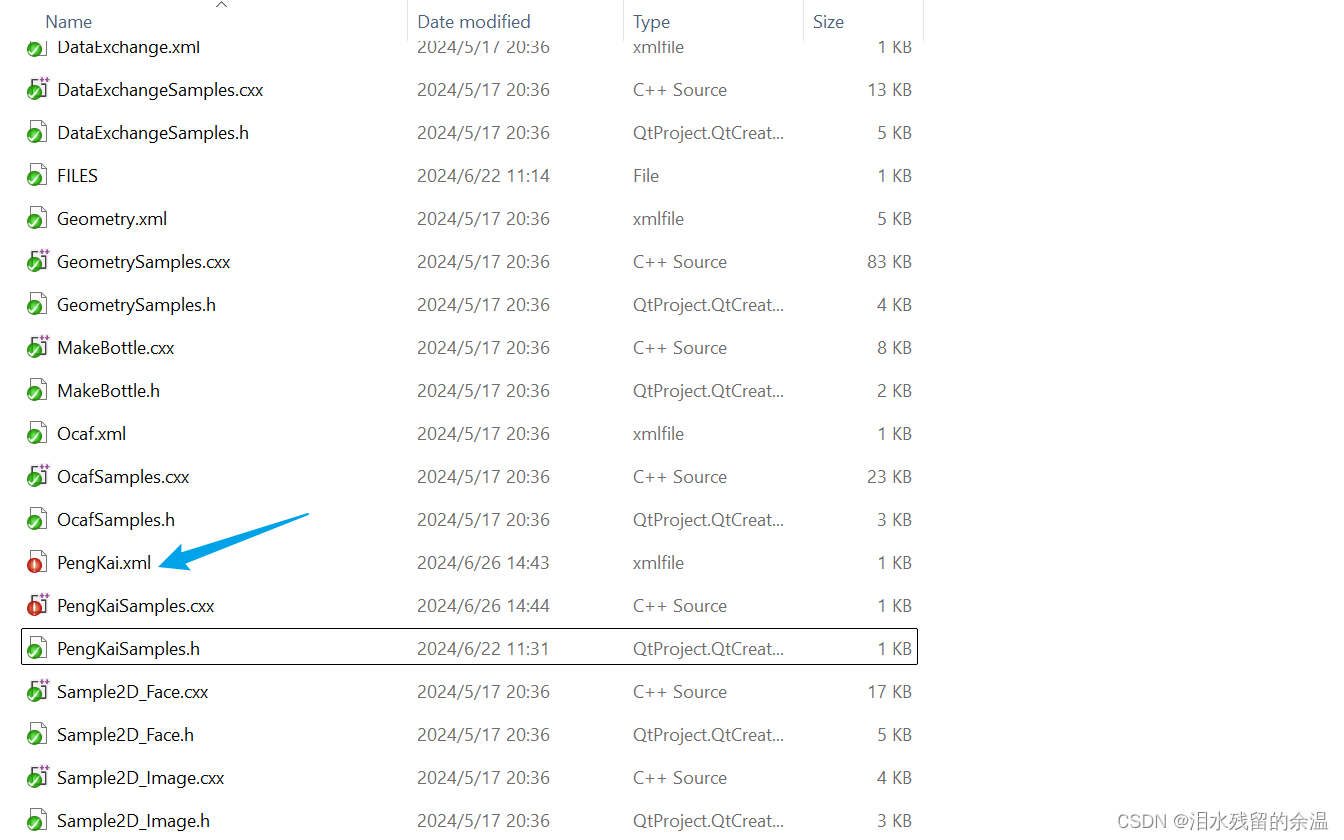

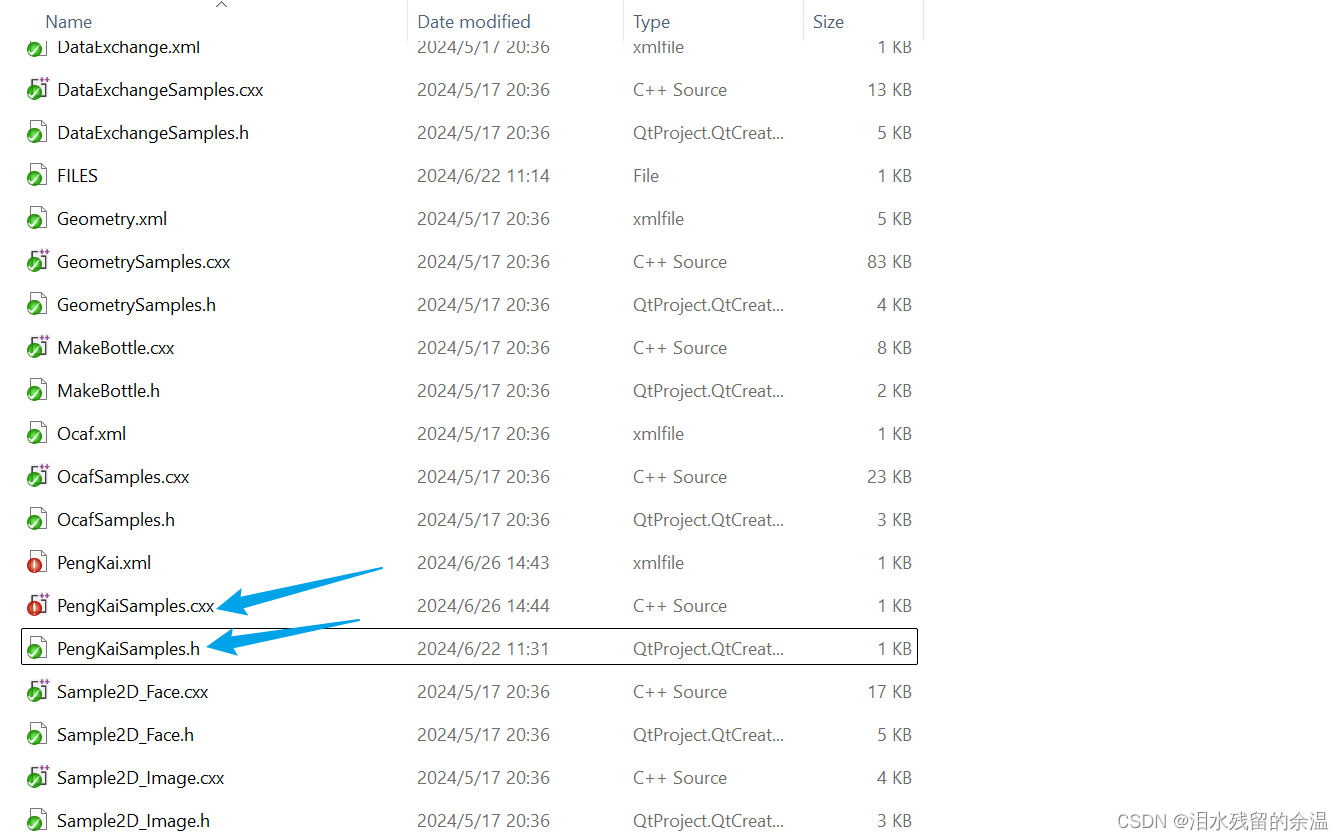

第一处修改：把自己写的cxx文件和.h文件放在这里（注意：直接在build里右键添加cxx文件是添加不到这里来的，因为那只是在build文件里添加了，而这是OCCT的源码文件，只能在这里添加以后，通过cmake编译进build才行）

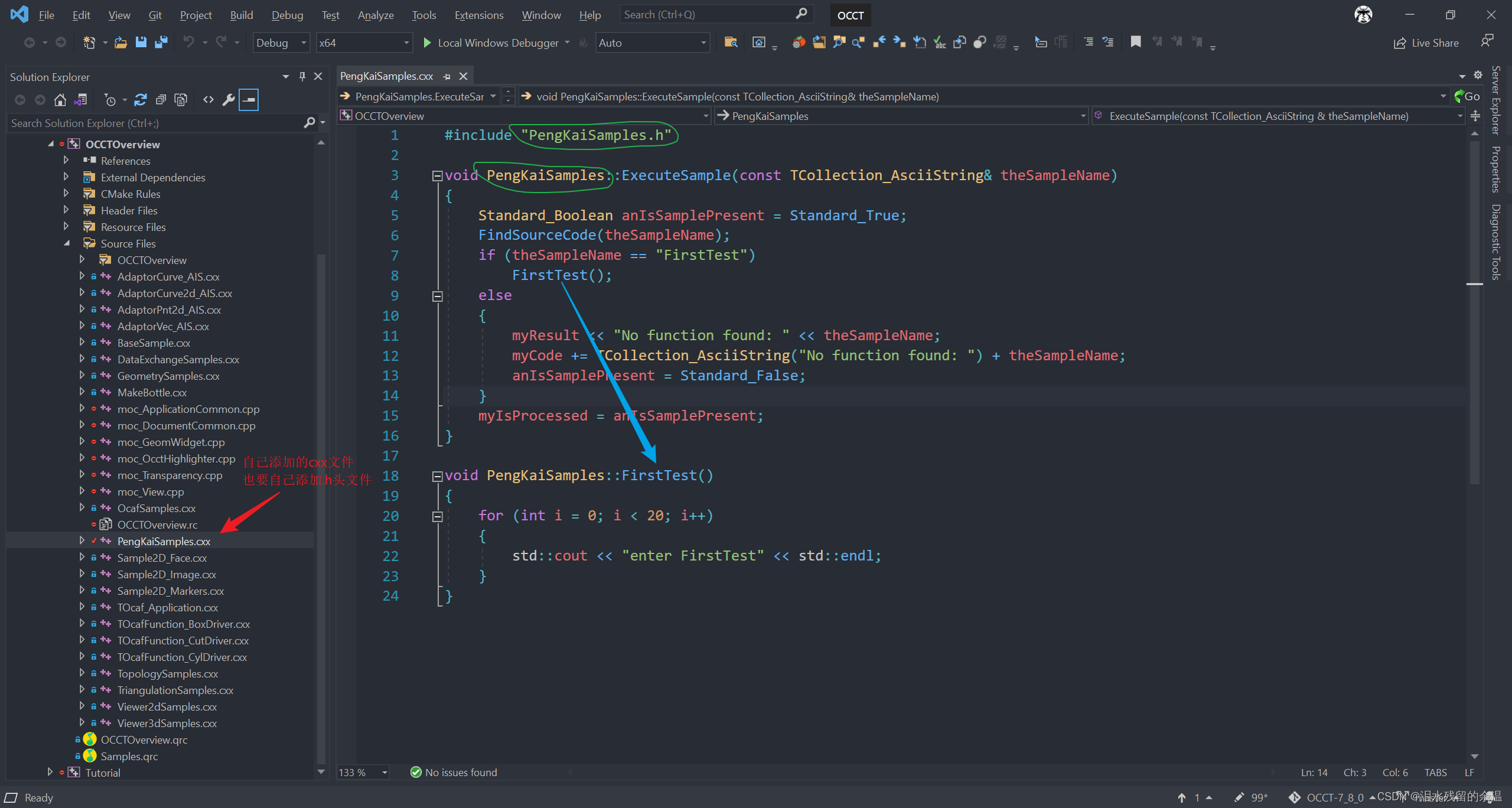

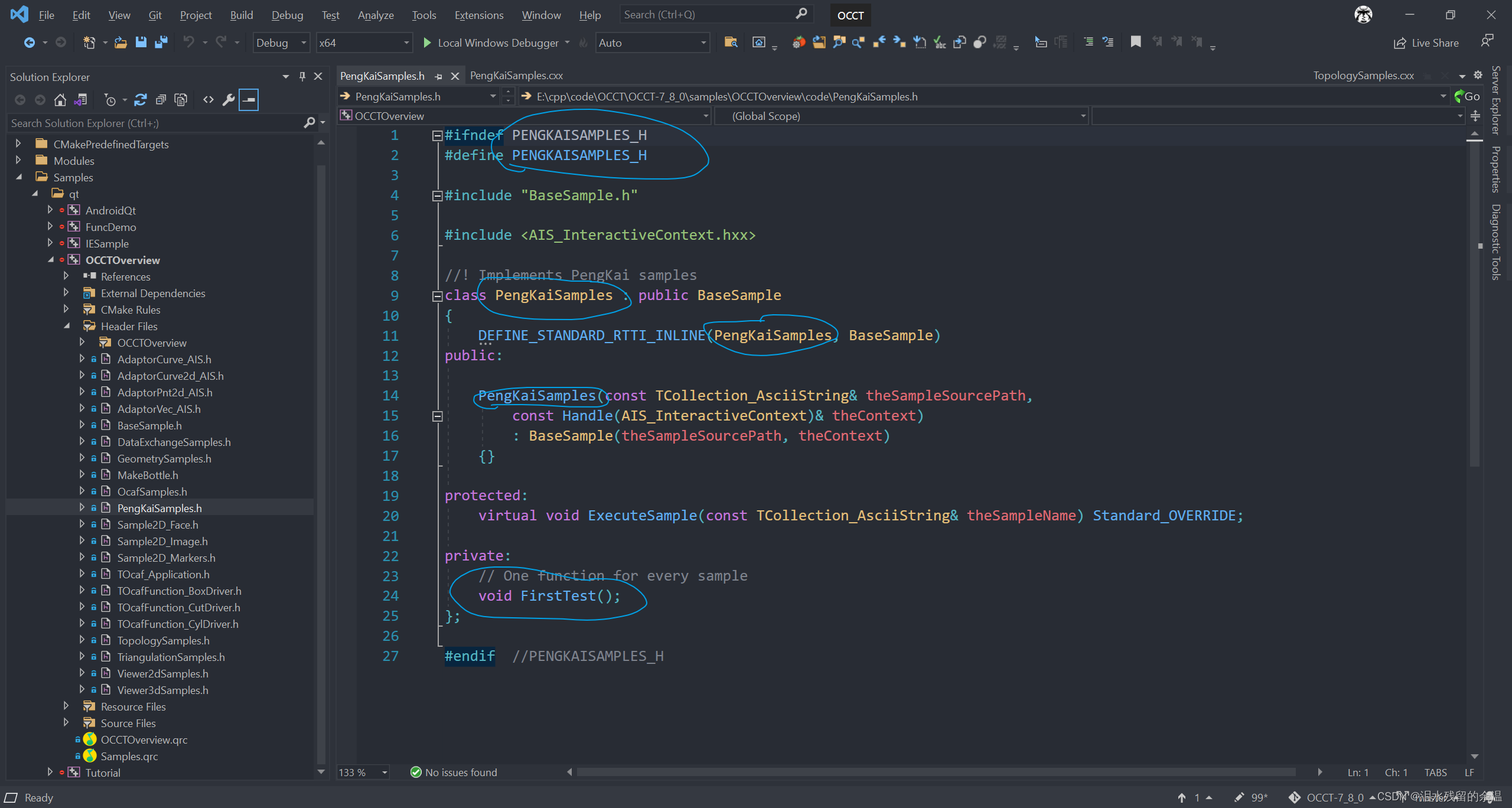

具体的cxx和.h文件的写法参考如下，可以仿照源码的 TopologySamples.cxx文件的写法，看我的cxx和TopologySamples.cxx不同的地方即可，按照对应位置改就行。这里我附上我的源码。
#include "PengKaiSamples.h"
void PengKaiSamples::ExecuteSample(const TCollection_AsciiString& theSampleName)
{
Standard_Boolean anIsSamplePresent = Standard_True;
FindSourceCode(theSampleName);
if (theSampleName == "FirstTest")
FirstTest();
else
{
myResult << "No function found: " << theSampleName;
myCode += TCollection_AsciiString("No function found: ") + theSampleName;
anIsSamplePresent = Standard_False;
}
myIsProcessed = anIsSamplePresent;
}
void PengKaiSamples::FirstTest()
{
for (int i = 0; i < 20; i++)
{
std::cout << "enter FirstTest" << std::endl;
}
}#ifndef PENGKAISAMPLES_H
#define PENGKAISAMPLES_H
#include "BaseSample.h"
#include <AIS_InteractiveContext.hxx>
//! Implements PengKai samples
class PengKaiSamples : public BaseSample
{
DEFINE_STANDARD_RTTI_INLINE(PengKaiSamples, BaseSample)
public:
PengKaiSamples(const TCollection_AsciiString& theSampleSourcePath,
const Handle(AIS_InteractiveContext)& theContext)
: BaseSample(theSampleSourcePath, theContext)
{}
protected:
virtual void ExecuteSample(const TCollection_AsciiString& theSampleName) Standard_OVERRIDE;
private:
// One function for every sample
void FirstTest();
};

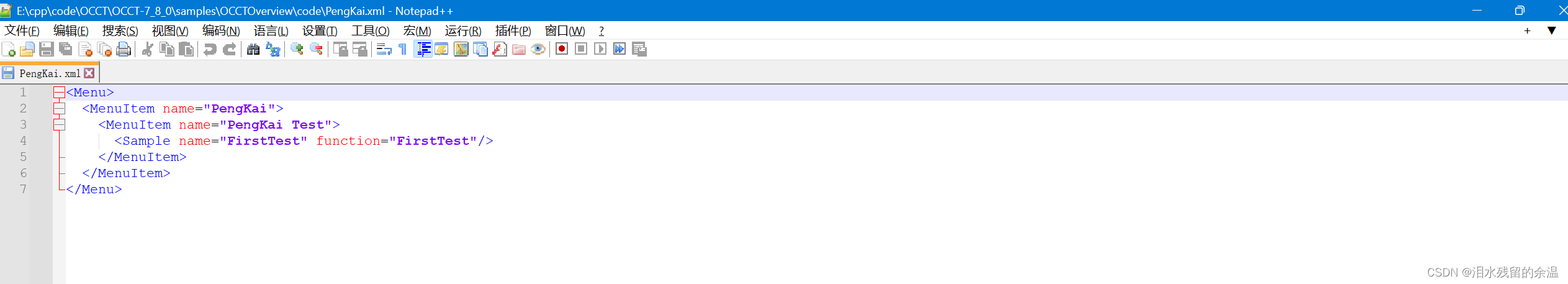

#endif //PENGKAISAMPLES_H第二处修改：添加XML文件
思路：仿照其他xml文件来写
<Menu>
<MenuItem name="PengKai">
<MenuItem name="PengKai Test">
<Sample name="FirstTest" function="FirstTest"/>
</MenuItem>
</MenuItem>
</Menu>第三处修改：

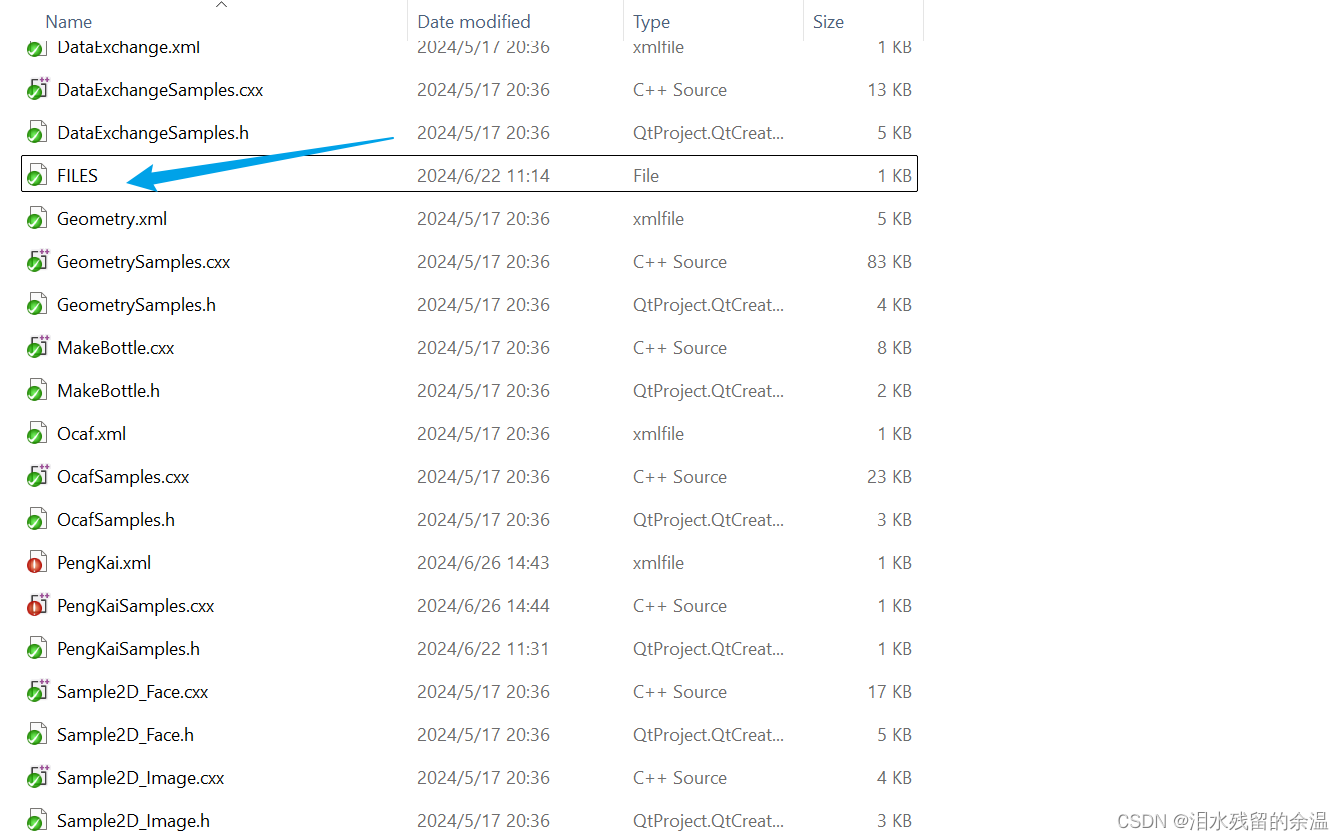

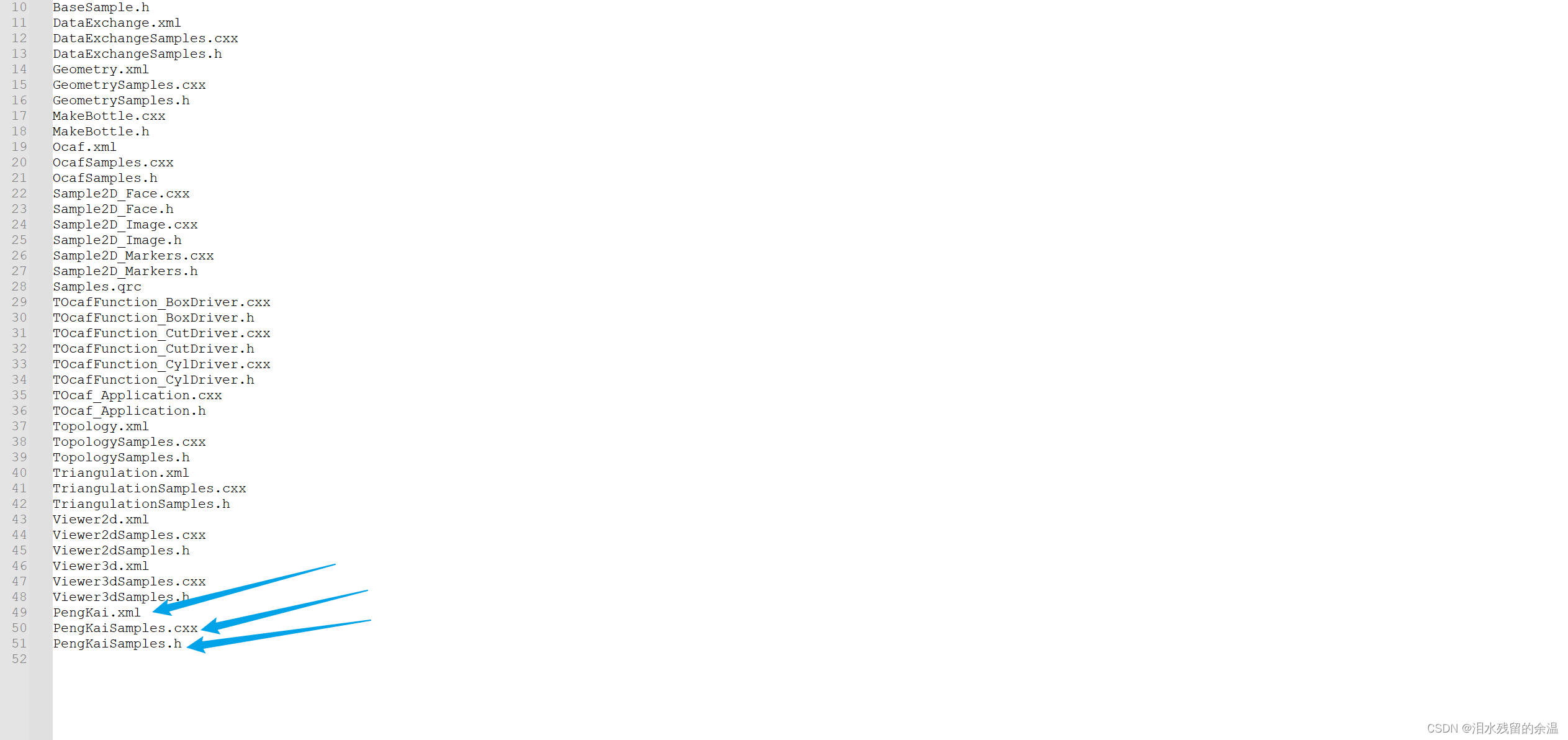

修改FILES文件，仿照其他人的写法，把cxx文件、xml文件和.h文件添加进去
AdaptorCurve2d_AIS.cxx
AdaptorCurve2d_AIS.h
AdaptorCurve_AIS.cxx
AdaptorCurve_AIS.h
AdaptorPnt2d_AIS.cxx
AdaptorPnt2d_AIS.h
AdaptorVec_AIS.cxx
AdaptorVec_AIS.h
BaseSample.cxx
BaseSample.h
DataExchange.xml
DataExchangeSamples.cxx
DataExchangeSamples.h
Geometry.xml
GeometrySamples.cxx
GeometrySamples.h
MakeBottle.cxx
MakeBottle.h
Ocaf.xml
OcafSamples.cxx
OcafSamples.h
Sample2D_Face.cxx
Sample2D_Face.h
Sample2D_Image.cxx
Sample2D_Image.h
Sample2D_Markers.cxx
Sample2D_Markers.h
Samples.qrc
TOcafFunction_BoxDriver.cxx
TOcafFunction_BoxDriver.h
TOcafFunction_CutDriver.cxx
TOcafFunction_CutDriver.h
TOcafFunction_CylDriver.cxx
TOcafFunction_CylDriver.h
TOcaf_Application.cxx
TOcaf_Application.h
Topology.xml
TopologySamples.cxx
TopologySamples.h
Triangulation.xml
TriangulationSamples.cxx
TriangulationSamples.h
Viewer2d.xml
Viewer2dSamples.cxx
Viewer2dSamples.h
Viewer3d.xml
Viewer3dSamples.cxx
Viewer3dSamples.h
PengKai.xml
PengKaiSamples.cxx
PengKaiSamples.h
第四处修改：

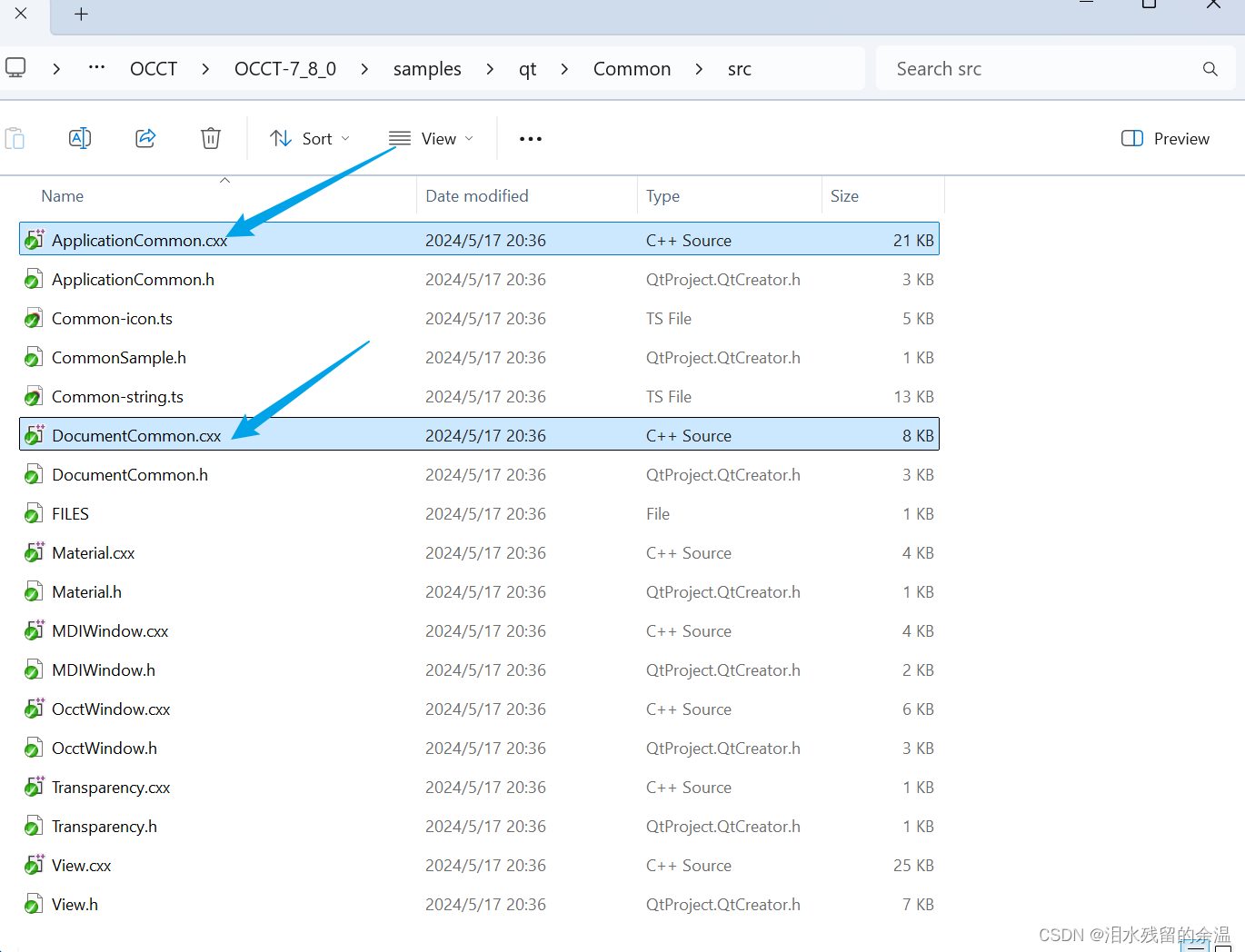

找到samples文件夹里的qt -> Common -> src，找到这两个cxx文件，进去修改
仿照文件里Topology结构的写法来写，把所有带有Topology的地方全部换成自己修改的名字。
内容太多，这里不易说明，建议直接拿我修改后的代码与源码做对比，可以看出添加的部分在哪里
// Copyright (c) 2020 OPEN CASCADE SAS
//
// This file is part of the examples of the Open CASCADE Technology software library.
//
// Permission is hereby granted, free of charge, to any person obtaining a copy
// of this software and associated documentation files (the "Software"), to deal
// in the Software without restriction, including without limitation the rights
// to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
// copies of the Software, and to permit persons to whom the Software is
// furnished to do so, subject to the following conditions:
//
// The above copyright notice and this permission notice shall be included in all
// copies or substantial portions of the Software.
//
// THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
// IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
// FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
// AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
// LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
// OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE
#include "ApplicationCommon.h"
#include <Standard_WarningsDisable.hxx>
#include <QApplication>
#include <QDir>
#include <QFile>
#include <QFont>
#include <QFrame>
#include <QGroupBox>
#include <QMap>
#include <QMdiArea>
#include <QMdiSubWindow>
#include <QMenuBar>
#include <QMessageBox>
#include <QPair>
#include <QSplitter>
#include <QStatusBar>
#include <QtGlobal>
#include <QHBoxLayout>
#include <QVBoxLayout>
#include <QWidget>
#include <QDomDocument>
#include <QDomAttr>
#include <Standard_WarningsRestore.hxx>
#include <OpenGl_GraphicDriver.hxx>
#include <OSD_Environment.hxx>
#include <stdlib.h>
#include <memory>
ApplicationCommonWindow::ApplicationCommonWindow (ApplicationType theCategory)
: QMainWindow (nullptr),
myAppType(theCategory),
myStdToolBar (nullptr),
myViewBar (nullptr),
myCasCadeBar (nullptr),
myFilePopup (nullptr),
myCategoryPopup (nullptr)
{
ALL_CATEGORIES[AppType_Geometry] = "Geometry";
ALL_CATEGORIES[AppType_Topology] = "Topology";
ALL_CATEGORIES[AppType_Triangulation] = "Triangulation";
ALL_CATEGORIES[AppType_DataExchange] = "DataExchange";
ALL_CATEGORIES[AppType_Ocaf] = "OCAF";
ALL_CATEGORIES[AppType_Viewer3d] = "3D viewer";
ALL_CATEGORIES[AppType_Viewer2d] = "2D Viewer";
ALL_CATEGORIES[AppType_PengKai] = "PengKai";
mySampleMapper = new QSignalMapper(this);
myExchangeMapper = new QSignalMapper(this);
myOcafMapper = new QSignalMapper(this);
myViewer3dMapper = new QSignalMapper(this);
myViewer2dMapper = new QSignalMapper(this);
myCategoryMapper = new QSignalMapper(this);
connect(mySampleMapper, SIGNAL(mapped(const QString &)), this, SLOT(onProcessSample(const QString &)));
connect(myExchangeMapper, SIGNAL(mapped(const QString &)), this, SLOT(onProcessExchange(const QString &)));
connect(myOcafMapper, SIGNAL(mapped(const QString &)), this, SLOT(onProcessOcaf(const QString &)));
connect(myViewer3dMapper, SIGNAL(mapped(const QString &)), this, SLOT(onProcessViewer3d(const QString &)));
connect(myViewer2dMapper, SIGNAL(mapped(const QString &)), this, SLOT(onProcessViewer2d(const QString &)));
connect(myCategoryMapper, SIGNAL(mapped(const QString &)), this, SLOT(onChangeCategory(const QString &)));
setFocusPolicy(Qt::StrongFocus);
QFont aCodeViewFont;
aCodeViewFont.setFamily("Courier");
aCodeViewFont.setFixedPitch(true);
aCodeViewFont.setPointSize(10);
QGroupBox* aCodeFrame = new QGroupBox(tr("Sample code"));
QVBoxLayout* aCodeLayout = new QVBoxLayout(aCodeFrame);
aCodeLayout->setContentsMargins(3, 3, 3, 3);
myCodeView = new QTextEdit(aCodeFrame);
aCodeLayout->addWidget(myCodeView);
myCodeView->setDocumentTitle("Code");
myCodeView->setLineWrapMode(QTextEdit::NoWrap);
myCodeView->setReadOnly(true);
myCodeView->setFont(aCodeViewFont);
myCodeViewHighlighter = new OcctHighlighter(myCodeView->document());
QGroupBox* aResultFrame = new QGroupBox(tr("Output"));
QVBoxLayout* aResultLayout = new QVBoxLayout(aResultFrame);
aResultLayout->setContentsMargins(3, 3, 3, 3);
myResultView = new QTextEdit(aResultFrame);
aResultLayout->addWidget(myResultView);
myResultView->setDocumentTitle("Output");
myResultView->setReadOnly(true);
myResultView->setFont(aCodeViewFont);
QSplitter* aCodeResultSplitter = new QSplitter(Qt::Vertical);
aCodeResultSplitter->addWidget(aCodeFrame);
aCodeResultSplitter->addWidget(aResultFrame);
myDocument3d = createNewDocument();
myDocument2d = createNewDocument();
QFrame* aViewFrame = new QFrame;
aViewFrame->setFrameStyle(QFrame::Panel | QFrame::Sunken);
aViewFrame->setLineWidth(3);
QVBoxLayout* aViewLayout = new QVBoxLayout(aViewFrame);
aViewLayout->setContentsMargins(0, 0, 0, 0);
myGeomWidget = new GeomWidget(myDocument3d, myDocument2d, aViewFrame);
aViewLayout->addWidget(myGeomWidget);
myGeomWidget->setContentsMargins(0, 0, 0, 0);
QSplitter* aGeomTextSplitter = new QSplitter(Qt::Horizontal);
aGeomTextSplitter->addWidget(aViewFrame);
aGeomTextSplitter->addWidget(aCodeResultSplitter);
aGeomTextSplitter->setStretchFactor(0, 1);
aGeomTextSplitter->setStretchFactor(1, 1);
QList<int> aSizeList;
aSizeList.append(640);
aSizeList.append(640);
aGeomTextSplitter->setSizes(aSizeList);
setCentralWidget(aGeomTextSplitter);
#include <Standard_WarningsDisable.hxx>
Q_INIT_RESOURCE(Samples);
#include <Standard_WarningsRestore.hxx>
TCollection_AsciiString aSampleSourcePach = getSampleSourceDir();
myGeometrySamples = new GeometrySamples(aSampleSourcePach,
myDocument3d->getContext());
myTopologySamples = new TopologySamples(aSampleSourcePach,
myDocument3d->getContext());
myTriangulationSamples = new TriangulationSamples(aSampleSourcePach,
myDocument3d->getContext());
myDataExchangeSamples = new DataExchangeSamples(aSampleSourcePach,
myGeomWidget->Get3dView(),
myDocument3d->getContext());
myOcafSamples = new OcafSamples(aSampleSourcePach,
myDocument3d->getViewer(),
myDocument3d->getContext());
myViewer3dSamples = new Viewer3dSamples(aSampleSourcePach,
myGeomWidget->Get3dView(),
myDocument3d->getContext());
myViewer2dSamples = new Viewer2dSamples(aSampleSourcePach,
myGeomWidget->Get2dView(),
myDocument2d->getViewer(),
myDocument2d->getContext());
myPengKaiSamples = new PengKaiSamples(aSampleSourcePach,
myDocument3d->getContext());
MenuFormXml(":/menus/Geometry.xml", mySampleMapper, myGeometryMenus);
MenuFormXml(":/menus/Topology.xml", mySampleMapper, myTopologyMenus);
MenuFormXml(":/menus/Triangulation.xml", mySampleMapper, myTriangulationMenus);
MenuFormXml(":/menus/DataExchange.xml", myExchangeMapper, myDataExchangeMenus);
MenuFormXml(":/menus/Ocaf.xml", myOcafMapper, myOcafMenus);
MenuFormXml(":/menus/Viewer3d.xml", myViewer3dMapper, myViewer3dMenus);
MenuFormXml(":/menus/Viewer2d.xml", myViewer2dMapper, myViewer2dMenus);
MenuFormXml(":/menus/PengKai.xml", mySampleMapper, myPengKaiMenus);
onChangeCategory(ALL_CATEGORIES[myAppType]);
resize(1280, 560);
}
void ApplicationCommonWindow::RebuildMenu()
{
menuBar()->clear();
myStdActions[StdActions_FileQuit] = CreateAction("Quit", "CTRL+Q");
connect(myStdActions[StdActions_FileQuit], SIGNAL(triggered()), this, SLOT(onCloseAllWindows()));
myStdActions[StdActions_HelpAbout] = CreateAction("About", "F1", ":/icons/help.png");
connect(myStdActions[StdActions_HelpAbout], SIGNAL(triggered()), this, SLOT(onAbout()));
// populate a menu with all actions
myFilePopup = new QMenu(this);
myFilePopup = menuBar()->addMenu(tr("&File"));
myFilePopup->addAction(myStdActions[StdActions_FileQuit]);
myCategoryPopup = new QMenu(this);
myCategoryPopup = menuBar()->addMenu(tr("&Category"));
foreach (ApplicationType aCategory, ALL_CATEGORIES.keys())
{
QString aCategoryName = ALL_CATEGORIES.value(aCategory);
QAction* anAction = myCategoryPopup->addAction(aCategoryName);
anAction->setText(aCategoryName);
myCategoryMapper->setMapping(anAction, aCategoryName);
connect(anAction, SIGNAL(triggered()), myCategoryMapper, SLOT(map()));
myCategoryPopup->addAction(anAction);
myCategoryActions.insert(aCategory, anAction);
}
foreach (QMenu* aSampleMenu, GetCurrentMenus())
{
menuBar()->addMenu(aSampleMenu);
}
// add a help menu
QMenu* aHelp = new QMenu(this);
menuBar()->addSeparator();
aHelp = menuBar()->addMenu(tr("&Help"));
aHelp->addAction(myStdActions[StdActions_HelpAbout]);
}
Handle(BaseSample) ApplicationCommonWindow::GetCurrentSamples()
{
switch (myAppType)
{
case AppType_Geometry: return myGeometrySamples;
case AppType_Topology: return myTopologySamples;
case AppType_Triangulation: return myTriangulationSamples;
case AppType_DataExchange: return myDataExchangeSamples;
case AppType_Ocaf: return myOcafSamples;
case AppType_Viewer2d: return myViewer2dSamples;
case AppType_Viewer3d: return myViewer3dSamples;
case AppType_PengKai: return myPengKaiSamples;
case AppType_Unknown:
break;
}
throw QString("Unknown Application type");
}
const QList<QMenu*>& ApplicationCommonWindow::GetCurrentMenus()
{
switch (myAppType)
{
case AppType_Geometry: return myGeometryMenus;
case AppType_Topology: return myTopologyMenus;
case AppType_Triangulation: return myTriangulationMenus;
case AppType_DataExchange: return myDataExchangeMenus;
case AppType_Ocaf: return myOcafMenus;
case AppType_Viewer2d: return myViewer2dMenus;
case AppType_Viewer3d: return myViewer3dMenus;
case AppType_PengKai: return myPengKaiMenus;
case AppType_Unknown:
break;
}
throw QString("Unknown Application type");
}
DocumentCommon* ApplicationCommonWindow::createNewDocument()
{
return new DocumentCommon(this);
}
void ApplicationCommonWindow::onChangeCategory(const QString& theCategory)
{
myAppType = ALL_CATEGORIES.key(theCategory);
setWindowTitle(ALL_CATEGORIES[myAppType]);
myOcafSamples->ClearExtra();
myViewer3dSamples->ClearExtra();
myViewer2dSamples->ClearExtra();
GetCurrentSamples()->Clear();
myDocument3d->Clear();
myDocument2d->Clear();
myCodeView->setPlainText("");
myResultView->setPlainText("");
GetCurrentSamples()->AppendCube();
myDocument3d->SetObjects(GetCurrentSamples()->Get3dObjects());
myGeomWidget->FitAll();
RebuildMenu();
switch (myAppType)
{
case AppType_DataExchange:
{
myDataExchangeSamples->AppendBottle();
myDocument3d->SetObjects(GetCurrentSamples()->Get3dObjects());
myGeomWidget->Show3d();
break;
}
case AppType_Ocaf:
{
onProcessOcaf("CreateOcafDocument");
myGeomWidget->Show3d();
break;
}
case AppType_Viewer2d:
{
myGeomWidget->Show2d();
break;
}
case AppType_Viewer3d:
{
myViewer3dSamples->AppendBottle();
myDocument3d->SetObjects(GetCurrentSamples()->Get3dObjects());
myGeomWidget->Show3d();
break;
}
case AppType_Geometry:
case AppType_Topology:
case AppType_PengKai:
case AppType_Triangulation:
case AppType_Unknown:
{
break;
}
}
}
void ApplicationCommonWindow::onAbout()
{
QMessageBox::information(this, tr("OCCT Overview"),
tr("Qt based application to study OpenCASCADE Technology"),
tr("Ok"), QString::null, QString::null, 0, 0);
}
TCollection_AsciiString ApplicationCommonWindow::getSampleSourceDir()
{
TCollection_AsciiString aSampleSourceDir = OSD_Environment("CSF_OCCTOverviewSampleCodePath").Value();
if (aSampleSourceDir.IsEmpty())
{
TCollection_AsciiString aCasRoot = OSD_Environment("CASROOT").Value();
if (!aCasRoot.IsEmpty())
{
aSampleSourceDir = aCasRoot + "/samples/OCCTOverview/code";
}
}
return aSampleSourceDir;
}
QAction* ApplicationCommonWindow::CreateAction (const QString& theActionName,
const QString& theShortcut,
const QString& theIconName)
{
QAction* aAction(NULL);
if (theIconName.isEmpty())
{
aAction = new QAction(theActionName, this);
}
else
{
QPixmap aIcon = QPixmap(theIconName);
aAction = new QAction(aIcon, theActionName, this);
}
aAction->setToolTip(theActionName);
aAction->setStatusTip(theActionName);
aAction->setShortcut(theShortcut);
return aAction;
}
template <typename PointerToMemberFunction>
QAction* ApplicationCommonWindow::CreateSample (PointerToMemberFunction theHandlerMethod,
const char* theActionName)
{
QAction* anAction = new QAction(QObject::tr(theActionName), this);
connect(anAction, SIGNAL(triggered()), this, SLOT(theHandlerMethod()));
return anAction;
}
void ApplicationCommonWindow::resizeEvent(QResizeEvent* e)
{
QMainWindow::resizeEvent(e);
statusBar()->setSizeGripEnabled(!isMaximized());
}
void ApplicationCommonWindow::onProcessSample(const QString& theSampleName)
{
QApplication::setOverrideCursor(Qt::WaitCursor);
setWindowTitle(ALL_CATEGORIES[myAppType] + " - " + theSampleName);
GetCurrentSamples()->Process(theSampleName.toUtf8().data());
myDocument3d->SetObjects(GetCurrentSamples()->Get3dObjects());
myDocument2d->SetObjects(GetCurrentSamples()->Get2dObjects());
myCodeView->setPlainText(GetCurrentSamples()->GetCode().ToCString());
myResultView->setPlainText(GetCurrentSamples()->GetResult().ToCString());
myGeomWidget->FitAll();
QApplication::restoreOverrideCursor();
}
void ApplicationCommonWindow::onProcessExchange(const QString& theSampleName)
{
setWindowTitle(ALL_CATEGORIES[myAppType] + " - " + theSampleName);
int aMode = 0;
QString aFileName = selectFileName(theSampleName, getDataExchangeDialog(theSampleName), aMode);
if (aFileName.isEmpty())
{
return;
}
QApplication::setOverrideCursor(Qt::WaitCursor);
myDataExchangeSamples->SetFileName(aFileName.toUtf8().data());
myDataExchangeSamples->SetStepType(static_cast<STEPControl_StepModelType>(aMode));
myDataExchangeSamples->Process(theSampleName.toUtf8().data());
myDocument3d->SetObjects(myDataExchangeSamples->Get3dObjects());
myDocument2d->SetObjects(myDataExchangeSamples->Get2dObjects());
myCodeView->setPlainText(myDataExchangeSamples->GetCode().ToCString());
myResultView->setPlainText(myDataExchangeSamples->GetResult().ToCString());
myGeomWidget->FitAll();
QApplication::restoreOverrideCursor();
}
void ApplicationCommonWindow::onProcessOcaf(const QString& theSampleName)
{
setWindowTitle(ALL_CATEGORIES[myAppType] + " - " + theSampleName);
if (theSampleName.indexOf("Dialog") == 0)
{
int aMode = 0; // not used
QString aFileName = selectFileName(theSampleName, getOcafDialog(theSampleName), aMode);
if (aFileName.isEmpty())
{
return;
}
myOcafSamples->SetFileName(aFileName.toUtf8().data());
}
QApplication::setOverrideCursor(Qt::WaitCursor);
myOcafSamples->Process(theSampleName.toUtf8().data());
myDocument2d->SetObjects(myOcafSamples->Get2dObjects());
myCodeView->setPlainText(myOcafSamples->GetCode().ToCString());
myResultView->setPlainText(myOcafSamples->GetResult().ToCString());
QApplication::restoreOverrideCursor();
}
void ApplicationCommonWindow::onProcessViewer3d(const QString& theSampleName)
{
setWindowTitle(ALL_CATEGORIES[myAppType] + " - " + theSampleName);
QApplication::setOverrideCursor(Qt::WaitCursor);
myViewer3dSamples->Process(theSampleName.toUtf8().data());
myCodeView->setPlainText(myViewer3dSamples->GetCode().ToCString());
myResultView->setPlainText(myViewer3dSamples->GetResult().ToCString());
myGeomWidget->FitAll();
QApplication::restoreOverrideCursor();
}
void ApplicationCommonWindow::onProcessViewer2d(const QString& theSampleName)
{
setWindowTitle(ALL_CATEGORIES[myAppType] + " - " + theSampleName);
Standard_Boolean anIsFileSample = Viewer2dSamples::IsFileSample(theSampleName.toUtf8().data());
QString aFileName;
if (anIsFileSample)
{
int aMode = 0; // not used
aFileName = selectFileName(theSampleName, getOcafDialog(theSampleName), aMode);
if (aFileName.isEmpty())
{
return;
}
myViewer2dSamples->SetFileName(aFileName.toUtf8().data());
}
if (!anIsFileSample || (anIsFileSample && !aFileName.isEmpty()))
{
QApplication::setOverrideCursor(Qt::WaitCursor);
myViewer2dSamples->Process(theSampleName.toUtf8().data());
if (!Viewer2dSamples::IsShadedSample(theSampleName.toUtf8().data()))
{
myDocument2d->SetObjects(myViewer2dSamples->Get2dObjects(), Standard_False);
}
else
{
myDocument2d->SetObjects(myViewer2dSamples->Get2dObjects(), Standard_True);
}
myCodeView->setPlainText(myViewer2dSamples->GetCode().ToCString());
myResultView->setPlainText(myViewer2dSamples->GetResult().ToCString());
myGeomWidget->Show2d();
QApplication::restoreOverrideCursor();
}
else
{
myResultView->setPlainText("No file selected!");
}
}
QString ApplicationCommonWindow::selectFileName(const QString& theSampleName,
TranslateDialog* theDialog, int& theMode)
{
Q_UNUSED(theSampleName)
std::shared_ptr<TranslateDialog> aDialog(theDialog);
int ret = aDialog->exec();
theMode = aDialog->getMode();
qApp->processEvents();
QString aFilename;
QStringList aFileNameList;
if (ret != QDialog::Accepted)
{
return aFilename;
}
aFileNameList = aDialog->selectedFiles();
if (!aFileNameList.isEmpty())
{
aFilename = aFileNameList[0];
}
if (!QFileInfo(aFilename).completeSuffix().length())
{
QString selFilter = aDialog->selectedNameFilter();
int idx = selFilter.indexOf("(*.");
if (idx != -1)
{
QString tail = selFilter.mid(idx + 3);
idx = tail.indexOf(" ");
if (idx == -1)
{
idx = tail.indexOf(")");
}
QString ext = tail.left(idx);
if (ext.length())
{
aFilename += QString(".") + ext;
}
}
}
return aFilename;
}
TranslateDialog* ApplicationCommonWindow::getDataExchangeDialog(const QString& theSampleName)
{
TranslateDialog* aTranslateDialog = new TranslateDialog(this, 0, true);
TCollection_AsciiString aSampleName(theSampleName.toUtf8().data());
if (DataExchangeSamples::IsExportSample(aSampleName))
{
aTranslateDialog->setWindowTitle("Export file");
aTranslateDialog->setFileMode(QFileDialog::AnyFile);
aTranslateDialog->setAcceptMode(QFileDialog::AcceptSave);
}
else if (DataExchangeSamples::IsImportSample(aSampleName))
{
aTranslateDialog->setWindowTitle("Import file");
aTranslateDialog->setFileMode(QFileDialog::ExistingFile);
aTranslateDialog->setAcceptMode(QFileDialog::AcceptOpen);
}
QString aFormatFilter;
if (DataExchangeSamples::IsBrepSample(aSampleName))
{
aFormatFilter = "BREP Files(*.brep *.rle)";
}
else if (DataExchangeSamples::IsStepSample(aSampleName))
{
aFormatFilter = "STEP Files (*.stp *.step)";
aTranslateDialog->addMode(STEPControl_ManifoldSolidBrep, "Manifold Solid Brep");
aTranslateDialog->addMode(STEPControl_FacetedBrep, "Faceted Brep");
aTranslateDialog->addMode(STEPControl_ShellBasedSurfaceModel, "Shell Based Surface Model");
aTranslateDialog->addMode(STEPControl_GeometricCurveSet, "Geometric Curve Set");
}
else if (DataExchangeSamples::IsIgesSample(aSampleName))
{
aFormatFilter = "IGES Files (*.igs *.iges)";
}
else if (DataExchangeSamples::IsStlSample(aSampleName))
{
aFormatFilter = "STL Files (*.stl)";
}
else if (DataExchangeSamples::IsVrmlSample(aSampleName))
{
aFormatFilter = "VRML Files (*.vrml)";
}
else if (DataExchangeSamples::IsImageSample(aSampleName))
{
aFormatFilter = "All Image Files (*.bmp *.gif *.jpg *.jpeg *.png *.tga)";
}
QStringList aFilters;
aFilters.append(aFormatFilter);
aFilters.append("All Files(*.*)");
aTranslateDialog->setNameFilters(aFilters);
aTranslateDialog->clear();
return aTranslateDialog;
}
TranslateDialog* ApplicationCommonWindow::getOcafDialog(const QString& theSampleName)
{
TranslateDialog* aTranslateDialog = new TranslateDialog(this, 0, true);
TCollection_AsciiString aSampleName(theSampleName.toUtf8().data());
if (OcafSamples::IsExportSample(aSampleName))
{
aTranslateDialog->setWindowTitle("Export file");
aTranslateDialog->setFileMode(QFileDialog::AnyFile);
aTranslateDialog->setAcceptMode(QFileDialog::AcceptSave);
}
else if (OcafSamples::IsImportSample(aSampleName))
{
aTranslateDialog->setWindowTitle("Import file");
aTranslateDialog->setFileMode(QFileDialog::ExistingFile);
aTranslateDialog->setAcceptMode(QFileDialog::AcceptOpen);
}
QStringList aFilters;
if (OcafSamples::IsBinarySample(aSampleName))
{
aFilters.append("Binary OCAF Sample (*.cbf)");
}
if (OcafSamples::IsXmlSample(aSampleName))
{
aFilters.append("XML OCAF Sample (*.xml)");
}
aFilters.append("All Files(*.*)");
aTranslateDialog->setNameFilters(aFilters);
aTranslateDialog->clear();
return aTranslateDialog;
}
QMenu* ApplicationCommonWindow::MenuFromDomNode(QDomElement& theItemElement,
QWidget* theParent,
QSignalMapper* theMapper)
{
QString anItemName = theItemElement.attribute("name");
QMenu* aMenu = new QMenu(anItemName, theParent);
QDomElement anChildItemElement = theItemElement.firstChildElement("MenuItem");
QDomElement anSampleElement = theItemElement.firstChildElement("Sample");
while(anChildItemElement.isElement())
{
aMenu->addMenu(MenuFromDomNode(anChildItemElement, aMenu, theMapper));
anChildItemElement = anChildItemElement.nextSibling().toElement();
}
while(anSampleElement.isElement())
{
QString aSampleName = anSampleElement.attribute("name");
QString aSampleFunction = anSampleElement.attribute("function");
QAction* anAction = aMenu->addAction(aSampleFunction);
anAction->setText(aSampleName);
theMapper->setMapping(anAction, aSampleFunction);
connect(anAction, SIGNAL(triggered()), theMapper, SLOT(map()));
anSampleElement = anSampleElement.nextSibling().toElement();
}
return aMenu;
}
void ApplicationCommonWindow::MenuFormXml(const QString& thePath,
QSignalMapper* theMapper,
QList<QMenu*>& theMunusList)
{
QDomDocument aDomDocument;
theMunusList.clear();
QFile aXmlFile(thePath);
QString anErrorMessage;
if (aXmlFile.error() != QFile::NoError)
{
anErrorMessage = aXmlFile.errorString();
Message::SendFail() << "QFile creating error: " << anErrorMessage.toUtf8().constData();
aXmlFile.close();
return;
}
if (!aXmlFile.open(QIODevice::ReadOnly | QIODevice::Text))
{
Message::SendFail() << "File " << thePath.toUtf8().constData() << " could not open";
if (aXmlFile.error() != QFile::NoError)
{
anErrorMessage = aXmlFile.errorString();
Message::SendFail() << "QFile opening error: " << anErrorMessage.toUtf8().constData();
}
aXmlFile.close();
return;
}
bool aNamespaceProcessing(false);
QString anErrorMsg;
int anErrorLine(0);
int anErrorColumn(0);
if (!aDomDocument.setContent(&aXmlFile, aNamespaceProcessing, &anErrorMsg, &anErrorLine, &anErrorColumn))
{
Message::SendFail() << "XML file parsing error: " << anErrorMsg.toStdString()
<< " at line: " << anErrorLine << " column: " << anErrorColumn;
aXmlFile.close();
return;
}
aXmlFile.close();
QDomElement aRootElement = aDomDocument.documentElement();
QDomElement anItemElement = aRootElement.firstChildElement("MenuItem");
while(!anItemElement.isNull())
{
theMunusList.push_back(MenuFromDomNode(anItemElement, this, theMapper));
anItemElement = anItemElement.nextSiblingElement("MenuItem");
}
}
// Copyright (c) 2020 OPEN CASCADE SAS
//
// This file is part of the examples of the Open CASCADE Technology software library.
//
// Permission is hereby granted, free of charge, to any person obtaining a copy
// of this software and associated documentation files (the "Software"), to deal
// in the Software without restriction, including without limitation the rights
// to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
// copies of the Software, and to permit persons to whom the Software is
// furnished to do so, subject to the following conditions:
//
// The above copyright notice and this permission notice shall be included in all
// copies or substantial portions of the Software.
//
// THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
// IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
// FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
// AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
// LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
// OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE
#include "ApplicationCommon.h"
#include <Standard_WarningsDisable.hxx>
#include <QApplication>
#include <QDir>
#include <QFile>
#include <QFont>
#include <QFrame>
#include <QGroupBox>
#include <QMap>
#include <QMdiArea>
#include <QMdiSubWindow>
#include <QMenuBar>
#include <QMessageBox>
#include <QPair>
#include <QSplitter>
#include <QStatusBar>
#include <QtGlobal>
#include <QHBoxLayout>
#include <QVBoxLayout>
#include <QWidget>
#include <QDomDocument>
#include <QDomAttr>
#include <Standard_WarningsRestore.hxx>
#include <OpenGl_GraphicDriver.hxx>
#include <OSD_Environment.hxx>
#include <stdlib.h>
#include <memory>
ApplicationCommonWindow::ApplicationCommonWindow (ApplicationType theCategory)
: QMainWindow (nullptr),
myAppType(theCategory),
myStdToolBar (nullptr),
myViewBar (nullptr),
myCasCadeBar (nullptr),
myFilePopup (nullptr),
myCategoryPopup (nullptr)
{
ALL_CATEGORIES[AppType_Geometry] = "Geometry";
ALL_CATEGORIES[AppType_Topology] = "Topology";
ALL_CATEGORIES[AppType_Triangulation] = "Triangulation";
ALL_CATEGORIES[AppType_DataExchange] = "DataExchange";
ALL_CATEGORIES[AppType_Ocaf] = "OCAF";
ALL_CATEGORIES[AppType_Viewer3d] = "3D viewer";
ALL_CATEGORIES[AppType_Viewer2d] = "2D Viewer";
ALL_CATEGORIES[AppType_PengKai] = "PengKai";
mySampleMapper = new QSignalMapper(this);
myExchangeMapper = new QSignalMapper(this);
myOcafMapper = new QSignalMapper(this);
myViewer3dMapper = new QSignalMapper(this);
myViewer2dMapper = new QSignalMapper(this);
myCategoryMapper = new QSignalMapper(this);
connect(mySampleMapper, SIGNAL(mapped(const QString &)), this, SLOT(onProcessSample(const QString &)));
connect(myExchangeMapper, SIGNAL(mapped(const QString &)), this, SLOT(onProcessExchange(const QString &)));
connect(myOcafMapper, SIGNAL(mapped(const QString &)), this, SLOT(onProcessOcaf(const QString &)));
connect(myViewer3dMapper, SIGNAL(mapped(const QString &)), this, SLOT(onProcessViewer3d(const QString &)));
connect(myViewer2dMapper, SIGNAL(mapped(const QString &)), this, SLOT(onProcessViewer2d(const QString &)));
connect(myCategoryMapper, SIGNAL(mapped(const QString &)), this, SLOT(onChangeCategory(const QString &)));
setFocusPolicy(Qt::StrongFocus);
QFont aCodeViewFont;
aCodeViewFont.setFamily("Courier");
aCodeViewFont.setFixedPitch(true);
aCodeViewFont.setPointSize(10);
QGroupBox* aCodeFrame = new QGroupBox(tr("Sample code"));
QVBoxLayout* aCodeLayout = new QVBoxLayout(aCodeFrame);
aCodeLayout->setContentsMargins(3, 3, 3, 3);
myCodeView = new QTextEdit(aCodeFrame);
aCodeLayout->addWidget(myCodeView);
myCodeView->setDocumentTitle("Code");
myCodeView->setLineWrapMode(QTextEdit::NoWrap);
myCodeView->setReadOnly(true);
myCodeView->setFont(aCodeViewFont);
myCodeViewHighlighter = new OcctHighlighter(myCodeView->document());
QGroupBox* aResultFrame = new QGroupBox(tr("Output"));
QVBoxLayout* aResultLayout = new QVBoxLayout(aResultFrame);
aResultLayout->setContentsMargins(3, 3, 3, 3);
myResultView = new QTextEdit(aResultFrame);
aResultLayout->addWidget(myResultView);
myResultView->setDocumentTitle("Output");
myResultView->setReadOnly(true);
myResultView->setFont(aCodeViewFont);
QSplitter* aCodeResultSplitter = new QSplitter(Qt::Vertical);
aCodeResultSplitter->addWidget(aCodeFrame);
aCodeResultSplitter->addWidget(aResultFrame);
myDocument3d = createNewDocument();
myDocument2d = createNewDocument();
QFrame* aViewFrame = new QFrame;
aViewFrame->setFrameStyle(QFrame::Panel | QFrame::Sunken);
aViewFrame->setLineWidth(3);
QVBoxLayout* aViewLayout = new QVBoxLayout(aViewFrame);
aViewLayout->setContentsMargins(0, 0, 0, 0);
myGeomWidget = new GeomWidget(myDocument3d, myDocument2d, aViewFrame);
aViewLayout->addWidget(myGeomWidget);
myGeomWidget->setContentsMargins(0, 0, 0, 0);
QSplitter* aGeomTextSplitter = new QSplitter(Qt::Horizontal);
aGeomTextSplitter->addWidget(aViewFrame);
aGeomTextSplitter->addWidget(aCodeResultSplitter);
aGeomTextSplitter->setStretchFactor(0, 1);
aGeomTextSplitter->setStretchFactor(1, 1);
QList<int> aSizeList;
aSizeList.append(640);
aSizeList.append(640);
aGeomTextSplitter->setSizes(aSizeList);
setCentralWidget(aGeomTextSplitter);
#include <Standard_WarningsDisable.hxx>
Q_INIT_RESOURCE(Samples);
#include <Standard_WarningsRestore.hxx>
TCollection_AsciiString aSampleSourcePach = getSampleSourceDir();
myGeometrySamples = new GeometrySamples(aSampleSourcePach,
myDocument3d->getContext());
myTopologySamples = new TopologySamples(aSampleSourcePach,
myDocument3d->getContext());
myTriangulationSamples = new TriangulationSamples(aSampleSourcePach,
myDocument3d->getContext());
myDataExchangeSamples = new DataExchangeSamples(aSampleSourcePach,
myGeomWidget->Get3dView(),
myDocument3d->getContext());
myOcafSamples = new OcafSamples(aSampleSourcePach,
myDocument3d->getViewer(),
myDocument3d->getContext());
myViewer3dSamples = new Viewer3dSamples(aSampleSourcePach,
myGeomWidget->Get3dView(),
myDocument3d->getContext());
myViewer2dSamples = new Viewer2dSamples(aSampleSourcePach,
myGeomWidget->Get2dView(),
myDocument2d->getViewer(),
myDocument2d->getContext());
myPengKaiSamples = new PengKaiSamples(aSampleSourcePach,
myDocument3d->getContext());
MenuFormXml(":/menus/Geometry.xml", mySampleMapper, myGeometryMenus);
MenuFormXml(":/menus/Topology.xml", mySampleMapper, myTopologyMenus);
MenuFormXml(":/menus/Triangulation.xml", mySampleMapper, myTriangulationMenus);
MenuFormXml(":/menus/DataExchange.xml", myExchangeMapper, myDataExchangeMenus);
MenuFormXml(":/menus/Ocaf.xml", myOcafMapper, myOcafMenus);
MenuFormXml(":/menus/Viewer3d.xml", myViewer3dMapper, myViewer3dMenus);
MenuFormXml(":/menus/Viewer2d.xml", myViewer2dMapper, myViewer2dMenus);
MenuFormXml(":/menus/PengKai.xml", mySampleMapper, myPengKaiMenus);
onChangeCategory(ALL_CATEGORIES[myAppType]);
resize(1280, 560);
}
void ApplicationCommonWindow::RebuildMenu()
{
menuBar()->clear();
myStdActions[StdActions_FileQuit] = CreateAction("Quit", "CTRL+Q");
connect(myStdActions[StdActions_FileQuit], SIGNAL(triggered()), this, SLOT(onCloseAllWindows()));
myStdActions[StdActions_HelpAbout] = CreateAction("About", "F1", ":/icons/help.png");
connect(myStdActions[StdActions_HelpAbout], SIGNAL(triggered()), this, SLOT(onAbout()));
// populate a menu with all actions
myFilePopup = new QMenu(this);
myFilePopup = menuBar()->addMenu(tr("&File"));
myFilePopup->addAction(myStdActions[StdActions_FileQuit]);
myCategoryPopup = new QMenu(this);
myCategoryPopup = menuBar()->addMenu(tr("&Category"));
foreach (ApplicationType aCategory, ALL_CATEGORIES.keys())
{
QString aCategoryName = ALL_CATEGORIES.value(aCategory);
QAction* anAction = myCategoryPopup->addAction(aCategoryName);
anAction->setText(aCategoryName);
myCategoryMapper->setMapping(anAction, aCategoryName);
connect(anAction, SIGNAL(triggered()), myCategoryMapper, SLOT(map()));
myCategoryPopup->addAction(anAction);
myCategoryActions.insert(aCategory, anAction);
}
foreach (QMenu* aSampleMenu, GetCurrentMenus())
{
menuBar()->addMenu(aSampleMenu);
}
// add a help menu
QMenu* aHelp = new QMenu(this);
menuBar()->addSeparator();
aHelp = menuBar()->addMenu(tr("&Help"));
aHelp->addAction(myStdActions[StdActions_HelpAbout]);
}
Handle(BaseSample) ApplicationCommonWindow::GetCurrentSamples()
{
switch (myAppType)
{
case AppType_Geometry: return myGeometrySamples;
case AppType_Topology: return myTopologySamples;
case AppType_Triangulation: return myTriangulationSamples;
case AppType_DataExchange: return myDataExchangeSamples;
case AppType_Ocaf: return myOcafSamples;
case AppType_Viewer2d: return myViewer2dSamples;
case AppType_Viewer3d: return myViewer3dSamples;
case AppType_PengKai: return myPengKaiSamples;
case AppType_Unknown:
break;
}
throw QString("Unknown Application type");
}
const QList<QMenu*>& ApplicationCommonWindow::GetCurrentMenus()
{
switch (myAppType)
{
case AppType_Geometry: return myGeometryMenus;
case AppType_Topology: return myTopologyMenus;
case AppType_Triangulation: return myTriangulationMenus;
case AppType_DataExchange: return myDataExchangeMenus;
case AppType_Ocaf: return myOcafMenus;
case AppType_Viewer2d: return myViewer2dMenus;
case AppType_Viewer3d: return myViewer3dMenus;
case AppType_PengKai: return myPengKaiMenus;
case AppType_Unknown:
break;
}
throw QString("Unknown Application type");
}
DocumentCommon* ApplicationCommonWindow::createNewDocument()
{
return new DocumentCommon(this);
}
void ApplicationCommonWindow::onChangeCategory(const QString& theCategory)
{
myAppType = ALL_CATEGORIES.key(theCategory);
setWindowTitle(ALL_CATEGORIES[myAppType]);
myOcafSamples->ClearExtra();
myViewer3dSamples->ClearExtra();
myViewer2dSamples->ClearExtra();
GetCurrentSamples()->Clear();
myDocument3d->Clear();
myDocument2d->Clear();
myCodeView->setPlainText("");
myResultView->setPlainText("");
GetCurrentSamples()->AppendCube();
myDocument3d->SetObjects(GetCurrentSamples()->Get3dObjects());
myGeomWidget->FitAll();
RebuildMenu();
switch (myAppType)
{
case AppType_DataExchange:
{
myDataExchangeSamples->AppendBottle();
myDocument3d->SetObjects(GetCurrentSamples()->Get3dObjects());
myGeomWidget->Show3d();
break;
}
case AppType_Ocaf:
{
onProcessOcaf("CreateOcafDocument");
myGeomWidget->Show3d();
break;
}
case AppType_Viewer2d:
{
myGeomWidget->Show2d();
break;
}
case AppType_Viewer3d:
{
myViewer3dSamples->AppendBottle();
myDocument3d->SetObjects(GetCurrentSamples()->Get3dObjects());
myGeomWidget->Show3d();
break;
}
case AppType_Geometry:
case AppType_Topology:
case AppType_PengKai:
case AppType_Triangulation:
case AppType_Unknown:
{
break;
}
}
}
void ApplicationCommonWindow::onAbout()
{
QMessageBox::information(this, tr("OCCT Overview"),
tr("Qt based application to study OpenCASCADE Technology"),
tr("Ok"), QString::null, QString::null, 0, 0);
}
TCollection_AsciiString ApplicationCommonWindow::getSampleSourceDir()
{
TCollection_AsciiString aSampleSourceDir = OSD_Environment("CSF_OCCTOverviewSampleCodePath").Value();
if (aSampleSourceDir.IsEmpty())
{
TCollection_AsciiString aCasRoot = OSD_Environment("CASROOT").Value();
if (!aCasRoot.IsEmpty())
{
aSampleSourceDir = aCasRoot + "/samples/OCCTOverview/code";
}
}
return aSampleSourceDir;
}
QAction* ApplicationCommonWindow::CreateAction (const QString& theActionName,
const QString& theShortcut,
const QString& theIconName)
{
QAction* aAction(NULL);
if (theIconName.isEmpty())
{
aAction = new QAction(theActionName, this);
}
else
{
QPixmap aIcon = QPixmap(theIconName);
aAction = new QAction(aIcon, theActionName, this);
}
aAction->setToolTip(theActionName);
aAction->setStatusTip(theActionName);
aAction->setShortcut(theShortcut);
return aAction;
}
template <typename PointerToMemberFunction>
QAction* ApplicationCommonWindow::CreateSample (PointerToMemberFunction theHandlerMethod,
const char* theActionName)
{
QAction* anAction = new QAction(QObject::tr(theActionName), this);
connect(anAction, SIGNAL(triggered()), this, SLOT(theHandlerMethod()));
return anAction;
}
void ApplicationCommonWindow::resizeEvent(QResizeEvent* e)
{
QMainWindow::resizeEvent(e);
statusBar()->setSizeGripEnabled(!isMaximized());
}
void ApplicationCommonWindow::onProcessSample(const QString& theSampleName)
{
QApplication::setOverrideCursor(Qt::WaitCursor);
setWindowTitle(ALL_CATEGORIES[myAppType] + " - " + theSampleName);
GetCurrentSamples()->Process(theSampleName.toUtf8().data());
myDocument3d->SetObjects(GetCurrentSamples()->Get3dObjects());
myDocument2d->SetObjects(GetCurrentSamples()->Get2dObjects());
myCodeView->setPlainText(GetCurrentSamples()->GetCode().ToCString());
myResultView->setPlainText(GetCurrentSamples()->GetResult().ToCString());
myGeomWidget->FitAll();
QApplication::restoreOverrideCursor();
}
void ApplicationCommonWindow::onProcessExchange(const QString& theSampleName)
{
setWindowTitle(ALL_CATEGORIES[myAppType] + " - " + theSampleName);
int aMode = 0;
QString aFileName = selectFileName(theSampleName, getDataExchangeDialog(theSampleName), aMode);
if (aFileName.isEmpty())
{
return;
}
QApplication::setOverrideCursor(Qt::WaitCursor);
myDataExchangeSamples->SetFileName(aFileName.toUtf8().data());
myDataExchangeSamples->SetStepType(static_cast<STEPControl_StepModelType>(aMode));
myDataExchangeSamples->Process(theSampleName.toUtf8().data());
myDocument3d->SetObjects(myDataExchangeSamples->Get3dObjects());
myDocument2d->SetObjects(myDataExchangeSamples->Get2dObjects());
myCodeView->setPlainText(myDataExchangeSamples->GetCode().ToCString());
myResultView->setPlainText(myDataExchangeSamples->GetResult().ToCString());
myGeomWidget->FitAll();
QApplication::restoreOverrideCursor();
}
void ApplicationCommonWindow::onProcessOcaf(const QString& theSampleName)
{
setWindowTitle(ALL_CATEGORIES[myAppType] + " - " + theSampleName);
if (theSampleName.indexOf("Dialog") == 0)
{
int aMode = 0; // not used
QString aFileName = selectFileName(theSampleName, getOcafDialog(theSampleName), aMode);
if (aFileName.isEmpty())
{
return;
}
myOcafSamples->SetFileName(aFileName.toUtf8().data());
}
QApplication::setOverrideCursor(Qt::WaitCursor);
myOcafSamples->Process(theSampleName.toUtf8().data());
myDocument2d->SetObjects(myOcafSamples->Get2dObjects());
myCodeView->setPlainText(myOcafSamples->GetCode().ToCString());
myResultView->setPlainText(myOcafSamples->GetResult().ToCString());
QApplication::restoreOverrideCursor();
}
void ApplicationCommonWindow::onProcessViewer3d(const QString& theSampleName)
{
setWindowTitle(ALL_CATEGORIES[myAppType] + " - " + theSampleName);
QApplication::setOverrideCursor(Qt::WaitCursor);
myViewer3dSamples->Process(theSampleName.toUtf8().data());
myCodeView->setPlainText(myViewer3dSamples->GetCode().ToCString());
myResultView->setPlainText(myViewer3dSamples->GetResult().ToCString());
myGeomWidget->FitAll();
QApplication::restoreOverrideCursor();
}
void ApplicationCommonWindow::onProcessViewer2d(const QString& theSampleName)
{
setWindowTitle(ALL_CATEGORIES[myAppType] + " - " + theSampleName);
Standard_Boolean anIsFileSample = Viewer2dSamples::IsFileSample(theSampleName.toUtf8().data());
QString aFileName;
if (anIsFileSample)
{
int aMode = 0; // not used
aFileName = selectFileName(theSampleName, getOcafDialog(theSampleName), aMode);
if (aFileName.isEmpty())
{
return;
}
myViewer2dSamples->SetFileName(aFileName.toUtf8().data());
}
if (!anIsFileSample || (anIsFileSample && !aFileName.isEmpty()))
{
QApplication::setOverrideCursor(Qt::WaitCursor);
myViewer2dSamples->Process(theSampleName.toUtf8().data());
if (!Viewer2dSamples::IsShadedSample(theSampleName.toUtf8().data()))
{
myDocument2d->SetObjects(myViewer2dSamples->Get2dObjects(), Standard_False);
}
else
{
myDocument2d->SetObjects(myViewer2dSamples->Get2dObjects(), Standard_True);
}
myCodeView->setPlainText(myViewer2dSamples->GetCode().ToCString());
myResultView->setPlainText(myViewer2dSamples->GetResult().ToCString());
myGeomWidget->Show2d();
QApplication::restoreOverrideCursor();
}
else
{
myResultView->setPlainText("No file selected!");
}
}
QString ApplicationCommonWindow::selectFileName(const QString& theSampleName,
TranslateDialog* theDialog, int& theMode)
{
Q_UNUSED(theSampleName)
std::shared_ptr<TranslateDialog> aDialog(theDialog);
int ret = aDialog->exec();
theMode = aDialog->getMode();
qApp->processEvents();
QString aFilename;
QStringList aFileNameList;
if (ret != QDialog::Accepted)
{
return aFilename;
}
aFileNameList = aDialog->selectedFiles();
if (!aFileNameList.isEmpty())
{
aFilename = aFileNameList[0];
}
if (!QFileInfo(aFilename).completeSuffix().length())
{
QString selFilter = aDialog->selectedNameFilter();
int idx = selFilter.indexOf("(*.");
if (idx != -1)
{
QString tail = selFilter.mid(idx + 3);
idx = tail.indexOf(" ");
if (idx == -1)
{
idx = tail.indexOf(")");
}
QString ext = tail.left(idx);
if (ext.length())
{
aFilename += QString(".") + ext;
}
}
}
return aFilename;
}
TranslateDialog* ApplicationCommonWindow::getDataExchangeDialog(const QString& theSampleName)
{
TranslateDialog* aTranslateDialog = new TranslateDialog(this, 0, true);
TCollection_AsciiString aSampleName(theSampleName.toUtf8().data());
if (DataExchangeSamples::IsExportSample(aSampleName))
{
aTranslateDialog->setWindowTitle("Export file");
aTranslateDialog->setFileMode(QFileDialog::AnyFile);
aTranslateDialog->setAcceptMode(QFileDialog::AcceptSave);
}
else if (DataExchangeSamples::IsImportSample(aSampleName))
{
aTranslateDialog->setWindowTitle("Import file");
aTranslateDialog->setFileMode(QFileDialog::ExistingFile);
aTranslateDialog->setAcceptMode(QFileDialog::AcceptOpen);
}
QString aFormatFilter;
if (DataExchangeSamples::IsBrepSample(aSampleName))
{
aFormatFilter = "BREP Files(*.brep *.rle)";
}
else if (DataExchangeSamples::IsStepSample(aSampleName))
{
aFormatFilter = "STEP Files (*.stp *.step)";
aTranslateDialog->addMode(STEPControl_ManifoldSolidBrep, "Manifold Solid Brep");
aTranslateDialog->addMode(STEPControl_FacetedBrep, "Faceted Brep");
aTranslateDialog->addMode(STEPControl_ShellBasedSurfaceModel, "Shell Based Surface Model");
aTranslateDialog->addMode(STEPControl_GeometricCurveSet, "Geometric Curve Set");
}
else if (DataExchangeSamples::IsIgesSample(aSampleName))
{
aFormatFilter = "IGES Files (*.igs *.iges)";
}
else if (DataExchangeSamples::IsStlSample(aSampleName))
{
aFormatFilter = "STL Files (*.stl)";
}
else if (DataExchangeSamples::IsVrmlSample(aSampleName))
{
aFormatFilter = "VRML Files (*.vrml)";
}
else if (DataExchangeSamples::IsImageSample(aSampleName))
{
aFormatFilter = "All Image Files (*.bmp *.gif *.jpg *.jpeg *.png *.tga)";
}
QStringList aFilters;
aFilters.append(aFormatFilter);
aFilters.append("All Files(*.*)");
aTranslateDialog->setNameFilters(aFilters);
aTranslateDialog->clear();
return aTranslateDialog;
}
TranslateDialog* ApplicationCommonWindow::getOcafDialog(const QString& theSampleName)
{
TranslateDialog* aTranslateDialog = new TranslateDialog(this, 0, true);
TCollection_AsciiString aSampleName(theSampleName.toUtf8().data());
if (OcafSamples::IsExportSample(aSampleName))
{
aTranslateDialog->setWindowTitle("Export file");
aTranslateDialog->setFileMode(QFileDialog::AnyFile);
aTranslateDialog->setAcceptMode(QFileDialog::AcceptSave);
}
else if (OcafSamples::IsImportSample(aSampleName))
{
aTranslateDialog->setWindowTitle("Import file");
aTranslateDialog->setFileMode(QFileDialog::ExistingFile);
aTranslateDialog->setAcceptMode(QFileDialog::AcceptOpen);
}
QStringList aFilters;
if (OcafSamples::IsBinarySample(aSampleName))
{
aFilters.append("Binary OCAF Sample (*.cbf)");
}
if (OcafSamples::IsXmlSample(aSampleName))
{
aFilters.append("XML OCAF Sample (*.xml)");
}
aFilters.append("All Files(*.*)");
aTranslateDialog->setNameFilters(aFilters);
aTranslateDialog->clear();
return aTranslateDialog;
}
QMenu* ApplicationCommonWindow::MenuFromDomNode(QDomElement& theItemElement,
QWidget* theParent,
QSignalMapper* theMapper)
{
QString anItemName = theItemElement.attribute("name");
QMenu* aMenu = new QMenu(anItemName, theParent);
QDomElement anChildItemElement = theItemElement.firstChildElement("MenuItem");
QDomElement anSampleElement = theItemElement.firstChildElement("Sample");
while(anChildItemElement.isElement())
{
aMenu->addMenu(MenuFromDomNode(anChildItemElement, aMenu, theMapper));
anChildItemElement = anChildItemElement.nextSibling().toElement();
}
while(anSampleElement.isElement())
{
QString aSampleName = anSampleElement.attribute("name");
QString aSampleFunction = anSampleElement.attribute("function");
QAction* anAction = aMenu->addAction(aSampleFunction);
anAction->setText(aSampleName);
theMapper->setMapping(anAction, aSampleFunction);
connect(anAction, SIGNAL(triggered()), theMapper, SLOT(map()));
anSampleElement = anSampleElement.nextSibling().toElement();
}
return aMenu;
}
void ApplicationCommonWindow::MenuFormXml(const QString& thePath,
QSignalMapper* theMapper,
QList<QMenu*>& theMunusList)
{
QDomDocument aDomDocument;
theMunusList.clear();
QFile aXmlFile(thePath);
QString anErrorMessage;
if (aXmlFile.error() != QFile::NoError)
{
anErrorMessage = aXmlFile.errorString();
Message::SendFail() << "QFile creating error: " << anErrorMessage.toUtf8().constData();
aXmlFile.close();
return;
}
if (!aXmlFile.open(QIODevice::ReadOnly | QIODevice::Text))
{
Message::SendFail() << "File " << thePath.toUtf8().constData() << " could not open";
if (aXmlFile.error() != QFile::NoError)
{
anErrorMessage = aXmlFile.errorString();
Message::SendFail() << "QFile opening error: " << anErrorMessage.toUtf8().constData();
}
aXmlFile.close();
return;
}
bool aNamespaceProcessing(false);
QString anErrorMsg;
int anErrorLine(0);
int anErrorColumn(0);
if (!aDomDocument.setContent(&aXmlFile, aNamespaceProcessing, &anErrorMsg, &anErrorLine, &anErrorColumn))
{
Message::SendFail() << "XML file parsing error: " << anErrorMsg.toStdString()
<< " at line: " << anErrorLine << " column: " << anErrorColumn;
aXmlFile.close();
return;
}
aXmlFile.close();
QDomElement aRootElement = aDomDocument.documentElement();
QDomElement anItemElement = aRootElement.firstChildElement("MenuItem");
while(!anItemElement.isNull())
{
theMunusList.push_back(MenuFromDomNode(anItemElement, this, theMapper));
anItemElement = anItemElement.nextSiblingElement("MenuItem");
}
}
第五处修改：重新使用前面cmake编译的方法进行编译，重新生成build，运行以后就可以看到自己添加的按钮了，点击按钮即可触发测试函数，后续就可以自己在测试函数中编写测试案例
5、总结
注意好以下几个关键点：
1、环境和软件以及源码提前准备好
2、Cmake编译的时候记得修改成自己文件路径所在位置
3、一般而言配置完以后运行成功就行，自定义测试需要修改的地方较多，不易操作
扫一扫
253
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
