VHDL设计一个交通灯定时控制系统

源参考代码地址

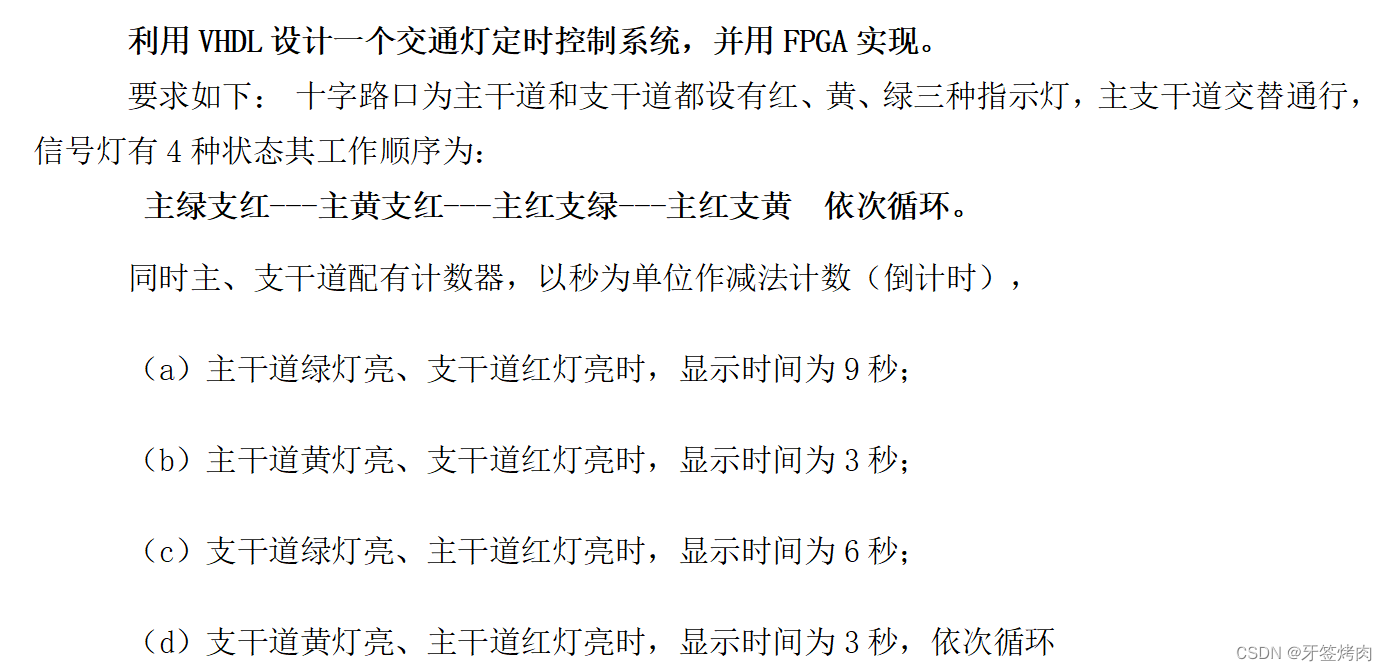

要求：

VHDL代码：

LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.ALL;
USE IEEE.STD_LOGIC_UNSIGNED.ALL;

   ENTITY TRAFFIC_LIGHT IS
      PORT(CLK,RST: IN STD_LOGIC;
			LED: OUT STD_LOGIC_VECTOR(5 DOWNTO  0);	--定义6个LED灯
			main_shi: OUT STD_LOGIC_VECTOR(3 DOWNTO  0);  --主干倒计时的十位
			main_ge: OUT STD_LOGIC_VECTOR(3 DOWNTO  0);  --主干倒计时的个位
			branch_shi: OUT STD_LOGIC_VECTOR(3 DOWNTO  0);  --支干倒计时的十位
			branch_ge: OUT STD_LOGIC_VECTOR(3 DOWNTO  0));  --支干倒计时的个位
END ENTITY TRAFFIC_LIGHT;

ARCHITECTURE bhv OF TRAFFIC_LIGHT IS
    TYPE state IS(S0,S1,S2,S3);  --枚举状态类型
    SIGNAL current_s,next_s:state;
    SIGNAL COUNT21:STD_LOGIC_VECTOR(7 DOWNTO  0);
      BEGIN
COUNT: PROCESS(RST,CLK)                --辅助进程
           BEGIN
				IF RST= '1' THEN    --异步清零
					COUNT21<="00000000";
				ELSIF CLK'EVENT AND CLK='1' THEN
					IF COUNT21<"00010100" THEN    --21进制计数器
						COUNT21<=COUNT21+1;
					ELSE
						COUNT21<="00000000";
					END IF;
				END IF;
		END PROCESS;

 REG: PROCESS (RST,CLK)                   --主控时序进程，用于机械地控制状态转换
	BEGIN
		IF RST= '1' THEN
			current_s <= s0;
		ELSIF clk='1' AND clk'EVENT THEN
			current_s <= next_s;
		END IF;
	END PROCESS;

COM:PROCESS(current_s, COUNT21)         --主控组合进程，用于设定状态转换的下一个状态
VARIABLE main_cd,branch_cd:STD_LOGIC_VECTOR(7 DOWNTO  0);
	BEGIN
		CASE current_s IS
			WHEN s0 => LED<= "010100";--主干绿灯亮，支干红灯亮
				main_cd:=8-COUNT21; --主干绿灯倒计时，用于数码管显示
				branch_cd:=11-COUNT21; --支干红灯倒计时，一共要亮十一秒，这里亮八秒
				IF COUNT21 ="00001000" THEN   --B00100111=39  控制状态转变
					next_s<=s1;
				ELSE
					next_s<=s0;
				END IF;
			WHEN s1 => LED <= "001100"; --主干黄灯，支干红灯
				main_cd:=11-COUNT21;--主干黄灯要亮三秒
				branch_cd:=11-COUNT21; --支干红灯还要再亮三秒
				IF COUNT21 = "00001011" THEN  --B00101011=43
					next_s<=s2;
				ELSE
					next_s<=s1;
				END IF;
			WHEN s2 => LED <= "100010";  --主干红灯，支干绿灯
				main_cd:=20-COUNT21;
				branch_cd:=17-COUNT21;
				IF COUNT21 ="00010001" THEN  --B00111111=64
					next_s <= s3;
				ELSE
					next_s <= s2;
				END IF;
			WHEN s3 => LED <= "100001";  --主干红灯，支干黄灯
				main_cd:=20-COUNT21;
				branch_cd:=20-COUNT21;
				IF COUNT21 ="00010100" THEN --B01000011=67
					next_s<= s0;
				ELSE
					next_s <= s3;
				END IF;
			WHEN OTHERS=> LED <="100100"; --否则都不能通行
    END case;

	IF main_cd>39 THEN --译码器的功能:将当前的倒计时转换成十进制，低四位和高四位分别是数码管的个位与十位，
						--38+18=56D=38H=00111000B
						--使数码管按照当前的计数(十进制)按二进制计数进行倒计时
		main_cd:=main_cd+24;
	ELSIF main_cd>29 THEN
		main_cd:=main_cd+18;
	ELSIF main_cd>19 THEN
		main_cd:=main_cd+12;
	ELSIF main_cd>9 THEN
		main_cd:=main_cd+6;
	ELSE NULL;
	END IF;

	IF branch_cd>39 THEN
		branch_cd:=branch_cd+24;
	ELSIF branch_cd>29 THEN
		branch_cd:=branch_cd+18;
	ELSIF branch_cd>19 THEN
		branch_cd:=branch_cd+12;
	ELSIF branch_cd>9 THEN
		branch_cd:=branch_cd+6;
	ELSE NULL;
	END IF;
	main_shi<=main_cd(7 DOWNTO 4);
	main_ge<=main_cd(3 DOWNTO 0);
	branch_shi<=branch_cd(7 DOWNTO 4);
	branch_ge<=branch_cd(3 DOWNTO 0);
 END PROCESS;
END ARCHITECTURE bhv;
