该代码示例展示了如何通过Arduino的IO口D5连接无源蜂鸣器，并使用LED控制器库(ledc)来生成不同频率的音调，从而播放一系列预设的音乐节奏和旋律。程序中定义了不同的音符序列，通过组合这些序列来创建复杂的音乐效果。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

无源蜂鸣器网上的资料比较少

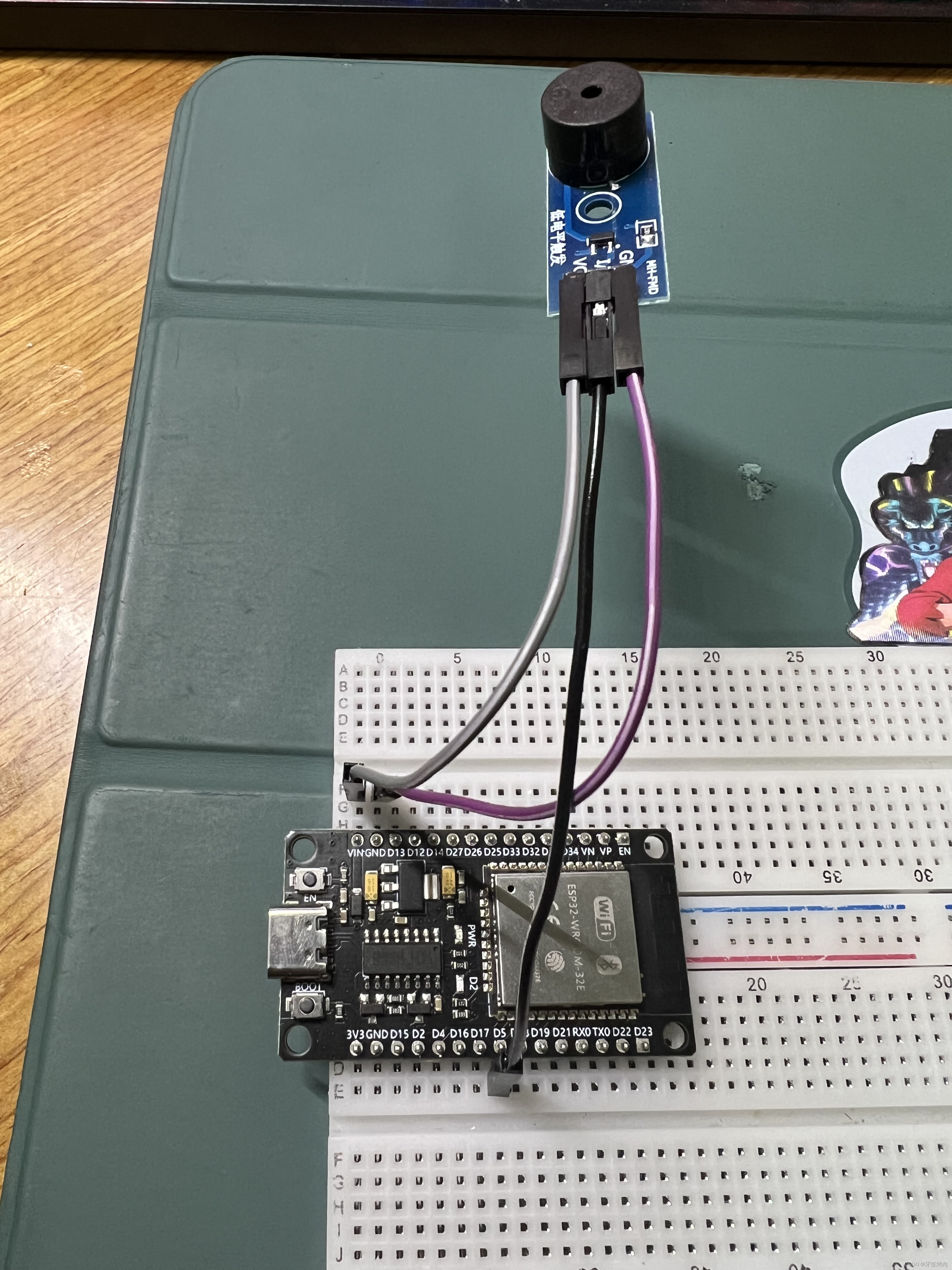

IO口接D5

#define buzzer (5)
int freq[] = {131, 147, 165, 175, 196, 220, 247,262, 294, 330, 349,370, 392,411, 440, 494,523, 587, 659, 698, 784, 880, 988};
//这里从左往右对应低音中音高音7个音以及中音中4与5之间的半音，5与6之间的半音的频率

int qianzou[] = {5, 7, 12, 7, 3, 7, 12, 7, 5,7,12,7,0,12,6,7};
//这些不是对应的简谱的音阶，而是对应的音阶在freq数组里的序号
int part1[]={12,12,7,7,8,9};
int part2[]={12,12,7,7,8,9,8,7,4};
int part3[]={12,12,7,7,8,9};
int part4[]={9,10,9,8,10,9,8,7};
int part5[]={4,7,8,9,10,9,8,7};
int part6[]={8,9,9,9,9,8,9,8,7,15};
int part7[]={7,7,7,7,7,6,7,7};
int part8[]={7,7,7,6,7,7};
int part9[]={7,7,7,12,12,12};
int part10[]={12,12,12,12,12,12};
int part11[]={12,12,12,12,10,9};
int part12[]={7,7,7,7,5,6,7,12,10,9,7,7};
int part13[]={7,7,7,7,9,7,5,6,7,12,10,9,7,8};
int part14[]={9,8,10,9};
int part15[]={7,12,15,16,15,12,7};
int part17[]={7,14,14};
int part18[]={14,12,12};
int part19[]={12,10,9,8,9,10,9};
int part20[]={9,11,13,9};
int part21[]={10,12,15,17,15,16,16};
int part22[]={16,16,12,12,14,12,10,8,9,10,12,14,7,14,15,15};
int part23[]={16,16,12,12,14,12,10,5,6,7,8,9,8,9,7};




int channel = 0;
int resolution = 8;
int noteDuration = 500;

void singing(int arr[],int size1)
{
  for(int i=0;i<size1;i++){
    ledcWriteTone(channel, freq[arr[i]]);
    delay(noteDuration);
  }
}
void setup() {
  Serial.begin(115200);
  ledcSetup(channel, freq[0], resolution);
  ledcAttachPin(buzzer, channel);
}
void loop()
{
  delay(1000);
singing(qianzou,16);
singing(qianzou,16);
ledcWriteTone(channel,0);
delay(500);
singing(part1,6);
ledcWriteTone(channel,0);
delay(500);

singing(part2,9);
ledcWriteTone(channel,0);
delay(500);

singing(part3,6);
ledcWriteTone(channel,0);
delay(500);

singing(part4,8);
ledcWriteTone(channel,0);
delay(500);

singing(part5,8);
singing(part6,9);
ledcWriteTone(channel,0);
delay(500);

singing(part5,8);
singing(part6,9);
ledcWriteTone(channel,0);
delay(500);

singing(part7,8);
singing(part8,6);
singing(part8,6);
singing(part9,6);
singing(part10,6);
singing(part11,6);
delay(500);
ledcWriteTone(channel,0);
delay(1000);

singing(part12,12);
ledcWriteTone(channel,0);
delay(500);

singing(part13,14);
ledcWriteTone(channel,0);
delay(500);

singing(part14,4);
ledcWriteTone(channel,0);
delay(500);

singing(part15,7);
ledcWriteTone(channel,0);
delay(500);

singing(part17,3);
ledcWriteTone(channel,0);
delay(500);

singing(part18,3);
ledcWriteTone(channel,0);
delay(500);

singing(part19,7);
ledcWriteTone(channel,0);
delay(1000);

singing(part20,4);
ledcWriteTone(channel,0);
delay(500);

singing(part21,7);
ledcWriteTone(channel,0);
delay(500);

singing(part22,16);
ledcWriteTone(channel,0);
delay(500);

singing(part14,4);
ledcWriteTone(channel,0);
delay(500);

singing(part15,7);
ledcWriteTone(channel,0);
delay(500);


singing(part17,3);
ledcWriteTone(channel,0);
delay(500);

singing(part18,3);
ledcWriteTone(channel,0);
delay(500);

singing(part19,7);
ledcWriteTone(channel,0);
delay(1000);

singing(part20,4);
ledcWriteTone(channel,0);
delay(500);

singing(part21,7);
ledcWriteTone(channel,0);
delay(500);

singing(part23,13);
ledcWriteTone(channel,0);
delay(500);
ledcWriteTone(channel, freq[9]);
delay(500);
ledcWriteTone(channel, freq[7]);
delay(800);

ledcWriteTone(channel,0);
delay(5000);

}
