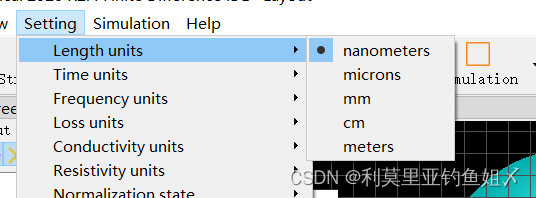

1.将数量单位改为纳米

2.材料

Structures选择形状，

编辑Geometry 设置尺寸

Material选择材料类型

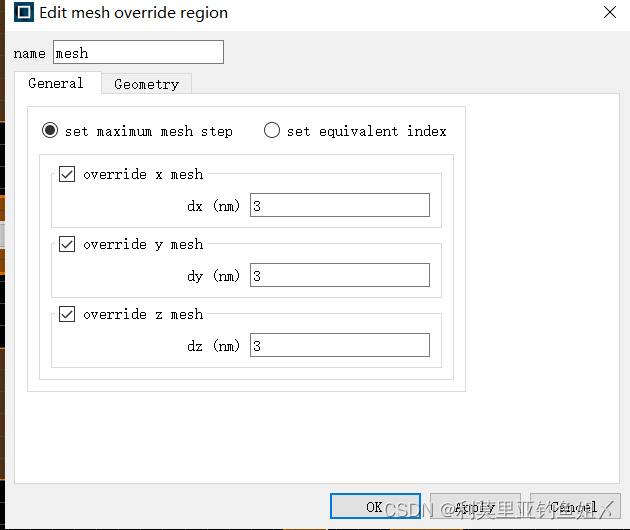

3.mesh

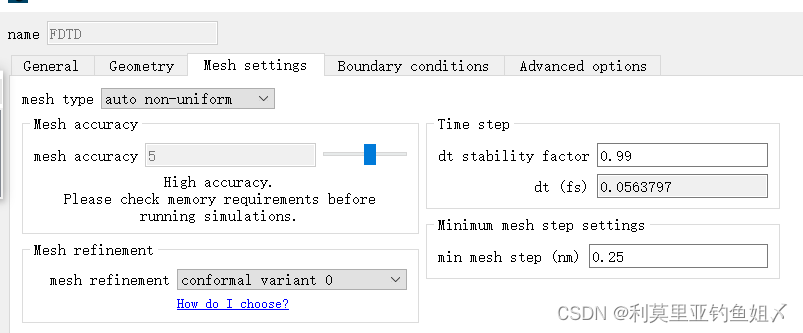

General设置最小格大小

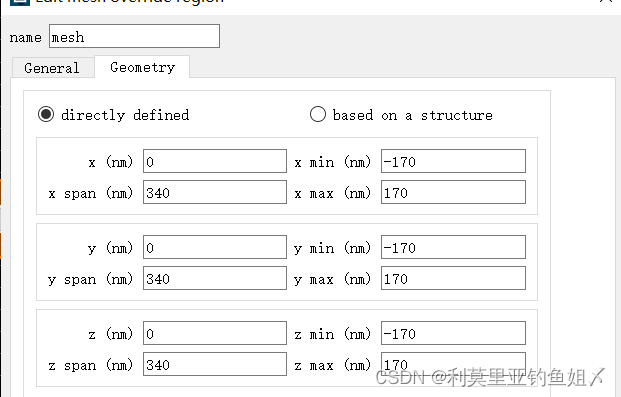

Geometry设置mesh大小

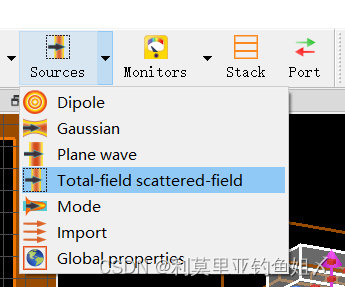

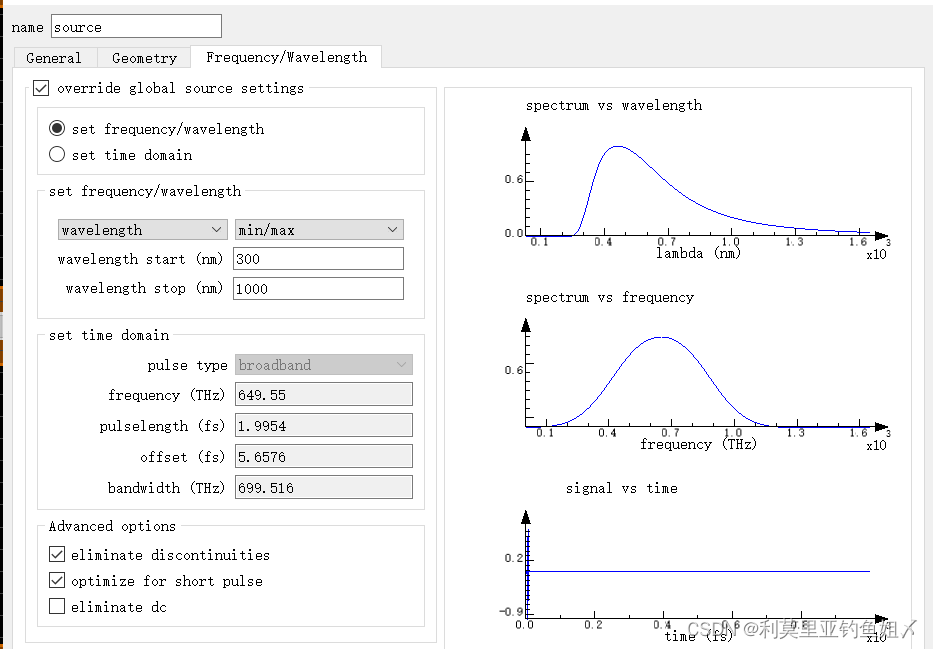

4.设置光源

Geometry设置source大小

光波长设置300-1000nm

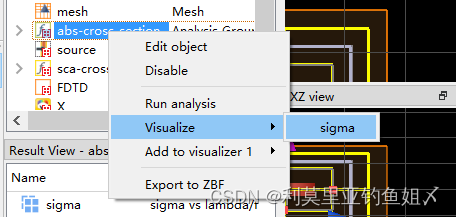

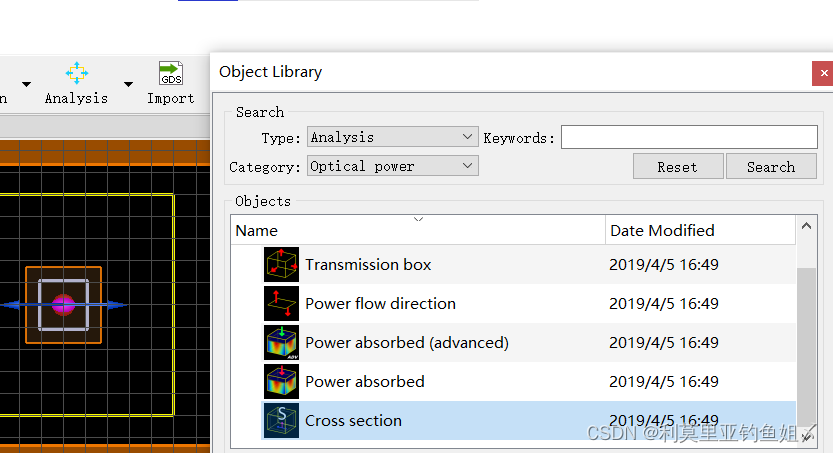

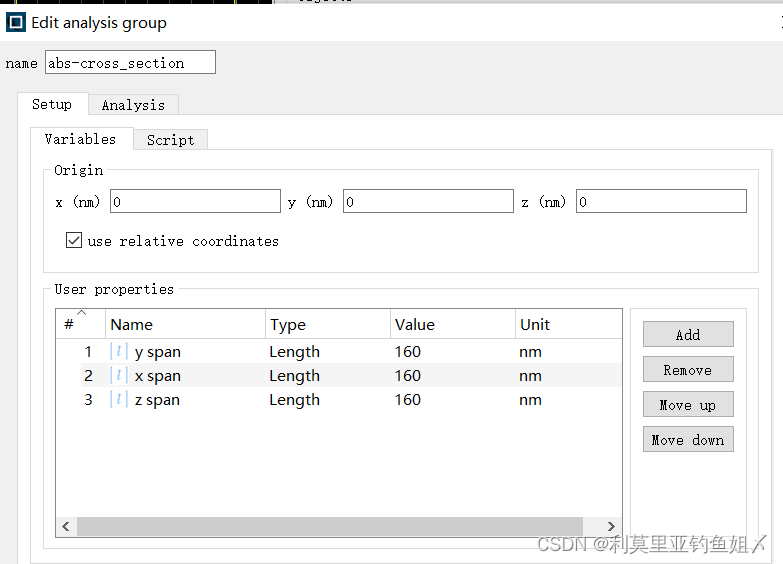

5.Analysis➡Optical power ➡Cross section

吸收 大小

散射 大小

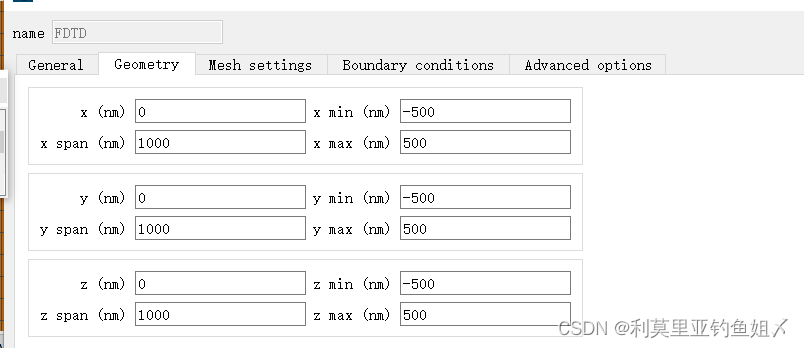

6.FDTD

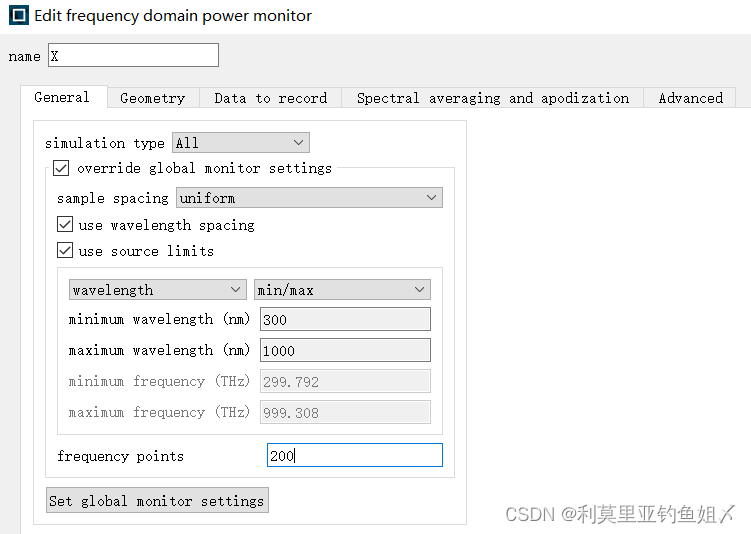

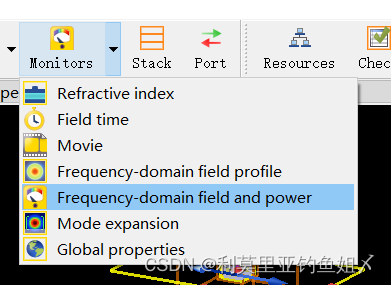

7.监视器（XYZ）

勾选并改频率点

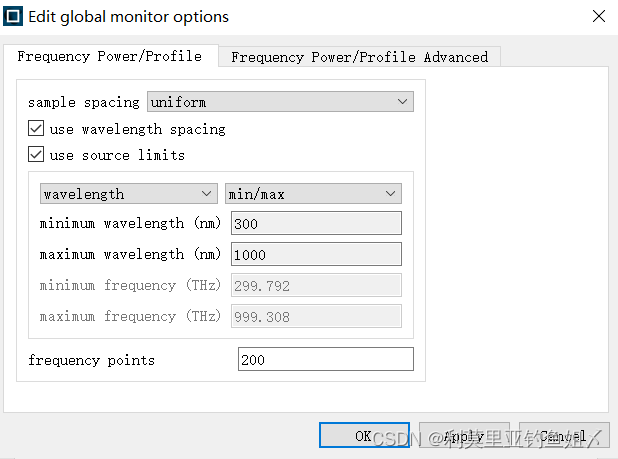

在monitors的global properties中设置,值越大，曲线越平滑。

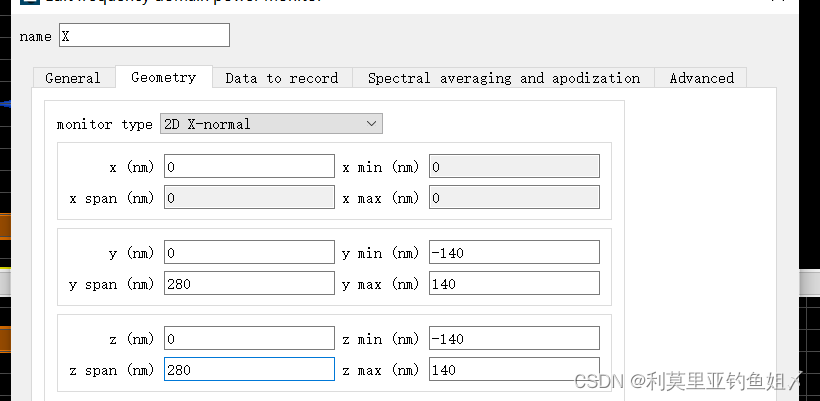

monitor修改XYZ，并设置大小

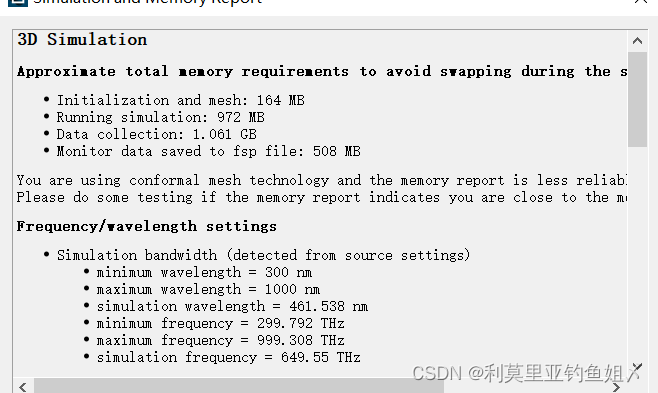

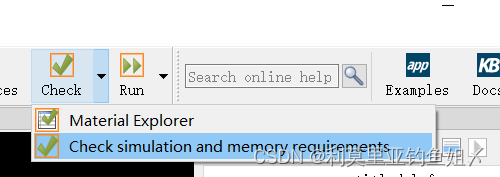

8.检查

会提示所需空间内存大小

10.运行

观察吸收谱和发散谱

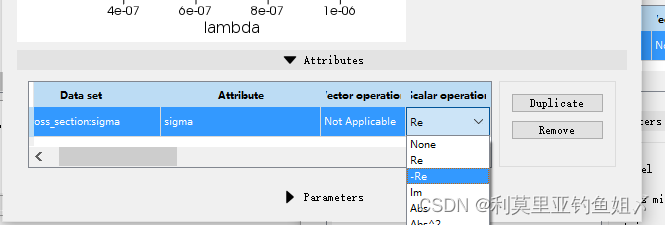

可将吸收选择为-Re，观察极值

可到处为txt

散射

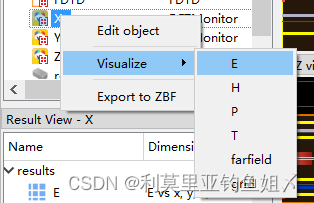

观察显示器，XYZ方向的E(电场)和H(磁场)

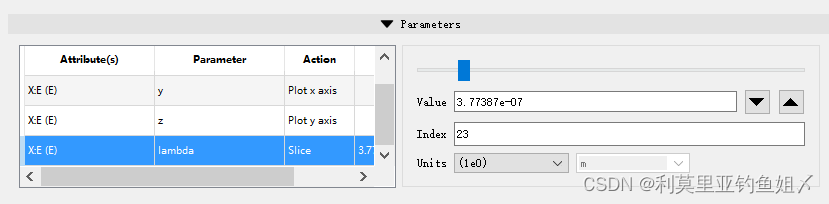

选择lambda，并调节value至极值
