一、UDP协议简单介绍

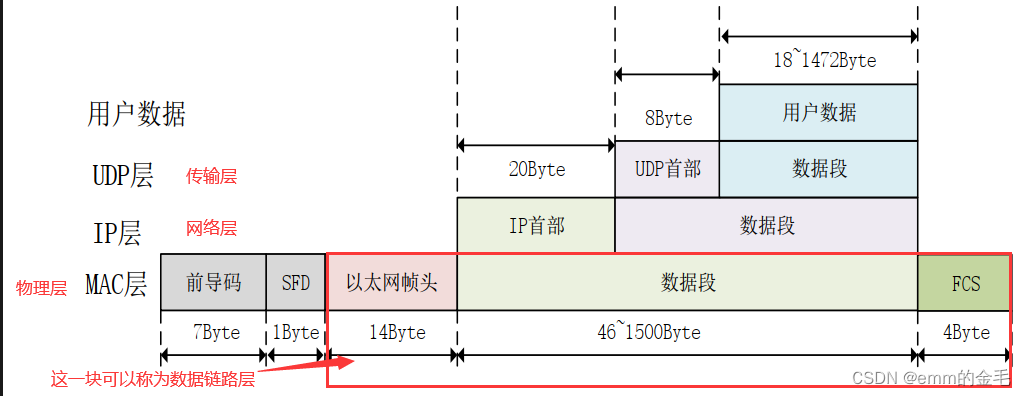

UDP协议和TCP协议同位于传输层，介于网络层（IP）和应用层之间：UDP数据部分为应用层报文，而UDP报文在IP中承载。

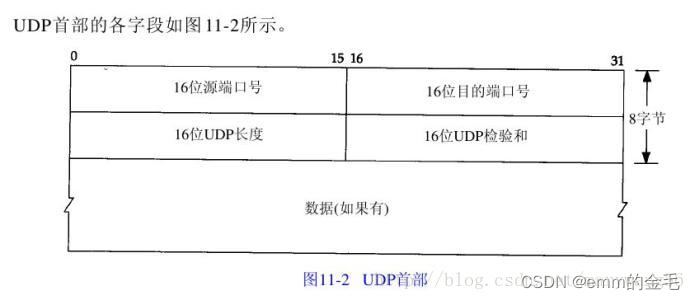

UDP 报文格式相对于简单，如下图：
源端口：端口号0-65535，1-1024保留端口号，为标准的服务端口
目的端口：无须多解释
UDP长度：header＋data 总长度
UDP校验和：伪头部，头部，data 三部分校验和。
数据：上层应用层的数据。
UDP校验和计算：UDP校验和计算-CSDN博客
二、UDP功能实现
UDP_RX模块功能：接收IP层传递过来的数据，判断数据中的目的端口号是否与本节点的源端口号相同，同时执行UDP校验和计算。（由于此时的校验是对整个UDP首部+UDP伪首部+UDP数据进行校验，所以可以参考IP校验的方式，将数据暂存在一个RAM中，根据校验和的正确性控制地址的分配）。
UDP_TX模块功能：将上层传递过来的数据封装上UDP头，并进行UDP校验和计算。（此时的校验和计算可以先将封装完毕的UDP帧存储在一个RAM中，并在一帧的结尾单独对UDP校验和所在的地址进行操作）。
UDP_TX模块：
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2024/05/22 10:38:55
// Design Name:
// Module Name: UDP_TX
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module UDP_TX#(
parameter P_SOURCE_PORT = 16'd8080 ,
parameter P_TARGET_PORT = 16'd8080
)(
input i_clk ,
input i_rst ,
input [15:0] i_set_source_port ,
input i_set_source_valid ,
input [15:0] i_set_target_port ,
input i_set_target_valid ,
input [63:0] s_axis_user_data ,
input [31:0] s_axis_user_user ,//16'dByteLen,16'dBrust
input [7 :0] s_axis_user_keep ,
input s_axis_user_last ,
input s_axis_user_valid ,
output s_axis_user_ready ,
output [63:0] m_axis_ip_data ,
output [70:0] m_axis_ip_user ,//16'dByteLen,1'bMF,16'dlen,1'bsplit,8'dtype,13'doffset,16'dID
output [7 :0] m_axis_ip_keep ,
output m_axis_ip_last ,
output m_axis_ip_valid ,
input m_axis_ip_ready
);
reg [15:0] ri_set_source_port ;
reg [15:0] ri_set_target_port ;
reg [63:0] rs_axis_user_data ;
reg [31:0] rs_axis_user_user ;
reg [7 :0] rs_axis_user_keep ;
reg rs_axis_user_last ;
reg rs_axis_user_valid ;
reg rs_axis_user_ready ;
reg [63:0] rm_axis_ip_data ;
reg [70:0] rm_axis_ip_user ;
reg [7 :0] rm_axis_ip_keep ;
reg rm_axis_ip_last ;
reg rm_axis_ip_valid ;
reg r_fifo_data_rden ;
reg [15:0] r_cnt ;
reg [7 :0] r_last_keep ;
reg r_fifo_data_empty ;
reg r_fifo_data_empty_1d ;
wire [63:0] w_fifo_data_dout ;
wire w_fifo_data_full ;
wire w_fifo_data_empty ;
assign s_axis_user_ready = rs_axis_user_ready ;
assign m_axis_ip_data = rm_axis_ip_data ;
assign m_axis_ip_user = rm_axis_ip_user ;
assign m_axis_ip_keep = rm_axis_ip_keep ;
assign m_axis_ip_last = rm_axis_ip_last ;
assign m_axis_ip_valid = rm_axis_ip_valid ;
//将用户传输的数据缓存
FIFO_DATA_64X256 FIFO_DATA_64X256_u0 (
.clk (i_clk ),
.srst (i_rst ),
.din (rs_axis_user_data ),
.wr_en (rs_axis_user_valid ),
.rd_en (r_fifo_data_rden ),
.dout (w_fifo_data_dout ),
.full (w_fifo_data_full ),
.empty (w_fifo_data_empty )
);
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst) begin
r_fifo_data_empty <= 'd0;
r_fifo_data_empty_1d <= 'd0;
end else begin
r_fifo_data_empty <= w_fifo_data_empty;
r_fifo_data_empty_1d <= r_fifo_data_empty;
end
end
//动态配置源端口、目的端口
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
ri_set_source_port <= P_SOURCE_PORT;
else if(i_set_source_valid)
ri_set_source_port <= i_set_source_port;
else
ri_set_source_port <= ri_set_source_port;
end
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
ri_set_target_port <= P_TARGET_PORT;
else if(i_set_target_valid)
ri_set_target_port <= i_set_target_port;
else
ri_set_target_port <= ri_set_target_port;
end
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst) begin
rs_axis_user_data <= 'd0;
rs_axis_user_keep <= 'd0;
rs_axis_user_last <= 'd0;
rs_axis_user_valid <= 'd0;
end else begin
rs_axis_user_data <= s_axis_user_data ;
rs_axis_user_keep <= s_axis_user_keep ;
rs_axis_user_last <= s_axis_user_last ;
rs_axis_user_valid <= s_axis_user_valid;
end
end
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rs_axis_user_user <= 'd0;
else if(s_axis_user_valid)
rs_axis_user_user <= s_axis_user_user ;
else
rs_axis_user_user <= rs_axis_user_user;
end
//控制ready信号，当一帧输入时将ready信号拉低
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rs_axis_user_ready <= 'd1;
else if(s_axis_user_last)
rs_axis_user_ready <= 'd0;
else if(r_fifo_data_empty_1d)
rs_axis_user_ready <= 'd1;
else
rs_axis_user_ready <= rs_axis_user_ready;
end
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
r_last_keep <= 'd0;
else if(s_axis_user_last)
r_last_keep <= s_axis_user_keep;
else
r_last_keep <= r_last_keep;
end
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
r_cnt <= 'd0;
else if(r_cnt == rs_axis_user_user[15:0])
r_cnt <= 'd0;
else if(r_fifo_data_rden || r_cnt)
r_cnt <= r_cnt + + 1;
else
r_cnt <= r_cnt;
end
//控制fifo读使能，当FIFO不为空的时候开始读
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
r_fifo_data_rden <= 'd0;
else if(r_cnt == rs_axis_user_user[15:0] - 1)
r_fifo_data_rden <= 'd0;
else if(!w_fifo_data_empty)
r_fifo_data_rden <= 'd1;
else
r_fifo_data_rden <= r_fifo_data_rden;
end
//组UDP帧
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rm_axis_ip_data <= 'd0;
else case(r_cnt)
0 :rm_axis_ip_data <= {ri_set_source_port,ri_set_target_port,rs_axis_user_user[31:16] + 16'd8,16'd0};//源端口号、目的端口号、UDP长度、UDP校验和（暂时为0）
default :rm_axis_ip_data <= w_fifo_data_dout;
endcase
end
//控制Keep信号
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rm_axis_ip_keep <= 'd0;
else if(r_cnt && r_cnt == rs_axis_user_user[15:0] - 0)
rm_axis_ip_keep <= r_last_keep;
else
rm_axis_ip_keep <= 8'b1111_1111;
end
//控制Last信号
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rm_axis_ip_last <= 'd0;
else if(r_cnt && r_cnt == rs_axis_user_user[15:0] - 0)
rm_axis_ip_last <= 'd1;
else
rm_axis_ip_last <= 'd0;
end
//控制Valid信号
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rm_axis_ip_valid <= 'd0;
else if(rm_axis_ip_last)
rm_axis_ip_valid <= 'd0;
else if(r_fifo_data_rden)
rm_axis_ip_valid <= 'd1;
else
rm_axis_ip_valid <= rm_axis_ip_valid;
end
//16'dByteLen,1'bMF,16'dlen,1'bsplit,8'dtype,13'doffset,16'dID
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rm_axis_ip_user <= 'd0;
else
rm_axis_ip_user <= {rs_axis_user_user[31:16] + 16'd8,1'b0,rs_axis_user_user[15:0] + 16'd1,1'b0,8'd17,13'd0,16'd0};
end
endmodule
UDP_RX模块：
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2024/05/22 10:38:55
// Design Name:
// Module Name: UDP_RX
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module UDP_RX#(
parameter P_SOURCE_PORT = 16'd8080 ,
parameter P_TARGET_PORT = 16'd8080
)(
input i_clk ,
input i_rst ,
input [15:0] i_set_source_port ,
input i_set_source_valid ,
input [15:0] i_set_target_port ,
input i_set_target_valid ,
input [63:0] s_axis_ip_data ,
input [54:0] s_axis_ip_user ,//1'bMF,16'dlen,1'bsplit,8'dtype,13'doffset,16'dID
input [7 :0] s_axis_ip_keep ,
input s_axis_ip_last ,
input s_axis_ip_valid ,
//上层数据
output [63:0] m_axis_user_data ,
output [31:0] m_axis_user_user ,
output [7 :0] m_axis_user_keep ,
output m_axis_user_last ,
output m_axis_user_valid
);
reg [15:0] ri_set_source_port ;
reg [15:0] ri_set_target_port ;
reg [63:0] rs_axis_ip_data ;
reg [54:0] rs_axis_ip_user ;
reg [7 :0] rs_axis_ip_keep ;
reg rs_axis_ip_last ;
reg rs_axis_ip_valid ;
reg [63:0] rm_axis_user_data ;
reg [31:0] rm_axis_user_user ;
reg [7 :0] rm_axis_user_keep ;
reg rm_axis_user_last ;
reg rm_axis_user_valid ;
reg [15:0] r_cnt ;
reg [15:0] r_source_port ;
reg [15:0] r_target_port ;
reg [15:0] r_len ;
reg [7 :0] r_last_keep ;
reg r_udp_flag ;
reg r_port_check ;
assign m_axis_user_data = rm_axis_user_data ;
assign m_axis_user_user = rm_axis_user_user ;
assign m_axis_user_keep = rm_axis_user_keep ;
assign m_axis_user_last = rm_axis_user_last ;
assign m_axis_user_valid = rm_axis_user_valid ;
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst) begin
rs_axis_ip_data <= 'd0;
rs_axis_ip_user <= 'd0;
rs_axis_ip_keep <= 'd0;
rs_axis_ip_last <= 'd0;
rs_axis_ip_valid <= 'd0;
end else begin
rs_axis_ip_data <= s_axis_ip_data ;
rs_axis_ip_user <= s_axis_ip_user ;
rs_axis_ip_keep <= s_axis_ip_keep ;
rs_axis_ip_last <= s_axis_ip_last ;
rs_axis_ip_valid <= s_axis_ip_valid;
end
end
//动态配置端口号
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
ri_set_source_port <= P_SOURCE_PORT;
else if(i_set_source_valid)
ri_set_source_port <= i_set_source_port;
else
ri_set_source_port <= ri_set_source_port;
end
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
ri_set_target_port <= 'd0;
else if(i_set_target_valid)
ri_set_target_port <= i_set_target_port;
else
ri_set_target_port <= ri_set_target_port;
end
//保存最后一次的Keep信号
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
r_last_keep <= 'd0;
else if(s_axis_ip_last)
r_last_keep <= s_axis_ip_keep;
else
r_last_keep <= 8'b1111_1111;
end
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
r_cnt <= 'd0;
else if(rs_axis_ip_valid)
r_cnt <= r_cnt + 1;
else
r_cnt <= 'd0;
end
//获取IP层传递过来的数据的源端口号
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
r_source_port <= 'd0;
else if(rs_axis_ip_valid && r_cnt == 0)
r_source_port <= rs_axis_ip_data[63:48];
else
r_source_port <= r_source_port;
end
//获取IP层传递过来的数据的目的端口号
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
r_target_port <= 'd0;
else if(rs_axis_ip_valid && r_cnt == 0)
r_target_port <= rs_axis_ip_data[47:32];
else
r_target_port <= r_target_port;
end
//检测获取的源端口号是否等于本节点的目的端口号
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
r_port_check <= 'd0;
else if(r_cnt == 1 && r_target_port != ri_set_source_port)
r_port_check <= 'd0;
else if(r_cnt == 1 && r_target_port == ri_set_source_port)
r_port_check <= 'd1;
else
r_port_check <= r_port_check;
end
//获取数据净荷的长度
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
r_len <= 'd0;
else if(rs_axis_ip_valid && r_cnt == 0)
r_len <= rs_axis_ip_data[31:16] - 16'd8;
else
r_len <= r_len;
end
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rm_axis_user_data <= 'd0;
else
rm_axis_user_data <= rs_axis_ip_data;
end
//控制向上传递的USER信号，其中r_len代表字节长度，(r_len - 16'd1) >> 16'd3代表以8字节为单位的传输次数
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rm_axis_user_user <= 'd0;
else
rm_axis_user_user <= {r_len,((r_len - 16'd1) >> 16'd3) + 16'd1};
end
//控制keep信号
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rm_axis_user_keep <= 'd0;
else if(rs_axis_ip_last)
rm_axis_user_keep <= r_last_keep;
else
rm_axis_user_keep <= 8'b1111_1111;
end
//控制Last信号
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rm_axis_user_last <= 'd0;
else if(rs_axis_ip_last && rm_axis_user_valid)
rm_axis_user_last <= 'd1;
else
rm_axis_user_last <= 'd0;
end
//控制Valid信号
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
rm_axis_user_valid <= 'd0;
else if(rm_axis_user_last)
rm_axis_user_valid <= 'd0;
else if(rs_axis_ip_valid && r_cnt == 1 && r_port_check && r_udp_flag)
rm_axis_user_valid <= 'd1;
else
rm_axis_user_valid <= rm_axis_user_valid;
end
//检查本次从IP层获取的信号是否为UDP数据
always@(posedge i_clk,posedge i_rst)
begin
if(i_rst)
r_udp_flag <= 'd0;
else if(s_axis_ip_valid && !rs_axis_ip_valid && s_axis_ip_user[36:29] != 17)
r_udp_flag <= 'd0;
else if(s_axis_ip_valid && !rs_axis_ip_valid && s_axis_ip_user[36:29] == 17)
r_udp_flag <= 'd1;
else
r_udp_flag <= r_udp_flag;
end
endmodule
三、仿真
UDP_TX模块：

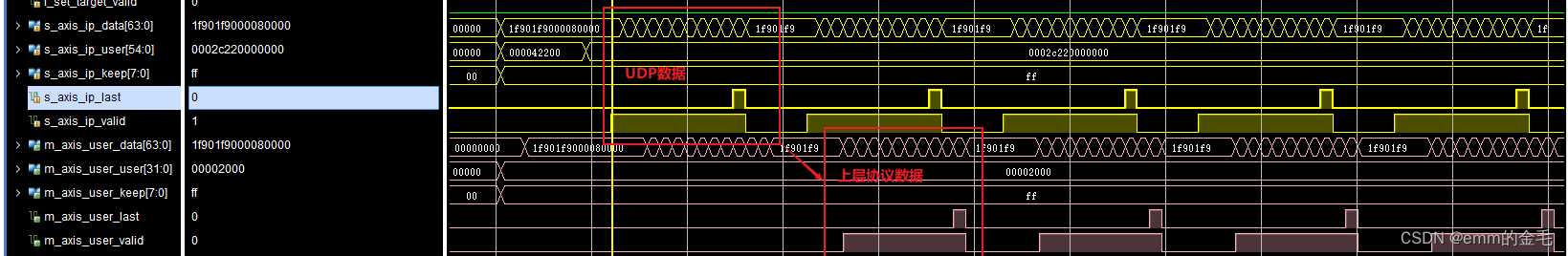

UDP_RX模块：
扫一扫
1865
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
