导读

本文主要介绍使用Python-OpenCV实现餐盘水果识别与计价的应用。

测试图像与说明

使用图像如下，拍摄环境有待改善(存在光照不均和拍摄角度的影响):

餐盘/菜品识别一般方法：

(1)识别餐盘---传统方法和机器学习/深度学习方法；

(2)识别菜品---机器学习/深度学习方法；

本文使用传统方法识别餐盘。

效果演示：

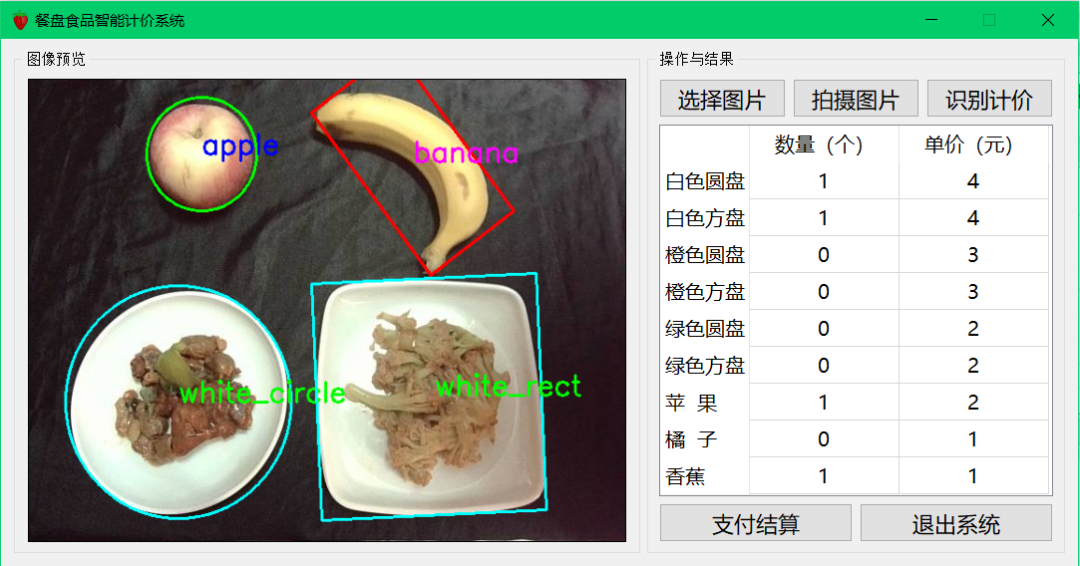

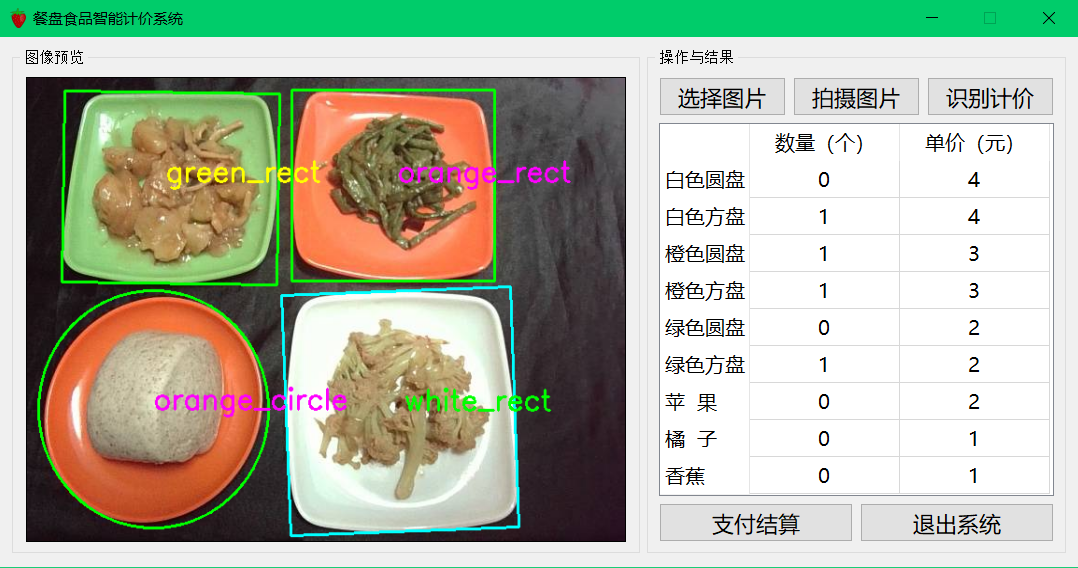

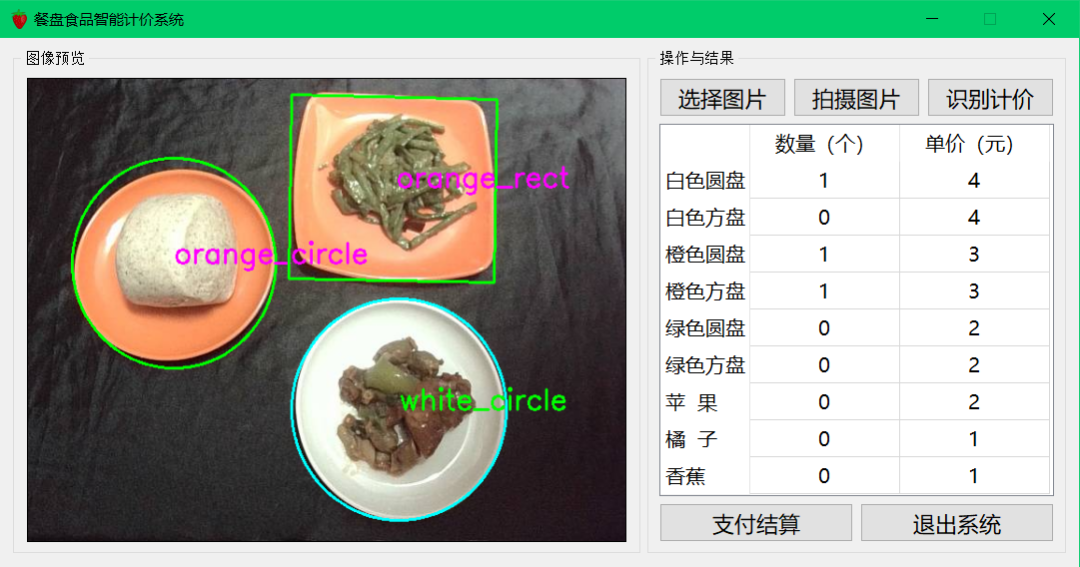

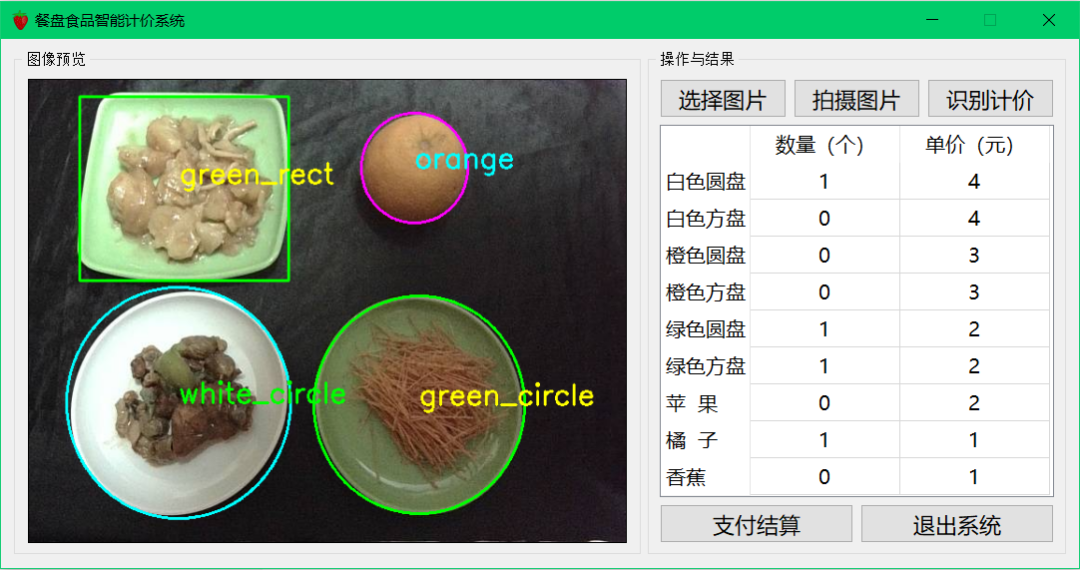

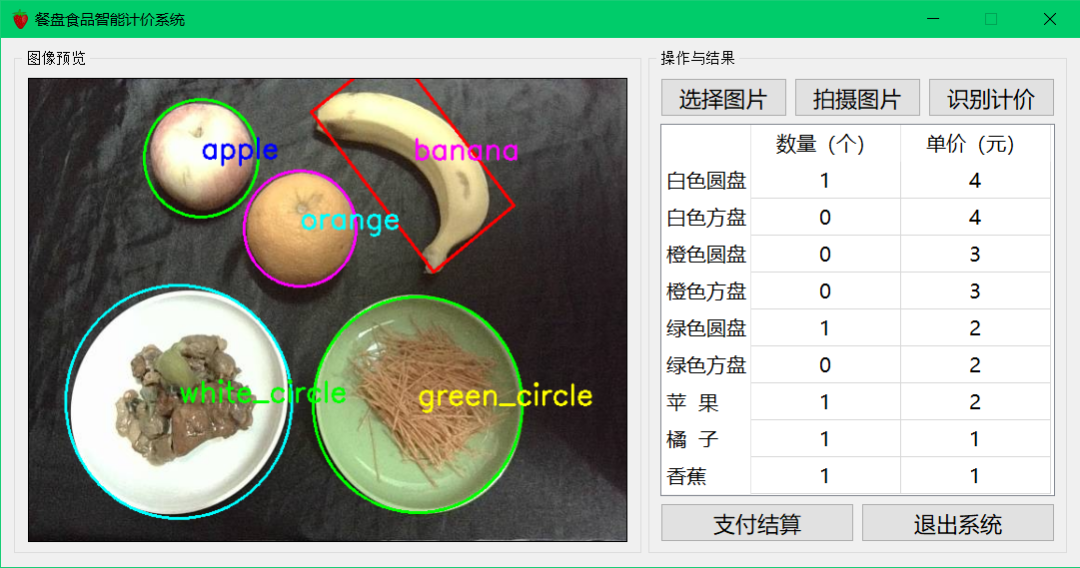

Python OpenCV 餐盘识别水果识别小应用

算法思路与实现步骤

思路：传统方法识别餐盘---依据颜色和形状来区分。

具体步骤：

(1)餐盘颜色共三种：白色、绿色、橙色，形状共两种：圆形和方形。区别颜色使用HSV阈值范围筛选即可，圆形与方形通过轮廓面积与轮廓最小外接圆面积的比值来筛选，圆形rate>=0.9，方形<0.9;

(2)水果共三种：苹果、香蕉、橙子，通过颜色可以区分苹果和橙子，通过轮廓最小外接矩形的宽高比可以区分香蕉和橙子；

(3)计价：盘子和水果的数量乘以对应的单价即可；

(4)设计UI，计价时显示收款码。

Python-OpenCV实现算法核心代码与效果如下：

def Recognize_Dish(self,img):  #-------------------香蕉检测-----------------#  banana_num = 0  hsv_img=cv2.cvtColor(img,cv2.COLOR_BGR2HSV)  lower_yellow = np.array([15,30,145])#颜色范围低阈值  upper_yellow = np.array([35,255,255])#颜色范围高阈值  mask = cv2.inRange(hsv_img,lower_yellow,upper_yellow)#根据颜色范围删选  mask = cv2.medianBlur(mask, 5)#中值滤波  #cv2.imshow('mask_banana', mask)  contours,hierarchy = cv2.findContours(mask, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)  for cnt in contours:    rect = cv2.minAreaRect(cnt)    box = cv2.boxPoints(rect)    box = np.int0(box)    width = max(rect[1][0],rect[1][1])    height = min(rect[1][0],rect[1][1])    center = (int(rect[0][0]),int(rect[0][1]))    if width > 180 and height > 80 and height < 130:      #print(width,height)      img = cv2.drawContours(img,[box],0,(0,0,255),2)      cv2.putText(img,'banana',center,font,1,(255,0,255), 2)      banana_num += 1  item_0 = QTableWidgetItem("%d"%banana_num)  self.tableWidget.setItem(8, 0, item_0)
  #-------------------苹果检测-----------------#  apple_num = 0  lower_apple = np.array([0,50,50])#颜色范围低阈值  upper_apple = np.array([30,255,255])#颜色范围高阈值  mask_apple = cv2.inRange(hsv_img,lower_apple,upper_apple)#根据颜色范围删选  mask_apple = cv2.medianBlur(mask_apple, 9)#中值滤波  #cv2.imshow('mask_apple', mask_apple)  #cv2.imwrite('mask_apple.jpg', mask_apple)  contours2,hierarchy2 = cv2.findContours(mask_apple, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)  for cnt2 in contours2:    center,radius = cv2.minEnclosingCircle(cnt2)    area = cv2.contourArea(cnt2)    #print(radius)    rate = area / (math.pi * radius *radius)        if radius > 50 and radius < 75 and rate < 0.91:      #print(radius)      cv2.circle(img,(int(center[0]),int(center[1])),int(radius),(0,255,0),2)      cv2.putText(img,'apple',(int(center[0]),int(center[1])),font,1,(255,0,0), 2)      apple_num += 1  item_1 = QTableWidgetItem("%d"%apple_num)  self.tableWidget.setItem(6, 0, item_1)
  #-------------------橘子检测-----------------#  orange_num = 0  lower_orange = np.array([0,90,60])#颜色范围低阈值  upper_orange = np.array([60,255,255])#颜色范围高阈值  mask_orange = cv2.inRange(hsv_img,lower_orange,upper_orange)#根据颜色范围删选  mask_orange = cv2.medianBlur(mask_orange, 5)#中值滤波  #cv2.imshow('mask_orange', mask_orange)  #cv2.imwrite('mask_orange.jpg', mask_orange)  contours3,hierarchy3 = cv2.findContours(mask_orange, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)  for cnt3 in contours3:    center,radius = cv2.minEnclosingCircle(cnt3)    area = cv2.contourArea(cnt3)    #print(radius)    rate = area / (math.pi * radius *radius)    if radius > 50 and radius < 75 and rate > 0.85:      #print(radius)      cv2.circle(img,(int(center[0]),int(center[1])),int(radius),(255,0,255),2)      cv2.putText(img,'orange',(int(center[0]),int(center[1])),font,1,(255,255,0), 2)      orange_num += 1  item_2 = QTableWidgetItem("%d"%orange_num)  self.tableWidget.setItem(7, 0, item_2)
  #-------------------白色餐盘检测-----------------#  white_circle_num = 0  white_rect_num = 0  lower_white = np.array([0,0,150])#颜色范围低阈值  upper_white= np.array([100,55,255])#颜色范围高阈值  mask_white = cv2.inRange(hsv_img,lower_white,upper_white)#根据颜色范围删选  mask_white = cv2.medianBlur(mask_white, 5)#中值滤波  #cv2.imshow('mask_white', mask_white)  #cv2.imwrite('mask_white.jpg', mask_white)  contours4,hierarchy4 = cv2.findContours(mask_white, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)  for cnt4 in contours4:    area = cv2.contourArea(cnt4)    center,radius = cv2.minEnclosingCircle(cnt4)    #print(radius)    rate = area / (math.pi * radius *radius)    if radius > 100 and radius < 160:      #print(radius)      if rate >= 0.9:        cv2.circle(img,(int(center[0]),int(center[1])),int(radius),(255,255,0),2)        cv2.putText(img,'white_circle',(int(center[0]),int(center[1])),font,1,(0,255,0), 2)        white_circle_num += 1      elif rate >0.6 and rate < 0.9:        rect = cv2.minAreaRect(cnt4)        box = cv2.boxPoints(rect)        box = np.int0(box)        #cv2.circle(img,(int(center[0]),int(center[1])),int(radius),(255,0,255),5)        img = cv2.drawContours(img,[box],0,(255,255,0),2)        cv2.putText(img,'white_rect',(int(center[0]),int(center[1])),font,1,(0,255,0), 2)        white_rect_num += 1  item_3 = QTableWidgetItem("%d"%white_circle_num)  self.tableWidget.setItem(0, 0, item_3)  item_4 = QTableWidgetItem("%d"%white_rect_num)  self.tableWidget.setItem(1, 0, item_4)
  #-------------------绿色餐盘检测-----------------#  green_circle_num = 0  green_rect_num = 0  lower_green = np.array([30,65,65])#颜色范围低阈值  upper_green= np.array([80,255,255])#颜色范围高阈值  mask_green = cv2.inRange(hsv_img,lower_green,upper_green)#根据颜色范围删选  mask_green = cv2.medianBlur(mask_green, 5)#中值滤波  #cv2.imshow('mask_green', mask_green)  #cv2.imwrite('mask_green.jpg', mask_green)  contours5,hierarchy5 = cv2.findContours(mask_green, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)  for cnt5 in contours5:    area = cv2.contourArea(cnt5)    center,radius = cv2.minEnclosingCircle(cnt5)    #print(radius)    rate = area / (math.pi * radius *radius)    if radius > 100 and radius < 160:      #print(radius)      if rate >= 0.9:        cv2.circle(img,(int(center[0]),int(center[1])),int(radius),(0,255,0),2)        cv2.putText(img,'green_circle',(int(center[0]),int(center[1])),font,1,(0,255,255), 2)        green_circle_num += 1      elif rate >0.6 and rate < 0.9:        rect = cv2.minAreaRect(cnt5)        box = cv2.boxPoints(rect)        box = np.int0(box)        #cv2.circle(img,(int(center[0]),int(center[1])),int(radius),(255,0,255),5)        img = cv2.drawContours(img,[box],0,(0,255,0),2)        cv2.putText(img,'green_rect',(int(center[0]),int(center[1])),font,1,(0,255,255), 2)        green_rect_num += 1  item_5 = QTableWidgetItem("%d"%green_circle_num)  self.tableWidget.setItem(4, 0, item_5)  item_6 = QTableWidgetItem("%d"%green_rect_num)  self.tableWidget.setItem(5, 0, item_6)
  #-------------------橙色餐盘检测-----------------#  orange_circle_num = 0  orange_rect_num = 0  lower_orange_dish = np.array([0,100,100])#颜色范围低阈值  upper_orange_dish= np.array([15,255,255])#颜色范围高阈值  mask_orange_dish = cv2.inRange(hsv_img,lower_orange_dish,upper_orange_dish)#根据颜色范围删选  mask_orange_dish = cv2.medianBlur(mask_orange_dish, 5)#中值滤波  #cv2.imshow('mask_green', mask_green)  #cv2.imwrite('mask_orange_dish.jpg', mask_orange_dish)  contours6,hierarchy6 = cv2.findContours(mask_orange_dish, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)  for cnt6 in contours6:    area = cv2.contourArea(cnt6)    center,radius = cv2.minEnclosingCircle(cnt6)    #print('----------------')    #print(radius)    rate = area / (math.pi * radius *radius)    if radius > 100 and radius < 160:      #print(rate)      if rate >= 0.8:        cv2.circle(img,(int(center[0]),int(center[1])),int(radius),(0,255,0),2)        cv2.putText(img,'orange_circle',(int(center[0]),int(center[1])),font,1,(255,0,255), 2)        orange_circle_num += 1      elif rate >0.3 and rate < 0.8:        rect = cv2.minAreaRect(cnt6)        box = cv2.boxPoints(rect)        box = np.int0(box)        #cv2.circle(img,(int(center[0]),int(center[1])),int(radius),(255,0,255),5)        img = cv2.drawContours(img,[box],0,(0,255,0),2)        cv2.putText(img,'orange_rect',(int(center[0]),int(center[1])),font,1,(255,0,255), 2)        orange_rect_num += 1  item_7 = QTableWidgetItem("%d"%orange_circle_num)  self.tableWidget.setItem(2, 0, item_7)  item_8 = QTableWidgetItem("%d"%orange_rect_num)  self.tableWidget.setItem(3, 0, item_8)
  for i in range(0,9):    self.tableWidget.item(i,0).setTextAlignment(QtCore.Qt.AlignHCenter|QtCore.Qt.AlignVCenter)    self.tableWidget.item(i,1).setTextAlignment(QtCore.Qt.AlignHCenter|QtCore.Qt.AlignVCenter)  #----------------计算价格--------------#       self.price =  self.price_white_circle * white_circle_num + \       self.price_white_rect * white_rect_num + \       self.price_orange_circle * orange_circle_num + \       self.price_orange_rect * orange_rect_num + \       self.price_green_circle * green_circle_num + \       self.price_green_rect * green_rect_num + \       self.price_apple * apple_num + \       self.price_orange * orange_num +\       self.price_banana * banana_num  print(self.price)  return img
