SuperMap iClient3D for WebGL SuperMapImageryProvider自定义实现

作者：桔子
本文同步发布于https://www.jianshu.com/p/5961495dfeed

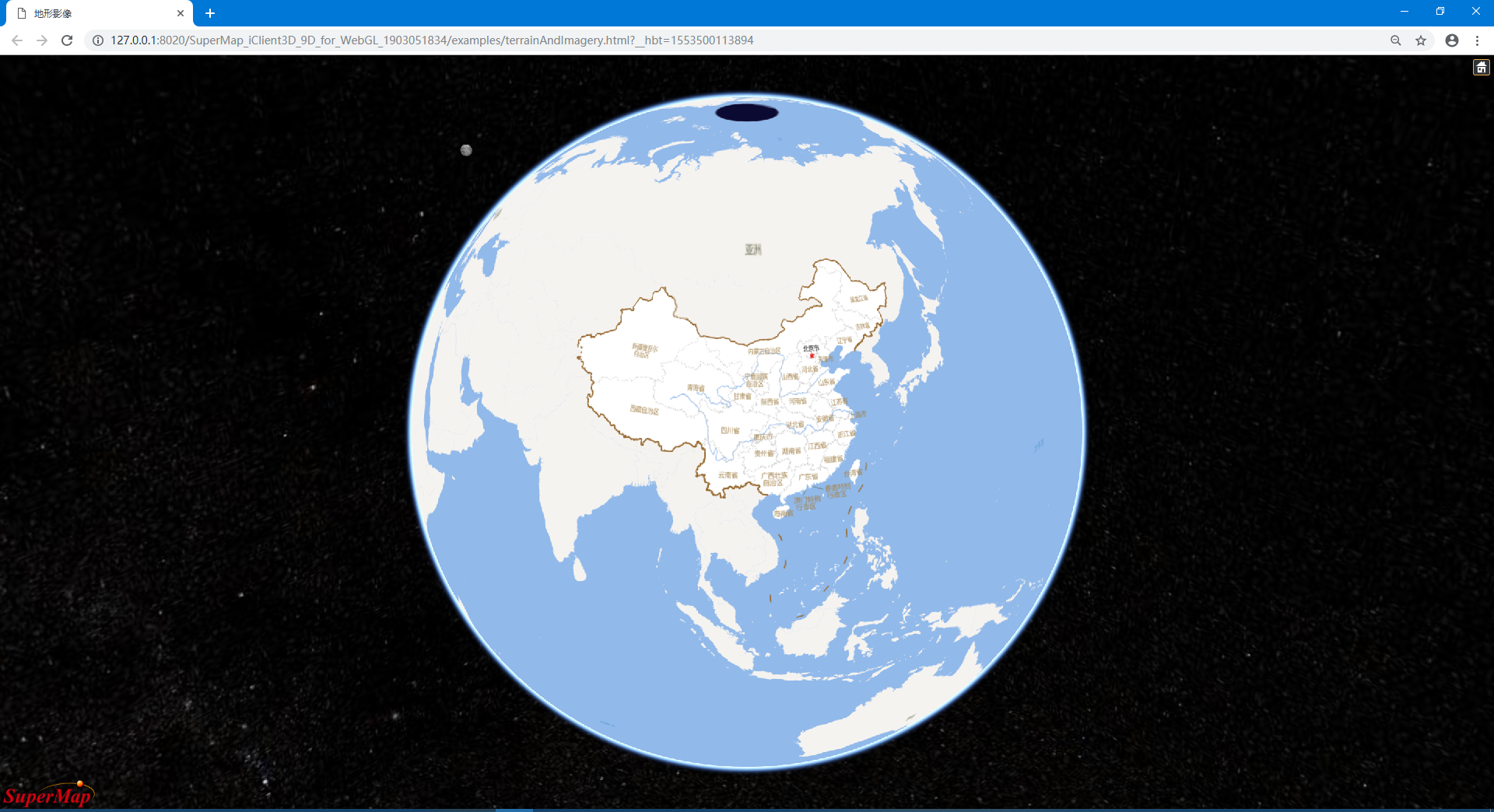

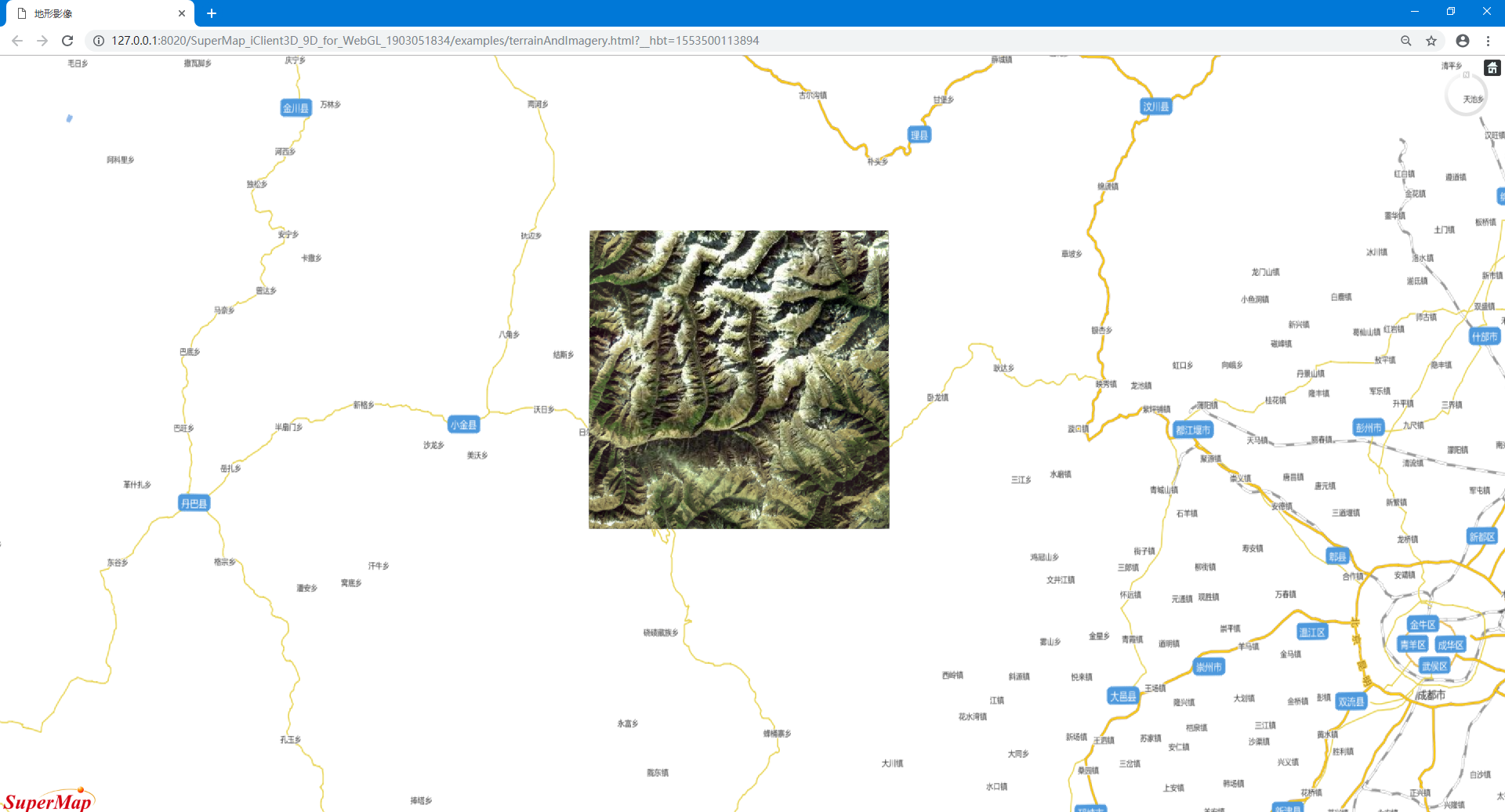

SuperMapImageryProvider是SuperMa iClient3D for WebGL产品中提供的一个非常常用的类，用于对接SuperMap iServer发布的二维地图和三维服务中的影像图层，最近一直在折腾UrlTemplateImageryProvider，一时兴趣，对SuperMapImageryProvider可否自己原生实现下呢，先来看效果：


对实现过程做下小结，主要有一下两点

1.瓦片请求url拼接

二维地图瓦片的请求url和三维场景影像瓦片的请求url必然是不一样的，需要注意理解瓦片行列号、层级、比例尺等之间的关系

2.比例尺设置

三维场景影像的剖分方式都是全球剖分，比例尺和层级都是固定的，不涉及变化，相对比较容易。但地图由于投影的方式不同，比例尺有细微的区别，具体区别可在代码中查看
核心代码参考：

function SuperMap3DImageryProvider(viewer, url, options) {
				this.layerProvider = ''
				this.options = options || {}
				this.viewer = viewer
				var _that = this
				$.ajax({
					type: "get",
					url: url + '/config',
					success: function(result) {
						var xml = string2XML(result)
						var allobjs = xml.children[0]
						var name = _that.options.name || allobjs.getElementsByTagName('sml:CacheName')
						var xmlbounds = allobjs.getElementsByTagName('sml:Bounds')
						var bounsleft = parseFloat(xmlbounds[0].children[0].innerHTML)
						var bounstop = parseFloat(xmlbounds[0].children[1].innerHTML)
						var bounsright = parseFloat(xmlbounds[0].children[2].innerHTML)
						var bounsbottom = parseFloat(xmlbounds[0].children[3].innerHTML)
						var xmllevels = allobjs.getElementsByTagName('sml:Levels')
						var xmlminlevel = _that.options.minimumLevel || parseInt(xmllevels[0].children[0].innerHTML)
						var xmlmaxlevel = _that.options.maximumLevel || parseInt(xmllevels[0].children[xmllevels[0].children.length - 1].innerHTML)

						_that.layerProvider = new Cesium.UrlTemplateImageryProvider({
							url: url + '/data/index/{y}/{x}.{fileExtension}?level={level}',
							rectangle: Cesium.Rectangle.fromDegrees(bounsleft, bounsbottom, bounsright, bounstop),
							minimumLevel: xmlminlevel,
							maximumLevel: xmlmaxlevel,
							tilingScheme: new Cesium.GeographicTilingScheme(),
							customTags: {
								fileExtension: function(imageryProvider, x, y, level) {
									return 'jpg_png'
								},
								level: function(imageryProvider, x, y, level) {
									return level
								}
							}

						});

						var layer = viewer.imageryLayers.addImageryProvider(_that.layerProvider);
						_that.viewer.zoomTo(layer)
						return layer
					},
					error: function(msg) {
						console.log(msg);
					}
				})
			}

function SuperMap2DImagryProvider(viewer, url, options) {
				this.layerProvider = ''
				this.viewer = viewer
				this.options = options || {}
				this.scales84 = [3.38032714321E-9, 6.76065428641E-9, 1.352130857282E-8, 2.704261714564E-8, 5.408523429128E-8, 1.0817046858257E-7, 2.1634093716514E-7, 4.3268187433028E-7, 8.6536374866056E-7, 1.73072749732112E-6, 3.46145499464224E-6, 6.92290998928448E-6, 1.3845819978568952E-5, 2.7691639957137904E-5, 5.538327991427581E-5, 1.1076655982855162E-4, 2.2153311965710323E-4, 4.4306623931420646E-4, 8.861324786284129E-4, 0.0017722649572568258, 0.0035445299145136517, 0.007089059829027303]

				this.scalesweb = [1.69016357160E-9, 3.38032714321E-9, 6.76065428641E-9, 1.352130857282E-8, 2.704261714564E-8, 5.408523429128E-8, 1.0817046858257E-7, 2.1634093716514E-7, 4.3268187433028E-7, 8.6536374866056E-7, 1.73072749732112E-6, 3.46145499464224E-6, 6.92290998928448E-6, 1.3845819978568952E-5, 2.7691639957137904E-5, 5.538327991427581E-5, 1.1076655982855162E-4, 2.2153311965710323E-4, 4.4306623931420646E-4, 8.861324786284129E-4, 0.0017722649572568258, 0.0035445299145136517, 0.007089059829027303]
				var _that = this
				$.ajax({
					type: "get",
					url: url + '.json',
					success: function(result) {
						console.log(result)
						var name = _that.options.name || result.name;
						//var rectangle = Cesium.Rectangle.fromDegrees(result.bounds.left, result.bounds.bottom, result.bounds.right, result.bounds.top)
						var rectangle = Cesium.Rectangle.fromDegrees(-180, -90, 180, 90)
						var epsgcode = result.prjCoordSys.epsgCode
						var tilingScheme = ''
						var minlevel = 0
						var maxlevel = 22

						var originx = 0
						var originy = 0

						if(epsgcode === 4326) {
							tilingScheme = new Cesium.GeographicTilingScheme({
								numberOfLevelZeroTilesX: 2,
								numberOfLevelZeroTilesY: 1
							})
							originx = -180
							originy = 90
							if(_that.options.minimumLevel !== undefined) {
								minlevel = _that.options.minimumLevel
							} else {
								minlevel = _that.compareLevel(result.visibleScales[0],_that.scales84)
							}
							if(_that.options.maximumLevel !== undefined) {
								maxlevel = _that.options.maximumLevel
							} else {
								maxlevel = _that.compareLevel(result.visibleScales[result.visibleScales.length - 1],_that.scales84)
							}
						}
						if(epsgcode === 3857) {
							tilingScheme = new Cesium.WebMercatorTilingScheme()
							originx = -20037508.34
							originy = 20037508.34
							if(_that.options.minimumLevel !== undefined) {
								minlevel = _that.options.minimumLevel
							} else {
								minlevel = _that.compareLevel(result.visibleScales[0],_that.scalesweb)
							}
							if(_that.options.maximumLevel !== undefined) {
								maxlevel = _that.options.maximumLevel
							} else {
								maxlevel = _that.compareLevel(result.visibleScales[result.visibleScales.length - 1],_that.scalesweb)
							}
						}

						_that.layerProvider = new Cesium.UrlTemplateImageryProvider({
							url: url + "/tileImage.png?transparent=true&cacheEnabled=true&width=256&height=256&x={x}&y={y}&scale={scale}&redirect=false&overlapDisplayed=false&origin={'x':" + originx + ",'y':" + originy + "}",
							rectangle: rectangle,
							minimumLevel: minlevel || 0,
							maximumLevel: maxlevel || 22,
							tilingScheme: tilingScheme,
							customTags: {
								scale: function(imageryProvider, x, y, level) {
									if(epsgcode===4326)
									{
										return _that.scales84[level]
									}
									if(epsgcode===3857)
									{
										return _that.scalesweb[level]
									}

								}
							}

						});

						var layer = viewer.imageryLayers.addImageryProvider(_that.layerProvider);
						//						_that.viewer.zoomTo(layer)
						return layer
					},
					error: function(msg) {
						console.log(msg);
					}
				})
				SuperMap2DImagryProvider.prototype.compareLevel = function(value, scales) {
					var val = value.toFixed(18)
					for(var i = 0, len = scales.length; i < len; i++) {
						var scale = scales[i].toFixed(18)
						if(val === scale) {
							return i
						}
					}
				}

			}

以上代码封装还不够完善，仅供参考。
