SBC-T113产品特性：
-
采用Allwinner公司Cortex-A7双核T113-i处理器，运行最高速度为1.2GHZ；
-
内置64-bit XuanTie C906 RISC-V协处理器；
-
支持JPEG/MJPEG视频编码，最大分辨率1080p@60fps；支持多格式1080P@60fps视频解码 (H.265,H.264, MPEG-1/2/4)；
-
支持RGB666/LVDS/MIPI-DSI，分辨率最高1920x1080；
-
支持512-1G Bytes DDR3 SDRAM；
-
支持SPI NAND存储和启动(默认：256MB；最大1GB)或者EMMC启动(默认：4GB,最大32GB)；
-
支持四路USB2.0 HOST；
-
支持六路RS232通信；
-
支持双路CAN BUS通信（隔离）；
-
支持双路以太网,一路10/100M;一路10/100/1000M；
-
稳定的操作系统的支持，可预装Ubuntu20.04/LINUX 5.4 Preempt/Tina5.0；
-
标准3.5寸主板， 尺寸为:146*102MM；

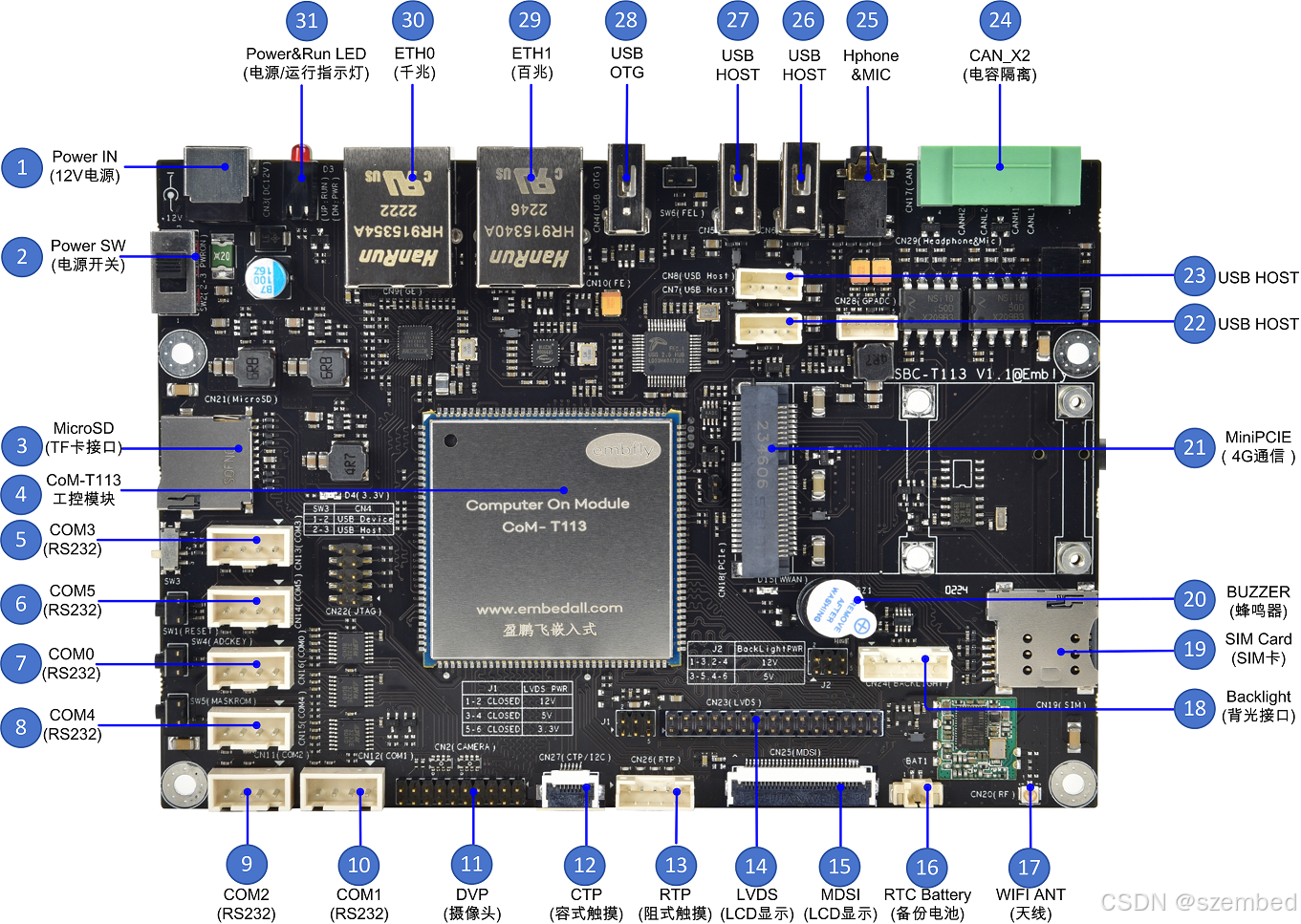

SBC-T113功能评估图：
T113i主板终端信息_tina5 Linux :
[76]HELLO! BOOT0 is starting!
[79]BOOT0 commit : 069ed30b88
[82]set pll start
[84]fix vccio detect value:0xc0
[91]periph0 has been enabled
[94]set pll end
[95][pmu]: bus read error
[98]board init ok
[100]enable_jtag
[101]get_pmu_exist() = -1
[104]DRAM BOOT DRIVE INFO: V0.34
[107]DRAM CLK = 792 MHz
[109]DRAM Type = 3 (2:DDR2,3:DDR3)
[112]DRAMC ZQ value: 0x7b7bfb
[115]DRAM ODT value: 0x42.
[118]ddr_efuse_type: 0x0
[121]DRAM SIZE = 512 MB
[128]DRAM simple test OK.
[130]rtc standby flag is 0x0, super standby flag is 0x0
[135]dram size =512
[138]card no is 2
[140]sdcard 2 line count 4
[142][mmc]: mmc driver ver 2021-05-21 14:47
[152][mmc]: Wrong media type 0x0, but host sdc2, try mmc first
[157][mmc]: ***Try MMC card 2***
[182][mmc]: RMCA OK!
[184][mmc]: mmc 2 bias 4
[188][mmc]: MMC 5.1
[190][mmc]: HSSDR52/SDR25 4 bit
[193][mmc]: 50000000 Hz
[195][mmc]: 3648 MB
[197][mmc]: ***SD/MMC 2 init OK!!!***
[292]Loading boot-pkg Succeed(index=0).
[296]Entry_name = u-boot
[303]Entry_name = optee
[307]Entry_name = dtb
[310]tunning data addr:0x430003e8
[313]Jump to second Boot.
M/TC: OP-TEE version: 2a99a16f (gcc version 5.3.1 20160412 (Linaro GCC 5.3-2016. 05)) #1 Thu Aug 17 11:13:02 UTC 2023 arm
E/TC:0 0 platform_standby_fdt_parse:126 no pmu0 node
E/TC:0 0 sunxi_twi_parse_from_dt:121 no pmu node
U-Boot 2018.07-g6047f84-dirty (Nov 25 2024 - 17:03:09 +0800) Allwinner Technolog y
[00.384]CPU: Allwinner Family
[00.387]Model: sun8iw20
[00.389]DRAM: 512 MiB
[00.392]Relocation Offset is: 1cebd000
[00.420]secure enable bit: 0
E/TC:0 fdt_getprop_u32:336 prop trace_level not found
[00.434]CPU=1008 MHz,PLL6=600 Mhz,AHB=200 Mhz, APB1=100Mhz MBus=300Mhz
[00.440]gic: sec monitor mode
SPI ALL: ready
[00.455]line:703 init_clocks
[00.458]flash init start
[00.460]workmode = 0,storage type = 2
[00.464][mmc]: mmc driver ver uboot2018:2023-07-4 16:18:00
[00.470][mmc]: SUNXI SDMMC Controller Version:0x50310
[00.495][mmc]: Best spd md: 3-HS200/SDR104, freq: 4-150000000, Bus width: 4
[00.502]sunxi flash init ok
[00.504]drv_disp_init
partno erro : can't find partition bootloader
[00.543]drv_disp_init finish
[00.552]Loading Environment from SUNXI_FLASH... OK
[00.564]boot_gui_init:start
partno erro : can't find partition Reserve0
bad fb1_cfg[w=0,h=0,bpp=32,format=0]
[00.581]boot_gui_init:finish
partno erro : can't find partition bootloader
[00.588]bmp_name=bootlogo.bmp size 1843254
[00.635]Item0 (Map) magic is bad
[00.638]the secure storage item0 copy0 magic is bad
[00.646]Item0 (Map) magic is bad
[00.648]the secure storage item0 copy1 magic is bad
[00.653]Item0 (Map) magic is bad
secure storage read widevine fail
secure storage read ec_key fail
secure storage read ec_cert1 fail
secure storage read ec_cert2 fail
secure storage read ec_cert3 fail
secure storage read rsa_key fail
secure storage read rsa_cert1 fail
secure storage read rsa_cert2 fail
secure storage read rsa_cert3 fail
[00.684]usb burn from boot
delay time 0
weak:otg_phy_config
[00.695]usb prepare ok
[00.757]LCD open finish
[00.998]overtime
[01.001]do_burn_from_boot usb : no usb exist
List file under ULI/factory
** Unrecognized filesystem type **
root_partition is rootfs
set root to /dev/mmcblk0p5
[01.019]update part info
[01.021]update bootcmd
[01.025]change working_fdt 0x5c87ce68 to 0x5c85ce68
[01.030][mmc]: can't find node "sunxi-mmc2" try "mmc"
[01.035][mmc]: no mmc-hs400-1_8v!
[01.038][mmc]: get sunxi-mmc2 string failed
[01.043]The storage not support sample function
[01.068]update dts
Hit any key to stop autoboot: 0
boot addr 0x45000000 0x45c66800 exceed dsp0 scope
dsp0 addr 0x45000000 0x45100000
[02.284]no vendor_boot partition is found
Android's image name: sun8i_arm
The loading address of the kernel is not in the boot image
ERROR: reserving fdt memory region failed (addr=41b00000 size=100000)
ERROR: reserving fdt memory region failed (addr=5c907000 size=7e9000)
[02.343]Starting kernel ...
[02.346][mmc]: mmc exit start
[02.363][mmc]: mmc 2 exit ok
[ 0.000000] Booting Linux on physical CPU 0x0
[ 0.000000] Linux version 5.4.61 (ping@embedall) (arm-linux-gnueabi-gcc (Lina ro GCC 5.3-2016.05) 5.3.1 20160412, GNU ld (Linaro_Binutils-2016.05) 2.25.0 Lina ro 2016_02) #1 SMP PREEMPT Mon Nov 25 16:23:08 CST 2024
[ 0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=10c5387d
[ 0.000000] CPU: div instructions available: patching division code
[ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instructio n cache
[ 0.000000] OF: fdt: Machine model: sun8iw20
[ 0.000000] printk: bootconsole [earlycon0] enabled
[ 0.000000] Memory policy: Data cache writealloc
[ 0.000000] Reserved memory: created DMA memory pool at 0x42200000, size 0 Mi B
[ 0.000000] OF: reserved mem: initialized node vdev0buffer@42200000, compatib le id shared-dma-pool
[ 0.000000] Reserved memory: created DMA memory pool at 0x42244000, size 0 Mi B
[ 0.000000] OF: reserved mem: initialized node dsp0_rpbuf@42244000, compatibl e id shared-dma-pool
[ 0.000000] Reserved memory: created DMA memory pool at 0x42900000, size 0 Mi B
[ 0.000000] OF: reserved mem: initialized node vdev0buffer@42900000, compatib le id shared-dma-pool
[ 0.000000] Reserved memory: created DMA memory pool at 0x42944000, size 0 Mi B
[ 0.000000] OF: reserved mem: initialized node c906_rpbuf@42980000, compatibl e id shared-dma-pool
[ 0.000000] cma: Reserved 8 MiB at 0x5f800000
[ 0.000000] On node 0 totalpages: 129112
[ 0.000000] Normal zone: 1024 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 129112 pages, LIFO batch:31
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.0 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.0
[ 0.000000] percpu: Embedded 15 pages/cpu s31040 r8192 d22208 u61440
[ 0.000000] pcpu-alloc: s31040 r8192 d22208 u61440 alloc=15*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 128088
[ 0.000000] Kernel command line: earlyprintk=sunxi-uart,0x02500000 clk_ignore _unused initcall_debug=0 console=ttyAS0,115200 loglevel=8 root=/dev/mmcblk0p5 in it=/init rdinit=/rdinit partitions=boot-resource@mmcblk0p1:env@mmcblk0p2:env-red und@mmcblk0p3:boot@mmcblk0p4:rootfs@mmcblk0p5:dsp0@mmcblk0p6:private@mmcblk0p7:r ootfs_data@mmcblk0p8:UDISK@mmcblk0p9 cma=8M snum= mac_addr= wifi_mac= bt_mac= sp ecialstr= gpt=1 androidboot.hardware=sun8iw20p1 boot_type=2 androidboot.boot_typ e=2 gpt=1 uboot_message=2018.07-g6047f84-dirty(11/25/2024-17:03:09) mbr_offset=1 032192 disp_reserve=8294400,0x5c907000 androidboot.dramfreq=792 androidboot.dram size=512 mtdparts=<NULL> uboot_backup=ubootA
[ 0.000000] Dentry cache hash table entries: 65536 (order: 6, 262144 bytes, l inear)
[ 0.000000] Inode-cache hash table entries: 32768 (order: 5, 131072 bytes, li near)
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 476208K/516448K available (7168K kernel code, 379K rwdata , 2688K rodata, 1024K init, 199K bss, 32048K reserved, 8192K cma-reserved, 0K hi ghmem)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[ 0.000000] rcu: Preemptible hierarchical RCU implementation.
[ 0.000000] Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jif fies.
[ 0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
[ 0.000000] random: get_random_bytes called from start_kernel+0x250/0x3d0 wit h crng_init=0
[ 0.000000] arch_timer: cp15 timer(s) running at 24.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000006] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 43980 46511097ns
[ 0.008018] Switching to timer-based delay loop, resolution 41ns
[ 0.014210] clocksource: timer: mask: 0xffffffff max_cycles: 0xffffffff, max_ idle_ns: 79635851949 ns
[ 0.024058] Console: colour dummy device 80x30
[ 0.028556] Calibrating delay loop (skipped), value calculated using timer fr equency.. 48.00 BogoMIPS (lpj=240000)
[ 0.038917] pid_max: default: 32768 minimum: 301
[ 0.043677] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linea r)
[ 0.051016] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.059402] CPU: Testing write buffer coherency: ok
[ 0.064657] /cpus/cpu@0 missing clock-frequency property
[ 0.069976] /cpus/cpu@1 missing clock-frequency property
[ 0.075317] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[ 0.081582] Setting up static identity map for 0x40100000 - 0x40100060
[ 0.088274] rcu: Hierarchical SRCU implementation.
[ 0.093381] BOOTEVENT: 93.371957: ON
[ 0.097768] smp: Bringing up secondary CPUs ...
[ 0.103573] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
[ 0.103726] smp: Brought up 1 node, 2 CPUs
[ 0.113525] SMP: Total of 2 processors activated (96.00 BogoMIPS).
[ 0.119704] CPU: All CPU(s) started in SVC mode.
[ 0.124876] devtmpfs: initialized
[ 0.142347] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
[ 0.150534] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, ma x_idle_ns: 19112604462750000 ns
[ 0.160401] futex hash table entries: 512 (order: 3, 32768 bytes, linear)
[ 0.167737] pinctrl core: initialized pinctrl subsystem
[ 0.174423] NET: Registered protocol family 16
[ 0.181004] DMA: preallocated 256 KiB pool for atomic coherent allocations
[ 0.229987] rtc_ccu: sunxi ccu init OK
[ 0.236213] ccu: sunxi ccu init OK
[ 0.240266] r_ccu: sunxi ccu init OK
[ 0.286716] sun6i-dma 3002000.dma-controller: sunxi dma probed
[ 0.295076] iommu: Default domain type: Translated
[ 0.300185] sunxi iommu: irq = 24
[ 0.304698] SCSI subsystem initialized
[ 0.308839] usbcore: registered new interface driver usbfs
[ 0.314455] usbcore: registered new interface driver hub
[ 0.319894] usbcore: registered new device driver usb
[ 0.325208] mc: Linux media interface: v0.10
[ 0.329537] videodev: Linux video capture interface: v2.00
[ 0.337843] Advanced Linux Sound Architecture Driver Initialized.
[ 0.344702] Bluetooth: Core ver 2.22
[ 0.348394] NET: Registered protocol family 31
[ 0.352843] Bluetooth: HCI device and connection manager initialized
[ 0.359254] Bluetooth: HCI socket layer initialized
[ 0.364138] Bluetooth: L2CAP socket layer initialized
[ 0.369239] Bluetooth: SCO socket layer initialized
[ 0.374478] pwm module init!
[ 0.396840] g2d 5410000.g2d: Adding to iommu group 0
[ 0.402308] G2D: rcq version initialized.major:250
[ 0.407848] input: sunxi-keyboard as /devices/virtual/input/input0
[ 0.415786] clocksource: Switched to clocksource arch_sys_counter
[ 0.431696] sun8iw20-pinctrl pio: initialized sunXi PIO driver
[ 0.452732] thermal_sys: Registered thermal governor 'step_wise'
[ 0.452739] thermal_sys: Registered thermal governor 'user_space'
[ 0.458892] thermal_sys: Registered thermal governor 'power_allocator'
[ 0.465575] NET: Registered protocol family 2
[ 0.477729] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear)
[ 0.486179] TCP established hash table entries: 4096 (order: 2, 16384 bytes, linear)
[ 0.493967] TCP bind hash table entries: 4096 (order: 3, 32768 bytes, linear)
[ 0.501186] TCP: Hash tables configured (established 4096 bind 4096)
[ 0.507705] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.514258] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.521466] NET: Registered protocol family 1
[ 0.528627] Initialise system trusted keyrings
[ 0.533294] workingset: timestamp_bits=30 max_order=17 bucket_order=0
[ 0.550418] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.556599] ntfs: driver 2.1.32 [Flags: R/W].
[ 0.561289] fuse: init (API version 7.31)
[ 0.594781] NET: Registered protocol family 38
[ 0.599315] Key type asymmetric registered
[ 0.603408] Asymmetric key parser 'x509' registered
[ 0.608384] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 2 48)
[ 0.615794] io scheduler mq-deadline registered
[ 0.620338] io scheduler kyber registered
[ 0.624455] atomic64_test: passed
[ 0.629364] [DISP]disp_module_init
[ 0.633363] disp 5000000.disp: Adding to iommu group 0
[ 0.639188] [DISP] disp_init,line:2372:
[ 0.639194] smooth display screen:0 type:1 mode:4
[ 0.664992] display_fb_request,fb_id:0
[ 0.692983] disp_al_manager_apply ouput_type:1
[ 0.693184] [DISP] lcd_clk_config,line:777:
[ 0.693195] disp 0, clk: pll(1050000000),clk(1050000000),dclk(150000000) dsi_ rate(1050000000)
[ 0.693195] clk real:pll(1044000000),clk(1044000000),dclk(149142857) dsi _rate(0)
[ 0.693550] sun8iw20-pinctrl pio: unsupported function lvds0 on pin PD10
[ 0.693564] sun8iw20-pinctrl pio: unsupported function lvds0 on pin PD11
[ 0.693576] sun8iw20-pinctrl pio: unsupported function lvds0 on pin PD12
[ 0.693587] sun8iw20-pinctrl pio: unsupported function lvds0 on pin PD13
[ 0.693598] sun8iw20-pinctrl pio: unsupported function lvds0 on pin PD14
[ 0.693609] sun8iw20-pinctrl pio: unsupported function lvds0 on pin PD15
[ 0.693620] sun8iw20-pinctrl pio: unsupported function lvds0 on pin PD16
[ 0.693632] sun8iw20-pinctrl pio: unsupported function lvds0 on pin PD17
[ 0.693643] sun8iw20-pinctrl pio: unsupported function lvds0 on pin PD18
[ 0.693654] sun8iw20-pinctrl pio: unsupported function lvds0 on pin PD19
[ 0.694137] sun8iw20-pinctrl pio: pio supply vcc-pd not found, using dummy re gulator
[ 0.896094] sun8iw20-pinctrl pio: pio supply vcc-pb not found, using dummy re gulator
[ 0.963696] Console: switching to colour frame buffer device 240x67
[ 1.125592] [DISP]disp_module_init finish
[ 1.130972] sunxi_sid_init()783 - insmod ok
[ 1.135206] free logo buffer src_phy_addr=0x5c907000 fb_height=1080 src_str ide=7680
[ 1.144815] pwm-regulator: supplied by regulator-dummy
[ 1.148427] Freeing logo buffer memory: 8100K
[ 1.152084] Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled
[ 1.162792] sun8iw20-pinctrl pio: pio supply vcc-pe not found, using dummy re gulator
[ 1.171098] uart uart0: uart0 supply uart not found, using dummy regulator
[ 1.178348] uart0: ttyAS0 at MMIO 0x2500000 (irq = 33, base_baud = 1500000) i s a SUNXI
[ 1.186336] sw_console_setup()1831 - console setup baud 115200 parity n bits 8, flow n
[ 1.194295] printk: console [ttyAS0] enabled
[ 1.194295] printk: console [ttyAS0] enabled
[ 1.203398] printk: bootconsole [earlycon0] disabled
[ 1.203398] printk: bootconsole [earlycon0] disabled
[ 1.214879] uart uart1: uart1 supply uart not found, using dummy regulator
[ 1.222994] uart1: ttyAS1 at MMIO 0x2500400 (irq = 34, base_baud = 1500000) i s a SUNXI
[ 1.232659] sun8iw20-pinctrl pio: pio supply vcc-pc not found, using dummy re gulator
[ 1.241812] uart uart2: uart2 supply uart not found, using dummy regulator
[ 1.249903] uart2: ttyAS2 at MMIO 0x2500800 (irq = 35, base_baud = 1500000) i s a SUNXI
[ 1.259692] uart uart3: uart3 supply uart not found, using dummy regulator
[ 1.267822] uart3: ttyAS3 at MMIO 0x2500c00 (irq = 36, base_baud = 1500000) i s a SUNXI
[ 1.277682] uart uart4: uart4 supply uart not found, using dummy regulator
[ 1.285734] uart4: ttyAS4 at MMIO 0x2501000 (irq = 37, base_baud = 1500000) i s a SUNXI
[ 1.295582] uart uart5: uart5 supply uart not found, using dummy regulator
[ 1.303732] uart5: ttyAS5 at MMIO 0x2501400 (irq = 38, base_baud = 1500000) i s a SUNXI
[ 1.313847] misc dump reg init
[ 1.317901] deinterlace 5400000.deinterlace: Adding to iommu group 0
[ 1.325620] deinterlace 5400000.deinterlace: version[1.0.0], ip=0x110
[ 1.334655] [ADDR_MGT] addr_mgt_probe: module version: v1.0.11
[ 1.341996] [ADDR_MGT] addr_init: Failed to get type_def_bt, use default: 0
[ 1.349848] [ADDR_MGT] addr_mgt_probe: success.
[ 1.356552] libphy: Fixed MDIO Bus: probed
[ 1.361531] CAN device driver interface
[ 1.367087] sunxi-awlink awlink@0x0: awlink driver probe ok ...
[ 1.374724] sunxi-awlink awlink@0x1: awlink driver probe ok ...
[ 1.382504] sun8iw20-pinctrl pio: pio supply vcc-pg not found, using dummy re gulator
[ 1.391703] gmac-power0: NULL
[ 1.395034] gmac-power1: NULL
[ 1.398382] gmac-power2: NULL
[ 1.402945] usbcore: registered new interface driver asix
[ 1.409124] usbcore: registered new interface driver ax88179_178a
[ 1.416049] usbcore: registered new interface driver cdc_ether
[ 1.422684] usbcore: registered new interface driver net1080
[ 1.429115] usbcore: registered new interface driver cdc_subset
[ 1.435868] usbcore: registered new interface driver zaurus
[ 1.442221] usbcore: registered new interface driver cdc_ncm
[ 1.448602] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.455959] sunxi-ehci: EHCI SUNXI driver
[ 1.460934] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 1.467933] sunxi-ohci: OHCI SUNXI driver
[ 1.473112] usbcore: registered new interface driver uas
[ 1.479219] usbcore: registered new interface driver usb-storage
[ 1.486086] usbcore: registered new interface driver ums-alauda
[ 1.492791] usbcore: registered new interface driver ums-cypress
[ 1.499624] usbcore: registered new interface driver ums-datafab
[ 1.506457] usbcore: registered new interface driver ums_eneub6250
[ 1.513469] usbcore: registered new interface driver ums-freecom
[ 1.520300] usbcore: registered new interface driver ums-isd200
[ 1.527016] usbcore: registered new interface driver ums-jumpshot
[ 1.533927] usbcore: registered new interface driver ums-karma
[ 1.540545] usbcore: registered new interface driver ums-onetouch
[ 1.547488] usbcore: registered new interface driver ums-realtek
[ 1.554281] usbcore: registered new interface driver ums-sddr09
[ 1.561012] usbcore: registered new interface driver ums-sddr55
[ 1.567726] usbcore: registered new interface driver ums-usbat
[ 1.574463] usbcore: registered new interface driver option
[ 1.580817] usbserial: USB Serial support registered for GSM modem (1-port)
[ 1.589730] input: sunxi-ts as /devices/platform/soc@3000000/2009c00.rtp/inpu t/input1
[ 1.599334] sunxi_gpadc_init,2228, success
[ 1.604489] sunxi_key_init: get key count failed
[ 1.604504] sunxi_gpadc_setup: get channel scan data failed
[ 1.616293] input: sunxi-gpadc0 as /devices/virtual/input/input2
[ 1.623492] input: sunxi-gpadc1 as /devices/virtual/input/input3
[ 1.630892] i2c /dev entries driver
[ 1.635028] IR NEC protocol handler initialized
[ 1.640180] IR RC5(x/sz) protocol handler initialized
[ 1.648815] usbcore: registered new interface driver uvcvideo
[ 1.655305] USB Video Class driver (1.1.1)
[ 1.659947] gspca_main: v2.14.0 registered
[ 1.664548] sunxi cedar version 1.1
[ 1.668734] sunxi-cedar 1c0e000.ve: Adding to iommu group 0
[ 1.675039] VE: sunxi_cedar_probe power-domain init!!!
[ 1.680844] VE: install start!!!
[ 1.680844]
[ 1.686470] VE: cedar-ve the get irq is 45
[ 1.686470]
[ 1.692958] VE: ve_debug_proc_info:(ptrval), data:(ptrval), lock:(ptrval)
[ 1.692958]
[ 1.702286] VE: install end!!!
[ 1.702286]
[ 1.707391] VE: sunxi_cedar_probe
[ 1.712571] sunxi-wdt 20500a0.watchdog: Watchdog enabled (timeout=16 sec, now ayout=0)
[ 1.721877] Bluetooth: HCI UART driver ver 2.3
[ 1.726905] Bluetooth: HCI UART protocol H4 registered
[ 1.733012] Bluetooth: XRadio Bluetooth LPM Mode Driver Ver 1.0.10
[ 1.742413] sunxi-mmc 4022000.sdmmc: SD/MMC/SDIO Host Controller Driver(v4.25 2022-6-21 13:40)
[ 1.752467] sunxi-mmc 4022000.sdmmc: ***ctl-spec-caps*** 308
[ 1.758905] sunxi-mmc 4022000.sdmmc: No vmmc regulator found
[ 1.765255] sunxi-mmc 4022000.sdmmc: No vqmmc regulator found
[ 1.771756] sunxi-mmc 4022000.sdmmc: No vdmmc regulator found
[ 1.778233] sunxi-mmc 4022000.sdmmc: No vd33sw regulator found
[ 1.784778] sunxi-mmc 4022000.sdmmc: No vd18sw regulator found
[ 1.791367] sunxi-mmc 4022000.sdmmc: No vq33sw regulator found
[ 1.797938] sunxi-mmc 4022000.sdmmc: No vq18sw regulator found
[ 1.804506] sunxi-mmc 4022000.sdmmc: Cann't get pin bias hs pinstate,check if needed
[ 1.814270] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 0Hz bm PP pm UP vdd 21 w idth 1 timing LEGACY(SDR12) dt B
[ 1.835813] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 1.860083] sunxi-mmc 4022000.sdmmc: detmode:alway in(non removable)
[ 1.867269] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 1.880368] sunxi-mmc 4020000.sdmmc: SD/MMC/SDIO Host Controller Driver(v4.25 2022-6-21 13:40)
[ 1.890353] sunxi-mmc 4020000.sdmmc: ***ctl-spec-caps*** 8
[ 1.891363] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 1.896613] sunxi-mmc 4020000.sdmmc: No vmmc regulator found
[ 1.909566] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 1.914525] sunxi-mmc 4020000.sdmmc: No vqmmc regulator found
[ 1.932617] sunxi-mmc 4020000.sdmmc: No vdmmc regulator found
[ 1.939106] sunxi-mmc 4020000.sdmmc: No vd33sw regulator found
[ 1.945665] sunxi-mmc 4020000.sdmmc: No vd18sw regulator found
[ 1.952235] sunxi-mmc 4020000.sdmmc: No vq33sw regulator found
[ 1.958813] sunxi-mmc 4020000.sdmmc: No vq18sw regulator found
[ 1.965871] sunxi-mmc 4020000.sdmmc: Got CD GPIO
[ 1.971540] sunxi-mmc 4020000.sdmmc: sdc set ios:clk 0Hz bm PP pm UP vdd 21 w idth 1 timing LEGACY(SDR12) dt B
[ 1.982729] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 1.982833] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 1.994405] sunxi-mmc 4020000.sdmmc: no vqmmc,Check if there is regulator
[ 2.014907] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 400000Hz bm OD pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.025803] sunxi-mmc 4020000.sdmmc: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.050783] sunxi-mmc 4020000.sdmmc: detmode:gpio polling
[ 2.056916] sunxi-mmc 4020000.sdmmc: sdc set ios:clk 0Hz bm PP pm OFF vdd 0 w idth 1 timing LEGACY(SDR12) dt B
[ 2.068178] ledtrig-cpu: registered to indicate activity on CPUs
[ 2.075338] usbcore: registered new interface driver usbhid
[ 2.081662] usbhid: USB HID core driver
[ 2.086022] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 1 timing LEGACY(SDR12) dt B
[ 2.096219] sunxi-msgbox 3003000.msgbox: sunxi_msgbox_probe(): sunxi msgbox s tart probe
[ 2.107019] sunxi-msgbox 3003000.msgbox: sunxi_msgbox_probe(): sunxi msgbox p robe success
[ 2.116908] sunxi-rproc 3000008.dsp_rproc: sunxi rproc driver 2.2.1
[ 2.123998] sunxi-rproc 3000008.dsp_rproc: failed to get firmware-name
[ 2.131748] sunxi-mmc 4022000.sdmmc: avoid to switch power_off_notification t o POWERED_ON(0x01)
[ 2.131926] remoteproc remoteproc0: dsp_rproc is available
[ 2.141771] sunxi-mmc 4022000.sdmmc: avoid to switch power_off_notification t o POWERED_ON(0x01)
[ 2.147854] sunxi-rproc 3000008.dsp_rproc: sunxi rproc driver probe ok
[ 2.157576] sunxi-mmc 4022000.sdmmc: avoid to switch power_off_notification t o POWERED_ON(0x01)
[ 2.165089] sunxi-rproc 6010000.c906_rproc: sunxi rproc driver 2.2.1
[ 2.174654] random: fast init done
[ 2.174880] sunxi-mmc 4022000.sdmmc: avoid to switch power_off_notification t o POWERED_ON(0x01)
[ 2.182348] remoteproc remoteproc1: c906_rproc is available
[ 2.201765] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 4 timing LEGACY(SDR12) dt B
[ 2.201854] sunxi-rproc 6010000.c906_rproc: sunxi rproc driver probe ok
[ 2.221095] rpmsg_tty_init: Sunxi rpmsg tty driver will init
[ 2.227498] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 400000Hz bm PP pm ON vdd 21 width 4 timing MMC-HS200 dt B
[ 2.238779] sunxi-mmc 4022000.sdmmc: sdc set ios:clk 150000000Hz bm PP pm ON vdd 21 width 4 timing MMC-HS200 dt B
[ 2.238851] rpmsg_tty_init: Sunxi rpmsg tty driver init ok
[ 2.256796] mmc0: new HS200 MMC card at address 0001
[ 2.257400] sunxi-rpbuf-controller rpbuf_controller@0: assigned reserved memo ry node c906_rpbuf@42980000
[ 2.264035] mmcblk0: mmc0:0001 S04111 3.56 GiB
[ 2.273957] sunxi-rpbuf-controller rpbuf_controller@1: assigned reserved memo ry node dsp0_rpbuf@42244000
[ 2.278935] mmcblk0rpmb: mmc0:0001 S04111 partition 3 4.00 MiB, chardev (242: 0)
[ 2.292724] sunxi-rpaf-dsp soc@3000000:rpaf-dsp@203034c: register device fini shed!
[ 2.305838] sunxi-rpaf-dsp soc@3000000:rpaf-dsp@203034c: [rpaf_dsp0] probe fi nished!
[ 2.316024] mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8 p9
[ 2.322474] NET: Registered protocol family 10
[ 2.331315] Segment Routing with IPv6
[ 2.335550] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
[ 2.344127] NET: Registered protocol family 17
[ 2.349282] NET: Registered protocol family 15
[ 2.354294] can: controller area network core (rev 20170425 abi 9)
[ 2.361353] NET: Registered protocol family 29
[ 2.366377] can: raw protocol (rev 20170425)
[ 2.371172] can: broadcast manager protocol (rev 20170425 t)
[ 2.377543] can: netlink gateway (rev 20190810) max_hops=1
[ 2.384053] Bluetooth: RFCOMM TTY layer initialized
[ 2.389597] Bluetooth: RFCOMM socket layer initialized
[ 2.395393] Bluetooth: RFCOMM ver 1.11
[ 2.400572] Registering SWP/SWPB emulation handler
[ 2.406344] Loading compiled-in X.509 certificates
[ 2.431117] sunxi-twi 2502400.twi: 2502400.twi supply twi not found, using du mmy regulator
[ 2.441613] sunxi:i2c_sunxi@2502400.twi[INFO]: v2.6.5 probe success
[ 2.449283] sunxi-twi 2502c00.twi: 2502c00.twi supply twi not found, using du mmy regulator
[ 2.460345] rtc-hym8563 3-0051: no valid clock/calendar values available
[ 2.468190] rtc-hym8563 3-0051: registered as rtc0
[ 2.474262] sunxi:i2c_sunxi@2502c00.twi[INFO]: v2.6.5 probe success
[ 2.483044] sunxi-thermal 2009400.ths: sun8iw20 cp version:20
[ 2.536874] get drvvbus-en is fail, 22
[ 2.541123] get ehci0-controller wakeup-source is fail.
[ 2.547155] sunxi ehci0-controller don't init wakeup source
[ 2.553415] [sunxi-ehci0]: probe, pdev->name: 4101000.ehci0-controller, sunxi _ehci: 0xc0c86ac8, 0x:e08e3000, irq_no:3b
[ 2.565436] [sunxi-ehci0]: Not init ehci0
[ 2.570371] get drvvbus-en is fail, 22
[ 2.574603] get ohci0-controller wakeup-source is fail.
[ 2.580588] sunxi ohci0-controller don't init wakeup source
[ 2.586888] [sunxi-ohci0]: probe, pdev->name: 4101400.ohci0-controller, sunxi _ohci: 0xc0c86d78
[ 2.596556] [sunxi-ohci0]: Not init ohci0
[ 2.601492] get drvvbus-en is fail, 22
[ 2.605725] get ehci1-controller wakeup-source is fail.
[ 2.611724] sunxi ehci1-controller don't init wakeup source
[ 2.617995] [sunxi-ehci1]: probe, pdev->name: 4200000.ehci1-controller, sunxi _ehci: 0xc0c87028, 0x:e24be000, irq_no:3d
[ 2.630273] sunxi-ehci 4200000.ehci1-controller: 4200000.ehci1-controller sup ply hci not found, using dummy regulator
[ 2.643772] sunxi-ehci 4200000.ehci1-controller: EHCI Host Controller
[ 2.651071] sunxi-ehci 4200000.ehci1-controller: new USB bus registered, assi gned bus number 1
[ 2.661036] sunxi-ehci 4200000.ehci1-controller: irq 61, io mem 0x04200000
[ 2.695805] sunxi-ehci 4200000.ehci1-controller: USB 2.0 started, EHCI 1.00
[ 2.703626] sunxi-ehci 4200000.ehci1-controller: ehci_irq: highspeed device c onnect
[ 2.713149] hub 1-0:1.0: USB hub found
[ 2.717445] hub 1-0:1.0: 1 port detected
[ 2.722747] get drvvbus-en is fail, 22
[ 2.727003] get ohci1-controller wakeup-source is fail.
[ 2.733001] sunxi ohci1-controller don't init wakeup source
[ 2.739273] [sunxi-ohci1]: probe, pdev->name: 4200400.ohci1-controller, sunxi _ohci: 0xc0c872d8
[ 2.749234] sunxi-ohci 4200400.ohci1-controller: 4200400.ohci1-controller sup ply hci not found, using dummy regulator
[ 2.761598] sunxi-ohci 4200400.ohci1-controller: OHCI Host Controller
[ 2.768894] sunxi-ohci 4200400.ohci1-controller: new USB bus registered, assi gned bus number 2
[ 2.778852] sunxi-ohci 4200400.ohci1-controller: irq 62, io mem 0x04200400
[ 2.860667] hub 2-0:1.0: USB hub found
[ 2.864929] hub 2-0:1.0: 1 port detected
[ 2.870833] otg manager soc@3000000:usbc0@0: soc@3000000:usbc0@0 supply usbc not found, using dummy regulator
[ 2.883064] get ctp_power is fail, -22
[ 2.887341] get ctp_power_ldo_vol is fail, -22
[ 2.892332] sunxi_ctp_startup: ctp_power_io is invalid.
[ 2.898237] get ctp_gesture_wakeup fail, no gesture wakeup
[ 2.904405] gt9xxnew_ts 1-0014: 1-0014 supply ctp not found, using dummy regu lator
[ 3.065850] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.075119] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.084015] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.085845] usb 1-1: new high-speed USB device number 2 using sunxi-ehci
[ 3.100352] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.109613] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.118510] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.127359] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.136622] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.145514] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.154352] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.163614] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.172507] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.181345] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.190606] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.199499] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.208299] <<-GTP-ERROR->> I2C Read: 0x8047, 1 bytes failed, errcode: -22! P rocess reset.
[ 3.317316] hub 1-1:1.0: USB hub found
[ 3.321710] hub 1-1:1.0: 7 ports detected
[ 3.375804] <<-GTP-ERROR->> GTP i2c test failed time 1.
[ 3.405848] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.415112] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.424004] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.432850] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.442112] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.451001] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.459856] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.469119] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.478012] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.486864] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.496126] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.505018] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.513856] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.523117] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.532009] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.540808] <<-GTP-ERROR->> I2C Read: 0x8047, 1 bytes failed, errcode: -22! P rocess reset.
[ 3.655803] usb 1-1.2: new high-speed USB device number 3 using sunxi-ehci
[ 3.705794] <<-GTP-ERROR->> GTP i2c test failed time 2.
[ 3.735835] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.745097] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.753991] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.762834] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.772096] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.780991] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.789829] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.799091] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.807984] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.817219] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.826487] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.835382] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.844259] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 3.853522] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 3.862412] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 3.871267] <<-GTP-ERROR->> I2C Read: 0x8047, 1 bytes failed, errcode: -22! P rocess reset.
[ 3.925818] usb 1-1.7: new high-speed USB device number 4 using sunxi-ehci
[ 4.035791] <<-GTP-ERROR->> GTP i2c test failed time 3.
[ 4.065840] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 4.075102] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 4.084052] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 4.092959] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 4.102220] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 4.111176] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 4.120094] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 4.129356] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 4.138363] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 4.147273] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 4.156534] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 4.165490] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 4.174401] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 4.183662] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 4.192614] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 4.201467] <<-GTP-ERROR->> I2C Read: 0x8047, 1 bytes failed, errcode: -22! P rocess reset.
[ 4.213211] cdc_ether 1-1.7:2.0 eth1: register 'cdc_ether' at usb-sunxi-ehci- 1.7, CDC Ethernet Device, 00:e0:9a:0e:53:2d
[ 4.375800] <<-GTP-ERROR->> GTP i2c test failed time 4.
[ 4.405840] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 4.415104] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 4.424013] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 4.432862] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 4.442124] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 4.451035] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 4.459882] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 4.469143] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 4.478049] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 4.486897] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 4.496159] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 4.505069] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 4.513916] sunxi:i2c_sunxi@2502400.twi[ERR]: SLA+W has been transmitted; ACK not received
[ 4.523177] sunxi:i2c_sunxi@2502400.twi[ERR]: engine mode: TWI BUS error stat e is 0x20
[ 4.532085] sunxi:i2c_sunxi@2502400.twi[ERR]: engine-mode: xfer failed(dev ad dr:0x14)
[ 4.540891] <<-GTP-ERROR->> I2C Read: 0x8047, 1 bytes failed, errcode: -22! P rocess reset.
[ 4.705807] <<-GTP-ERROR->> GTP i2c test failed time 5.
[ 4.735789] I2C communication ERROR!
[ 4.735819] regulator-dummy: Underflow of regulator enable count
[ 4.746805] gt9xxnew_ts: probe of 1-0014 failed with error -1
[ 4.755638] OF: fdt: not creating '/sys/firmware/fdt': CRC check failed
[ 4.765884] debugfs: Directory 'soc@3000000:codec_plat' with parent 'audiocod ec' already present!
[ 4.776523] sunxi-snd-mach soc@3000000:codec_mach: 2030000.codec <-> soc@3000 000:codec_plat mapping ok
[ 4.788162] input: audiocodec Headphones as /devices/platform/soc@3000000/soc @3000000:codec_mach/sound/card0/input4
[ 4.800678] [sound 403][MACH simple_parse_of] simple_dai_link_of failed
[ 4.808396] cfg80211: Loading compiled-in X.509 certificates for regulatory d atabase
[ 4.819490] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[ 4.826985] platform regulatory.0: Direct firmware load for regulatory.db fai led with error -2
[ 4.836673] clk: Not disabling unused clocks
[ 4.841464] ALSA device list:
[ 4.844785] #0: audiocodec
[ 4.848046] cfg80211: failed to load regulatory.db
[ 4.853496] alloc_fd: slot 0 not NULL!
[ 4.864627] VFS: Mounted root (squashfs filesystem) readonly on device 179:5.
[ 4.874347] Freeing unused kernel memory: 1024K
[ 4.896025] Kernel init done
[ 4.899262] Run /init as init process
[ 5.005859]
[ 5.005859] insmod_host_driver
[ 5.005859]
[ 5.012635] [ehci0-controller]: sunxi_usb_enable_ehci
[ 5.018341] [sunxi-ehci0]: probe, pdev->name: 4101000.ehci0-controller, sunxi _ehci: 0xc0c86ac8, 0x:e08e3000, irq_no:3b
[ 5.030851] sunxi-ehci 4101000.ehci0-controller: 4101000.ehci0-controller sup ply hci not found, using dummy regulator
[ 5.044782] sunxi-ehci 4101000.ehci0-controller: EHCI Host Controller
[ 5.052187] sunxi-ehci 4101000.ehci0-controller: new USB bus registered, assi gned bus number 3
[ 5.062462] sunxi-ehci 4101000.ehci0-controller: irq 59, io mem 0x04101000
[ 5.095904] sunxi-ehci 4101000.ehci0-controller: USB 2.0 started, EHCI 1.00
[ 5.105163] hub 3-0:1.0: USB hub found
[ 5.109492] hub 3-0:1.0: 1 port detected
[ 5.114903] [sound 403][MACH simple_parse_of] simple_dai_link_of failed
[ 5.123103] [ohci0-controller]: sunxi_usb_enable_ohci
[ 5.129268] [sound 403][MACH simple_parse_of] simple_dai_link_of failed
[ 5.136996] [sunxi-ohci0]: probe, pdev->name: 4101400.ohci0-controller, sunxi _ohci: 0xc0c86d78
[ 5.147223] sunxi-ohci 4101400.ohci0-controller: 4101400.ohci0-controller sup ply hci not found, using dummy regulator
[ 5.160202] sunxi-ohci 4101400.ohci0-controller: OHCI Host Controller
[ 5.167752] sunxi-ohci 4101400.ohci0-controller: new USB bus registered, assi gned bus number 4
[ 5.177876] debugfs: Directory 'sunxi-ohci' with parent 'ohci' already presen t!
[ 5.186257] sunxi-ohci 4101400.ohci0-controller: irq 60, io mem 0x04101400
[ 5.271036] hub 4-0:1.0: USB hub found
[ 5.275413] hub 4-0:1.0: 1 port detected
[ 5.280766] [sound 403][MACH simple_parse_of] simple_dai_link_of failed
[ 5.289369] [sound 403][MACH simple_parse_of] simple_dai_link_of failed
boot-resource@mmcblk0p1:env@mmcblk0p2:env-redund@mmcblk0p3:boot@mmcblk0p4:rootfs @mmcblk0p5:dsp0@mmcblk0p6:private@mmcblk0p7:rootfs_data@mmcblk0p8:UDISK@mmcblk0p 9
[ 5.959956] EXT4-fs: Warning: mounting with data=journal disables delayed all ocation and O_DIRECT support!
[ 5.973615] EXT4-fs (mmcblk0p8): mounted filesystem with journalled data mode . Opts: data=journal
Cannot parse config file '/etc/fw_env.config': No such file or directory
init started: BusyBox v1.33.2 (2023-12-28 04:50:56 UTC)
starting pid 1304, tty '': '/etc/init.d/rcS'
------run rc.preboot file-----
install private mount info
libubi: error!: "/dev/by-name/private" is not a character device
ubiblock: error!: error while probing "/dev/by-name/private"
error 22 (Invalid argument)
[ 6.259694] /dev/ubiblock0_: Can't open blockdev
mount: mounting /dev/ubiblock0_ on /tmp/private/ failed: Invalid argument
[ 6.381254] EXT4-fs (mmcblk0p9): mounted filesystem with ordered data mode. O pts: (null)
[ 6.557300] FAT-fs (mmcblk0p1): Volume was not properly unmounted. Some data may be corrupt. Please run fsck.
------run rc.modules file-----
[ 7.158868] [sound 403][MACH simple_parse_of] simple_dai_link_of failed
[ 7.166861] usbcore: registered new interface driver rtl8723du
[ 7.340719] ======== XRADIO WIFI OPEN ========
[ 7.346695] [XRADIO] Driver Label:XR_V02.16.88_P2P_HT40_01.31
[ 7.353489] [XRADIO] Allocated hw_priv @ (ptrval)
[ 7.459714] [XRADIO] Detect SDIO card 0
[ 9.585897] [XRADIO] Remove SDIO card 0
[ 9.600202] [SBUS_ERR] sdio probe timeout!
[ 9.604793] [XRADIO_ERR] sbus_sdio_init failed
[ 9.610234] xradio_core_init failed (-110)!
failed to insert /lib/modules/5.4.61/xr829.ko
[ 9.773021] rtk_btusb: Realtek Bluetooth USB driver ver 3.1.52b1787.20240508- 150222
[ 9.781691] rtk_btcoex: rtk_btcoex_init: version: 1.2
[ 9.787389] rtk_btcoex: create workqueue
[ 9.791979] rtk_btcoex: alloc buffers 1408, 2304 for ev and l2
[ 9.798731] rtk_btusb: btusb_probe intf->cur_altsetting->desc.bInterfaceNumbe r 0
[ 9.807054] rtk_btusb: btusb_probe can_wakeup 1, may wakeup 0
[ 9.813493] rtk_btusb: patch_add
[ 9.817131] rtk_btusb: auto suspend is disabled
[ 9.822212] rtk_btusb: pid = 0xd723
[ 9.826146] rtk_btusb: patch_add: Reset gEVersion to 0xff
[ 9.832633] [sound 403][MACH simple_parse_of] simple_dai_link_of failed
[ 9.836554] rtk_btusb: btusb_probe: done
[ 9.845181] usbcore: registered new interface driver rtk_btusb
[ 9.852589] [sound 403][MACH simple_parse_of] simple_dai_link_of failed
[ 9.865094] rtk_btusb: btusb_open start
[ 9.869499] rtk_btusb: btusb_open hdev->promisc ==0
[ 9.872409] usbcore: registered new interface driver usb_ch343
[ 9.875007] rtk_btusb: download_patch start
[ 9.886875] rtk_btusb: chip type value: 0x71
[ 9.893013] rtk_btusb: chip_type->status = 0x0, chip_type->chip = 0xbeef
[ 9.895412] ch343: USB serial driver for ch342/ch343/ch344/ch347/ch339/ch9101 /ch9102/ch9103/ch9104/ch9143, etc.
[ 9.900981] rtk_btusb: HCI reset.
[ 9.919291] ch343: V1.8 On 2024.03
[ 9.924988] rtk_btusb: read_ver_rsp->lmp_subver = 0x8723
[ 9.931123] rtk_btusb: read_ver_rsp->hci_rev = 0xd
Failed to find hid-multitouch. M[ 9.936569] rtk_btusb: patch_entry->lmp_sub = 0x8723
aybe it is a built in module ?
[ 9.944901] rtk_btusb: load_firmware start
[ 9.952351] rtk_btusb: lmp_version = 0x8723
[ 9.957134] rtk_btusb: config filename rtl8723du_config
[ 9.963215] usb 1-1.2: Direct firmware load for rtl8723du_config failed with error -2
[ 9.972200] rtk_btusb: fw name is rtl8723du_fw
[ 9.977508] usb 1-1.2: Direct firmware load for rtl8723du_fw failed with erro r -2
[ 9.986061] rtk_btusb: request_firmware error
[ 9.990955] rtk_btusb: load firmware failed!
[ 9.995753] rtk_btusb: Rtk patch end -1
[ 10.000218] rtk_btusb: btusb_open failed
------run rc.final file-----
/etc/rc.common: line 21: /bin/setusbconfig: Permission denied
[ 10.142289] file system registered
[ 10.203323] random: dbus-uuidgen: uninitialized urandom read (12 bytes read)
[ 10.212994] random: dbus-uuidgen: uninitialized urandom read (8 bytes read)
[ 10.274491] read descriptors
[ 10.278132] read strings
[ 10.301800] random: dbus-daemon: uninitialized urandom read (12 bytes read)
dbus[1422]: Unknown group "lp" in message bus configuration file
[ 11.085804]
[ 11.085804] rmmod_host_driver
[ 11.085804]
[ 11.092459] [ehci0-controller]: sunxi_usb_disable_ehci
[ 11.098264] [sunxi-ehci0]: remove, pdev->name: 4101000.ehci0-controller, sunx i_ehci: 0xc0c86ac8
[ 11.108090] sunxi-ehci 4101000.ehci0-controller: remove, state 4
[ 11.114840] usb usb3: USB disconnect, device number 1
[ 11.121553] sunxi-ehci 4101000.ehci0-controller: USB bus 3 deregistered
[ 11.136315] [ohci0-controller]: sunxi_usb_disable_ohci
[ 11.142113] [sunxi-ohci0]: remove, pdev->name: 4101400.ohci0-controller, sunx i_ohci: 0xc0c86d78
[ 11.152504] sunxi-ohci 4101400.ohci0-controller: remove, state 4
[ 11.159422] usb usb4: USB disconnect, device number 1
[ 11.166282] sunxi-ohci 4101400.ohci0-controller: USB bus 4 deregistered
[ 11.174199]
[ 11.174199] insmod_device_driver
[ 11.174199]
[ 11.181889] sunxi_usb_udc 4100000.udc-controller: 4100000.udc-controller supp ly udc not found, using dummy regulator
device_chose finished!
clear private mount info
umount: can't unmount /tmp/private/: Invalid argument
libubi: error!: "/dev/by-name/private" is not a character device
ubiblock: error!: error while probing "/dev/by-name/private"
error 22 (Invalid argument)
numid=39,iface=MIXER,name='HPOUT Switch'
; type=BOOLEAN,access=rw------,values=1
: values=on
numid=25,iface=MIXER,name='HPOUT Gain'
; type=INTEGER,access=rw---R--,values=1,min=0,max=7,step=0
: values=7
| dBscale-min=-42.00dB,step=6.00dB,mute=0
ec200 dailing,ecm mode
usbnet,1
Please press Enter to activate this console. sh: Headphones: unknown operand
Error:Input device can not be found,plz use mouse & keyboard!
cat: can't open '/tmp/dbusaddr': No such file or directory
find qt5 installed done
wh=1920x1080, vwh=1920x2160, bpp=32, rotated=0
Turn on double b[ 11.887781] VE: enable hw clock
uffering.
Turn on 2d hardware a[ 11.892277] enable_cedar_hw_clk,563
cceleration.
Turn on 2d hardware acceleration rotate.
unable to open evdev interface:: No such file or directory
starting pid 1454, tty '': '-/bin/sh'
BusyBox v1.33.2 (2023-12-28 04:50:56 UTC) built-in shell (ash)
------run profile file-----
_____ _ __ _
|_ _||_| ___ _ _ | | |_| ___ _ _ _ _
| | _ | || | | |__ | || || | ||_'_|
| | | || | || _ | |_____||_||_|_||___||_,_|
|_| |_||_|_||_|_| Tina is Based on OpenWrt!
----------------------------------------------
Tina Linux (5.0, r0-6ada511)
----------------------------------------------
nodev debugfs
root@TinaLinux:/# [ 23.146529] random: crng init done
[ 23.150353] random: 1 urandom warning(s) missed due to ratelimiting
root@TinaLinux:/# https://www.bilibili.com/video/BV1NjqGY3EWA/?vd_source=abdd005
0a32c674a8d51d9c0a07dc269
扫一扫
888
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
