三叉链表存储结构
数据结构
//二叉树的三叉链表存储表示
typedef struct BiTPNode
{
TElemType data;
BiTPNode *parent, *lchild, *rchild; // 双亲、左右孩子指针
} BiTPNode, *BiPTree

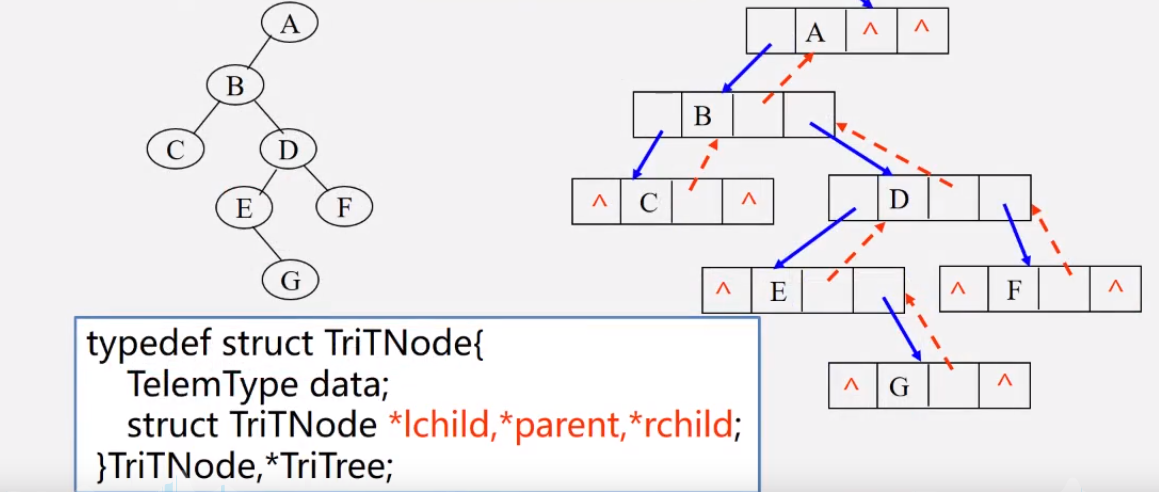

存储示例
代码实现
main.c
/*
* Change Logs:
* Date Author Notes
* 2021-07-22 tyustli first version
*/
#include "tree.h"
void visitT(BiPTree T)
{
if (T) // T非空
printf("%d ", T->data);
}
int main(int argc, char *argv[])
{
printf("this bitree\r\n");
int i;
BiPTree T, c, q;
TElemType e1, e2;
InitBiTree(&T);
printf("构造空二叉树后,树空否?%d(1:是 0:否)树的深度=%d\n", BiTreeEmpty(T), BiTreeDepth(T));
e1 = Root(T);
if (e1)
printf("二叉树的根为: %d \n", e1);
else
printf("树空,无根\n");
printf("请按先序输入二叉树(如:1 2 0 0 0表示1为根结点,2为左子树的二叉树)\n");
CreateBiTree(&T);
printf("建立二叉树后,树空否?%d(1:是 0:否) 树的深度=%d\n", BiTreeEmpty(T), BiTreeDepth(T));
e1 = Root(T);
if (e1)
printf("二叉树的根为: %d \n", e1);
else
printf("树空,无根\n");
printf("\n先序递归遍历二叉树:\n");
PreOrderTraverse(T, visitT);
printf("\n中序递归遍历二叉树:\n");
InOrderTraverse(T, visitT);
printf("\n后序递归遍历二叉树:\n");
PostOrderTraverse(T, visitT);
printf("\n层序遍历二叉树:\n");
LevelOrderTraverse(T, visitT);
}
/***************** end of file ******************/
tree.c
/*
* Change Logs:
* Date Author Notes
* 2021-07-22 tyustli first version
*/
#include "tree.h"
// 二叉树的三叉链表存储的基本操作
#define ClearBiTree DestroyBiTree // 清空二叉树和销毁二叉树的操作一样
TElemType Nil = 0; // 设整型以0为空
// 操作结果:构造空二叉树T
void InitBiTree(BiPTree *T)
{
*T = NULL;
}
// 初始条件:二叉树T存在。
// 操作结果:销毁二叉树T
void DestroyBiTree(BiPTree *T)
{
if (*T) // 非空树
{
if ((*T)->lchild) // 有左孩子
DestroyBiTree(&(*T)->lchild); // 销毁左孩子子树
if (&(*T)->rchild) // 有右孩子
DestroyBiTree(&(*T)->rchild); // 销毁右孩子子树
free(*T); // 释放根结点
*T = NULL; // 空指针赋0
}
}
// 按先序次序输入二叉树中结点的值(可为字符型或整型,在主程中定义),
// 构造三叉链表表示的二叉树T
void CreateBiTree(BiPTree *T)
{
TElemType ch;
scanf("%d ", &ch);
if (ch == Nil) // 空
{
*T = NULL;
}
else
{
*T = (BiPTree)malloc(sizeof(BiTPNode)); // 动态生成根结点
if (!*T)
exit(-1);
(*T)->data = ch; // 给根结点赋值
(*T)->parent = NULL; // 根结点无双亲
CreateBiTree(&(*T)->lchild); // 构造左子树
if ((*T)->lchild) // 有左孩子
(*T)->lchild->parent = *T; // 给左孩子的双亲域赋值
CreateBiTree(&(*T)->rchild); // 构造右子树
if ((*T)->rchild) // 有右孩子
(*T)->rchild->parent = *T; // 给右孩子的双亲域赋值
}
}
// 初始条件:二叉树T存在。
// 操作结果:若T为空二叉树,则返回TRUE,否则FALSE
Status BiTreeEmpty(BiPTree T)
{
if (T)
return FALSE;
else
return TRUE;
}
// 初始条件:二叉树T存在。
// 操作结果:返回T的深度
int BiTreeDepth(BiPTree T)
{
int i, j;
if (!T)
return 0; // 空树深度为0
if (T->lchild)
i = BiTreeDepth(T->lchild); // i为左子树的深度
else
i = 0;
if (T->rchild)
j = BiTreeDepth(T->rchild); // j为右子树的深度
else
j = 0;
return i > j ? i + 1 : j + 1; // T的深度为其左右子树的深度中的大者+1
}
// 初始条件:二叉树T存在。
// 操作结果:返回T的根
TElemType Root(BiPTree T)
{
if (T)
return T->data;
else
return Nil;
}
// 初始条件:二叉树T存在,p指向T中某个结点。
// 操作结果:返回p所指结点的值
TElemType Value(BiPTree p)
{
return p->data;
}
// 给p所指结点赋值为value
void Assign(BiPTree p, TElemType value)
{
p->data = value;
}
#if 1
typedef BiPTree QElemType; // 设队列元素为二叉树的指针类型
typedef struct QNode
{
QElemType data; /* 数据域 */
struct QNode *next; /* 指针域 */
} QNode, *QueuePtr;
typedef struct LinkQueue
{
QueuePtr front; // 队头指针
QueuePtr rear; // 队尾指针
} LinkQueue;
void InitQueue(LinkQueue *Q);
void DestroyQueue(LinkQueue *Q);
void ClearQueue(LinkQueue *Q);
Status QueueEmpty(LinkQueue Q);
int QueueLength(LinkQueue Q);
Status GetHead(LinkQueue Q, QElemType *e);
void EnQueue(LinkQueue *Q, QElemType e);
Status DeQueue(LinkQueue *Q, QElemType *e);
void QueueTraverse(LinkQueue Q, void (*vi)(QElemType));
void print(QElemType i);
void InitQueue(LinkQueue *Q)
{
Q->front = Q->rear = (QueuePtr)malloc(sizeof(QNode));
if (Q->front == NULL)
exit(-1);
Q->front->next = NULL;
}
void DestroyQueue(LinkQueue *Q)
{
while (Q->front)
{
Q->rear = Q->front->next;
free(Q->front);
Q->front = Q->rear;
}
}
void ClearQueue(LinkQueue *Q)
{
QueuePtr p, q;
Q->rear = Q->front;
p = Q->front->next;
Q->front->next = NULL;
while (p)
{
q = p;
p = p->next;
free(q);
}
}
Status QueueEmpty(LinkQueue Q)
{
if (Q.front->next == NULL)
return TRUE;
else
return FALSE;
}
int QueueLength(LinkQueue Q)
{
int i = 0;
QueuePtr p;
p = Q.front;
while (Q.rear != p)
{
i++;
p = p->next;
}
return i;
}
Status GetHead(LinkQueue Q, QElemType *e)
{
QueuePtr p;
if (Q.front == Q.rear)
return ERROR;
p = Q.front->next;
*e = p->data;
return OK;
}
void EnQueue(LinkQueue *Q, QElemType e)
{
QueuePtr p;
if (!(p = (QueuePtr)malloc(sizeof(QNode))))
exit(-1);
p->data = e;
p->next = NULL;
Q->rear->next = p;
Q->rear = p;
}
Status DeQueue(LinkQueue *Q, QElemType *e)
{
QueuePtr p;
if (Q->front == Q->rear)
return ERROR;
p = Q->front->next;
*e = p->data;
Q->front->next = p->next;
if (Q->rear == p)
Q->rear = Q->front;
free(p);
return OK;
}
void QueueTraverse(LinkQueue Q, void (*vi)(QElemType))
{
QueuePtr p;
p = Q.front->next;
while (p)
{
vi(p->data);
p = p->next;
}
printf("\n");
}
void print(QElemType i)
{
// printf("%s ", i);
}
#endif
// typedef BiPTree QElemType; // 设队列元素为二叉树的指针类型
// 返回二叉树T中指向元素值为e的结点的指针
BiPTree Point(BiPTree T, TElemType e)
{
LinkQueue q;
QElemType a;
if (T) // 非空树
{
InitQueue(&q); // 初始化队列
EnQueue(&q, T); // 根结点入队
while (!QueueEmpty(q)) // 队不空
{
DeQueue(&q, &a); // 出队,队列元素赋给a
if (a->data == e)
return a;
if (a->lchild) // 有左孩子
EnQueue(&q, a->lchild); // 入队左孩子
if (a->rchild) // 有右孩子
EnQueue(&q, a->rchild); // 入队右孩子
}
}
return NULL;
}
// 初始条件:二叉树T存在,e是T中某个结点
// 操作结果:若e是T的非根结点,则返回它的双亲,否则返回"空"
TElemType Parent(BiPTree T, TElemType e)
{
BiPTree a;
if (T) // 非空树
{
a = Point(T, e); // a是结点e的指针
if (a && a != T) // T中存在结点e且e是非根结点
return a->parent->data; // 返回e的双亲的值
}
return Nil; // 其余情况返回空
}
// 初始条件:二叉树T存在,e是T中某个结点。
// 操作结果:返回e的左孩子。若e无左孩子,则返回"空"
TElemType LeftChild(BiPTree T, TElemType e)
{
BiPTree a;
if (T) // 非空树
{
a = Point(T, e); // a是结点e的指针
if (a && a->lchild) // T中存在结点e且e存在左孩子
return a->lchild->data; // 返回e的左孩子的值
}
return Nil; // 其余情况返回空
}
// 初始条件:二叉树T存在,e是T中某个结点。
// 操作结果:返回e的右孩子。若e无右孩子,则返回"空"
TElemType RightChild(BiPTree T, TElemType e)
{
BiPTree a;
if (T) // 非空树
{
a = Point(T, e); // a是结点e的指针
if (a && a->rchild) // T中存在结点e且e存在右孩子
return a->rchild->data; // 返回e的右孩子的值
}
return Nil; // 其余情况返回空
}
// 初始条件:二叉树T存在,e是T中某个结点
// 操作结果:返回e的左兄弟。若e是T的左孩子或无左兄弟,则返回"空"
TElemType LeftSibling(BiPTree T, TElemType e)
{
BiPTree a;
if (T) // 非空树
{
a = Point(T, e); // a是结点e的指针
if (a && a != T && a->parent->lchild && a->parent->lchild != a) // T中存在结点e且e存在左兄弟
return a->parent->lchild->data; // 返回e的左兄弟的值
}
return Nil; // 其余情况返回空
}
// 初始条件:二叉树T存在,e是T中某个结点
// 操作结果:返回e的右兄弟。若e是T的右孩子或无右兄弟,则返回"空"
TElemType RightSibling(BiPTree T, TElemType e)
{
BiPTree a;
if (T) // 非空树
{
a = Point(T, e); // a是结点e的指针
if (a && a != T && a->parent->rchild && a->parent->rchild != a) // T中存在结点e且e存在右兄弟
return a->parent->rchild->data; // 返回e的右兄弟的值
}
return Nil; // 其余情况返回空
}
// 初始条件:二叉树T存在,p指向T中某个结点,LR为0或1,非空二叉树c与T不相交且右子树为空
// 操作结果:根据LR为0或1,插入c为T中p所指结点的左或右子树。p所指结点
Status InsertChild(BiPTree p, int LR, BiPTree c) // 形参T无用
{
// 的原有左或右子树则成为c的右子树
if (p) // p不空
{
if (LR == 0)
{
c->rchild = p->lchild;
if (c->rchild) // c有右孩子(p原有左孩子)
c->rchild->parent = c;
p->lchild = c;
c->parent = p;
}
else // LR==1
{
c->rchild = p->rchild;
if (c->rchild) // c有右孩子(p原有右孩子)
c->rchild->parent = c;
p->rchild = c;
c->parent = p;
}
return OK;
}
return ERROR; // p空
}
// 初始条件:二叉树T存在,p指向T中某个结点,LR为0或1
// 操作结果:根据LR为0或1,删除T中p所指结点的左或右子树
Status DeleteChild(BiPTree p, int LR) // 形参T无用
{
if (p) // p不空
{
if (LR == 0) // 删除左子树
ClearBiTree(&p->lchild);
else // 删除右子树
ClearBiTree(&p->rchild);
return OK;
}
return ERROR; // p空
}
// 先序递归遍历二叉树T
void PreOrderTraverse(BiPTree T, void (*Visit)(BiPTree))
{
if (T)
{
Visit(T); // 先访问根结点
PreOrderTraverse(T->lchild, Visit); // 再先序遍历左子树
PreOrderTraverse(T->rchild, Visit); // 最后先序遍历右子树
}
}
// 中序递归遍历二叉树T
void InOrderTraverse(BiPTree T, void (*Visit)(BiPTree))
{
if (T)
{
InOrderTraverse(T->lchild, Visit); // 中序遍历左子树
Visit(T); // 再访问根结点
InOrderTraverse(T->rchild, Visit); // 最后中序遍历右子树
}
}
// 后序递归遍历二叉树T
void PostOrderTraverse(BiPTree T, void (*Visit)(BiPTree))
{
if (T)
{
PostOrderTraverse(T->lchild, Visit); // 后序遍历左子树
PostOrderTraverse(T->rchild, Visit); // 后序遍历右子树
Visit(T); // 最后访问根结点
}
}
// 层序遍历二叉树T(利用队列)
void LevelOrderTraverse(BiPTree T, void (*Visit)(BiPTree))
{
LinkQueue q;
QElemType a;
if (T)
{
InitQueue(&q);
EnQueue(&q, T);
while (!QueueEmpty(q))
{
DeQueue(&q, &a);
Visit(a);
if (a->lchild != NULL)
EnQueue(&q, a->lchild);
if (a->rchild != NULL)
EnQueue(&q, a->rchild);
}
}
}
/***************** end of file ******************/
tree.h
/*
* Change Logs:
* Date Author Notes
* 2021-07-22 tyustli first version
*/
#include <string.h>
#include <ctype.h>
#include <malloc.h> // malloc()等
#include <limits.h> // INT_MAX等
#include <stdio.h> // EOF(=^Z或F6),NULL
#include <stdlib.h> // atoi()
#include <math.h> // floor(),ceil(),abs()
// 函数结果状态代码
#define TRUE 1
#define FALSE 0
#define OK 1
#define ERROR 0
#define INFEASIBLE -1
// #define OVERFLOW -2 因为在math.h中已定义OVERFLOW的值为3,故去掉此行
typedef int Status; // Status是函数的类型,其值是函数结果状态代码,如OK等
typedef int Boolean; // Boolean是布尔类型,其值是TRUE或FALSE
typedef int TElemType;
//二叉树的三叉链表存储表示
typedef struct BiTPNode
{
TElemType data;
struct BiTPNode *parent, *lchild, *rchild; // 双亲、左右孩子指针
} BiTPNode, *BiPTree;
void InitBiTree(BiPTree *T);
void CreateBiTree(BiPTree *T);
void DestroyBiTree(BiPTree *T);
void ClearBiTree(BiPTree *T);
Status BiTreeEmpty(BiPTree T);
int BiTreeDepth(BiPTree T);
TElemType Root(BiPTree T);
TElemType Value(BiPTree p);
void Assign(BiPTree p, TElemType value);
BiPTree Point(BiPTree T, TElemType e);
TElemType Parent(BiPTree T, TElemType e);
TElemType LeftChild(BiPTree T, TElemType e);
TElemType RightChild(BiPTree T, TElemType e);
TElemType LeftSibling(BiPTree T, TElemType e);
TElemType RightSibling(BiPTree T, TElemType e);
Status InsertChild(BiPTree p, int LR, BiPTree c);
Status DeleteChild(BiPTree p, int LR);
void PreOrderTraverse(BiPTree T, void (*Visit)(BiPTree));
void InOrderTraverse(BiPTree T, void (*Visit)(BiPTree));
void PostOrderTraverse(BiPTree T, void (*Visit)(BiPTree));
void LevelOrderTraverse(BiPTree T, void (*Visit)(BiPTree));
/***************** end of file ******************/
makefile
objects = main.o tree.o
obj: $(objects)
cc -o obj $(objects) -lm
main.o : tree.h
tree.o : tree.h
.PHONY : clean
clean :
-rm obj $(objects)
