3_基于numpy的mlp反向传播实现

对于深度学习反向传播的推导主要有三部分第一部分交叉熵求导，第二部分softmax函数的求导，第三部分f(wx+b)的求导，后期会把这部分理论内容写到博客中。不写的博客中总是推了忘又推又忘的节奏。

%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
from sklearn.datasets import load_digits

digits = load_digits()

sample_index = 45
plt.figure(figsize=(3, 3))
plt.imshow(digits.images[sample_index], cmap=plt.cm.gray_r,
           interpolation='nearest')
plt.title("image label: %d" % digits.target[sample_index]);

对数据进行标准化处理

from sklearn import preprocessing
from sklearn.model_selection import train_test_split

data = np.asarray(digits.data, dtype='float32')
target = np.asarray(digits.target, dtype='int32')

X_train, X_test, y_train, y_test = train_test_split(
    data, target, test_size=0.15, random_state=37)

# mean = 0 ; standard deviation = 1.0
scaler = preprocessing.StandardScaler()
X_train = scaler.fit_transform(X_train)
X_test = scaler.transform(X_test)

# print(scaler.mean_)
# print(scaler.scale_)

X_train.shape

(1527, 64)

X_train.dtype

dtype('float32')

X_test.shape

(270, 64)

y_train.shape

(1527,)

y_train.dtype

dtype('int32')

基于Numpy的反向传播

a) Logitstic regression

这部分将用Numpy实现logistic regression,并完成SGD的反向传播，具体有：

• 实现无隐藏层的前向运算网络，实际也就是一个logitstic regression
  $y=softmax(\mathbf{W}\dot{x}+b)$
• 构建一个分类函数，输入$x$时，将最大分类的概率值返回
• 构建一个损失函数，能够处理批量输入$X$还有对应标签$y_{true}$
• 构建求梯度的函数$\frac{d}{W}-\log (softmax(W\dot{x}+b))$,并验证梯度的有效性
• 构建对参数$\mathbf{W}$和$\mathbf{b}$的梯度更新函数

对标签进行one-hot编码（类似keras中的to_categorical)

import numpy as np
def one_hot(n_classes,y):
    return np.eye(n_classes)[y]

one_hot(10,3)

array([0., 0., 0., 1., 0., 0., 0., 0., 0., 0.])

one_hot(10,[0,4,9])

array([[1., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 1., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 1.]])

Softmax

$$softmax(\mathbf{x})=\frac{1}{{\sum }_{i=1}^n{e}^{x_i}}\cdot \left[\begin{array}{c}{e}^{x_1}\\ \\ e^{x_2}\\ \\ ⋮\\ \\ e^{x_n}\end{array}\right]$$

def softmax(X):
    """
    这种定义方法可以同时处理向量和矩阵
    """
    exp = np.exp(X)
    return exp/np.sum(exp,axis=-1,keepdims=True)

print("softmax of a single vector:")
print(softmax([10, 2, -3]))
print(np.sum(softmax([10, 2, -3])))
print("sotfmax of 2 vectors:")
X = np.array([[10, 2, -3],
              [-1, 5, -20]])
print(softmax(X))
print(np.sum(softmax(X), axis=1))

softmax of a single vector:
[9.99662391e-01 3.35349373e-04 2.25956630e-06]
1.0
sotfmax of 2 vectors:
[[9.99662391e-01 3.35349373e-04 2.25956630e-06]
 [2.47262316e-03 9.97527377e-01 1.38536042e-11]]
[1. 1.]

实现交叉熵，也就是negative log likelihoot

要求要能同时处理向量和矩阵
$loglikelihood=-{\sum }_{i=1}^n{y}_{true}^i\cdot log(y_{pred}^i)$

给定one-hot和Y_true和预测的Y_pred返回似然值

EPSILON=1e-8
def nll(Y_true,Y_pred):
    Y_true=np.atleast_2d(Y_true)
    Y_pred=np.atleast_2d(Y_pred)
    loglikelihoods = np.sum(np.log(EPSILON + Y_pred) * Y_true, axis=-1)
    return -np.mean(loglikelihoods)

# Make sure that it works for a simple sample at a time
print(nll([1, 0, 0], [.99, 0.01, 0]))

0.01005032575249135

#如果对错误分类非常高的信任
print(nll([1, 0, 0], [0.01, 0.01, 0.98]))

4.605169185988592

#多个输入输出时的平均结果，估算应该接0
Y_true = np.array([[0, 1, 0],
                   [1, 0, 0],
                   [0, 0, 1]])

Y_pred = np.array([[0,   1,    0],
                   [.99, 0.01, 0],
                   [0,   0,    1]])

print(nll(Y_true, Y_pred))

0.0033501019174971905

接着，通过SGD来学习一个简单的线性模型，一次处理一个样本one sample each time

class LogisticRegression():

    def __init__(self, input_size, output_size):
        self.W = np.random.uniform(size=(input_size, output_size),
                                   high=0.1, low=-0.1)
        self.b = np.random.uniform(size=output_size,
                                   high=0.1, low=-0.1)
        self.output_size = output_size

    def forward(self, X):
        Z = np.dot(X, self.W) + self.b
        return softmax(Z)

    def predict(self, X):
        if len(X.shape) == 1:
            return np.argmax(self.forward(X))
        else:
            return np.argmax(self.forward(X), axis=1)

    def grad_loss(self, x, y_true):
        y_pred = self.forward(x)
        dnll_output =  y_pred - one_hot(self.output_size, y_true)
        grad_W = np.outer(x, dnll_output)
        grad_b = dnll_output
        grads = {"W": grad_W, "b": grad_b}
        return grads

    def train(self, x, y, learning_rate):
        # Traditional SGD update without momentum
        grads = self.grad_loss(x, y)
        self.W = self.W - learning_rate * grads["W"]
        self.b = self.b - learning_rate * grads["b"]

    def loss(self, X, y):
        return nll(one_hot(self.output_size, y), self.forward(X))

    def accuracy(self, X, y):
        y_preds = np.argmax(self.forward(X), axis=1)
        return np.mean(y_preds == y)

# 构建模型并进行前向推理
n_features = X_train.shape[1]
n_classes = len(np.unique(y_train))
lr = LogisticRegression(n_features, n_classes)

print("Evaluation of the untrained model:")
train_loss = lr.loss(X_train, y_train)
train_acc = lr.accuracy(X_train, y_train)
test_acc = lr.accuracy(X_test, y_test)

print("train loss: %0.4f, train acc: %0.3f, test acc: %0.3f"
      % (train_loss, train_acc, test_acc))

Evaluation of the untrained model:
train loss: 2.4864, train acc: 0.080, test acc: 0.063

评估随机初始化参数的模型对一个样本的预测情况

def plot_prediction(model, sample_idx=0, classes=range(10)):
    fig, (ax0, ax1) = plt.subplots(nrows=1, ncols=2, figsize=(10, 4))

    ax0.imshow(scaler.inverse_transform(X_test[sample_idx]).reshape(8, 8), cmap=plt.cm.gray_r,
               interpolation='nearest')
    ax0.set_title("True image label: %d" % y_test[sample_idx]);


    ax1.bar(classes, one_hot(len(classes), y_test[sample_idx]), label='true')
    ax1.bar(classes, model.forward(X_test[sample_idx]), label='prediction', color="red")
    ax1.set_xticks(classes)
    prediction = model.predict(X_test[sample_idx])
    ax1.set_title('Output probabilities (prediction: %d)'
                  % prediction)
    ax1.set_xlabel('Digit class')
    ax1.legend()

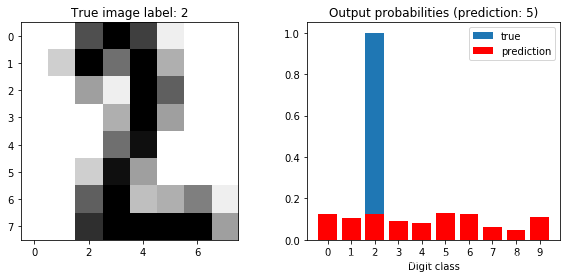

plot_prediction(lr, sample_idx=0)

# 对模型训练一个epoch,Training for one epoch
learning_rate = 0.01

for i, (x, y) in enumerate(zip(X_train, y_train)):
    lr.train(x, y, learning_rate)
    if i % 100 == 0:
        train_loss = lr.loss(X_train, y_train)
        train_acc = lr.accuracy(X_train, y_train)
        test_acc = lr.accuracy(X_test, y_test)
        print("Update #%d, train loss: %0.4f, train acc: %0.3f, test acc: %0.3f"
              % (i, train_loss, train_acc, test_acc))

Update #0, train loss: 2.4535, train acc: 0.087, test acc: 0.074
Update #100, train loss: 1.3819, train acc: 0.626, test acc: 0.685
Update #200, train loss: 0.9100, train acc: 0.826, test acc: 0.848
Update #300, train loss: 0.6685, train acc: 0.882, test acc: 0.904
Update #400, train loss: 0.5509, train acc: 0.898, test acc: 0.911
Update #500, train loss: 0.4755, train acc: 0.911, test acc: 0.930
Update #600, train loss: 0.4149, train acc: 0.920, test acc: 0.930
Update #700, train loss: 0.3751, train acc: 0.927, test acc: 0.952
Update #800, train loss: 0.3526, train acc: 0.929, test acc: 0.944
Update #900, train loss: 0.3267, train acc: 0.935, test acc: 0.948
Update #1000, train loss: 0.3055, train acc: 0.938, test acc: 0.956
Update #1100, train loss: 0.2861, train acc: 0.946, test acc: 0.956
Update #1200, train loss: 0.2744, train acc: 0.948, test acc: 0.959
Update #1300, train loss: 0.2620, train acc: 0.950, test acc: 0.944
Update #1400, train loss: 0.2486, train acc: 0.953, test acc: 0.952
Update #1500, train loss: 0.2374, train acc: 0.953, test acc: 0.948

再次对模型进行评估

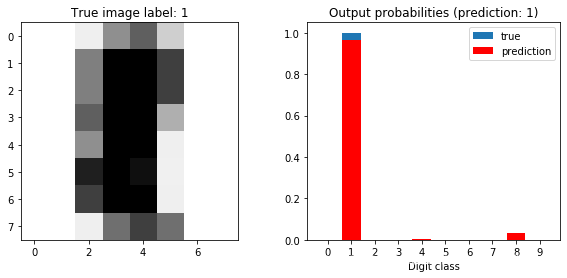

plot_prediction(lr, sample_idx=0)

b)多层感知机

这个环节要实现只有一个隐藏层的感知机，具休的：

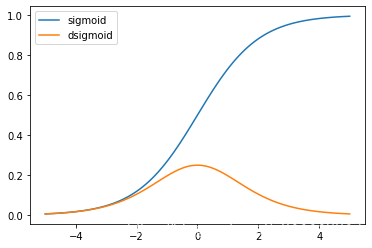

• 实现针对单个元素的sigmoid函数以及导数dsigmoid

$$sigmoid(x)=\frac{1}{1+e^{-x}}$$

$$dsigmoid(x)=sigmoid(x)\cdot (1-sigmoid(x))$$

def sigmoid(X):
    return 1 / (1 + np.exp(-X))


def dsigmoid(X):
    sig=sigmoid(X)
    return sig * (1 - sig)

x = np.linspace(-5, 5, 100)
plt.plot(x, sigmoid(x), label='sigmoid')
plt.plot(x, dsigmoid(x), label='dsigmoid')
plt.legend(loc='best');

定义模型：

• $\mathbf{h}=sigmoid({\mathbf{W}}^h\mathbf{x}+{\mathbf{b}}^h)$
• $\mathbf{y}=sigmoid({\mathbf{W}}^0\mathbf{x}+{\mathbf{b}}^o)$
• 注意：
  • 代码要简捷
  • forward前向运算多了一层针对element的运算
• 计算所有变量的梯度并更新
• 实现train和loss函数

EPSILON=1e-8

class NeuralNet():
    """只有一层隐藏的MLP"""
    def __init__(self,input_size,hidden_size,output_size):
        self.W_h=np.random.uniform(size=(input_size,hidden_size),high=0.01,low=-0.01)
        self.b_h=np.zeros(hidden_size)
        self.W_o = np.random.uniform(size=(hidden_size, output_size), high=0.01, low=-0.01)
        self.b_o = np.zeros(output_size)
        self.output_size = output_size
    def forward(self,X,keep_activations=False):
        z_h=np.dot(X,self.W_h)+self.b_h
        h = sigmoid(z_h)
        z_o = np.dot(h, self.W_o) + self.b_o
        y = softmax(z_o)
        if keep_activations:
            return y, h, z_h
        else:
            return y
    def loss(self, X, y):
        return nll(one_hot(self.output_size, y), self.forward(X))

    def grad_loss(self, x, y_true):
        y, h, z_h = self.forward(x, keep_activations=True)
        grad_z_o = y - one_hot(self.output_size, y_true)

        grad_W_o = np.outer(h, grad_z_o)
        grad_b_o = grad_z_o
        grad_h = np.dot(grad_z_o, np.transpose(self.W_o))
        grad_z_h = grad_h * dsigmoid(z_h)
        grad_W_h = np.outer(x, grad_z_h)
        grad_b_h = grad_z_h
        grads = {"W_h": grad_W_h, "b_h": grad_b_h,
                 "W_o": grad_W_o, "b_o": grad_b_o}
        return grads
    def train(self, x, y, learning_rate):
        # Traditional SGD update on one sample at a time
        grads = self.grad_loss(x, y)
        self.W_h = self.W_h - learning_rate * grads["W_h"]
        self.b_h = self.b_h - learning_rate * grads["b_h"]
        self.W_o = self.W_o - learning_rate * grads["W_o"]
        self.b_o = self.b_o - learning_rate * grads["b_o"]

    def predict(self, X):
        if len(X.shape) == 1:
            return np.argmax(self.forward(X))
        else:
            return np.argmax(self.forward(X), axis=1)

    def accuracy(self, X, y):
        y_preds = np.argmax(self.forward(X), axis=1)
        return np.mean(y_preds == y)

n_hidden = 10
model = NeuralNet(n_features, n_hidden, n_classes)

model.loss(X_train, y_train)

2.3026371675800914

model.accuracy(X_train, y_train)

0.10019646365422397

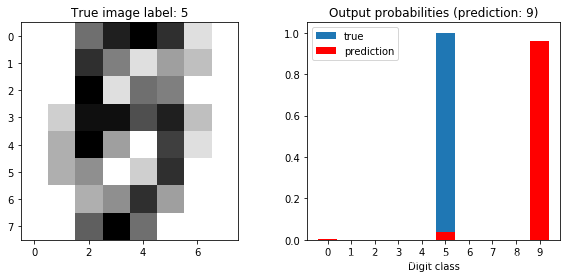

plot_prediction(model, sample_idx=5)

losses, accuracies, accuracies_test = [], [], []
losses.append(model.loss(X_train, y_train))
accuracies.append(model.accuracy(X_train, y_train))
accuracies_test.append(model.accuracy(X_test, y_test))

print("Random init: train loss: %0.5f, train acc: %0.3f, test acc: %0.3f"
      % (losses[-1], accuracies[-1], accuracies_test[-1]))

for epoch in range(15):
    for i, (x, y) in enumerate(zip(X_train, y_train)):
        model.train(x, y, 0.1)

    losses.append(model.loss(X_train, y_train))
    accuracies.append(model.accuracy(X_train, y_train))
    accuracies_test.append(model.accuracy(X_test, y_test))
    print("Epoch #%d, train loss: %0.5f, train acc: %0.3f, test acc: %0.3f"
          % (epoch + 1, losses[-1], accuracies[-1], accuracies_test[-1]))

Random init: train loss: 2.30264, train acc: 0.100, test acc: 0.107
Epoch #1, train loss: 0.38531, train acc: 0.903, test acc: 0.870
Epoch #2, train loss: 0.16841, train acc: 0.966, test acc: 0.937
Epoch #3, train loss: 0.10853, train acc: 0.978, test acc: 0.941
Epoch #4, train loss: 0.08321, train acc: 0.983, test acc: 0.944
Epoch #5, train loss: 0.07334, train acc: 0.984, test acc: 0.952
Epoch #6, train loss: 0.05982, train acc: 0.988, test acc: 0.952
Epoch #7, train loss: 0.04968, train acc: 0.993, test acc: 0.952
Epoch #8, train loss: 0.04381, train acc: 0.993, test acc: 0.948
Epoch #9, train loss: 0.03836, train acc: 0.996, test acc: 0.948
Epoch #10, train loss: 0.03343, train acc: 0.997, test acc: 0.963
Epoch #11, train loss: 0.02923, train acc: 0.999, test acc: 0.963
Epoch #12, train loss: 0.02605, train acc: 0.999, test acc: 0.959
Epoch #13, train loss: 0.02334, train acc: 0.999, test acc: 0.959
Epoch #14, train loss: 0.02100, train acc: 0.999, test acc: 0.959
Epoch #15, train loss: 0.01895, train acc: 0.999, test acc: 0.959

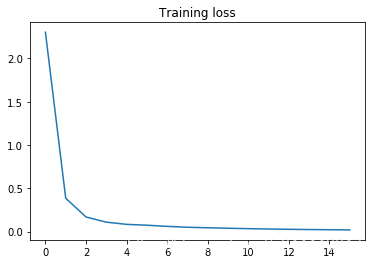

plt.plot(losses)
plt.title("Training loss");

plt.plot(accuracies, label='train')
plt.plot(accuracies_test, label='test')
plt.ylim(0, 1.1)
plt.ylabel("accuracy")
plt.legend(loc='best');

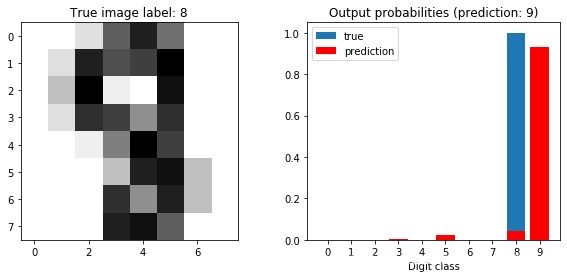

plot_prediction(model, sample_idx=5)

c) 更多操作

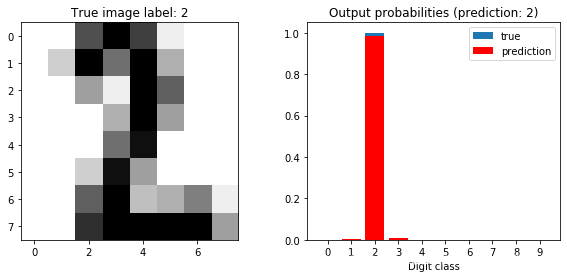

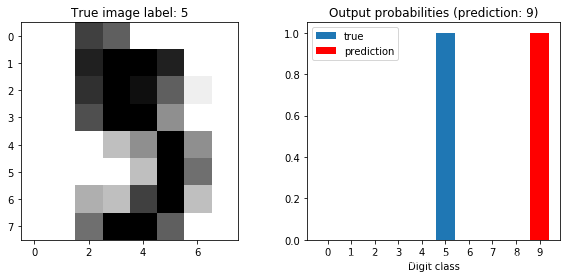

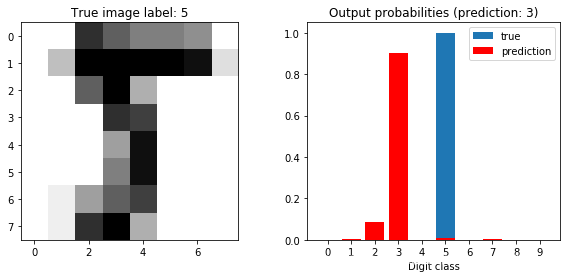

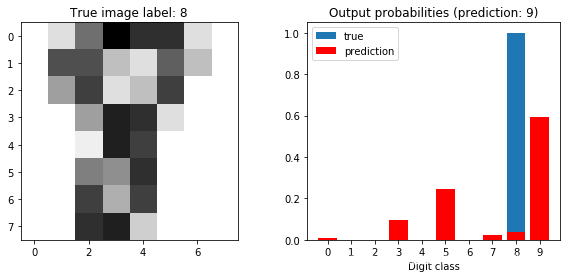

查找预测结果最差的样本

• 找到预测结果最差的样本
• 使用plot_predictions查看

test_losses = -np.sum(np.log(EPSILON + model.forward(X_test))
                      * one_hot(10, y_test), axis=1)

#按loss从小到大排序，前边的loss小，后边的loss大
ranked_by_loss = test_losses.argsort()

#显示最差的5个样本
worst_idx = ranked_by_loss[-5:]
print("test losses:", test_losses[worst_idx])
for idx in worst_idx:
    plot_prediction(model, sample_idx=idx)

test losses: [3.15997934 3.33671786 3.34218763 4.99581726 8.59161317]

超参数设置

• 改变超参数可以做很多不同的实验:
  • 学习率
  • 隐藏层节点个数
  • 参数初始化方法：全零，均匀分布，正态分存等
  • 激活函数的选用
  • 加另外一个
• 梯度下降法的:Momentum
• 回到keras:
  • 用keras实现相同的网络
  • 相同参数情况下，keras和numpy实现应该是相同效果
  • 计算第42个样本的 negative log likelihood
  • 计算所有测试样的平均负对数似然值
  • 计算所有训练样本的 negative log likelihood

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense
from tensorflow.keras.optimizers import SGD
from tensorflow.keras.utils import to_categorical

n_features = 8 * 8
n_classes = 10
n_hidden = 10

keras_model = Sequential()
keras_model.add(Dense(n_hidden, input_dim=n_features, activation='sigmoid'))
keras_model.add(Dense(n_classes, activation='softmax'))

keras_model.compile(optimizer=SGD(lr=3),
                    loss='categorical_crossentropy', metrics=['accuracy'])

keras_model.fit(X_train, to_categorical(y_train), epochs=15, batch_size=32);

Train on 1527 samples
Epoch 1/15
1527/1527 [==============================] - 1s 901us/sample - loss: 0.7866 - accuracy: 0.7865
Epoch 2/15
1527/1527 [==============================] - 0s 101us/sample - loss: 0.2057 - accuracy: 0.9548
Epoch 3/15
1527/1527 [==============================] - 0s 101us/sample - loss: 0.1388 - accuracy: 0.9692
Epoch 4/15
1527/1527 [==============================] - 0s 94us/sample - loss: 0.0945 - accuracy: 0.9797
Epoch 5/15
1527/1527 [==============================] - 0s 101us/sample - loss: 0.0801 - accuracy: 0.9830
Epoch 6/15
1527/1527 [==============================] - 0s 94us/sample - loss: 0.0670 - accuracy: 0.9876
Epoch 7/15
1527/1527 [==============================] - 0s 92us/sample - loss: 0.0555 - accuracy: 0.9895
Epoch 8/15
1527/1527 [==============================] - 0s 98us/sample - loss: 0.0494 - accuracy: 0.9902
Epoch 9/15
1527/1527 [==============================] - 0s 90us/sample - loss: 0.0393 - accuracy: 0.9967
Epoch 10/15
1527/1527 [==============================] - 0s 93us/sample - loss: 0.0333 - accuracy: 0.9961
Epoch 11/15
1527/1527 [==============================] - 0s 97us/sample - loss: 0.0310 - accuracy: 0.9974
Epoch 12/15
1527/1527 [==============================] - 0s 95us/sample - loss: 0.0270 - accuracy: 0.9980
Epoch 13/15
1527/1527 [==============================] - 0s 93us/sample - loss: 0.0244 - accuracy: 0.9967
Epoch 14/15
1527/1527 [==============================] - 0s 95us/sample - loss: 0.0219 - accuracy: 0.9974
Epoch 15/15
1527/1527 [==============================] - 0s 91us/sample - loss: 0.0199 - accuracy: 0.9980

sample_idx = 42
plt.imshow(scaler.inverse_transform(X_test[sample_idx]).reshape(8, 8),
           cmap=plt.cm.gray_r, interpolation='nearest')
plt.title("true label: %d" % y_test[sample_idx])

#获得所有测试结果的前向运算值 （概率）
probabilities = keras_model.predict_proba(X_test, verbose=0)

print("Predicted probability distribution for sample #42:")
for class_idx, prob in enumerate(probabilities[sample_idx]):
    print("%d: %0.5f" % (class_idx, prob))
print()

print("Likelihood of true class for sample #42:")
p_42 = probabilities[sample_idx, y_test[sample_idx]]
print(p_42)
print()

print("Negative Log Likelihood of true class for sample #42:")
print(-np.log(p_42))
print()

print("Average negative loglikelihood of the test set:")
Y_test = to_categorical(y_test)
loglikelihoods = np.sum(np.log(probabilities) * Y_test, axis=1)
print(-np.mean(loglikelihoods))

Predicted probability distribution for sample #42:
0: 0.00001
1: 0.00258
2: 0.00007
3: 0.00000
4: 0.00043
5: 0.00001
6: 0.00004
7: 0.00000
8: 0.99674
9: 0.00011

Likelihood of true class for sample #42:
0.99674326

Negative Log Likelihood of true class for sample #42:
0.003262053

Average negative loglikelihood of the test set:
0.099366665

for sample #42:")
print(-np.log(p_42))
print()

print(“Average negative loglikelihood of the test set:”)
Y_test = to_categorical(y_test)
loglikelihoods = np.sum(np.log(probabilities) * Y_test, axis=1)
print(-np.mean(loglikelihoods))

    Predicted probability distribution for sample #42:
    0: 0.00001
    1: 0.00258
    2: 0.00007
    3: 0.00000
    4: 0.00043
    5: 0.00001
    6: 0.00004
    7: 0.00000
    8: 0.99674
    9: 0.00011

    Likelihood of true class for sample #42:
    0.99674326

    Negative Log Likelihood of true class for sample #42:
    0.003262053

    Average negative loglikelihood of the test set:
    0.099366665







```python
