20210426瑞芯微RK3399在Android10下的ADB连接

20210426瑞芯微RK3399在Android10下的ADB连接

开发板：中山市天启智能科技有限公司AIO-3399J

https://www.t-firefly.com/doc/download/31.html
SDK：版本号Android10.0

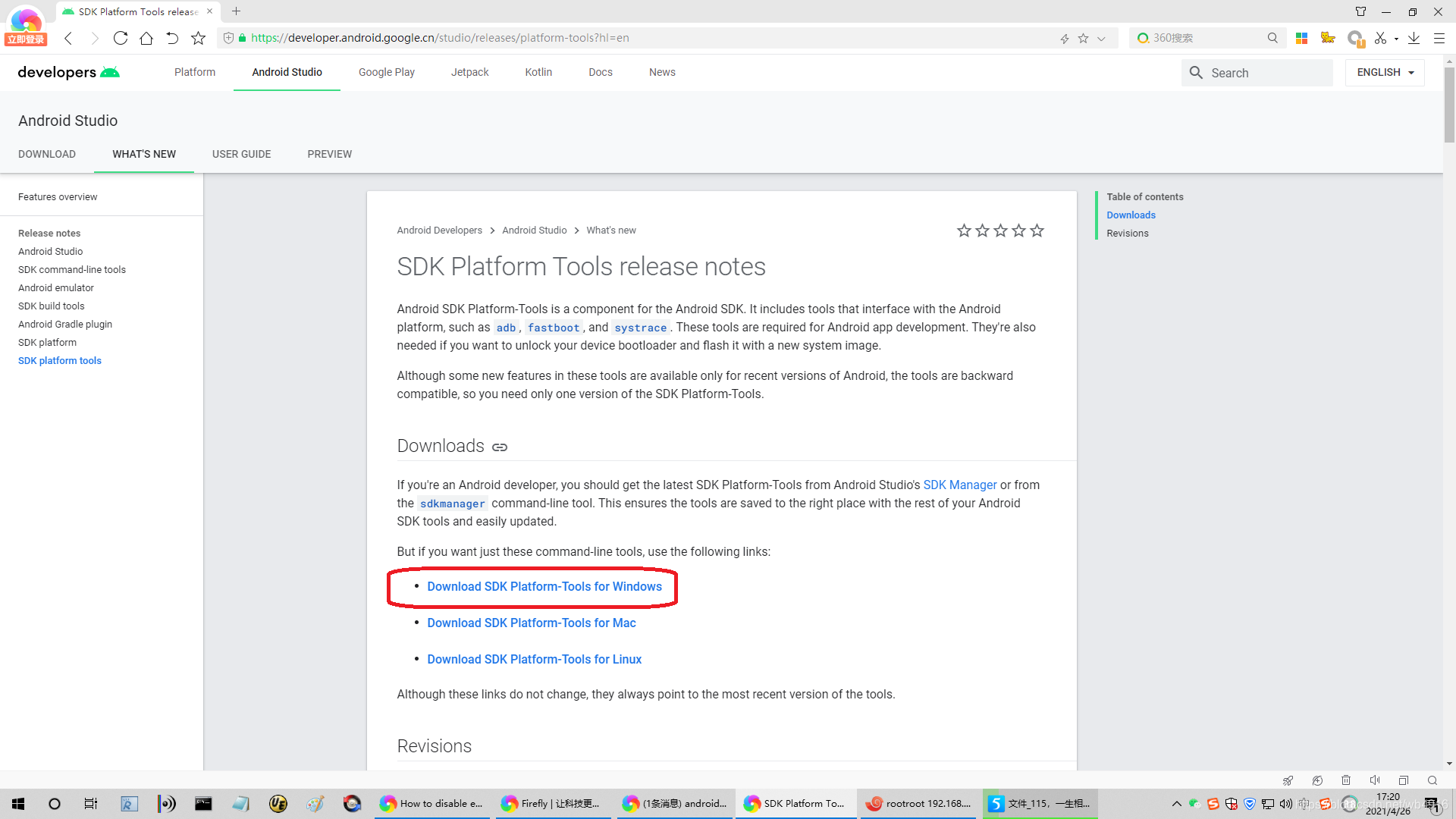

adb工具下载地址：
https://developer.android.google.cn/studio/releases/platform-tools?hl=en

But if you want just these command-line tools, use the following links:

Download SDK Platform-Tools for Windows
Download SDK Platform-Tools for Mac
Download SDK Platform-Tools for Linux

31.0.2 (April 2021)
adb
Support forwarding to vsock on linux.
Fix bug in adb track-devices where devices over wireless debugging wouldn't immediately receive updates.
Implement preliminary support for mDNS device discovery without a separately installed mDNS service. This is currently disabled by default, and can be enabled by setting the environment variable ADB_MDNS_OPENSCREEN to 1 when starting the adb server.
fastboot
Don't fail when unable to get boot partition size.
Derive device locked state from property instead of parsing the kernel command line.

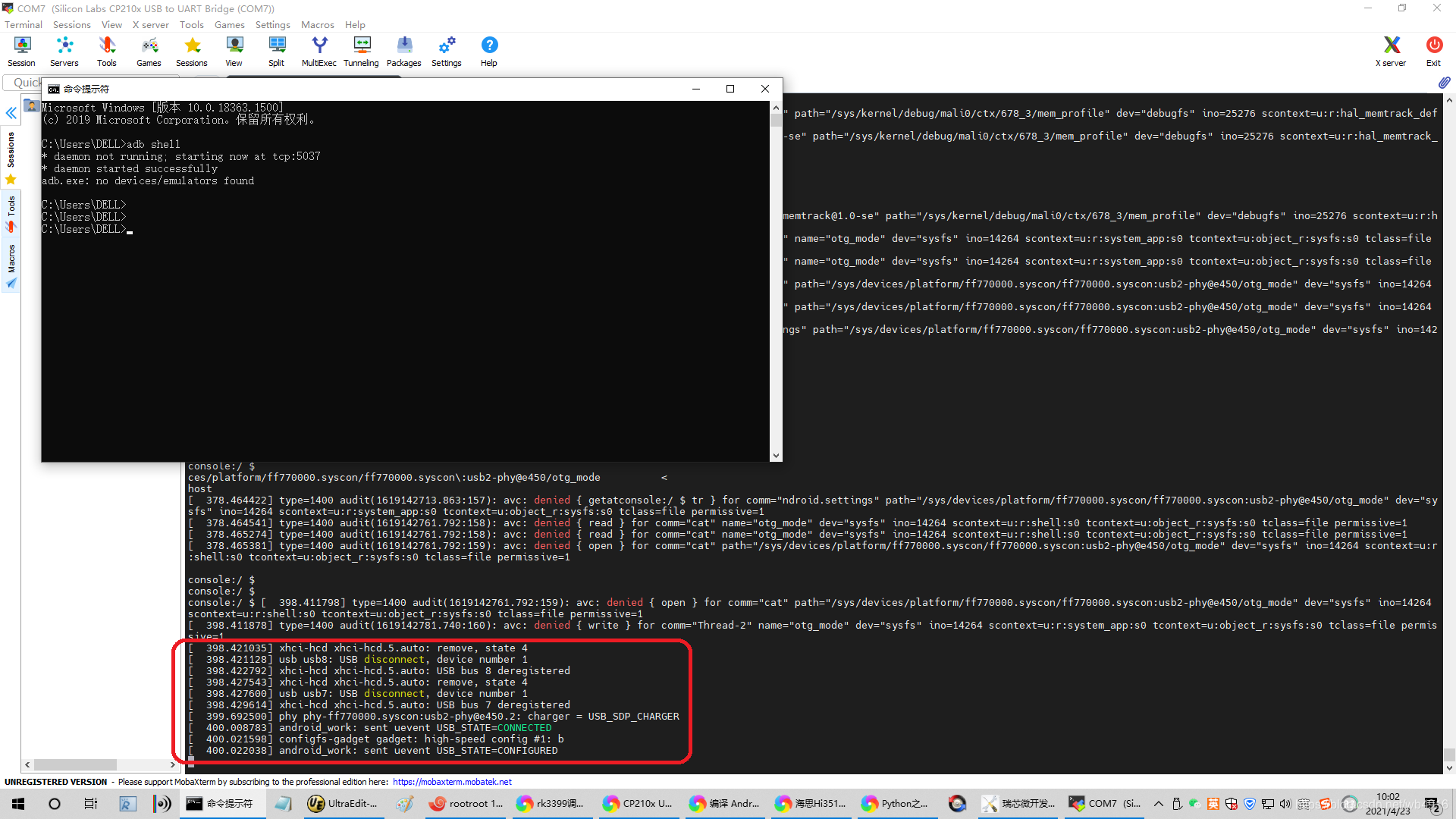

adb shell

console:/ $

console:/ $ [ 3258.571344] type=1400 audit(1619416953.712:120): avc: denied { getattr } for comm="ndroid.settings" path="/sys/devices/platform/ff770000.syscon/ff770000.syscon:usb2-phy@e450/otg_mode" dev="sysfs" ino=14198 scontext=u:r:system_app:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=1

[ 3258.571416] type=1400 audit(1619416960.643:121): avc: denied { write } for comm="Thread-2" name="otg_mode" dev="sysfs" ino=14198 scontext=u:r:system_app:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=1

[ 3258.581380] xhci-hcd xhci-hcd.5.auto: remove, state 4

[ 3258.581462] usb usb8: USB disconnect, device number 1

[ 3258.584348] xhci-hcd xhci-hcd.5.auto: USB bus 8 deregistered

[ 3258.589484] xhci-hcd xhci-hcd.5.auto: remove, state 4

[ 3258.589538] usb usb7: USB disconnect, device number 1

[ 3258.591488] xhci-hcd xhci-hcd.5.auto: USB bus 7 deregistered

[ 3259.852864] phy phy-ff770000.syscon:usb2-phy@e450.2: charger = USB_SDP_CHARGER

[ 3260.169861] android_work: sent uevent USB_STATE=CONNECTED

[ 3260.187385] configfs-gadget gadget: high-speed config #1: b

[ 3260.187895] android_work: sent uevent USB_STATE=CONFIGURED

console:/ $

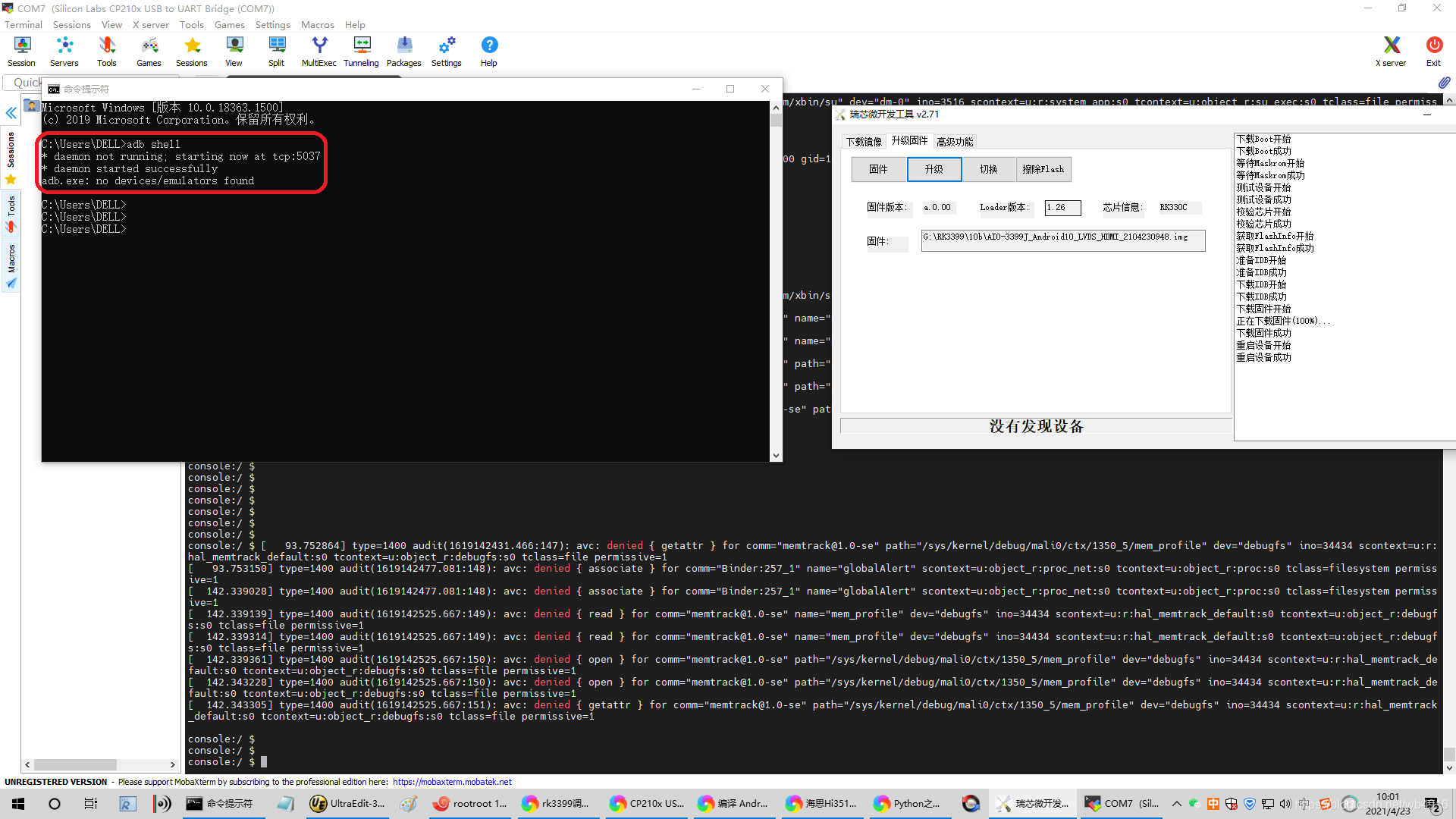

adb shell

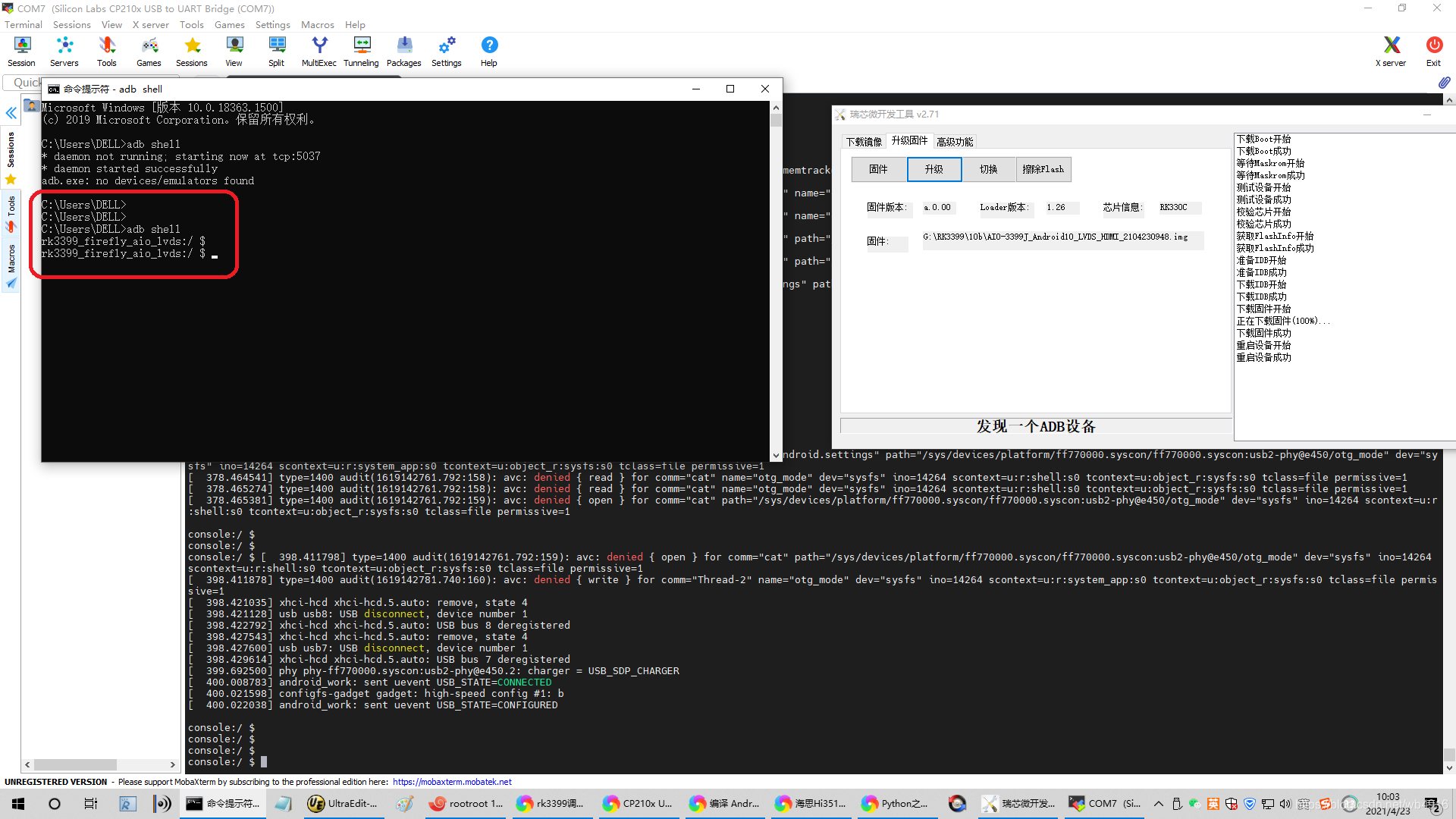

PC（WIN10）的电脑发现AIO-3399J开发板：

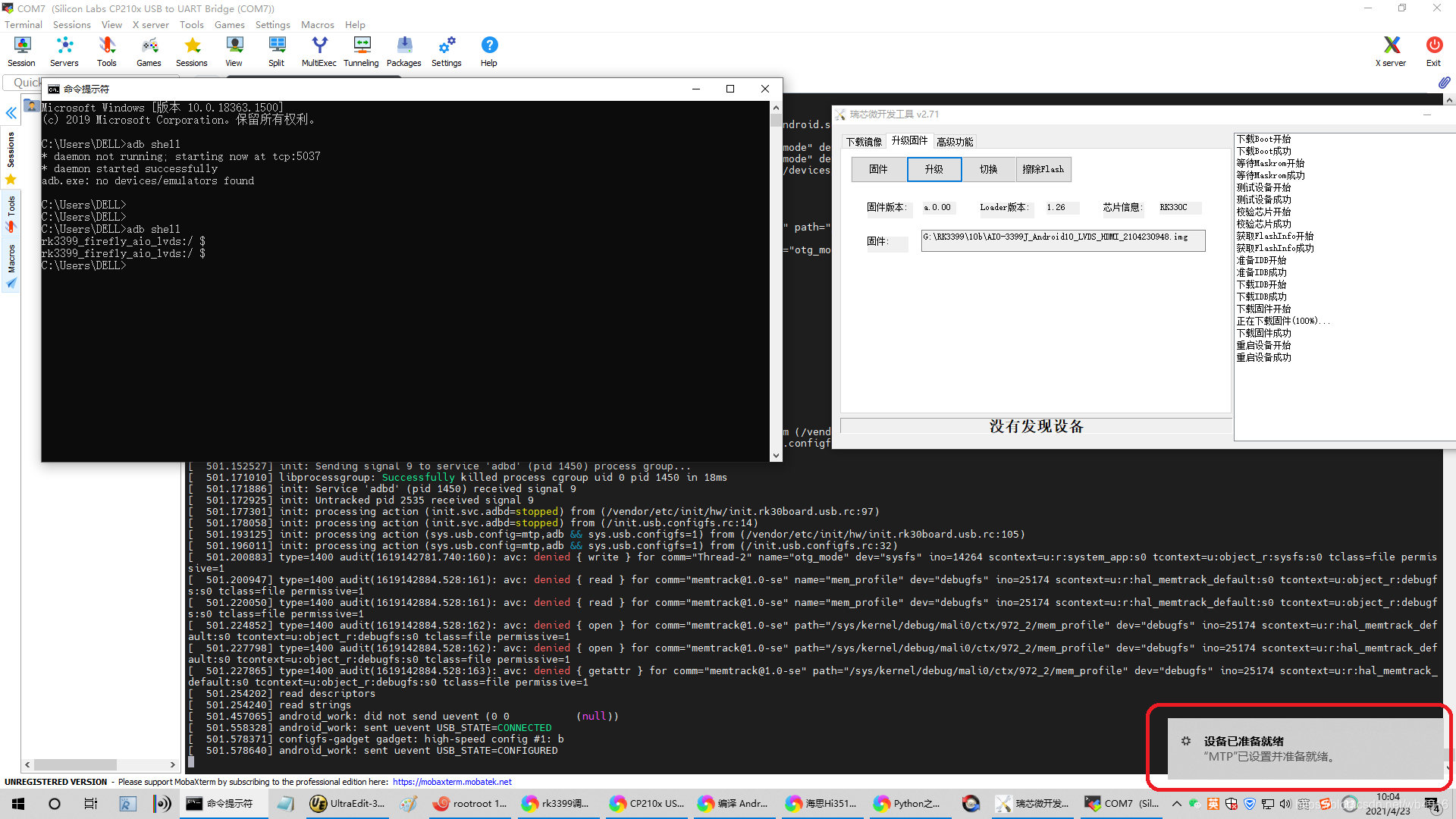

设备已准备就绪：

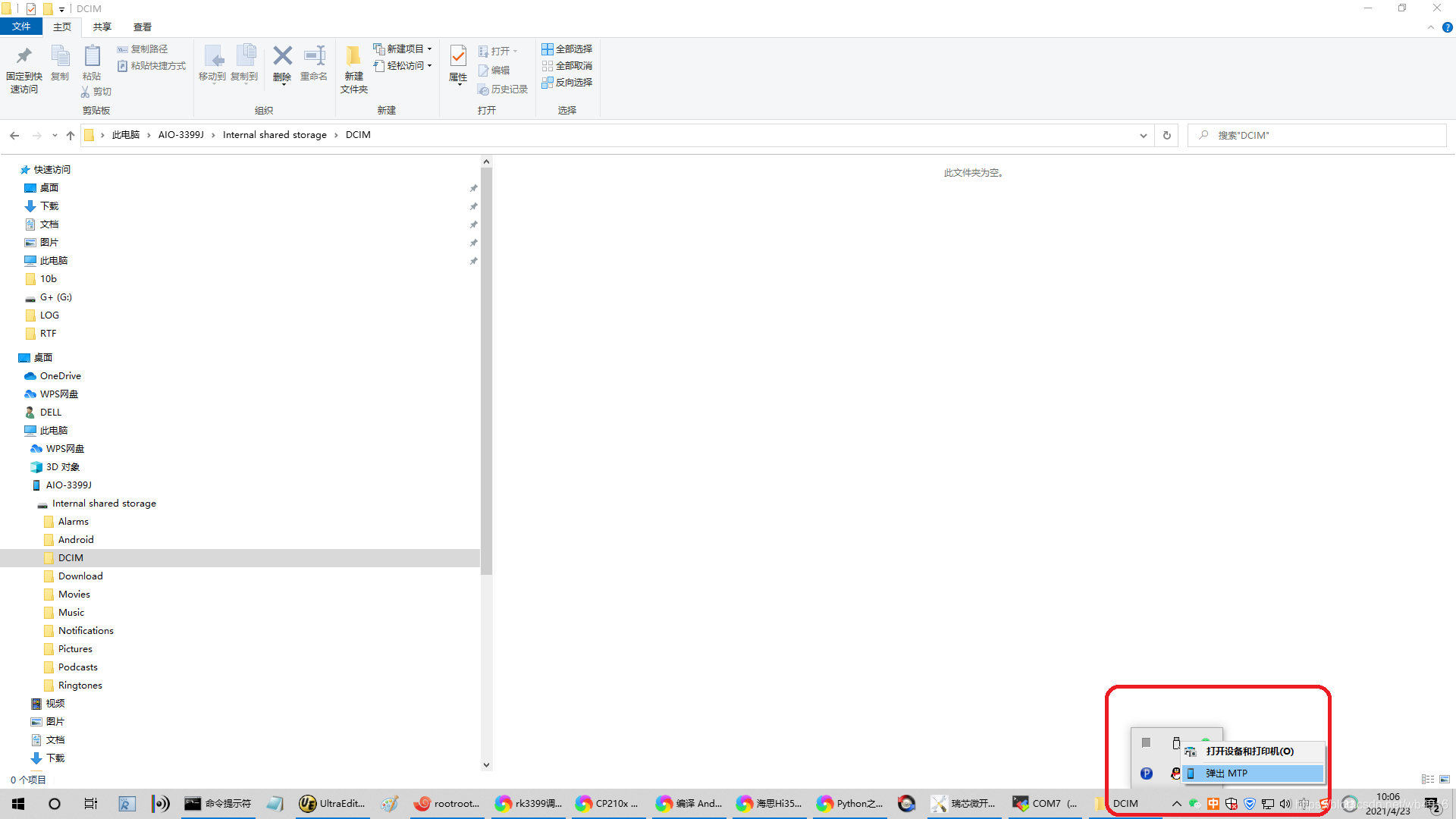

点击右下角可以：弹出MTP

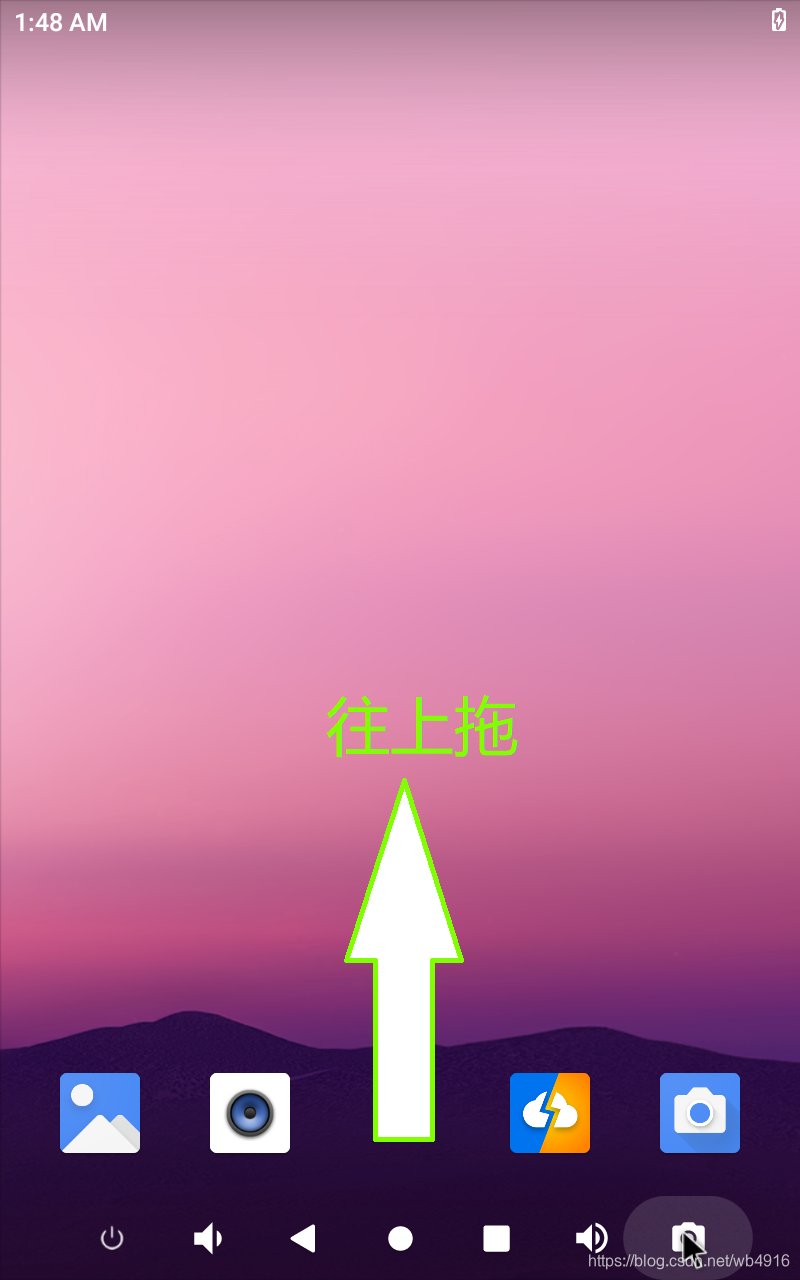

往上拖：

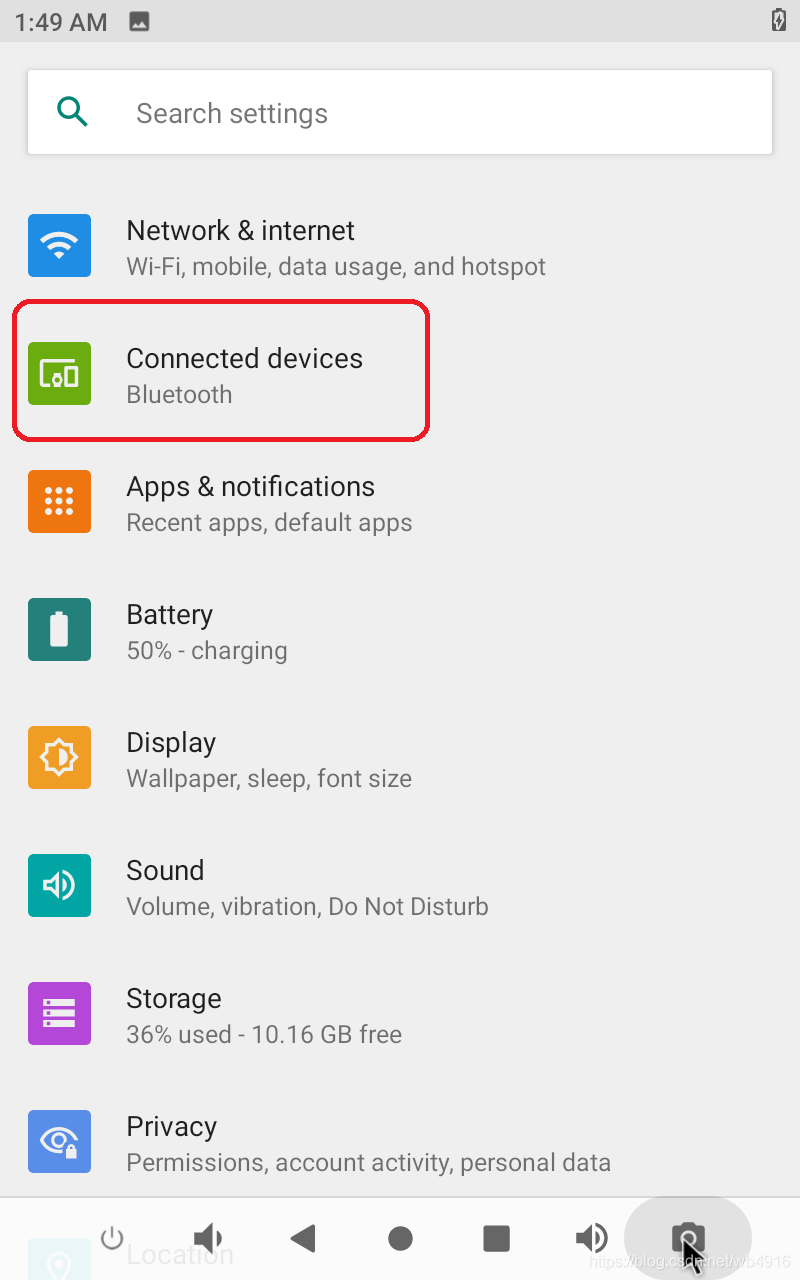

Settings

Connected devices

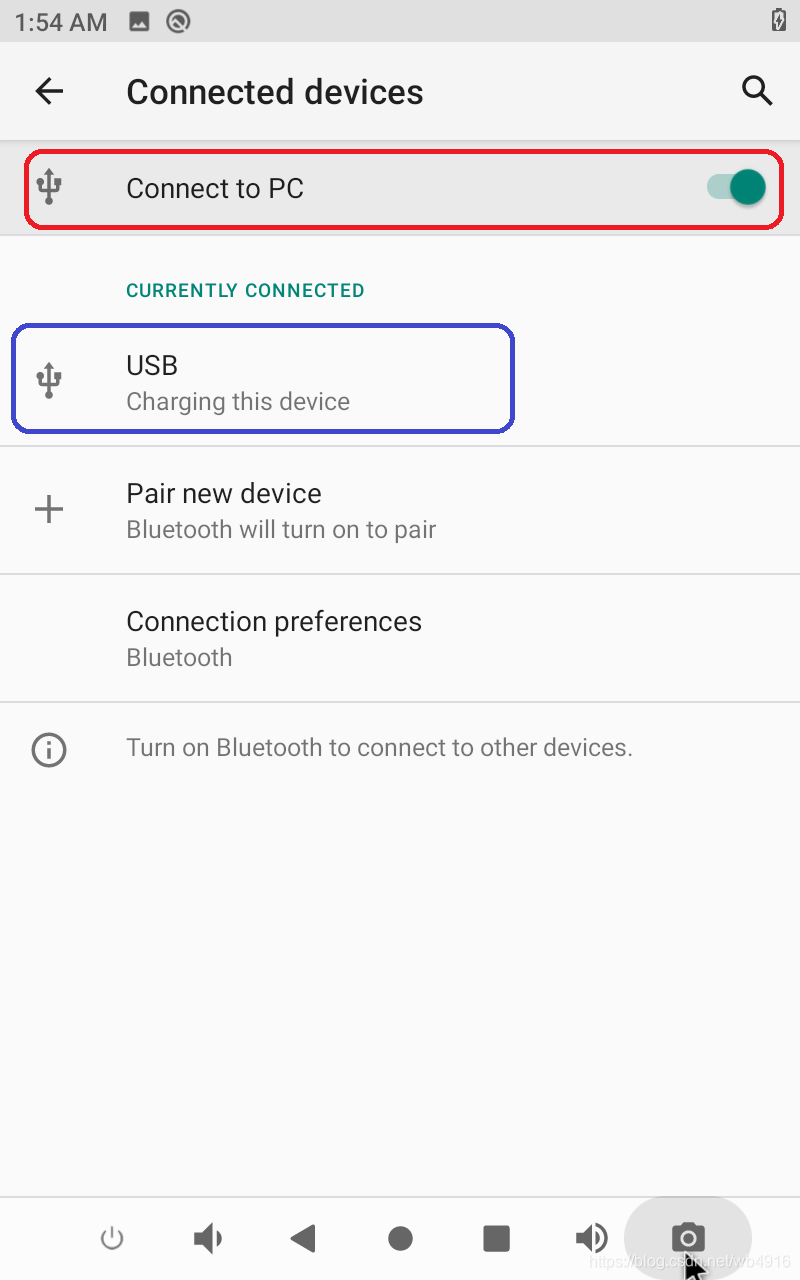

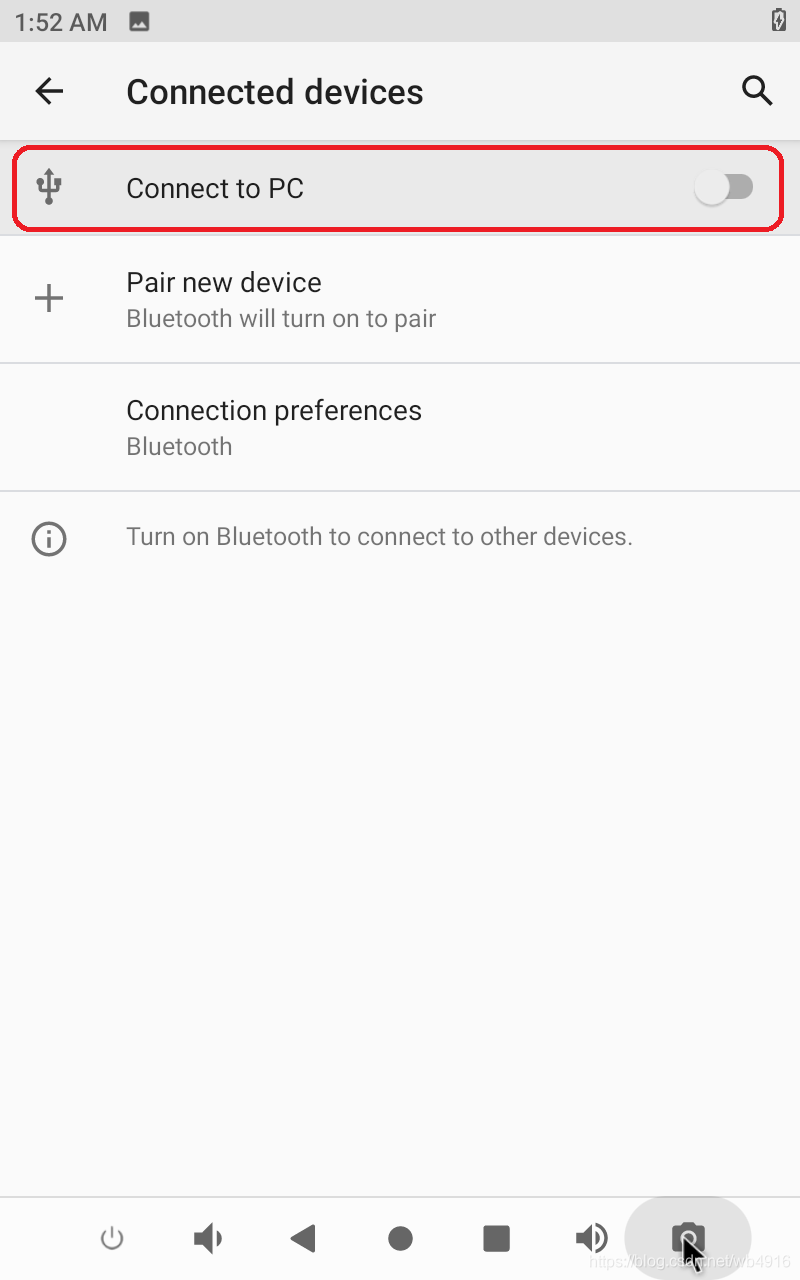

Connect to PC

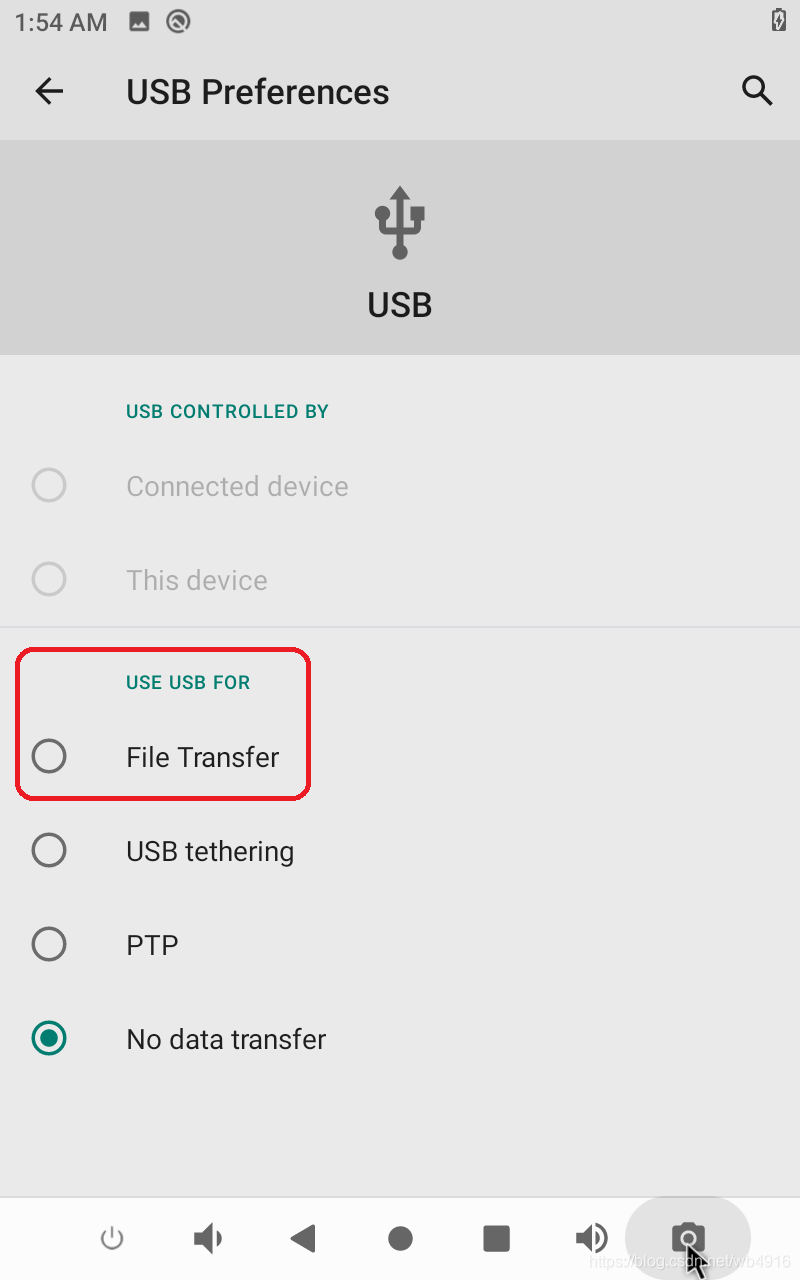

USB连接模式：（默认：Charging this device）

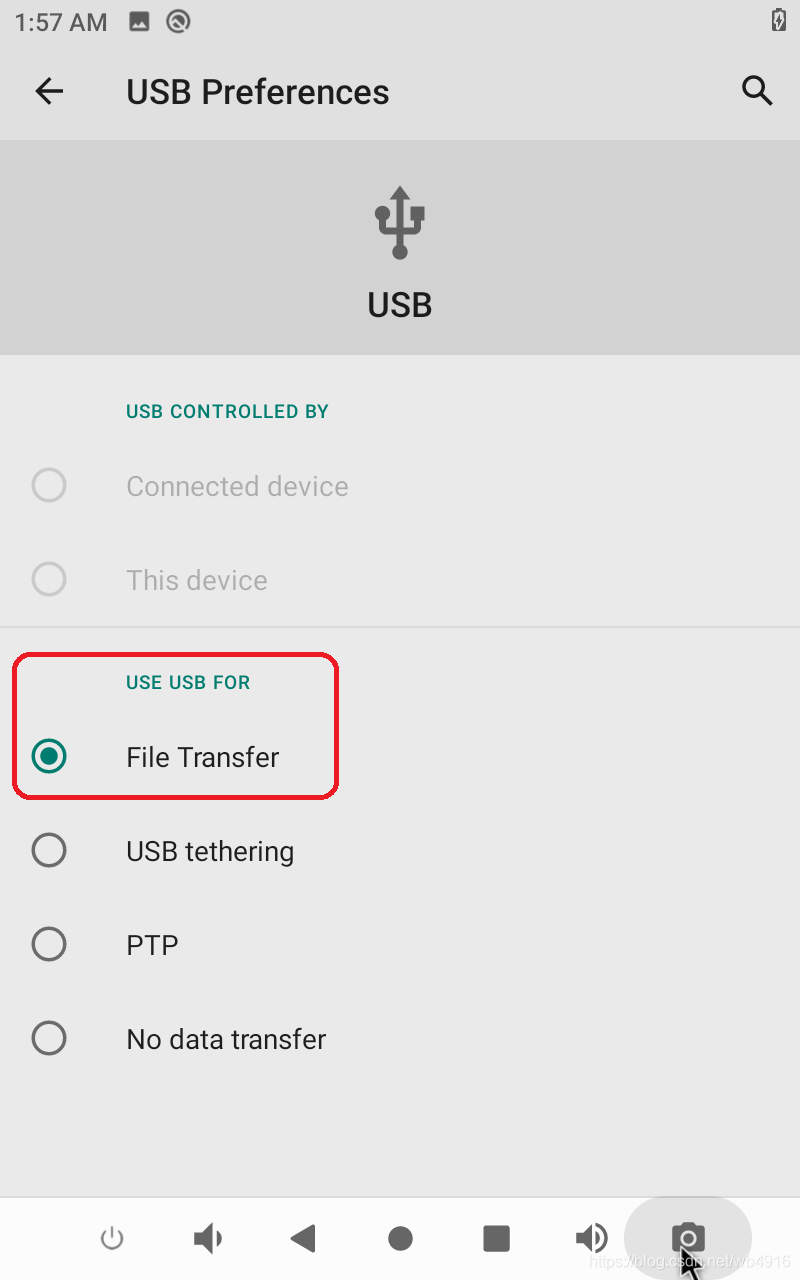

请选择：(USE USB FOR)File Transfer

选中：(USE USB FOR)File Transfer

参考资料：
https://www.it610.com/article/1289353098845822976.htm
https://blog.csdn.net/yhm2046/article/details/104782144/
rk3399 android10 usb不识别解决办法
yhm2046 2020-03-10 20:25:44  2292  收藏 1

现象：usb3.0接口用usb线连接电脑无法识别

原因：android10使用kernel4.19和android9使用kernel4.4的dts设置有区别：

1. DWC3 的power-domains属性，resets 属性，extcon 属性 引用位置不同。在Linux-4.4内核，这
三个属性是放在 DWC3 控制器的父节点（usbdrd3），而在Linux-4.19内核，这三个属性移到了
DWC3 控制器的子节点（usbdrd_dwc3）。
2. 在配置 Type-C to Type-A USB 2.0/3.0 OTG DTS 时，Linux-4.19内核需要在USB 控制器子节点
（usbdrd_dwc3）中增加 extcon 属性的配置，才能支持软件切换OTG 模式，而Linux-4.4 内核无
此要求。

修改代码：

V:\rk3399_q_test\kernel\arch\arm64\boot\dts\rockchip\rk3399-tve-ind3399a.dtsi

&usbdrd_dwc3_0 {
    status = "okay";
    dr_mode = "otg";
    extcon = <&u2phy0>;    //加这一句
};
V:\rk3399_q_test\device\rockchip\rk3399\init.rk3399.rc

 # update cpusets feature nodes for rk3399 tablet
    write /dev/cpuset/foreground/cpus 0-5
    write /dev/cpuset/foreground/boost/cpus 4-5
    write /dev/cpuset/background/cpus 0
    write /dev/cpuset/system-background/cpus 0-3
    write /dev/cpuset/top-app/cpus 0-5
    write /sys/devices/system/cpu/cpufreq/policy4/interactive/target_loads "65 1008000:70 1200000:75 1416000:80 1608000:90"
    write /sys/devices/platform/ff770000.syscon/ff770000.syscon:usb2-phy@e450/otg_mode otg//加这一句
参考：Rockchip_RK3399_Developer_Guide_USB_DTS_CN_V1.3
