内切圆计算

---

一、问题描述

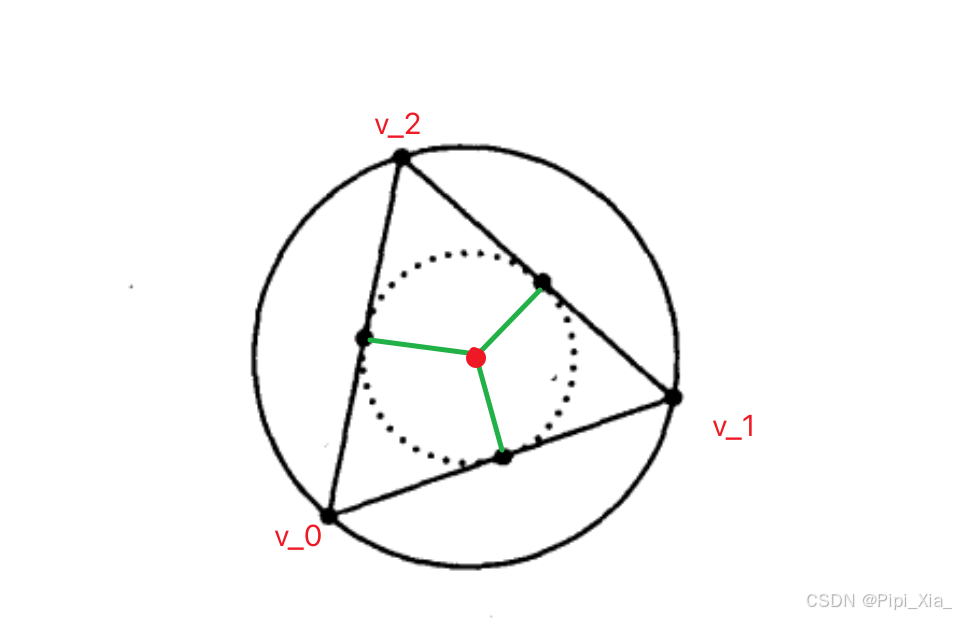

在上一篇文章介绍了外接圆的计算链接: link，内切圆的计算和其相似。都可以根据定义写出相应的等式，构造矩阵然后求解。内切圆是指在三角形内部，半径最大，与3条边都相切的圆。

二、已知条件

已知三角形的三个顶点，$v_0,v_1,v_2$,求圆心c，半径r

3.求解

$n_i$为三条边的法向量。

4. code

clc;
close all;
clear;


rng default;
d = rand(3,2);
p1 = d(1,:);
p2 = d(2,:);
p3 = d(3,:);
[c, r] = calCircle(p1, p2, p3);

showGraph(p1, p2, p3, c, r);





function [c, r] = calCircle(p1, p2, p3)
    v1 = p2 - p1;
    v2 = p3 - p1;
    if(v1(1)*v2(2)-v1(2)*v2(1)<0)
       pt = p2;
       p2 = p3;
       p3 = pt;
    end

   v1 = normalize(p2 - p1,'norm');
   v2 = normalize(p3 - p2,'norm');
   v3 = normalize(p1 - p3,'norm');
    n = [v1(2) -v1(1); v2(2) -v2(1); v3(2) -v3(1)];

    A = [n, -1*ones(size(n,1), 1)];
    B = dot(n,[p1; p2; p3],2);
    x = A\B;
    c = x(1:end-1)';
    r = x(end);
end

function showGraph(p1, p2, p3, c, r)
    t = linspace(0,2*pi,100);
    x = c + [r*sin(t'), r*cos(t')];
    figure;
    pt = [p1;p2;p3;p1];
    plot(pt(:,1), pt(:,2));
    hold on
    p = [p1;p2;p3];
    scatter(p(:,1), p(:,2));
    hold on
    plot(x(:,1), x(:,2));
    hold on
    scatter(c(1), c(2))
    axis equal
end
