三大 Linux GPU 监控命令行工具

如果您是一位技术爱好者,或者是一位希望密切关注 GPU 性能的 Linux 用户,那您就来对地方了。 在这篇文章中,我们将探索 GPU 监控软件的世界,尤其是 Ubuntu/Debian Linux。 无论您是游戏玩家、数据科学家,还是从事 GPU 密集型任务的开发人员,拥有一个可靠的 GPU 监控软件对于优化性能和确保系统在压力下保持冷静都至关重要。 我们将深入探讨 GPUStat、NVTOP 和 NVITOP 等流行工具,讨论它们的功能和安装方法,让你拥有全面的 CPU 和 GPU 监控能力。 GPUStat 和 NVTOP 是一款花哨但非常实用的 GPU 监控工具,是基于 ncurses 的英伟达™(NVIDIA®)GPU 状态查看器,类似于 htop 命令或 top 命令。 我们可以在 Debian 或 Ubuntu Linux 上使用 pip/apt 命令按如下步骤安装它。 那么,让我们开始在 Linux 上使用 GPU 监控功能吧!

Top 1. GPUStat

GPUStat 是一款用于查询和监控 GPU 状态的简单命令行实用程序。 它仅适用于英伟达™(NVIDIA®)图形设备。 不支持 AMD GPU。 这是一款免费开源软件。

从 PyPI 安装 GPUStat Install。 更多信息,请访问 Github 上的 GPUStat: https://github.com/wookayin/gpustat

$ pip install gpustat

如果您没有 root (sudo) 权限,请尝试在用户名空间安装 gpustat:

$ pip install --user gpustat

GPUStat使用示例

常用的 gupstat 命令如下:

# To periodically watch
$ gpustat --watch

# If something goes wrong, try
$ gpustat --debug

# Monitor gpu

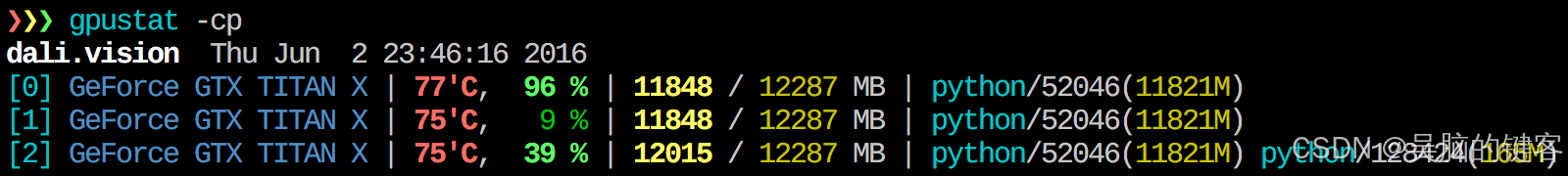

$ gpustat -cp

在这里插入图片描述
更多使用信息,请查阅使用帮助。

# See help details
$ gpustat --help
usage: gpustat [-h] [--force-color | --no-color] [--id ID] [-a] [-c] [-f] [-u] [-p] [-F] [-e [{,enc,dec,enc,dec}]] [-P [{,draw,limit,draw,limit,limit,draw}]] [--json] [-i [INTERVAL]] [--no-header] [--gpuname-width GPUNAME_WIDTH]
               [--debug] [--no-processes] [-v]

options:
  -h, --help            show this help message and exit
  --force-color, --color
                        Force to output with colors
  --no-color            Suppress colored output
  --id ID               Target a specific GPU (index).
  -a, --show-all        Display all gpu properties above
  -c, --show-cmd        Display cmd name of running process
  -f, --show-full-cmd   Display full command and cpu stats of running process
  -u, --show-user       Display username of running process
  -p, --show-pid        Display PID of running process
  -F, --show-fan-speed, --show-fan
                        Display GPU fan speed
  -e [{,enc,dec,enc,dec}], --show-codec [{,enc,dec,enc,dec}]
                        Show encoder/decoder utilization
  -P [{,draw,limit,draw,limit,limit,draw}], --show-power [{,draw,limit,draw,limit,limit,draw}]
                        Show GPU power usage or draw (and/or limit)
  --json                Print all the information in JSON format
  -i [INTERVAL], --interval [INTERVAL], --watch [INTERVAL]
                        Use watch mode if given; seconds to wait between updates
  --no-header           Suppress header message
  --gpuname-width GPUNAME_WIDTH
                        The width at which GPU names will be displayed.
  --debug               Allow to print additional informations for debugging.
  --no-processes        Do not display running process information (memory, user, etc.)
  -v, --version         show program's version number and exit

Top 2. NVTOP

Nvtop 是 Neat Video card TOP 的缩写,类似于 AMD、Intel 和 NVIDIA GPU 的任务监视器。 它可以处理多个 GPU,并以 htop 熟悉的方式打印它们的相关信息。

将 Nvtop 安装在 Ubuntu Impish (21.10)、Debian buster(稳定版)及更新版本上。 更多信息,请访问 Github 上的 Nvtop: https://github.com/Syllo/nvtop

install nvtop

$ sudo apt install nvtop

在 Ubuntu 20.04、22.04 及更新版本上

$ sudo add-apt-repository ppa:flexiondotorg/nvtop
$ sudo apt install nvtop

NVTOP 使用示例

## RUN the tool ##

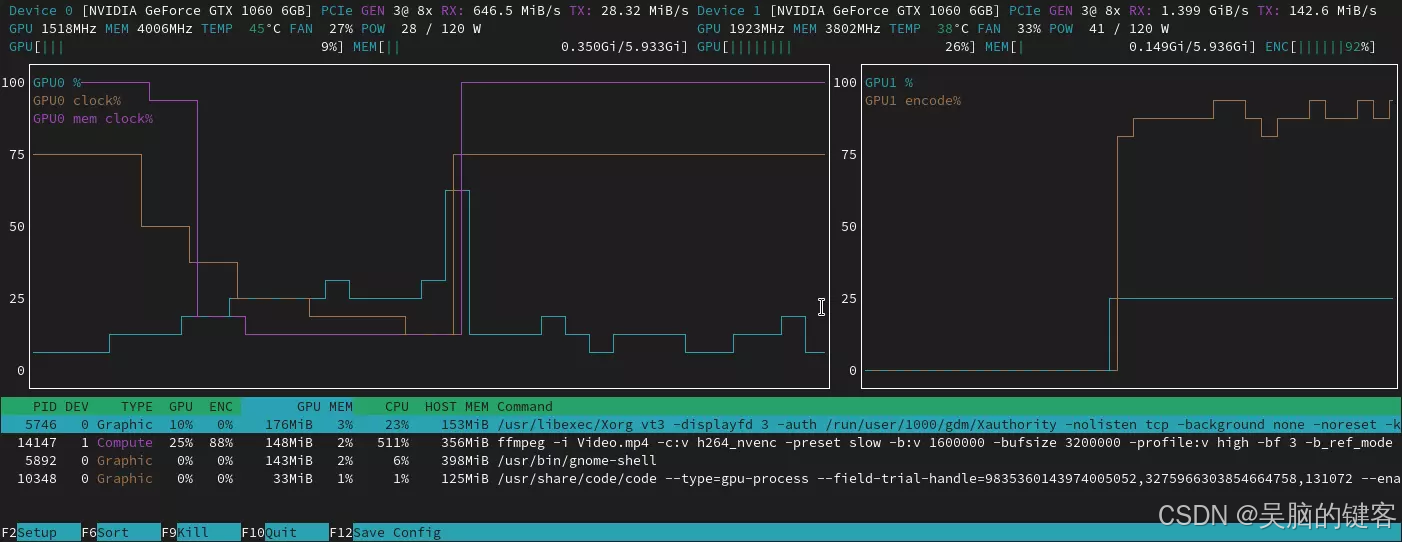

$ nvtop

在这里插入图片描述
快速命令行参数帮助。

$ nvtop --help
nvtop version 1.0.0
Available options:
  -d --delay        : Select the refresh rate (1 == 0.1s)
  -v --version      : Print the version and exit
  -s --gpu-select   : Column separated list of GPU IDs to monitor
  -i --gpu-ignore   : Column separated list of GPU IDs to ignore
  -p --no-plot      : Disable bar plot
  -C --no-color     : No colors
  -N --no-cache     : Always query the system for user names and command line information
  -f --freedom-unit : Use fahrenheit
  -E --encode-hide  : Set encode/decode auto hide time in seconds (default 30s, negative = always on screen)
  -h --help         : Print help and exit

Top 3. NVITOP

Nvitop 是一款交互式英伟达™(NVIDIA®)GPU 进程查看器,也是 GPU 进程管理的一站式解决方案。 Nvitop 可以轻松集成到其他应用程序中。 您可以使用 Nvitop 制作自己的监控工具。 完整的 A PI 主机参考文献请访问 https://nvitop.readthedocs.io。

安装 NVITOP

从 PyPI 安装。 更多信息,请访问 Github 上的 Nvitop: https://github.com/XuehaiPan/nvitop

# Install nvitop
$ pip3 install --upgrade nvitop

强烈建议在隔离的虚拟环境中安装 nvitop。 通过 pipx 简单安装和运行

从 conda-forge 安装

conda install -c conda-forge nvitop

NVITOP 使用示例

# Query the status of all devices
$ nvitop -1  # or use `python3 -m nvitop -1`

# Specify query devices (by integer indices)
$ nvitop -1 -o 0 1  # only show <GPU 0> and <GPU 1>

# Run as a resource monitor
$ nvitop

在这里插入图片描述

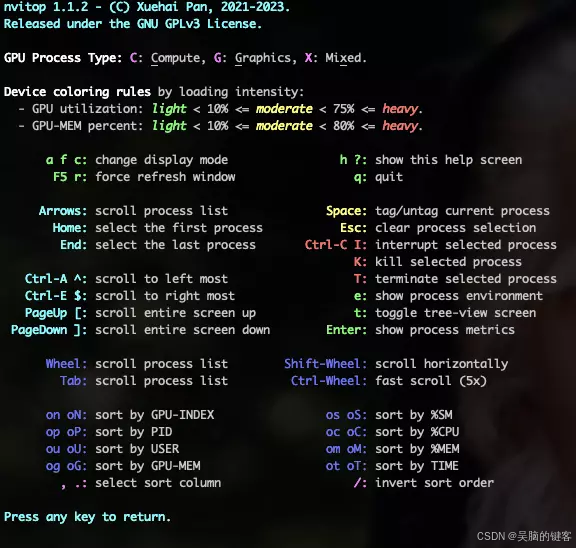

按 h 键会显示帮助屏幕,或输入 nvitop --help 查看更多命令选项:

在这里插入图片描述
