经验分享 | 文献调研 - Connected Papers



「 Connected Papers 一个旨在帮助科研工作者快速搜索文献的全新工具,可以清晰的查看文献的引文信息,了解文献的引用和被引用关联。

「链接」:

https://www.connectedpapers.com

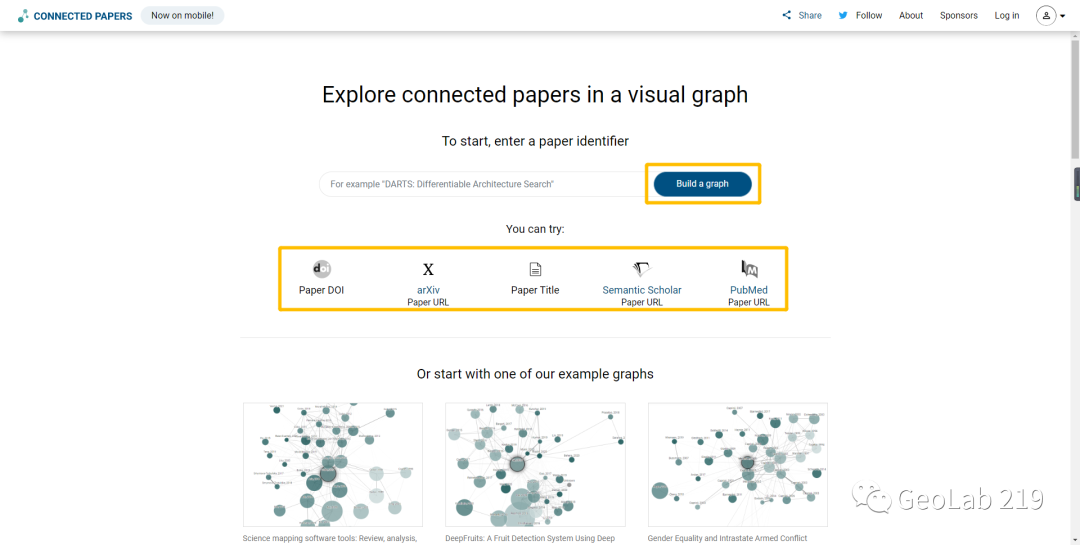

「主界面」

    Connected Papers 可以直接在搜索框根据关键词进行检索相关的文献,或者直接输入已知文献的文献名,doi,arXiv号,Semantic Scholar号,PubMed号,文章URL等进行查询。但是Connected Papers 对于中文文献的搜索比较局限,所以一般中文文献的检索还是使用「知网」数据库。

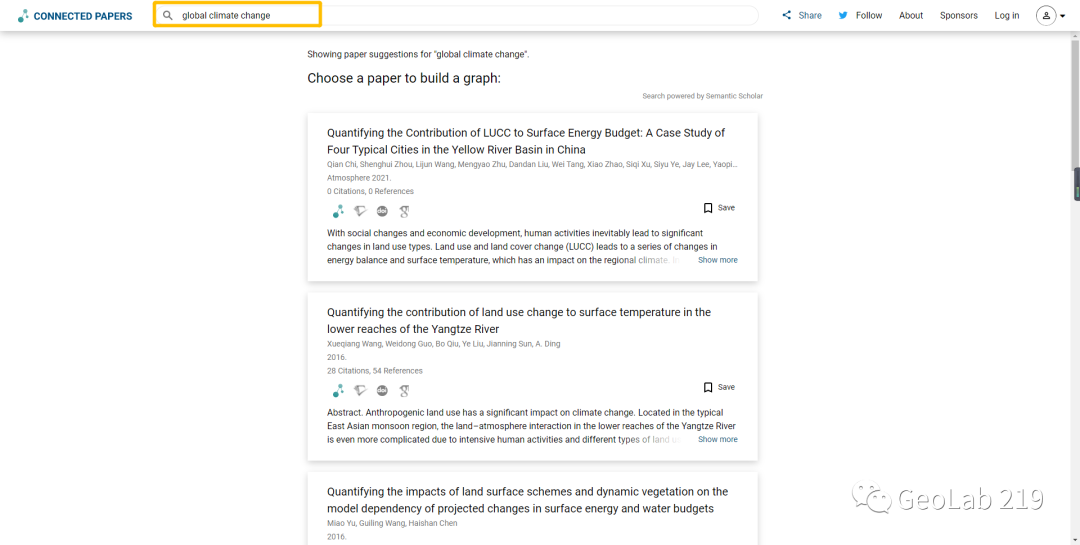

    例:输入「global climate change」关键词,然后点击「Build a graph」进行检索,搜索出该话题相关的文献,关键词要尽量精准。

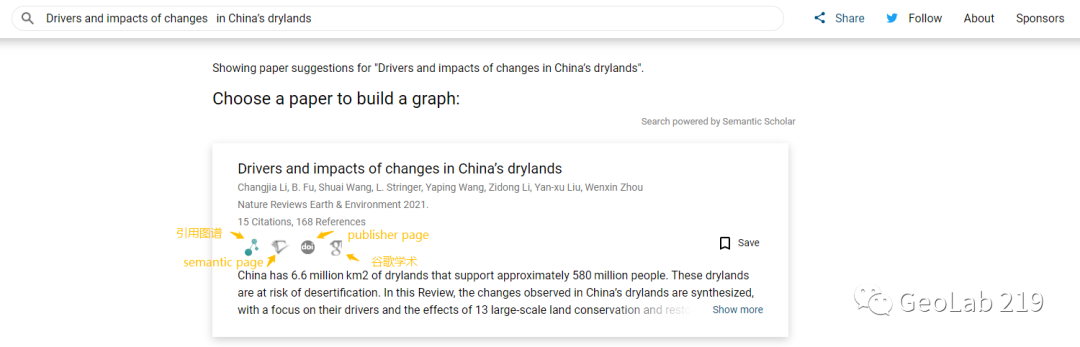

    例:查找文献《Drivers and impacts of changes in China’s drylands》,可以通过下面四种方式访问文献。


    文献检索分析图谱

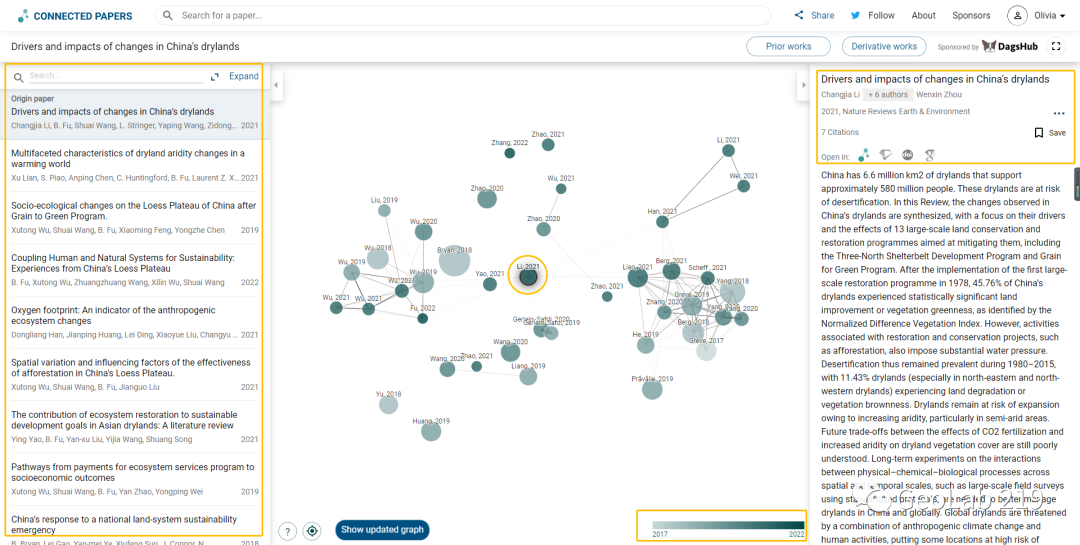

    检索完毕,其会构建该文献的引用图谱(最近发表的文献可能暂时无法生成),下图页面中,做栏为本文以及相关参考文献的题目,右边一栏是相关参考文献的具体内容,中间一栏为文献检索分析图谱,圆圈的大小表示引用的数量,颜色的深浅表示发表的年份,颜色越深文献越新,小球之间的线条表示引用关系,相似的文章会距离较近或中间有强的连线,将鼠标放在圆圈上右栏会西显示文献的简介以及摘要。通过这张引用图谱可以找到该文献的一些参考方法,或者是这个研究方向引用量很高的非常经典的文献或者方法,同时也非常适合做某一方向的研究综述等,对该研究方向有非常系统的了解和学习。

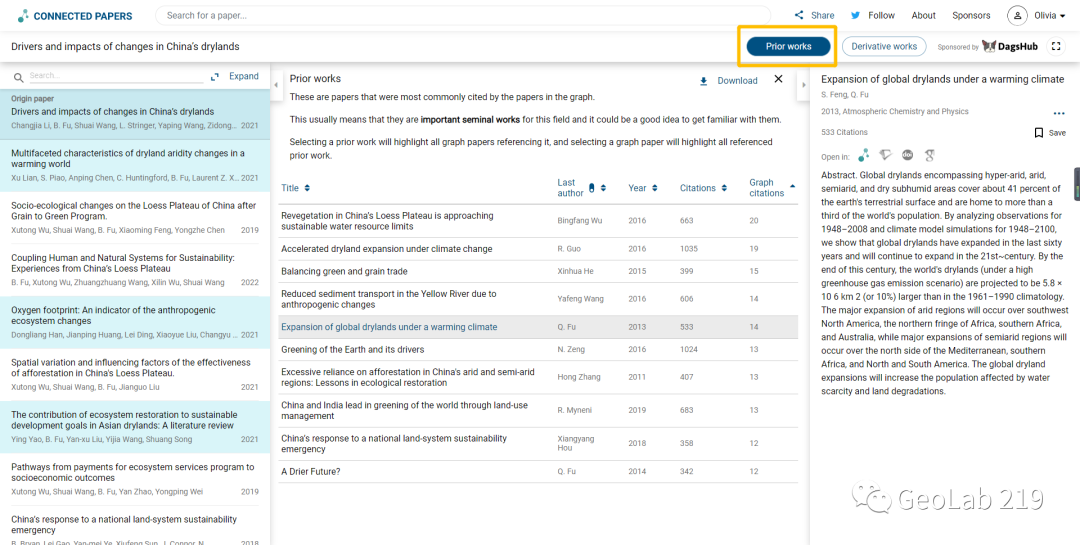

    Pior works 为该文章引用的文献。

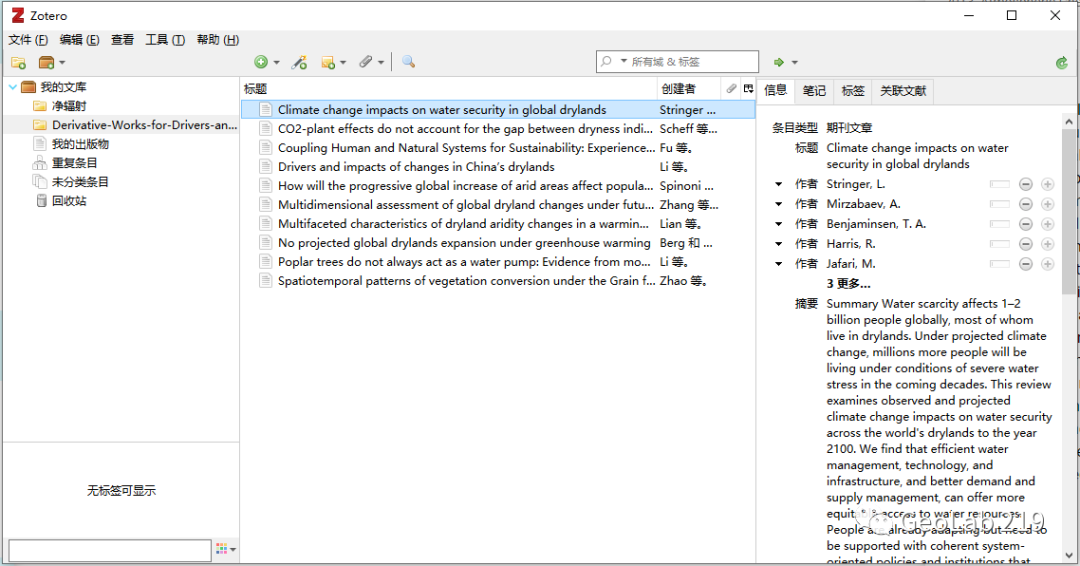

    点击右上角的下载按钮,可以批量下载这些文章的引用,下载的文献引用文件可以直接在「Zotero」中打开。

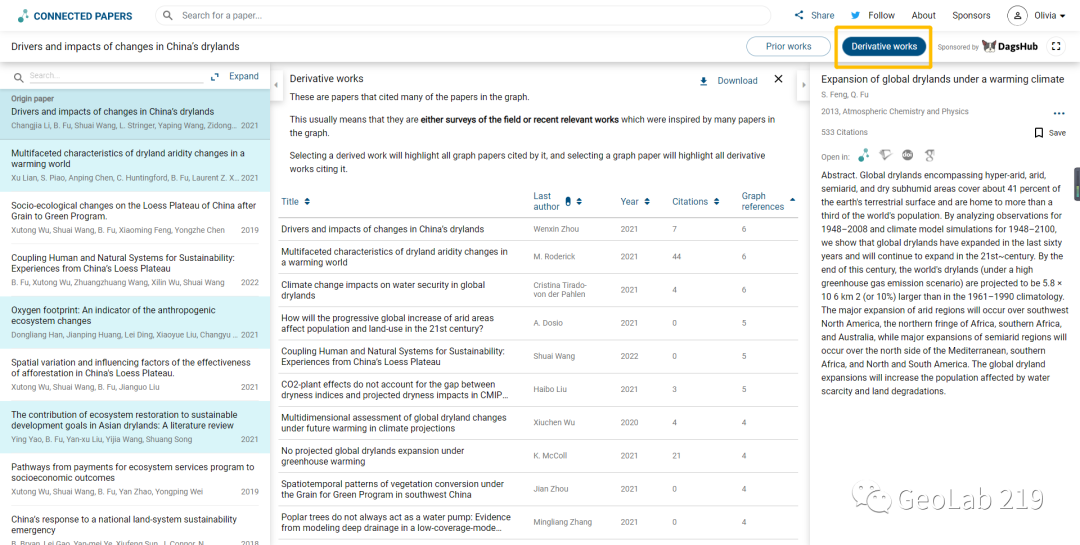

    Derivative works 为引用该文章的文献。

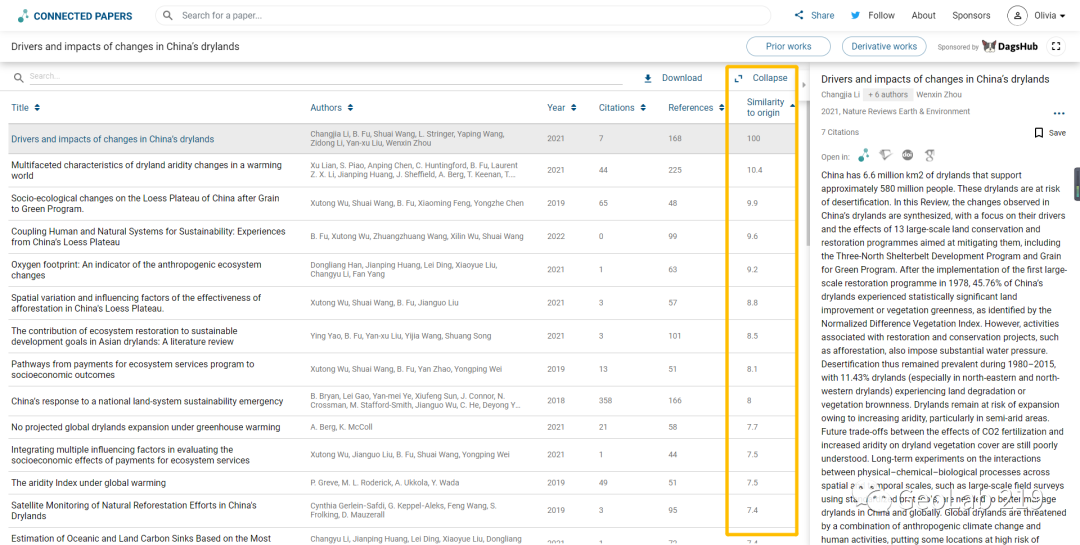

    同时,与histcite相比,这个网站不是基于被引用的算法进行推荐,而是通过相似性进行推荐,点击文章列表的「Expend」也可以看到所推荐的文献与原文献的一个相似指数。

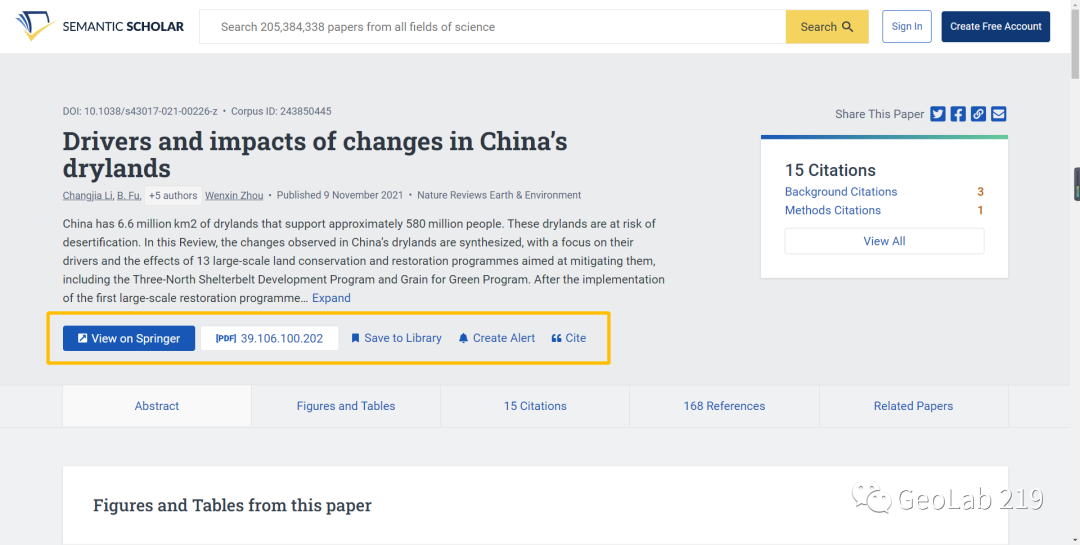

    阅读文献直接在「semantic page」或者「publisher page」 下载即可。

文字排版 | 南波婉琬

审核 | 南波婉琬
