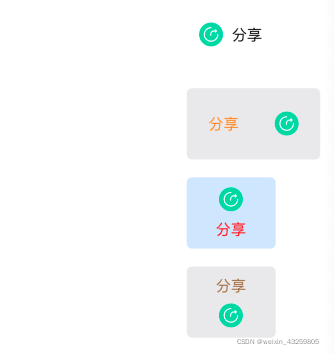

效果如下图:
1.在UIButton的扩展中添加方法
/*
枚举 设置 图片的位置
*/
enum ButtonImagePosition : Int {
case imageTop = 0
case imageLeft
case imageBottom
case imageRight
}
extension UIButton {
/**
type :image 的位置
Space :图片文字之间的间距
*/
func setImagePosition(type:ButtonImagePosition,Space space:CGFloat) {
let imageWith :CGFloat = (imageView?.frame.size.width)!
let imageHeight :CGFloat = (imageView?.frame.size.height)!
var labelWidth :CGFloat = 0.0
var labelHeight :CGFloat = 0.0
labelWidth = CGFloat(titleLabel!.intrinsicContentSize.width)
labelHeight = CGFloat(titleLabel!.intrinsicContentSize.height)
var imageEdgeInsets :UIEdgeInsets = UIEdgeInsets()
var labelEdgeInsets :UIEdgeInsets = UIEdgeInsets()
switch type {
case .imageTop:
imageEdgeInsets = UIEdgeInsets.init(top: -labelHeight - space/2.0, left: 0, bottom: 0, right: -labelWidth)
labelEdgeInsets = UIEdgeInsets.init(top:0, left: -imageWith, bottom: -imageHeight-space/2.0, right: 0)
break;
case .imageLeft:
imageEdgeInsets = UIEdgeInsets.init(top:0, left:-space/2.0, bottom: 0, right:space/2.0)
labelEdgeInsets = UIEdgeInsets.init(
