多行合并的时候，需要加入新的usepackage, 不然会报错

\usepackage{multirow}

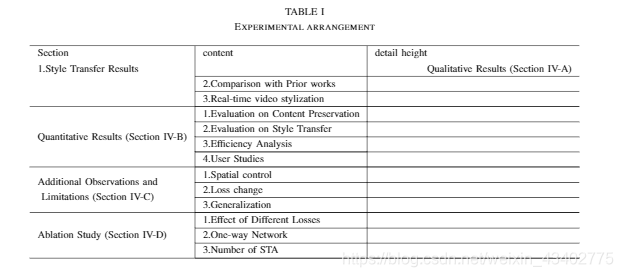

1.多行合并

\linespread{1.3}  %控制行间距
\begin{table*}[t]
    \centering
    \caption{Experimental arrangement}
    \begin{tabular}{p{4.1cm}|l|l} %控制单元格的宽度
    \hline
    Section & content  & detail
    \hline
         \multirow{3}*{Qualitative Results (Section~\ref{section:Qualitatively Results})}&1.Style Transfer Results  & \\  % 合并单元格
         \cline{2-3}
         & 2.Comparison with Prior works & \\
         \cline{2-3}
         & 3.Real-time video stylization & \\
         \cline{2-3}
         \hline
         \multirow{4}*{Quantitative Results (Section~\ref{section:quantitative_results})} & 1.Evaluation on Content Preservation\\ \cline{2-3}
        & 2.Evaluation on Style Transfer\\\cline{2-3}
        & 3.Efficiency Analysis\\\cline{2-2}\cline{2-3}
        & 4.User Studies\\\cline{2-3}
        \hline
        \multirow{3}*{\tabincell{c}{Additional Observations and \\ Limitations (Section~\ref{sec:additional observations})}}&1.Spatial control\\ \cline{2-3}
        &2.Loss  change\\\cline{2-3}
        &3.Generalization\\\cline{2-3}
        \hline
        \multirow{3}*{Ablation Study (Section~\ref{section:ablation_studies})} &1.Effect of Different Losses\\ \cline{2-3}
        &2.One-way Network\\\cline{2-3}
        &3.Number of STA\\\cline{2-3}
         \hline
    \end{tabular}

    \label{tab:experimental arrangement}
\end{table*}

在这里插入图片描述

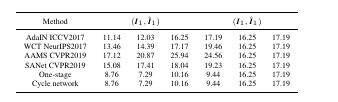

2.多列合并

\begin{tabular}{ccccccc}
		\toprule
		Method& \multicolumn{3}{c}{$(\textbf{\textit{I}}_1,\hat{\textbf{\textit{I}}}_1)$} &\multicolumn{3}{c}{$(\textbf{\textit{I}}_1,\hat{\textbf{\textit{I}}}_1)$}\\
		\midrule
		AdaIN {\tiny ICCV2017} &11.14&12.03 &16.25 &17.19 &16.25 &17.19\\
		WCT {\tiny NeurIPS2017} &13.46&14.39 &17.17 &19.46  &16.25 &17.19\\
		AAMS {\tiny CVPR2019} &17.12&20.87 &25.94 &24.56 &16.25 &17.19 \\
		SANet {\tiny CVPR2019} &15.08&17.41 &18.04 &19.23  &16.25 &17.19\\
		One-stage         &8.76& 7.29 & 10.16&9.44 &16.25 &17.19 \\
		Cycle network          &8.76& 7.29 & 10.16&9.44  &16.25 &17.19\\
		\bottomrule
	\end{tabular}
	\label{tab:content_transfer}
	\vspace{-10pt}
	\end{table}
