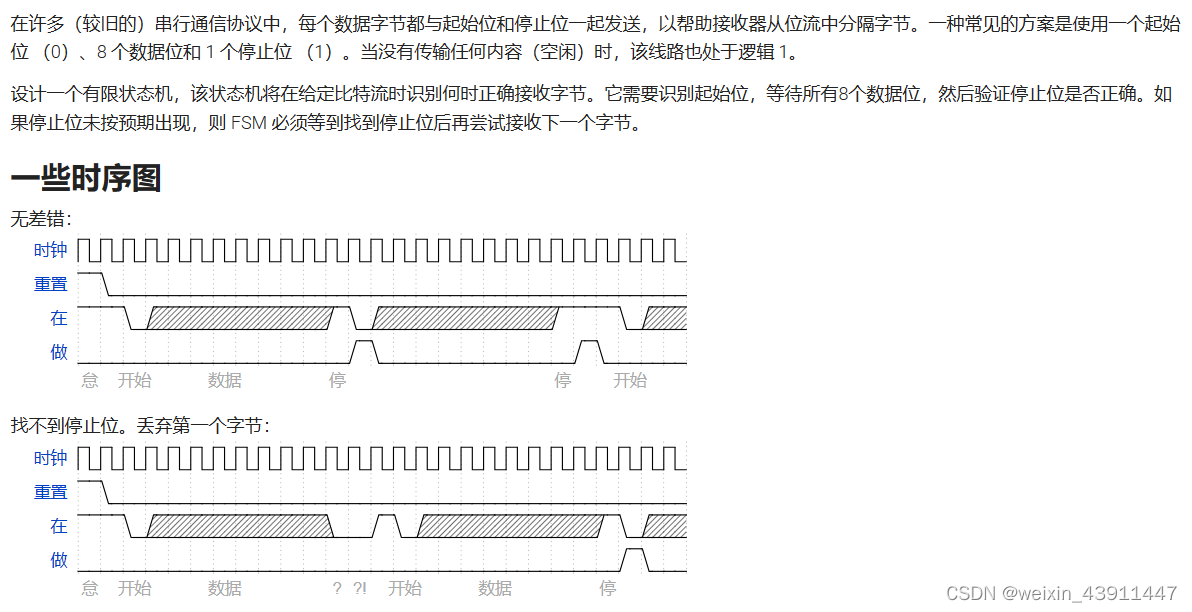

17. Serial receiver

module top_module(
    input clk,
    input in,
    input reset,    // Synchronous reset
    output done
);
	parameter start=0,s1=1,s2=2,s3=3,s4=4,s5=5,s6=6,s7=7,s8=8,stop=9,idle=10,Wait=11;
    reg [3:0] state,next;
    always@(*) begin
        case(state)
            start: next= in? start:s1;
            s1: next=s2;
            s2: next=s3;
            s3: next=s4;
            s4: next=s5;
            s5: next=s6;
            s6: next=s7;
            s7: next=s8;
            s8: next=stop;
            stop: next=in? idle:Wait;
            idle: next=in?start:s1;
            Wait:next=in? start:Wait;
        endcase
    end
        always@(posedge clk) begin
            if(reset)
                state<=start;
            else
                state<=next;
        end
        assign done=(state==idle);
endmodule

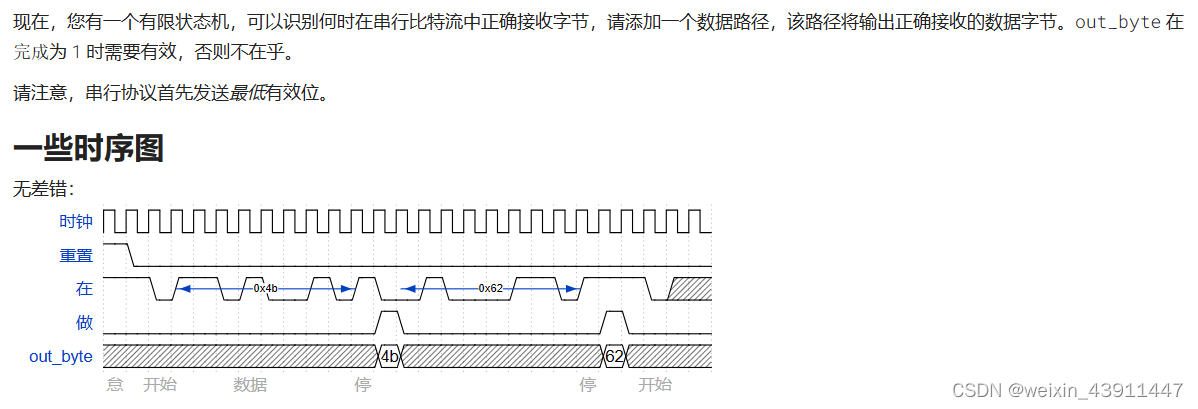

18. Serial receiver and datapath

module top_module(
    input clk,
    input in,
    input reset,    // Synchronous reset
    output [7:0] out_byte,
    output done
); //


    // Use FSM from Fsm_serial
    parameter start=0,s1=1,s2=2,s3=3,s4=4,s5=5,s6=6,s7=7,s8=8,stop=9,idle=10,Wait=11;
    reg [3:0]state,next;
    reg [7:0]temp;

    always@(*)begin
        case(state)
            start:next=in?start:s1;
            s1:next=s2;
            s2:next=s3;
            s3:next=s4;
            s4:next=s5;
            s5:next=s6;
            s6:next=s7;
            s7:next=s8;
            s8:next=stop;
            stop:next=in?idle:Wait;
            idle:next=in?start:s1;
            Wait:next=in?start:Wait;
        endcase
    end

    always@(posedge clk)begin
        if(reset) state<=start;
        else state<=next;
    end

    assign done=(state==idle);


    // New: Datapath to latch input bits.
    always@(posedge clk)begin
        case(state)
            s1:temp[0]<=in;
            s2:temp[1]<=in;
            s3:temp[2]<=in;
            s4:temp[3]<=in;
            s5:temp[4]<=in;
            s6:temp[5]<=in;
            s7:temp[6]<=in;
            s8:temp[7]<=in;
        endcase
    end
    assign out_byte=done?temp:8'b0;


endmodule

19.Serial receiver with parity checking 奇偶校验

module top_module(
    input clk,
    input in,
    input reset,    // Synchronous reset
    output [7:0] out_byte,
    output done
); //
	parameter idle=0,start=1,s0=2,s1=3,s2=4,s3=5,s4=6,s5=7,s6=8,s7=9,s8=10,stop=11,WAIT=12;
    wire[3:0] state,next;
    wire odd_bit;
    reg odd;
    wire res;
    always @(*)
        begin
            case(state)
                idle: next=in? idle:start;
                start:next=s0;
                s0:next=s1;
                s1:next=s2;
                s2:next=s3;
                s3:next=s4;
                s4:next=s5;
                s5:next=s6;
                s6:next=s7;
                s7:next=s8;
                s8:next=in?stop:WAIT;
                stop: next=in? idle:start;
                WAIT: next=in? idle:WAIT;
            endcase
        end
     always @(posedge clk)
        begin
            if(reset)
                state<=idle;
            else
                state<=next;
        end
    assign done=(odd==0&&state==stop);
    always@(posedge clk)
        begin
            case(state)
                start:out_byte[0]<=in;
                s0:out_byte[1]<=in;
                s1:out_byte[2]<=in;
                s2:out_byte[3]<=in;
                s3:out_byte[4]<=in;
                s4:out_byte[5]<=in;
                s5:out_byte[6]<=in;
                s6:out_byte[7]<=in;
                s7: odd_bit<=in;
                default: out_byte<=out_byte;
            endcase
        end
    always@(*)    //本字节结束，parity才会复位
        begin
            if(state==idle||state==stop)
                res<=1;
            else
                res<=0;
        end
    parity u0(clk,res,in,odd);
endmodule

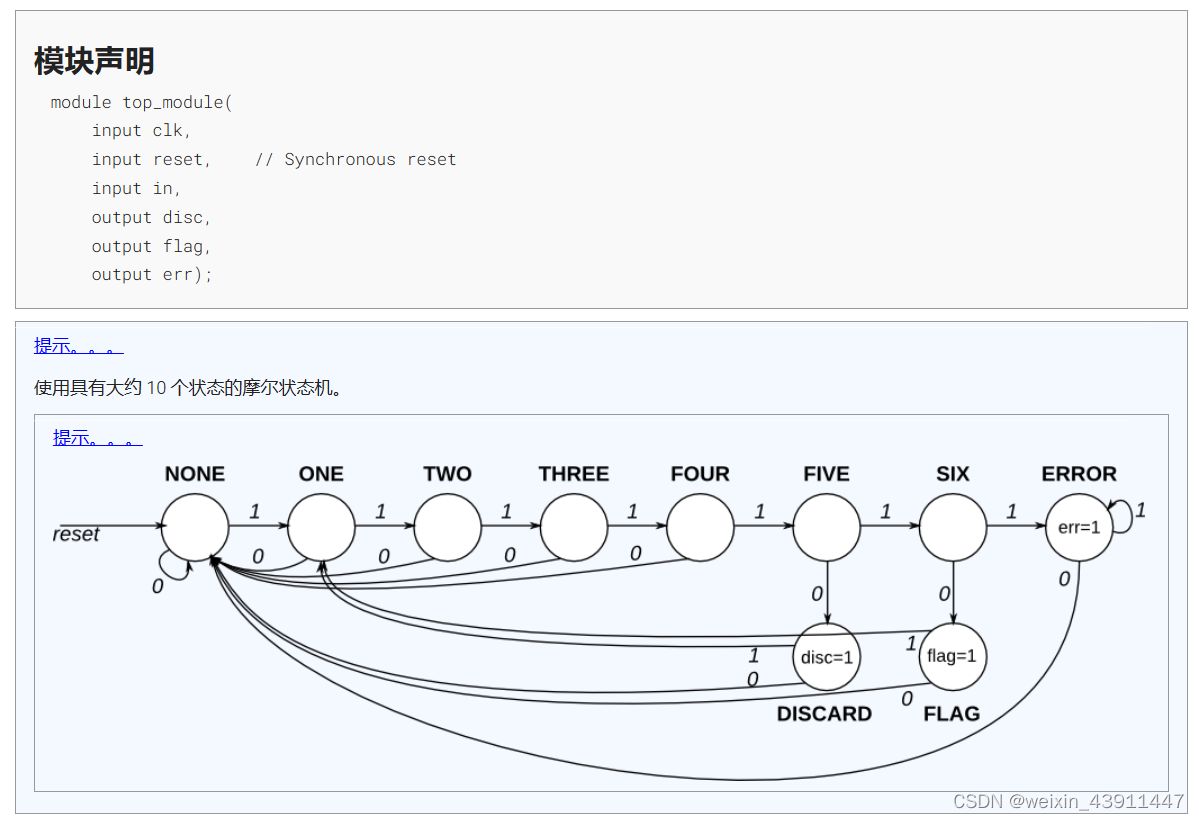

20. Sequence recognition

module top_module(
    input clk,
    input reset,    // Synchronous reset
    input in,
    output disc,
    output flag,
    output err);

    parameter none=0,s1=1,s2=2,s3=3,s4=4,s5=5,s6=6,discard=7,done=8,error=9,Wait=10;
    reg [3:0]state,next;

    always@(*)begin
        case(state)
            none:next=in?s1:none;
            s1:next=in?s2:none;
            s2:next=in?s3:none;
            s3:next=in?s4:none;
            s4:next=in?s5:none;
            s5:next=in?s6:discard;
            s6:next=in?error:done;
            discard:next=in?s1:none;
            done:next=in?s1:none;
            error:next=in?error:none;
        endcase
    end

    always@(posedge clk)begin
        if(reset)
            state<=none;
        else
            state<=next;
    end

    assign flag=(state==done);
    assign disc=(state==discard);
    assign err=(state==error);

endmodule

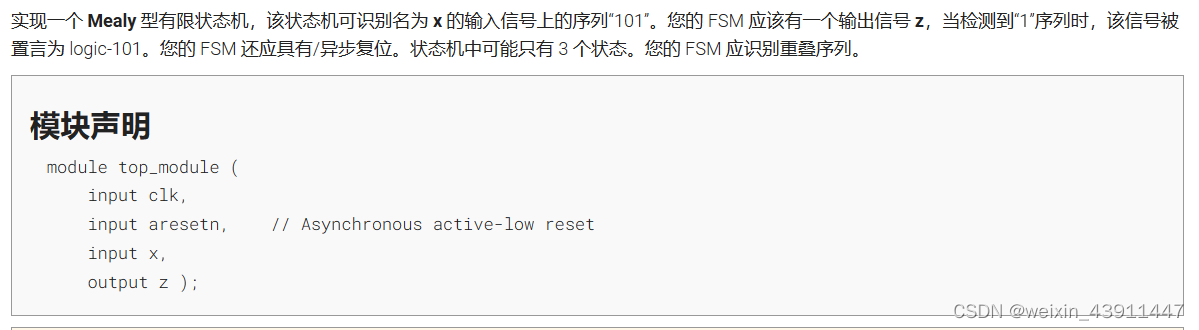

21. Design a Mealy

FSM

module top_module (
    input clk,
    input aresetn,    // Asynchronous active-low reset
    input x,
    output z );

    parameter s0=0,s1=1,s2=2;
    wire[1:0]state,next;

    always@(posedge clk or negedge aresetn)begin
        if(!aresetn)
            state<=s0;
        else
            state<=next;
    end

    always@(*)begin
        case(state)
            s0:next=x?s1:s0;
            s1:next=x?s1:s2;
            s2:next=x?s1:s0;  //x=1返回s1，可以重叠着继续
            default:next=s0;
        endcase
    end
    //输出z，只有完成一个序列的时候z才输出1
    always@(*)
        begin
            case(state)
                s0:z=0;
                s1:z=0;
                s2:z=x;
            endcase
        end


endmodule

module top_module (
	input clk,
	input aresetn,
	input x,
	output reg z
);

	// Give state names and assignments. I'm lazy, so I like to use decimal numbers.
	// It doesn't really matter what assignment is used, as long as they're unique.
	parameter S=0, S1=1, S10=2;
	reg[1:0] state, next;		// Make sure state and next are big enough to hold the state encodings.



	// Edge-triggered always block (DFFs) for state flip-flops. Asynchronous reset.
	always@(posedge clk, negedge aresetn)
		if (!aresetn)
			state <= S;
		else
			state <= next;



    // Combinational always block for state transition logic. Given the current state and inputs,
    // what should be next state be?
    // Combinational always block: Use blocking assignments.
	always@(*) begin
		case (state)
			S: next = x ? S1 : S;
			S1: next = x ? S1 : S10;
			S10: next = x ? S1 : S;
			default: next = 'x;
		endcase
	end



	// Combinational output logic. I used a combinational always block.
	// In a Mealy state machine, the output depends on the current state *and*
	// the inputs.
	always@(*) begin
		case (state)
			S: z = 0;
			S1: z = 0;
			S10: z = x;		// This is a Mealy state machine: The output can depend (combinational) on the input.
			default: z = 1'bx;
		endcase
	end

endmodule

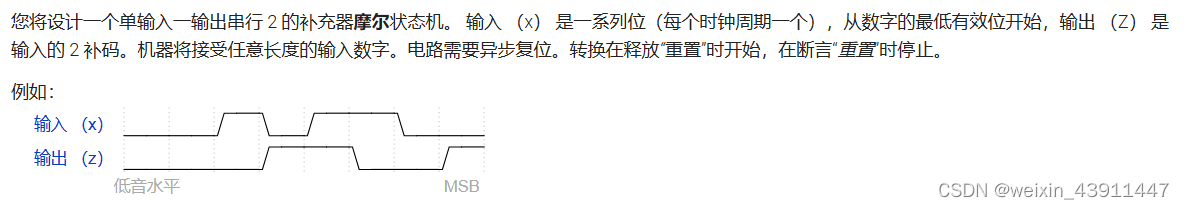

22.Q5a:Serial two’s complementer (Moore FSM)

module top_module (
    input clk,
    input areset,
    input x,
    output z
);
	parameter A=0,B=1,C=2;
    wire [1:0]state,next;
    always@(posedge clk or posedge areset)
        begin
            if(areset)
                state<=A;
            else
                state<=next;
        end
    always @(*)
        begin
            case(state)
                A:next=x?B:A;
                C:next=x?C:B;
                B:next=x?C:B;
            endcase
        end
    assign z=(state==B);
endmodule

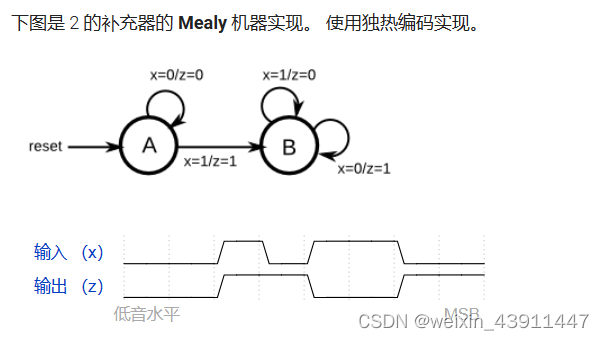

23. Serial two’s complementer (Mealy FSM)

module top_module (
    input clk,
    input areset,
    input x,
    output z
);

    parameter A=0,B=1;
    reg state,next;
    always@(posedge clk or posedge areset)begin
        if(areset)  state<=A;
        else state<=next;
    end

    always@(*)begin
        case(state)
            A:next=x?B:A;
            B:next=x;
        endcase
    end

    assign z=(state==B && ~x)||(state==A && x);

 //always@(*)
 //       begin
 //           case(state)
 //               A:z=x;
 //               B:z=~x;
 //           endcase
 //       end

endmodule

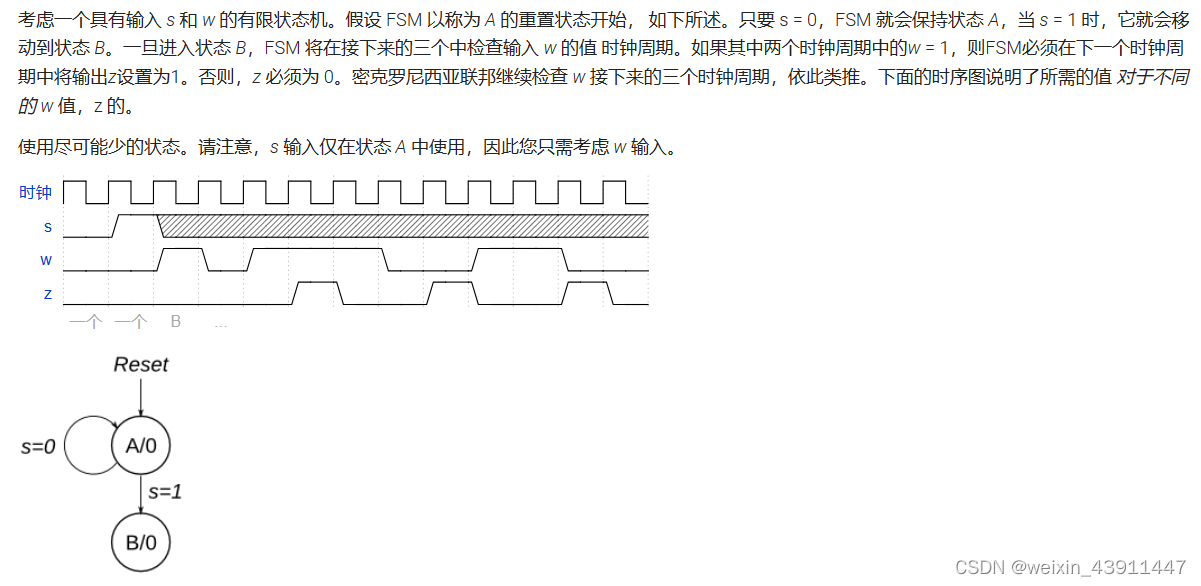

24. FSM

module top_module (
    input clk,
    input reset,   // Synchronous reset
    input s,
    input w,
    output z
);
	parameter A=1'b0,B=1'b1;
    reg state,next;
    reg w0,w1;
    reg[1:0] counter;
    always@(posedge clk)
        begin
            if(reset)
                state<=A;
            else
                state<=next;
        end
    always@(*)
        begin
            case(state)
                A:next=s?B:A;
                B:next=B;
            endcase
        end
    always@(posedge clk)
        begin
            if(reset)begin
                w0<=1'b0;
            w1<=1'b0;
            end
            else if(state==B)
                begin
                    w0<=w;
                    w1<=w0;
                end
            else
                begin
                    w0<=1'b0;
                    w1<=1'b0;
                end
        end
    always@(posedge clk)
        begin
            if(reset)
                z<=1'b0;
            else if((state==B)&&(counter==2'd0))
                begin
                    if(w&w0&~w1|w&~w0&w1|~w&w0&w1)
                        z<=1'b1;
                    else
                        z<=1'b0;
                end
            else
                z<=1'b0;
        end
    always@(posedge clk)
        begin
            if(reset)
                counter<=2'd0;
            else if(counter==2'd2)
                counter<=2'd0;
            else if(next==B)
                counter<=counter+1'b1;
                end

endmodule

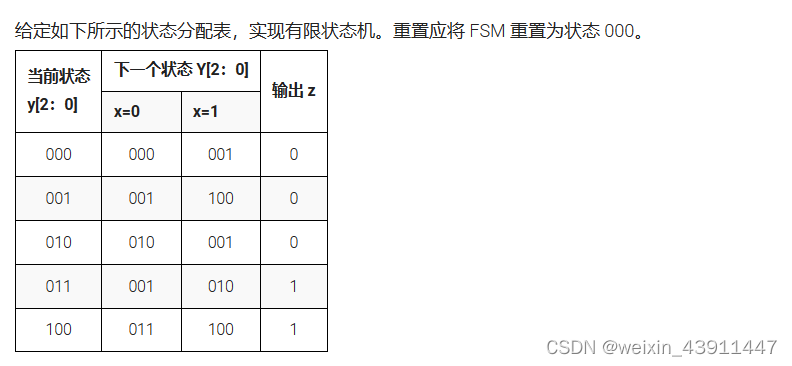

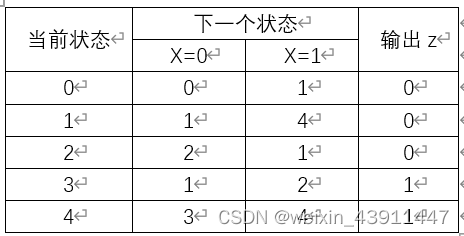

25. Q3b:FSM

module top_module (
    input clk,
    input reset,   // Synchronous reset
    input x,
    output z
);
parameter A=3'b000,B=3'b001,C=3'b010,D=3'b011,E=3'b100;
    reg [2:0] state,next;
    always@(posedge clk)
        begin
            if(reset)
                state<=A;
            else
                state<=next;
        end
    always@(*)
        begin
            case(state)
                A:next=x?B:A;
                B:next=x?E:B;
                C:next=x?B:C;
                D:next=x?C:B;
                E:next=x?E:D;
            endcase
        end
    assign z=((state==D)||(state==E));
endmodule

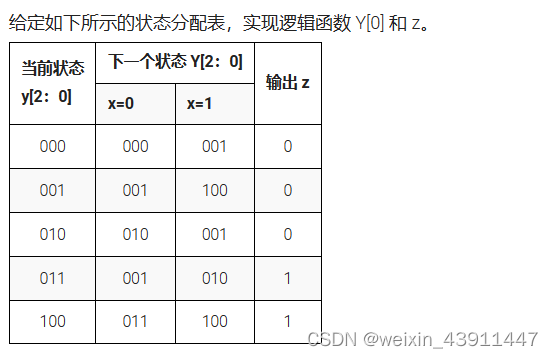

26. FSM logic

module top_module (
    input clk,
    input [2:0] y,
    input x,
    output Y0,
    output z
);

    parameter A=3'b000,B=3'b001,C=3'b010,D=3'b011,E=3'b100;
    reg [2:0] next;

    always@(*)begin
        case(y)
            A:next=x?B:A;
            B:next=x?E:B;
            C:next=x?B:C;
            D:next=x?C:B;
            E:next=x?E:D;
        endcase
    end

    assign Y0=((next==B)||(next==D));
    assign z=((y==D)||(y==E));


endmodule

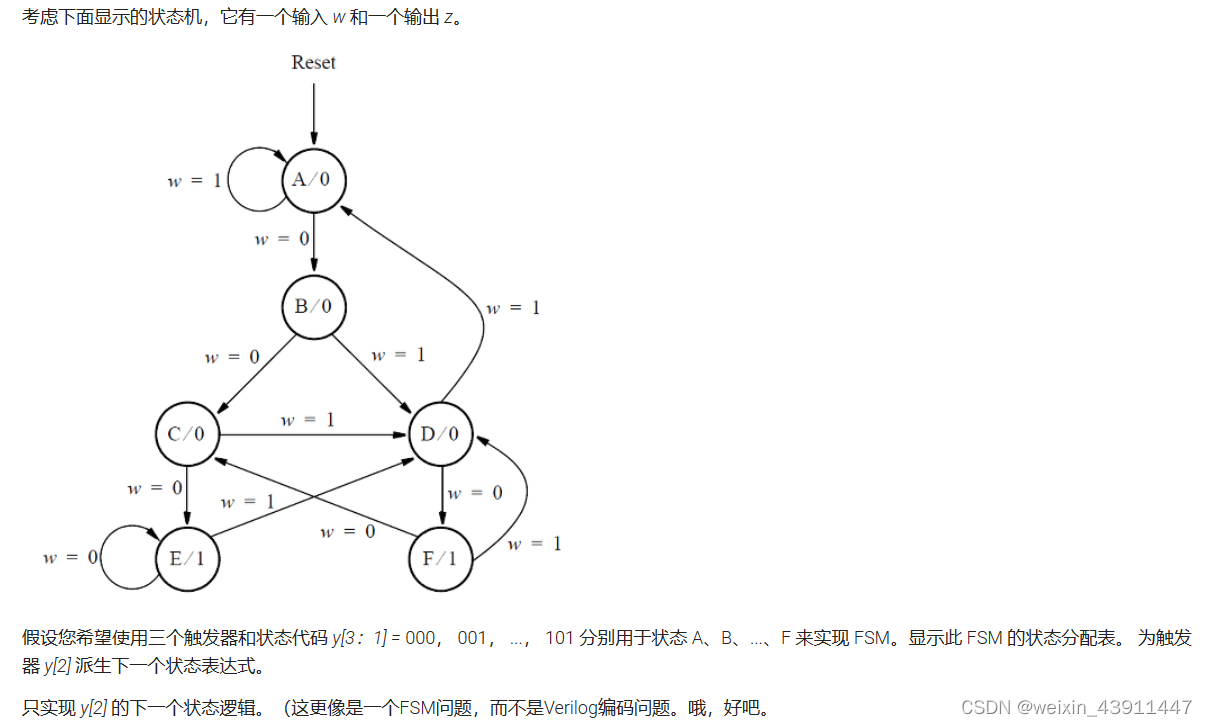

27.Q6b:FSM next-state logic

module top_module (
    input [3:1] y,
    input w,
    output Y2);

    parameter A=3'b000,B=3'b001,C=3'b010,D=3'b011,E=3'b100,F=3'b101;
    reg [2:0]next;

    always@(*)begin
        case(y)
            A:next=w?A:B;
            B:next=w?D:C;
            C:next=w?D:E;
            D:next=w?A:F;
            E:next=w?D:E;
            F:next=w?D:C;
        endcase
    end

    assign Y2=((next==D)||(next==C));
    //此处为什么不能用当前状态来表示呢？没有显示出输入w的变化要求啊？


endmodule

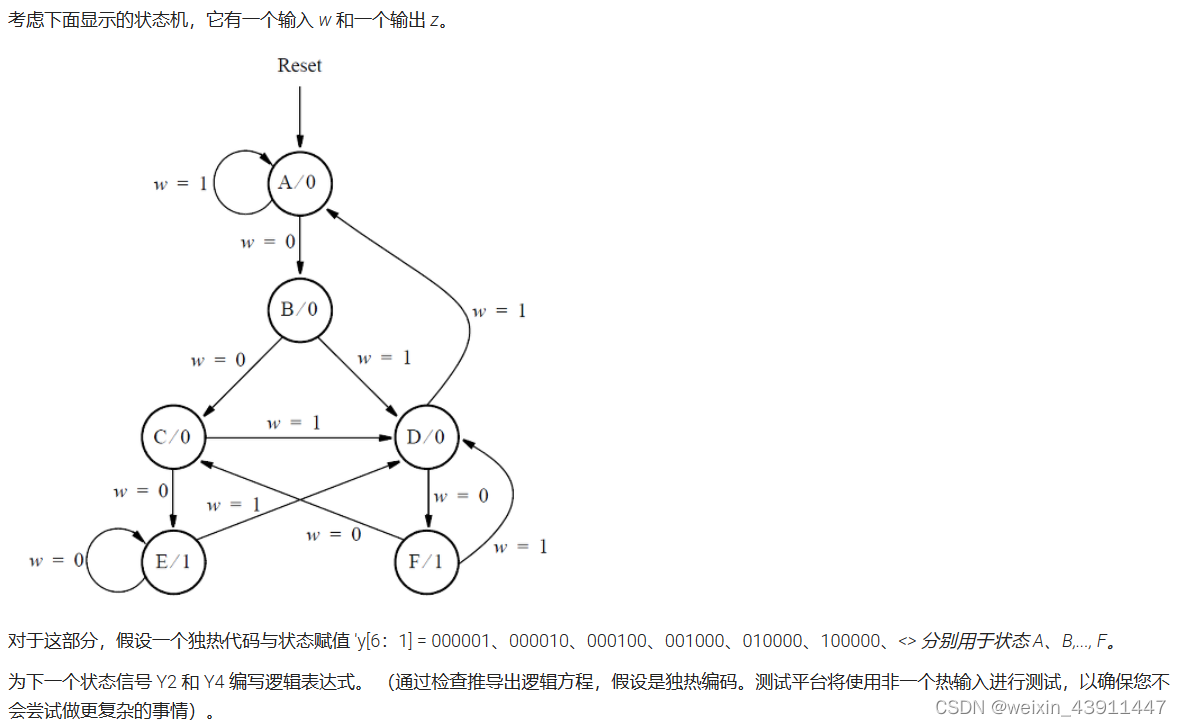

28.Q6c:FSM one-hot next-state logic

module top_module (
    input [6:1] y,
    input w,
    output Y2,
    output Y4);

    parameter A=6'b000001,B=6'b000010,C=6'b000100,D=6'b001000,E=6'b010000,F=6'b100000;
    reg [5:0]next;

    always@(*)begin
        case(y)
            A:next=w?A:B;
            B:next=w?D:C;
            C:next=w?D:E;
            D:next=w?A:F;
            E:next=w?D:E;
            F:next=w?D:C;
        endcase
    end

    assign Y2=~w&y[1];
    assign Y4=w&(y[2]|y[3]|y[5]|y[6]);



endmodule

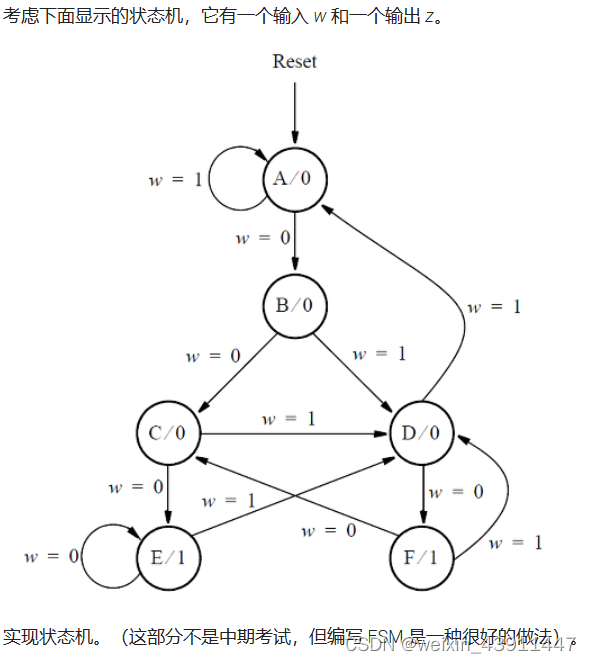

29.Q6:FSM

module top_module (
    input clk,
    input reset,     // synchronous reset
    input w,
    output z);
	parameter A=3'b000,B=3'b001,C=3'b010,D=3'b011,E=3'b100,F=3'b101;
    reg [2:0]state,next;
    always@(posedge clk)
        begin
            if(reset)
                state<=A;
            else
                state<=next;
        end
    always@(*)
        begin
            case(state)
                A:next=w?A:B;
                B:next=w?D:C;
                C:next=w?D:E;
                D:next=w?A:F;
                E:next=w?D:E;
                F:next=w?D:C;
            endcase
        end
    assign z=((state==E)||(state==F));
endmodule

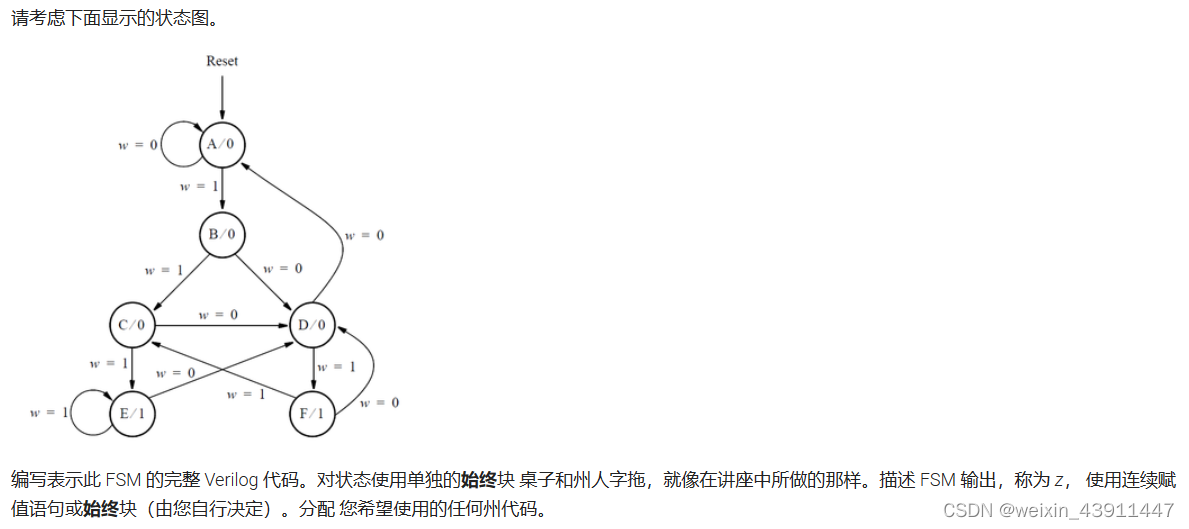

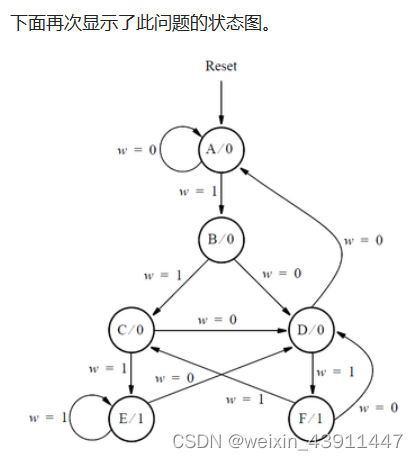

30.Q2a：FSM

module top_module (
    input clk,
    input reset,   // Synchronous active-high reset
    input w,
    output z
);
	parameter A=3'b000,B=3'b001,C=3'b010,D=3'b011,E=3'b100,F=3'b101;
    reg [2:0] state,next;
    always@(posedge clk)
        begin
            if(reset)
                state<=A;
            else
                state<=next;
        end
    always@(*)
        begin
            case(state)
                A:next=w?B:A;
                B:next=w?C:D;
                C:next=w?E:D;
                D:next=w?F:A;
                E:next=w?E:D;
                F:next=w?C:D;
            endcase
        end
    assign z=((state==E)||(state==F));
endmodule

31.Q2b：one-hot FSM equation

module top_module (
    input [5:0] y,
    input w,
    output Y1,
    output Y3
);
    assign Y1=w&y[0];
    assign Y3=~w&(y[1]|y[2]|y[4]|y[5]);
endmodule

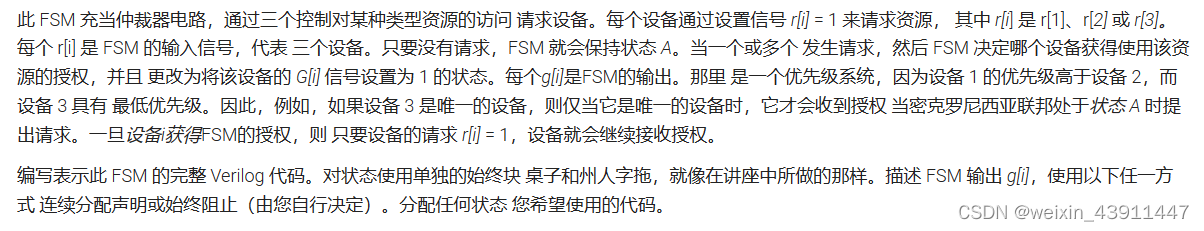

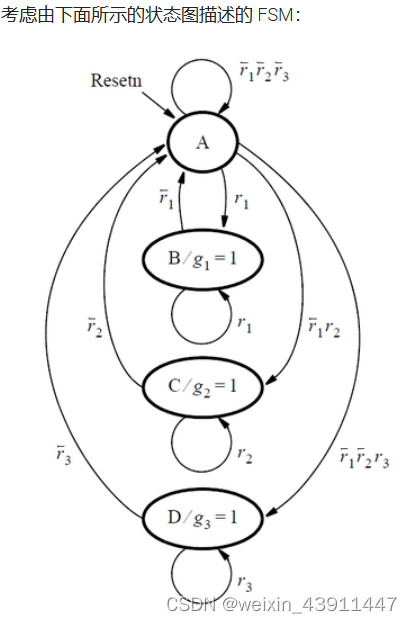

32. Q2a：FSM

module top_module (
    input clk,
    input resetn,    // active-low synchronous reset
    input [3:1] r,   // request
    output [3:1] g   // grant
);
	parameter A=2'd0,B=2'd1,C=2'd2,D=2'd3;
    reg[2:0]state,next;
    always@(posedge clk)
        begin
            if(!resetn)
              state<=A;
            else
                state<=next;
        end
    always@(*)
        begin
            case(state)
                A:begin
                    if(r[1])
                        next=B;
                    else if(~r[1]&r[2])
                        next=C;
                    else if(~r[1]&~r[2]&r[3])
                        next=D;
                    else if(~r[1]&~r[2]&~r[3])
                        next=A;
                end
                B:next=r[1]?B:A;
                C:next=r[2]?C:A;
                D:next=r[3]?D:A;
            endcase
        end
    assign g[1]=(state==B);
    assign g[2]=(state==C);
    assign g[3]=(state==D);
endmodule

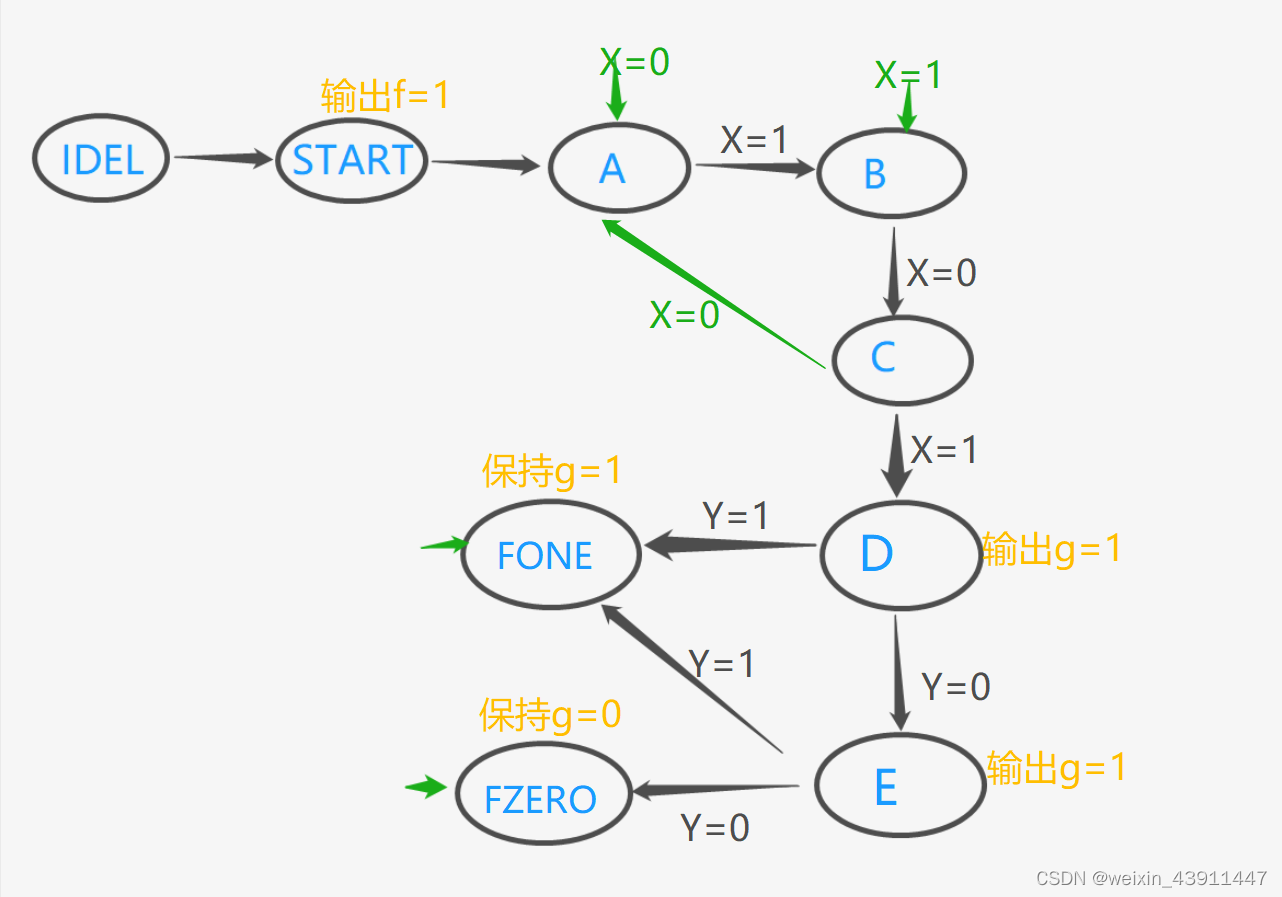

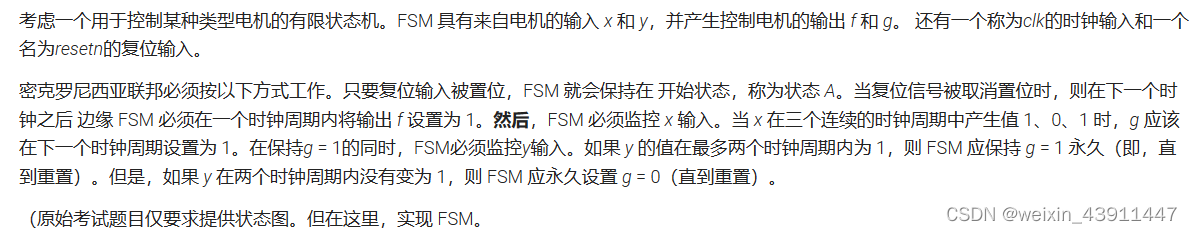

33.Q2b：Another FSM

module top_module (
    input clk,
    input resetn,    // active-low synchronous reset
    input x,
    input y,
    output f,
    output g
);
	parameter IDEL=4'd0,START=4'd1,A=4'd2,B=4'd3,C=4'd4,D=4'd5,E=4'd6,FONE=4'd7,FZERO=4'd8;
    reg[3:0]state,next;
    always@(posedge clk)
        begin
            if(!resetn)
                state<=IDEL;
            else
                state<=next;
        end
    always@(*)
        begin
            case(state)
                IDEL:next=START;
                START:next=A;
                A:next=x?B:A;
                B:next=x?B:C;
                C:next=x?D:A;
                D:next=y?FONE:E;
                E:next=y?FONE:FZERO;
                FONE:next=FONE;
                FZERO:next=FZERO;
            endcase
        end
    assign f=(state==START);
    assign g=((state==D)||(state==E)||(state==FONE));

endmodule
