开始
pip3 install Adafruit_ADS1x15
接线
凑合看

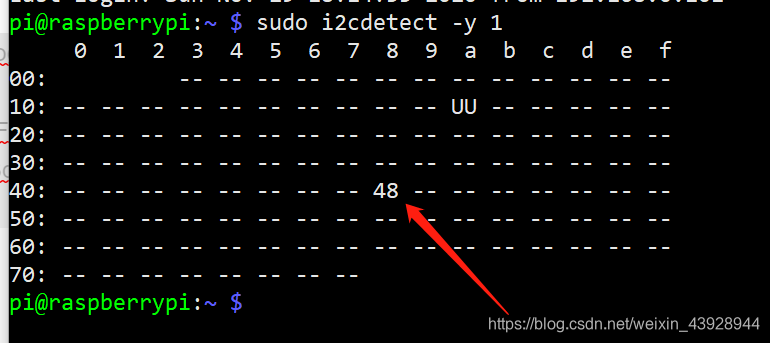

检测i2c状态
sudo i2cdetect -y 1
UU是我的声卡
代码
import time
# Import the ADS1x15 module.
import Adafruit_ADS1x15
# Create an ADS1115 ADC (16-bit) instance.
adc = Adafruit_ADS1x15.ADS1115()
# Note you can change the I2C address from its default (0x48), and/or the I2C
# bus by passing in these optional parameters:
adc = Adafruit_ADS1x15.ADS1015(address=0x48, busnum=1)
# Choose a gain of 1 for reading voltages from 0 to 4.09V.
# Or pick a different gain to change the range of voltages that are read:
# - 2/3 = +/-6.144V
# - 1 = +/-4.096V
# - 2 = +/-2.048V
# - 4 = +/-1.024V
# - 8 = +/-0.512V
# - 16 = +/-0.256V
# See table 3 in the ADS1015/ADS1115 datasheet for more info on gain.
GAIN = 1
while True:
print(adc.read_adc(0, gain=GAIN))
time.sleep(0.5)
还挺准
