1. STM32 CubeMX custom code generation
搞过STM32的人应该都对STM32 CubeMX不是很陌生。当然，其除了能够配置管脚、时钟树之外，还可以让其根据指定的模板生成相应的代码。
正如其用户手册而言，如下截图。
如手册所言，我们需要有一个FreeMarker的模板文件，CubeMX根据其解释生成相应的代码文件。

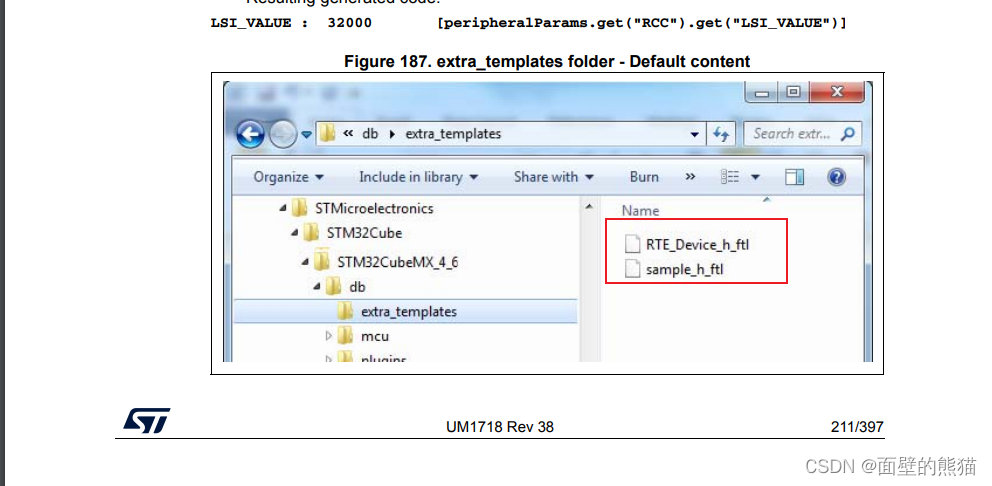

如上图所言，我们知道在CubeMX的安装路径下，ST已经给我们提供了相应的模板了。

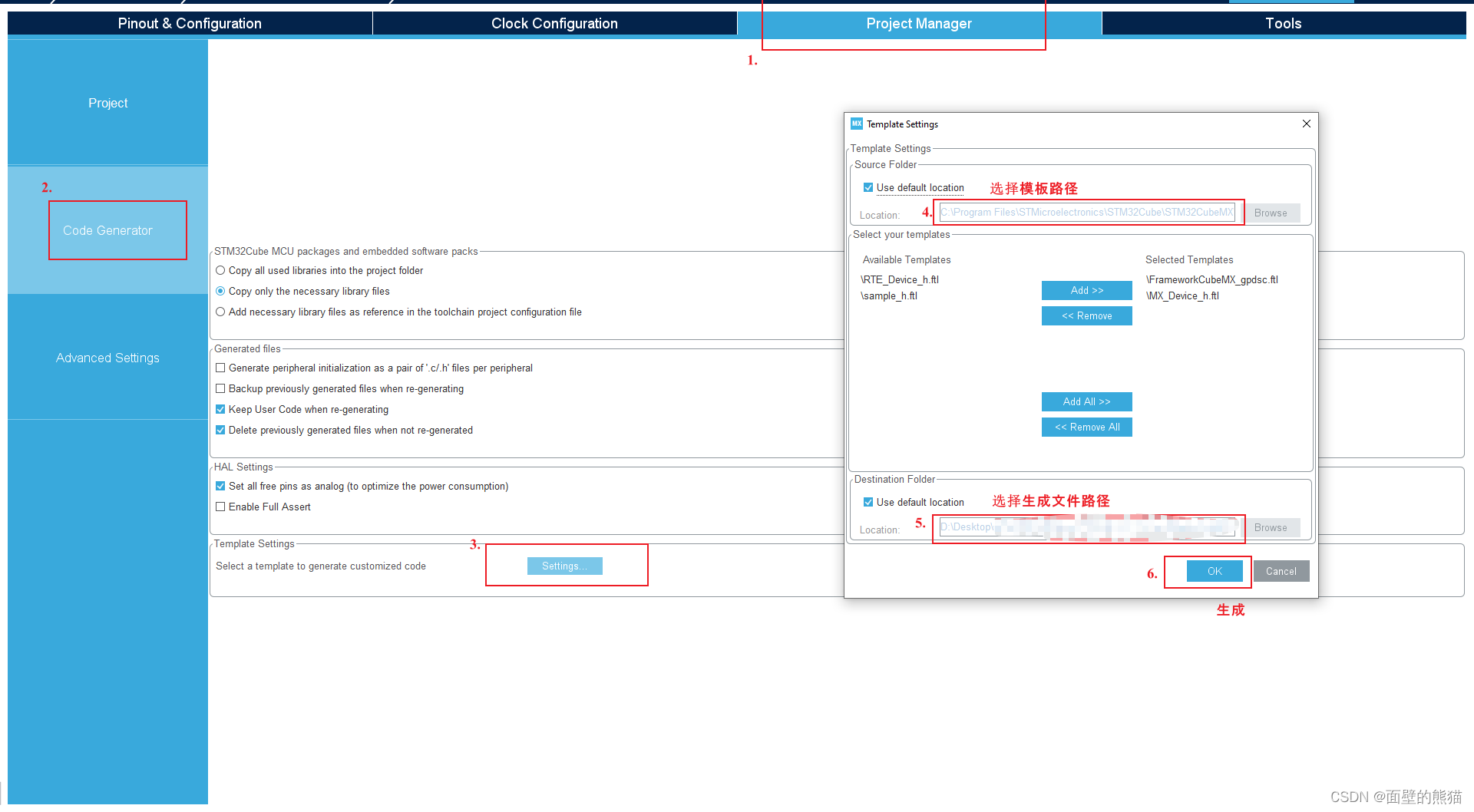

2. 如何使用及生成
这样，你就能生成自定义的代码了。
这里以ST提供的sample_h.ftl模板为例。
sample_h.ftl
[#ftl]
[#list configs as dt]
[#assign data = dt]
[#assign peripheralParams =dt.peripheralParams]
[#assign peripheralGPIOParams =dt.peripheralGPIOParams]
[#assign peripheralDMAParams =dt.peripheralDMAParams]
[#assign peripheralNVICParams =dt.peripheralNVICParams]
[#assign usedIPs =dt.usedIPs]
/**
******************************************************************************
* File Name :
* Date : ${date}
* Description :
******************************************************************************
**/
/*---------------------------- MCU Configuration data -------------------------*/
/* Mcu characteristics */
/* List of used IPs */
- RCC
[#list usedIPs as ip]
- ${ip}
[/#list]
#t------------------------------------------------------------------------------
#t- Clock Configuration data
#t------------------------------------------------------------------------------
[#list peripheralParams.get("RCC").entrySet() as paramEntry]
[#if paramEntry.value??]#t#t- ${paramEntry.key} : ${paramEntry.value}[/#if] #t [peripheralParams.get("RCC").get("${paramEntry.key}")]
[/#list]
[#list usedIPs as ip ] [#-- For each used ip, list all configuration data --]
[#if peripheralParams.get(ip).entrySet()?size>0]
#t------------------------------------------------------------------------------
#t- ${ip} Configuration data : Driver type = ${peripheralParams.get(ip).get("driver")}
#t------------------------------------------------------------------------------
[#if peripheralGPIOParams.get(ip)?? && peripheralGPIOParams.get(ip).entrySet()?size>0]
#t#t GPIO configuration
#t#t-------------------
[#list peripheralGPIOParams.get(ip).entrySet() as gpioparamEntry]
#t#t- ${gpioparamEntry.key} :
[#list gpioparamEntry.value.entrySet() as gpioparam]
#t#t#t - ${gpioparam.key} : ${gpioparam.value} #t [peripheralGPIOParams.get("${ip}").get("${gpioparamEntry.key}").value.get("${gpioparam.key}")]
[/#list]
[/#list]
#n
[/#if]
[#if peripheralParams.get(ip)?? ]
#t#t IP paramters configuration
#t#t---------------------------
[#list peripheralParams.get(ip).entrySet() as paramEntry]
[#if paramEntry.value??]#t#t- ${paramEntry.key} : ${paramEntry.value}[/#if] #t [peripheralParams.get("${ip}").get("${paramEntry.key}")]
[/#list]
[/#if]
#n
[#if peripheralDMAParams.get(ip)?? && peripheralDMAParams.get(ip).entrySet()?size>0]
#t#t DMA IP paramters configuration
#t#t---------------------------
[#list peripheralDMAParams.get(ip).entrySet() as dmaParamEntry]
#t#t- ${dmaParamEntry.key} :
[#list dmaParamEntry.value.entrySet() as dmaParam]
#t#t#t - ${dmaParam.key} : ${dmaParam.value} #t [peripheralDMAParams.get("${ip}").get("${dmaParamEntry.key}").value.get("${dmaParam.key}")]
[/#list]
[/#list]
#n
[/#if]
#n
[#if peripheralNVICParams.get(ip)?? && peripheralNVICParams.get(ip).entrySet()?size>0]
#t#t Interrupt IP paramters configuration
#t#t---------------------------
[#list peripheralNVICParams.get(ip).entrySet() as nvicParamEntry]
#t#t- ${nvicParamEntry.key} :
[#list nvicParamEntry.value.entrySet() as nvicParam]
#t#t#t - ${nvicParam.key} : ${nvicParam.value} #t [peripheralNVICParams.get("${ip}").get("${nvicParamEntry.key}").value.get("${nvicParam.key}")]
[/#list]
[/#list]
#n
[/#if]
[/#if]
[/#list]
[/#list]
生成的sample.h代码如下
/**
******************************************************************************
* File Name :
* Date : 09/10/2022 09:24:15
* Description :
******************************************************************************
**/
/*---------------------------- MCU Configuration data -------------------------*/
/* Mcu characteristics */
/* List of used IPs */
- RCC
- ADC1
- DMA
- I2C1
- IWDG
- RTC
- SPI1
- SYS
- TIM1
- TIM2
- TIM3
- TIM15
- USART1
- USART2
- USART3
- NVIC
- GPIO
------------------------------------------------------------------------------
- Clock Configuration data
------------------------------------------------------------------------------
- TIM1Freq_Value : 16000000 [peripheralParams.get("RCC").get("TIM1Freq_Value")]
- LSI_VALUE : 32000 [peripheralParams.get("RCC").get("LSI_VALUE")]
- USART1CLockSelection : RCC_USART1CLKSOURCE_PCLK1 [peripheralParams.get("RCC").get("USART1CLockSelection")]
- CECCLockSelection : RCC_CECCLKSOURCE_HSI_DIV488 [peripheralParams.get("RCC").get("CECCLockSelection")]
- LPUART1Freq_Value : 16000000 [peripheralParams.get("RCC").get("LPUART1Freq_Value")]
- MCO2PinFreq_Value : 64000000 [peripheralParams.get("RCC").get("MCO2PinFreq_Value")]
- RCC_MCODiv : RCC_MCODIV_1 [peripheralParams.get("RCC").get("RCC_MCODiv")]
- ADCCLockSelection : RCC_ADCCLKSOURCE_HSI [peripheralParams.get("RCC").get("ADCCLockSelection")]
- TIM15Freq_Value : 16000000 [peripheralParams.get("RCC").get("TIM15Freq_Value")]
- ExtClockEnable : false [peripheralParams.get("RCC").get("ExtClockEnable")]
- APB1CLKDivider : RCC_HCLK_DIV1 [peripheralParams.get("RCC").get("APB1CLKDivider")]
- I2S1Freq_Value : 64000000 [peripheralParams.get("RCC").get("I2S1Freq_Value")]
- LPTIM2Freq_Value : 16000000 [peripheralParams.get("RCC").get("LPTIM2Freq_Value")]
- ClockTypePCLK1 : RCC_CLOCKTYPE_PCLK1 [peripheralParams.get("RCC").get("ClockTypePCLK1")]
- DATA_CACHE_ENABLE : 1 [peripheralParams.get("RCC").get("DATA_CACHE_ENABLE")]
- RCC_MCO2Div : RCC_MCO2DIV_1 [peripheralParams.get("RCC").get("RCC_MCO2Div")]
- HSISYSCLKDivider : RCC_HSI_DIV1 [peripheralParams.get("RCC").get("HSISYSCLKDivider")]
- FCLKCortexFreq_Value : 16000000 [peripheralParams.get("RCC").get("FCLKCortexFreq_Value")]
- AHBFreq_Value : 16000000 [peripheralParams.get("RCC").get("AHBFreq_Value")]
- RCC_MCO2Source : RCC_MCO2SOURCE_SYSCLK [peripheralParams.get("RCC").get("RCC_MCO2Source")]
- CodegenConfigPeriph : true [peripheralParams.get("RCC").get("CodegenConfigPeriph")]
- ClockTypeSysClk : RCC_CLOCKTYPE_SYSCLK [peripheralParams.get("RCC").get("ClockTypeSysClk")]
- USART2CLockSelection : RCC_USART2CLKSOURCE_PCLK1 [peripheralParams.get("RCC").get("USART2CLockSelection")]
- SYSCLKFreq_VALUE : 64000000 [peripheralParams.get("RCC").get("SYSCLKFreq_VALUE")]
- USART1Freq_Value : 16000000 [peripheralParams.get("RCC").get("USART1Freq_Value")]
- HSICalibrationValue : 64 [peripheralParams.get("RCC").get("HSICalibrationValue")]
- I2C2CLockSelection : RCC_I2C2CLKSOURCE_PCLK1 [peripheralParams.get("RCC").get("I2C2CLockSelection")]
- PLLQ : RCC_PLLQ_DIV2 [peripheralParams.get("RCC").get("PLLQ")]
- PLLP : RCC_PLLP_DIV2 [peripheralParams.get("RCC").get("PLLP")]
- SYSCLKSource : RCC_SYSCLKSOURCE_PLLCLK [peripheralParams.get("RCC").get("SYSCLKSource")]
- LPTIM1CLockSelection : RCC_LPTIM1CLKSOURCE_PCLK1 [peripheralParams.get("RCC").get("LPTIM1CLockSelection")]
- LPTIM1Freq_Value : 16000000 [peripheralParams.get("RCC").get("LPTIM1Freq_Value")]
- PLLR : RCC_PLLR_DIV2 [peripheralParams.get("RCC").get("PLLR")]
- LSE_VALUE : 32768 [peripheralParams.get("RCC").get("LSE_VALUE")]
- HSE_VALUE : 8000000 [peripheralParams.get("RCC").get("HSE_VALUE")]
- ClockTypeARG : RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK|RCC_CLOCKTYPE_PCLK1 [peripheralParams.get("RCC").get("ClockTypeARG")]
- APB1TimCLKDivider : 1 [peripheralParams.get("RCC").get("APB1TimCLKDivider")]
- Cortex_Div : SYSTICK_CLKSOURCE_HCLK [peripheralParams.get("RCC").get("Cortex_Div")]
- HSI_VALUE : 16000000 [peripheralParams.get("RCC").get("HSI_VALUE")]
- AHBCLKDividerARG : RCC_SYSCLK_DIV4 [peripheralParams.get("RCC").get("AHBCLKDividerARG")]
- EnableCSSLSE : false [peripheralParams.get("RCC").get("EnableCSSLSE")]
- ADCFreq_Value : 16000000 [peripheralParams.get("RCC").get("ADCFreq_Value")]
- I2S1CLockSelection : RCC_I2S1CLKSOURCE_SYSCLK [peripheralParams.get("RCC").get("I2S1CLockSelection")]
- driver : HAL [peripheralParams.get("RCC").get("driver")]
- APB1CLKDividerARG : RCC_HCLK_DIV1 [peripheralParams.get("RCC").get("APB1CLKDividerARG")]
- PWR_Regulator_Voltage_Scale : PWR_REGULATOR_VOLTAGE_SCALE1 [peripheralParams.get("RCC").get("PWR_Regulator_Voltage_Scale")]
- EXTERNAL_I2S2_CLOCK_VALUE : 48000 [peripheralParams.get("RCC").get("EXTERNAL_I2S2_CLOCK_VALUE")]
- OscillatorType : RCC_OSCILLATORTYPE_HSI|RCC_OSCILLATORTYPE_LSI [peripheralParams.get("RCC").get("OscillatorType")]
- APBTimFreq_Value : 16000000 [peripheralParams.get("RCC").get("APBTimFreq_Value")]
- RTCFreq_Value : 32000 [peripheralParams.get("RCC").get("RTCFreq_Value")]
- VDD_VALUE : 3 [peripheralParams.get("RCC").get("VDD_VALUE")]
- AHBCLKDivider : RCC_SYSCLK_DIV4 [peripheralParams.get("RCC").get("AHBCLKDivider")]
- LPTIM2CLockSelection : RCC_LPTIM2CLKSOURCE_PCLK1 [peripheralParams.get("RCC").get("LPTIM2CLockSelection")]
- Instance : RCC [peripheralParams.get("RCC").get("Instance")]
- SYSCLKFreq_VALUE1 : 64 [peripheralParams.get("RCC").get("SYSCLKFreq_VALUE1")]
- SYSCLKFreq_VALUE2 : 64 [peripheralParams.get("RCC").get("SYSCLKFreq_VALUE2")]
- PWRFreq_Value : 64000000 [peripheralParams.get("RCC").get("PWRFreq_Value")]
- USART3CLockSelection : RCC_USART3CLKSOURCE_PCLK1 [peripheralParams.get("RCC").get("USART3CLockSelection")]
- MCO1PinFreq_Value : 64000000 [peripheralParams.get("RCC").get("MCO1PinFreq_Value")]
- I2C1CLockSelection : RCC_I2C1CLKSOURCE_PCLK1 [peripheralParams.get("RCC").get("I2C1CLockSelection")]
- USART2Freq_Value : 16000000 [peripheralParams.get("RCC").get("USART2Freq_Value")]
- HCLKFreq_Value : 16000000 [peripheralParams.get("RCC").get("HCLKFreq_Value")]
- HSISYSCLKDividerARG : RCC_HSI_DIV1 [peripheralParams.get("RCC").get("HSISYSCLKDividerARG")]
- SYSCLKSourceARG : RCC_SYSCLKSOURCE_PLLCLK [peripheralParams.get("RCC").get("SYSCLKSourceARG")]
- HSE_Timout : 100 [peripheralParams.get("RCC").get("HSE_Timout")]
- APBFreq_Value : 16000000 [peripheralParams.get("RCC").get("APBFreq_Value")]
- USBFreq_Value : 48000000 [peripheralParams.get("RCC").get("USBFreq_Value")]
- EnableExtClockForI2S : false [peripheralParams.get("RCC").get("EnableExtClockForI2S")]
- WatchDogFreq_Value : 32000 [peripheralParams.get("RCC").get("WatchDogFreq_Value")]
- PLLM : RCC_PLLM_DIV1 [peripheralParams.get("RCC").get("PLLM")]
- LPUART1CLockSelection : RCC_LPUART1CLKSOURCE_PCLK1 [peripheralParams.get("RCC").get("LPUART1CLockSelection")]
- CECFreq_Value : 32786 [peripheralParams.get("RCC").get("CECFreq_Value")]
- PREFETCH_ENABLE : 0 [peripheralParams.get("RCC").get("PREFETCH_ENABLE")]
- PLLN : 8 [peripheralParams.get("RCC").get("PLLN")]
- FLatency : FLASH_LATENCY_0 [peripheralParams.get("RCC").get("FLatency")]
- EXTERNAL_CLOCK_VALUE : 48000 [peripheralParams.get("RCC").get("EXTERNAL_CLOCK_VALUE")]
- CortexFreq_Value : 16000000 [peripheralParams.get("RCC").get("CortexFreq_Value")]
- I2C1Freq_Value : 16000000 [peripheralParams.get("RCC").get("I2C1Freq_Value")]
- RTCClockSelection : RCC_RTCCLKSOURCE_LSI [peripheralParams.get("RCC").get("RTCClockSelection")]
- USART3Freq_Value : 16000000 [peripheralParams.get("RCC").get("USART3Freq_Value")]
- LSE_Timout : 5000 [peripheralParams.get("RCC").get("LSE_Timout")]
- ClockTypeHCLK : RCC_CLOCKTYPE_HCLK [peripheralParams.get("RCC").get("ClockTypeHCLK")]
- RCC_CEC_Clock_Source_FROM_HSI16 : 488 [peripheralParams.get("RCC").get("RCC_CEC_Clock_Source_FROM_HSI16")]
- INSTRUCTION_CACHE_ENABLE : 1 [peripheralParams.get("RCC").get("INSTRUCTION_CACHE_ENABLE")]
- RCC_RTC_Clock_Source_FROM_HSE : 32 [peripheralParams.get("RCC").get("RCC_RTC_Clock_Source_FROM_HSE")]
- RCC_MCO1Source : RCC_MCO1SOURCE_SYSCLK [peripheralParams.get("RCC").get("RCC_MCO1Source")]
- EnbaleCSS : false [peripheralParams.get("RCC").get("EnbaleCSS")]
- ClockType : RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK|RCC_CLOCKTYPE_PCLK1 [peripheralParams.get("RCC").get("ClockType")]
------------------------------------------------------------------------------
- ADC1 Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- ADC1_IN5 :
- Pin : PA5 [peripheralGPIOParams.get("ADC1").get("ADC1_IN5").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("ADC1").get("ADC1_IN5").value.get("GPIOx")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("ADC1").get("ADC1_IN5").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("ADC1").get("ADC1_IN5").value.get("Port")]
- GPIO_Label : ADC_V_SUPCAP [peripheralGPIOParams.get("ADC1").get("ADC1_IN5").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_5 [peripheralGPIOParams.get("ADC1").get("ADC1_IN5").value.get("GPIO_Pin")]
- GPIO_Mode : GPIO_MODE_ANALOG [peripheralGPIOParams.get("ADC1").get("ADC1_IN5").value.get("GPIO_Mode")]
- ADC1_IN0 :
- Pin : PA0 [peripheralGPIOParams.get("ADC1").get("ADC1_IN0").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("ADC1").get("ADC1_IN0").value.get("GPIOx")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("ADC1").get("ADC1_IN0").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("ADC1").get("ADC1_IN0").value.get("Port")]
- GPIO_Label : ADC_V_VARIANT [peripheralGPIOParams.get("ADC1").get("ADC1_IN0").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_0 [peripheralGPIOParams.get("ADC1").get("ADC1_IN0").value.get("GPIO_Pin")]
- GPIO_Mode : GPIO_MODE_ANALOG [peripheralGPIOParams.get("ADC1").get("ADC1_IN0").value.get("GPIO_Mode")]
IP paramters configuration
---------------------------
- ChannelVREF : ADC_CHANNEL_VREFINT [peripheralParams.get("ADC1").get("ChannelVREF")]
- OversamplingMode : DISABLE [peripheralParams.get("ADC1").get("OversamplingMode")]
- NbrOfConversionFlag : 0 [peripheralParams.get("ADC1").get("NbrOfConversionFlag")]
- DataAlign : ADC_DATAALIGN_RIGHT [peripheralParams.get("ADC1").get("DataAlign")]
- Instance : ADC1 [peripheralParams.get("ADC1").get("Instance")]
- LowPowerAutoPowerOff : DISABLE [peripheralParams.get("ADC1").get("LowPowerAutoPowerOff")]
- Channel_IN0 : ADC_CHANNEL_0 [peripheralParams.get("ADC1").get("Channel_IN0")]
- Channel_IN-Vrefint : ADC_CHANNEL_VREFINT [peripheralParams.get("ADC1").get("Channel_IN-Vrefint")]
- Channel_IN5 : ADC_CHANNEL_5 [peripheralParams.get("ADC1").get("Channel_IN5")]
- ExternalTrigConvEdge : ADC_EXTERNALTRIGCONVEDGE_RISING [peripheralParams.get("ADC1").get("ExternalTrigConvEdge")]
- EnableAnalogWatchDog1 : false [peripheralParams.get("ADC1").get("EnableAnalogWatchDog1")]
- ScanConvMode : ADC_SCAN_SEQ_FIXED [peripheralParams.get("ADC1").get("ScanConvMode")]
- Sequencer : NOT_FULLY_CONFIGURABLE [peripheralParams.get("ADC1").get("Sequencer")]
- CommonClock : ADC_CLOCK_SYNC_PCLK_DIV2 [peripheralParams.get("ADC1").get("CommonClock")]
- EOCSelection : ADC_EOC_SINGLE_CONV [peripheralParams.get("ADC1").get("EOCSelection")]
- ClockPrescaler : ADC_CLOCK_SYNC_PCLK_DIV2 [peripheralParams.get("ADC1").get("ClockPrescaler")]
- SamplingTimeCommon1 : ADC_SAMPLETIME_7CYCLES_5 [peripheralParams.get("ADC1").get("SamplingTimeCommon1")]
- SamplingTimeCommon2 : __NULL [peripheralParams.get("ADC1").get("SamplingTimeCommon2")]
- DiscontinuousConvMode : DISABLE [peripheralParams.get("ADC1").get("DiscontinuousConvMode")]
- ExternalTrigConv : ADC_EXTERNALTRIG_T1_TRGO2 [peripheralParams.get("ADC1").get("ExternalTrigConv")]
- NbrOfConversion : 1 [peripheralParams.get("ADC1").get("NbrOfConversion")]
- TriggerFrequencyMode : ADC_TRIGGER_FREQ_HIGH [peripheralParams.get("ADC1").get("TriggerFrequencyMode")]
- ChannelTS : ADC_CHANNEL_TEMPSENSOR [peripheralParams.get("ADC1").get("ChannelTS")]
- ContinuousConvMode : DISABLE [peripheralParams.get("ADC1").get("ContinuousConvMode")]
- LowPowerAutoWait : DISABLE [peripheralParams.get("ADC1").get("LowPowerAutoWait")]
- driver : HAL [peripheralParams.get("ADC1").get("driver")]
- Overrun : ADC_OVR_DATA_PRESERVED [peripheralParams.get("ADC1").get("Overrun")]
- DMAContinuousRequests : ENABLE [peripheralParams.get("ADC1").get("DMAContinuousRequests")]
- Channel_IN-TempSens : ADC_CHANNEL_TEMPSENSOR [peripheralParams.get("ADC1").get("Channel_IN-TempSens")]
- Resolution : ADC_RESOLUTION_12B [peripheralParams.get("ADC1").get("Resolution")]
DMA IP paramters configuration
---------------------------
- ADC1 :
- Instance : DMA1_Channel1 [peripheralDMAParams.get("ADC1").get("ADC1").value.get("Instance")]
- Priority : DMA_PRIORITY_LOW [peripheralDMAParams.get("ADC1").get("ADC1").value.get("Priority")]
- MemDataAlignment : DMA_MDATAALIGN_WORD [peripheralDMAParams.get("ADC1").get("ADC1").value.get("MemDataAlignment")]
- Mode : DMA_CIRCULAR [peripheralDMAParams.get("ADC1").get("ADC1").value.get("Mode")]
- SyncRequestNumber : 1 [peripheralDMAParams.get("ADC1").get("ADC1").value.get("SyncRequestNumber")]
- Request : DMA_REQUEST_ADC1 [peripheralDMAParams.get("ADC1").get("ADC1").value.get("Request")]
- SyncPolarity : HAL_DMAMUX_SYNC_NO_EVENT [peripheralDMAParams.get("ADC1").get("ADC1").value.get("SyncPolarity")]
- Direction : DMA_PERIPH_TO_MEMORY [peripheralDMAParams.get("ADC1").get("ADC1").value.get("Direction")]
- SignalID : NONE [peripheralDMAParams.get("ADC1").get("ADC1").value.get("SignalID")]
- MemInc : DMA_MINC_ENABLE [peripheralDMAParams.get("ADC1").get("ADC1").value.get("MemInc")]
- IpInstance : [peripheralDMAParams.get("ADC1").get("ADC1").value.get("IpInstance")]
- RequestNumber : 1 [peripheralDMAParams.get("ADC1").get("ADC1").value.get("RequestNumber")]
- EventEnable : DISABLE [peripheralDMAParams.get("ADC1").get("ADC1").value.get("EventEnable")]
- SyncEnable : DISABLE [peripheralDMAParams.get("ADC1").get("ADC1").value.get("SyncEnable")]
- DMA_Handle : [peripheralDMAParams.get("ADC1").get("ADC1").value.get("DMA_Handle")]
- PeriphDataAlignment : DMA_PDATAALIGN_WORD [peripheralDMAParams.get("ADC1").get("ADC1").value.get("PeriphDataAlignment")]
- Polarity : HAL_DMAMUX_REQ_GEN_RISING [peripheralDMAParams.get("ADC1").get("ADC1").value.get("Polarity")]
- SyncSignalID : NONE [peripheralDMAParams.get("ADC1").get("ADC1").value.get("SyncSignalID")]
- PeriphInc : DMA_PINC_DISABLE [peripheralDMAParams.get("ADC1").get("ADC1").value.get("PeriphInc")]
------------------------------------------------------------------------------
- DMA Configuration data : Driver type = HAL
------------------------------------------------------------------------------
IP paramters configuration
---------------------------
- driver : HAL [peripheralParams.get("DMA").get("driver")]
- Instance : DMA1_Channel1 [peripheralParams.get("DMA").get("Instance")]
Interrupt IP paramters configuration
---------------------------
- DMA1_Ch4_7_DMA2_Ch1_5_DMAMUX1_OVR_IRQn :
- interruptPremptionPriority : 0 [peripheralNVICParams.get("DMA").get("DMA1_Ch4_7_DMA2_Ch1_5_DMAMUX1_OVR_IRQn").value.get("interruptPremptionPriority")]
- Subriority : 0 [peripheralNVICParams.get("DMA").get("DMA1_Ch4_7_DMA2_Ch1_5_DMAMUX1_OVR_IRQn").value.get("Subriority")]
- DMA1_Channel1_IRQn :
- interruptPremptionPriority : 3 [peripheralNVICParams.get("DMA").get("DMA1_Channel1_IRQn").value.get("interruptPremptionPriority")]
- Subriority : 0 [peripheralNVICParams.get("DMA").get("DMA1_Channel1_IRQn").value.get("Subriority")]
------------------------------------------------------------------------------
- I2C1 Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- I2C1_SCL :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("I2C1").get("I2C1_SCL").value.get("GPIO_Speed")]
- Pin : PB8 [peripheralGPIOParams.get("I2C1").get("I2C1_SCL").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("I2C1").get("I2C1_SCL").value.get("GPIOx")]
- Port : PB [peripheralGPIOParams.get("I2C1").get("I2C1_SCL").value.get("Port")]
- GPIO_Label : I2C_MULTI_MASTER__SCL [peripheralGPIOParams.get("I2C1").get("I2C1_SCL").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_8 [peripheralGPIOParams.get("I2C1").get("I2C1_SCL").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF6_I2C1 [peripheralGPIOParams.get("I2C1").get("I2C1_SCL").value.get("GPIO_AF")]
- GPIO_Pu : GPIO_PULLUP [peripheralGPIOParams.get("I2C1").get("I2C1_SCL").value.get("GPIO_Pu")]
- GPIO_Mode : GPIO_MODE_AF_OD [peripheralGPIOParams.get("I2C1").get("I2C1_SCL").value.get("GPIO_Mode")]
- I2C1_SDA :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("I2C1").get("I2C1_SDA").value.get("GPIO_Speed")]
- Pin : PB9 [peripheralGPIOParams.get("I2C1").get("I2C1_SDA").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("I2C1").get("I2C1_SDA").value.get("GPIOx")]
- Port : PB [peripheralGPIOParams.get("I2C1").get("I2C1_SDA").value.get("Port")]
- GPIO_Label : I2C_MULTI_MASTER_SDA [peripheralGPIOParams.get("I2C1").get("I2C1_SDA").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_9 [peripheralGPIOParams.get("I2C1").get("I2C1_SDA").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF6_I2C1 [peripheralGPIOParams.get("I2C1").get("I2C1_SDA").value.get("GPIO_AF")]
- GPIO_Pu : GPIO_PULLUP [peripheralGPIOParams.get("I2C1").get("I2C1_SDA").value.get("GPIO_Pu")]
- GPIO_Mode : GPIO_MODE_AF_OD [peripheralGPIOParams.get("I2C1").get("I2C1_SDA").value.get("GPIO_Mode")]
IP paramters configuration
---------------------------
- Speed : 100 [peripheralParams.get("I2C1").get("Speed")]
- I2C_Speed_Mode : I2C_Standard [peripheralParams.get("I2C1").get("I2C_Speed_Mode")]
- CustomTiming : Disabled [peripheralParams.get("I2C1").get("CustomTiming")]
- I2C_Rise_Time : 0 [peripheralParams.get("I2C1").get("I2C_Rise_Time")]
- OwnAddress : 0 [peripheralParams.get("I2C1").get("OwnAddress")]
- Instance : I2C$Index [peripheralParams.get("I2C1").get("Instance")]
- Analog_Filter : I2C_ANALOGFILTER_ENABLE [peripheralParams.get("I2C1").get("Analog_Filter")]
- I2C_Fall_Time : 0 [peripheralParams.get("I2C1").get("I2C_Fall_Time")]
- DualAddressMode : I2C_DUALADDRESS_DISABLE [peripheralParams.get("I2C1").get("DualAddressMode")]
- OwnAddress2 : 0 [peripheralParams.get("I2C1").get("OwnAddress2")]
- OwnAddress2Masks : I2C_OA2_NOMASK [peripheralParams.get("I2C1").get("OwnAddress2Masks")]
- I2C_Coeff_DF : 0 [peripheralParams.get("I2C1").get("I2C_Coeff_DF")]
- driver : HAL [peripheralParams.get("I2C1").get("driver")]
- NoStretchMode : I2C_NOSTRETCH_DISABLE [peripheralParams.get("I2C1").get("NoStretchMode")]
- Timing : 0x00303D5B [peripheralParams.get("I2C1").get("Timing")]
- GeneralCallMode : I2C_GENERALCALL_DISABLE [peripheralParams.get("I2C1").get("GeneralCallMode")]
- AddressingMode : I2C_ADDRESSINGMODE_7BIT [peripheralParams.get("I2C1").get("AddressingMode")]
------------------------------------------------------------------------------
- IWDG Configuration data : Driver type = HAL
------------------------------------------------------------------------------
IP paramters configuration
---------------------------
- Window : 4095 [peripheralParams.get("IWDG").get("Window")]
- driver : HAL [peripheralParams.get("IWDG").get("driver")]
- Instance : IWDG$Index [peripheralParams.get("IWDG").get("Instance")]
- Reload : 4095 [peripheralParams.get("IWDG").get("Reload")]
- Prescaler : IWDG_PRESCALER_256 [peripheralParams.get("IWDG").get("Prescaler")]
------------------------------------------------------------------------------
- RTC Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- RTC_TS :
- Pin : PC13 [peripheralGPIOParams.get("RTC").get("RTC_TS").value.get("Pin")]
- Port : PC [peripheralGPIOParams.get("RTC").get("RTC_TS").value.get("Port")]
- GPIO_Label : [peripheralGPIOParams.get("RTC").get("RTC_TS").value.get("GPIO_Label")]
IP paramters configuration
---------------------------
- AlarmDateWeekDay_Alarm A : 1 [peripheralParams.get("RTC").get("AlarmDateWeekDay_Alarm A")]
- DayLightSaving : RTC_DAYLIGHTSAVING_NONE [peripheralParams.get("RTC").get("DayLightSaving")]
- AlarmMaskHours_Alarm A : [peripheralParams.get("RTC").get("AlarmMaskHours_Alarm A")]
- AlarmDateWeekDay_B_Alarm B : 1 [peripheralParams.get("RTC").get("AlarmDateWeekDay_B_Alarm B")]
- StoreOperation : RTC_STOREOPERATION_RESET [peripheralParams.get("RTC").get("StoreOperation")]
- Minutes : 0 [peripheralParams.get("RTC").get("Minutes")]
- Month : RTC_MONTH_JANUARY [peripheralParams.get("RTC").get("Month")]
- AlarmDateWeekDaySel_B_Alarm B : RTC_ALARMDATEWEEKDAYSEL_DATE [peripheralParams.get("RTC").get("AlarmDateWeekDaySel_B_Alarm B")]
- Minutes_B_Alarm B : 0 [peripheralParams.get("RTC").get("Minutes_B_Alarm B")]
- HourFormat : RTC_HOURFORMAT_24 [peripheralParams.get("RTC").get("HourFormat")]
- SubSeconds_B_Alarm B : 0 [peripheralParams.get("RTC").get("SubSeconds_B_Alarm B")]
- Alarm_Alarm A : RTC_ALARM_A [peripheralParams.get("RTC").get("Alarm_Alarm A")]
- AlarmMask_B_Alarm B : RTC_ALARMMASK_NONE [peripheralParams.get("RTC").get("AlarmMask_B_Alarm B")]
- Hours_B_Alarm B : 0 [peripheralParams.get("RTC").get("Hours_B_Alarm B")]
- SynchPrediv : 255 [peripheralParams.get("RTC").get("SynchPrediv")]
- Alarm_B_Alarm B : RTC_ALARM_B [peripheralParams.get("RTC").get("Alarm_B_Alarm B")]
- OutPutRemap : RTC_OUTPUT_REMAP_NONE [peripheralParams.get("RTC").get("OutPutRemap")]
- WakeUpClock_WakeUp : RTC_WAKEUPCLOCK_RTCCLK_DIV16 [peripheralParams.get("RTC").get("WakeUpClock_WakeUp")]
- Minutes_A_Alarm A : 0 [peripheralParams.get("RTC").get("Minutes_A_Alarm A")]
- SubSeconds_A_Alarm A : 0 [peripheralParams.get("RTC").get("SubSeconds_A_Alarm A")]
- WeekDay : RTC_WEEKDAY_MONDAY [peripheralParams.get("RTC").get("WeekDay")]
- AsynchPrediv : 127 [peripheralParams.get("RTC").get("AsynchPrediv")]
- AlarmMaskDateWeekDay_B_Alarm B : [peripheralParams.get("RTC").get("AlarmMaskDateWeekDay_B_Alarm B")]
- AlarmSubSecondMask_B_Alarm B : RTC_ALARMSUBSECONDMASK_ALL [peripheralParams.get("RTC").get("AlarmSubSecondMask_B_Alarm B")]
- TimeStampPin : RTC_TIMESTAMPPIN_DEFAULT [peripheralParams.get("RTC").get("TimeStampPin")]
- driver : HAL [peripheralParams.get("RTC").get("driver")]
- OutPutPolarity : RTC_OUTPUT_POLARITY_HIGH [peripheralParams.get("RTC").get("OutPutPolarity")]
- Seconds_A_Alarm A : 0 [peripheralParams.get("RTC").get("Seconds_A_Alarm A")]
- AlarmDateWeekDaySel_Alarm A : RTC_ALARMDATEWEEKDAYSEL_DATE [peripheralParams.get("RTC").get("AlarmDateWeekDaySel_Alarm A")]
- OutPutPullUp : RTC_OUTPUT_PULLUP_NONE [peripheralParams.get("RTC").get("OutPutPullUp")]
- Hours : 0 [peripheralParams.get("RTC").get("Hours")]
- AlarmMaskDateWeekDay_Alarm A : [peripheralParams.get("RTC").get("AlarmMaskDateWeekDay_Alarm A")]
- AlarmMaskHours_B_Alarm B : [peripheralParams.get("RTC").get("AlarmMaskHours_B_Alarm B")]
- Instance : RTC [peripheralParams.get("RTC").get("Instance")]
- OutPutType : RTC_OUTPUT_TYPE_OPENDRAIN [peripheralParams.get("RTC").get("OutPutType")]
- TimeStampEdge : RTC_TIMESTAMPEDGE_RISING [peripheralParams.get("RTC").get("TimeStampEdge")]
- WakeUpCounter_WakeUp : 0 [peripheralParams.get("RTC").get("WakeUpCounter_WakeUp")]
- AlarmMaskMinutes_Alarm A : [peripheralParams.get("RTC").get("AlarmMaskMinutes_Alarm A")]
- AlarmMaskSeconds_B_Alarm B : [peripheralParams.get("RTC").get("AlarmMaskSeconds_B_Alarm B")]
- SubSeconds : 0 [peripheralParams.get("RTC").get("SubSeconds")]
- Format : RTC_FORMAT_BCD [peripheralParams.get("RTC").get("Format")]
- Hours_A_Alarm A : 0 [peripheralParams.get("RTC").get("Hours_A_Alarm A")]
- AlarmSubSecondMask_Alarm A : RTC_ALARMSUBSECONDMASK_ALL [peripheralParams.get("RTC").get("AlarmSubSecondMask_Alarm A")]
- AlarmDateWeekDayARG_Alarm A : 0x1 [peripheralParams.get("RTC").get("AlarmDateWeekDayARG_Alarm A")]
- AlarmMaskSeconds_Alarm A : [peripheralParams.get("RTC").get("AlarmMaskSeconds_Alarm A")]
- AlarmDateWeekDayARG_B_Alarm B : 0x1 [peripheralParams.get("RTC").get("AlarmDateWeekDayARG_B_Alarm B")]
- Seconds_B_Alarm B : 0 [peripheralParams.get("RTC").get("Seconds_B_Alarm B")]
- Date : 1 [peripheralParams.get("RTC").get("Date")]
- AlarmMaskMinutes_B_Alarm B : [peripheralParams.get("RTC").get("AlarmMaskMinutes_B_Alarm B")]
- OutPut : RTC_OUTPUT_DISABLE [peripheralParams.get("RTC").get("OutPut")]
- Year : 0 [peripheralParams.get("RTC").get("Year")]
- AlarmMask_Alarm A : RTC_ALARMMASK_NONE [peripheralParams.get("RTC").get("AlarmMask_Alarm A")]
- Seconds : 0 [peripheralParams.get("RTC").get("Seconds")]
Interrupt IP paramters configuration
---------------------------
- RTC_TAMP_IRQn :
- interruptPremptionPriority : 0 [peripheralNVICParams.get("RTC").get("RTC_TAMP_IRQn").value.get("interruptPremptionPriority")]
- Subriority : 0 [peripheralNVICParams.get("RTC").get("RTC_TAMP_IRQn").value.get("Subriority")]
------------------------------------------------------------------------------
- SPI1 Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- SPI1_NSS :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("SPI1").get("SPI1_NSS").value.get("GPIO_Speed")]
- Pin : PA15 [peripheralGPIOParams.get("SPI1").get("SPI1_NSS").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("SPI1").get("SPI1_NSS").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("SPI1").get("SPI1_NSS").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("SPI1").get("SPI1_NSS").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("SPI1").get("SPI1_NSS").value.get("Port")]
- GPIO_Label : SPI_EXT_FLASH_NSS [peripheralGPIOParams.get("SPI1").get("SPI1_NSS").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_15 [peripheralGPIOParams.get("SPI1").get("SPI1_NSS").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF0_SPI1 [peripheralGPIOParams.get("SPI1").get("SPI1_NSS").value.get("GPIO_AF")]
- GPIO_Mode : GPIO_MODE_AF_PP [peripheralGPIOParams.get("SPI1").get("SPI1_NSS").value.get("GPIO_Mode")]
- SPI1_MISO :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("SPI1").get("SPI1_MISO").value.get("GPIO_Speed")]
- Pin : PB4 [peripheralGPIOParams.get("SPI1").get("SPI1_MISO").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("SPI1").get("SPI1_MISO").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("SPI1").get("SPI1_MISO").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("SPI1").get("SPI1_MISO").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("SPI1").get("SPI1_MISO").value.get("Port")]
- GPIO_Label : SPI_EXT_FLASH_MISO [peripheralGPIOParams.get("SPI1").get("SPI1_MISO").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_4 [peripheralGPIOParams.get("SPI1").get("SPI1_MISO").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF0_SPI1 [peripheralGPIOParams.get("SPI1").get("SPI1_MISO").value.get("GPIO_AF")]
- GPIO_Mode : GPIO_MODE_AF_PP [peripheralGPIOParams.get("SPI1").get("SPI1_MISO").value.get("GPIO_Mode")]
- SPI1_MOSI :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("SPI1").get("SPI1_MOSI").value.get("GPIO_Speed")]
- Pin : PB5 [peripheralGPIOParams.get("SPI1").get("SPI1_MOSI").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("SPI1").get("SPI1_MOSI").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("SPI1").get("SPI1_MOSI").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("SPI1").get("SPI1_MOSI").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("SPI1").get("SPI1_MOSI").value.get("Port")]
- GPIO_Label : SPI_EXT_FLASH_MOSI [peripheralGPIOParams.get("SPI1").get("SPI1_MOSI").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_5 [peripheralGPIOParams.get("SPI1").get("SPI1_MOSI").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF0_SPI1 [peripheralGPIOParams.get("SPI1").get("SPI1_MOSI").value.get("GPIO_AF")]
- GPIO_Mode : GPIO_MODE_AF_PP [peripheralGPIOParams.get("SPI1").get("SPI1_MOSI").value.get("GPIO_Mode")]
- SPI1_SCK :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("SPI1").get("SPI1_SCK").value.get("GPIO_Speed")]
- Pin : PB3 [peripheralGPIOParams.get("SPI1").get("SPI1_SCK").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("SPI1").get("SPI1_SCK").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("SPI1").get("SPI1_SCK").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("SPI1").get("SPI1_SCK").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("SPI1").get("SPI1_SCK").value.get("Port")]
- GPIO_Label : SPI_EXT_FLASH_SCK [peripheralGPIOParams.get("SPI1").get("SPI1_SCK").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_3 [peripheralGPIOParams.get("SPI1").get("SPI1_SCK").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF0_SPI1 [peripheralGPIOParams.get("SPI1").get("SPI1_SCK").value.get("GPIO_AF")]
- GPIO_Mode : GPIO_MODE_AF_PP [peripheralGPIOParams.get("SPI1").get("SPI1_SCK").value.get("GPIO_Mode")]
IP paramters configuration
---------------------------
- CRCCalculation : SPI_CRCCALCULATION_DISABLE [peripheralParams.get("SPI1").get("CRCCalculation")]
- CLKPhase : SPI_PHASE_1EDGE [peripheralParams.get("SPI1").get("CLKPhase")]
- BaudRatePrescaler : SPI_BAUDRATEPRESCALER_2 [peripheralParams.get("SPI1").get("BaudRatePrescaler")]
- CRCLength : SPI_CRC_LENGTH_DATASIZE [peripheralParams.get("SPI1").get("CRCLength")]
- VirtualNSS : VM_NSSHARD [peripheralParams.get("SPI1").get("VirtualNSS")]
- Instance : SPI$Index [peripheralParams.get("SPI1").get("Instance")]
- Mode : SPI_MODE_MASTER [peripheralParams.get("SPI1").get("Mode")]
- CRCPolynomial : 7 [peripheralParams.get("SPI1").get("CRCPolynomial")]
- NSSPMode : SPI_NSS_PULSE_DISABLE [peripheralParams.get("SPI1").get("NSSPMode")]
- VirtualType : VM_MASTER [peripheralParams.get("SPI1").get("VirtualType")]
- CLKPolarity : SPI_POLARITY_LOW [peripheralParams.get("SPI1").get("CLKPolarity")]
- Direction : SPI_DIRECTION_2LINES [peripheralParams.get("SPI1").get("Direction")]
- FirstBit : SPI_FIRSTBIT_MSB [peripheralParams.get("SPI1").get("FirstBit")]
- NSS : SPI_NSS_HARD_OUTPUT [peripheralParams.get("SPI1").get("NSS")]
- driver : HAL [peripheralParams.get("SPI1").get("driver")]
- DataSize : SPI_DATASIZE_8BIT [peripheralParams.get("SPI1").get("DataSize")]
- TIMode : SPI_TIMODE_DISABLE [peripheralParams.get("SPI1").get("TIMode")]
- CalculateBaudRate : 8.0 MBits/s [peripheralParams.get("SPI1").get("CalculateBaudRate")]
DMA IP paramters configuration
---------------------------
- SPI1_RX :
- Instance : DMA1_Channel4 [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("Instance")]
- Priority : DMA_PRIORITY_LOW [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("Priority")]
- MemDataAlignment : DMA_MDATAALIGN_BYTE [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("MemDataAlignment")]
- Mode : DMA_NORMAL [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("Mode")]
- SyncRequestNumber : 1 [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("SyncRequestNumber")]
- Request : DMA_REQUEST_SPI1_RX [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("Request")]
- SyncPolarity : HAL_DMAMUX_SYNC_NO_EVENT [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("SyncPolarity")]
- Direction : DMA_PERIPH_TO_MEMORY [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("Direction")]
- SignalID : NONE [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("SignalID")]
- MemInc : DMA_MINC_ENABLE [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("MemInc")]
- IpInstance : [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("IpInstance")]
- RequestNumber : 1 [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("RequestNumber")]
- EventEnable : DISABLE [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("EventEnable")]
- SyncEnable : DISABLE [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("SyncEnable")]
- DMA_Handle : [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("DMA_Handle")]
- PeriphDataAlignment : DMA_PDATAALIGN_BYTE [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("PeriphDataAlignment")]
- Polarity : HAL_DMAMUX_REQ_GEN_RISING [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("Polarity")]
- SyncSignalID : NONE [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("SyncSignalID")]
- PeriphInc : DMA_PINC_DISABLE [peripheralDMAParams.get("SPI1").get("SPI1_RX").value.get("PeriphInc")]
- SPI1_TX :
- Instance : DMA1_Channel5 [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("Instance")]
- Priority : DMA_PRIORITY_LOW [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("Priority")]
- MemDataAlignment : DMA_MDATAALIGN_BYTE [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("MemDataAlignment")]
- Mode : DMA_NORMAL [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("Mode")]
- SyncRequestNumber : 1 [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("SyncRequestNumber")]
- Request : DMA_REQUEST_SPI1_TX [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("Request")]
- SyncPolarity : HAL_DMAMUX_SYNC_NO_EVENT [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("SyncPolarity")]
- Direction : DMA_MEMORY_TO_PERIPH [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("Direction")]
- SignalID : NONE [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("SignalID")]
- MemInc : DMA_MINC_ENABLE [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("MemInc")]
- IpInstance : [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("IpInstance")]
- RequestNumber : 1 [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("RequestNumber")]
- EventEnable : DISABLE [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("EventEnable")]
- SyncEnable : DISABLE [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("SyncEnable")]
- DMA_Handle : [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("DMA_Handle")]
- PeriphDataAlignment : DMA_PDATAALIGN_BYTE [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("PeriphDataAlignment")]
- Polarity : HAL_DMAMUX_REQ_GEN_RISING [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("Polarity")]
- SyncSignalID : NONE [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("SyncSignalID")]
- PeriphInc : DMA_PINC_DISABLE [peripheralDMAParams.get("SPI1").get("SPI1_TX").value.get("PeriphInc")]
------------------------------------------------------------------------------
- SYS Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- SYS_SWDIO :
- Pin : PA13 [peripheralGPIOParams.get("SYS").get("SYS_SWDIO").value.get("Pin")]
- Port : PA [peripheralGPIOParams.get("SYS").get("SYS_SWDIO").value.get("Port")]
- GPIO_Label : [peripheralGPIOParams.get("SYS").get("SYS_SWDIO").value.get("GPIO_Label")]
- SYS_SWCLK :
- Pin : PA14-BOOT0 [peripheralGPIOParams.get("SYS").get("SYS_SWCLK").value.get("Pin")]
- Port : PA [peripheralGPIOParams.get("SYS").get("SYS_SWCLK").value.get("Port")]
- GPIO_Label : [peripheralGPIOParams.get("SYS").get("SYS_SWCLK").value.get("GPIO_Label")]
IP paramters configuration
---------------------------
- instance : TIM17 [peripheralParams.get("SYS").get("instance")]
- driver : HAL [peripheralParams.get("SYS").get("driver")]
- Instance : SYS [peripheralParams.get("SYS").get("Instance")]
- DisableDeadBatterySignalsConfig : SYSCFG_CFGR1_UCPD1_STROBE | SYSCFG_CFGR1_UCPD2_STROBE [peripheralParams.get("SYS").get("DisableDeadBatterySignalsConfig")]
------------------------------------------------------------------------------
- TIM1 Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- S_TIM1_CH1 :
- GPIO_ModeDefaultPP : GPIO_MODE_AF_PP [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH1").value.get("GPIO_ModeDefaultPP")]
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH1").value.get("GPIO_Speed")]
- Pin : PA8 [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH1").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH1").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH1").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH1").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH1").value.get("Port")]
- GPIO_Label : I2C_MULTI_MASTER_INTR [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH1").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_8 [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH1").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF2_TIM1 [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH1").value.get("GPIO_AF")]
- S_TIM1_CH4 :
- GPIO_ModeDefaultPP : GPIO_MODE_AF_PP [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH4").value.get("GPIO_ModeDefaultPP")]
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH4").value.get("GPIO_Speed")]
- Pin : PA11 [PA9] [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH4").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH4").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH4").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH4").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH4").value.get("Port")]
- GPIO_Label : DO_LED_FUNC_G2 [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH4").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_11 [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH4").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF2_TIM1 [peripheralGPIOParams.get("TIM1").get("S_TIM1_CH4").value.get("GPIO_AF")]
IP paramters configuration
---------------------------
- RepetitionCounter : 0 [peripheralParams.get("TIM1").get("RepetitionCounter")]
- Break2Filter : 0 [peripheralParams.get("TIM1").get("Break2Filter")]
- LockLevel : TIM_LOCKLEVEL_OFF [peripheralParams.get("TIM1").get("LockLevel")]
- SourceBRKDigInput : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM1").get("SourceBRKDigInput")]
- ICPolarity_CH1 : TIM_INPUTCHANNELPOLARITY_RISING [peripheralParams.get("TIM1").get("ICPolarity_CH1")]
- BreakFilter : 0 [peripheralParams.get("TIM1").get("BreakFilter")]
- ICFilter_CH1 : 0 [peripheralParams.get("TIM1").get("ICFilter_CH1")]
- Pulse_PWM Generation4 CH4 : 0 [peripheralParams.get("TIM1").get("Pulse_PWM Generation4 CH4")]
- DeadTime : 0 [peripheralParams.get("TIM1").get("DeadTime")]
- OCNIdleState_4 : TIM_OCNIDLESTATE_RESET [peripheralParams.get("TIM1").get("OCNIdleState_4")]
- BreakAFMode : TIM_BREAK_AFMODE_INPUT [peripheralParams.get("TIM1").get("BreakAFMode")]
- BreakState : TIM_BREAK_DISABLE [peripheralParams.get("TIM1").get("BreakState")]
- Period : 65535 [peripheralParams.get("TIM1").get("Period")]
- SourceBRK2DigInput : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM1").get("SourceBRK2DigInput")]
- OffStateRunMode : TIM_OSSR_DISABLE [peripheralParams.get("TIM1").get("OffStateRunMode")]
- TIM_MasterOutputTrigger2 : TIM_TRGO2_RESET [peripheralParams.get("TIM1").get("TIM_MasterOutputTrigger2")]
- OffStateIDLEMode : TIM_OSSI_DISABLE [peripheralParams.get("TIM1").get("OffStateIDLEMode")]
- OCIdleState_4 : TIM_OCIDLESTATE_RESET [peripheralParams.get("TIM1").get("OCIdleState_4")]
- OCMode_PWM_PWM Generation4 CH4 : TIM_OCMODE_PWM1 [peripheralParams.get("TIM1").get("OCMode_PWM_PWM Generation4 CH4")]
- driver : HAL [peripheralParams.get("TIM1").get("driver")]
- TIM_MasterOutputTrigger : TIM_TRGO_RESET [peripheralParams.get("TIM1").get("TIM_MasterOutputTrigger")]
- Channel_Input_Capture1_from_TI1 : TIM_CHANNEL_1 [peripheralParams.get("TIM1").get("Channel_Input_Capture1_from_TI1")]
- BreakPolarity : TIM_BREAKPOLARITY_HIGH [peripheralParams.get("TIM1").get("BreakPolarity")]
- ClockDivision : TIM_CLOCKDIVISION_DIV1 [peripheralParams.get("TIM1").get("ClockDivision")]
- AutoReloadPreload : TIM_AUTORELOAD_PRELOAD_DISABLE [peripheralParams.get("TIM1").get("AutoReloadPreload")]
- Instance : TIM$Index [peripheralParams.get("TIM1").get("Instance")]
- SeparateurSourceBRK : [peripheralParams.get("TIM1").get("SeparateurSourceBRK")]
- CounterMode : TIM_COUNTERMODE_UP [peripheralParams.get("TIM1").get("CounterMode")]
- SeparateurSourceBRK2 : [peripheralParams.get("TIM1").get("SeparateurSourceBRK2")]
- Break2State : TIM_BREAK2_DISABLE [peripheralParams.get("TIM1").get("Break2State")]
- Break2AFMode : TIM_BREAK_AFMODE_INPUT [peripheralParams.get("TIM1").get("Break2AFMode")]
- ICSelection_Input_Capture1_from_TI1 : TIM_ICSELECTION_DIRECTTI [peripheralParams.get("TIM1").get("ICSelection_Input_Capture1_from_TI1")]
- ClearInputState : ENABLE [peripheralParams.get("TIM1").get("ClearInputState")]
- OCFastMode_PWM_PWM Generation4 CH4 : TIM_OCFAST_DISABLE [peripheralParams.get("TIM1").get("OCFastMode_PWM_PWM Generation4 CH4")]
- OCPolarity_4 : TIM_OCPOLARITY_HIGH [peripheralParams.get("TIM1").get("OCPolarity_4")]
- ClearChannel1 : [peripheralParams.get("TIM1").get("ClearChannel1")]
- ClearChannel4 : [peripheralParams.get("TIM1").get("ClearChannel4")]
- Break2Polarity : TIM_BREAK2POLARITY_HIGH [peripheralParams.get("TIM1").get("Break2Polarity")]
- ClearChannel5 : [peripheralParams.get("TIM1").get("ClearChannel5")]
- ClearChannel2 : [peripheralParams.get("TIM1").get("ClearChannel2")]
- ClearChannel3 : [peripheralParams.get("TIM1").get("ClearChannel3")]
- SourceBRKCOMP3 : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM1").get("SourceBRKCOMP3")]
- ClearChannel6 : [peripheralParams.get("TIM1").get("ClearChannel6")]
- ICPrescaler_Input_Capture1_from_TI1 : TIM_ICPSC_DIV1 [peripheralParams.get("TIM1").get("ICPrescaler_Input_Capture1_from_TI1")]
- SourceBRK2COMP3 : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM1").get("SourceBRK2COMP3")]
- AutomaticOutput : TIM_AUTOMATICOUTPUT_DISABLE [peripheralParams.get("TIM1").get("AutomaticOutput")]
- SourceBRKCOMP1 : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM1").get("SourceBRKCOMP1")]
- SourceBRK2COMP1 : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM1").get("SourceBRK2COMP1")]
- SourceBRKCOMP2 : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM1").get("SourceBRKCOMP2")]
- SourceBRK2COMP2 : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM1").get("SourceBRK2COMP2")]
- Channel_PWM Generation4 CH4 : TIM_CHANNEL_4 [peripheralParams.get("TIM1").get("Channel_PWM Generation4 CH4")]
- OC4Preload_PWM : ENABLE [peripheralParams.get("TIM1").get("OC4Preload_PWM")]
- TIM_MasterSlaveMode : TIM_MASTERSLAVEMODE_DISABLE [peripheralParams.get("TIM1").get("TIM_MasterSlaveMode")]
- Prescaler : 0 [peripheralParams.get("TIM1").get("Prescaler")]
- ClearInputSource : TIM_CLEARINPUTSOURCE_NONE [peripheralParams.get("TIM1").get("ClearInputSource")]
------------------------------------------------------------------------------
- TIM2 Configuration data : Driver type = HAL
------------------------------------------------------------------------------
IP paramters configuration
---------------------------
- driver : HAL [peripheralParams.get("TIM2").get("driver")]
- ClockDivision : TIM_CLOCKDIVISION_DIV1 [peripheralParams.get("TIM2").get("ClockDivision")]
- AutoReloadPreload : TIM_AUTORELOAD_PRELOAD_DISABLE [peripheralParams.get("TIM2").get("AutoReloadPreload")]
- Instance : TIM$Index [peripheralParams.get("TIM2").get("Instance")]
- TIM_MasterSlaveMode : TIM_MASTERSLAVEMODE_DISABLE [peripheralParams.get("TIM2").get("TIM_MasterSlaveMode")]
- TIM_MasterOutputTrigger : TIM_TRGO_RESET [peripheralParams.get("TIM2").get("TIM_MasterOutputTrigger")]
- SeparateurSourceBRK : [peripheralParams.get("TIM2").get("SeparateurSourceBRK")]
- Prescaler : 0 [peripheralParams.get("TIM2").get("Prescaler")]
- Period : -1 [peripheralParams.get("TIM2").get("Period")]
- CounterMode : TIM_COUNTERMODE_UP [peripheralParams.get("TIM2").get("CounterMode")]
- SeparateurSourceBRK2 : [peripheralParams.get("TIM2").get("SeparateurSourceBRK2")]
Interrupt IP paramters configuration
---------------------------
- TIM2_IRQn :
- interruptPremptionPriority : 0 [peripheralNVICParams.get("TIM2").get("TIM2_IRQn").value.get("interruptPremptionPriority")]
- Subriority : 0 [peripheralNVICParams.get("TIM2").get("TIM2_IRQn").value.get("Subriority")]
------------------------------------------------------------------------------
- TIM3 Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- S_TIM3_CH2 :
- GPIO_ModeDefaultPP : GPIO_MODE_AF_PP [peripheralGPIOParams.get("TIM3").get("S_TIM3_CH2").value.get("GPIO_ModeDefaultPP")]
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("TIM3").get("S_TIM3_CH2").value.get("GPIO_Speed")]
- Pin : PC7 [peripheralGPIOParams.get("TIM3").get("S_TIM3_CH2").value.get("Pin")]
- GPIOx : GPIOC [peripheralGPIOParams.get("TIM3").get("S_TIM3_CH2").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("TIM3").get("S_TIM3_CH2").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("TIM3").get("S_TIM3_CH2").value.get("GPIO_PuPd")]
- Port : PC [peripheralGPIOParams.get("TIM3").get("S_TIM3_CH2").value.get("Port")]
- GPIO_Label : TIM_AUTO_BAUD [peripheralGPIOParams.get("TIM3").get("S_TIM3_CH2").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_7 [peripheralGPIOParams.get("TIM3").get("S_TIM3_CH2").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF1_TIM3 [peripheralGPIOParams.get("TIM3").get("S_TIM3_CH2").value.get("GPIO_AF")]
IP paramters configuration
---------------------------
- ICPolarity_CH2 : TIM_INPUTCHANNELPOLARITY_RISING [peripheralParams.get("TIM3").get("ICPolarity_CH2")]
- ClockDivision : TIM_CLOCKDIVISION_DIV1 [peripheralParams.get("TIM3").get("ClockDivision")]
- AutoReloadPreload : TIM_AUTORELOAD_PRELOAD_DISABLE [peripheralParams.get("TIM3").get("AutoReloadPreload")]
- Instance : TIM$Index [peripheralParams.get("TIM3").get("Instance")]
- SeparateurSourceBRK : [peripheralParams.get("TIM3").get("SeparateurSourceBRK")]
- ICFilter_CH2 : 0 [peripheralParams.get("TIM3").get("ICFilter_CH2")]
- ICSelection_Input_Capture2_from_TI2 : TIM_ICSELECTION_DIRECTTI [peripheralParams.get("TIM3").get("ICSelection_Input_Capture2_from_TI2")]
- Period : 65535 [peripheralParams.get("TIM3").get("Period")]
- Channel_Input_Capture2_from_TI2 : TIM_CHANNEL_2 [peripheralParams.get("TIM3").get("Channel_Input_Capture2_from_TI2")]
- CounterMode : TIM_COUNTERMODE_UP [peripheralParams.get("TIM3").get("CounterMode")]
- SeparateurSourceBRK2 : [peripheralParams.get("TIM3").get("SeparateurSourceBRK2")]
- driver : HAL [peripheralParams.get("TIM3").get("driver")]
- TIM_MasterSlaveMode : TIM_MASTERSLAVEMODE_DISABLE [peripheralParams.get("TIM3").get("TIM_MasterSlaveMode")]
- TIM_MasterOutputTrigger : TIM_TRGO_RESET [peripheralParams.get("TIM3").get("TIM_MasterOutputTrigger")]
- Prescaler : 0 [peripheralParams.get("TIM3").get("Prescaler")]
- ICPrescaler_Input_Capture2_from_TI2 : TIM_ICPSC_DIV1 [peripheralParams.get("TIM3").get("ICPrescaler_Input_Capture2_from_TI2")]
------------------------------------------------------------------------------
- TIM15 Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- S_TIM15_CH2 :
- GPIO_ModeDefaultPP : GPIO_MODE_AF_PP [peripheralGPIOParams.get("TIM15").get("S_TIM15_CH2").value.get("GPIO_ModeDefaultPP")]
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("TIM15").get("S_TIM15_CH2").value.get("GPIO_Speed")]
- Pin : PB15 [peripheralGPIOParams.get("TIM15").get("S_TIM15_CH2").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("TIM15").get("S_TIM15_CH2").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("TIM15").get("S_TIM15_CH2").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("TIM15").get("S_TIM15_CH2").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("TIM15").get("S_TIM15_CH2").value.get("Port")]
- GPIO_Label : DO_LED_FUNC_R [peripheralGPIOParams.get("TIM15").get("S_TIM15_CH2").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_15 [peripheralGPIOParams.get("TIM15").get("S_TIM15_CH2").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF5_TIM15 [peripheralGPIOParams.get("TIM15").get("S_TIM15_CH2").value.get("GPIO_AF")]
IP paramters configuration
---------------------------
- OCNPolarity_2 : TIM_OCNPOLARITY_HIGH [peripheralParams.get("TIM15").get("OCNPolarity_2")]
- ClockDivision : TIM_CLOCKDIVISION_DIV1 [peripheralParams.get("TIM15").get("ClockDivision")]
- RepetitionCounter : 0 [peripheralParams.get("TIM15").get("RepetitionCounter")]
- AutoReloadPreload : TIM_AUTORELOAD_PRELOAD_DISABLE [peripheralParams.get("TIM15").get("AutoReloadPreload")]
- Instance : TIM$Index [peripheralParams.get("TIM15").get("Instance")]
- SeparateurSourceBRK : [peripheralParams.get("TIM15").get("SeparateurSourceBRK")]
- LockLevel : TIM_LOCKLEVEL_OFF [peripheralParams.get("TIM15").get("LockLevel")]
- SourceBRKDigInput : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM15").get("SourceBRKDigInput")]
- OCMode_PWM_PWM Generation2 CH2 : TIM_OCMODE_PWM1 [peripheralParams.get("TIM15").get("OCMode_PWM_PWM Generation2 CH2")]
- OCFastMode_PWM_PWM Generation2 CH2 : TIM_OCFAST_DISABLE [peripheralParams.get("TIM15").get("OCFastMode_PWM_PWM Generation2 CH2")]
- CounterMode : TIM_COUNTERMODE_UP [peripheralParams.get("TIM15").get("CounterMode")]
- SeparateurSourceBRK2 : [peripheralParams.get("TIM15").get("SeparateurSourceBRK2")]
- OC2Preload_PWM : ENABLE [peripheralParams.get("TIM15").get("OC2Preload_PWM")]
- BreakFilter : 0 [peripheralParams.get("TIM15").get("BreakFilter")]
- Channel_PWM Generation2 CH2 : TIM_CHANNEL_2 [peripheralParams.get("TIM15").get("Channel_PWM Generation2 CH2")]
- OCPolarity_2 : TIM_OCPOLARITY_HIGH [peripheralParams.get("TIM15").get("OCPolarity_2")]
- SourceBRKCOMP3 : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM15").get("SourceBRKCOMP3")]
- AutomaticOutput : TIM_AUTOMATICOUTPUT_DISABLE [peripheralParams.get("TIM15").get("AutomaticOutput")]
- DeadTime : 0 [peripheralParams.get("TIM15").get("DeadTime")]
- SourceBRKCOMP1 : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM15").get("SourceBRKCOMP1")]
- SourceBRKCOMP2 : TIM_BREAKINPUTSOURCE_DISABLE [peripheralParams.get("TIM15").get("SourceBRKCOMP2")]
- BreakState : TIM_BREAK_DISABLE [peripheralParams.get("TIM15").get("BreakState")]
- Period : 65535 [peripheralParams.get("TIM15").get("Period")]
- OffStateRunMode : TIM_OSSR_DISABLE [peripheralParams.get("TIM15").get("OffStateRunMode")]
- OCNIdleState_2 : TIM_OCNIDLESTATE_RESET [peripheralParams.get("TIM15").get("OCNIdleState_2")]
- OffStateIDLEMode : TIM_OSSI_DISABLE [peripheralParams.get("TIM15").get("OffStateIDLEMode")]
- OCIdleState_2 : TIM_OCIDLESTATE_RESET [peripheralParams.get("TIM15").get("OCIdleState_2")]
- driver : HAL [peripheralParams.get("TIM15").get("driver")]
- TIM_MasterSlaveMode : TIM_MASTERSLAVEMODE_DISABLE [peripheralParams.get("TIM15").get("TIM_MasterSlaveMode")]
- TIM_MasterOutputTrigger : TIM_TRGO_RESET [peripheralParams.get("TIM15").get("TIM_MasterOutputTrigger")]
- Prescaler : 0 [peripheralParams.get("TIM15").get("Prescaler")]
- BreakPolarity : TIM_BREAKPOLARITY_HIGH [peripheralParams.get("TIM15").get("BreakPolarity")]
- Pulse_PWM Generation2 CH2 : 0 [peripheralParams.get("TIM15").get("Pulse_PWM Generation2 CH2")]
------------------------------------------------------------------------------
- USART1 Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- USART1_TX :
- GPIO_ModeDefaultPP : GPIO_MODE_AF_PP [peripheralGPIOParams.get("USART1").get("USART1_TX").value.get("GPIO_ModeDefaultPP")]
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("USART1").get("USART1_TX").value.get("GPIO_Speed")]
- GPIO_FM6 : __NULL [peripheralGPIOParams.get("USART1").get("USART1_TX").value.get("GPIO_FM6")]
- Pin : PB6 [peripheralGPIOParams.get("USART1").get("USART1_TX").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("USART1").get("USART1_TX").value.get("GPIOx")]
- GPIO_PuPd : GPIO_PULLUP [peripheralGPIOParams.get("USART1").get("USART1_TX").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("USART1").get("USART1_TX").value.get("Port")]
- GPIO_Label : USART_DEBUG_TX [peripheralGPIOParams.get("USART1").get("USART1_TX").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_6 [peripheralGPIOParams.get("USART1").get("USART1_TX").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF0_USART1 [peripheralGPIOParams.get("USART1").get("USART1_TX").value.get("GPIO_AF")]
- USART1_RX :
- GPIO_ModeDefaultPP : GPIO_MODE_AF_PP [peripheralGPIOParams.get("USART1").get("USART1_RX").value.get("GPIO_ModeDefaultPP")]
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("USART1").get("USART1_RX").value.get("GPIO_Speed")]
- Pin : PB7 [peripheralGPIOParams.get("USART1").get("USART1_RX").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("USART1").get("USART1_RX").value.get("GPIOx")]
- GPIO_PuPd : GPIO_PULLUP [peripheralGPIOParams.get("USART1").get("USART1_RX").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("USART1").get("USART1_RX").value.get("Port")]
- GPIO_Label : USART_DEBUG_RX [peripheralGPIOParams.get("USART1").get("USART1_RX").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_7 [peripheralGPIOParams.get("USART1").get("USART1_RX").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF0_USART1 [peripheralGPIOParams.get("USART1").get("USART1_RX").value.get("GPIO_AF")]
- GPIO_FM7 : __NULL [peripheralGPIOParams.get("USART1").get("USART1_RX").value.get("GPIO_FM7")]
IP paramters configuration
---------------------------
- StopBits : STOPBITS_1 [peripheralParams.get("USART1").get("StopBits")]
- AutoBaudRateEnableParam : UART_ADVFEATURE_AUTOBAUDRATE_DISABLE [peripheralParams.get("USART1").get("AutoBaudRateEnableParam")]
- MSBFirstParam : ADVFEATURE_MSBFIRST_DISABLE [peripheralParams.get("USART1").get("MSBFirstParam")]
- HwFlowCtl : UART_HWCONTROL_NONE [peripheralParams.get("USART1").get("HwFlowCtl")]
- ClockPrescaler : PRESCALER_DIV1 [peripheralParams.get("USART1").get("ClockPrescaler")]
- FIFOMode : FIFOMODE_DISABLE [peripheralParams.get("USART1").get("FIFOMode")]
- TXFIFOThreshold : TXFIFO_THRESHOLD_1EIGHTHFULL [peripheralParams.get("USART1").get("TXFIFOThreshold")]
- Instance : USART$Index [peripheralParams.get("USART1").get("Instance")]
- Mode : MODE_TX_RX [peripheralParams.get("USART1").get("Mode")]
- OneBitSampling : UART_ONE_BIT_SAMPLE_DISABLE [peripheralParams.get("USART1").get("OneBitSampling")]
- OverrunDisableParam : ADVFEATURE_OVERRUN_ENABLE [peripheralParams.get("USART1").get("OverrunDisableParam")]
- OverSampling : UART_OVERSAMPLING_16 [peripheralParams.get("USART1").get("OverSampling")]
- RXFIFOThreshold : RXFIFO_THRESHOLD_1EIGHTHFULL [peripheralParams.get("USART1").get("RXFIFOThreshold")]
- DMADisableonRxErrorParam : ADVFEATURE_DMA_ENABLEONRXERROR [peripheralParams.get("USART1").get("DMADisableonRxErrorParam")]
- TxPinLevelInvertParam : ADVFEATURE_TXINV_DISABLE [peripheralParams.get("USART1").get("TxPinLevelInvertParam")]
- driver : HAL [peripheralParams.get("USART1").get("driver")]
- BaudRate : 115200 [peripheralParams.get("USART1").get("BaudRate")]
- SwapParam : ADVFEATURE_SWAP_DISABLE [peripheralParams.get("USART1").get("SwapParam")]
- DataInvertParam : ADVFEATURE_DATAINV_DISABLE [peripheralParams.get("USART1").get("DataInvertParam")]
- WordLength : WORDLENGTH_8B [peripheralParams.get("USART1").get("WordLength")]
- VirtualMode_Asynchronous : VM_ASYNC [peripheralParams.get("USART1").get("VirtualMode_Asynchronous")]
- Parity : PARITY_NONE [peripheralParams.get("USART1").get("Parity")]
- RxPinLevelInvertParam : ADVFEATURE_RXINV_DISABLE [peripheralParams.get("USART1").get("RxPinLevelInvertParam")]
Interrupt IP paramters configuration
---------------------------
- USART1_IRQn :
- interruptPremptionPriority : 0 [peripheralNVICParams.get("USART1").get("USART1_IRQn").value.get("interruptPremptionPriority")]
- Subriority : 0 [peripheralNVICParams.get("USART1").get("USART1_IRQn").value.get("Subriority")]
------------------------------------------------------------------------------
- USART2 Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- USART2_TX :
- GPIO_ModeDefaultPP : GPIO_MODE_AF_PP [peripheralGPIOParams.get("USART2").get("USART2_TX").value.get("GPIO_ModeDefaultPP")]
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("USART2").get("USART2_TX").value.get("GPIO_Speed")]
- Pin : PA2 [peripheralGPIOParams.get("USART2").get("USART2_TX").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("USART2").get("USART2_TX").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("USART2").get("USART2_TX").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("USART2").get("USART2_TX").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("USART2").get("USART2_TX").value.get("Port")]
- GPIO_Label : USART_DOWNLOAD_TX [peripheralGPIOParams.get("USART2").get("USART2_TX").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_2 [peripheralGPIOParams.get("USART2").get("USART2_TX").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF1_USART2 [peripheralGPIOParams.get("USART2").get("USART2_TX").value.get("GPIO_AF")]
- USART2_RX :
- GPIO_ModeDefaultPP : GPIO_MODE_AF_PP [peripheralGPIOParams.get("USART2").get("USART2_RX").value.get("GPIO_ModeDefaultPP")]
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("USART2").get("USART2_RX").value.get("GPIO_Speed")]
- Pin : PA3 [peripheralGPIOParams.get("USART2").get("USART2_RX").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("USART2").get("USART2_RX").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("USART2").get("USART2_RX").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("USART2").get("USART2_RX").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("USART2").get("USART2_RX").value.get("Port")]
- GPIO_Label : USART_DOWNLOAD_RX [peripheralGPIOParams.get("USART2").get("USART2_RX").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_3 [peripheralGPIOParams.get("USART2").get("USART2_RX").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF1_USART2 [peripheralGPIOParams.get("USART2").get("USART2_RX").value.get("GPIO_AF")]
IP paramters configuration
---------------------------
- StopBits : STOPBITS_1 [peripheralParams.get("USART2").get("StopBits")]
- AutoBaudRateEnableParam : UART_ADVFEATURE_AUTOBAUDRATE_DISABLE [peripheralParams.get("USART2").get("AutoBaudRateEnableParam")]
- MSBFirstParam : ADVFEATURE_MSBFIRST_DISABLE [peripheralParams.get("USART2").get("MSBFirstParam")]
- HwFlowCtl : UART_HWCONTROL_NONE [peripheralParams.get("USART2").get("HwFlowCtl")]
- ClockPrescaler : PRESCALER_DIV1 [peripheralParams.get("USART2").get("ClockPrescaler")]
- FIFOMode : FIFOMODE_DISABLE [peripheralParams.get("USART2").get("FIFOMode")]
- TXFIFOThreshold : TXFIFO_THRESHOLD_1EIGHTHFULL [peripheralParams.get("USART2").get("TXFIFOThreshold")]
- Instance : USART$Index [peripheralParams.get("USART2").get("Instance")]
- Mode : MODE_TX_RX [peripheralParams.get("USART2").get("Mode")]
- OneBitSampling : UART_ONE_BIT_SAMPLE_DISABLE [peripheralParams.get("USART2").get("OneBitSampling")]
- OverrunDisableParam : ADVFEATURE_OVERRUN_ENABLE [peripheralParams.get("USART2").get("OverrunDisableParam")]
- OverSampling : UART_OVERSAMPLING_16 [peripheralParams.get("USART2").get("OverSampling")]
- RXFIFOThreshold : RXFIFO_THRESHOLD_1EIGHTHFULL [peripheralParams.get("USART2").get("RXFIFOThreshold")]
- DMADisableonRxErrorParam : ADVFEATURE_DMA_ENABLEONRXERROR [peripheralParams.get("USART2").get("DMADisableonRxErrorParam")]
- TxPinLevelInvertParam : ADVFEATURE_TXINV_DISABLE [peripheralParams.get("USART2").get("TxPinLevelInvertParam")]
- driver : HAL [peripheralParams.get("USART2").get("driver")]
- BaudRate : 9600 [peripheralParams.get("USART2").get("BaudRate")]
- SwapParam : ADVFEATURE_SWAP_DISABLE [peripheralParams.get("USART2").get("SwapParam")]
- DataInvertParam : ADVFEATURE_DATAINV_DISABLE [peripheralParams.get("USART2").get("DataInvertParam")]
- WordLength : WORDLENGTH_8B [peripheralParams.get("USART2").get("WordLength")]
- VirtualMode_Asynchronous : VM_ASYNC [peripheralParams.get("USART2").get("VirtualMode_Asynchronous")]
- Parity : PARITY_NONE [peripheralParams.get("USART2").get("Parity")]
- RxPinLevelInvertParam : ADVFEATURE_RXINV_DISABLE [peripheralParams.get("USART2").get("RxPinLevelInvertParam")]
------------------------------------------------------------------------------
- USART3 Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- USART3_TX :
- GPIO_ModeDefaultPP : GPIO_MODE_AF_PP [peripheralGPIOParams.get("USART3").get("USART3_TX").value.get("GPIO_ModeDefaultPP")]
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("USART3").get("USART3_TX").value.get("GPIO_Speed")]
- Pin : PB10 [peripheralGPIOParams.get("USART3").get("USART3_TX").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("USART3").get("USART3_TX").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("USART3").get("USART3_TX").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("USART3").get("USART3_TX").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("USART3").get("USART3_TX").value.get("Port")]
- GPIO_Label : USART_485_TX [peripheralGPIOParams.get("USART3").get("USART3_TX").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_10 [peripheralGPIOParams.get("USART3").get("USART3_TX").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF4_USART3 [peripheralGPIOParams.get("USART3").get("USART3_TX").value.get("GPIO_AF")]
- USART3_RTS :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("USART3").get("USART3_RTS").value.get("GPIO_Speed")]
- Pin : PB14 [peripheralGPIOParams.get("USART3").get("USART3_RTS").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("USART3").get("USART3_RTS").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("USART3").get("USART3_RTS").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("USART3").get("USART3_RTS").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("USART3").get("USART3_RTS").value.get("Port")]
- GPIO_Label : USART_485_RTS [peripheralGPIOParams.get("USART3").get("USART3_RTS").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_14 [peripheralGPIOParams.get("USART3").get("USART3_RTS").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF4_USART3 [peripheralGPIOParams.get("USART3").get("USART3_RTS").value.get("GPIO_AF")]
- GPIO_Mode : GPIO_MODE_AF_PP [peripheralGPIOParams.get("USART3").get("USART3_RTS").value.get("GPIO_Mode")]
- USART3_RX :
- GPIO_ModeDefaultPP : GPIO_MODE_AF_PP [peripheralGPIOParams.get("USART3").get("USART3_RX").value.get("GPIO_ModeDefaultPP")]
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("USART3").get("USART3_RX").value.get("GPIO_Speed")]
- Pin : PB11 [peripheralGPIOParams.get("USART3").get("USART3_RX").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("USART3").get("USART3_RX").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("USART3").get("USART3_RX").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("USART3").get("USART3_RX").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("USART3").get("USART3_RX").value.get("Port")]
- GPIO_Label : USART_485_RX [peripheralGPIOParams.get("USART3").get("USART3_RX").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_11 [peripheralGPIOParams.get("USART3").get("USART3_RX").value.get("GPIO_Pin")]
- GPIO_AF : GPIO_AF4_USART3 [peripheralGPIOParams.get("USART3").get("USART3_RX").value.get("GPIO_AF")]
IP paramters configuration
---------------------------
- StopBits : STOPBITS_1 [peripheralParams.get("USART3").get("StopBits")]
- AutoBaudRateEnableParam : UART_ADVFEATURE_AUTOBAUDRATE_DISABLE [peripheralParams.get("USART3").get("AutoBaudRateEnableParam")]
- MSBFirstParam : ADVFEATURE_MSBFIRST_DISABLE [peripheralParams.get("USART3").get("MSBFirstParam")]
- HwFlowCtl : UART_HWCONTROL_RTS [peripheralParams.get("USART3").get("HwFlowCtl")]
- ClockPrescaler : PRESCALER_DIV1 [peripheralParams.get("USART3").get("ClockPrescaler")]
- FIFOMode : FIFOMODE_DISABLE [peripheralParams.get("USART3").get("FIFOMode")]
- TXFIFOThreshold : TXFIFO_THRESHOLD_1EIGHTHFULL [peripheralParams.get("USART3").get("TXFIFOThreshold")]
- Instance : USART$Index [peripheralParams.get("USART3").get("Instance")]
- Mode : MODE_TX_RX [peripheralParams.get("USART3").get("Mode")]
- OneBitSampling : UART_ONE_BIT_SAMPLE_DISABLE [peripheralParams.get("USART3").get("OneBitSampling")]
- OverrunDisableParam : ADVFEATURE_OVERRUN_ENABLE [peripheralParams.get("USART3").get("OverrunDisableParam")]
- OverSampling : UART_OVERSAMPLING_16 [peripheralParams.get("USART3").get("OverSampling")]
- RXFIFOThreshold : RXFIFO_THRESHOLD_1EIGHTHFULL [peripheralParams.get("USART3").get("RXFIFOThreshold")]
- DMADisableonRxErrorParam : ADVFEATURE_DMA_ENABLEONRXERROR [peripheralParams.get("USART3").get("DMADisableonRxErrorParam")]
- TxPinLevelInvertParam : ADVFEATURE_TXINV_DISABLE [peripheralParams.get("USART3").get("TxPinLevelInvertParam")]
- driver : HAL [peripheralParams.get("USART3").get("driver")]
- BaudRate : 9600 [peripheralParams.get("USART3").get("BaudRate")]
- SwapParam : ADVFEATURE_SWAP_DISABLE [peripheralParams.get("USART3").get("SwapParam")]
- DataInvertParam : ADVFEATURE_DATAINV_DISABLE [peripheralParams.get("USART3").get("DataInvertParam")]
- WordLength : WORDLENGTH_8B [peripheralParams.get("USART3").get("WordLength")]
- VirtualMode_Asynchronous : VM_ASYNC [peripheralParams.get("USART3").get("VirtualMode_Asynchronous")]
- Parity : PARITY_NONE [peripheralParams.get("USART3").get("Parity")]
- RxPinLevelInvertParam : ADVFEATURE_RXINV_DISABLE [peripheralParams.get("USART3").get("RxPinLevelInvertParam")]
------------------------------------------------------------------------------
- NVIC Configuration data : Driver type = HAL
------------------------------------------------------------------------------
IP paramters configuration
---------------------------
- driver : HAL [peripheralParams.get("NVIC").get("driver")]
- Instance : NVIC [peripheralParams.get("NVIC").get("Instance")]
------------------------------------------------------------------------------
- GPIO Configuration data : Driver type = HAL
------------------------------------------------------------------------------
GPIO configuration
-------------------
- PA1 :
- Pin : PA1 [peripheralGPIOParams.get("GPIO").get("PA1").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("GPIO").get("PA1").value.get("GPIOx")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PA1").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("GPIO").get("PA1").value.get("Port")]
- GPIO_Label : [peripheralGPIOParams.get("GPIO").get("PA1").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_1 [peripheralGPIOParams.get("GPIO").get("PA1").value.get("GPIO_Pin")]
- GPIO_ModeDefaultEXTI : GPIO_MODE_IT_RISING [peripheralGPIOParams.get("GPIO").get("PA1").value.get("GPIO_ModeDefaultEXTI")]
- PB2 :
- Pin : PB2 [peripheralGPIOParams.get("GPIO").get("PB2").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("GPIO").get("PB2").value.get("GPIOx")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PB2").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("GPIO").get("PB2").value.get("Port")]
- GPIO_Label : I2C_NFC_INT [peripheralGPIOParams.get("GPIO").get("PB2").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_2 [peripheralGPIOParams.get("GPIO").get("PB2").value.get("GPIO_Pin")]
- GPIO_ModeDefaultEXTI : GPIO_MODE_IT_RISING [peripheralGPIOParams.get("GPIO").get("PB2").value.get("GPIO_ModeDefaultEXTI")]
- PA6 :
- Pin : PA6 [peripheralGPIOParams.get("GPIO").get("PA6").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("GPIO").get("PA6").value.get("GPIOx")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PA6").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("GPIO").get("PA6").value.get("Port")]
- GPIO_Label : DI_POWER_GOOD [peripheralGPIOParams.get("GPIO").get("PA6").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_6 [peripheralGPIOParams.get("GPIO").get("PA6").value.get("GPIO_Pin")]
- GPIO_ModeDefaultEXTI : GPIO_MODE_IT_FALLING [peripheralGPIOParams.get("GPIO").get("PA6").value.get("GPIO_ModeDefaultEXTI")]
- PA7 :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("GPIO").get("PA7").value.get("GPIO_Speed")]
- Pin : PA7 [peripheralGPIOParams.get("GPIO").get("PA7").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("GPIO").get("PA7").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("GPIO").get("PA7").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PA7").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("GPIO").get("PA7").value.get("Port")]
- GPIO_Label : DO_SUPCAP_TCHRG [peripheralGPIOParams.get("GPIO").get("PA7").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_7 [peripheralGPIOParams.get("GPIO").get("PA7").value.get("GPIO_Pin")]
- GPIO_ModeDefaultOutputPP : GPIO_MODE_OUTPUT_PP [peripheralGPIOParams.get("GPIO").get("PA7").value.get("GPIO_ModeDefaultOutputPP")]
- PA12 [PA10] :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("GPIO").get("PA12 [PA10]").value.get("GPIO_Speed")]
- Pin : PA12 [PA10] [peripheralGPIOParams.get("GPIO").get("PA12 [PA10]").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("GPIO").get("PA12 [PA10]").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("GPIO").get("PA12 [PA10]").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PA12 [PA10]").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("GPIO").get("PA12 [PA10]").value.get("Port")]
- GPIO_Label : DO_LED_FUNC_G3 [peripheralGPIOParams.get("GPIO").get("PA12 [PA10]").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_12 [peripheralGPIOParams.get("GPIO").get("PA12 [PA10]").value.get("GPIO_Pin")]
- GPIO_ModeDefaultOutputPP : GPIO_MODE_OUTPUT_PP [peripheralGPIOParams.get("GPIO").get("PA12 [PA10]").value.get("GPIO_ModeDefaultOutputPP")]
- PB13 :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("GPIO").get("PB13").value.get("GPIO_Speed")]
- Pin : PB13 [peripheralGPIOParams.get("GPIO").get("PB13").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("GPIO").get("PB13").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("GPIO").get("PB13").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PB13").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("GPIO").get("PB13").value.get("Port")]
- GPIO_Label : DO_485_TERMINAL_EN [peripheralGPIOParams.get("GPIO").get("PB13").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_13 [peripheralGPIOParams.get("GPIO").get("PB13").value.get("GPIO_Pin")]
- GPIO_ModeDefaultOutputPP : GPIO_MODE_OUTPUT_PP [peripheralGPIOParams.get("GPIO").get("PB13").value.get("GPIO_ModeDefaultOutputPP")]
- PA10 :
- GPIO_FMPA10 : __NULL [peripheralGPIOParams.get("GPIO").get("PA10").value.get("GPIO_FMPA10")]
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("GPIO").get("PA10").value.get("GPIO_Speed")]
- Pin : PA10 [peripheralGPIOParams.get("GPIO").get("PA10").value.get("Pin")]
- GPIOx : GPIOA [peripheralGPIOParams.get("GPIO").get("PA10").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("GPIO").get("PA10").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PA10").value.get("GPIO_PuPd")]
- Port : PA [peripheralGPIOParams.get("GPIO").get("PA10").value.get("Port")]
- GPIO_Label : DO_LED_FUNC_G1 [peripheralGPIOParams.get("GPIO").get("PA10").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_10 [peripheralGPIOParams.get("GPIO").get("PA10").value.get("GPIO_Pin")]
- GPIO_ModeDefaultOutputPP : GPIO_MODE_OUTPUT_PP [peripheralGPIOParams.get("GPIO").get("PA10").value.get("GPIO_ModeDefaultOutputPP")]
- PB12 :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("GPIO").get("PB12").value.get("GPIO_Speed")]
- Pin : PB12 [peripheralGPIOParams.get("GPIO").get("PB12").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("GPIO").get("PB12").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("GPIO").get("PB12").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PB12").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("GPIO").get("PB12").value.get("Port")]
- GPIO_Label : DO_485_SWTICH [peripheralGPIOParams.get("GPIO").get("PB12").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_12 [peripheralGPIOParams.get("GPIO").get("PB12").value.get("GPIO_Pin")]
- GPIO_ModeDefaultOutputPP : GPIO_MODE_OUTPUT_PP [peripheralGPIOParams.get("GPIO").get("PB12").value.get("GPIO_ModeDefaultOutputPP")]
- PD1 :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("GPIO").get("PD1").value.get("GPIO_Speed")]
- Pin : PD1 [peripheralGPIOParams.get("GPIO").get("PD1").value.get("Pin")]
- GPIOx : GPIOD [peripheralGPIOParams.get("GPIO").get("PD1").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("GPIO").get("PD1").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PD1").value.get("GPIO_PuPd")]
- Port : PD [peripheralGPIOParams.get("GPIO").get("PD1").value.get("Port")]
- GPIO_Label : DO_FRONTEND_BOOT [peripheralGPIOParams.get("GPIO").get("PD1").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_1 [peripheralGPIOParams.get("GPIO").get("PD1").value.get("GPIO_Pin")]
- GPIO_ModeDefaultOutputPP : GPIO_MODE_OUTPUT_PP [peripheralGPIOParams.get("GPIO").get("PD1").value.get("GPIO_ModeDefaultOutputPP")]
- PD0 :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("GPIO").get("PD0").value.get("GPIO_Speed")]
- Pin : PD0 [peripheralGPIOParams.get("GPIO").get("PD0").value.get("Pin")]
- GPIOx : GPIOD [peripheralGPIOParams.get("GPIO").get("PD0").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("GPIO").get("PD0").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PD0").value.get("GPIO_PuPd")]
- Port : PD [peripheralGPIOParams.get("GPIO").get("PD0").value.get("Port")]
- GPIO_Label : DO_FRONTEND_RST [peripheralGPIOParams.get("GPIO").get("PD0").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_0 [peripheralGPIOParams.get("GPIO").get("PD0").value.get("GPIO_Pin")]
- GPIO_ModeDefaultOutputPP : GPIO_MODE_OUTPUT_PP [peripheralGPIOParams.get("GPIO").get("PD0").value.get("GPIO_ModeDefaultOutputPP")]
- PB1 :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("GPIO").get("PB1").value.get("GPIO_Speed")]
- Pin : PB1 [peripheralGPIOParams.get("GPIO").get("PB1").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("GPIO").get("PB1").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("GPIO").get("PB1").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PB1").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("GPIO").get("PB1").value.get("Port")]
- GPIO_Label : DO_SUPCAP_FCHRG [peripheralGPIOParams.get("GPIO").get("PB1").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_1 [peripheralGPIOParams.get("GPIO").get("PB1").value.get("GPIO_Pin")]
- GPIO_ModeDefaultOutputPP : GPIO_MODE_OUTPUT_PP [peripheralGPIOParams.get("GPIO").get("PB1").value.get("GPIO_ModeDefaultOutputPP")]
- PD3 :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("GPIO").get("PD3").value.get("GPIO_Speed")]
- Pin : PD3 [peripheralGPIOParams.get("GPIO").get("PD3").value.get("Pin")]
- GPIOx : GPIOD [peripheralGPIOParams.get("GPIO").get("PD3").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("GPIO").get("PD3").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PD3").value.get("GPIO_PuPd")]
- Port : PD [peripheralGPIOParams.get("GPIO").get("PD3").value.get("Port")]
- GPIO_Label : DO_CONTACT1_SUPPLY_OUTPUT [peripheralGPIOParams.get("GPIO").get("PD3").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_3 [peripheralGPIOParams.get("GPIO").get("PD3").value.get("GPIO_Pin")]
- GPIO_ModeDefaultOutputPP : GPIO_MODE_OUTPUT_PP [peripheralGPIOParams.get("GPIO").get("PD3").value.get("GPIO_ModeDefaultOutputPP")]
- PB0 :
- GPIO_Speed : GPIO_SPEED_FREQ_LOW [peripheralGPIOParams.get("GPIO").get("PB0").value.get("GPIO_Speed")]
- Pin : PB0 [peripheralGPIOParams.get("GPIO").get("PB0").value.get("Pin")]
- GPIOx : GPIOB [peripheralGPIOParams.get("GPIO").get("PB0").value.get("GPIOx")]
- PinState : GPIO_PIN_RESET [peripheralGPIOParams.get("GPIO").get("PB0").value.get("PinState")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PB0").value.get("GPIO_PuPd")]
- Port : PB [peripheralGPIOParams.get("GPIO").get("PB0").value.get("Port")]
- GPIO_Label : DO_SUPCAP_POWER_EN [peripheralGPIOParams.get("GPIO").get("PB0").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_0 [peripheralGPIOParams.get("GPIO").get("PB0").value.get("GPIO_Pin")]
- GPIO_ModeDefaultOutputPP : GPIO_MODE_OUTPUT_PP [peripheralGPIOParams.get("GPIO").get("PB0").value.get("GPIO_ModeDefaultOutputPP")]
- PD2 :
- Pin : PD2 [peripheralGPIOParams.get("GPIO").get("PD2").value.get("Pin")]
- GPIOx : GPIOD [peripheralGPIOParams.get("GPIO").get("PD2").value.get("GPIOx")]
- GPIO_PuPd : GPIO_NOPULL [peripheralGPIOParams.get("GPIO").get("PD2").value.get("GPIO_PuPd")]
- Port : PD [peripheralGPIOParams.get("GPIO").get("PD2").value.get("Port")]
- GPIO_Label : DI_CONTACT1_INPUT [peripheralGPIOParams.get("GPIO").get("PD2").value.get("GPIO_Label")]
- GPIO_Pin : GPIO_PIN_2 [peripheralGPIOParams.get("GPIO").get("PD2").value.get("GPIO_Pin")]
- GPIO_Mode : GPIO_MODE_INPUT [peripheralGPIOParams.get("GPIO").get("PD2").value.get("GPIO_Mode")]
IP paramters configuration
---------------------------
- driver : HAL [peripheralParams.get("GPIO").get("driver")]
- Instance : GPIO [peripheralParams.get("GPIO").get("Instance")]
MX_Device_h.ftl
[#ftl]
[#list configs as dt]
[#assign data = dt]
[#assign peripheralParams = dt.peripheralParams]
[#assign peripheralGPIOParams = dt.peripheralGPIOParams]
[#assign peripheralDMAParams = dt.peripheralDMAParams]
[#assign peripheralNVICParams = dt.peripheralNVICParams]
[#assign usedIPs = dt.usedIPs]
/******************************************************************************
* File Name : MX_Device.h
* Date : ${date}
* Description : STM32Cube MX parameter definitions
* Note : This file is generated by STM32CubeMX (DO NOT EDIT!)
******************************************************************************/
#ifndef __MX_DEVICE_H
#define __MX_DEVICE_H
/*---------------------------- Clock Configuration ---------------------------*/
[#list [
"LSI_VALUE",
"LSE_VALUE",
"HSI_VALUE",
"HSE_VALUE",
"EXTERNAL_CLOCK_VALUE",
"PLLCLKFreq_Value",
"PLLQCLKFreq_Value",
"PLLRCLKFreq_Value",
"PLLSAIPCLKFreq_Value"
"PLLSAIQCLKFreq_Value",
"PLLI2SPCLKFreq_Value",
"PLLI2SQCLKFreq_Value",
"PLLI2SRCLKFreq_Value",
"PLLDSIFreq_Value",
"SYSCLKFreq_VALUE",
"HCLKFreq_Value",
"FCLKCortexFreq_Value",
"CortexFreq_Value",
"AHBFreq_Value",
"APB1Freq_Value",
"APB2Freq_Value",
"APB1TimFreq_Value",
"APB2TimFreq_Value",
"48MHZClocksFreq_Value",
"EthernetFreq_Value",
"CECFreq_Value",
"LCDTFTFreq_Value",
"I2SFreq_Value",
"I2S1Freq_Value",
"I2S2Freq_Value",
"I2SClocksFreq_Value",
"SAIAFreq_Value",
"SAIBFreq_Value",
"SAI_AClocksFreq_Value",
"SAI_BClocksFreq_Value",
"SDIOFreq_Value",
"PWRFreq_Value",
"RTCFreq_Value",
"USBFreq_Value",
"WatchDogFreq_Value",
"DSIFreq_Value",
"DSIPHYCLKFreq_Value",
"DSITXEscFreq_Value",
"FMPI2C1Freq_Value",
"SPDIFRXFreq_Value",
"MCO1PinFreq_Value",
"MCO2PinFreq_Value"
] as key]
[#if peripheralParams.get("RCC").get(key)??]
[@CreateDefine name=key value=peripheralParams.get("RCC").get(key)/]
[/#if]
[/#list]
[#list usedIPs as ip]
[#if peripheralParams.get(ip)??]
/*-------------------------------- ${ip?right_pad(10)} --------------------------------*/
[@CreateDefine name=ip value="1"/]
[#if ip?starts_with("USART")]
[#assign vm_none = 1]
[#list peripheralParams.get(ip).entrySet() as paramEntry]
[#if paramEntry.key?starts_with("VirtualMode")]
[#assign vm_none = 0]
[@CreateDefine name=ip+"_VM" value=paramEntry.value/]
[/#if]
[/#list]
[#if vm_none == 1]
[@CreateDefine name=ip+"_VM" value="VM_UNKNOWN"/]
[/#if]
[/#if]
[#if ip?starts_with("UART")]
[#assign irdaFlag = 0]
[#assign asyncFlag = 0]
[#list peripheralParams.get(ip).entrySet() as paramEntry]
[#if paramEntry.key?starts_with("PowerMode") && paramEntry.value?starts_with("IRDA")]
[#assign irdaFlag = 1]
[#elseif paramEntry.key?starts_with("BaudRate")]
[#assign asyncFlag = 1]
[/#if]
[/#list]
[#if irdaFlag == 1]
[@CreateDefine name=ip+"_VM" value="VM_IRDA"/]
[#elseif asyncFlag == 1]
[@CreateDefine name=ip+"_VM" value="VM_ASYNC"/]
[#else]
[@CreateDefine name=ip+"_VM" value="VM_UNKNOWN"/]
[/#if]
[/#if]
[#if ip?starts_with("USB_OTG")]
[#list peripheralParams.get(ip).entrySet() as paramEntry]
[#if paramEntry.key?starts_with("VirtualMode")]
[#if paramEntry.value?starts_with("Device")]
[@CreateDefine name=ip+"_DEVICE" value="1"/]
[#elseif paramEntry.value?starts_with("Host")]
[@CreateDefine name=ip+"_HOST" value="1"/]
[#else]
[@CreateDefine name=ip+"_DEVICE" value="1"/]
[@CreateDefine name=ip+"_HOST" value="1"/]
[/#if]
[/#if]
[/#list]
[/#if]
[#if peripheralGPIOParams.get(ip)??]
/* GPIO Configuration */
[#list peripheralGPIOParams.get(ip).entrySet() as gpioParamEntry]
[#assign PinName=gpioParamEntry.value.get("Pin")]
/* Pin ${PinName} */
[#list gpioParamEntry.value.entrySet() as gpioParam]
[#if gpioParam.value?length > 0]
[#assign ParamValue=gpioParam.value]
[#if ip == "GPIO"]
[#if gpioParam.key == "GPIO_Label"]
[@CreateDefine name=ParamValue value=PinName/]
[#elseif gpioParam.key != "Port"]
[@CreateDefine name=PinName+"_"+gpioParam.key value=ParamValue/]
[/#if]
[#else]
[#if gpioParam.key == "GPIO_Label"]
[@CreateDefine name=ParamValue value=gpioParamEntry.key/]
[#elseif gpioParam.key != "Port"]
[@CreateDefine name=gpioParamEntry.key+"_"+gpioParam.key value=ParamValue/]
[/#if]
[/#if]
[/#if]
[/#list]
[/#list]
[/#if]
[#if peripheralDMAParams.get(ip)?? && peripheralDMAParams.get(ip).entrySet()?size > 0]
/* DMA Configuration */
[#list peripheralDMAParams.get(ip).entrySet() as dmaParamEntry]
/* DMA ${dmaParamEntry.key} */
[#list dmaParamEntry.value.entrySet() as dmaParam]
[@CreateDefine name=dmaParamEntry.key+"_DMA_"+dmaParam.key value=dmaParam.value/]
[/#list]
[/#list]
[/#if]
[#if peripheralNVICParams.get(ip)?? && peripheralNVICParams.get(ip).entrySet()?size > 0]
/* NVIC Configuration */
[#list peripheralNVICParams.get(ip).entrySet() as nvicParamEntry]
/* NVIC ${nvicParamEntry.key} */
[#list nvicParamEntry.value.entrySet() as nvicParam]
[@CreateDefine name=nvicParamEntry.key+"_"+nvicParam.key value=nvicParam.value/]
[/#list]
[/#list]
[/#if]
[/#if]
[/#list]
#endif /* __MX_DEVICE_H */
[/#list]
[#macro CreateDefine name, value]
[#assign tmpName=name?replace("-","_")]
[#assign tmpName=tmpName?replace(" ","_")]
[#assign tmpName=tmpName?replace("/","_")]
[#assign tmpName=tmpName?replace("(","")]
[#assign tmpName=tmpName?replace(")","")]
[#assign tmpName=tmpName?replace("[","")]
[#assign tmpName=tmpName?replace("]","")]
[#assign tmpValue=value?replace("-","_")]
[#assign tmpValue=tmpValue?replace(" ","_")]
[#assign tmpValue=tmpValue?replace("/","_")]
[#assign tmpValue=tmpValue?replace("(","")]
[#assign tmpValue=tmpValue?replace(")","")]
[#assign tmpValue=tmpValue?replace("[","")]
[#assign tmpValue=tmpValue?replace("]","")]
#define ${("MX_" + tmpName)?right_pad(39)} ${tmpValue}
[/#macro]
生成MX_Device.h代码如下
/******************************************************************************
* File Name : MX_Device.h
* Date : 25/10/2022 14:25:05
* Description : STM32Cube MX parameter definitions
* Note : This file is generated by STM32CubeMX (DO NOT EDIT!)
******************************************************************************/
#ifndef __MX_DEVICE_H
#define __MX_DEVICE_H
/*---------------------------- Clock Configuration ---------------------------*/
#define MX_LSI_VALUE 32000
#define MX_LSE_VALUE 32768
#define MX_HSI_VALUE 16000000
#define MX_HSE_VALUE 8000000
#define MX_EXTERNAL_CLOCK_VALUE 48000
#define MX_SYSCLKFreq_VALUE 64000000
#define MX_HCLKFreq_Value 16000000
#define MX_FCLKCortexFreq_Value 16000000
#define MX_CortexFreq_Value 16000000
#define MX_AHBFreq_Value 16000000
#define MX_CECFreq_Value 32786
#define MX_I2S1Freq_Value 64000000
#define MX_PWRFreq_Value 64000000
#define MX_RTCFreq_Value 32000
#define MX_USBFreq_Value 48000000
#define MX_WatchDogFreq_Value 32000
#define MX_MCO1PinFreq_Value 64000000
#define MX_MCO2PinFreq_Value 64000000
/*-------------------------------- ADC1 --------------------------------*/
#define MX_ADC1 1
/* GPIO Configuration */
/* Pin PA5 */
#define MX_ADC1_IN5_Pin PA5
#define MX_ADC1_IN5_GPIOx GPIOA
#define MX_ADC1_IN5_GPIO_PuPd GPIO_NOPULL
#define MX_ADC_V_SUPCAP ADC1_IN5
#define MX_ADC1_IN5_GPIO_Pin GPIO_PIN_5
#define MX_ADC1_IN5_GPIO_Mode GPIO_MODE_ANALOG
/* Pin PA1 */
#define MX_ADC1_IN1_Pin PA1
#define MX_ADC1_IN1_GPIOx GPIOA
#define MX_ADC1_IN1_GPIO_PuPd GPIO_NOPULL
#define MX_ADC_VCC ADC1_IN1
#define MX_ADC1_IN1_GPIO_Pin GPIO_PIN_1
#define MX_ADC1_IN1_GPIO_Mode GPIO_MODE_ANALOG
/* Pin PA0 */
#define MX_ADC1_IN0_Pin PA0
#define MX_ADC1_IN0_GPIOx GPIOA
#define MX_ADC1_IN0_GPIO_PuPd GPIO_NOPULL
#define MX_ADC_V_VARIANT ADC1_IN0
#define MX_ADC1_IN0_GPIO_Pin GPIO_PIN_0
#define MX_ADC1_IN0_GPIO_Mode GPIO_MODE_ANALOG
/* DMA Configuration */
/* DMA ADC1 */
#define MX_ADC1_DMA_Instance DMA1_Channel1
#define MX_ADC1_DMA_Priority DMA_PRIORITY_LOW
#define MX_ADC1_DMA_MemDataAlignment DMA_MDATAALIGN_WORD
#define MX_ADC1_DMA_Mode DMA_CIRCULAR
#define MX_ADC1_DMA_SyncRequestNumber 1
#define MX_ADC1_DMA_Request DMA_REQUEST_ADC1
#define MX_ADC1_DMA_SyncPolarity HAL_DMAMUX_SYNC_NO_EVENT
#define MX_ADC1_DMA_Direction DMA_PERIPH_TO_MEMORY
#define MX_ADC1_DMA_SignalID NONE
#define MX_ADC1_DMA_MemInc DMA_MINC_ENABLE
#define MX_ADC1_DMA_IpInstance
#define MX_ADC1_DMA_RequestNumber 1
#define MX_ADC1_DMA_EventEnable DISABLE
#define MX_ADC1_DMA_SyncEnable DISABLE
#define MX_ADC1_DMA_DMA_Handle
#define MX_ADC1_DMA_PeriphDataAlignment DMA_PDATAALIGN_WORD
#define MX_ADC1_DMA_Polarity HAL_DMAMUX_REQ_GEN_RISING
#define MX_ADC1_DMA_SyncSignalID NONE
#define MX_ADC1_DMA_PeriphInc DMA_PINC_DISABLE
/*-------------------------------- DMA --------------------------------*/
#define MX_DMA 1
/* NVIC Configuration */
/* NVIC DMA1_Ch4_7_DMA2_Ch1_5_DMAMUX1_OVR_IRQn */
#define MX_DMA1_Ch4_7_DMA2_Ch1_5_DMAMUX1_OVR_IRQn_interruptPremptionPriority 0
#define MX_DMA1_Ch4_7_DMA2_Ch1_5_DMAMUX1_OVR_IRQn_Subriority 0
/* NVIC DMA1_Channel1_IRQn */
#define MX_DMA1_Channel1_IRQn_interruptPremptionPriority 0
#define MX_DMA1_Channel1_IRQn_Subriority 0
/* NVIC DMA1_Channel2_3_IRQn */
#define MX_DMA1_Channel2_3_IRQn_interruptPremptionPriority 0
#define MX_DMA1_Channel2_3_IRQn_Subriority 0
/*-------------------------------- I2C1 --------------------------------*/
#define MX_I2C1 1
/* GPIO Configuration */
/* Pin PB8 */
#define MX_I2C1_SCL_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_I2C1_SCL_Pin PB8
#define MX_I2C1_SCL_GPIOx GPIOB
#define MX_I2C_MULTI_MASTER__SCL I2C1_SCL
#define MX_I2C1_SCL_GPIO_Pin GPIO_PIN_8
#define MX_I2C1_SCL_GPIO_AF GPIO_AF6_I2C1
#define MX_I2C1_SCL_GPIO_Pu GPIO_PULLUP
#define MX_I2C1_SCL_GPIO_Mode GPIO_MODE_AF_OD
/* Pin PB9 */
#define MX_I2C1_SDA_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_I2C1_SDA_Pin PB9
#define MX_I2C1_SDA_GPIOx GPIOB
#define MX_I2C_MULTI_MASTER_SDA I2C1_SDA
#define MX_I2C1_SDA_GPIO_Pin GPIO_PIN_9
#define MX_I2C1_SDA_GPIO_AF GPIO_AF6_I2C1
#define MX_I2C1_SDA_GPIO_Pu GPIO_PULLUP
#define MX_I2C1_SDA_GPIO_Mode GPIO_MODE_AF_OD
/*-------------------------------- IWDG --------------------------------*/
#define MX_IWDG 1
/* GPIO Configuration */
/*-------------------------------- RTC --------------------------------*/
#define MX_RTC 1
/* GPIO Configuration */
/*-------------------------------- SPI1 --------------------------------*/
#define MX_SPI1 1
/* GPIO Configuration */
/* Pin PA15 */
#define MX_SPI1_NSS_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_SPI1_NSS_Pin PA15
#define MX_SPI1_NSS_GPIOx GPIOA
#define MX_SPI1_NSS_PinState GPIO_PIN_RESET
#define MX_SPI1_NSS_GPIO_PuPd GPIO_NOPULL
#define MX_SPI_EXT_FLASH_NSS SPI1_NSS
#define MX_SPI1_NSS_GPIO_Pin GPIO_PIN_15
#define MX_SPI1_NSS_GPIO_AF GPIO_AF0_SPI1
#define MX_SPI1_NSS_GPIO_Mode GPIO_MODE_AF_PP
/* Pin PB4 */
#define MX_SPI1_MISO_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_SPI1_MISO_Pin PB4
#define MX_SPI1_MISO_GPIOx GPIOB
#define MX_SPI1_MISO_PinState GPIO_PIN_RESET
#define MX_SPI1_MISO_GPIO_PuPd GPIO_NOPULL
#define MX_SPI_EXT_FLASH_MISO SPI1_MISO
#define MX_SPI1_MISO_GPIO_Pin GPIO_PIN_4
#define MX_SPI1_MISO_GPIO_AF GPIO_AF0_SPI1
#define MX_SPI1_MISO_GPIO_Mode GPIO_MODE_AF_PP
/* Pin PB5 */
#define MX_SPI1_MOSI_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_SPI1_MOSI_Pin PB5
#define MX_SPI1_MOSI_GPIOx GPIOB
#define MX_SPI1_MOSI_PinState GPIO_PIN_RESET
#define MX_SPI1_MOSI_GPIO_PuPd GPIO_NOPULL
#define MX_SPI_EXT_FLASH_MOSI SPI1_MOSI
#define MX_SPI1_MOSI_GPIO_Pin GPIO_PIN_5
#define MX_SPI1_MOSI_GPIO_AF GPIO_AF0_SPI1
#define MX_SPI1_MOSI_GPIO_Mode GPIO_MODE_AF_PP
/* Pin PB3 */
#define MX_SPI1_SCK_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_SPI1_SCK_Pin PB3
#define MX_SPI1_SCK_GPIOx GPIOB
#define MX_SPI1_SCK_PinState GPIO_PIN_RESET
#define MX_SPI1_SCK_GPIO_PuPd GPIO_NOPULL
#define MX_SPI_EXT_FLASH_SCK SPI1_SCK
#define MX_SPI1_SCK_GPIO_Pin GPIO_PIN_3
#define MX_SPI1_SCK_GPIO_AF GPIO_AF0_SPI1
#define MX_SPI1_SCK_GPIO_Mode GPIO_MODE_AF_PP
/* DMA Configuration */
/* DMA SPI1_RX */
#define MX_SPI1_RX_DMA_Instance DMA1_Channel4
#define MX_SPI1_RX_DMA_Priority DMA_PRIORITY_LOW
#define MX_SPI1_RX_DMA_MemDataAlignment DMA_MDATAALIGN_BYTE
#define MX_SPI1_RX_DMA_Mode DMA_NORMAL
#define MX_SPI1_RX_DMA_SyncRequestNumber 1
#define MX_SPI1_RX_DMA_Request DMA_REQUEST_SPI1_RX
#define MX_SPI1_RX_DMA_SyncPolarity HAL_DMAMUX_SYNC_NO_EVENT
#define MX_SPI1_RX_DMA_Direction DMA_PERIPH_TO_MEMORY
#define MX_SPI1_RX_DMA_SignalID NONE
#define MX_SPI1_RX_DMA_MemInc DMA_MINC_ENABLE
#define MX_SPI1_RX_DMA_IpInstance
#define MX_SPI1_RX_DMA_RequestNumber 1
#define MX_SPI1_RX_DMA_EventEnable DISABLE
#define MX_SPI1_RX_DMA_SyncEnable DISABLE
#define MX_SPI1_RX_DMA_DMA_Handle
#define MX_SPI1_RX_DMA_PeriphDataAlignment DMA_PDATAALIGN_BYTE
#define MX_SPI1_RX_DMA_Polarity HAL_DMAMUX_REQ_GEN_RISING
#define MX_SPI1_RX_DMA_SyncSignalID NONE
#define MX_SPI1_RX_DMA_PeriphInc DMA_PINC_DISABLE
/* DMA SPI1_TX */
#define MX_SPI1_TX_DMA_Instance DMA1_Channel5
#define MX_SPI1_TX_DMA_Priority DMA_PRIORITY_LOW
#define MX_SPI1_TX_DMA_MemDataAlignment DMA_MDATAALIGN_BYTE
#define MX_SPI1_TX_DMA_Mode DMA_NORMAL
#define MX_SPI1_TX_DMA_SyncRequestNumber 1
#define MX_SPI1_TX_DMA_Request DMA_REQUEST_SPI1_TX
#define MX_SPI1_TX_DMA_SyncPolarity HAL_DMAMUX_SYNC_NO_EVENT
#define MX_SPI1_TX_DMA_Direction DMA_MEMORY_TO_PERIPH
#define MX_SPI1_TX_DMA_SignalID NONE
#define MX_SPI1_TX_DMA_MemInc DMA_MINC_ENABLE
#define MX_SPI1_TX_DMA_IpInstance
#define MX_SPI1_TX_DMA_RequestNumber 1
#define MX_SPI1_TX_DMA_EventEnable DISABLE
#define MX_SPI1_TX_DMA_SyncEnable DISABLE
#define MX_SPI1_TX_DMA_DMA_Handle
#define MX_SPI1_TX_DMA_PeriphDataAlignment DMA_PDATAALIGN_BYTE
#define MX_SPI1_TX_DMA_Polarity HAL_DMAMUX_REQ_GEN_RISING
#define MX_SPI1_TX_DMA_SyncSignalID NONE
#define MX_SPI1_TX_DMA_PeriphInc DMA_PINC_DISABLE
/*-------------------------------- SYS --------------------------------*/
#define MX_SYS 1
/* GPIO Configuration */
/* Pin PA13 */
#define MX_SYS_SWDIO_Pin PA13
/* Pin PA14-BOOT0 */
#define MX_SYS_SWCLK_Pin PA14_BOOT0
/*-------------------------------- TIM1 --------------------------------*/
#define MX_TIM1 1
/* GPIO Configuration */
/* Pin PA8 */
#define MX_S_TIM1_CH1_GPIO_ModeDefaultPP GPIO_MODE_AF_PP
#define MX_S_TIM1_CH1_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_S_TIM1_CH1_Pin PA8
#define MX_S_TIM1_CH1_GPIOx GPIOA
#define MX_S_TIM1_CH1_PinState GPIO_PIN_RESET
#define MX_S_TIM1_CH1_GPIO_PuPd GPIO_NOPULL
#define MX_I2C_MULTI_MASTER_INTR S_TIM1_CH1
#define MX_S_TIM1_CH1_GPIO_Pin GPIO_PIN_8
#define MX_S_TIM1_CH1_GPIO_AF GPIO_AF2_TIM1
/* Pin PA11 [PA9] */
#define MX_S_TIM1_CH4_GPIO_ModeDefaultPP GPIO_MODE_AF_PP
#define MX_S_TIM1_CH4_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_S_TIM1_CH4_Pin PA11_PA9
#define MX_S_TIM1_CH4_GPIOx GPIOA
#define MX_S_TIM1_CH4_PinState GPIO_PIN_RESET
#define MX_S_TIM1_CH4_GPIO_PuPd GPIO_NOPULL
#define MX_DO_LED_FUNC_G2 S_TIM1_CH4
#define MX_S_TIM1_CH4_GPIO_Pin GPIO_PIN_11
#define MX_S_TIM1_CH4_GPIO_AF GPIO_AF2_TIM1
/*-------------------------------- TIM2 --------------------------------*/
#define MX_TIM2 1
/* GPIO Configuration */
/*-------------------------------- TIM3 --------------------------------*/
#define MX_TIM3 1
/* GPIO Configuration */
/* Pin PC7 */
#define MX_S_TIM3_CH2_GPIO_ModeDefaultPP GPIO_MODE_AF_PP
#define MX_S_TIM3_CH2_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_S_TIM3_CH2_Pin PC7
#define MX_S_TIM3_CH2_GPIOx GPIOC
#define MX_S_TIM3_CH2_PinState GPIO_PIN_RESET
#define MX_S_TIM3_CH2_GPIO_PuPd GPIO_NOPULL
#define MX_TIM_AUTO_BAUD S_TIM3_CH2
#define MX_S_TIM3_CH2_GPIO_Pin GPIO_PIN_7
#define MX_S_TIM3_CH2_GPIO_AF GPIO_AF1_TIM3
/*-------------------------------- TIM15 --------------------------------*/
#define MX_TIM15 1
/* GPIO Configuration */
/* Pin PB15 */
#define MX_S_TIM15_CH2_GPIO_ModeDefaultPP GPIO_MODE_AF_PP
#define MX_S_TIM15_CH2_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_S_TIM15_CH2_Pin PB15
#define MX_S_TIM15_CH2_GPIOx GPIOB
#define MX_S_TIM15_CH2_PinState GPIO_PIN_RESET
#define MX_S_TIM15_CH2_GPIO_PuPd GPIO_NOPULL
#define MX_DO_LED_FUNC_R S_TIM15_CH2
#define MX_S_TIM15_CH2_GPIO_Pin GPIO_PIN_15
#define MX_S_TIM15_CH2_GPIO_AF GPIO_AF5_TIM15
/*-------------------------------- USART1 --------------------------------*/
#define MX_USART1 1
#define MX_USART1_VM VM_ASYNC
/* GPIO Configuration */
/* Pin PB6 */
#define MX_USART1_TX_GPIO_ModeDefaultPP GPIO_MODE_AF_PP
#define MX_USART1_TX_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_USART1_TX_GPIO_FM6 __NULL
#define MX_USART1_TX_Pin PB6
#define MX_USART1_TX_GPIOx GPIOB
#define MX_USART1_TX_GPIO_PuPd GPIO_PULLUP
#define MX_USART_DEBUG_TX USART1_TX
#define MX_USART1_TX_GPIO_Pin GPIO_PIN_6
#define MX_USART1_TX_GPIO_AF GPIO_AF0_USART1
/* Pin PB7 */
#define MX_USART1_RX_GPIO_ModeDefaultPP GPIO_MODE_AF_PP
#define MX_USART1_RX_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_USART1_RX_Pin PB7
#define MX_USART1_RX_GPIOx GPIOB
#define MX_USART1_RX_GPIO_PuPd GPIO_PULLUP
#define MX_USART_DEBUG_RX USART1_RX
#define MX_USART1_RX_GPIO_Pin GPIO_PIN_7
#define MX_USART1_RX_GPIO_AF GPIO_AF0_USART1
#define MX_USART1_RX_GPIO_FM7 __NULL
/* DMA Configuration */
/* DMA USART1_TX */
#define MX_USART1_TX_DMA_Instance DMA1_Channel3
#define MX_USART1_TX_DMA_Priority DMA_PRIORITY_LOW
#define MX_USART1_TX_DMA_MemDataAlignment DMA_MDATAALIGN_BYTE
#define MX_USART1_TX_DMA_Mode DMA_NORMAL
#define MX_USART1_TX_DMA_SyncRequestNumber 1
#define MX_USART1_TX_DMA_Request DMA_REQUEST_USART1_TX
#define MX_USART1_TX_DMA_SyncPolarity HAL_DMAMUX_SYNC_NO_EVENT
#define MX_USART1_TX_DMA_Direction DMA_MEMORY_TO_PERIPH
#define MX_USART1_TX_DMA_SignalID NONE
#define MX_USART1_TX_DMA_MemInc DMA_MINC_ENABLE
#define MX_USART1_TX_DMA_IpInstance
#define MX_USART1_TX_DMA_RequestNumber 1
#define MX_USART1_TX_DMA_EventEnable DISABLE
#define MX_USART1_TX_DMA_SyncEnable DISABLE
#define MX_USART1_TX_DMA_DMA_Handle
#define MX_USART1_TX_DMA_PeriphDataAlignment DMA_PDATAALIGN_BYTE
#define MX_USART1_TX_DMA_Polarity HAL_DMAMUX_REQ_GEN_RISING
#define MX_USART1_TX_DMA_SyncSignalID NONE
#define MX_USART1_TX_DMA_PeriphInc DMA_PINC_DISABLE
/* DMA USART1_RX */
#define MX_USART1_RX_DMA_Instance DMA1_Channel2
#define MX_USART1_RX_DMA_Priority DMA_PRIORITY_LOW
#define MX_USART1_RX_DMA_MemDataAlignment DMA_MDATAALIGN_BYTE
#define MX_USART1_RX_DMA_Mode DMA_NORMAL
#define MX_USART1_RX_DMA_SyncRequestNumber 1
#define MX_USART1_RX_DMA_Request DMA_REQUEST_USART1_RX
#define MX_USART1_RX_DMA_SyncPolarity HAL_DMAMUX_SYNC_NO_EVENT
#define MX_USART1_RX_DMA_Direction DMA_PERIPH_TO_MEMORY
#define MX_USART1_RX_DMA_SignalID NONE
#define MX_USART1_RX_DMA_MemInc DMA_MINC_ENABLE
#define MX_USART1_RX_DMA_IpInstance
#define MX_USART1_RX_DMA_RequestNumber 1
#define MX_USART1_RX_DMA_EventEnable DISABLE
#define MX_USART1_RX_DMA_SyncEnable DISABLE
#define MX_USART1_RX_DMA_DMA_Handle
#define MX_USART1_RX_DMA_PeriphDataAlignment DMA_PDATAALIGN_BYTE
#define MX_USART1_RX_DMA_Polarity HAL_DMAMUX_REQ_GEN_RISING
#define MX_USART1_RX_DMA_SyncSignalID NONE
#define MX_USART1_RX_DMA_PeriphInc DMA_PINC_DISABLE
/* NVIC Configuration */
/* NVIC USART1_IRQn */
#define MX_USART1_IRQn_interruptPremptionPriority 0
#define MX_USART1_IRQn_Subriority 0
/*-------------------------------- USART2 --------------------------------*/
#define MX_USART2 1
#define MX_USART2_VM VM_ASYNC
/* GPIO Configuration */
/* Pin PA2 */
#define MX_USART2_TX_GPIO_ModeDefaultPP GPIO_MODE_AF_PP
#define MX_USART2_TX_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_USART2_TX_Pin PA2
#define MX_USART2_TX_GPIOx GPIOA
#define MX_USART2_TX_PinState GPIO_PIN_RESET
#define MX_USART2_TX_GPIO_PuPd GPIO_NOPULL
#define MX_USART_DOWNLOAD_TX USART2_TX
#define MX_USART2_TX_GPIO_Pin GPIO_PIN_2
#define MX_USART2_TX_GPIO_AF GPIO_AF1_USART2
/* Pin PA3 */
#define MX_USART2_RX_GPIO_ModeDefaultPP GPIO_MODE_AF_PP
#define MX_USART2_RX_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_USART2_RX_Pin PA3
#define MX_USART2_RX_GPIOx GPIOA
#define MX_USART2_RX_PinState GPIO_PIN_RESET
#define MX_USART2_RX_GPIO_PuPd GPIO_NOPULL
#define MX_USART_DOWNLOAD_RX USART2_RX
#define MX_USART2_RX_GPIO_Pin GPIO_PIN_3
#define MX_USART2_RX_GPIO_AF GPIO_AF1_USART2
/*-------------------------------- USART3 --------------------------------*/
#define MX_USART3 1
#define MX_USART3_VM VM_ASYNC
/* GPIO Configuration */
/* Pin PB10 */
#define MX_USART3_TX_GPIO_ModeDefaultPP GPIO_MODE_AF_PP
#define MX_USART3_TX_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_USART3_TX_Pin PB10
#define MX_USART3_TX_GPIOx GPIOB
#define MX_USART3_TX_PinState GPIO_PIN_RESET
#define MX_USART3_TX_GPIO_PuPd GPIO_NOPULL
#define MX_USART_485_TX USART3_TX
#define MX_USART3_TX_GPIO_Pin GPIO_PIN_10
#define MX_USART3_TX_GPIO_AF GPIO_AF4_USART3
/* Pin PB14 */
#define MX_USART3_RTS_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_USART3_RTS_Pin PB14
#define MX_USART3_RTS_GPIOx GPIOB
#define MX_USART3_RTS_PinState GPIO_PIN_RESET
#define MX_USART3_RTS_GPIO_PuPd GPIO_NOPULL
#define MX_USART_485_RTS USART3_RTS
#define MX_USART3_RTS_GPIO_Pin GPIO_PIN_14
#define MX_USART3_RTS_GPIO_AF GPIO_AF4_USART3
#define MX_USART3_RTS_GPIO_Mode GPIO_MODE_AF_PP
/* Pin PB11 */
#define MX_USART3_RX_GPIO_ModeDefaultPP GPIO_MODE_AF_PP
#define MX_USART3_RX_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_USART3_RX_Pin PB11
#define MX_USART3_RX_GPIOx GPIOB
#define MX_USART3_RX_PinState GPIO_PIN_RESET
#define MX_USART3_RX_GPIO_PuPd GPIO_NOPULL
#define MX_USART_485_RX USART3_RX
#define MX_USART3_RX_GPIO_Pin GPIO_PIN_11
#define MX_USART3_RX_GPIO_AF GPIO_AF4_USART3
/*-------------------------------- NVIC --------------------------------*/
#define MX_NVIC 1
/*-------------------------------- GPIO --------------------------------*/
#define MX_GPIO 1
/* GPIO Configuration */
/* Pin PB2 */
#define MX_PB2_Pin PB2
#define MX_PB2_GPIOx GPIOB
#define MX_PB2_GPIO_PuPd GPIO_NOPULL
#define MX_I2C_NFC_INT PB2
#define MX_PB2_GPIO_Pin GPIO_PIN_2
#define MX_PB2_GPIO_ModeDefaultEXTI GPIO_MODE_IT_RISING
/* Pin PA6 */
#define MX_PA6_Pin PA6
#define MX_PA6_GPIOx GPIOA
#define MX_PA6_GPIO_PuPd GPIO_NOPULL
#define MX_DI_POWER_GOOD PA6
#define MX_PA6_GPIO_Pin GPIO_PIN_6
#define MX_PA6_GPIO_ModeDefaultEXTI GPIO_MODE_IT_RISING
/* Pin PA7 */
#define MX_PA7_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_PA7_Pin PA7
#define MX_PA7_GPIOx GPIOA
#define MX_PA7_PinState GPIO_PIN_RESET
#define MX_PA7_GPIO_PuPd GPIO_NOPULL
#define MX_DO_SUPCAP_TCHRG PA7
#define MX_PA7_GPIO_Pin GPIO_PIN_7
#define MX_PA7_GPIO_ModeDefaultOutputPP GPIO_MODE_OUTPUT_PP
/* Pin PA12 [PA10] */
#define MX_PA12_PA10_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_PA12_PA10_Pin PA12_PA10
#define MX_PA12_PA10_GPIOx GPIOA
#define MX_PA12_PA10_PinState GPIO_PIN_RESET
#define MX_PA12_PA10_GPIO_PuPd GPIO_NOPULL
#define MX_DO_LED_FUNC_G3 PA12_PA10
#define MX_PA12_PA10_GPIO_Pin GPIO_PIN_12
#define MX_PA12_PA10_GPIO_ModeDefaultOutputPP GPIO_MODE_OUTPUT_PP
/* Pin PC13 */
#define MX_PC13_Pin PC13
#define MX_PC13_GPIOx GPIOC
#define MX_PC13_GPIO_PuPd GPIO_NOPULL
#define MX_DI_KEY_MANNUAL PC13
#define MX_PC13_GPIO_Pin GPIO_PIN_13
#define MX_PC13_GPIO_Mode GPIO_MODE_INPUT
/* Pin PB13 */
#define MX_PB13_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_PB13_Pin PB13
#define MX_PB13_GPIOx GPIOB
#define MX_PB13_PinState GPIO_PIN_RESET
#define MX_PB13_GPIO_PuPd GPIO_NOPULL
#define MX_DO_485_TERMINAL_EN PB13
#define MX_PB13_GPIO_Pin GPIO_PIN_13
#define MX_PB13_GPIO_ModeDefaultOutputPP GPIO_MODE_OUTPUT_PP
/* Pin PA10 */
#define MX_PA10_GPIO_FMPA10 __NULL
#define MX_PA10_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_PA10_Pin PA10
#define MX_PA10_GPIOx GPIOA
#define MX_PA10_PinState GPIO_PIN_RESET
#define MX_PA10_GPIO_PuPd GPIO_NOPULL
#define MX_DO_LED_FUNC_G1 PA10
#define MX_PA10_GPIO_Pin GPIO_PIN_10
#define MX_PA10_GPIO_ModeDefaultOutputPP GPIO_MODE_OUTPUT_PP
/* Pin PB12 */
#define MX_PB12_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_PB12_Pin PB12
#define MX_PB12_GPIOx GPIOB
#define MX_PB12_PinState GPIO_PIN_RESET
#define MX_PB12_GPIO_PuPd GPIO_NOPULL
#define MX_DO_485_SWTICH PB12
#define MX_PB12_GPIO_Pin GPIO_PIN_12
#define MX_PB12_GPIO_ModeDefaultOutputPP GPIO_MODE_OUTPUT_PP
/* Pin PD1 */
#define MX_PD1_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_PD1_Pin PD1
#define MX_PD1_GPIOx GPIOD
#define MX_PD1_PinState GPIO_PIN_RESET
#define MX_PD1_GPIO_PuPd GPIO_NOPULL
#define MX_DO_FRONTEND_BOOT PD1
#define MX_PD1_GPIO_Pin GPIO_PIN_1
#define MX_PD1_GPIO_ModeDefaultOutputPP GPIO_MODE_OUTPUT_PP
/* Pin PD0 */
#define MX_PD0_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_PD0_Pin PD0
#define MX_PD0_GPIOx GPIOD
#define MX_PD0_PinState GPIO_PIN_RESET
#define MX_PD0_GPIO_PuPd GPIO_NOPULL
#define MX_DO_FRONTEND_RST PD0
#define MX_PD0_GPIO_Pin GPIO_PIN_0
#define MX_PD0_GPIO_ModeDefaultOutputPP GPIO_MODE_OUTPUT_PP
/* Pin PB1 */
#define MX_PB1_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_PB1_Pin PB1
#define MX_PB1_GPIOx GPIOB
#define MX_PB1_PinState GPIO_PIN_RESET
#define MX_PB1_GPIO_PuPd GPIO_NOPULL
#define MX_DO_SUPCAP_FCHRG PB1
#define MX_PB1_GPIO_Pin GPIO_PIN_1
#define MX_PB1_GPIO_ModeDefaultOutputPP GPIO_MODE_OUTPUT_PP
/* Pin PD3 */
#define MX_PD3_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_PD3_Pin PD3
#define MX_PD3_GPIOx GPIOD
#define MX_PD3_PinState GPIO_PIN_RESET
#define MX_PD3_GPIO_PuPd GPIO_NOPULL
#define MX_DO_CONTACT1_SUPPLY_OUTPUT PD3
#define MX_PD3_GPIO_Pin GPIO_PIN_3
#define MX_PD3_GPIO_ModeDefaultOutputPP GPIO_MODE_OUTPUT_PP
/* Pin PB0 */
#define MX_PB0_GPIO_Speed GPIO_SPEED_FREQ_LOW
#define MX_PB0_Pin PB0
#define MX_PB0_GPIOx GPIOB
#define MX_PB0_PinState GPIO_PIN_RESET
#define MX_PB0_GPIO_PuPd GPIO_NOPULL
#define MX_DO_SUPCAP_POWER_EN PB0
#define MX_PB0_GPIO_Pin GPIO_PIN_0
#define MX_PB0_GPIO_ModeDefaultOutputPP GPIO_MODE_OUTPUT_PP
/* Pin PD2 */
#define MX_PD2_Pin PD2
#define MX_PD2_GPIOx GPIOD
#define MX_PD2_GPIO_PuPd GPIO_NOPULL
#define MX_DI_CONTACT1_INPUT PD2
#define MX_PD2_GPIO_Pin GPIO_PIN_2
#define MX_PD2_GPIO_Mode GPIO_MODE_INPUT
#endif /* __MX_DEVICE_H */
3. FreeMarker 基本语法
参考如下：
FreeMarker 在线手册
4. 如何去修改模板并生成自己想要的代码？？
嘻嘻
1085
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
