• Low Loss Power Distribution Switch

• SOT-5 Pacakge

• 2.4V ~ 5.5V (<6V)

• 0.6W

• Max. Current 2A

• Reverse blocking (no body diode)

• Programmable current limit ( Ilimits(A) = 6800 / Rset(ohm). )

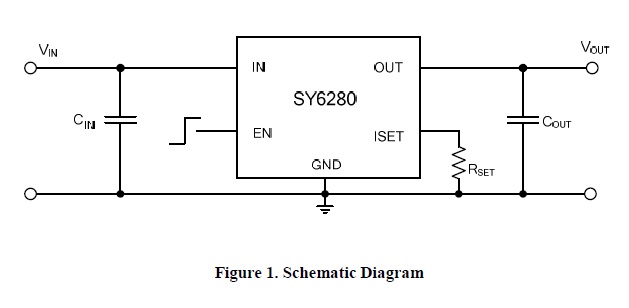

Application Circuit (Recommend parts)

• Cin 10uF (recommend),
• Cout 10uF( *Depend on application)
• 100K Renable for pull-low. ( *Depend on application )

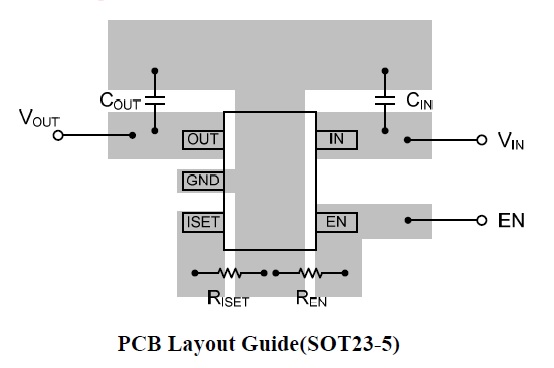

• PCB Layout - Ground Copper under chip to prevent thermal issues.

< 以下节录自 原厂规格书, 仅供参考 >
The SY6280 develops ultra-low Rds(on) switch with programmable current limiting to protect the powersource from over current and short circuit conditions. It integrates the over temperature protection and discharges the output capacitor during the shutdown. In case the output is pulled higher than the input voltage under the shutdown, the SY6280 can block the current flowing from the output to the input.

Applications:

1. USB 3G Datacard
2. USB Dongle
3. MiniPCI Accessories.
