搭建ASPP:多尺度信息提取网络

介绍

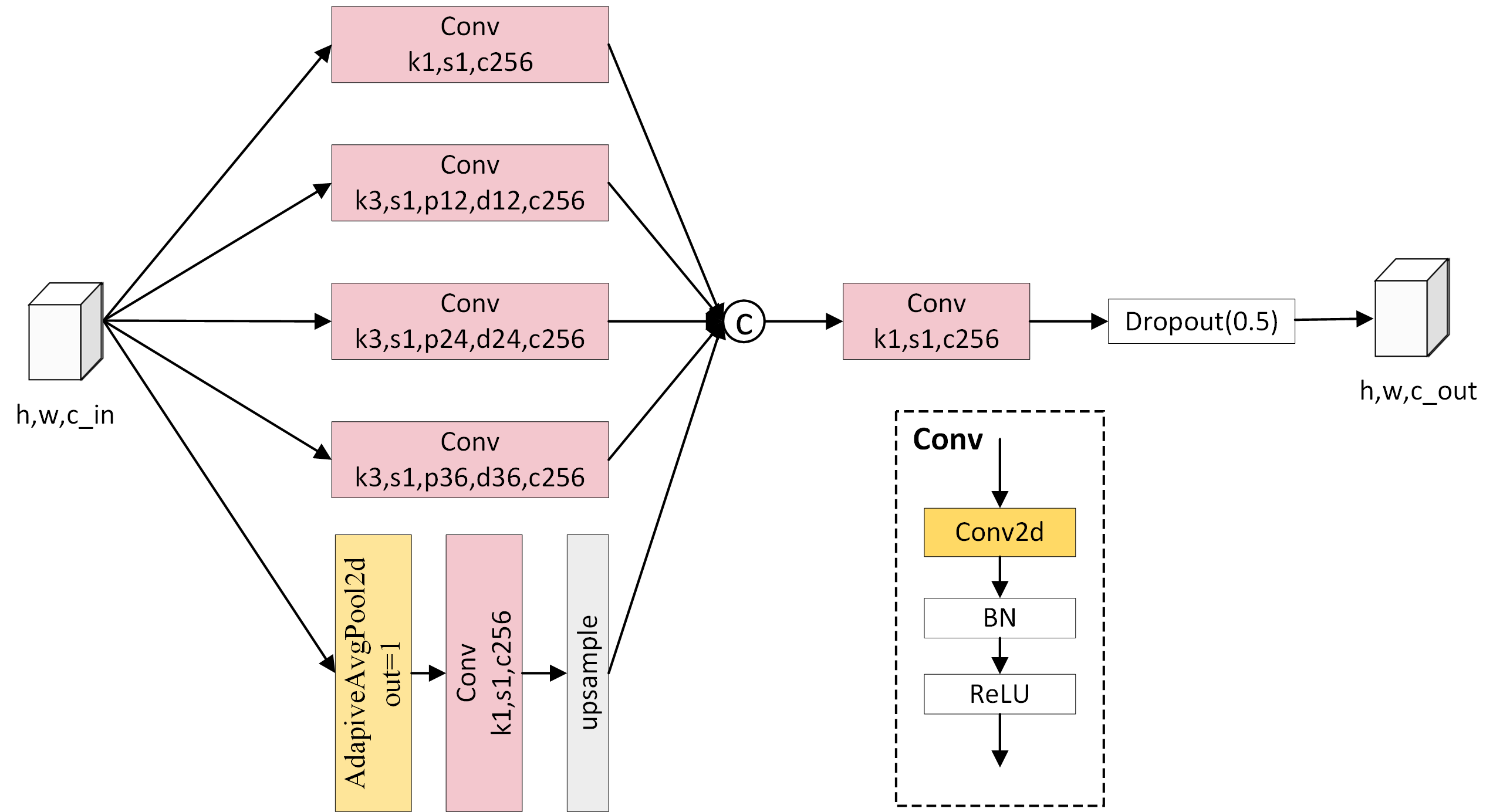

    ASPP（Atrous Spatial Pyramid Pooling），空洞空间卷积池化金字塔。简单理解就是个至尊版池化层，其目的与普通的池化层一致，尽可能地去提取特征。ASPP 的结构如下：

    如图所示，ASPP 本质上由一个1×1的卷积（最上） + 池化金字塔（中间三个） + ASPP Pooling（最下面三层）组成。而池化金字塔各层的膨胀因子可自定义，从而实现自由的多尺度特征提取。

代码实现

'''
pytorch实现ASPP
'''
import numpy as np
import torch
import torch.nn as nn
from torch.distributions.uniform import Uniform
from torch.nn import functional as F
from typing import Dict, List

class ASPPConv(nn.Sequential):
    def __init__(self, in_channels: int, out_channels: int, dilation: int) -> None:
        super(ASPPConv, self).__init__(
            nn.Conv2d(in_channels, out_channels, 3, padding=dilation, dilation=dilation, bias=False),
            nn.BatchNorm2d(out_channels),
            nn.ReLU()
        )

class ASPPPooling(nn.Sequential):
    def __init__(self, in_channels: int, out_channels: int) -> None:
        super(ASPPPooling, self).__init__(
            nn.AdaptiveAvgPool2d(1),
            nn.Conv2d(in_channels, out_channels, 1, bias=False),
            nn.BatchNorm2d(out_channels),
            nn.ReLU()
        )

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        size = x.shape[-2:]
        for mod in self:
            x = mod(x)
        return F.interpolate(x, size=size, mode='bilinear', align_corners=False)



class ASPP(nn.Module):
    def __init__(self, in_channels: int, atrous_rates: List[int], out_channels: int = 256) -> None:
        super(ASPP, self).__init__()
        modules = [
            nn.Sequential(nn.Conv2d(in_channels, out_channels, 1, bias=False),
                          nn.BatchNorm2d(out_channels),
                          nn.ReLU())
        ]

        rates = tuple(atrous_rates)
        for rate in rates:
            modules.append(ASPPConv(in_channels, out_channels, rate))

        modules.append(ASPPPooling(in_channels, out_channels))

        self.convs = nn.ModuleList(modules)

        self.project = nn.Sequential(
            nn.Conv2d(len(self.convs) * out_channels, out_channels, 1, bias=False),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(),
            nn.Dropout(0.5)
        )

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        _res = []
        for conv in self.convs:
            _res.append(conv(x))
        res = torch.cat(_res, dim=1)
        return self.project(res)


class EncoderAspp(nn.Module):
    def __init__(self, params):
        super(EncoderAspp, self).__init__()
        self.aspp = ASPP(in_channels = 64 , [4, 6, 8], out_channels = 64)

    def forward(self, x):

        x = self.aspp(x)

        return x
