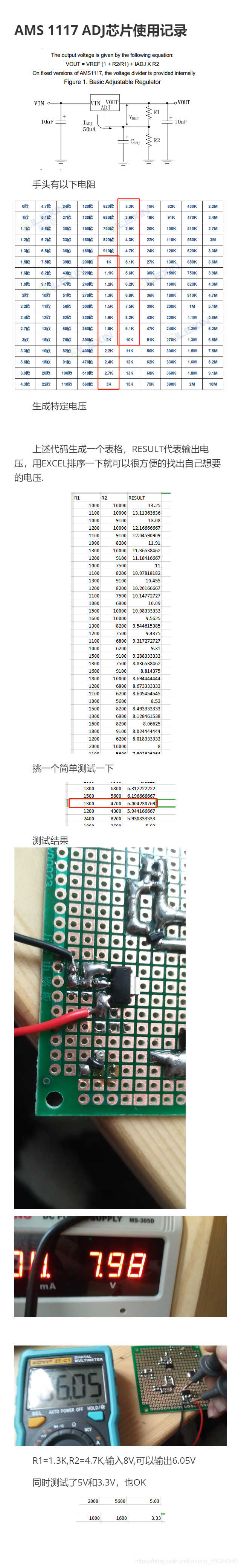

AMS 1117 ADJ芯片使用记录

import csv

# 代码流程
# 1.读取csv数据
# 2.创建一个可选电阻值的列表
# 3.复制上述列表
# 4.公式计算
# 5.csv数据的写入测试
# 上述流程合并


# 1.读取csv数据
# reader_csv_file = csv.reader(open('Book2.csv', 'r'))
# for row_reader_csv_file in reader_csv_file:
#     for unit_row in range(len(row_reader_csv_file)):
#         print(float(row_reader_csv_file[unit_row]))

# 2.创建一个可选电阻值的列表（单位为千欧）
# 3.复制上述列表
# R1 = [1, 2, 3, 4]
# i_R1=0
# R1 = [i_R1*1000 for i_R1 in R1]
# R2=R1[:]
# print(R1)
# R2[0]=1
# print(R2)

# 4.公式计算
# R1 = 1000
# R2 = 4300

# VREF = 1.25
# IADJ = 50E-6

# VOUT = VREF*(1+R2/R1)+IADJ*R2
# print(VOUT)

# 5.csv数据的写入测试
# TITLE=["R1","R2","RESULT"]
# R1 = [2, 3, 4]
# R2 = [5, 3, 4]
# with open('test.csv', 'w', newline='') as t_file:
#     csv_writer = csv.writer(t_file)
#     csv_writer.writerow(TITLE)
#     csv_writer.writerow(R1)
#     csv_writer.writerow(R2)

R1 = [1, 1.1, 1.2, 1.3, 1.5, 1.6, 1.8, 2, 2.2, 2.4, 2.7, 3, 3.3,
      3.6, 3.9, 4.3, 4.7, 5.1, 5.6, 6.2, 6.8, 7.5, 8.2, 9.1, 10]
R1 = [i_R1*1000 for i_R1 in R1]
R2 = R1[:]
VREF = 1.25
IADJ = 50E-6
TITLE=["R1","R2","RESULT"]

with open('test.csv', 'w', newline='') as t_file:
    csv_writer = csv.writer(t_file)
    csv_writer.writerow(TITLE)
    for index_R1 in range(len(R1)):
        for index_R2 in range(len(R2)):
            VOUT = VREF*(1+R2[index_R2]/R1[index_R1])+IADJ*R2[index_R2]
            ROW = []
            ROW.append(R1[index_R1])
            ROW.append(R2[index_R2])
            ROW.append(VOUT)
            csv_writer.writerow(ROW)
