大疆眼镜V2视频信息如何投屏到电脑?

本文详细介绍了如何将大疆眼镜V2的视频信息通过fpvout技术同步到电脑和手机屏幕,包括Zadig驱动的安装、CDCSerial等接口配置,以及fpvout至电脑和手机的具体步骤。然而,同步显示存在5秒以上的滞后,适用于非实时监控场景。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

大疆眼镜V2视频信息如何投屏到电脑?

在使用大疆眼镜配套穿越机飞行时,大疆天空端反馈给眼镜的视频图像只能通过眼镜看到,或者存储在  眼镜或者天空端的 TF 卡上再回放。
 某些场景下,需要能够同步在手机或者 电脑屏幕上看到 FPV穿越机传回的 视频画面。 在 GITHUB 对应的 代码库 FPVOUT 上提供了一种解决方案。 该方案可以在 电脑或者手机屏幕上 同步显示眼镜上的 视频信息。
 缺点: 同步显示速度比较滞后,只能测试功能。 滞后应该在 5 秒以上。 无法应用于实时监视场景。

电脑上Zadig驱动的安装

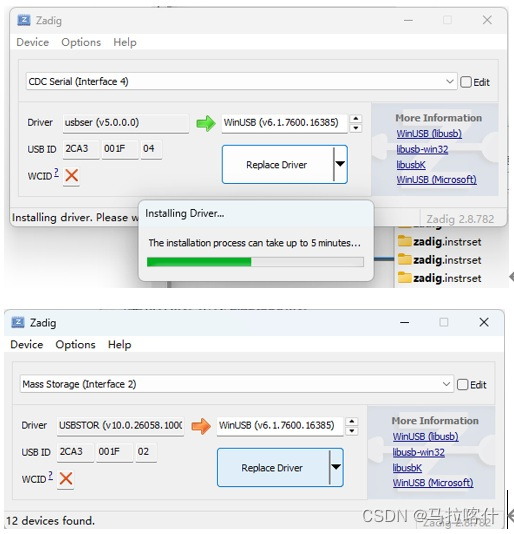

将 大疆V2眼镜通过Type-C 数据线连接到电脑 USB 接口。 启动 Zadig , 发现新增了 4 个对象 :

CDC Serial(interface 4)
BULK Interface(interface 3)
Mass Storage(Interface 2)
RNDIS (Interface 0)
在这里插入图片描述
给 CDC/BULK/RNDIS 装上 WINUSB驱动 ( 是否三个需要全装? 我也不确定。 但是三个全装了没有问题 )。 注意: Mass storage 不能安装。

在这里插入图片描述

fpvout 相关配置

github 上有相关资源代码库 : github.com/fpvout

### DJI V2 Glasses RTMP Streaming Configuration and Setup For configuring the DJI V2 glasses to perform live streaming using RTMP, one must consider integrating this device with a compatible system that supports such functionality. The primary method of achieving an RTMP stream involves utilizing intermediary devices or software capable of capturing video output from the V2 glasses and then processing it into an RTMP stream. Given that direct support details for RTMP streaming specifically through the V2 glasses are not provided within the available references, solutions can be inferred based on general practices involving similar equipment: #### Using DJI Mobile SDK for Video Stream Handling The `DJI LiveStreamManager` interface allows handling audio-video streams effectively when paired correctly with other components like mobile applications which might serve as intermediaries between the V2 glasses' video feed and final RTMP destination servers[^1]. This approach requires ensuring proper permissions (such as microphone access) so both visual and auditory elements can be captured accurately during transmission sessions. To implement this solution: - Ensure your application has all necessary permissions set up. - Utilize the appropriate API calls within the DJI Mobile SDK to start and manage the livestream session. ```python from djisdk import LiveStreamManager live_stream_manager = LiveStreamManager() live_stream_manager.start_rtmp_stream("rtmp://your.server.address/live/stream_key") ``` #### Connecting Through Compatible Devices Another potential pathway is connecting the V2 glasses via HDMI out or another supported connection type directly to hardware encoders designed explicitly for converting input signals into web-friendly formats including RTMP streams. Such setups often provide more reliable performance compared to purely software-based alternatives especially under less than ideal network conditions. In cases where custom development work arounds become necessary due to limitations inherent in existing APIs or desired feature sets beyond standard offerings, developers may explore leveraging lower-level interfaces described elsewhere but adapted towards facilitating real-time media broadcasting capabilities tailored specifically toward wearable displays like those found in the V2 model series[^2]. --related questions-- 1. How does one ensure optimal quality while minimizing latency in RTMP streams originating from wearable display devices? 2. What alternative methods exist outside traditional RTMP protocols for efficiently transmitting high-definition video feeds over long distances without significant loss of fidelity? 3. Can you detail any specific challenges encountered when attempting to integrate third-party accessories with proprietary systems such as those manufactured by DJI? 4. In what scenarios would employing dedicated encoding hardware offer advantages over relying solely upon software implementations for managing multimedia transmissions?
