HAL库CubeMX配置STM32F103使用1.8寸(160*128)TFTLCD彩屏(ST7735)

本文使用HAL库CubeMX进行开发

1. 使用CubeMX 配置SPI:

打开CubeMX,选择STM32F103。
找到并选择合适的GPIO引脚作为LCD的数据和控制线。
启用SPI2并设置相应的引脚为输出。
启用并配置时钟。

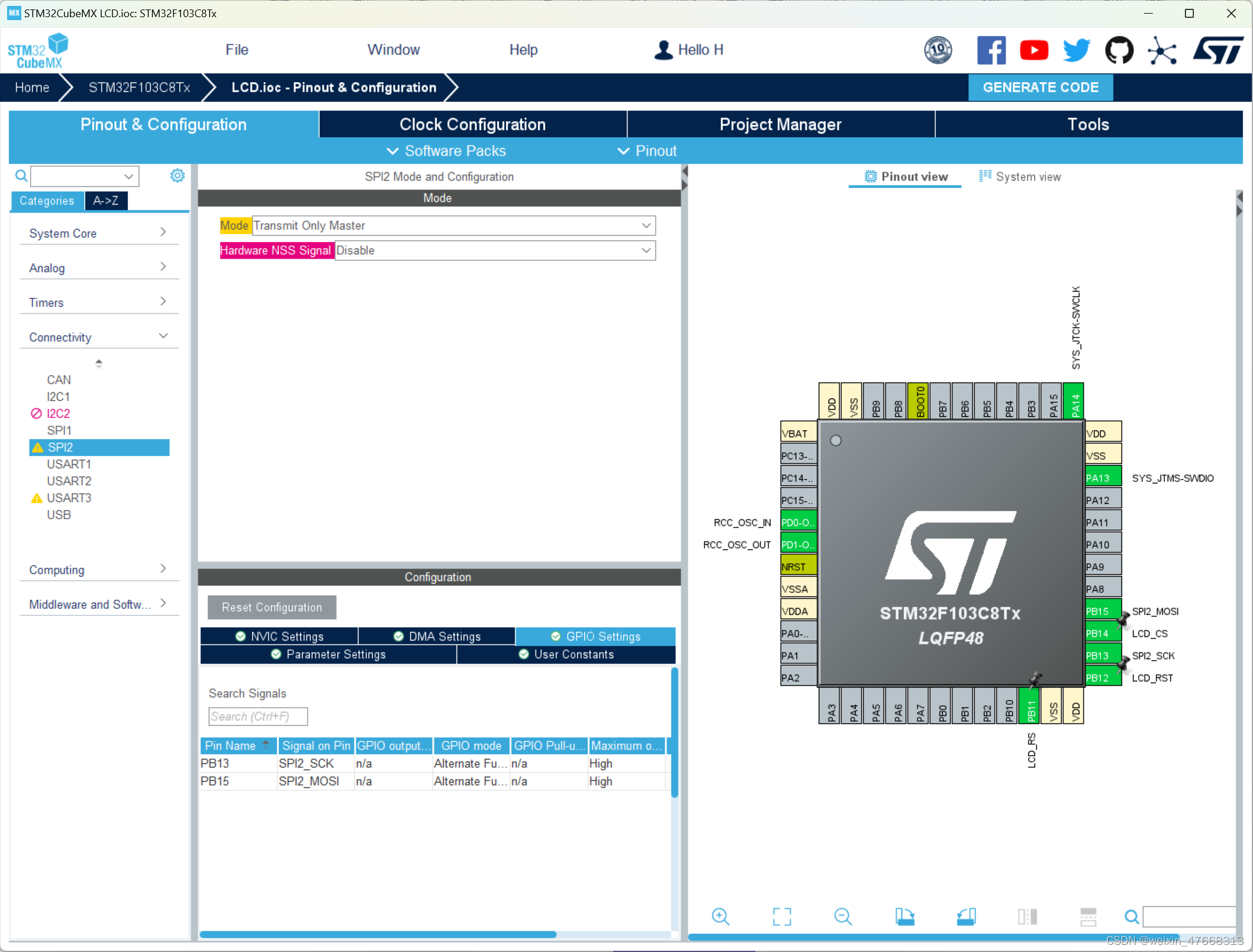

具体配置如下图所示:


2. 配置GPIO接口:

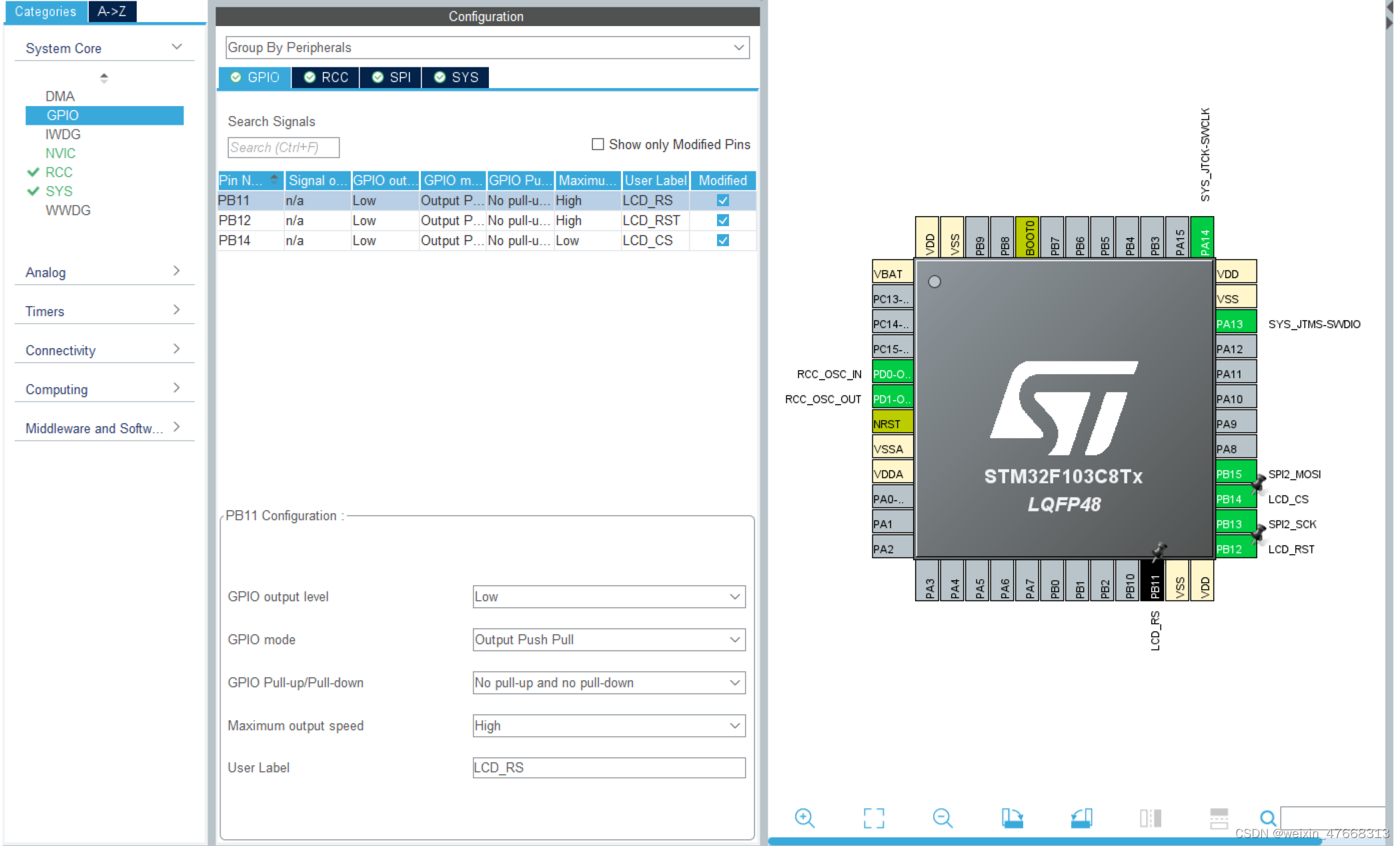

设置GPIO为推挽输出,无上下拉,速度拉满。


3. 初始化LCD驱动程序:
本例LCD的驱动程序从厂商提供的库中获得,经过修改成功移植到HAL库。

大概步骤如下:

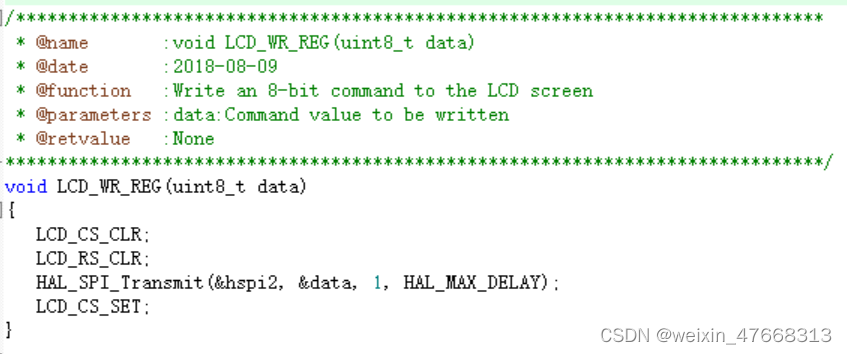

首先将lcd驱动程序里的数据传输函数改成HAL库的HAL_SPI_Transmit();

再将驱动程序中的u8,u16改成uint8_t,uint16_t。

delay_ms()改成HAL_Delay();

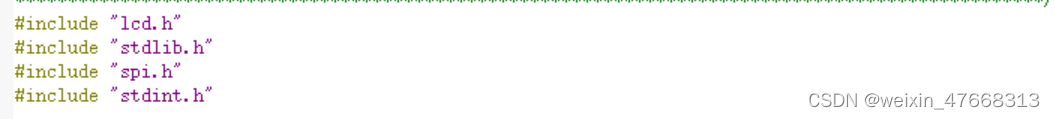

并且修改相应的头文件;

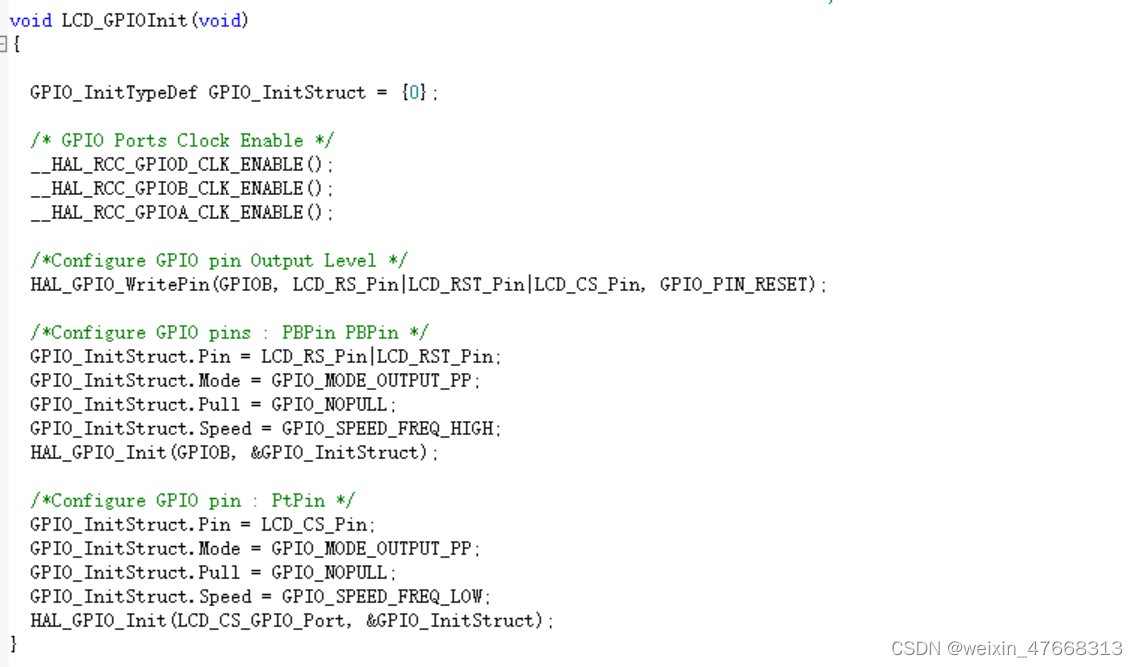

配置GPIO也改成HAL库的

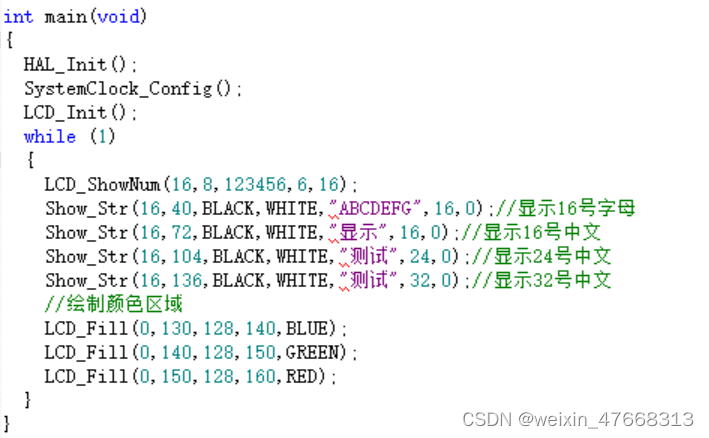

最后在主函数中调用相关函数进行烧录测试;

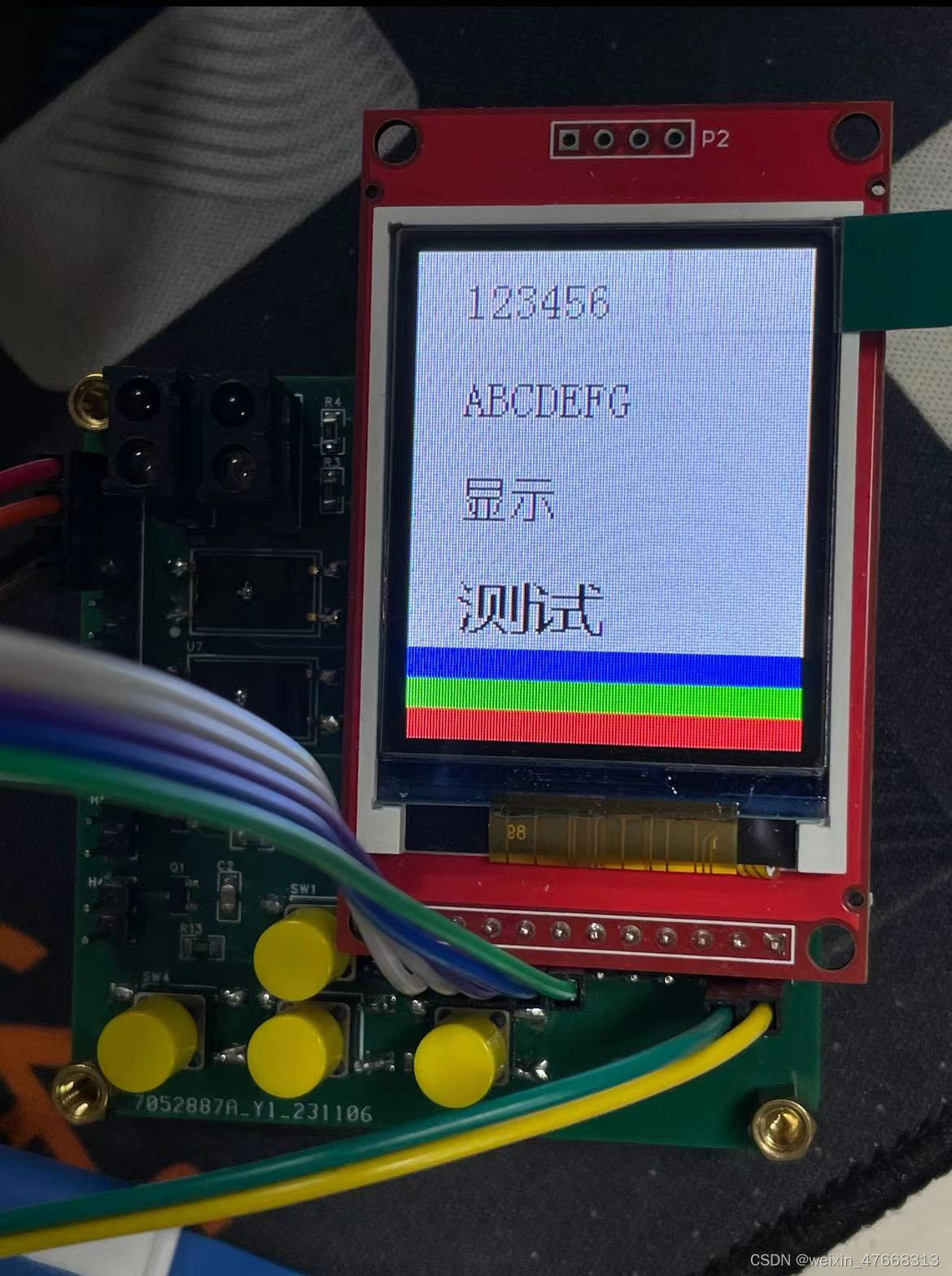

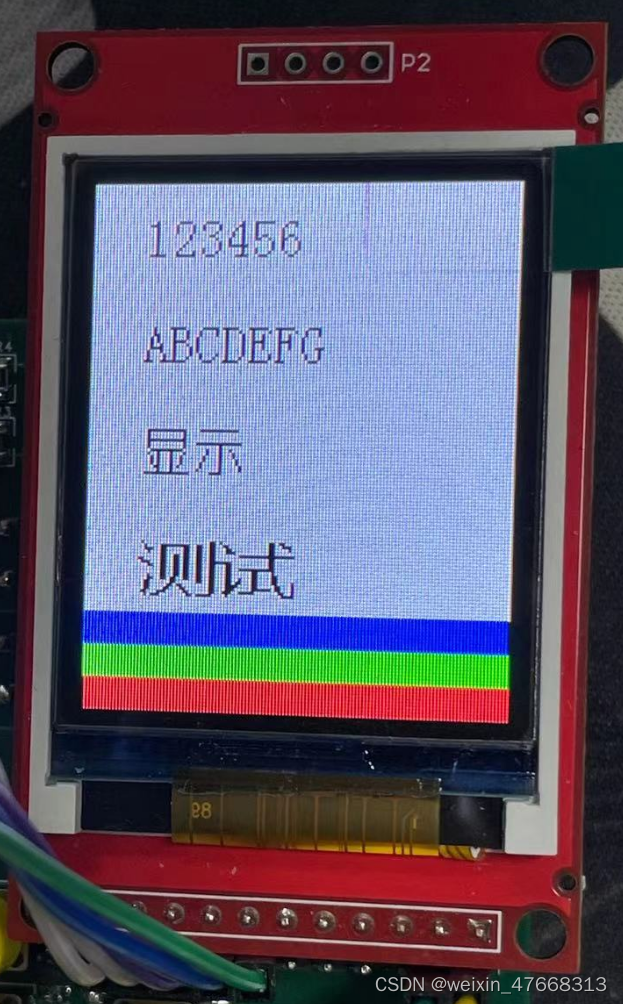

最后观察到移植成功了。

本文可能有说得不全面的地方,后续有机会再补充。相关文件已上传至个人资源,有需要的可以去下载。
