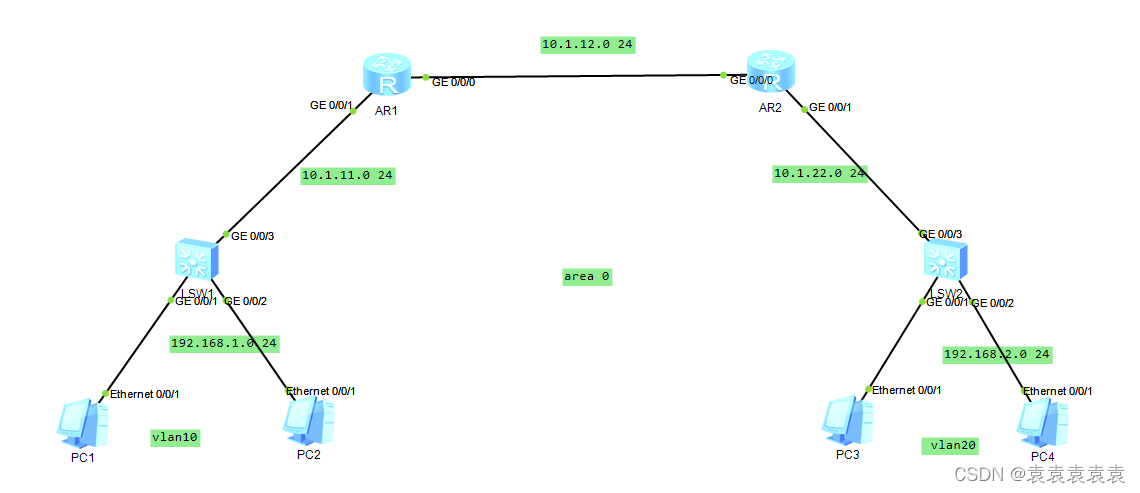

ensp的ospf实现vlan在三层交换机与路由器之间互通（干货）

SW1配置信息

vlan batch 2 10
#
interface Vlanif2
 ip address 10.1.11.1 255.255.255.0
#
interface Vlanif10
 ip address 192.168.1.254 255.255.255.0
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 2
#
ospf 1
area 0
network 192.168.1.0 0.0.0.255
network 10.1.11.0 0.0.0.255

AR1配置信息

ospf 1 router-id 1.1.1.1
 area 0
#
interface GigabitEthernet0/0/0
 ip address 10.1.12.1 255.255.255.0
 ospf enable 1 area 0.0.0.0
#
interface GigabitEthernet0/0/1
 ip address 10.1.11.2 255.255.255.0
 ospf enable 1 area 0.0.0.0

AR2配置信息

ospf 1 router-id 2.2.2.2
 area 0
interface GigabitEthernet0/0/0
 ip address 10.1.12.2 255.255.255.0
 ospf enable 1 area 0.0.0.0
#
interface GigabitEthernet0/0/1
 ip address 10.1.22.2 255.255.255.0
 ospf enable 1 area 0.0.0.0

SW2配置信息

vlan batch 2 20
#
interface Vlanif2
 ip address 10.1.22.1 255.255.255.0
#
interface Vlanif20
 ip address 192.168.2.254 255.255.255.0
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 20
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 20
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 2
#
ospf 1
area 0
network 192.168.2.0 0.0.0.255
network 10.1.22.0 0.0.0.255
