CBAPD方法进行图像特征提取识别cifar10数据集

import tensorflow as tf
import os
import numpy as np
from matplotlib import pyplot as plt
from tensorflow.keras.layers import Conv2D, BatchNormalization, Activation, MaxPool2D, Dropout, Flatten, Dense
from tensorflow.keras import Model

np.set_printoptions(threshold=np.inf)

cifar10 = tf.keras.datasets.cifar10
(x_train, y_train), (x_test, y_test) = cifar10.load_data()
x_train, x_test = x_train / 255.0, x_test / 255.0


class Baseline(Model):
def __init__(self):
super(Baseline, self).__init__()
self.c1 = Conv2D(filters=6, kernel_size=(5, 5), padding='same') # 卷积层
self.b1 = BatchNormalization() # BN层
self.a1 = Activation('relu') # 激活层
self.p1 = MaxPool2D(pool_size=(2, 2), strides=2, padding='same') # 池化层
self.d1 = Dropout(0.2) # dropout层

self.flatten = Flatten()
self.f1 = Dense(128, activation='relu')
self.d2 = Dropout(0.2)
self.f2 = Dense(10, activation='softmax')

def call(self, x):
x = self.c1(x)
x = self.b1(x)
x = self.a1(x)
x = self.p1(x)
x = self.d1(x)

x = self.flatten(x)
x = self.f1(x)
x = self.d2(x)
y = self.f2(x)
return y


model = Baseline()

model.compile(optimizer='adam',
loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=False),
metrics=['sparse_categorical_accuracy'])

checkpoint_save_path = "./checkpoint/Baseline.ckpt"
if os.path.exists(checkpoint_save_path + '.index'):
print('-------------load the model-----------------')
model.load_weights(checkpoint_save_path)

cp_callback = tf.keras.callbacks.ModelCheckpoint(filepath=checkpoint_save_path,
save_weights_only=True,
save_best_only=True)

history = model.fit(x_train, y_train, batch_size=32, epochs=5, validation_data=(x_test, y_test), validation_freq=1,
callbacks=[cp_callback])
model.summary()

# print(model.trainable_variables)
file = open('./weights.txt', 'w')
for v in model.trainable_variables:
file.write(str(v.name) + '\n')
file.write(str(v.shape) + '\n')
file.write(str(v.numpy()) + '\n')
file.close()

############################################### show ###############################################

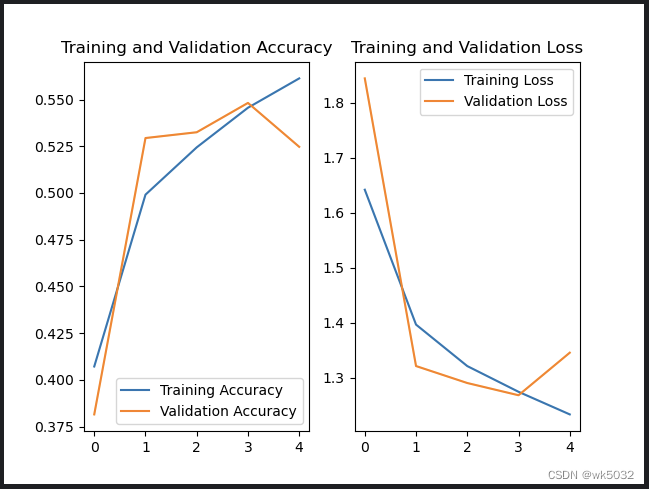

# 显示训练集和验证集的acc和loss曲线
acc = history.history['sparse_categorical_accuracy']
val_acc = history.history['val_sparse_categorical_accuracy']
loss = history.history['loss']
val_loss = history.history['val_loss']

plt.subplot(1, 2, 1)
plt.plot(acc, label='Training Accuracy')
plt.plot(val_acc, label='Validation Accuracy')
plt.title('Training and Validation Accuracy')
plt.legend()

plt.subplot(1, 2, 2)
plt.plot(loss, label='Training Loss')
plt.plot(val_loss, label='Validation Loss')
plt.title('Training and Validation Loss')
plt.legend()
plt.show()

Epoch 1/5
1563/1563 [==============================] - 7s 5ms/step - loss: 1.6419 - sparse_categorical_accuracy: 0.4071 - val_loss: 1.8442 - val_sparse_categorical_accuracy: 0.3815
Epoch 2/5
1563/1563 [==============================] - 7s 5ms/step - loss: 1.3969 - sparse_categorical_accuracy: 0.4991 - val_loss: 1.3216 - val_sparse_categorical_accuracy: 0.5294
Epoch 3/5
1563/1563 [==============================] - 7s 5ms/step - loss: 1.3215 - sparse_categorical_accuracy: 0.5244 - val_loss: 1.2908 - val_sparse_categorical_accuracy: 0.5325
Epoch 4/5
1563/1563 [==============================] - 7s 5ms/step - loss: 1.2748 - sparse_categorical_accuracy: 0.5456 - val_loss: 1.2685 - val_sparse_categorical_accuracy: 0.5482
Epoch 5/5
1563/1563 [==============================] - 7s 5ms/step - loss: 1.2337 - sparse_categorical_accuracy: 0.5613 - val_loss: 1.3458 - val_sparse_categorical_accuracy: 0.5247
Model: "baseline"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d (Conv2D)             multiple                  456

 batch_normalization (BatchN  multiple                 24
 ormalization)

 activation (Activation)     multiple                  0

 max_pooling2d (MaxPooling2D  multiple                 0
 )

 dropout (Dropout)           multiple                  0

 flatten (Flatten)           multiple                  0

 dense (Dense)               multiple                  196736

 dropout_1 (Dropout)         multiple                  0

 dense_1 (Dense)             multiple                  1290

=================================================================
Total params: 198,506
Trainable params: 198,494
Non-trainable params: 12
_________________________________________________________________

Process finished with exit code 0
