一共就这4种，足够，别瞎想
模型构建4种方法
1 使用现有的预训练模型
keras.applications.vgg16.VGG16(include_top=True, weights='imagenet',
input_tensor=None, input_shape=None,
pooling=None,
classes=1000)
model = tf.keras.applications.MobileNetV2(weights=None, classes=5)
https://mattzheng.blog.csdn.net/article/details/72859145
2 Keras Sequential模式建立模型(不推荐用，跳接结构不行)

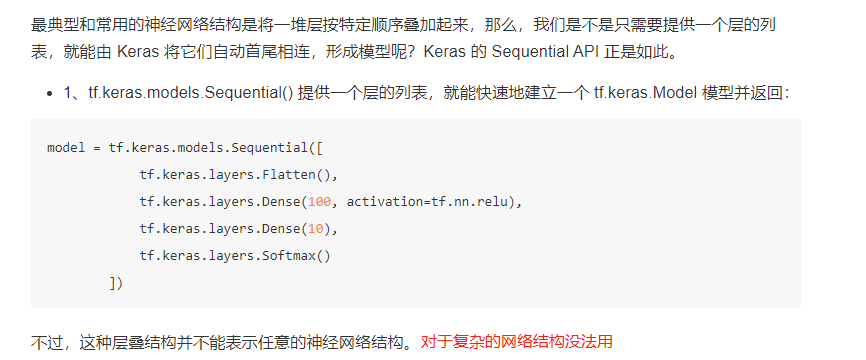

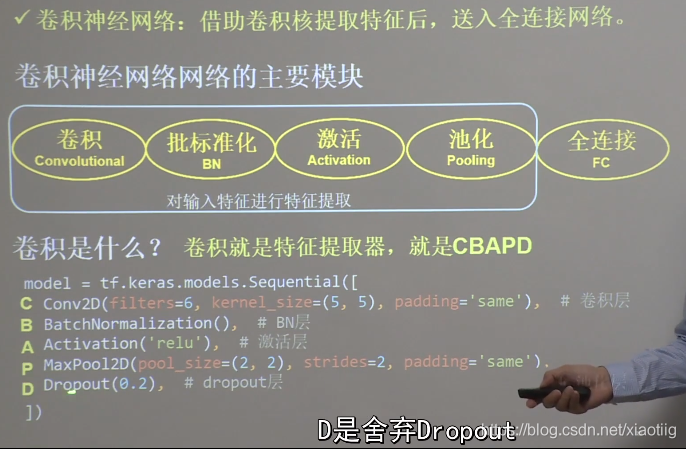

2.1 Sequential内置
参考：https://www.bilibili.com/video/BV1B7411L7Qt?p=33
2.2 Sequential外置
def mnist_cnn(input_shape):
'''
构建一个CNN网络模型
:param input_shape: 指定输入维度
:return:
'''
model=keras.Sequential()
model.add(keras.layers.Conv2D(filters=32,kernel_size = 5,strides = (1,1),
padding = 'same',activation = tf.nn.relu,input_shape = input_shape))
model.add(keras.layers.MaxPool2D(pool_size=(2,2), strides = (2,2), padding = 'valid'))
model.add(keras.layers.Conv2D(filters=64,kernel_size = 3,strides = (1,1),padding = 'same',activation = tf.nn.relu))
model.add(keras.layers.MaxPool2D(pool_size=(2,2), strides = (2,2), padding = 'valid'))
model.add(keras.layers.Dropout(0.25))
model.add(keras.layers.Flatten())
model.add(keras.layers.Dense(units=128,activation = tf.nn.relu))
model.add(keras.layers.Dropout(0.5))
model.add(keras.layers.Dense(units=10,activation = tf.nn.softmax))
return model
3 Functional API 函数api建立模型（最常用，复杂网络）
多输入模型，
多输出模型，
具有共享层的模型（同一层被调用多次），
具有非序列数据流的模型（例如，剩余连接）
这种方式就是各个层都是一个函数，通过函数的叠加就可以实现，一般使用这种方法，将模型封装成一个模型函数。
inputs = tf.keras.Input(shape=(28, 28, 1))
x = tf.keras.layers.Flatten()(inputs)
x = tf.keras.layers.Dense(units=100, activation=tf.nn.relu)(x)
x = tf.keras.layers.Dense(units=10)(x)
outputs = tf.keras.layers.Softmax()(x)
model = tf.keras.Model(inputs=inputs, outputs=outputs)
看下面这个FCN构建，结合了迁移学习和函数api建立模型
https://blog.csdn.net/xiaotiig/article/details/110355547
下面这个resnet网络结构的实现，也是用的这种方法实现的，因为有很多的残差结构
https://blog.csdn.net/xiaotiig/article/details/117673634
4 tf构建模型Class

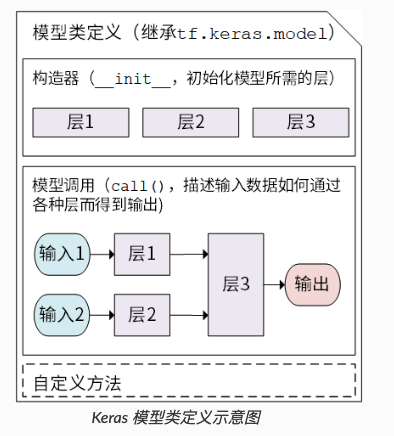

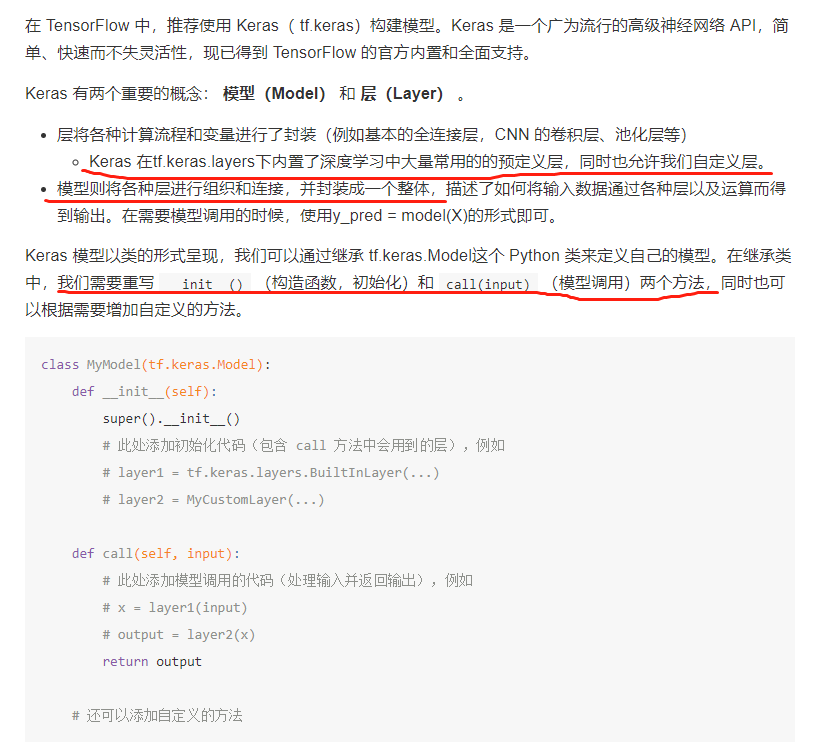

4.1 初识
实例化层然后调用方法，两步
init里实例化各种方法
call调用各种方法
继承 tf.keras.Model 后，我们同时可以使用父类的若干方法和属性，例如在实例化类 model = Model() 后，可以通过 model.variables 这一属性直接获得模型中的所有变量，免去我们一个个显式指定变量的麻烦。
对于上面的 y_pred = w * X + b ，我们可以通过模型类的方式编写如下：这里，我们没有显式地声明a 和 b 两个变量并写出 y_pred = w x X + b 这一线性变换，而是建立了一个继承了 tf.keras.Model 的模型类 Linear 。这个类在初始化部分实例化了一个 全连接层 （ tf.keras.layers.Dense ），并在 call 方法中对这个层进行调用，实现了线性变换的计算。
import tensorflow as tf
X = tf.constant([[1.0, 2.0, 3.0], [4.0, 5.0, 6.0]])
y = tf.constant([[10.0], [20.0]])
# 1、构建线性模型
class Linear(tf.keras.Model):
def __init__(self):
super().__init__()
self.dense = tf.keras.layers.Dense(
units=1,
activation=None,
kernel_initializer=tf.zeros_initializer(),
bias_initializer=tf.zeros_initializer()
)
def call(self, input):
output = self.dense(input)
return output
# 以下代码结构与前节类似
model = Linear()
optimizer = tf.keras.optimizers.SGD(learning_rate=0.01)
for i in range(100):
with tf.GradientTape() as tape:
y_pred = model(X)
loss = 0.5 * tf.reduce_mean(tf.square(y_pred - y))
# 使用 model.variables 这一属性直接获得模型中的所有变量
grads = tape.gradient(loss, model.variables)
optimizer.apply_gradients(grads_and_vars=zip(grads, model.variables))
print(model.variables)

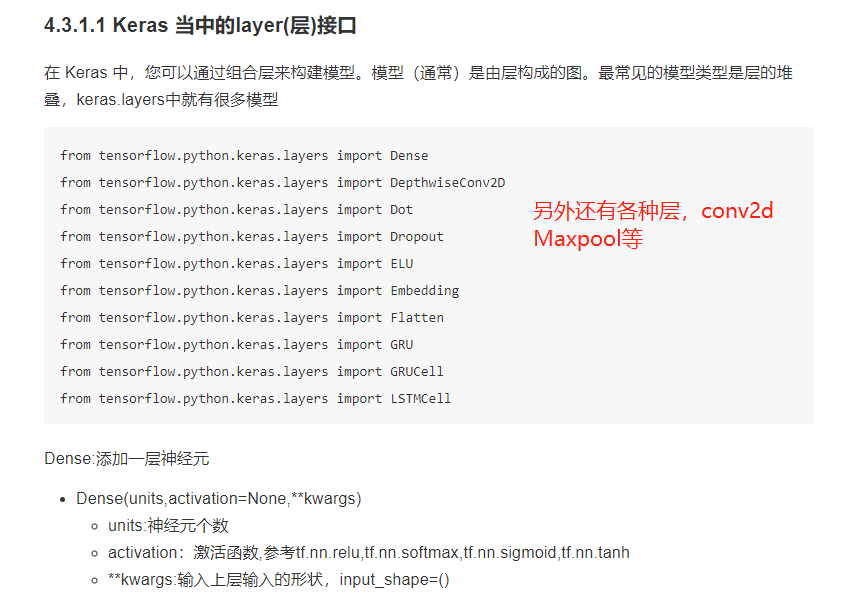

4.2 Keras 当中的layer(层)接口

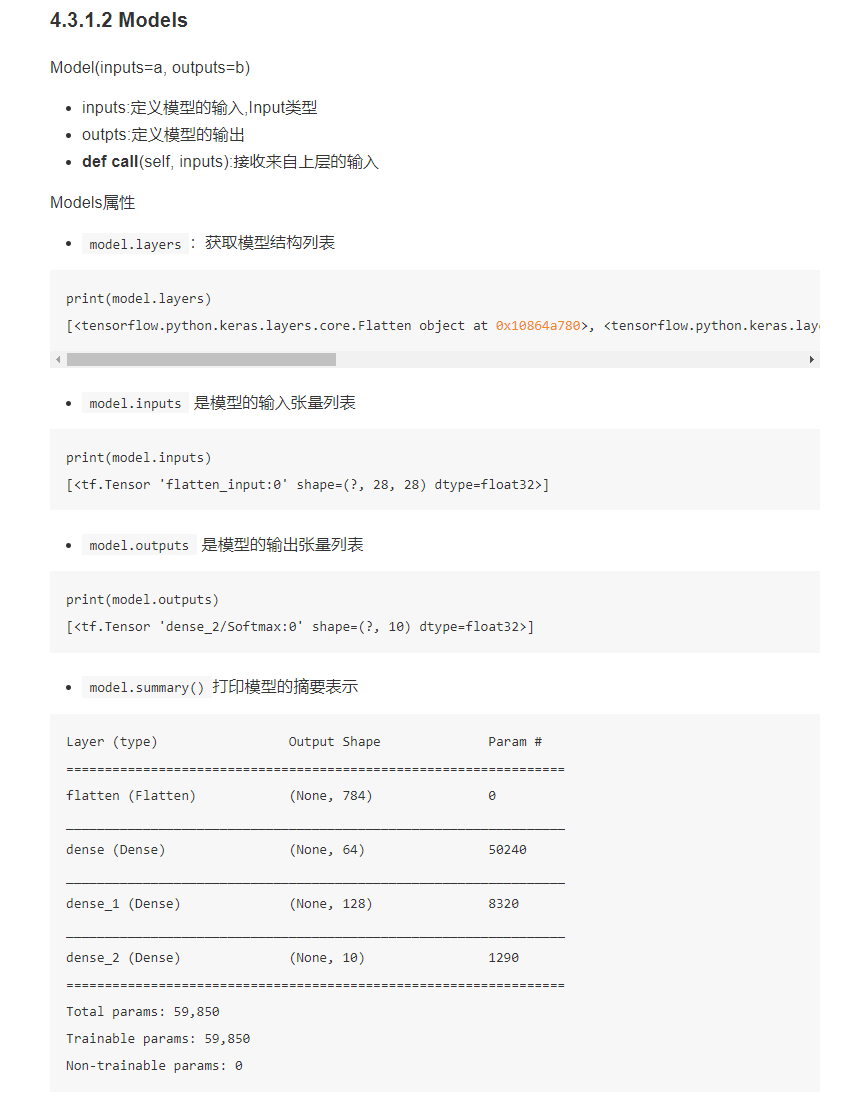

4.3 Models

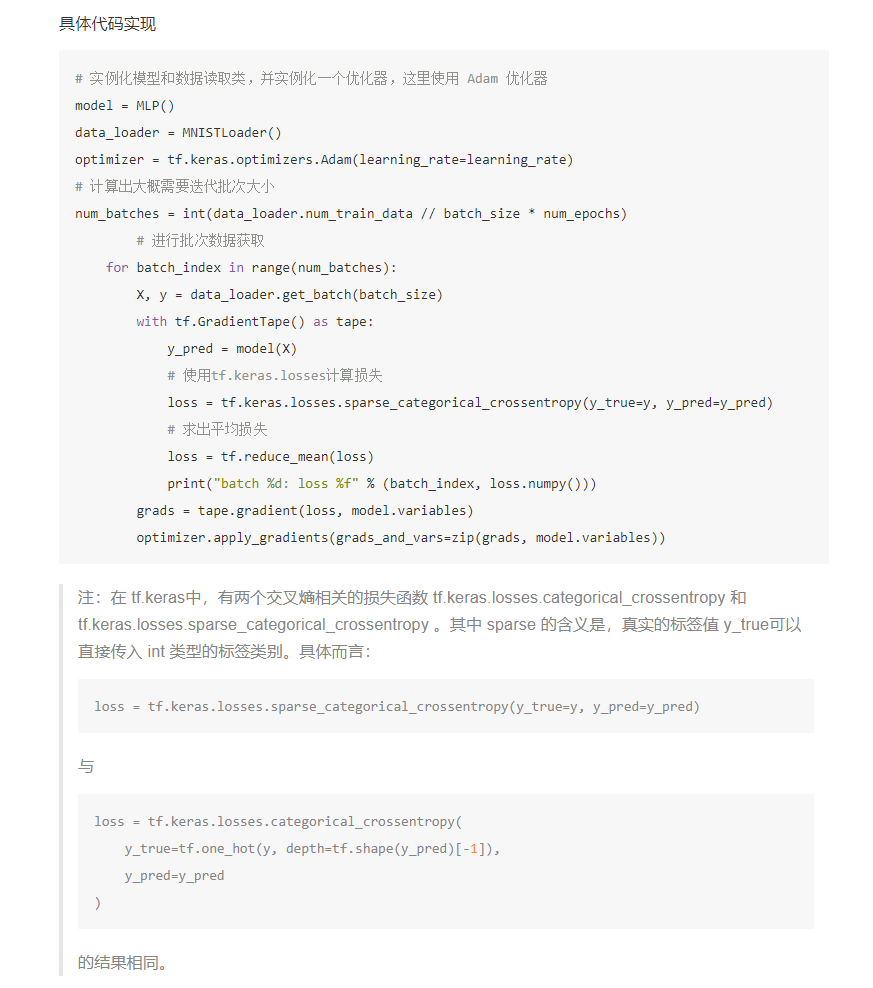

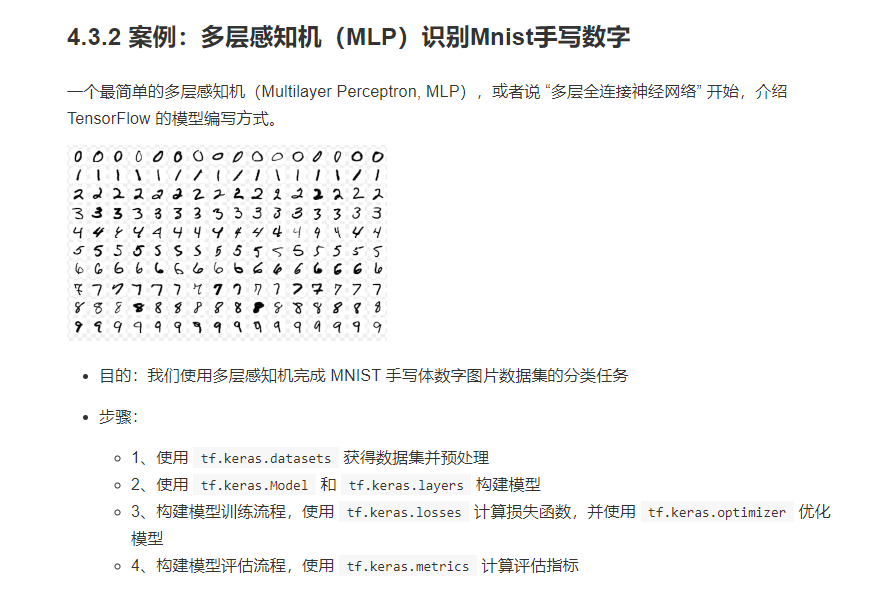

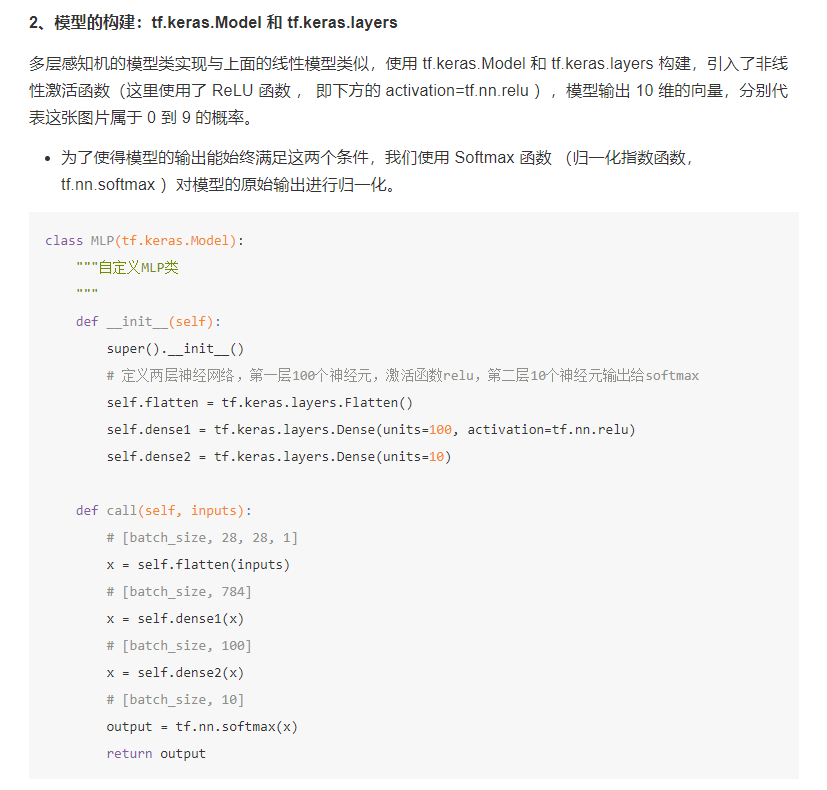

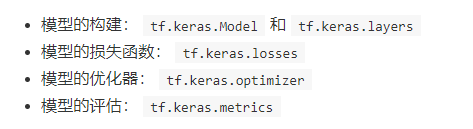

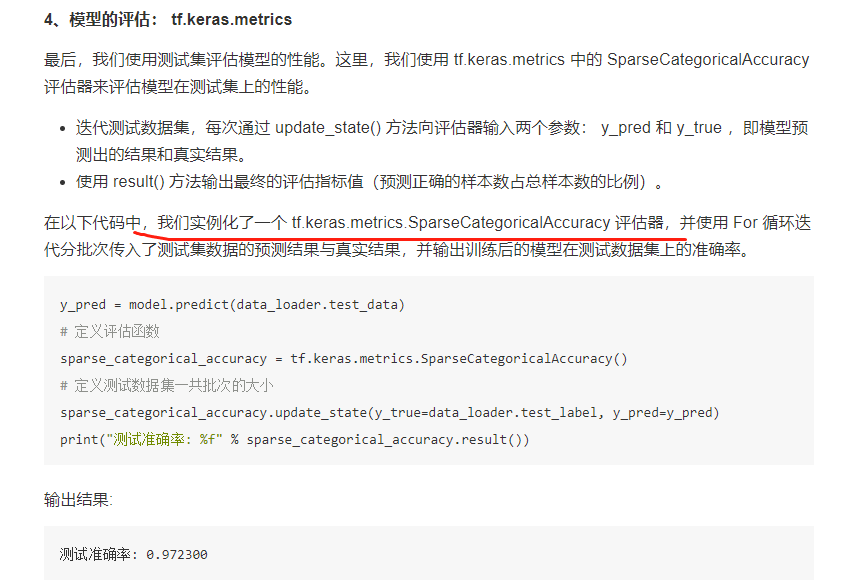

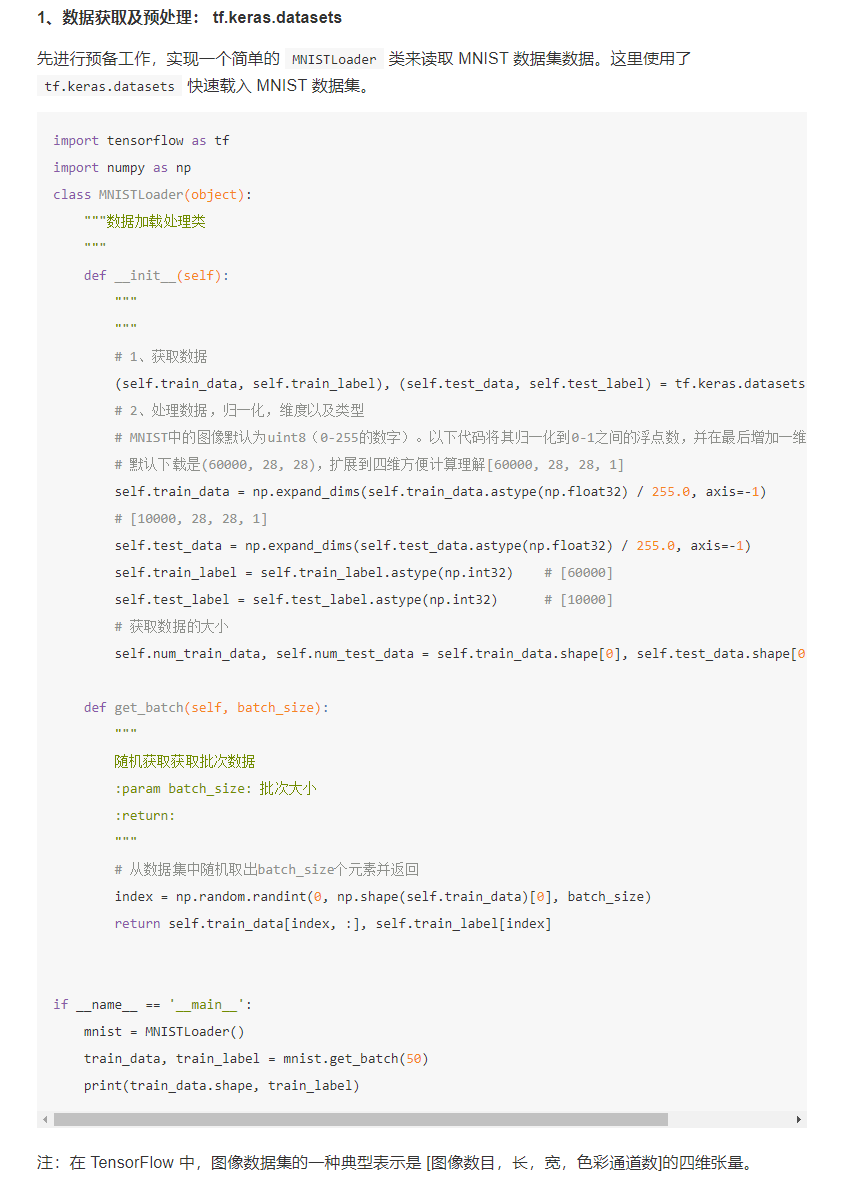

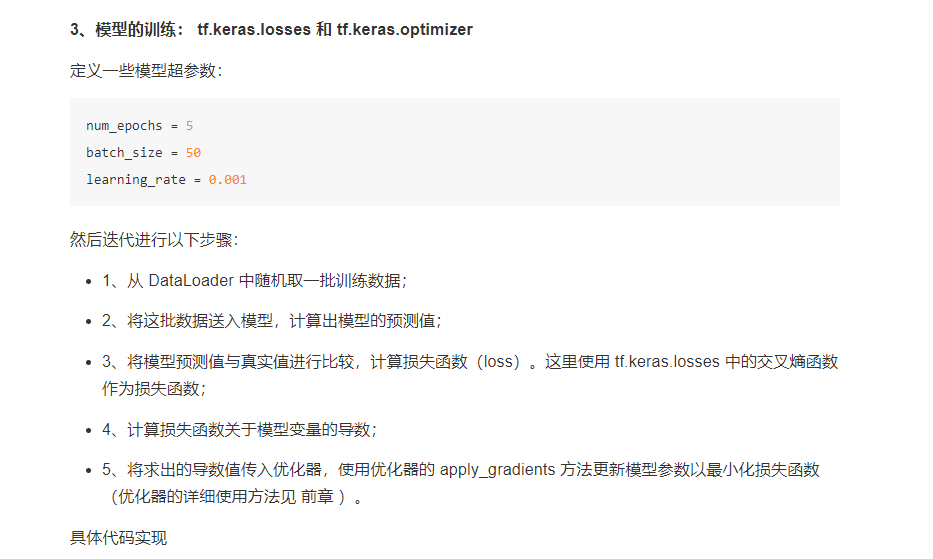

4.4 一个小案例
5 函数式和class方式实现unet
5.1 函数式模型实现unet
# 使用函数式编程实现UNet
import tensorflow as tf
def Unet_model(input_shape=(256,256,3), num_classes=2):
inputs = tf.keras.layers.Input(input_shape)
x1 = tf.keras.layers.Conv2D(64, kernel_size=3, activation="relu", padding="same")(inputs)
x1 = tf.keras.layers.Conv2D(64, kernel_size=3, activation="relu", padding="same")(x1)
x2 = tf.keras.layers.MaxPooling2D()(x1)
x2 = tf.keras.layers.Conv2D(128, kernel_size=3, activation="relu", padding="same")(x2)
x2 = tf.keras.layers.Conv2D(128, kernel_size=3, activation="relu", padding="same")(x2)
x3 = tf.keras.layers.MaxPooling2D()(x2)
x3 = tf.keras.layers.Conv2D(256, kernel_size=3, activation="relu", padding="same")(x3)
x3 = tf.keras.layers.Conv2D(256, kernel_size=3, activation="relu", padding="same")(x3)
x4 = tf.keras.layers.MaxPooling2D()(x3)
x4 = tf.keras.layers.Conv2D(512, kernel_size=3, activation="relu", padding="same")(x4)
x4 = tf.keras.layers.Conv2D(512, kernel_size=3, activation="relu", padding="same")(x4)
# 最下面一层
x5 = tf.keras.layers.MaxPooling2D()(x4)
x5 = tf.keras.layers.Conv2D(1024, kernel_size=3, activation="relu", padding="same")(x5)
x5 = tf.keras.layers.Conv2D(1024, kernel_size=3, activation="relu", padding="same")(x5)
# 开始上采样
x6 = tf.keras.layers.Conv2DTranspose(512, kernel_size=3, strides=2, padding="same")(x5)
x6 = tf.concat([x4,x6],axis=-1)
x6 = tf.keras.layers.Conv2D(512, kernel_size=3, activation="relu", padding="same")(x6)
x6 = tf.keras.layers.Conv2D(512, kernel_size=3, activation="relu", padding="same")(x6)
x7 = tf.keras.layers.Conv2DTranspose(256, kernel_size=3, strides=2, padding="same")(x6)
x7 = tf.concat([x3, x7], axis=-1)
x7 = tf.keras.layers.Conv2D(256, kernel_size=3, activation="relu", padding="same")(x7)
x7 = tf.keras.layers.Conv2D(256, kernel_size=3, activation="relu", padding="same")(x7)
x8 = tf.keras.layers.Conv2DTranspose(128, kernel_size=3, strides=2, padding="same")(x7)
x8 = tf.concat([x2, x8], axis=-1)
x8 = tf.keras.layers.Conv2D(128, kernel_size=3, activation="relu", padding="same")(x8)
x8 = tf.keras.layers.Conv2D(128, kernel_size=3, activation="relu", padding="same")(x8)
x9 = tf.keras.layers.Conv2DTranspose(64, kernel_size=3, strides=2, padding="same")(x8)
x9 = tf.concat([x1, x9], axis=-1)
x9 = tf.keras.layers.Conv2D(64, kernel_size=3, activation="relu", padding="same")(x9)
x9 = tf.keras.layers.Conv2D(64, kernel_size=3, activation="relu", padding="same")(x9)
out = tf.keras.layers.Conv2D(num_classes, kernel_size=1, padding="same")(x9)
out = tf.keras.layers.Activation('softmax')(out)
model = tf.keras.models.Model(inputs,out,name='unet')
return model
加载
from nets.unet import Unet_model
model = Unet_model(input_shape=(img_target_size[0], img_target_size[1], 3),num_classes=N_CLASS)
model.summary()
opt = Adam(base_lr)
model_save_dir = os.path.join( './model_unet/unet_320.h5')
checkpoint = ModelCheckpoint(model_save_dir, verbose=True, save_best_only=True, monitor='val_mean_iou', mode='max')
scheduleLR = LearningRateScheduler(lr_schedular, verbose=True)
model.compile(opt, 'categorical_crossentropy', metrics=['accuracy', mean_iou])
model.fit(tr_gen, epochs=40, validation_data=val_gen, callbacks=[checkpoint, scheduleLR])
5.2 class方式实现unet
# 实现了unet模型
import tensorflow as tf
import numpy as np
######################################### 2 前向传播
class Downsample(tf.keras.layers.Layer):
"先定义，再调用,进行下采样"
def __init__(self, units):
"units是卷积核的数量"
super(Downsample,self).__init__()
# 使用了same填充，原论文使用valid填充
self.conv1 = tf.keras.layers.Conv2D(units, kernel_size=3,padding="same")
self.conv2 = tf.keras.layers.Conv2D(units, kernel_size=3, padding="same")
# tf.keras.layers.MaxPooling2D()和tf.keras.layers.MaxPool2D()区别是什么？
self.pool = tf.keras.layers.MaxPooling2D()
def call(self, x, is_pool = True):
if is_pool:
x = self.pool(x)
x = self.conv1(x)
x = tf.nn.relu(x)
x = self.conv2(x)
x = tf.nn.relu(x)
return x
class Upsample(tf.keras.layers.Layer):
"先定义，再调用,进行上采样"
def __init__(self, units):
"units是卷积核的数量"
super(Upsample, self).__init__()
self.conv1 = tf.keras.layers.Conv2D(units, kernel_size=3, padding="same")
self.conv2 = tf.keras.layers.Conv2D(units, kernel_size=3, padding="same")
self.deconv = tf.keras.layers.Conv2DTranspose(units//2,kernel_size=3,strides=2,padding="same")
def call(self, x):
x = self.conv1(x)
x = tf.nn.relu(x)
x = self.conv2(x)
x = tf.nn.relu(x)
x = self.deconv(x)
x = tf.nn.relu(x)
return x
class Unet_model(tf.keras.Model):
def __init__(self):
"只进行初始化,定义层，还没有进行前向传播"
super(Unet_model, self).__init__()
# 这步只是进行卷积
self.down1 = Downsample(64)
# 4次下采样
self.down2 = Downsample(128)
self.down3 = Downsample(256)
self.down4 = Downsample(512)
self.down5 = Downsample(1024)
# 4次上采样，定义一个上采样层
# 第一个上采样只进行上采样，不进行卷积
self.up1 = tf.keras.layers.Conv2DTranspose(512, kernel_size=3, strides=2, padding="same")
# 上采样加卷积
self.up2 = Upsample(512)
self.up3 = Upsample(256)
self.up4 = Upsample(128)
# 进行两次卷积
self.conv_last = Downsample(64)
# 进行最后的1*1卷积分类，进行城市街景共34个类别的分类，所以输出层为34，，
# 如果进行别的任务，是几类就写几，因为需要喝MeanIou一样，否则会报错
self.last = tf.keras.layers.Conv2D(21, kernel_size=1, padding="same")
def call(self, x):
"进行前向传播模型的构建"
# 第一次先进行两次卷积
x1 = self.down1(x, is_pool = False)
# 进行4次下采样加两次卷积
x2 = self.down2(x1)
x3 = self.down3(x2)
x4 = self.down4(x3)
x5 = self.down5(x4)
# 进行一次上采样
x5 = self.up1(x5)
# 进行合并,然后卷积卷积上采样
x6 = tf.concat([x4, x5], axis=-1)
x6 = self.up2(x6)
x7 = tf.concat([x3, x6], axis=-1)
x7 = self.up3(x7)
x8 = tf.concat([x2, x7], axis=-1)
x8 = self.up4(x8)
# 合并，然后两层卷积
x9 = tf.concat([x1, x8], axis=-1)
x9 = self.conv_last(x9, is_pool = False)
# 输出为34层，共34个类别
out = self.last(x9)
return out
加载
from nets.unet import Unet_model
model = Unet_model(）
opt = Adam(base_lr)
model_save_dir = os.path.join( './model_unet/unet_320.h5')
checkpoint = ModelCheckpoint(model_save_dir, verbose=True, save_best_only=True, monitor='val_mean_iou', mode='max')
scheduleLR = LearningRateScheduler(lr_schedular, verbose=True)
model.compile(opt, 'categorical_crossentropy', metrics=['accuracy', mean_iou])
model.fit(tr_gen, epochs=40, validation_data=val_gen, callbacks=[checkpoint, scheduleLR])
model.summary()
6 补充，深度学习的各种层大全
【1】tensorflow2.0——神经网络的层（层全连接层、卷积层、池化层、BN层、激活层、dropout层及其他层） - 我不是高斯分布 - 博客园
https://www.cnblogs.com/dwithy/p/14028108.html
7 模型可视化
# from keras.utils import plot_model
# import os
# os.environ["PATH"] += os.pathsep + 'C:/Program Files (x86)/Graphviz2.38/bin/'
#
# model = danet_resnet101(height=512, width=512, channel=3, classes=1)
# model.summary()
# plot_model(model, to_file='danet_resnet101.png', show_shapes=True)
