max9296+max9295调试总结

max9296+max9295调试总结

选用平台：SA6155P

软件版本：Android9

期间遇到了几个硬件问题，和硬件一起check，最终解决。

这里记录一下，调试过程遇到一个问题。

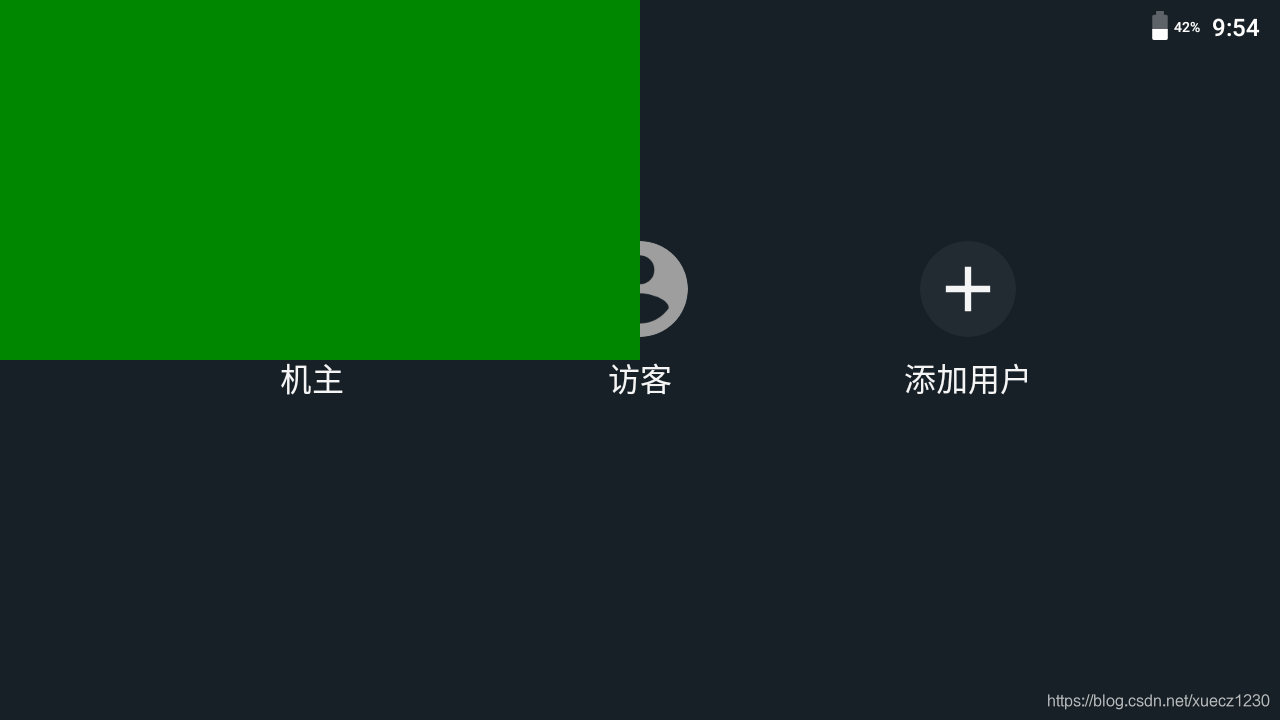

soc端csi抓出来图像纯绿色，如下图：

解决方法，修改寄存器解决:

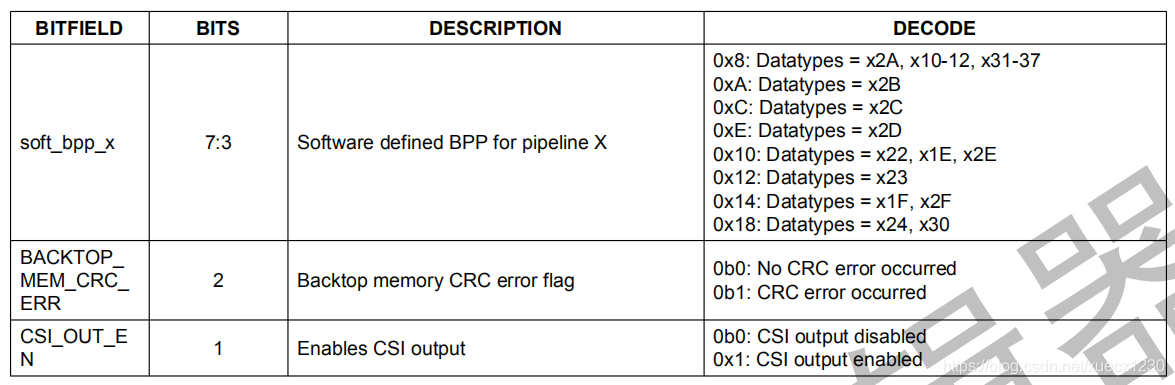

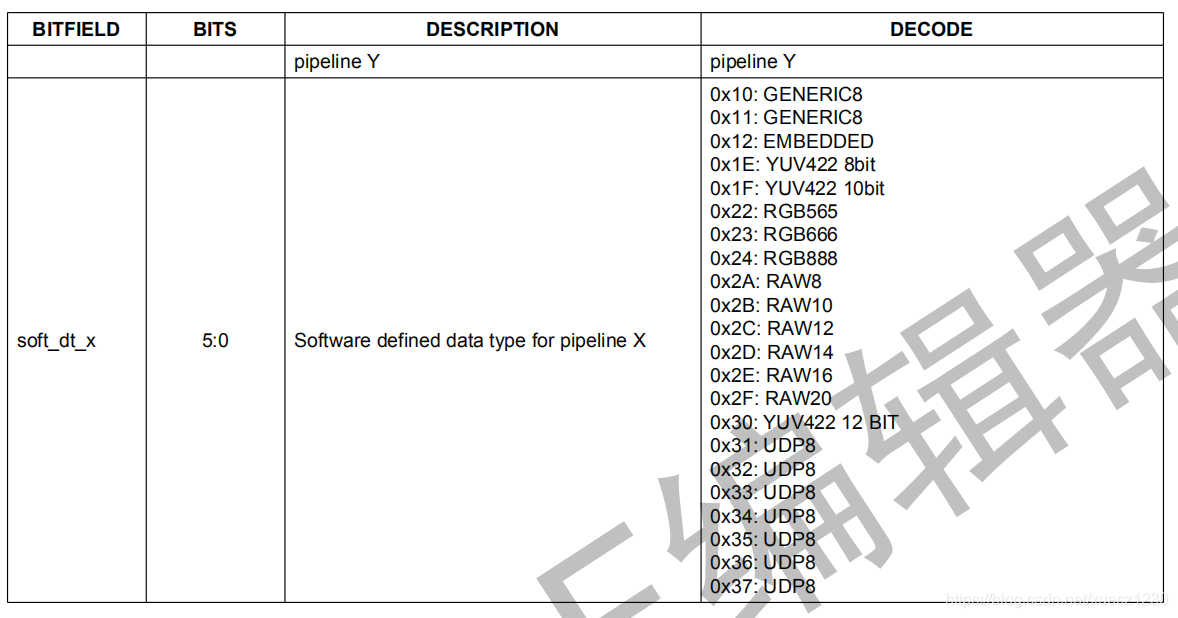

//max9296:

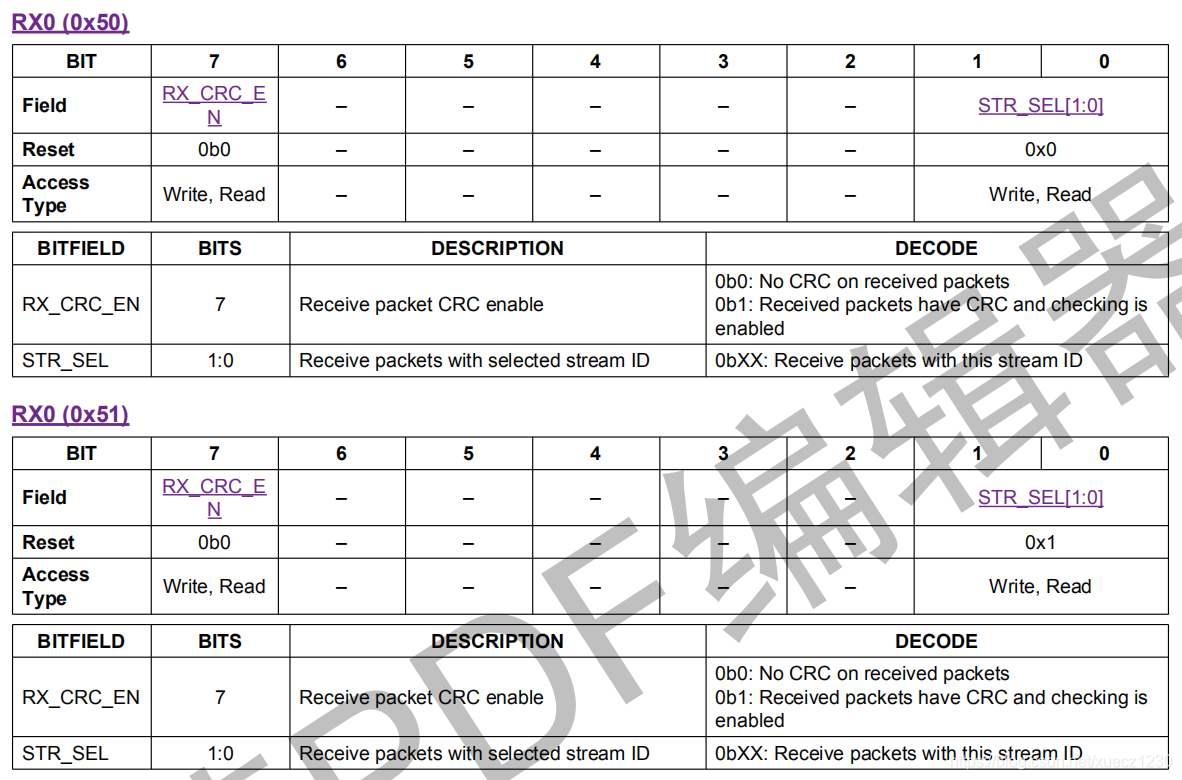

0x0050,0x01,

0x0051,0x00,

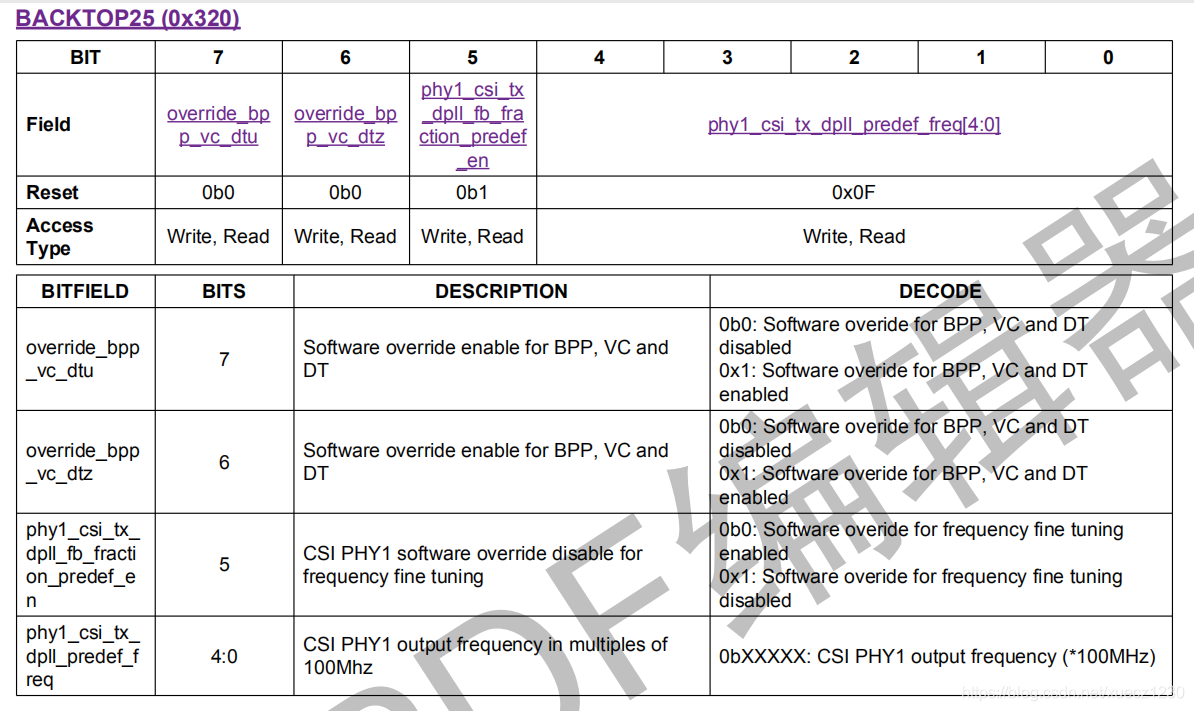

0x0320,0x26,

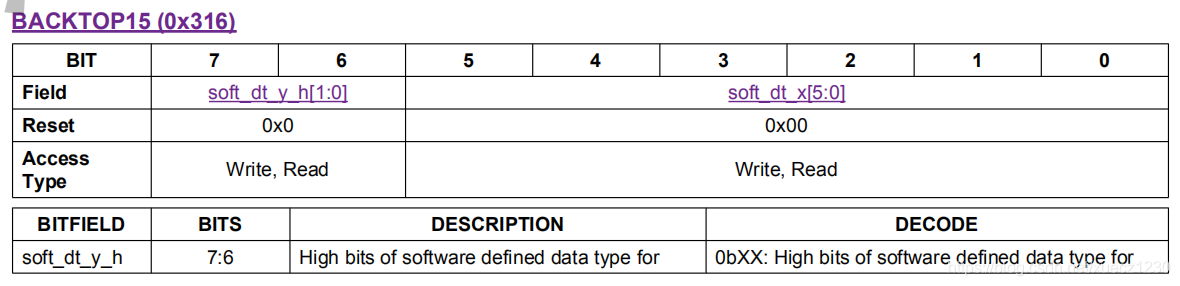

0x0316,0x80,

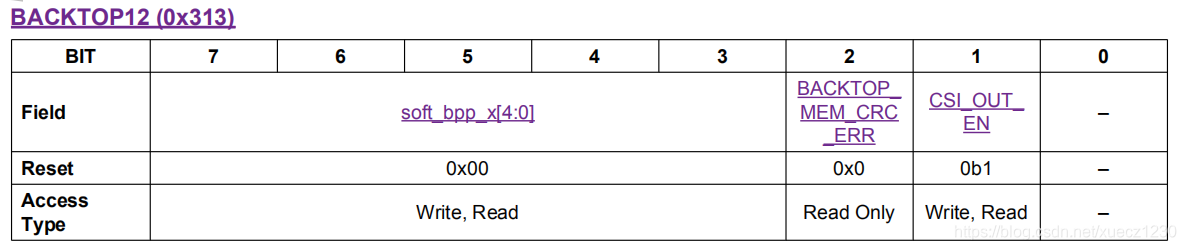

0x0313,0x06,

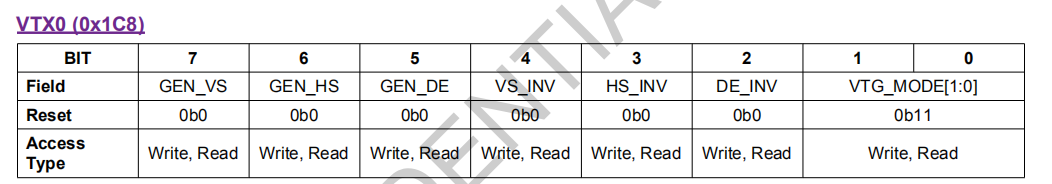

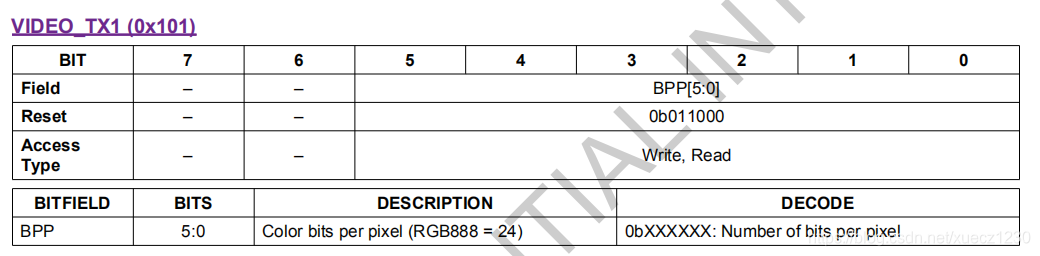

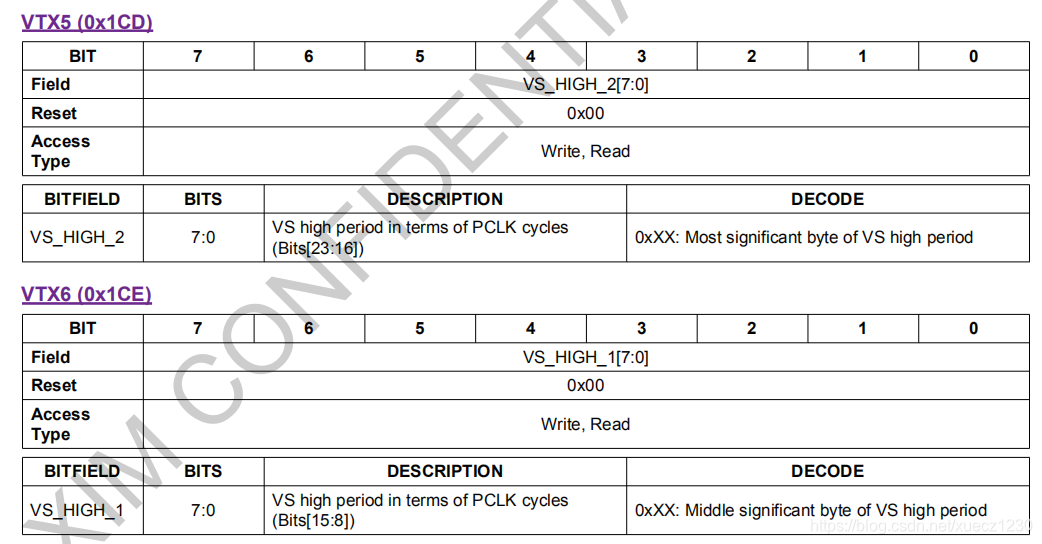

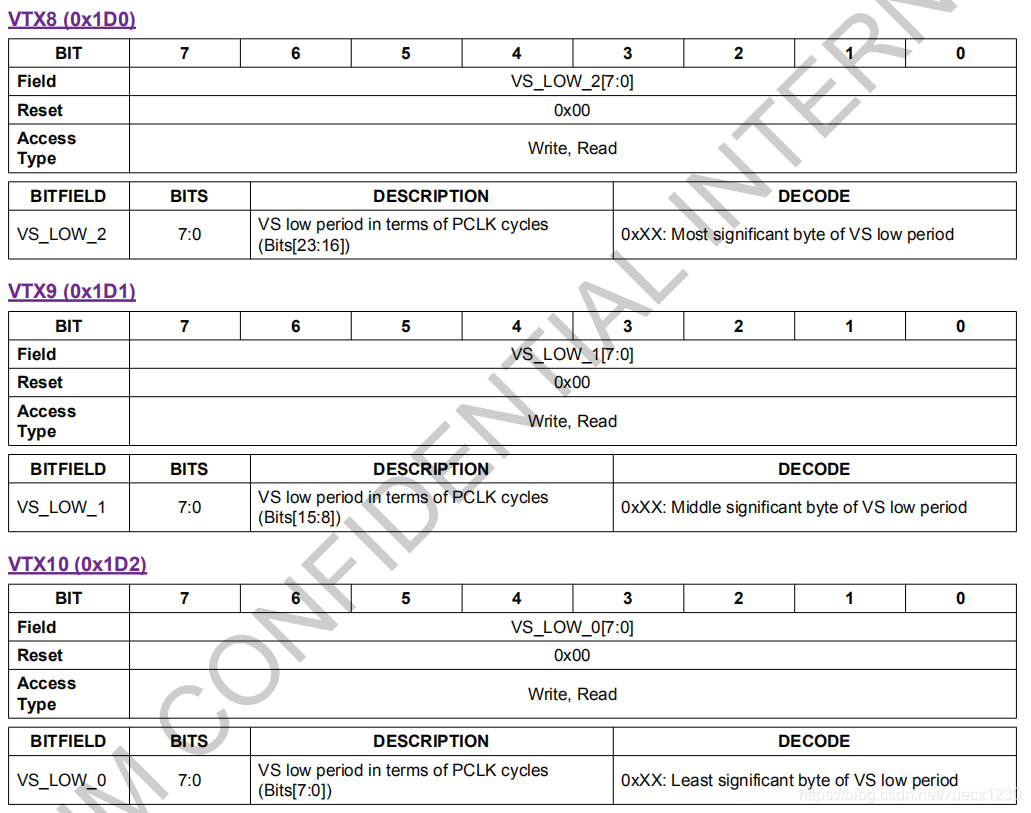

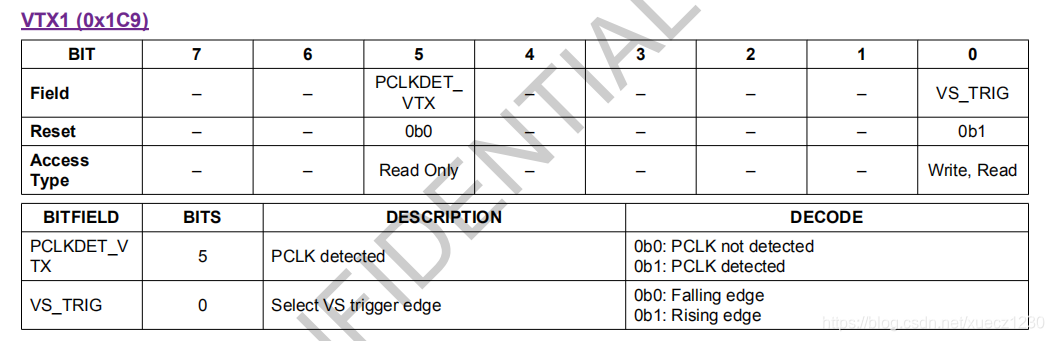

//max9295:

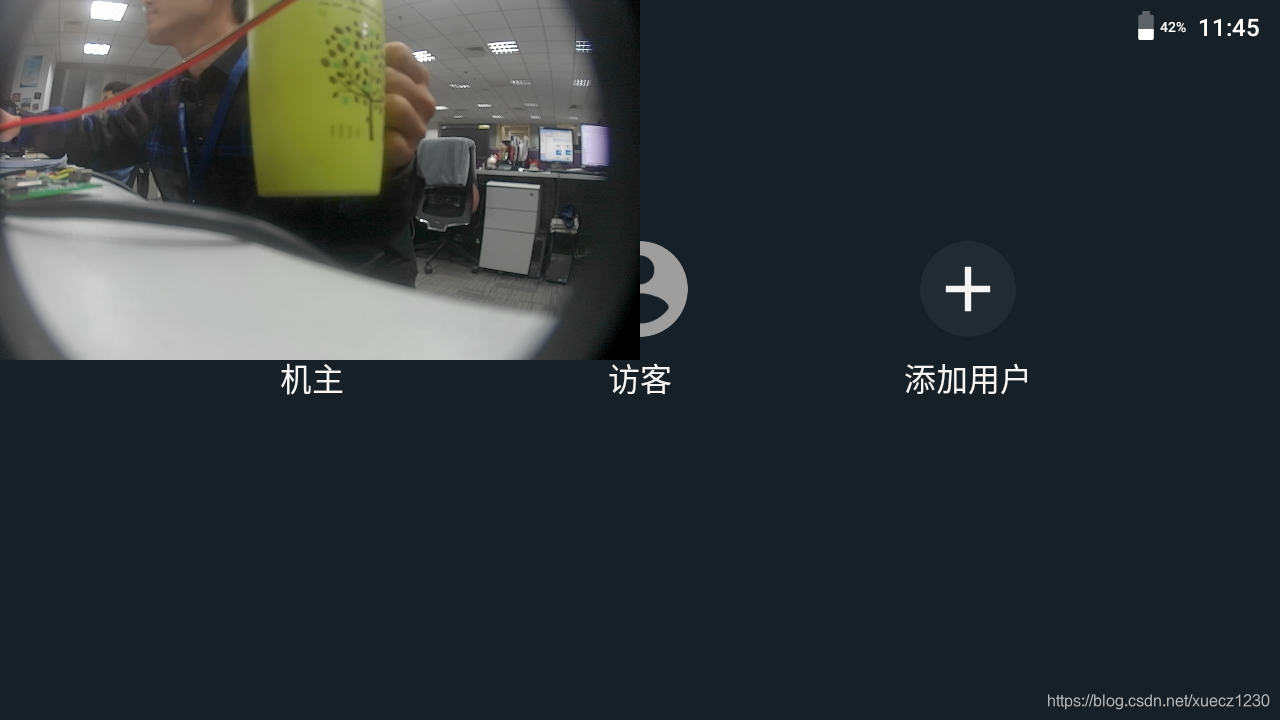

okay后显示：

adb shell "qcarcam_test -config=/system/bin/qcarcam_config.xml"

 ==========================================================

'1'....Open a stream '2'....Close a stream

'3'....Stop a stream '4'....Start a stream

'5'....Pause a stream '6'....Resume a stream

'7'....Stop all streams '8'....Start all streams

'9'....Pause all streams '10'....Resume all streams

'11'....Resume all streams '12'....Resume all streams

'13'....Set frame rate control '14'....Set exposure

'15'....Set color param '16'....Get color param

'17'....Set Gamma Table '18'....Get Gamma Table

 's'.....Dump Image

 'e'.....Exit

 ===========================================================

 Enter your choice

Success

xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 165

 xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 255

 xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 345

 xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 435

 xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 525

 xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 615

 xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 705

 xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 795

 xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 885

 xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 975

 xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 1065

 xcz Average FPS: 30.00 input_id: 0 idx: 0, count = 1155
