改进的灰狼优化器(Improved Grey Wolf Optimizer,I-GWO),是由科院二区期刊“Expert Systems with Applications”上文章“An improved grey wolf optimizer for solving engineering problems”提出的。

01.引言

改进的灰狼优化器(Improved Grey Wolf Optimizer,I-GWO)，用于解决全局优化和工程设计问题。这种改进是为了解决GWO算法缺乏种群多样性、开发与探索不平衡以及过早收敛等问题。I- GWO算法得益于一种新的运动策略，即基于维度学习的狩猎(DLH)搜索策略，该策略继承自自然界狼的个体狩猎行为。DLH使用不同的方法为每只狼构建一个邻域，在这个邻域中狼之间可以共享邻域信息。DLH搜索策略中使用的维度学习增强了局部搜索和全局搜索之间的平衡，并保持了多样性。在CEC 2018基准测试套件和四个工程问题上对所提出的I-GWO算法的性能进行了评估。在所有实验中，将I-GWO与其他六种最先进的元启发式方法进行比较。结果还通过Friedman和MAE统计检验进行了分析。实验结果和统计测试表明，与实验中使用的算法相比，I-GWO算法具有很强的竞争力，并且往往优于实验中使用的算法。该算法在工程设计问题上的应用证明了它的有效性和适用性。

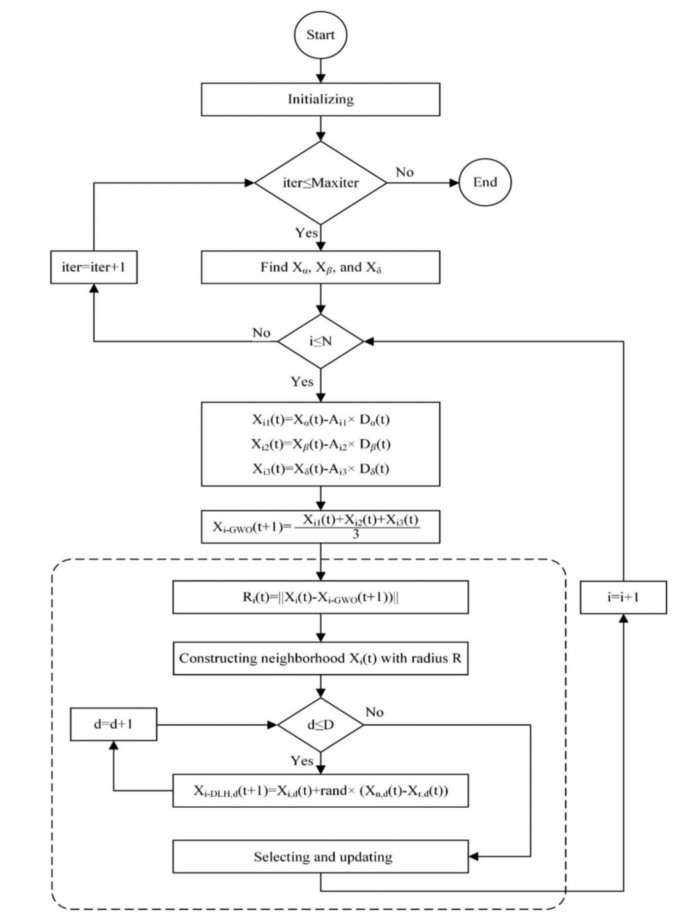

02.代码流程图

03.部分代码

% Improved Grey Wolf Optimizer (I-GWO)
function [Alpha_score,Alpha_pos,Convergence_curve]=IGWO(N,Max_iter,lb,ub,dim,fobj)
lu = [lb .* ones(1, dim); ub .* ones(1, dim)];
% Initialize alpha, beta, and delta positions
Alpha_pos=zeros(1,dim);
Alpha_score=inf; %change this to -inf for maximization problems
Beta_pos=zeros(1,dim);
Beta_score=inf; %change this to -inf for maximization problems
Delta_pos=zeros(1,dim);
Delta_score=inf; %change this to -inf for maximization problems
% Initialize the positions of wolves
Positions=initialization(N,dim,ub,lb);
Positions = boundConstraint (Positions, Positions, lu);
% Calculate objective function for each wolf
for i=1:size(Positions,1)
    Fit(i) = fobj(Positions(i,:));
end
% Personal best fitness and position obtained by each wolf
pBestScore = Fit;
pBest = Positions;
neighbor = zeros(N,N);
Convergence_curve=zeros(1,Max_iter);
iter = 0;% Loop counter
%% Main loop
while iter < Max_iter
    for i=1:size(Positions,1)
        fitness = Fit(i);

        % Update Alpha, Beta, and Delta
        if fitness<Alpha_score
            Alpha_score=fitness; % Update alpha
            Alpha_pos=Positions(i,:);
        end

        if fitness>Alpha_score && fitness<Beta_score
            Beta_score=fitness; % Update beta
            Beta_pos=Positions(i,:);
        end

        if fitness>Alpha_score && fitness>Beta_score && fitness<Delta_score
            Delta_score=fitness; % Update delta
            Delta_pos=Positions(i,:);
        end
    end

    %% Calculate the candiadate position Xi-GWO
    a=2-iter*((2)/Max_iter); % a decreases linearly from 2 to 0

    % Update the Position of search agents including omegas
    for i=1:size(Positions,1)
        for j=1:size(Positions,2)

            r1=rand(); % r1 is a random number in [0,1]
            r2=rand(); % r2 is a random number in [0,1]

            A1=2*a*r1-a;                                    % Equation (3.3)
            C1=2*r2;                                        % Equation (3.4)

            D_alpha=abs(C1*Alpha_pos(j)-Positions(i,j));    % Equation (3.5)-part 1
            X1=Alpha_pos(j)-A1*D_alpha;                     % Equation (3.6)-part 1

            r1=rand();
            r2=rand();

            A2=2*a*r1-a;                                    % Equation (3.3)
            C2=2*r2;                                        % Equation (3.4)

            D_beta=abs(C2*Beta_pos(j)-Positions(i,j));      % Equation (3.5)-part 2
            X2=Beta_pos(j)-A2*D_beta;                       % Equation (3.6)-part 2

            r1=rand();
            r2=rand();

            A3=2*a*r1-a;                                    % Equation (3.3)
            C3=2*r2;                                        % Equation (3.4)

            D_delta=abs(C3*Delta_pos(j)-Positions(i,j));    % Equation (3.5)-part 3
            X3=Delta_pos(j)-A3*D_delta;                     % Equation (3.5)-part 3

            X_GWO(i,j)=(X1+X2+X3)/3;                        % Equation (3.7)

        end
        X_GWO(i,:) = boundConstraint(X_GWO(i,:), Positions(i,:), lu);
        Fit_GWO(i) = fobj(X_GWO(i,:));
    end

    %% Calculate the candiadate position Xi-DLH
    radius = pdist2(Positions, X_GWO, 'euclidean');         % Equation (10)
    dist_Position = squareform(pdist(Positions));
    r1 = randperm(N,N);

    for t=1:N
        neighbor(t,:) = (dist_Position(t,:)<=radius(t,t));
        [~,Idx] = find(neighbor(t,:)==1);                   % Equation (11)
        random_Idx_neighbor = randi(size(Idx,2),1,dim);

        for d=1:dim
            X_DLH(t,d) = Positions(t,d) + rand .*(Positions(Idx(random_Idx_neighbor(d)),d)...
                - Positions(r1(t),d));                      % Equation (12)
        end
        X_DLH(t,:) = boundConstraint(X_DLH(t,:), Positions(t,:), lu);
        Fit_DLH(t) = fobj(X_DLH(t,:));
    end

    %% Selection
    tmp = Fit_GWO < Fit_DLH;                                % Equation (13)
    tmp_rep = repmat(tmp',1,dim);

    tmpFit = tmp .* Fit_GWO + (1-tmp) .* Fit_DLH;
    tmpPositions = tmp_rep .* X_GWO + (1-tmp_rep) .* X_DLH;

    %% Updating
    tmp = pBestScore <= tmpFit;                             % Equation (13)
    tmp_rep = repmat(tmp',1,dim);

    pBestScore = tmp .* pBestScore + (1-tmp) .* tmpFit;
    pBest = tmp_rep .* pBest + (1-tmp_rep) .* tmpPositions;

    Fit = pBestScore;
    Positions = pBest;

    %%
    iter = iter+1;
    neighbor = zeros(N,N);
    Convergence_curve(iter) = Alpha_score;
end
end
