基于tensorflow的3D CNN代码实现

原文地址：http://blog.csdn.net/sinat_31824577/article/details/60325571

结合Udacity 上的 deep learning 公开课 https://cn.udacity.com/course/deep-learning–ud730 。
3D 卷积神经网络 相比于2D, 多一维仅此而已。原理上与2D 上几乎差不多，但是直接将2D 的网络拿过来直接使用，还是会遇到各种各样的问题，比如说有些库不支持 3D 的卷积运算，caffe就似乎不支持，theano 中没有maxpooling3D , 所以需要自己补充相关的运算。Tensorflow 都很全，在其下搭建3D CNN 很方便。

1. 2D CNN

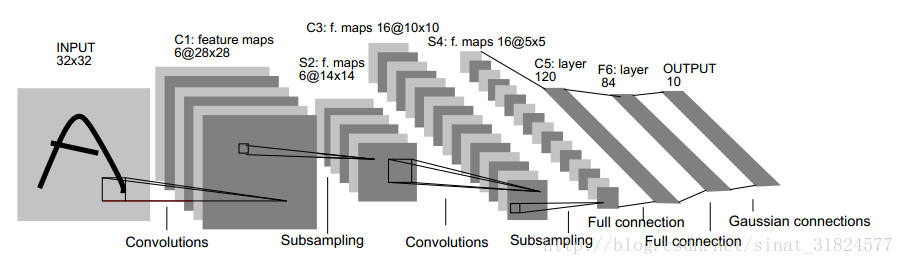

如下图所示，为经典的lenet-5 模型:conv-pool-conv-pool-conv -fullconnect-softmax，所有的卷积核大小都是5*5，将低层次的像素变化通过卷积来学习层层特征，最后转变成一个84维的向量，最后经过多类回归分析（softmax层），输出类别预测。详细介绍可参考http://blog.csdn.net/xuanyuansen/article/details/41800721

2.3D CNN

原理上即参照2D CNN 把各个变量增加一维。

3. Tensorflow 上实现

其中，confusionMatrix 表示用于计算结果的类，可按批处理。
a.3D_cnn.py

#!/usr/bin/env python2
# -*- coding: utf-8 -*-
"""
Created on Thu Feb 23 10:51:28 2017

@author: cdn
"""



import numpy as np
np.random.seed(1234)
import timeit
import os
import matplotlib.pyplot as plt

from sklearn.cross_validation import StratifiedKFold

import tensorflow as tf
from tensorflow.contrib.layers import fully_connected, convolution2d, flatten, dropout
from tensorflow.python.layers.pooling import max_pooling3d
from tensorflow.python.ops.nn import relu,softmax
from tensorflow.python.framework.ops import reset_default_graph
from ConfusionMatrix import ConfusionMatrix


def onehot(t, num_classes):
    out = np.zeros((t.shape[0], num_classes))
    for row, col in enumerate(t):
        out[row, col] = 1
    return out

def load_data(fold_index):

    np.random.seed(1234)
    A_data = np.random.uniform(-0.5,1.5, (500, 65, 52, 51)).astype('float32')
    B_data = np.random.uniform(0,1, (500, 65, 52, 51)).astype('float32')  # load two classes for classfication

    A_num,sizeX,sizeY,sizeZ = A_data.shape
    B_num,_,_,_ = B_data.shape
    size_input = [1,sizeX,sizeY,sizeZ]
    np.random.seed(1234)
    random_idx = np.random.permutation(A_num+B_num)
    all_data = np.concatenate((A_data,B_data),axis=0)[random_idx]
    labels = np.hstack((np.ones((A_num,)),np.zeros((B_num,))))[random_idx]

    nn =5
    skf = StratifiedKFold(labels,nn)
    train_id = ['']*nn
    test_id = ['']*nn
    a = 0
    for train,test in skf:
        train_id[a] = train
        test_id[a] = test
        a = a+1
    testid = test_id[fold_index]
    validid = test_id[fold_index-1]
    trainid = list(set(train_id[fold_index])-set(validid))
    x_train = all_data[trainid]
    y_train = labels[trainid]
    x_test = all_data[testid]
    y_test = labels[testid]
    x_valid = all_data[validid]
    y_valid = labels[validid]
    return x_train,y_train,x_test,y_test,x_valid,y_valid,size_input


n_fold = 5
train_accuracy = np.zeros((n_fold,))
test_accuracy = np.zeros((n_fold,))
valid_accuracy = np.zeros((n_fold,))

t1_time = timeit.default_timer()
#for fi in range(n_fold):
num_classes = 2
num_filters_conv1 = 10
num_filters_conv2 = 25
num_filters_conv3 = 40
num_filters_conv4 = 40
dense_num = 100
size_conv = 3 # [height, width]
pool_size = 2
batch_size = 5
nb_epoch = 50
fi = 0
X_train,y_train,X_test,y_test,X_val,y_val,size_input = load_data(fi)
X_train = X_train.reshape(X_train.shape[0], 1, X_train.shape[1], X_train.shape[2],X_train.shape[3])
X_val = X_val.reshape(X_val.shape[0], 1, X_val.shape[1],X_val.shape[2],X_val.shape[3])
X_test = X_test.reshape(X_test.shape[0], 1, X_test.shape[1], X_test.shape[2],X_test.shape[3])
print('X_train shape:', X_train.shape)
print(X_train.shape[0], 'train samples')
print(X_val.shape[0], 'validate samples')
print(X_test.shape[0], 'test samples')



train_accuracy = np.zeros((n_fold,))
test_accuracy = np.zeros((n_fold,))
valid_accuracy = np.zeros((n_fold,))
t1_time = timeit.default_timer()
for fi in range(n_fold):

    print('Now running on fold %d'%(fi+1))
    num_classes = 2
    x_train,y_train,x_test,y_test,x_valid,y_valid,size_input = load_data(fi)
    nchannels,rows,cols,deps = size_input
    x_train = x_train.astype('float32')
    x_train = x_train.reshape((-1,nchannels,rows,cols,deps))
    targets_train = y_train.astype('int32')

    x_valid = x_valid.astype('float32')
    x_valid = x_valid.reshape((-1,nchannels,rows,cols,deps))
    targets_valid = y_valid.astype('int32')

    x_test = x_test.astype('float32')
    x_test = x_test.reshape((-1,nchannels,rows,cols,deps))
    targets_test = y_test.astype('int32')

    # define a simple feed forward neural network

    # hyperameters of the model
    num_classes = 2
    channels = x_train.shape[1]
    height = x_train.shape[2]
    width = x_train.shape[3]
    depth = x_train.shape[4]

    num_filters_conv1 = 10
    num_filters_conv2 = 25
    num_filters_conv3 = 40
    num_filters_conv4 = 40
    kernel_size_conv1 = [3, 3, 3] # [height, width]
    pool_size = [2,2,2]
    stride_conv1 = [1,1,1] # [stride_height, stride_width]
    num_l1 = 100
    # resetting the graph ...
    reset_default_graph()

    # Setting up placeholder, this is where your data enters the graph!
    x_pl = tf.placeholder(tf.float32, [None, channels, height, width, depth])
    l_reshape = tf.transpose(x_pl, [0, 2, 3, 4, 1]) # TensorFlow uses NHWC instead of NCHW
    is_training = tf.placeholder(tf.bool)#used for dropout

    # Building the layers of the neural network
    # we define the variable scope, so we more easily can recognise our variables later
    l_conv1 = convolution2d(l_reshape, num_filters_conv1, kernel_size_conv1, stride_conv1,activation_fn=relu, scope="l_conv1")

    l_maxpool1 = max_pooling3d(l_conv1,pool_size,pool_size)

    l_conv2 = convolution2d(l_maxpool1, num_filters_conv2, kernel_size_conv1, stride_conv1,activation_fn=relu,scope="l_conv2")

    l_maxpool2 = max_pooling3d(l_conv2,pool_size,pool_size)

    l_conv3 = convolution2d(l_maxpool2, num_filters_conv3, kernel_size_conv1, stride_conv1,activation_fn=relu,scope="l_conv3")

    l_maxpool3 = max_pooling3d(l_conv3,pool_size,pool_size)

    l_conv4 = convolution2d(l_maxpool3, num_filters_conv4, kernel_size_conv1, stride_conv1,activation_fn=relu,scope="l_conv4")

    l_flatten = flatten(l_conv4, scope="flatten") # use l_conv1 instead of l_reshape

    l1 = fully_connected(l_flatten, num_l1, activation_fn=relu, scope="l1")

    l1 = dropout(l1, is_training=is_training, scope="dropout")

    y = fully_connected(l1, num_classes, activation_fn=softmax, scope="y")

    # y_ is a placeholder variable taking on the value of the target batch.
    y_ = tf.placeholder(tf.float32, [None, num_classes])

    # computing cross entropy per sample
    cross_entropy = -tf.reduce_sum(y_ * tf.log(y+1e-8), reduction_indices=[1])

    # averaging over samples
    cross_entropy = tf.reduce_mean(cross_entropy)

    # defining our optimizer
    optimizer = tf.train.AdamOptimizer(learning_rate=0.001)

    # applying the gradients
    train_op = optimizer.minimize(cross_entropy)

    #Test the forward pass
#    x = np.random.normal(0,1, (45, 1,65, 52, 51)).astype('float32') #dummy data

    # restricting memory usage, TensorFlow is greedy and will use all memory otherwise
    gpu_opts = tf.GPUOptions(per_process_gpu_memory_fraction=0.2)
    # initialize the Session
    sess = tf.Session(config=tf.ConfigProto(gpu_options=gpu_opts))
    sess.run(tf.global_variables_initializer())
#    res = sess.run(fetches=[y], feed_dict={x_pl: x})
#    res = sess.run(fetches=[y], feed_dict={x_pl: x, is_training: False}) # for when using dropout
#    print "y", res[0].shape

    #Training Loop
    from confusionmatrix import ConfusionMatrix
    batch_size = 10
    num_epochs = 50
    num_samples_train = x_train.shape[0]
    num_batches_train = num_samples_train // batch_size
    num_samples_valid = x_valid.shape[0]
    num_batches_valid = num_samples_valid // batch_size

    train_acc, train_loss = [], []
    valid_acc, valid_loss = [], []
    test_acc, test_loss = [], []
    cur_loss = 0
    loss = []

    try:
        for epoch in range(num_epochs):
            #Forward->Backprob->Update params
            cur_loss = 0
            for i in range(num_batches_train):
                idx = range(i*batch_size, (i+1)*batch_size)
                x_batch = x_train[idx]
                target_batch = targets_train[idx]
#                feed_dict_train = {x_pl: x_batch, y_: onehot(target_batch, num_classes)}
                feed_dict_train = {x_pl: x_batch, y_: onehot(target_batch, num_classes), is_training: True}
                fetches_train = [train_op, cross_entropy]
                res = sess.run(fetches=fetches_train, feed_dict=feed_dict_train)
                batch_loss = res[1] #this will do the complete backprob pass
                cur_loss += batch_loss
            loss += [cur_loss/batch_size]

            confusion_valid = ConfusionMatrix(num_classes)
            confusion_train = ConfusionMatrix(num_classes)

            for i in range(num_batches_train):
                idx = range(i*batch_size, (i+1)*batch_size)
                x_batch = x_train[idx]
                targets_batch = targets_train[idx]
                # what to feed our accuracy op
#                feed_dict_eval_train = {x_pl: x_batch}
                feed_dict_eval_train = {x_pl: x_batch, is_training: False}
                # deciding which parts to fetch
                fetches_eval_train = [y]
                # running the validation
                res = sess.run(fetches=fetches_eval_train, feed_dict=feed_dict_eval_train)
                # collecting and storing predictions
                net_out = res[0]
                preds = np.argmax(net_out, axis=-1)
                confusion_train.batch_add(targets_batch, preds)

            confusion_valid = ConfusionMatrix(num_classes)
            for i in range(num_batches_valid):
                idx = range(i*batch_size, (i+1)*batch_size)
                x_batch = x_valid[idx]
                targets_batch = targets_valid[idx]
                # what to feed our accuracy op
#                feed_dict_eval_train = {x_pl: x_batch}
                feed_dict_eval_train = {x_pl: x_batch, is_training: False}
                # deciding which parts to fetch
                fetches_eval_train = [y]
                # running the validation
                res = sess.run(fetches=fetches_eval_train, feed_dict=feed_dict_eval_train)
                # collecting and storing predictions
                net_out = res[0]
                preds = np.argmax(net_out, axis=-1)

                confusion_valid.batch_add(targets_batch, preds)

            train_acc_cur = confusion_train.accuracy()
            valid_acc_cur = confusion_valid.accuracy()

            train_acc += [train_acc_cur]
            valid_acc += [valid_acc_cur]
            print "Epoch %i : Train Loss %e , Train acc %f,  Valid acc %f " \
            % (epoch+1, loss[-1], train_acc_cur, valid_acc_cur)
    except KeyboardInterrupt:
        pass


    #get test set score
    confusion_test = ConfusionMatrix(num_classes)

    # what to feed our accuracy op
#    feed_dict_eval_train = {x_pl: x_test}
    feed_dict_eval_train = {x_pl: x_test, is_training: False}
    # deciding which parts to fetch
    fetches_eval_train = [y]
    # running the validation
    res = sess.run(fetches=fetches_eval_train, feed_dict=feed_dict_eval_train)
    # collecting and storing predictions
    net_out = res[0]
    preds = np.argmax(net_out, axis=-1)
    confusion_test.batch_add(targets_test, preds)
    print "\nTest set Acc:  %f" %(confusion_test.accuracy())
    test_acc = confusion_test.accuracy()

    epoch = np.arange(len(train_acc))
    plt.figure()
    plt.plot(epoch,train_acc,'r',epoch,valid_acc,'b')
    plt.legend(['Train Acc','Val Acc'])
    plt.xlabel('Epochs'), plt.ylabel('Acc'), plt.ylim([0.2,1.03])
    plt.show()
    train_accuracy[fi] = train_acc[-1]
    test_accuracy[fi] = test_acc
    valid_accuracy[fi] = valid_acc[-1]

print '\nMean accuray of test set: %f %%' %(np.mean(test_accuracy)*100)

t2_time = timeit.default_timer()
print(('The code for Tensorflow ' +os.path.split(__file__)[1] +' ran for %.2fm' % ((t2_time - t1_time) / 60.)))
