SolidWorks二次开发-Pack And Go实例

SolidWorks二次开发指的是使用SolidWorks软件提供的开发工具和API（应用程序接口），对SolidWorks软件进行定制化开发，以适应用户特定需求的过程。通过这种方式，用户可以自定义SolidWorks的功能、界面和工具，使其更加符合其工作流程和需求，提高工作效率和精度。SolidWorks二次开发需要具备一定的编程和软件开发技能，比如熟悉C++、C#、VB、Python等编程语言，并熟悉SolidWorks API的使用方法。

刚好最近没什么主题写文章，有个网友自学开发，问到打包的改名问题。我就来写个例子吧，因为官方的例子只写了加前缀和生缀，没有写如何修改每个零件的名称，以及如何保持标准件的原始引用关系。

举个例子，下面这个零件有三个零件一个工程图

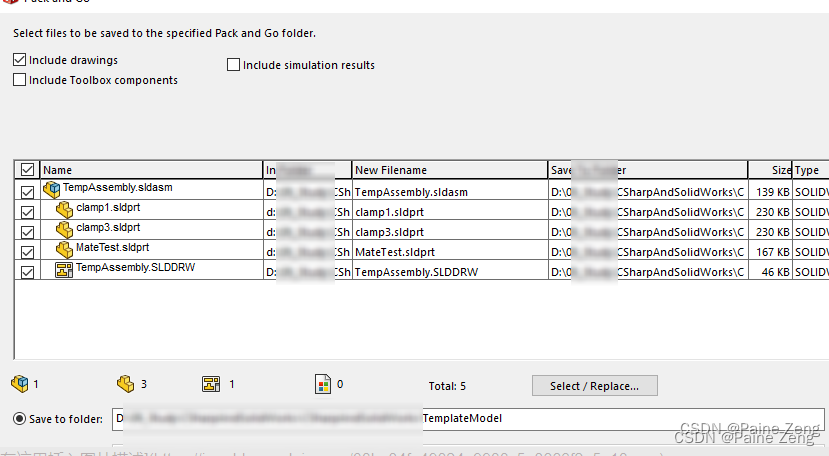

如果用英文系统或者英文版solidworks的人肯定能看出来，这个操作是Pack And Go

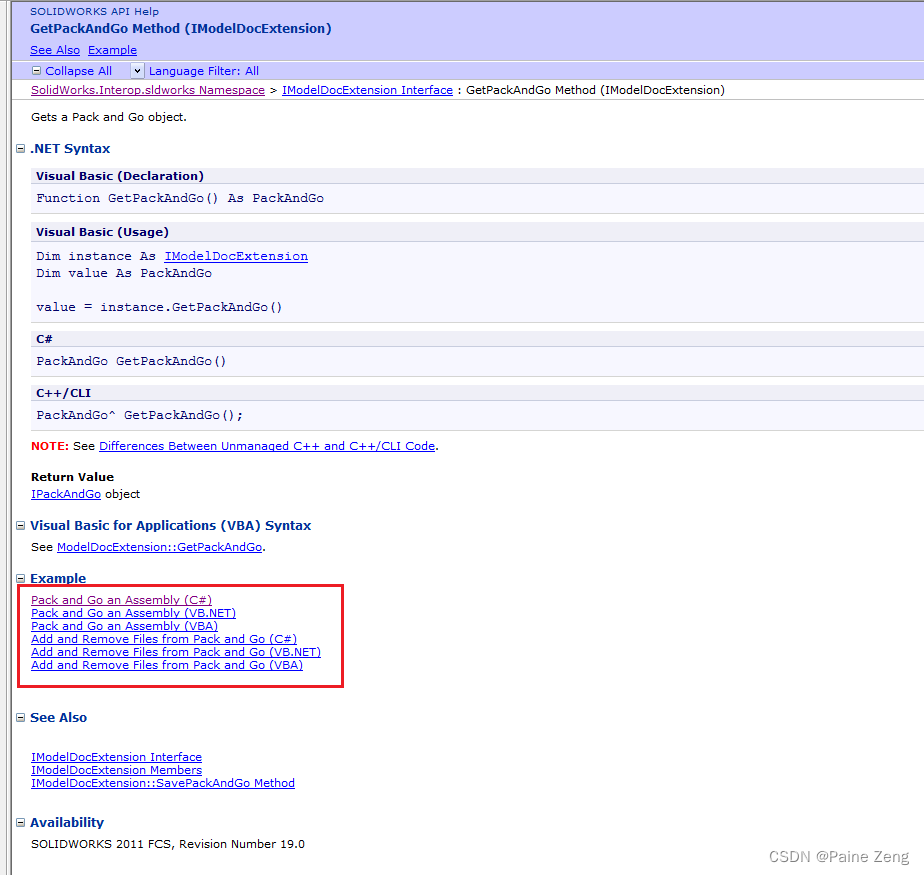

所以先在api帮助中找一找。

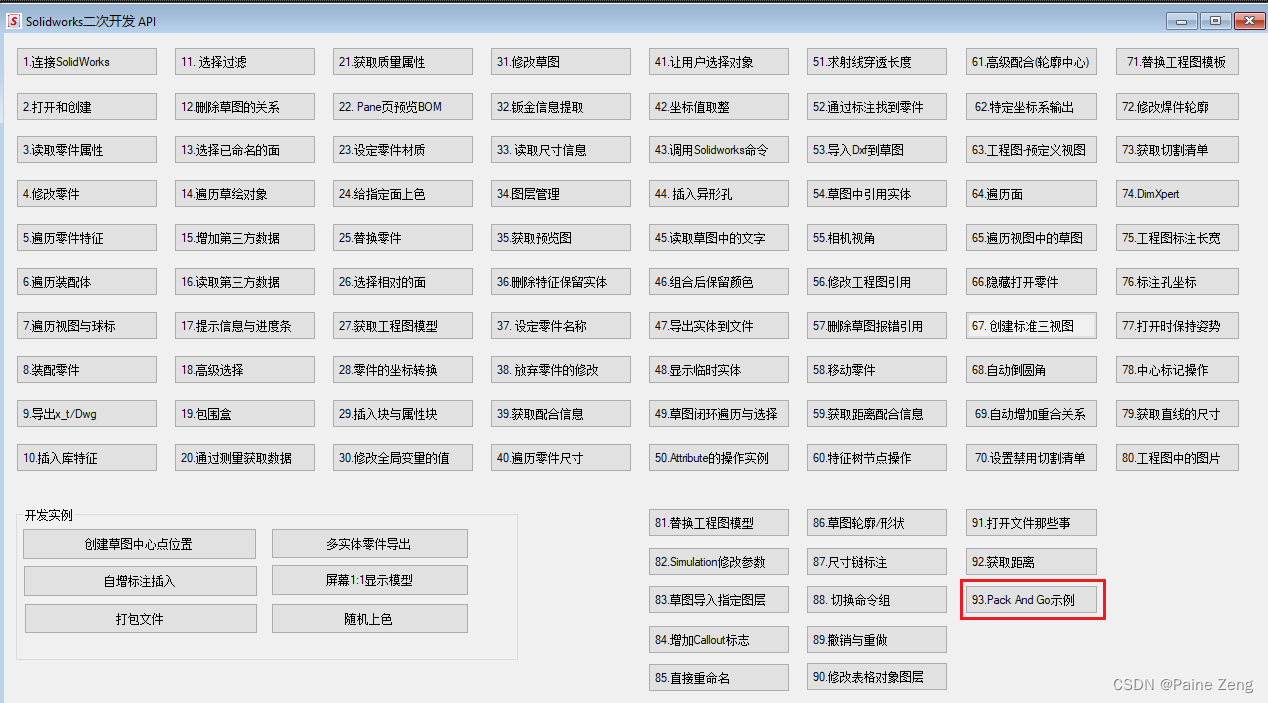

再具体的例子我就不讲了，直接上引起代码:

		private void btnPackAndGo_Click(object sender, EventArgs e)
		{

			SldWorks swApp = Utility.ConnectToSolidWorks();

            string sourceAsmFile = @"D:\09_Study\CSharpAndSolidWorks\CSharpAndSolidWorks\TemplateModel\TempAssembly.sldasm";
            string targetAsmFolder = @"D:\PackPath\";
			Dictionary<string, string> replaceList= new Dictionary<string, string>();

            replaceList.Add("TempAssembly", "我的新装配");
            replaceList.Add("clamp1", "新零件1");
            replaceList.Add("clamp3", "新零件6");
            replaceList.Add("MateTest", "配合测试");

			PackAndGo(swApp, sourceAsmFile, targetAsmFolder, true,replaceList,"SW-","");


		}

        /// <summary>
        /// 利用solidworks打包
        /// </summary>
        /// <param name="swApp"></param>
        /// <param name="sourceAsmFile">源装配体路径</param>
        /// <param name="targetAsmFile">目标路径</param>
        /// <param name="includeDwg">是否包含图纸</param>
        /// <param name="replaceList">替换内容</param>
        /// <param name="AddPrefix">前缀</param>
        /// <param name="AddSuffix">后缀</param>
        private void PackAndGo(SldWorks swApp, string sourceAsmFile,string targetAsmFolder,bool includeDwg, Dictionary<string,string> replaceList,string AddPrefix="",string AddSuffix="")
        {
			ModelDoc2 swModelDoc = default(ModelDoc2);
			ModelDocExtension swModelDocExt = default(ModelDocExtension);
			PackAndGo swPackAndGo = default(PackAndGo);
			bool status = false;
			int warnings = 0;
			int errors = 0;
			int i = 0;
			int namesCount = 0;
			string myPath = null;
			int[] statuses = null;

			// Open assembly

			swModelDoc = (ModelDoc2)swApp.OpenDoc6(sourceAsmFile, (int)swDocumentTypes_e.swDocASSEMBLY, (int)swOpenDocOptions_e.swOpenDocOptions_Silent, "", ref errors, ref warnings);
			swModelDocExt = (ModelDocExtension)swModelDoc.Extension;

			// Get Pack and Go object
			Debug.Print("Pack and Go");
			swPackAndGo = (PackAndGo)swModelDocExt.GetPackAndGo();

			// Get number of documents in assembly
			namesCount = swPackAndGo.GetDocumentNamesCount();
			Debug.Print("  Number of model documents: " + namesCount);

			// Include any drawings, SOLIDWORKS Simulation results, and SOLIDWORKS Toolbox components
			swPackAndGo.IncludeDrawings = includeDwg;
			Debug.Print(" Include drawings: " + swPackAndGo.IncludeDrawings);
			swPackAndGo.IncludeSimulationResults = true;
			Debug.Print(" Include SOLIDWORKS Simulation results: " + swPackAndGo.IncludeSimulationResults);
			swPackAndGo.IncludeToolboxComponents = true;
			Debug.Print(" Include SOLIDWORKS Toolbox components: " + swPackAndGo.IncludeToolboxComponents);

			// Get current paths and filenames of the assembly's documents
			object fileNames;
			object[] pgFileNames = new object[namesCount - 1];
			status = swPackAndGo.GetDocumentNames(out fileNames);
			pgFileNames = (object[])fileNames;

			Debug.Print("");
			Debug.Print("  Current path and filenames: ");
			if ((pgFileNames != null))
			{
				for (i = 0; i <= pgFileNames.GetUpperBound(0); i++)
				{
					Debug.Print("    The path and filename is: " + pgFileNames[i]);
				}
			}

			// Get current save-to paths and filenames of the assembly's documents
			object pgFileStatus;
			status = swPackAndGo.GetDocumentSaveToNames(out fileNames, out pgFileStatus);
			pgFileNames = (object[])fileNames;
			Debug.Print("");
			Debug.Print("  Current default save-to filenames: ");
			if ((pgFileNames != null))
			{
				for (i = 0; i <= pgFileNames.GetUpperBound(0); i++)
				{
					Debug.Print("   The path and filename is: " + pgFileNames[i]);
				}
			}

			// Set folder where to save the files

			status = swPackAndGo.SetSaveToName(true, targetAsmFolder);

			// Flatten the Pack and Go folder structure; save all files to the root directory
			swPackAndGo.FlattenToSingleFolder = true;

			// Add a prefix and suffix to the filenames
			swPackAndGo.AddPrefix = AddPrefix;
			swPackAndGo.AddSuffix = AddSuffix;

			// Verify document paths and filenames after adding prefix and suffix
			object getFileNames;
			object getDocumentStatus;
			string[] pgGetFileNames = new string[namesCount - 1];

			status = swPackAndGo.GetDocumentSaveToNames(out getFileNames, out getDocumentStatus);
			pgGetFileNames = (string[])getFileNames;
			Debug.Print("");
			Debug.Print("  My Pack and Go path and filenames after adding prefix and suffix: ");
			for (i = 0; i <= pgGetFileNames.Count()-1; i++)
			{

				Debug.Print("  替换前  My path and filename is: " + pgGetFileNames[i]);

				foreach (var replaceItem  in replaceList)
                {
					pgGetFileNames[i]= pgGetFileNames[i].Replace(replaceItem.Key, replaceItem.Value);
				}

				Debug.Print("  替换后  My path and filename is: " + pgGetFileNames[i]);

             }


            //重新保存名称
            swPackAndGo.SetDocumentSaveToNames(pgGetFileNames);

			// 执行打包。
			statuses = (int[])swModelDocExt.SavePackAndGo(swPackAndGo);

            swApp.CloseDoc(swApp.IActiveDoc2.GetPathName());


		}

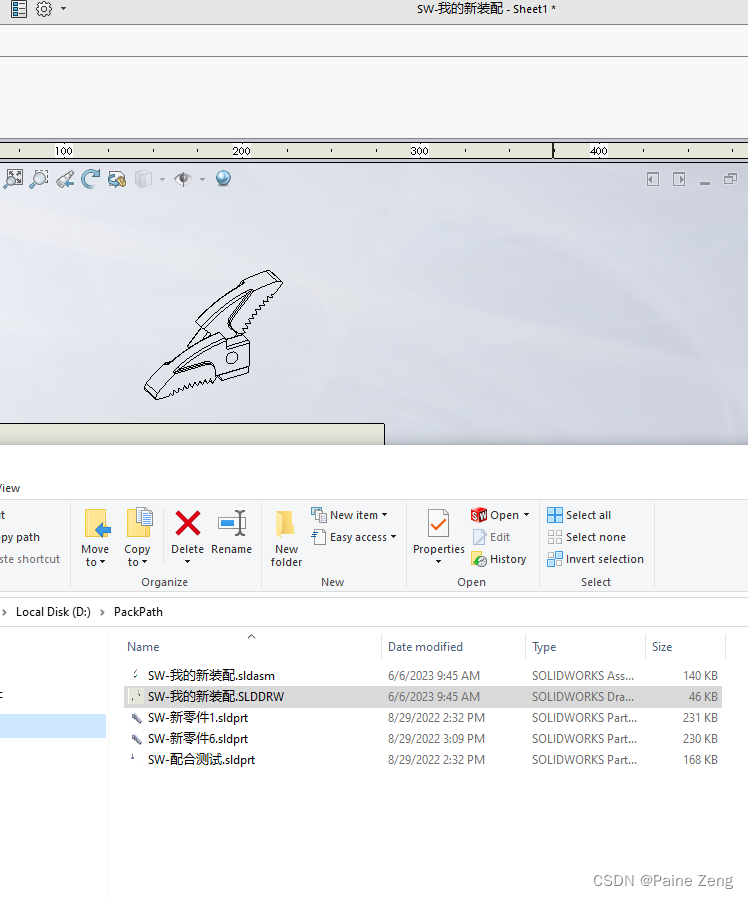

执行完结果 就这样了，打开是正常的。

好了，今天就写这么多了。这是是经常用的一个方法，需要大家自己消化。
