淘宝系抓包hook模块

frida脚本:

setTimeout(function () {
     console.log('start——*-*-*-*-*-');
    Java.perform(function () {
        var SwitchConfig = Java.use('mtopsdk.mtop.global.SwitchConfig');
        SwitchConfig.isGlobalSpdySwitchOpen.overload().implementation = function () {
            var ret = this.isGlobalSpdySwitchOpen.apply(this, arguments);
            console.log("开启抓包" + ret);
            return false;
        }
    });
});

使用xposed模块hook淘宝的SPDY协议，使其能够被抓包
xposed模块

tb_kill_proxy.apk

package com.example.tb_proxy_hook;

import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.XC_MethodHook$MethodHookParam;
import de.robv.android.xposed.XC_MethodHook;
import de.robv.android.xposed.XposedBridge;
import de.robv.android.xposed.XposedHelpers;
import de.robv.android.xposed.callbacks.XC_LoadPackage$LoadPackageParam;

public class MainMtop implements IXposedHookLoadPackage {
    public MainMtop() {
        super();
    }

    public void handleLoadPackage(XC_LoadPackage$LoadPackageParam loadPackageParam) throws Throwable {
        if(loadPackageParam.packageName.contains("com.taobao.")) {
            this.hook(loadPackageParam.packageName, loadPackageParam.classLoader);
        }
    }

    public void hook(String packageName, ClassLoader classLoader) {
        XposedHelpers.findAndHookMethod(XposedHelpers.findClassIfExists("mtopsdk.mtop.global.SwitchConfig", classLoader), "isGlobalSpdySwitchOpen", new Object[]{new XC_MethodHook(packageName) {
            protected void afterHookedMethod(XC_MethodHook$MethodHookParam methodHookParam) throws Throwable {
                super.afterHookedMethod(methodHookParam);
                MainMtop mainMtop = MainMtop.this;
                mainMtop.log(" " + this.val$package_name + "开启抓包");
                methodHookParam.setResult(Boolean.valueOf(false));
            }
        }});
    }

    public void log(Object object) {
        String tag = "淘宝系_ ";
        if(object != null) {
            XposedBridge.log(tag + object.toString());
        }
        else {
            XposedBridge.log(tag + object);
        }
    }
}

tb_kill_proxy_1.2.apk

package com.example.tb_proxy_hook;

import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.XC_MethodHook$MethodHookParam;
import de.robv.android.xposed.XC_MethodHook;
import de.robv.android.xposed.XSharedPreferences;
import de.robv.android.xposed.XposedBridge;
import de.robv.android.xposed.XposedHelpers;
import de.robv.android.xposed.callbacks.XC_LoadPackage$LoadPackageParam;

public class MainMtop implements IXposedHookLoadPackage {
    public MainMtop() {
        super();
    }

    public void handleLoadPackage(XC_LoadPackage$LoadPackageParam loadPackageParam) throws Throwable {
        if((loadPackageParam.packageName.contains("com.taobao")) || (loadPackageParam.packageName.contains("com.tmall"))) {
            this.hookTB(loadPackageParam.packageName, loadPackageParam.classLoader);
        }
    }

    public void hookTB(String packageName, ClassLoader classLoader) {
        XposedHelpers.findAndHookMethod(XposedHelpers.findClassIfExists("mtopsdk.mtop.global.SwitchConfig", classLoader), "isGlobalSpdySwitchOpen", new Object[]{new XC_MethodHook(packageName) {
            protected void afterHookedMethod(XC_MethodHook$MethodHookParam methodHookParam) throws Throwable {
                super.afterHookedMethod(methodHookParam);
                XSharedPreferences xsharedPreferences = new XSharedPreferences("com.example.tb_proxy_hook", "hook");
                xsharedPreferences.reload();
                MainMtop mainMtop = MainMtop.this;
                mainMtop.log(" " + this.val$package_name + "开启抓包->" + String.valueOf(xsharedPreferences.getBoolean("flag", true)));
                methodHookParam.setResult(Boolean.valueOf(xsharedPreferences.getBoolean("flag", true) ^ 1));
            }
        }});
    }

    public void log(Object log) {
        String logTag = "淘宝系_ ";
        if(log != null) {
            XposedBridge.log(logTag + log.toString());
        }
        else {
            XposedBridge.log(logTag + log);
        }
    }
}

目前测试淘宝抓包可以用，喜欢的可以start一下
————————————————
版权声明：本文为CSDN博主「成小新」的原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接及本声明。
原文链接：https://blog.csdn.net/qq_34067821/article/details/103203549



(银泰喵街、淘宝系、支付宝系app) Android Mtop网关接入fiddler/burp/charles抓包研究

本文分析的是银泰喵街的抓包。

拿到android app抓包，出现http包不走fiddler等代理的情况，通过jadx查看该app使用了mtop sdk，

mtop Android SDK接入手册网址https://help.aliyun.com/document_detail/69785.html，查看手册对应的hook位置在SwitchConfig.getInstance().setGlobalSpdySwitchOpen(false);

GlobalSpdySwitchOpen hook设置成false之后，我们就可以看到https://acs.m.taobao.com/gw/的包文了。

下面提供xposed/frida解决方法

1、xposed代码如下

 public void hook(ClassLoader classLoader) {

        Class SwitchConfig = findClassIfExists("mtopsdk.mtop.global.SwitchConfig", classLoader);

        findAndHookMethod(SwitchConfig, "isGlobalSpdySwitchOpen", new XC_MethodHook() {
            @Override
            protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                super.afterHookedMethod(param);
                String isGlobalSpdySwitchOpen = (String) param.getResult();
                log("SwitchConfig.isGlobalSpdySwitchOpen()=" + isGlobalSpdySwitchOpen);
                param.setResult(false);
            }
        });
    }

 2、frida代码如下


function hook_spdy(){
    var SwitchConfig = Java.use('mtopsdk.mtop.global.SwitchConfig');
    SwitchConfig.isGlobalSpdySwitchOpen.overload().implementation = function(){
        var ret = this.isGlobalSpdySwitchOpen.apply(this, arguments);
        console.log("\nSwitchConfig.isGlobalSpdySwitchOpen()="+ret);
        return false;
    }
}

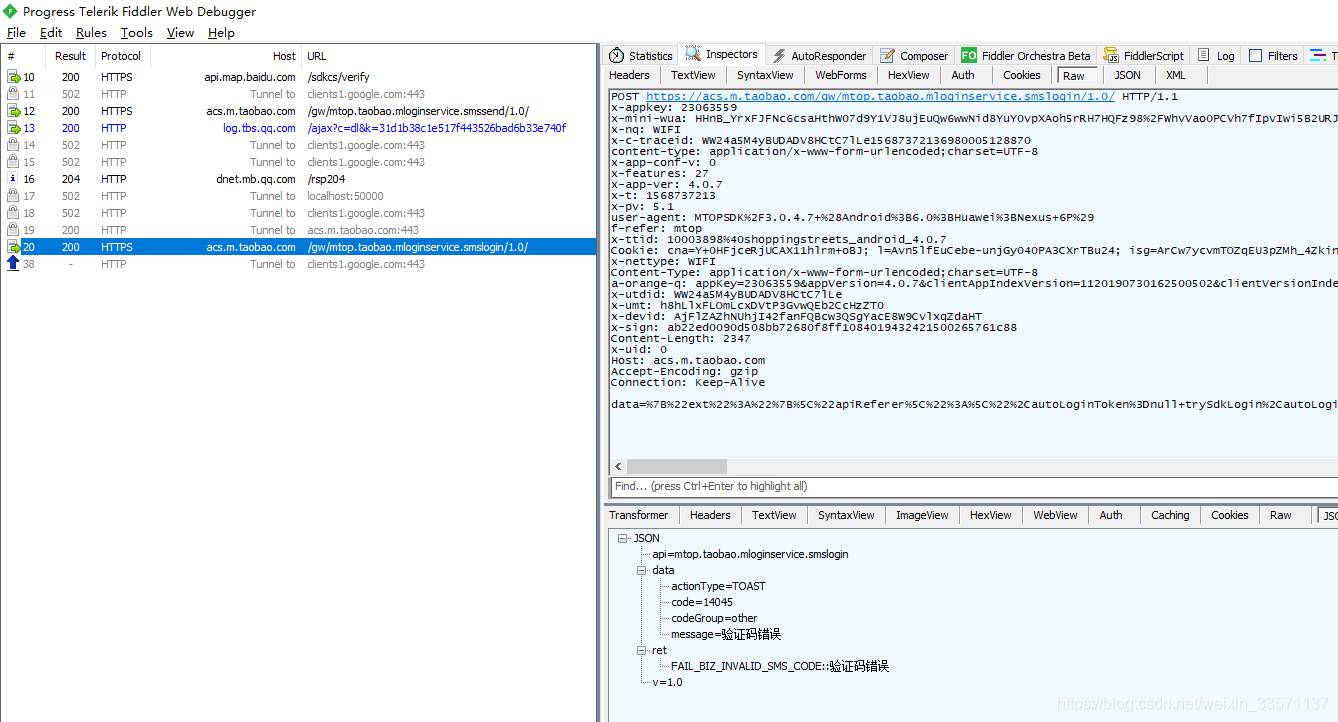

3、fiddler抓包成功截图

4、对应代码下载链接

xposed：https://download.csdn.net/download/weixin_33571137/11763987

frida：https://download.csdn.net/download/weixin_33571137/11763981

jadx(支持中文)：https://download.csdn.net/download/weixin_33571137/11646486
————————————————
版权声明：本文为CSDN博主「YT010_PL」的原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接及本声明。
原文链接：https://blog.csdn.net/weixin_33571137/article/details/100944804



某淘宝系产品抓包解决方案

转：https://www.freesion.com/article/9804182218/

我们经常需要爬取一些淘宝的数据，使用一些忽略ssl校验的xposed工具却抓不到包，最后我们发现它用的是sdpy协议.我们只需要hook它的app里的一些方法即可抓包。

public void hookNet(final ClassLoader classLoader) {

    Class SwitchConfig = findClassIfExists("mtopsdk.mtop.global.SwitchConfig", classLoader);

    findAndHookMethod(SwitchConfig, "isGlobalSpdySwitchOpen", new XC_MethodHook() {
        @Override
        protected void afterHookedMethod(MethodHookParam param) throws Throwable {
            super.afterHookedMethod(param);
            Boolean isGlobalSpdySwitchOpen = (Boolean) param.getResult();
            log("SwitchConfig.isGlobalSpdySwitchOpen()=" + isGlobalSpdySwitchOpen);
            param.setResult(false);
        }
    });

    findAndHookMethod(SwitchConfig, "isGlobalSpdySslSwitchOpen", new XC_MethodHook() {
        @Override
        protected void afterHookedMethod(MethodHookParam param) throws Throwable {
            super.afterHookedMethod(param);
            Boolean isGlobalSpdySwitchOpen = (Boolean) param.getResult();
            log("SwitchConfig.isGlobalSpdySslSwitchOpen()=" + isGlobalSpdySwitchOpen);
            param.setResult(false);
            hookSignRequest(classLoader);
        }
    });
}

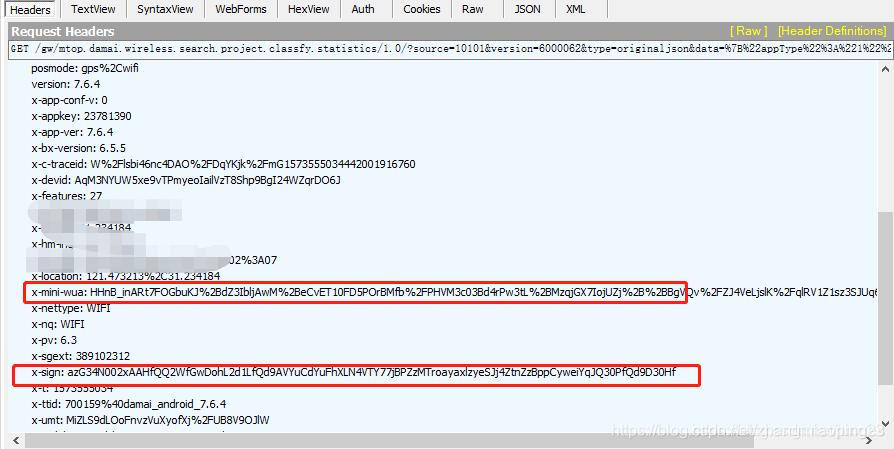

我们发现了它的抓包，但是抓包却有签名x-sign的校验，我们就必须hook取到它的x-sign参数生成。

我们发现它在mtopsdk.security包名下。

public void hookSign(final ClassLoader classLoader) {

        String []subClassArr = {"b", "c", "d", "e"};

        for (int i = 0; i < subClassArr.length; i++) {

            final Class SwitchConfig = findClassIfExists("mtopsdk.security."+subClassArr[i], classLoader);
            Log.i(TAG, "hookSign: find " +SwitchConfig.getName());
            hookSignRequest(classLoader);
            if(subClassArr[i] .equalsIgnoreCase("b")){
                findAndHookMethod(SwitchConfig, "getSign", HashMap.class, String.class,  new XC_MethodHook() {
                    @Override
                    protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
                        super.beforeHookedMethod(param);
                        Log.i(TAG, "start: go into"+SwitchConfig.getName());
                        Log.i(TAG, "start: go into" + param.args.length);
                    }

                    @Override
                    protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                        super.afterHookedMethod(param);
                        String sign = (String) param.getResult();
                        log("SwitchConfig.hookSign()=" + sign);
                    }
                });
            }


            findAndHookMethod(SwitchConfig, "getMtopApiSign", HashMap.class, String.class, String.class, new XC_MethodHook() {
                @Override
                protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
                    super.beforeHookedMethod(param);
                    Log.i(TAG, "start: go into"+SwitchConfig.getName());
                    Log.i(TAG, "start: go into" + param.args.length);
                    Log.i(TAG, "start: go into");
                }

                @Override
                protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                    super.afterHookedMethod(param);
                    String sign = (String) param.getResult();
                    hookSignRequest(classLoader);
                    log("SwitchConfig.hookSign()=" + sign);
                }
            });
        }


    }
