华为eNSP:汇总实验

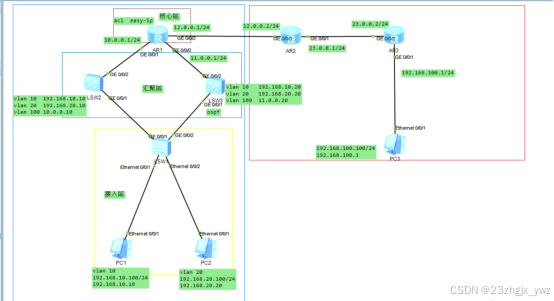

一、实验拓扑

• 实验的技术有：

vlan的划分、vlan间的通信、静态路由、基本acl、easy-ip

• 实验要求：

VLAN之间进行通信

用easy-ip是内网访问外网

实验步骤：

LSW1交换机划分VLAN：

<Huawei>system-view  //进入系统视图

[Huawei]undo info-center enable  //关闭路由器输出信息

[Huawei]sysname LSW1   //修改设备名为LSW1

[LSW1]vlan batch 10 20  //创建 vlan 10 20

[LSW1]interface e0/0/1   //进入接口e0/0/1

[LSW1-Ethernet0/0/1]port link-type access  //设置为 access模式

[LSW1-Ethernet0/0/1]port default vlan 10   //默认vlan为10

[LSW1-Ethernet0/0/1]undo shutdown  //打开接口

[LSW1-Ethernet0/0/1]interface e0/0/2  //进入接口e0/0/2

[LSW1-Ethernet0/0/2]port link-type access  //设置为access模式

[LSW1-Ethernet0/0/2]port default vlan 20   //默认vlan 为20

[LSW1-Ethernet0/0/2]undo shutdown  //打开接口

[LSW1-Ethernet0/0/2]interface e0/0/3  //进入接口e0/0/3

[LSW1-Ethernet0/0/3]port link-type access  //设置为access模式

[LSW1-Ethernet0/0/3]port default vlan 10  //设置默认vlan 为 10

[LSW1-Ethernet0/0/3]undo shutdown  //打开接口

[LSW1-Ethernet0/0/3]interface g0/0/1  //进入接口g0/0/1

[LSW1-GigabitEthernet0/0/1]port link-type trunk  //设置trunk模式

[LSW1-GigabitEthernet0/0/1]port trunk allow-pass vlan all  设置所有vlan允许通过

[LSW1-GigabitEthernet0/0/1]undo shutdown  //开启端口

[LSW1-GigabitEthernet0/0/1]int g0/0/2  //进入接口g0/0/2

[LSW1-GigabitEthernet0/0/2]port link-type trunk  //设置trunk 模式

[LSW1-GigabitEthernet0/0/2]port trunk allow-pass vlan all   设置所有vlan允许通过

[LSW1-GigabitEthernet0/0/2]undo shutdown  //打开接口

[LSW1-GigabitEthernet0/0/2]quit  //退出

LSW2交换机设置VLANIF

<Huawei>system-view  //进入系统视图

[Huawei]undo info-center enable   //关闭路由器输出信息

[Huawei]sysname LSW2  //修改设备名为 LSW2

[LSW2]vlan batch 10 20 100  //创建vlan 10 20 100

[LSW2]interface vlanif 10   //进入虚拟接口vlanif 10

[LSW2-Vlanif10]ip add 192.168.10.10 24  // 设置接口IP

[LSW2-Vlanif10]vrrp vrid 1 virtual-ip 192.168.10.1  //设置虚拟IP

[LSW2-Vlanif10]vrrp vrid 1 priority 120  //设置优先级120

[LSW2-Vlanif10]vrrp vrid 1 preempt-mode timer delay 5   //设置抢占时间5s

[LSW2-Vlanif10]vrrp vrid 1 track int g0/0/2 reduced 30  //监控上行接口

[LSW2-Vlanif10]vrrp vrid 1 track int g0/0/1 reduced 30  //监控下行接口

[LSW2-Vlanif10]di th  //查看所有配置

#

interface Vlanif10

 ip address 192.168.10.10 255.255.255.0

 vrrp vrid 1 virtual-ip 192.168.10.1

 vrrp vrid 1 priority 120

 vrrp vrid 1 preempt-mode timer delay 5

 vrrp vrid 1 track interface GigabitEthernet0/0/2 reduced 30

 vrrp vrid 1 track interface GigabitEthernet0/0/1 reduced 30

#

return

[LSW2-Vlanif10]quit

[LSW2]int vlanif 20  //进入虚拟接口vlanif 20

[LSW2-Vlanif20]ip add 192.168.20.20 24  //配置接口IP

[LSW2-Vlanif20]vrrp vrid 2 virtual-ip 192.168.20.1  //配置虚拟IP

[LSW2-Vlanif20]di th  //查看配置

#

interface Vlanif20

 ip address 192.168.20.20 255.255.255.0

 vrrp vrid 2 virtual-ip 192.168.20.1

#

return

[LSW2-Vlanif20]quit

[LSW2]interface g0/0/1  //进入接口g0/0/1

[LSW2-GigabitEthernet0/0/1]port link-type trunk  //配置trunk模式

[LSW2-GigabitEthernet0/0/1]port trunk allow-pass vlan all  //设置所有vlan允许通过

[LSW2-GigabitEthernet0/0/1]di th  //查看配置

#

interface GigabitEthernet0/0/1

 port link-type trunk

 port trunk allow-pass vlan 2 to 4094

#

return

[LSW2-GigabitEthernet0/0/1]undo shutdown  //启动接口

Info: Interface GigabitEthernet0/0/1 is not shutdown.

[LSW2-GigabitEthernet0/0/1]quit  //返回

[LSW2]int vlanif 100  //进入虚拟接口vlanif100

[LSW2-Vlanif100]ip add 10.0.0.10 24  //设置接口IP

[LSW2-Vlanif100]quit  //返回

[LSW2]interface g0/0/2   //进入g0/0/2接口

[LSW2-GigabitEthernet0/0/2]port link-type access  //设置access模式

[LSW2-GigabitEthernet0/0/2]port default vlan 100  //设置默认 vlan100

[LSW2-GigabitEthernet0/0/2]undo shutdown  //开启接口

[LSW2-GigabitEthernet0/0/2]di th  //查看配置

#

interface GigabitEthernet0/0/2

 port link-type access

 port default vlan 100

#

return

[LSW2-GigabitEthernet0/0/2]q

[LSW2]ip route-static 0.0.0.0 0.0.0.0 10.0.0.1  //配置默认路由

LSW3交换机设置VLANIF

<Huawei>sys  //进入系统视图

[Huawei]sysname LSW3  //修改设备名为 LSW3

[LSW3]undo info-center enable   //关闭路由器输出信息

[LSW3]vlan batch 10 20 100   //创建vlan 10 20 100

[LSW3]int vlanif 10  //进入虚拟接口vlanif10

[LSW3-Vlanif10]ip add 192.168.10.20 24  //设置接口IP

[LSW3-Vlanif10]vrrp vrid 1 virtual-ip 192.168.10.1  //设置虚拟IP

[LSW3-Vlanif10]di th  //查看接口

#

interface Vlanif10

 ip address 192.168.10.20 255.255.255.0

 vrrp vrid 1 virtual-ip 192.168.10.1

#

return

[LSW3-Vlanif10]quit

[LSW3]int vlanif 20  //进入虚拟接口vlanif 20

[LSW3-Vlanif20]ip add 192.168.20.10 24  //设置接口IP

[LSW3-Vlanif20]vrrp vrid 2 virtual-ip 192.168.20.1  //设置虚拟IP

[LSW3-Vlanif20]vrrp vrid 2 priority 120  //设置优先级120

[LSW3-Vlanif20]vrrp vrid 2 preempt-mode timer delay 5  //设置抢占时间5s

[LSW3-Vlanif20]vrrp vrid 2 track int g0/0/2 reduced 30  //监控上行接口

[LSW3-Vlanif20]vrrp vrid 2 track int g0/0/1 reduced 30  //监控下行接口

[LSW3-Vlanif20]di th  //查看命令

#

interface Vlanif20

 ip address 192.168.20.10 255.255.255.0

 vrrp vrid 2 virtual-ip 192.168.20.1

 vrrp vrid 2 priority 120

 vrrp vrid 2 preempt-mode timer delay 5

 vrrp vrid 2 track interface GigabitEthernet0/0/2 reduced 30

 vrrp vrid 2 track interface GigabitEthernet0/0/1 reduced 30

#

return

[LSW3-Vlanif20]quit

[LSW3]int vlanif 100  //进入虚拟接口vlanif 100

[LSW3-Vlanif100]ip add 11.0.0.20 24  //设置接口IP

[LSW3-Vlanif100]int g0/0/2  //进入接口g0/0/2

[LSW3-GigabitEthernet0/0/2]port link-type access  //设置access模式

[LSW3-GigabitEthernet0/0/2]port default vlan 100  //默认vlan100

[LSW3-GigabitEthernet0/0/2]undo shutdown  //开启接口

[LSW3-GigabitEthernet0/0/2]di th  //查看配置

#

interface GigabitEthernet0/0/2

 port link-type access

 port default vlan 100

#

return

[LSW3-GigabitEthernet0/0/2]int g0/0/1  //进入g0/0/1接口

[LSW3-GigabitEthernet0/0/1]port link-type trunk  //设置trunk模式

[LSW3-GigabitEthernet0/0/1]port trunk allow-pass vlan all  //设置允许所有vlan通过

[LSW3-GigabitEthernet0/0/1]undo shutdown  //开启端口

[LSW3-GigabitEthernet0/0/1]di th  //查看端口

#

interface GigabitEthernet0/0/1

 port link-type trunk

 port trunk allow-pass vlan 2 to 4094

#

return

[LSW3-GigabitEthernet0/0/1]q

[LSW3]ip route-static 0.0.0.0 0.0.0.0 11.0.0.1  //设置默认路由

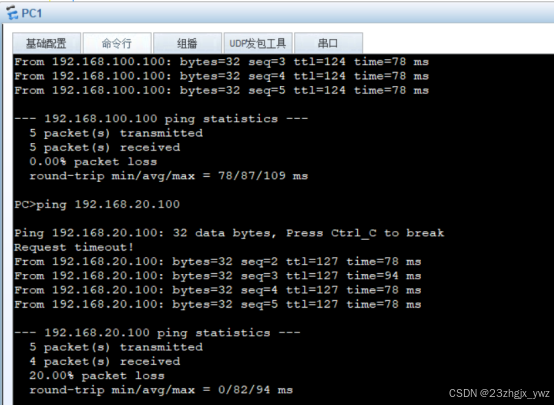

测试PC1ping通PC2

然后进行路由器的配置

路由器R1的配置

<Huawei>sys  //进入系统视图

[Huawei]undo info-center enable  //关闭路由器输出信息

[Huawei]sysname R1  //修改设备名为 R1

[R1]int g0/0/0  //进入接口g0/0/0

[R1-GigabitEthernet0/0/0]ip add 11.0.0.1 24  //设置接口IP

[R1-GigabitEthernet0/0/0]undo shutdown  //开启接口

[R1-GigabitEthernet0/0/0]int g0/0/1  //进入接口g0/0/1

[R1-GigabitEthernet0/0/1]ip add 10.0.0.1 24  //设置接口IP

[R1-GigabitEthernet0/0/1]undo shutdown  //开启接口

[R1-GigabitEthernet0/0/1]int g0/0/2  //进入接口g0/0/2

[R1-GigabitEthernet0/0/2]ip add 12.0.0.1 24  //设置接口IP

[R1-GigabitEthernet0/0/2]undo shutdown  //开启接口

[R1-GigabitEthernet0/0/2]q  //退出

#设置静态路由

[R1]ip route-static 192.168.10.0 255.255.255.0 10.0.0.10

[R1]ip route-static 192.168.10.0 255.255.255.0 11.0.0.20 preference 70

[R1]ip route-static 192.168.20.0 255.255.255.0 11.0.0.20

[R1]ip route-static 192.168.20.0 255.255.255.0 10.0.0.10

[R1]ip route-static 192.168.100.0 255.255.255.0 12.0.0.2

[R1]ip route-static 192.168.200.0 255.255.255.0 12.0.0.2

路由器R2的配置

<Huawei>sys  //进入系统视图

[Huawei]undo info-center enable   //关闭路由器输出信息

[Huawei]sysname R2   //修改设备名

[R2]int g0/0/0    //进入接口g0/0/0

[R2-GigabitEthernet0/0/0]ip add 12.0.0.2 24   //设置接口IP

[R2-GigabitEthernet0/0/0]undo shutdown   //打开接口

[R2-GigabitEthernet0/0/0]int g0/0/1   //进入接口g0/0/1

[R2-GigabitEthernet0/0/1]ip add 23.0.0.1 24   //设置接口IP

[R2-GigabitEthernet0/0/1]undo shutdown   //打开接口

[R2-GigabitEthernet0/0/1]q    //退出

#设置静态路由

[R2]ip route-static 192.168.10.0 255.255.255.0 12.0.0.1

[R2]ip route-static 192.168.20.0 255.255.255.0 12.0.0.1

[R2]ip route-static 192.168.100.0 255.255.255.0 23.0.0.2

[R2]ip route-static 192.168.200.0 255.255.255.0 23.0.0.2

路由器R3的配置

<Huawei>sys  //进入系统视图

[Huawei]undo info-center enable  //关闭路由器输出信息

[Huawei]sysname R3  //修改设备名为 R3

[R3]int g0/0/0  //进入接口g0/0/0

[R3-GigabitEthernet0/0/0]ip add 23.0.0.2 24  //配置接口IP

[R3-GigabitEthernet0/0/0]undo shutdown  //启动接口

[R3-GigabitEthernet0/0/0]q  /退出/

[R3]int g0/0/1  //进入接口g0/0/1

[R3-GigabitEthernet0/0/1]ip add 192.168.100.1 24  //配置接口IP

[R3-GigabitEthernet0/0/1]undo shutdown  //打开接口

[R3-GigabitEthernet0/0/1]int g0/0/2  //进入接口g0/0/2

[R3-GigabitEthernet0/0/2]ip add 192.168.200.1 24  //配置接口IP

[R3-GigabitEthernet0/0/2]undo shutdown  //开启接口

[R3-GigabitEthernet0/0/2]q

配置静态路由

[R3]ip route-static 0.0.0.0 0.0.0.0 23.0.0.1

 下一跳23.0.0.1

最后在R1上进行ACL和esay-ip的配置

[R1]acl 2000  //创建acl 2000

[R1-acl-basic-2000]rule permit source 192.168.10.0 0.0.0.255  //允许192.168.10.0网段IP地址通过

Easy-ip

[R1-acl-basic-2000]int g0/0/2  //进入g0/0/2接口

[R1-GigabitEthernet0/0/2]nat outbound 2000   //将acl配置的映射在这个接口上

[R1-GigabitEthernet0/0/2]quit  //退出

[R1]dis nat outbound  //查看nat映射表

 NAT Outbound Information:

 --------------------------------------------------------------------------

 Interface                     Acl     Address-group/IP/Interface      Type

 --------------------------------------------------------------------------

 GigabitEthernet0/0/2         2000                       12.0.0.1    easyip

 --------------------------------------------------------------------------

  Total : 1

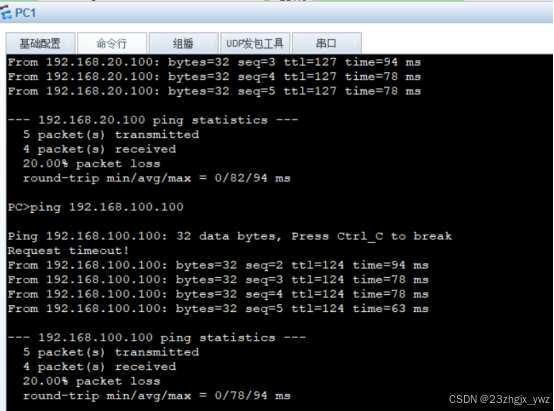

最后测试PC去ping通PC3
