MTK76X8 16M FLASH 分区信息查询及数据备份

1.查看FLASH上的分区信息：

root@OpenWrt:/# cat /proc/mtd
dev:    size   erasesize  name
mtd0: 01000000 00010000 "ALL"
mtd1: 00030000 00010000 "Bootloader"
mtd2: 00010000 00010000 "Config"
mtd3: 00010000 00010000 "Factory"
mtd4: 00fb0000 00010000 "firmware"
mtd5: 00e7c1d3 00010000 "rootfs"
mtd6: 00a20000 00010000 "rootfs_data"

2.分区解释（LINUX启动时的LOG）

[    1.524000] W25Q128BV(ef 40180000) (16384 Kbytes)
[    1.532000] mtd .name = raspi, .size = 0x01000000 (16M) .erasesize = 0x00010000 (64K) .numeraseregions = 0
[    1.552000] Creating 5 MTD partitions on "raspi":
[    1.560000] 0x000000000000-0x000001000000 : "ALL"
[    1.572000] 0x000000000000-0x000000030000 : "Bootloader"
[    1.584000] 0x000000030000-0x000000040000 : "Config"
[    1.596000] 0x000000040000-0x000000050000 : "Factory"
[    1.608000] 0x000000050000-0x000001000000 : "firmware"
[    1.620000] 0x000000183e2d-0x000001000000 : "rootfs"
[    1.628000] mtd: partition "rootfs" must either start or end on erase block boundary or be smaller than an erase block -- forcing read-only
[    1.656000] mtd: partition "rootfs_data" created automatically, ofs=0x5e0000, len=0xa20000

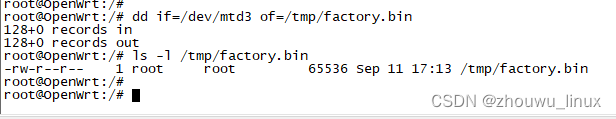

3、拷贝factory（无线校准）数据到tmp文件夹

然后使用SCP或者FTP把文件拷贝到PC机本地
